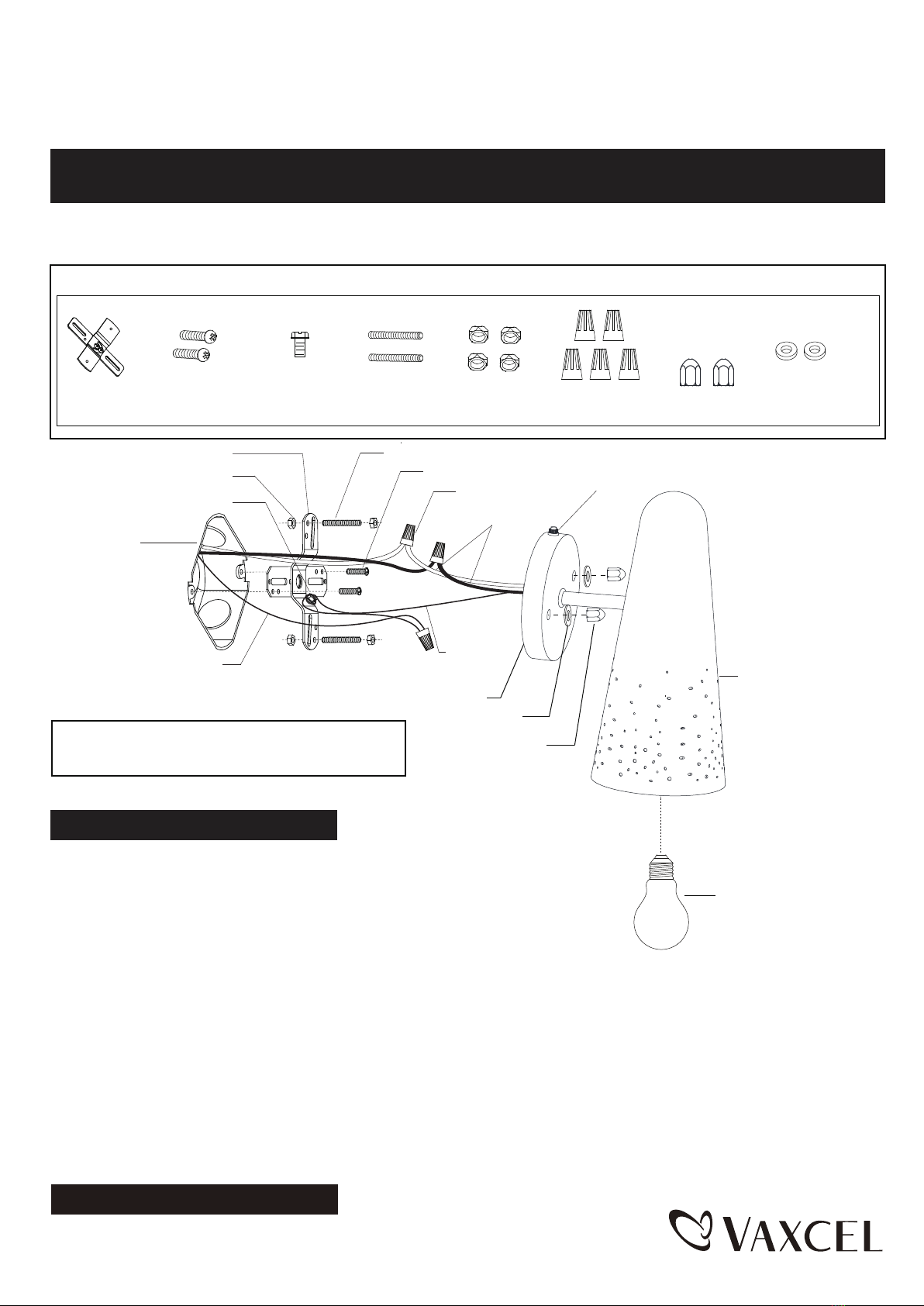

Vaxcel T0395 Instruction manual

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
95303T
Mounting Screw (B) Wire Connector (F) Ball Nut (G) Rubber Pad (H) Cross Bar (A) Green Grounding
Screw (C)
Headless
Screw (D)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
IMPORTANT:
The sensor has an excellent photocell function to enable
the light to turn on at dusk and off at dawn automatically.
Turn off the power at fuse or circuit box
Installation Steps
1. Thread two headless screws through the cross bar, and then secure them
with four lock nuts. Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally to make
the fixture level.
2. Attach the cross bar to the outlet box by using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire connector as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar with the green grounding
screw, and then connect it to the house grounding wire with the wire connector.
Carefully put the wires back into the outlet box.
4. Attach the fixture body to the cross bar by inserting headless screws into holes on back plate, and then secure it with
two rubber pads and two ball nuts.
NOTE:With silicone caulking compound, caulk completely around where the back plate meets with the wall
surface to prevent water from seeping into the outlet box.
Bulb Type A Max.60W
(not included)
Back Plate
Photocell
Fixture Body
House Grounding Wire
Green Grounding Screw(C)
Fixture Grounding Wire
Wire Connector(F)
Headless Screw(D)
Outlet Box
Fixture Wire
Lock Nut(E)
Cross Bar (A)
Ball Nut (G)
Rubber Pad (H)
Mounting Screw(B)
171221
Lock Nut (E)
5. Install a bulb (not included). Check relamping label at socket area or packaging for maximum allowed wattage.
Turn on the power at fuse or circuit box.

Assembly Kit
5813MM (1SET)
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Turn on the power at fuse or circuit box
Mounting Screw (B)
Wire Connector (F) Ball Nut (G) Rubber Pad (H)
Cross Bar (A) Green Grounding
Screw (C)
Headless
Screw (D)
1. Turn off the power at the main fuse or circuit breaker box before starting installation.
2. Loosen the wire connector connected with the wires from photocell. (See Fig.1)
Note: Do not move the photocell to prevent water from seeping into the outlet box.
3. Take a white pigtail and black pigtail and make wire connections using wire connector: (See Fig.2)
a. The black wire from the fixture to one end of the black pigtail.
b. The white wire from the fixture to one end of the white pigtail.
c. The other end of the black pigtail to the black wire from the power source.
d. The other end of the white pigtail to the white wire from the power source.
Put all wires back into the back plate of the fixture.
Wires From Fixture
Wires From
Main Power
Wire Connector
Pigtail
Operation the Unit Without Photocell
Fig.2
171221
Lock Nut (E)
A:5″
B:11″
C:6″
AC
B
Photocell
White Wires From Photocell
Wire Connector
Wires From Fixture White Pigtail
Red Wires From Photocell
Black Wires From Photocell
Fig.1
Wires From Fixture
Wires From
Main Power
Wire Connector
Pigtail
Fig.2
