VDO SENSORS - INSTRUMENTATION V3.0 User manual

Sensors for Instrumentation V 3.0
www.vdo.com
Sensors for Instrumentation V 3.0
Continental Trading GmbH
Sodener Strasse 9
65824 Schwalbach
Germany
Tel: [phone]
Fax: [phone]
www.vdo.com
E-Mail: [email protected]
VDO – A Trademark of the Continental Corporation
The information provided in this brochure contains only general descriptions or performance characteristics, which do not always apply as described in case of
actual use or which may change as a result of further development of the products. This information is merely a technical description of the product. This infor-
mation is not meant or intended to be a special guarantee for a particular quality or a particular durability. An obligation to provide the respective characteristics
shall only exist if expressly agreed in the terms of contract. We reserve the right to make changes in availability as well as technical changes without prior notice.
A2C59513676 I Continental Trading GmbH © 2010
Printed in Germany
Please note:
Application – The products described in
this catalogue are designed for use in
land vehicles, engines and equipment.
Disclaimer – The data in this replacement
parts catalogue has been compiled and
processed for the purpose of presenting
our replacement parts range and is correct
to the best of our knowledge. Subject to
technical alterations, errors and omissions.
Availability is not guaranteed. We cannot
be held liable with regard to any information
contained in the Continental Trading replacement
parts catalogue except in case of intent,
gross negligence or where mandatory liability
is borne in accordance with German product
liability law.
Catalogues
• Actuators for Central Locking Systems
• Engine Actuators
• HVAC Blower and Fan Systems
• Screen Headlight Washer Systems
• Sensors Engine Management
• Fuel Systems
• Oxygen Sensors
TecDoc CATALOG (DVD)
TecDoc WEB CATALOG
• Electronic Automotive Parts Catalogue
Information | Order
TecDoc Informations System GmbH
Arnikaweg 3
51109 Cologne
Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.tecdoc.net
Internet
• www.vdo.com
Continental is a certified
TecDoc partner.

The Company
2
Legend Legend
179 180
The Company
Alongside our many specialised solutions for auto-
motive manufacturers, we also offer comprehensive
solutions and services for the aftermarket. Spare parts
of matching quality, supplied with the experience and
proven expertise of an OEM supplier are a particular
strength. Our comprehensive range of spare parts of
matching quality is readily available and is synonymous
with a perfect fit, simple installation and consistently
reliable quality, offering significant advantages for distri-
butors, workshops and consumers alike.
Sensoren Abbreviation Page Type of connection
Form
Special feature
Diameter
See note “Lx” on the data sheet
(x = 1, 2, 3, … )
Switch point
Vented/Unvented
Lever arm radius without float
Travel (empty-full)
Sheet metal thickness
Measuring point I
Measuring point II
Delayed action at -20° C and 9 V [sec]
Delayed action at -20° C and 10 V [sec]
Thread
Maximum tightening
torque for a sender
Sensor connector
Measuring range [bar]
Measuring range [° C]
Warning contact/Switch point [bar]
Warning contact/Switch point [° C]
Make point/Break point
Resistor at [° C]
Operation voltage [V]
Operating temperature [° C]
Maximum operating temperature [° C]
Pulses per revolution
Maximum revolutions [min-1]
Bolt circle diameter
of flange [mm]
Installation depth L
Resistor “full” [Ω]
Resistor “empty” [Ω]
Manufacturers
Impulse pro Umdrehung
Nm max. Geber
Pressure Senders – Without Warning Contact, Common Ground PS woWC CG 12
Pressure Senders – With Warning Contact, Common Ground PS wWC CG 14
Pressure Senders – Without Warning Contact, Insulated Return PS woWC IR 18
Pressure Senders – With Warning Contact, Insulated Return PS wWC IR 20
Pressure Switches – Common Ground or Insulated Return PSw CG-IR 26
Temperature Senders – Without Warning Contact,
Common Ground or Insulated Return TS woWC CG-IR 30
Temperature Senders – With Warning Contact, Common Ground TS wWC CG 34
Temperature Senders (special) – With 2 Measuring Points TS (Sp) 2MS 36
Temperature Senders (special) – For Bimetal Indicating Instruments TS (Sp) Bi 38
Temperature Senders (special) –
Air (VDO cockpit vision/VDO cockpit international) TS (Sp) cockpit 40
Temperature Senders (special) – Air (VDO LCD cockpit) TS (Sp) LCD 42
Temperature Switches – Type A, Common Ground TSw-A-CG 48
Temperature Switches – Type B, Insulated Return TSw-B-IR 52
RPM and Speed Senders – Blocking-Oscillator Senders RPM/SS BOscillator 56
RPM and Speed Senders – Frequency-Generator Senders RPM/SS FGenerator 58
RPM and Speed Senders – Generator-Type Senders RPM/SS Generator 60
RPM and Speed Senders – Hall-Effect Senders RPM/SS Hall 62
RPM and Speed Senders – Inductive Senders RPM/SS Inductive 64
Lever-Type Senders – Without Warning Contact, Insulated Return LTS woWC IR 68
Lever-Type Senders – Without Warning Contact, Insulated Return (adjustable) LTS (Ver) woWC IR 72
Lever-Type Senders – Without Warning Contact,
Common Ground or Insulated Return (special) LTS (Sp) woWC CG-IR 74
Tubular-Type Senders – Without Warning Contact,
Common Ground or Insulated Return (ø 54 mm) TTS 54 woWC CG-IR 80
Tubular-Type Senders – Without Warning Contact,
Common Ground or Insulated Return (ø 80 mm) TTS 80 woWC CG-IR 84
Tubular-Type Senders – With Warning Contact,
Common Ground or Insulated Return (ø 54 mm) TTS 54 wWC CG-IR 88
Tubular-Type Senders – Without Warning Contact,
Common Ground or Insulated Return (special) TTS (Sp) woWC CG-IR 92

3
Sensors from VDO
For reliable measurement
Monitoring a variety of data is an important factor
for reliable vehicle operation and long service life.
Crucial readings include information on pressure,
temperature and rpm, as well as speed and fuel level.
Thresholds are defined for many data items and if
these are not met – or are exceeded – vehicle safety
may be impacted, or serious engine damage can
occur.
Sensors measure data in various parts of the
vehicle and VDO therefore offers a wide range
of reliable, high-performance sensors.
The product range sensors for instrumentation
includes:
• Pressure Senders
• Pressure Switches
• Temperature Senders
• Temperature Switches
• RPM and Speed Senders
• Lever-Type Senders
• Tubular-Type Senders

4

The Company 2
Introduction Sensors for Instrumentation 6
Pressure Senders 11
Pressure Switches 25
Temperature Senders 29
Temperature Switches 47
RPM and Speed Senders 55
Lever-Type Senders 67
Tubular-Type Senders 79
Cross-Reference List 95
Legend 179
Contents
Contents
5

6
Introduction Sensors for Instrumentation
Pressure Senders
For measuring gas or fluid pressure in
connection with an electrical display unit.
Some senders are earthed. Other senders
are not earthed, i.e. earth is supplied by
a separate connection. Pressure senders
can be fitted with an additional warning
contact in order to indicate when the
pressure limit has been reached, as well as
carrying out continuous measurement.
The pressure sender types in the product
range include:
• Without Warning Contact, Common
Ground
• With Warning Contact, Common Ground
• Without Warning Contact, Insulated
Return
• With Warning Contact, Insulated Return
Pressure Switches
For monitoring the pressure of gases and
fluids by making contact when a pre-
defined limiting value is exceeded or not
reached. Some switches are earthed.
Other switches are not earthed, i.e. earth is
supplied by a separate connection.

7
Temperature Senders
For measuring different media in connection
with an electrical display unit. Some
senders are earthed. Other senders are
not earthed, i.e. earth is supplied by a
separate connection. Temperature senders
can be fitted with an additional warning
contact in order to indicate when the
temperature limit has been reached, as well
as carrying out continuous measurement.
The temperature sender types in the
product range include:
• Without Warning Contact, Common
Ground or Insulated Return
• With Warning Contact, Common Ground
• With 2 Measuring Points
• For Bimetal Indicating Instruments
• Air (VDO cockpit vision/VDO cockpit
international)
• Air (VDO LCD cockpit)
Temperature Switches
For monitoring the temperature of different
media by making contact when a pre-
defined limiting value is exceeded or not
reached. Some switches are earthed.
Other switches are not earthed, i.e. earth is
supplied by a separate connection.
The temperature switch types in the
product range include:
• Type A: 1.2–3 W, Common Ground
• Type B: 100 /120 W, Insulated Return
Introduction Sensors for Instrumentation

8
Introduction Sensors for Instrumentation
RPM and Speed Senders
For the measurement and display of
RPM and speed of engines and gears in
connection with an electrical display
unit. Some senders are earthed. Other
senders are not earthed, i.e. earth
is supplied by a separate connection.
The RPM and speed sender types in the
pro duct range include:
• Blocking-Oscillator Senders
• Frequency-Generator Senders
• Generator-Type Senders
• Hall-Effect Senders
• Inductive Senders
Lever-Type Senders
For the measurement of the fuel level
in connection with an electrical display
unit. Some senders are earthed.
Other senders are not earthed, i.e. earth
is supplied by a separate connection.
The lever-type sender types in the product
range include:
• Without Warning Contact, Insulated
Return
• Without Warning Contact, Insulated
Return (adjustable)
• Without Warning Contact, Insulated
Return (special)

9
Tubular-Type Senders
For the measurement of the fuel level
in connection with an electrical display
unit. Some senders are earthed.
Other senders are not earthed, i.e. earth
is supplied by a separate connection.
Tubular-type senders can be fitted with
an additional warning contact in order to
indicate when a certain fuel level limit
has been reached, as well as carrying out
continuous measurement.
The tubular-type sender types in the
product range include:
• Without Warning Contact, Common
Ground or Insulated Return (ø 54 mm)
• Without Warning Contact, Common
Ground or Insulated Return (ø 80 mm)
• With Warning Contact, Common Ground
or Insulated Return (ø 54 mm)
• Without Warning Contact, Common
Ground or Insulated Return (special)
Introduction Sensors for Instrumentation

Notes
10

11
Pressure Senders
Without Warnung Contact, Common Ground 12
With Warning Contact, Common Ground 14
Without Warning Contact, Insulated Return 18
With Warnung Contact, Insulated Return 20
Tightening Torques for Pressure Senders 22
Pressure Senders

12
D
6.3 x 0.8 mm

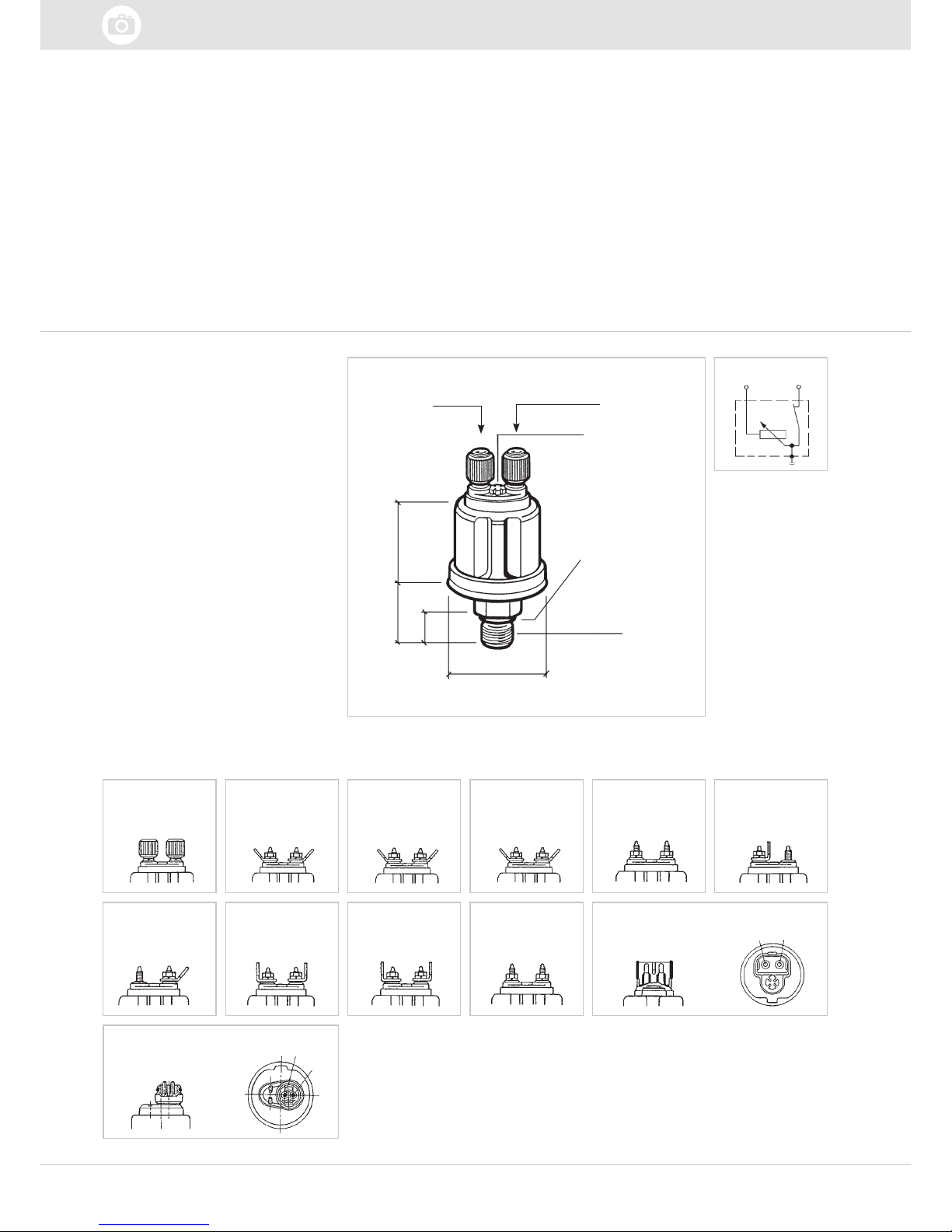

DimensionsTechnical Data Circuit Diagram
Type of Connection
Without Warning Contact, Common Ground
Rated voltage:
6 V to 24 V
Overpressure safety:
30 bar, 40 bar or 50 bar max.
(short periods only for 2 sec)
Operating temperature:
-25° C to +100° C
(up to +120° C for 1 hour max.
at threaded connector)
Resistance range:
10 Ω to 184 Ω
Special feature:
Sealing washer, captive
Thread
ø 46 mm
L 1 40 mm
L 2
Vented by PTFE membrane G
A
Knurled nut
B
Hex nut
M4 M4 50°
M4
F
Connector pin ø 4 mm
G
Connector pin ø 4 mm
E
6.3 x 0.8 mm
35.5 mm
M4
90°
M4
A–G
Pressure Senders – Without Warning Contact, Common Ground

13
360-081-029-001C 5 - M10 x 1 con. short 19.5 11 A
360-081-029-001K 5 - M10 x 1 con. short 19.5 11 A
360-081-029-004C 5 - 1/8 – 27 NPTF 19.5 11 A
360-081-029-008C 5 - 1/4 – 18 NPTF 23.8 15.3 A
360-081-029-010C 10 - M10 x 1 con. short 19.5 11 A
360-081-029-010K 10 - M10 x 1 con. short 19.5 11 A
360-081-029-012C 10 - 1/8 – 27 NPTF 19.5 11 A
360-081-029-012K 10 - 1/8 – 27 NPTF 19.5 11 A
360-081-029-013C 10 - M12 x 1.5 20.5 12 A
360-081-029-013K 10 - M12 x 1.5 20.5 12 A
360-081-029-020C 10 - 1/4 – 18 NPTF 23.8 15.3 A
360-081-029-025C 5 - M18 x 1.5 20.5 12 A
360-081-029-025K 5 - M18 x 1.5 20.5 12 A
360-081-029-026C 5 - M14 x 1.5 20.5 12 A
360-081-029-026K 5 - M14 x 1.5 20.5 12 A
360-081-029-033C 10 - M14 x 1.5 20.5 12 A
360-081-029-038C 10 - M14 x 1.5 20.5 12 D
360-081-029-041C 5 - 1/8 – 27 NPTF 19.5 11 E
360-081-029-042C 10 - 1/8 – 27 NPTF 19.5 11 D
360-081-029-059C 5 - M18 x 1.5 20.5 12 B
360-081-029-062C 10 - R 1/8 DIN 2999 19.5 11 D
360-081-029-065C 5 - M14 x 1.5 25.5 12 B
360-081-029-085C 5 - M12 x 1.5 20.5 12 A
360-081-029-087C 3 - M12 x 1.5 20.5 12 F
360-081-032-004C 10 - M12 x 1.5 20.5 12 A
360-081-032-067C 10 - 1/8 – 27 NPTF 19.5 10 F
360-081-037-003C 25 - M18 x 1.5 20.8 12 E
360-081-037-006C 16 - M14 x 1.5 20.5 12 B
360-081-037-007C 16 - 1/8 – 27 NPTF 20.5 12 E
360-081-037-008C 25 - M10 x 1 con. short 19.5 11 D
360-081-037-010C 25 - 1/8 – 27 NPTF 20.5 11 E
360-081-037-011C 25 - M10 x 1 con. short 19.5 11 D
360-081-037-013C 25 - M14 x 1.5 20.5 12 E
360-081-037-017C 25 - M14 x 1.5 20.5 12 E
360-081-037-018C 25 - M18 x 1.5 20.5 12 E
360-081-037-019C 16 - M12 x 1.5 20.5 12 B
360-081-038-008C 400 PSI - 1/8 – 27 NPTF n/a 11 A
360-081-052-003C 3 - M12 x 1.5 20.5 12 G
360-094-001-002C 10 - R 1/8 Din 2999 19.5 11 A
362-081-002-003C 400 PSI - 1/8 – 27 NPTF n/a 10 A
Article No.
Pressure Senders – Without Warning Contact, Common Ground

14

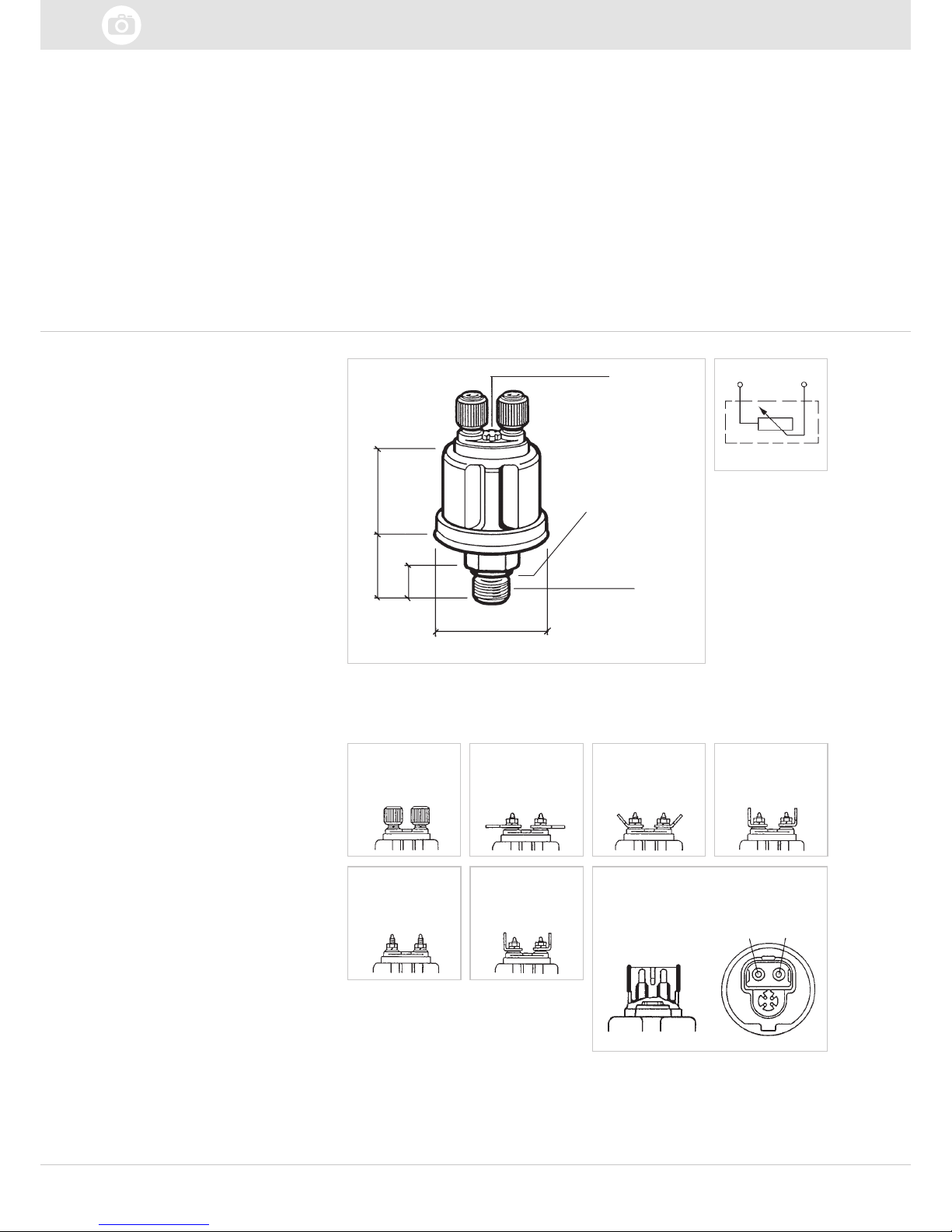

Dimensions
Special feature:
Sealing washer, captive
Thread
G
WK Sensor
Warning contact
40
m
m
L1
L2
Vented
via PTFE membrane
ø 46 mm
O
Special push-on connector
A
Knurled nut (2x)
G
M4
WK
M4
H
G: 6.3 x 0.8 mm
G
50°
M4
WK
M4
Rated voltage:
6 V to 24 V
Overpressure safety:
30 bar or 50 bar max.
(short periods only for 2 sec)
Warning contact:
Closes as pressure falls
Switching capacity of warning contact:
5 W max. non-inductive
Operating temperature:
-25° C to +100° C (up to +120° C for
1 hour max. at threaded connector)
Resistance range:
10 Ω to 184 Ω
Technical Data Circuit Diagram
WK
G
Type of Connection
B
6.3 x 0.8 mm (2x)
G
50°
M4
C
WK: 6.3 x 0.8 mm
G: 4.8 x 0.8 mm
D
WK: 4.8 x 0.8 mm
G: 6.3 x 0.8 mm
E
Hex nut (2x)
G
M4
WK
M4
J
6.3 x 0.8 mm (2x)
G
90°
M4
WK
90°
M4
L
WK: 6.3 x 0.8 mm
G: 4.8 x 0.8 mm
N
Hex nut (2x)
G
M4
WK
M5
F
WK: 6.3 x 0.8 mm
G
M4
With Warning Contact, Common Ground
WK
50°
M4
G
50°
M4
WK
50°
M4
WK
90°
M4
G
50°
M4
WK
50°
M4
G
90°
M4
WK
90°
M4
P
Special push-on connector G
WK
WK G
Pressure Senders – With Warning Contact, Common Ground

15
360-081-030-001C 5 0.25 + 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-001K 5 0.25 + 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-002C 5 0.5 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-002K 5 0.5 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-004C 5 0.7 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-006C 5 0.6 ± 0.15 M12 x 1.5 20.5 12 A
360-081-030-008C 5 0.5 ± 0.15 M12 x 1.5 20.5 12 A
360-081-030-009C 10 0.5 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-009K 10 0.5 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-010C 5 1.4 ± 0.3 1/8 – 27 NPTF 19.5 11 A
360-081-030-014C 5 0.6 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-015C 10 0.8 ± 0.3 1/8 – 27 NPTF 19.5 12 A
360-081-030-017C 10 0,9 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-018C 5 1.2 ± 0.15 M10 x 1 con. short 19.5 11 A
360-081-030-019C 10 1.5 ± 0.15 M12 x 1.5 20.5 12 A
360-081-030-020C 80 PSI 8 ± 2.0 PSI 1/4 –18 NPTF 23.8 15.3 A
360-081-030-022C 10 0.5 ± 0.15 M12 x 1.5 20.5 12 A
360-081-030-023C 80 PSI 6 ± 2.0 PSI 1/8 – 27 NPTF 19.5 11 A
360-081-030-025C 5 0.4 ± 0.2 M18 x 1.5 20.5 12 B
360-081-030-028C 5 0.5 ± 0.15 M14 x 1.5 20.5 12 A
360-081-030-028K 5 0.5 ± 0.15 M14 x 1.5 20.5 12 A
360-081-030-030C 10 0.7 ± 0.15 M14 x 1.5 20.5 12 A
360-081-030-031C 10 0.5 ± 0.15 M10 x 1 con. short 19.5 11 B
360-081-030-032K 10 0.5 ± 0.15 M14 x 1.5 20.5 12 A
360-081-030-032C 10 0.5 ± 0.15 M14 x 1.5 20.5 12 A
360-081-030-033C 5 0.4 ± 0.1 M14 x 1.5 20.5 12 F
360-081-030-036C 5 0.5 ± 0.15 M18 x 1.5 20.5 12 A
360-081-030-036K 5 0.5 ± 0.15 M18 x 1.5 20.5 12 A
360-081-030-037C 10 0.75 ± 0.2 M18 x 1.5 20.5 12 A
360-081-030-039C 10 0.75 ± 0.15 M10 x 1 con. short 19.5 11 B
360-081-030-041C 10 2 ± 0.3 M10 x 1 con. short 19.5 11 A
360-081-030-049C 5 0.4 ± 0.1 1/8 – 27 NPTF 19.5 11 A
360-081-030-049K 5 0.4 ± 0.1 1/8 – 27 NPTF 19.5 11 A
360-081-030-052C 10 0.5 + 0.2 -0.1 1/8 – 27 NPTF 19.5 11 A
360-081-030-053C 5 0.25 ± 0.15 M18 x 1.5 20.5 12 B
360-081-030-063C 10 1 ± 0.15 M14 x 1.5 20.5 12 B
360-081-030-065K 5 0.4 ± 0.15 R 1/8 DIN 2999 19.5 11 B
360-081-030-070C 10 0.5 ± 0.2 M18 x 1.5 20.5 12 B
360-081-030-071C 5 0.4 ± 0.15 M14 x 1.5 20.5 12 F
360-081-030-074C 10 0.5 ± 0.2 M18 x 1.5 20.5 12 A
360-081-030-075C 10 5 ± 0,3 M14 x 1.5 20.5 12 H
360-081-030-078C 10 1 ± 0,15 M14 x 1.5 20.5 12 E
Article No.
Pressure Senders – With Warning Contact, Common Ground

16
Article No.
360-081-030-086C 5 0.5 + 0.2 -0.1 1/8 – 27 NPTF 19.5 11 C
360-081-030-097C 5 0.5 ± 0.15 M14 x 1.5 20.5 12 B
360-081-030-100C 10 4 + 0.5 1/8 – 27 NPTF 19.5 11 B
360-081-030-107C 10 5.5 ± 0.3 M16 x 1.5 20.5 12 D
360-081-030-112C 10 1.35 ± 0.15 M10 x 1,0 18.5 10 L
360-081-030-119C 5 1.4 ± 0.3 1/8 – 27 NPTF 19.5 11 J
360-081-030-122C 10 0.75 ± 0.2 M18 x 1.5 20.5 12 D
360-081-030-132C 10 0.5 ± 0.15 M18 x 1.5 20.5 12 A
360-081-030-138C 10 1.25 ± 0.3 1/8 – 27 NPTF 19.5 10 L
360-081-030-152C 10 5.2 ± 0.5 M10 x 1 con. short 19.5 11 J
360-081-030-154C 7 10 ± 2 PSI 1/8 – 27 NPTF 19.5 10 N
360-081-030-157C 5 0.5 ± 0.15 M18 x 1.5 20.5 ±0.5 12 ±0.5 L
360-081-034-002C 5 0.25 ± 0.15 M14 x 1.5 20.5 12 N
360-081-034-004C 5 0.25 ± 0.15 M18 x 1.5 20.5 12 N
360-081-053-001C 25 15.5 + 1.5 -0.5 1/8 – 27 NPTF 19.5 11 J
360-081-053-003C 25 5.5 + 1,0 -0.5 M18 x 1.5 20.5 12 L
360-081-053-004C 25 14.5 + 1.5 -0.5 1/8 – 27 NPTF 19.5 11 B
360-081-061-002C 10 0.7 ± 0.15 M14 x 1.5 20.5 12 O
360-081-061-003C 10 1 ± 0.15 M14 x 1.5 20.5 12 O
360-081-061-006C 10 5 ± 0.3 M12 x 1.5 con. short 21.5 13 O
360-081-062-002A 5 0.4 ± 0.2 M14 x 1.5 20.5 12 P
360-081-062-003C 10 5.5 ± 0.3 M14 x 1.5 20.5 12 P
360-081-062-004A 5 1 ± 0.2 M14 x 1.5 20.5 12 P
360-081-062-005A 10 3 ± 0.3 M14 x 1.5 20.5 12 P
360-081-064-003C 5 0.25 ± 0.15 M18 x 1.6 20.5 12 D
Article No.
Pressure Senders – With Warning Contact, Common Ground

17
Pressure Senders – With Warning Contact, Common Ground

18
Dimensions
M4
A
Knurled nut (2x)
M4
Rated voltage:
6 V to 24 V
Overpressure safety:
30 bar or 50 bar max.
(short periods only for 2 sec)
Operating temperature:
-25° C to +100° C
(up to +120° C for 1 hour max.
at threaded connector)
Resistance range:
10 Ω to 184 Ω
Technical Data Circuit Diagram
Type of Connection
M4
E
Hex nut (2x)
M4
Without Warning Contact, Insulated Return
B
6.3 x 0.8 mm (2x)
M4M4
C
6.3 x 0.8 mm (2x)
50°
M4
50°
M4
F
6.3 x 0.8 mm (1x)
4.8 x 0.8 mm (1x)
90°
M4
90°
M4
D
6.3 x 0.8 mm (2x)
90°
M4
90°
M4
Special feature:
Sealing washer, captive
ø 46 mm
Thread
40 mm
L1
L2
Vented by
PTFE membrane
H
Special push-on connector
M = Ground
G = Sensor MG
Pressure Senders – Without Warning Contact, Insulated Return

19
360-081-032-001C 5 - 1/8 – 27 NPTF 19.5 11 A
360-081-032-002C 5 - M10 x 1 con. short 19.5 11 A
360-081-032-003C 10 - M10 x 1 con. short 19.5 11 A
360-081-032-006C 10 - M14 x 1.5 20.5 12 A
360-081-032-007C 5 - 1/8 – 27 NPTF 19.5 11 B
360-081-032-008C 10 - M18 x 1.5 20.5 12 A
360-081-032-011C 2 - M12 x 1.5 20.5 12 C
360-081-032-013C 5 - M18 x 1.5 20.8 12 A
360-081-032-014C 10 - 1/8 – 27 NPTF 19.5 11 A
360-081-032-016C 5 - 1/4 -18 NPTF 23.8 15.3 A
360-081-032-025C 2 - 1/8 – 27 NPTF 19.5 11 C
360-081-032-052C 5 - 1/8 – 27 NPTF 19.5 11 C
360-081-032-053C 10 - M12 x 1.5 20.5 12 A
360-081-032-059C 5 - M18 x 1.5 20.5 12 E
360-081-032-060C 5 - M14 x 1.5 20.5 12 E
360-081-038-001C 25 - M14 x 1.5 20.5 12 E
360-081-038-002C 25 - 3/8 -18 Dryseal NPTF 23.8 15.3 B
360-081-038-003C 25 - 1/8 – 27 NPTF 19.5 11 E
360-081-038-005C 25 - M18 x 1.5 20.5 12 A
360-081-038-014C 16 - M14 x 1.5 20.5 12 E
360-081-051-012C 10 - M16 x 1.5 20.5 12 H
360-081-051-013C 7 - 1/8 – 27 Dryseal NPTF 19.5 10 H
360-081-054-002Z 30 - M18 x 1.5 20.5 12 H
362-081-001-001K 5 - 1/8 – 27 Dryseal NPTF 19.5 10 D
362-081-002-004C 400 PSI - 1/8 – 27 Dryseal NPTF 19.5 10.5 A
362-081-003-001C 5 - 1/8 – 27 NPTF n/a n/a A
Article No.
Pressure Senders – Without Warning Contact, Insulated Return

20

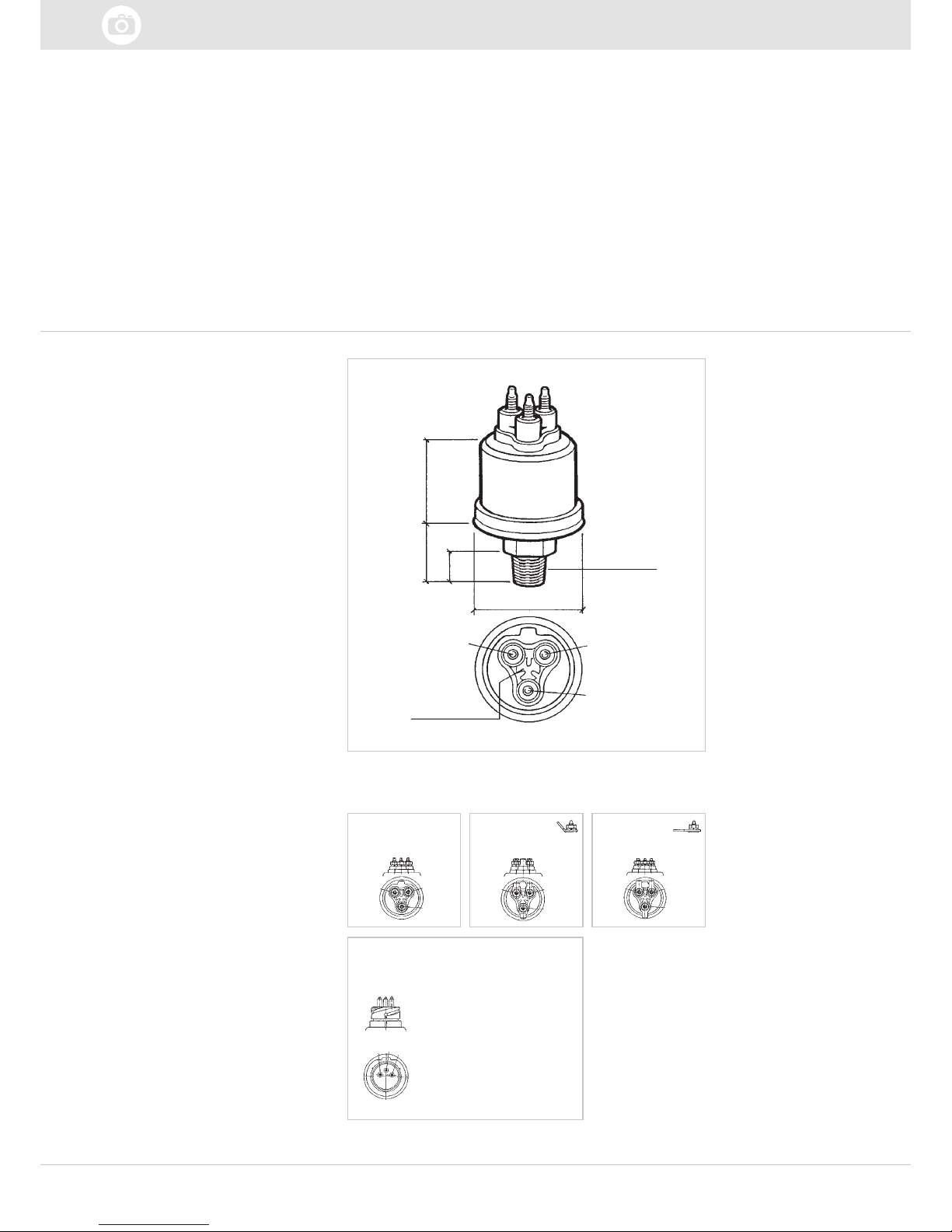

Dimensions
A
Hex nut (3x)
Rated voltage:
6 V to 24 V
Overpressure safety:
30 bar or 50 bar max.
(short periods only for 2 sec)
Warning contact:
Closes as pressure falls
Switching capacity of
warning contact:
5 W max. non-inductive
Operating temperature:
-25° C to +100° C
(up to +120° C for 1 hour max. at
threaded connector)
Resistance range:
10 Ω to 184 Ω
Technical Data
Type of Connection
B
6.3 x 0.8 mm (3x)
C
6.3 x 0.8 mm (3x)
D/E
Special bajonet connector
With Warning Contact, Insulated Return
ø 46 mm
Thread
40 mm
L1
L2
Vented
via PTFE
membrane
G
M4
M
WK
D/E 1 Sensor
D/E 2 Warning contact
D 3 Ground
E 3 Anti-torque guard
G Sensor
WK Warning contact
M Ground
GM
WK
GM
WK
GM
WK
3
12
Pressure Senders – With Warning Contact, Insulated Return
