Vecow GPC-1000MX User manual

USER
Manual
USER
Manual
1.0.0 Edition 20220701
Intel®Xeon®/Core™ i7/i5/i3 Dual GPU AI Computing System Workstion-
grade, NVIDIA®Tesla®/Quadro®/GeForce®/AMD Radeon™ Grraphics
GPC-1000MX

ii
©Vecow GPC-1000MX User Manual
Version Date Page Description Remark
1.00 2022/7/1 All O󰀩cial Release
Record of Revision

iii
©Vecow GPC-1000MX User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice.
Vecow Co., Ltd. is under no legal commitment to the details of this document.
Vecow shall not be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use of this document, the products, or any third party
infringements, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual comply with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow GPC-1000MX User Manual
Part Number Description
GPC-1000MX GPC-1000MX, 4 M12 X-coded GigE LAN, 4 M12 A-coded COM, 2
M12 A-coded CAN Bus, 2 PCIe x8, 2 PCIe x4, 12-55V DC-in
Order Information
Part Number Description
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666MHz RAM
DDR4 8G Certied DDR4 8GB 2666MHz RAM
DDR4 4G Certied DDR4 4GB 2666MHz RAM
PWS-600W-24V 600W, 24V, 90V AC to 305V AC Power Supply
PWS-1000W-24V 1000W, 24V, 90V AC to 264V AC Power Supply
PWS-1500W-24V 1500W, 24V, 90V AC to 264V AC Power Supply
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and
DIN-Rail Mounting
M.2 Storage
Module M.2 Key M Storage Module
5G Module 5G Module with Antenna
4G Module 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
Optional Accessories

v
©Vecow GPC-1000MX User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of GPC-1000MX 3
1.4 Supported CPU List 5
1.5 Mechanical Dimension 5
1.5.1 Dimensions of GPC-1000MX 5
CHAPTER 2 GETTING TO KNOW YOUR GPC-1000MX 6
2.1 Packing List 6
2.2 Front Panel I/O Functions 7
2.3 Main Board Expansion Connectors 15
2.4 Main Board DIP Switch Settings 37
2.5 Riser Board Connectors 41
CHAPTER 3 SYSTEM SETUP 45
3.1 How to Open Your GPC-1000MX 45
3.2 Installing CPU 46
3.3 Installing DDR4 SO-DIMM Modules 50
3.4 Installing Mini PCIe Card 51
3.5 Installing Nano SIM Card 52
3.6 Installing PCI/PCIe Card 53
3.7 Installing SSD/HHD 55
3.8 Installing M.2 58
3.9 Installing Antenna Cable 59
3.10 Mounting Your GPC-1000MX 60
3.11 Installing Hold-down Kit 61

vi
©Vecow GPC-1000MX User Manual
CHAPTER 4 BIOS SETUP 63
4.1 BIOS Setup 63
4.2 Main Menu 64
4.3 Advanced Functions 64
4.4 Chipset Functions 76
4.5 Security Function 82
4.6 Boot 84
4.7 Save & Exit 85
APPENDIX A : Driver/Sample Guide 86
APPENDIX B : Software Functions 87
APPENDIX C : RAID Functions 89
APPENDIX D : Power Consumption 95
APPENDIX E : Supported Memory & Storage List 101

1
©Vecow GPC-1000MX User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
Vecow GPC-1000MX is a workstation-grade Dual GPU AI Computing System. It
is powered by 9th Gen Intel® Xeon®/Core™ i7/i5/i3 Processor and features dual
GPUs with options of NVIDIA® or AMD Graphics. The GPC-1000MX brings the
power of GPU to accelerate the deployment of AI solutions for High-Speed AOI,
Rolling Stock, Vehicle Computing, Autonomous Driving, and any AIoT/Industry
4.0 applications.
Vecow GPC-1000MX is equipped with multiple rugged X-coded/A-coded M12
connections for GigE LAN, COM and CAN Bus. The system provides flexible
conguration for expansion with 2 PCIe x8, 2 PCIe x4, 1 Mini PCIe, 1 M.2 Key
E and 1 M.2 Key B. The GPC-1000MX features NVIDIA® or AMD GPU and
supports 1500W power budget management with up to 750W for each dual
graphics in edge computing while keeping the system reliable.
Designed to operate well in harsh industrial environments, Vecow GPC-1000MX
supports a wide operating temperature range from -25°C to 45°C, anti-shock,
anti-vibration tested EN50155, EN50121-3-2. Support for 12V to 55V DC-in,
ignition power control, CAN Bus, and TPM 2.0 makes GPC-1000MX a trusted
solution for Rolling Stock, Railway Security and Industrial EV.
1

2
©Vecow GPC-1000MX User Manual GENERAL INTRODUCTION
1.2 Features
• 8 Cores 9th Gen Intel® Xeon®/Core™ i7/i5/i3 Processor with Workstation-grade Intel®
C246 Chipset
• 1500W power budget supports max dual 750W NVIDIA® Tesla®/Quadro®/
GeForce® or AMD Radeon™ 3-slot graphics card
• Supports multiple rugged X-coded/A-coded M12 connections for GigE LAN,
COM RS-232/422/485, and CAN Bus A/B
• Supports 5G/WiFi/BT/4G/LTE/GPRS/UMTS wireless communication
• Expansion : 2 PCIe x8, 2 PCIe x4, 1 Mini PCIe, 1 M.2 Key E, 1 M.2 Key B
• DC 12V to 55V Power Input, Ignition Power Control, TPM 2.0 Optional VHub
AIoT Solution Service supports OpenVINO based AI accelerator and advanced
Edge AI applications

3
©Vecow GPC-1000MX User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of GPC-1000MX
System
Processor 8-core 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 Processor
(Co󰀨ee Lake Refresh)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2133MHz SO-DIMM, up to 128GB (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485, A-coded M12 Connector
CAN Bus 2 CAN Bus 2.0 A/B, A-coded M12 Connector
USB • 2 USB 3.1 Gen 2
• 4 USB 3.1 Gen 1
LED Power, HDD, PoE, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 1 Full-size for PCIe/USB/External SIM Card/mSATA
PCIe • 2 PCIe x16 Slot with x8 signal
• 2 PCIe x16 Slot with x4 signal
M.2 • 1 M.2 Key E Socket (2230)
• 1 M.2 Key B Socket (3042/3052/2280)
Graphics
Graphics Processor
• Intel® UHD graphics 630
• Independent Graphics 1 : By request
• Independent Graphics 2 : By request
Interface
Multiple independent displays :
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• By requested Graphics Card
Storage
SATA 2 SATA III (6Gbps) support software RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
M.2 1 M.2 Key M Socket (2280)
Storage Device 2 Front-access 2.5" SSD/HDD Tray

4
©Vecow GPC-1000MX User Manual GENERAL INTRODUCTION
Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 to LAN 4 Intel® I210 GigE LAN, X-Coded M12 Connector
Power
Input Voltage DC 12V to 55V
Power Interface 4-pin Terminal Block : V+, V+, V-, V-
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN
Others
TPM Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x D x H) 375.0mm x 243.0mm x 215.8mm (14.76" x 9.57" x 8.50")
Weight 9.1 kg (20.06 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-6°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/ Vibration
• IEC 61373 : 2010
• Railway Applications : Rolling Stock Equipment, Shock
and Vibration Tests
EMC CE, FCC, EN50155, EN50121-3-2

5
©Vecow GPC-1000MX User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
Series CPU Cores GHz TDP
(W) CPU Cores GHz TDP (W)
ECC
RAM
Intel®
Xeon®
E-2176G 6 4.6 80 E-2278GE 8 4.7 80
YesE-2278GEL 8 3.9 35
E-2124G 4 4.5 71 E-2226GE 6 4.6 80
Intel®
Core™
i7-8700 6 4.6 65 i7-9700E 84.4 65
N/A
i7-8700T 6 4 35 i7-9700TE 3.8 35
i5-8500 6 4.1 65 i5-9500E 64.2 65
i5-8500T 6 3.5 35 i5-9500TE 3.6 35
i3-8100 4 3.6 65 i3-9100E 43.7 65 Yes
i3-8100T 4 3.1 35 i3-9100TE 3.2 35
1.5 Mechanical Dimension
1.5.1 Dimensions of GPC-1000MX
243.0 (9.57”)
208.5 (8.21”) 215.8 (8.50”)
160.0 (6.30)
242.2 (9.54)
375.0 (14.76”)
405.0 (15.94”)
425.0 (16.73”)
Ø6.0 (0.24”)
R2.5 (0.10”)
R4.5 (0.18”)
Unit : mm (inch)

6
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2
GETTING TO KNOW YOUR GPC-1000MX

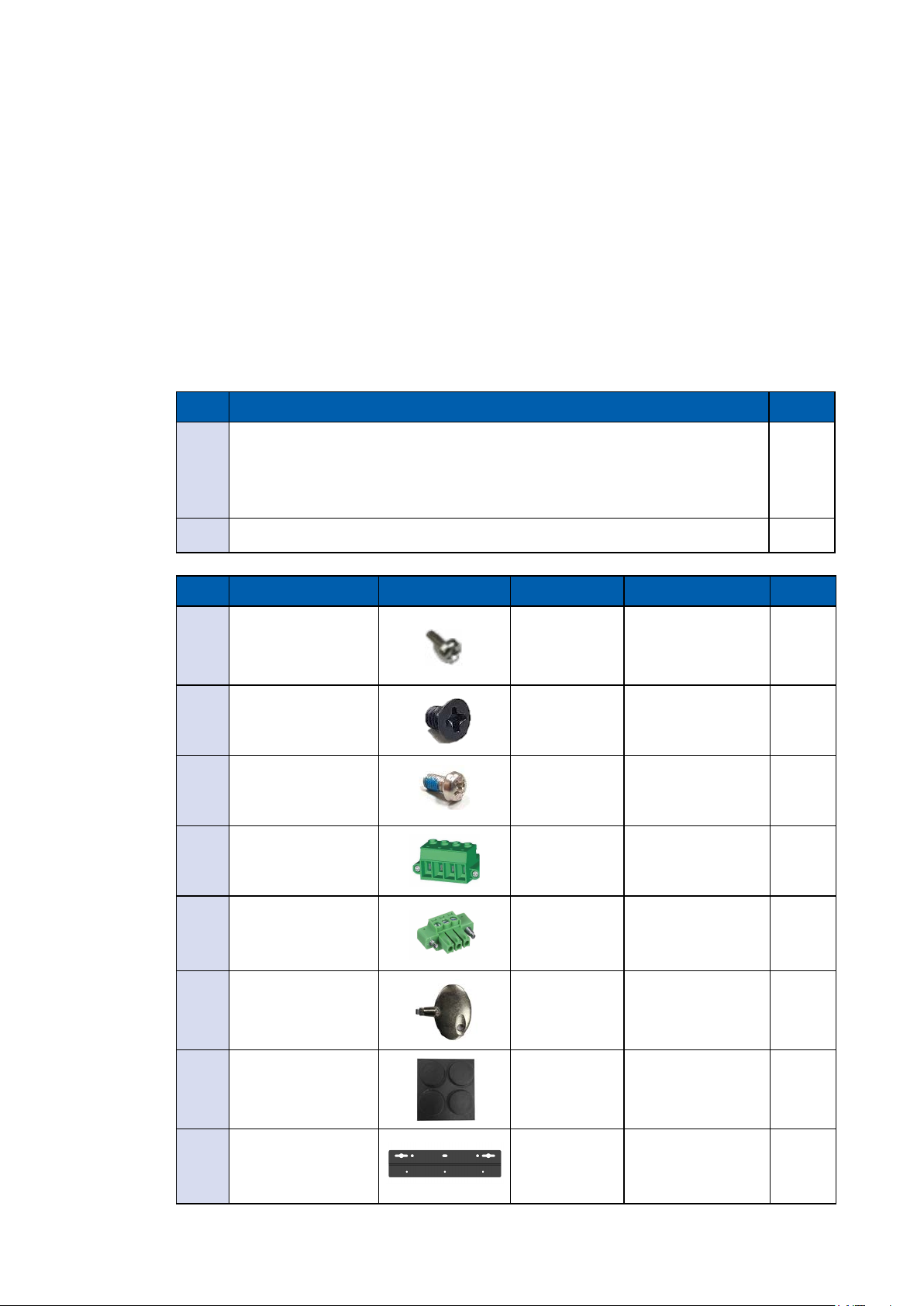

2.1 Packing List
Item Description Qty
1
GPC-1000MX AI Computing System
(According to the conguration you order, the GPC-1000MX series
may contain SSD/HDD and DDR4 SO-DIMM. Please verify these
items if necessary.)
1
2Vecow Drivers & Utilities DVD 1
Item Description Outlook Usage P/N Qty
1P head_
M2.5x6L_Ni Mini PCIe 53-2426906-30B 2
2F Head_M3x5L_
Nylok Wall mount 53-M004950-310 6
3P head_M3x6L_
Ni_Nylok M.2 53-2426206-80B 3
4Terminal block
4-pin DC-in 51-2711R04-S1Q 1
5Terminal block3-
pin(10.16mm) Switch 51-2211R03-S1A 1
6 SSD TRAY KEY KEY --- 1
7FOOT PAD --- --- 1
8Wall mount
Bracket --- 62-03P0811-000 2

7
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2.2 Front Panel I/O Functions
In Vecow’s GPC-1000MX , all I/O connectors are located on the front panel.
Most of the general connections to the computer device, such as audio, USB,
LAN, COM Port, Display Port, and any additional storage, are placed on the
front panel.

8
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX

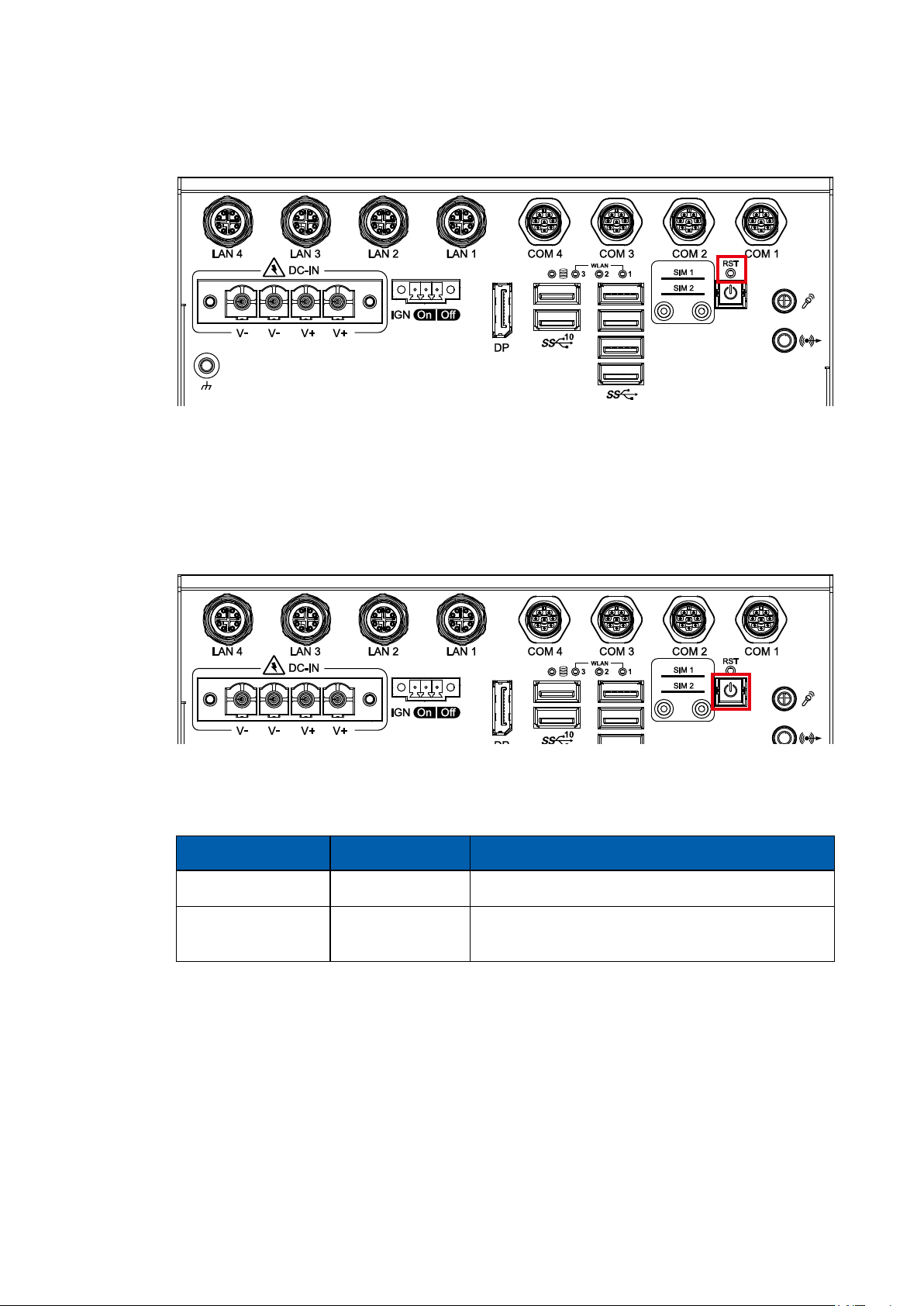

2.2.1 Reset Tact Switch
The item circled red is a hardware reset switch. Use this switch to reset the
system without powering o󰀨 the GPC-1000MX. Press and hold the reset switch
for a few seconds, then reset will be enabled.
2.2.2 Power Button
The power button is a non-latched switch with dual color LED indication. It
indicates power statuses: S0, S3 and S5. More details on the LED indications
are listed in the following chart:
LED Color Indication System Status
Solid Blue S0 System working
Solid Orange S3, S5 Suspend to RAM, System o󰀨 with standby
power
To power on GPC-1000MX, press the power button which will light the blue
LED.To power off GPC-1000MX, you can either command shutdown by OS
operation or simply press the power button. If system error appears, press and
hold the power button for four seconds to shut down the machine directly.
Please note that a four-second interval between each two power-on/power-o󰀨
operation is necessary in normal working status. (For example, once turning
o󰀨 the system, you have to wait for four seconds to initiate another power-on
operation).

9
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2.2.3 PWR & HDD LED Indicator
Yellow-HDD LED : A hard disk LED. If the LED is on, it indicates that the
system's storage is functional. If it is o󰀨, it indicates that the system's storage is
not functional. If it is ashing, it indicates data access activities are in progress.
Green-WLAN LED : If the LED is on, it indicates that the WLAN1/2/3 device is
working.
LED Color Power Status System Status
Yellow HDD • On/Off : Device status, function or not.
• Twinkling : Data transferring.
Green WLAN1
(M2B_CN1)
• On/Off : Device status, function or not.
• Twinkling : Data transferring.
Green WLAN2
(MPCIE1)
• On/Off : Device status, function or not.
• Twinkling : Data transferring.
Green WLAN3
(M2E_CN1)
• On/Off : Device status, function or not.
• Twinkling : Data transferring.
2.2.4 Display Port

10
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX

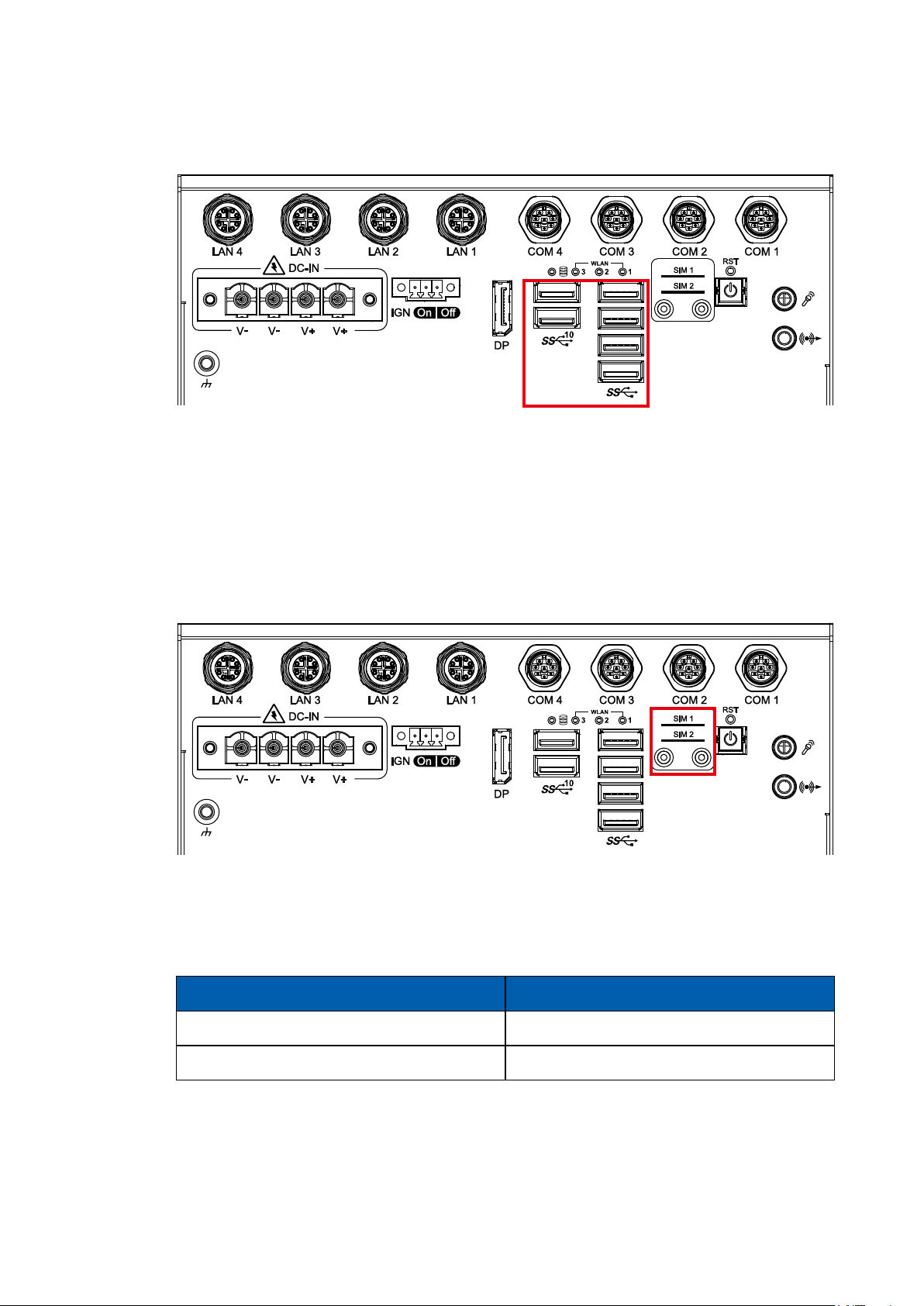

2.2.5 USB 3.1/3.2
There are 2 USB 3.2 Gen2 Type A connections available supporting up to 10GB
and 4 USB 3.2 Gen1 supporting up to 5GB per second data rate in the front side
of GPC-1000MX. It also compliant with the requirements of Super Speed (SS),
high speed (HS), full speed F(S) and low speed (LS).
2.2.6 SIM 1, SIM 2
Onboard Display Port supports auxiliary channel dual mode, and the connection
supports up to 4096x2304 resolution at 60Hz.
Multi-Stream Transport Display Resolutions Table :
Slot SIM
M2B_CN1 SIM1
MPCIE1 SIM2

11
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2.2.7 10/100/1000 Mbps Ethernet Port
Pin No. LAN1 LAN2 LAN3 LAN4
1LAN1_MDI_0P LAN2_MDI_0P LAN3_MDI_0P LAN4_MDI_0P
2LAN1_MDI_0N LAN2_MDI_0N LAN3_MDI_0N LAN4_MDI_0N
3 LAN1_MDI_1P LAN2_MDI_1P LAN3_MDI_1P LAN4_MDI_1P
4 LAN1_MDI_1N LAN2_MDI_1N LAN3_MDI_1N LAN4_MDI_1N
5 LAN1_MDI_3P LAN2_MDI_3P LAN3_MDI_3P LAN4_MDI_3P
6 LAN1_MDI_3N LAN2_MDI_3N LAN3_MDI_3N LAN4_MDI_3N
7LAN1_MDI_2N LAN2_MDI_2N LAN3_MDI_2N LAN4_MDI_2N
8 LAN1_MDI_2P LAN2_MDI_2P LAN3_MDI_2P LAN4_MDI_2P
There are 2 M12 jacks supporting 10/ 100/1000 Mbps Ethernet connections
in the rear side. LAN 1 to LAN 4 powered by Intel i210 Ethernet engine. When
LAN1 to LAN2 work in normal status, iAMT 11.0 function is enabled. Using
suitable M12 LAN cable, you can connect the system to a computer, or to any
other devices with Ethernet connection, for example, a hub or a switch.
Moreover, LAN 1 to LAN 4 supports Wake on LAN and Pre-boot functions. The
pin-outs of LAN 1 to LAN 4 are listed as follows:
1
2
3
45
6
7
8

12
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2.2.8 Audio Connector
There are two audio connectors, mic-in and line-out, on the front side of GPC-
1000MX. Onboard Realtek ALC888 audio codec supports 7.1 channel HD audio
and fully complies with Intel® High Denition Audio (Azalia) specications.
To utilize the audio function on the Windows platform, you need to install
corresponding drivers for both Intel W580 chipset and Realtek ALC888 codec.
Please refer to chapter four for more details on driver installation.
2.2.9 Front-access SSD/ HDD Tray
There are four front-access 2.5” SSD/HDD trays on the front side of GPC-
1000MX. Press the trigger to open the SSD/HDD tray which has up to 8TB
available.

13
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2.2.10 Power Terminal Block
GPC-1000MX supports 12V to 55V DC power input.
2.2.11 Remote Power On/O Switch
It is a 2-pin power-on/power-off switch through
Phoenix Contact terminal block. You could turn
on or o󰀨 the system power by using this contact.
This terminal block supports dual function on
soft power-on/power-off (instant off or delay four
seconds), and suspend mode.
Pin Number Denition
1IGNITION
2SW+
3SW-

14
©Vecow GPC-1000MX User Manual GETTING TO KNOW YOUR GPC-1000MX
2.2.12 Serial Port COM
Serial port can be configured for RS-232, RS-422, or RS-485 with auto flow
control communication. The default definition is RS-232, but if you want to
change to RS-422 or RS-485, you can nd the settings in BIOS.
BIOS Setting Description
COM 1
COM 2
COM 3
COM 4
RS-232
RS-422(5-wire)
RS-485
RS-485 w/z auto-ow
control
The pin assignments are listed in the table as follows:
Serial Port Pin Number RS-232 RS-422
(5-wire)
RS-485
(3-wire)
1DCD TXD- DATA-
2RXD TXD+ DATA+
3 TXD RXD+ -----------
4 DTR RXD- -----------
5 GND GND GND
6 DSR ----------- -----------
7RTS ----------- -----------
8 CTS ----------- -----------
9 RI ----------- -----------
1
7
6
5
4
3
2
