Vecow PBC-1000 User manual

USER
Manual
USER
Manual
1.0.0 Edition 20220616
Intel Atom®x6211E (Elkhart Lake) Fanless Embedded System,
Ultra-Compact, Rugged, -40°C to 70°C Operation Temperature
PBC-1000

ii
©Vecow PBC-1000 User Manual
Version Date Page Description Remark
1.00 2022/05/20 All Ofcial Release
Record of Revision

iii
©Vecow PBC-1000 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product offerings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow PBC-1000 User Manual
Model GigE LAN USB 3.0 COM DisplayPort SIM
Socket
PBC-1000 2 2 2 1 1
Order Information
Part Number Description
DDR4 32G Certied DDR4 32GB 3200MHz RAM
DDR4 16G Certied DDR4 16GB 3200MHz RAM
DDR4 8G Certied DDR4 8GB 3200MHz RAM
DDR4 4G Certied DDR4 4GB 3200MHz RAM
PWA-60W-12V 60W, 12V, 90V AC to 264V AC Power Adapter with 2-pin
Terminal Block
DIN-RAIL DIN Rail Mounting Kit
5G Module 5G Module with Antenna
4G Module 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
Order Accessories

v
©Vecow PBC-1000 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of PBC-1000 3
1.4 Mechanical Dimension 4
CHAPTER2 GETTING TO KNOW YOUR PBC-1000 5
2.1 Packing List 5
2.2 Front Panel I/O & Functions 6
2.3 Rear Panel I/O & Functions 10
2.4 Main Board Expansion Connectors 11
2.5 Main Board Jumper Settings 22
CHAPTER 3 SETUP 24
3.1 How to Open Your PBC-1000 24
3.2 Installing DDR4 SO-DIMM Modules 25
3.3 Installing SIM Card 26
3.4 Installing SSD/HDD 26
3.5 Installing M.2 28
3.6 Installing Antenna cable 29
3.7 Mounting Your PBC-1000 30

vi
©Vecow PBC-1000 User Manual
CHAPTER 4 BIOS SETUP 31
4.1 BIOS Setup 31
4.2 Main Menu 32
4.3 Advanced Functions 33
4.4 Chipset Functions 41
4.5 Security Function 46
4.6 Boot Function 48
4.7 Save & Exit 49
APPENDIX A : GPIO Guide 50
APPENDIX B : Software Functions 53
APPENDIX C : Power Consumption 56
APPENDIX D : Supported Memory & Storage List 58
APPENDIX E : Driver install (Unknown Device ) 60

1
©Vecow PBC-1000 User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
Vecow PBC-1000 is an Ultra-Compact Fanless Embedded Box PC. Powered by
Intel Atom® x6000E Series processor, Vecow PBC-1000 brings power-efcient,
enhanced graphics performance and exibility capabilities to empower the edge
applications such as Intelligent Control, Energy Management, M2M, In-Vehicle
Infotainment, factory Automation, and any AIoT/Industry 4.0 applications.
Vecow PBC-1000 is based on Intel Atom® x6000E Series Processor to deliver
up to 40% faster computing and two times improved 3D graphics performance
than the former generation solution. Equipped with 2 GigE LAN, 1 DisplayPort
with 4K resolution, 32GB of DDR4-3200MHz SO-DIMM memory, M.2 slot for
expansions and SATA storage, Vecow PBC-1000 provides an uncompromised
visual experience, enhanced I/O and storage options for AIoT applications.
Vecow PBC-1000 features fanless with small form factor design and supports
-40°C to 70°C operating temperature and 12V DC power input, making it perfect
solution for Intelligent Control, Energy Management, M2M or Industry 4.0 and
AIoT applications.
1

2
©Vecow PBC-1000 User Manual GENERAL INTRODUCTION
1.2 Features
• Intel Atom® x6000 Series Processor delivers up to 40% faster compute and up
to 2X better 3D graphics performance than the former generation solution2.5"
Pico-ITX compact size, Small Form Factor (SFF), measure only 100 x 72 mm
• Small form factor, ultra-compact design
• Fanless, -40°C to 70°C Operating Temperature
• 2 GigE LAN, 2 USB 3.0, 2 COM, M.2 Key B, M.2 Key E
• SIM Socket for WiFi/5G/4G/LTE/GPRS/UMTS
• Optional VHub AIoT Solution Service supports OpenVINO based AI
accelerator and advanced Edge AI applications

3
©Vecow PBC-1000 User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of PBC-1000
System
Processor Intel Atom® x6211E Processor (Elkhart Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 3200MHz SO-DIMM, up to 32GB
OS Windows 10, Linux
Graphics
Processor Intel® UHD Graphics for 10th Gen Intel® Processors
Interface DisplayPort : Up to 4096 x 2160 @60Hz
Ethernet
LAN 1 Realtek RTL8119I supports GigE LAN
LAN 2 Realtek RTL8119I supports GigE LAN
Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
I/O Interface
Serial • 1 COM RS-232/422/485
• 1 COM RS-232
USB 2 USB 3.0
LED HDD, WLAN, Power, WWAN
SIM 1 External Nano SIM Card Socket
Storage
SATA 1 SATA III (6Gbps)
Expansion
M2 • 1 M.2 Key B Socket (2280)
• 1 M.2 Key E Socket (2230)
Power
Power Input 12V DC-in
Power Interface 2-pin Terminal Block : V+, V-
Others
Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.

4
©Vecow PBC-1000 User Manual GENERAL INTRODUCTION
Mechanical
Dimension 126.0mm x 43.5mm x 78.5mm (4.96" x 1.74" x 3.09")
Weight 0.5 kg (1.1 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail mount (Optional)
Environment
Operating Temper-
ature -40°C to 70°C (-40°F to 158°F)
Storage Tempera-ture -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
1.4 Mechanical Dimension
Unit:mm(inch)
43.5 1.71
78.5 3.09
159.2 6.27
143.6 5.65
126.0 4.96
42.5 1.67
68.5 2.70
16.0 0.63
R4.0 0.16
4.5 0.18
A Detail
2:1
A
Unit : mm (inch)

5
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
2
GETTING TO KNOW YOUR PBC-1000
2.1 Packing List
Item Description Qty
1PBC-1000 Embedded System 1
2Driver/User Manual DVD 1
Item Description Picture Use for P/N Qty
1PHILLPIS
M3*4L M.2 53-2426204-80B 3
2M3x4L Wall mount
Bracket/HDD 53-2466204-30B 8
3Terminal block
2-pin (5.0mm) DC-IN 51-2411R02-S1C 1
4 Wall Mount Mount 62-01P0727-B00 2
5M.2 Bracket M.2 62-03P0997-30A 1
6SATA Power
Cable HDD 61-1470022-005 1
7SATA Data
Cable HDD 61-13B0707-3BA 1

6
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
2.2 Front Panel I/O & Functions
In Vecow’s PBC-1000 series family, all I/O connectors are located on the front panel.
Most of the general connections to the computer device, such as DC power input, SIM
slot, Display port, USB3.2 and LAN Jack are placed on the front panel.

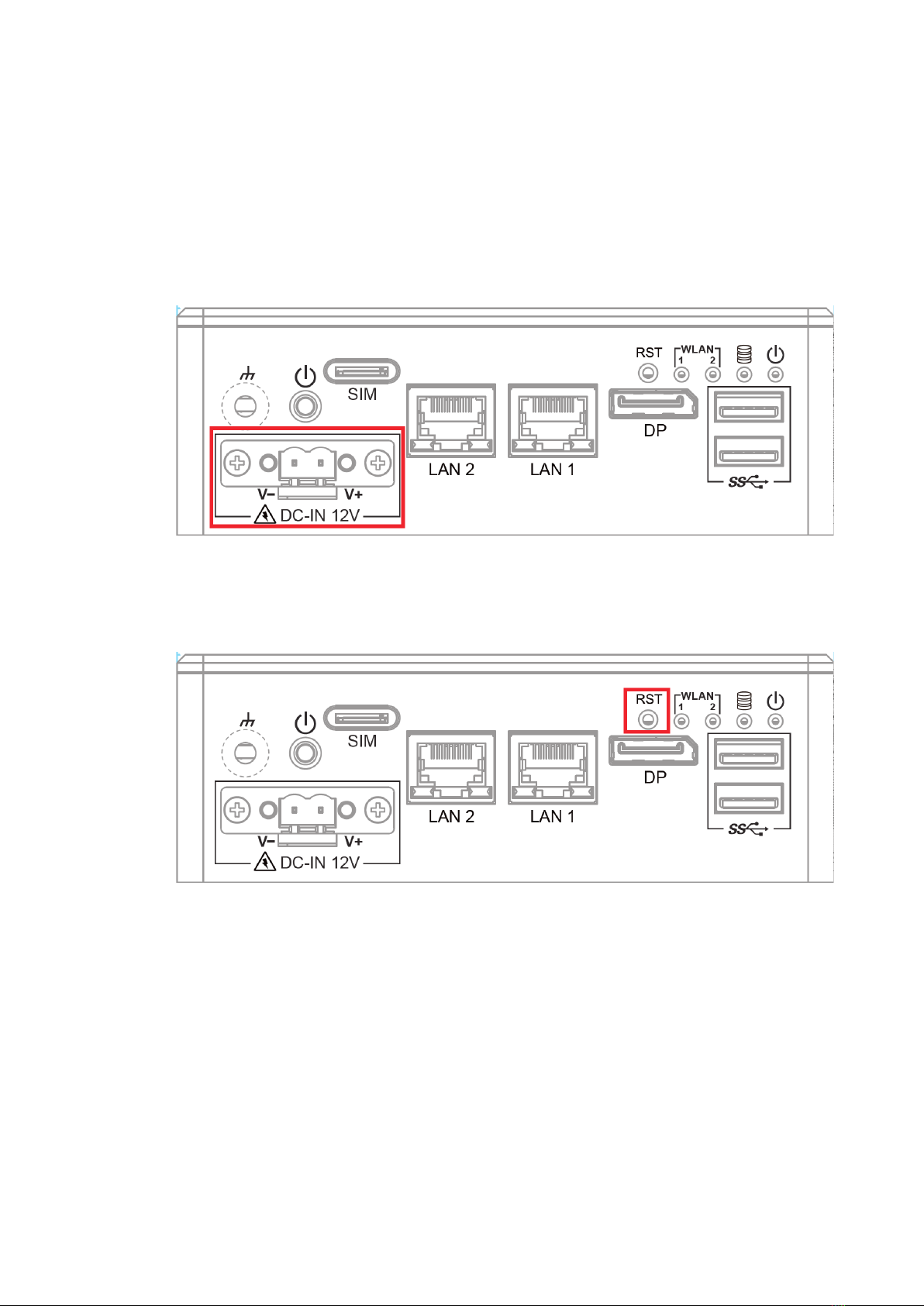

2.2.1 Power Terminal Block
This system supports 12V only DC power input by terminal block in the rear side
It is a hardware reset switch. Use this switch to reset the system without power off the
system. Press the Reset Switch for a few seconds, and then reset will be enabled.
2.2.2 Reset Tact Switch

7
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000

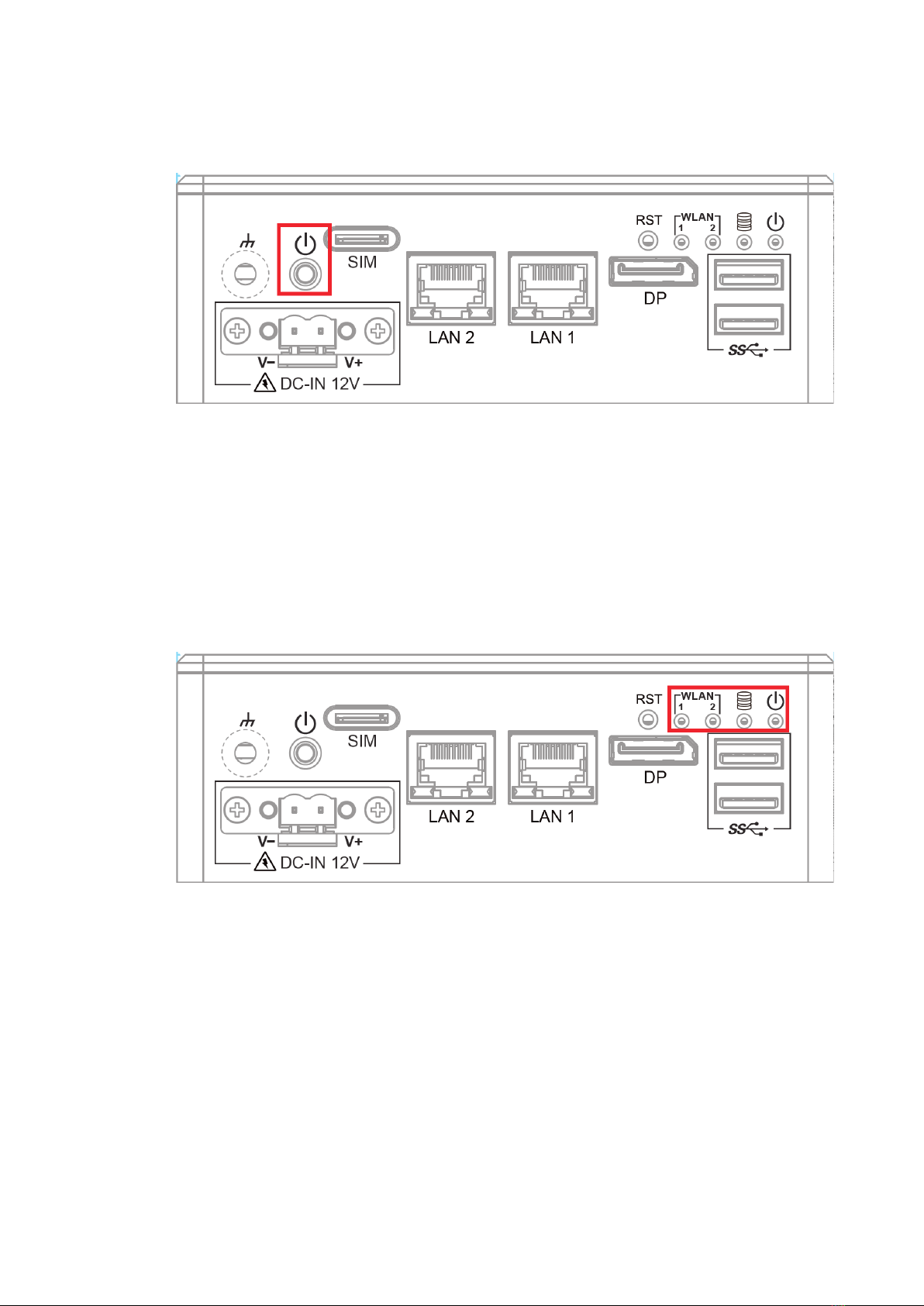

The power button is a non-latched switch. To power on PBC-1000, press the power
button.To power off PBC-1000, you can either command shutdown by OS operation
or simply press the power button. If system error appears, press and hold the power
button for four seconds to shut down the machine directly.Please do note that a four-
second interval between each two power-on/power-off operation is necessary in normal
working status. (For example, once turning off the system, you have to wait for four
seconds to initiate another power-on operation)
2.2.3 Power Button
2.2.4 HDD,PWR,WWAN,WLAN LED Indicator
Green-WLAN _LED1 : If the LED is solid green, it indicates that the device on M2
key-E Socket is working.
Green-WLAN_LED2 : If the LED is solid green, it indicates that the device on M2 key-B
Socket is working.
Orange-HDD LED : A hard disk LED. If the LED is on, it indicates that the system's
storage is functional. If it is off, it indicates that the system's storage is not functional. If
it is ashing, it indicates data access activities are in progress.
Green-Power LED : If the LED is solid green, it indicates that the system is powered on

8
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
2.2.5 USB 3.2 Gen1
There are 2 USB 3.2 Gen1 connections available supporting up to 5GB per second
data rate in the front side of PBC-1000. It is also compliant with the requirements of
Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS).
2.2.6 10/100/1000 Mbps Ethernet Port
There are two 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet
connections in the top side.Which is powered by Realtek RTL8119I Ethernet
engine. When both of LANs work in normal status, iAMT function is enabled.
Using suitable RJ-45 cable, you can connect the system to a computer, or to
any other devices with Ethernet connection, for example, a hub or a switch.
Moreover, both of LANs support Wake on LAN and Pre-boot functions.The pin-
outs of LAN 1 and LAN 2 are listed as follows :
Pin No. 10/100 Mbps 1000 Mbps
1E_TX+ MDI0_P
2E_TX- MDI0_N
3 E_RX+ MDI1_P
4 -------- MDI1_N
5-------- MDI2_P
6 E_RX- MDI2_N
7 -------- MDI3_P
8 -------- MDI3_N

9
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
2.2.7 Display Port
Display Port connection supports up to 4096 x 2160 resolution at 60Hz
2.2.8 Nano SIM Card Socket for M.2 key B Slot
The Nano SIM card socket is support Push-Push type. Please make sure to unplug the
system power before inserting the Nano SIM card.
LED Location LED Color 100Mbps 1000Mbps
Right Green/
Orange Off Solid Green
Left Orange Twinkling
Orange
Twinkling
Orange
Each LAN port is supported by standard RJ-45 connector with LED indicators to
present Active/Link/Speed status of the connection. The LED indicator on the left side
lightens in solid green when the cable is properly connected to a 100Mbps Ethernet
network; The LED indicator on the left side lightens in solid Orange when the cable is
properly connected to a 1000Mbps Ethernet network; The left LED will keep twinkling/
off when Ethernet data packets are being transmitted/receive

10
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000

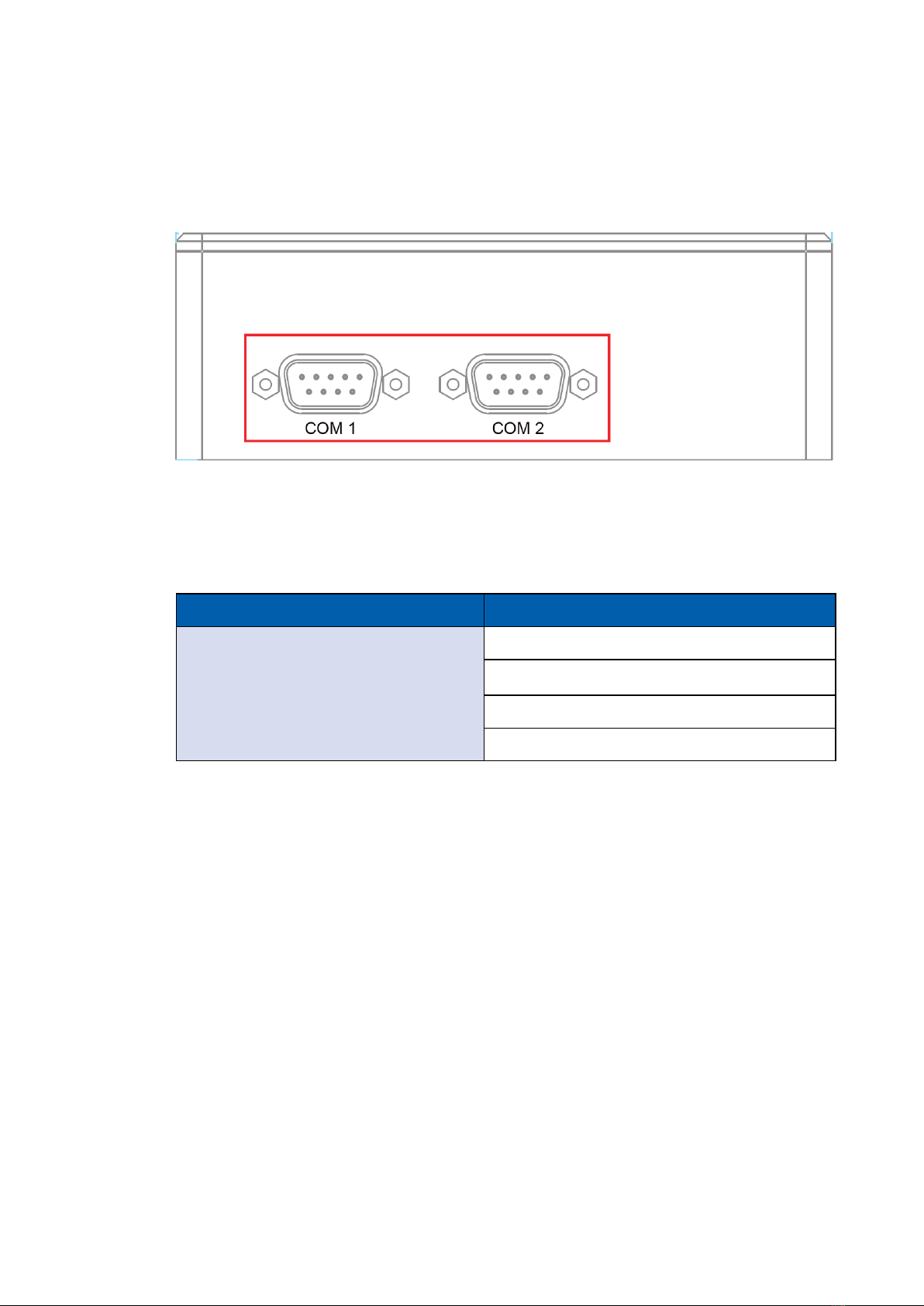

2.3 Rear Panel I/O & Functions
2.3.1 Serial Port COM
COM1 can be congured for RS-232, RS-422, or RS-485 with auto ow control
communication, The default denition is RS-232. COM2 is support RS232 only, if
you want to change to RS-422 or RS-485, you can nd the setting in BIOS.The pin
assignments are listed in the following table:
BIOS Setting Function
COM1
RS-232
RS-422 (5-wire)
RS-485
RS-485 w/z auto-ow control

11
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
2.4 Main Board Expansion Connectors

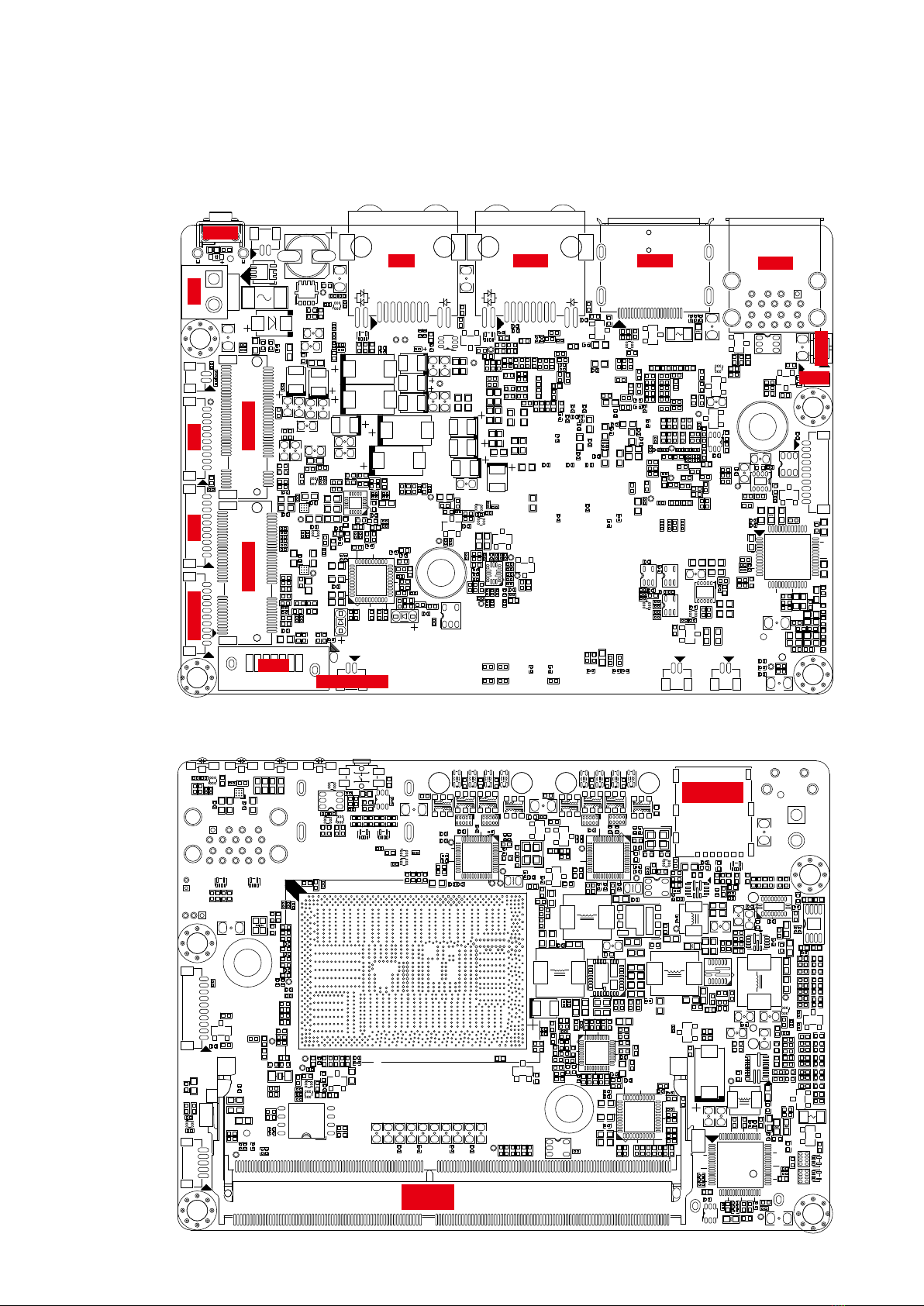

2.4.1 PBC-1000 Main Board Top Side View
R71
R94 R66
R89
R82
R72
R88
R81
R59
M3
DP1
JSTATUS
M43
R898
R332
U11
R286
C167
U8 R224
R225
R219
R218
R217
R197R196
P_RSMRST1
R175
R180
R164
R178
R140
R147
R143
R139
P_S1
R145
R152
R146
R132 R124
R125
R131 R130 R122
R123
R117
R109
R62
R84
R61
R69
R60
F1
R341
R333
C184
R320
R321
M12
U10
C158
C165
C159
R200 R199
R188
R183
R182
R163
R141
R144
R148
C98
R158
R150
R142
R126
R128
R134
R127R135
U3
Q1
P_SYSPWROK1
R107
R108
C48
R87 R67
C7
C9
C8
FB1
C11
JHDD
R340
C183
C188
C172
R273
R285
R279
R272
R260
R263
P_V1P8A1
R162
R172
C109
R157
R136 C74
D9
R63
R68
M5
D6
R37 R38
C204
C203
C210
C169 C161
R256
C141
C147
C138
R203
C131 PU2
R189 R190
C111
R153C108
C101
M2B_MH1
D7
R39
C211
P_VTT1
R351
R348
C193
C200
R315
C190
R296
R302
U5
R193
R213
FB3
R210
M7
C117
D10
R99
C42
D8
R90
R83
R57
CN7
MH3
R343R342
FB6
FB7
R311
R339R338
R336 FB5
FB4
C179
C181
C180
C144 JUSB1
C75
MH2
C41
JP1
C28
C192 581C102C C189 C175 341C3
6
1
CBAT2
MH4
3NC1OIPG
R1272
R167
CN2
P_REG1
R64R80
JPWBTN
R53
MH1
CN1
D1
ESD1
M2E_CN1 M2B_CN1
R101
R1271
C18
R1
SW3
C24 C23
D2
FUSE1
M1
JRESET
SATA1
C191
C198
R316
R330
C186 R317
R329
R337
R303
R268
R283
R275
R295
C152
R238
R234
R226
R227
R247
R245
P_V3_3S1
C129
C126
C122
C119
R170
R181
C110
C106
C91
C92
C72 C73
R120
C1676
R119
CT6
C30
C25
R32
C196
C195
C194 R331
R307 R308
R318
R269
C149
P_V5S1
C156 C166
PU4
R229 R230
C132
M10
R168
C118
C133
PU10
R173
R165
R166
C121
M6
R156 R154
FB2
C93
C69
C53 C54
C1675
CT4
C33
C26
R45
R4
C17
P_V12A1
R5
C4
M2
CT1
HDD_PWR_J1
C199
R334
C197
D15
C170
C168
C182
C178
R243
C154 C155
C160
C145
C146
R233
R237
R244
R228
C139
C128
C120
R211
R185
R174R171
C112
C95
CT9
C80
R20
R19
R28
R35 R11R10
R623
R1269
R1264
R1270
M167
C3
C1
R324 R323
R322
U9
R231
R232
C148
R235
R236
R222
R246
R220
C130
C136
C124
C137
U4
R191
R186
R161
R176 R169
C116
CT7
CT3
R26 R25 R24
D3
D14
R309
R326
R325
R291
R267
C150
R261
R257
R221
R215
R198
R187
R192
R177
R184
CT13
C31
C29
GPO1
LAN2
C187
R327
R310
R312
R290
R282
R274
R299
C151
R264
P_VR_READY1
R248
RP2
P_VRON1
RP1
CP2
CP1
CT11
CT8
CT5
R27
CT2
GPO2
C264
C15
U12
R335
R313
M2E_MH1
R242
R241
D11
RP4
R205
RP3
CP3
C47
C46
P_AUX1
C35
C36
C27
U2
R12
P_PWRGD_3V1
R297
R270
R280
R281
R250
R266
C164
R249
R255
C429
C142
R239
R209
R206 R208
R212
R201
M8
C115
CT12
CT14
CT10
C50
C51
P_VCCST_1
R29
C38 C37
D5
R6 R2 C2
R352 R353
R350R349
R305
R304
R306
R287 R288 R289
C177
C171 R251
R253 R252
R254
C153
U6
D12
R240 R202
R204
R207
M9
CT15
C94
C78 C77
C44
C43
C60 C59
R76
R85
P_VCCST_GD1
R30
R56
R36
R54 R55
R21
D4 C247
R14
C205
R271
R276
R293
C173
R300
R277 R278
R258
R262
R265
P_PBT1
P_APWRGD1
D13
C123
C107
C87
C86
R102 R103
R110
C62 C63
R65
R77
R92
R70
R91
R43
R44
R58
R22
R31
R41
R42
C243
C245
R18
LAN1
C206
R354
C134
C103
C76
R113
R111
R112
R114
R79
R95
R98
R86
R47 R46
R48 R49
C21
C241
R8
R15
C97
C104
C68 C1677
C83
C61
C55 C56
C64
C1678
R115
C39
R74
R75
C34
R23
R34
R40
R17
C1682
C207
R344
R346
C202
R345
C140
C127
C88
C99
C105
C100
C85
C84
C79
C71
C66
R100
C49
C40
C19
C32
C22
M42
R1170
C12
R1183
C209C208
R347 C135
R151
C96
C1663
C1664
C70 C67
C89
C52
C45
C58
R116
R104
R93
R78
R33
R52
R51
R50
M4
R9
R13
R7
R319
R328
R314
M11
R284
R298
R292
R301
C174 C176
R294
C157
C162
U7
R223 R216
R195
R194
P_PLTRST1
C125
R160
R179
R159
R138
R137
C90
R149
R155
R133
C65
C82 C81
R129 R121
C57
R118
R97
R106R105
R96
1
1
18
1
9
10
36
32
10
5
13
4
13
12
48
1
14
25
24 37
10 1
12
20
6
5
1
12
1
R11
R1
GR8
R10
R9
Y
R10
R9
Y
R12
O
1
17
7
11
8
R12
G
O
10
11 21
20
R1 R8
15
16
11
10
1
130
31
1
5
6
2
1
3 1A
C
2
7
1
1
10 1
75
10
1
10
1
2
2 1
33
23
1
2
32
22
AC
74 3
1
LAN2 LAN1 DP1
BAT2
JP1
SW3
HDD_PWR_JI
CN1
SATA1
2.4.2 PBC-1000 Main Board Bot Side View
C1680
R900
R386 R387
C236
C235
R383R382
D20
M16
M15
M13
M2E_LED1
U24
R1178
R1184
R1179
R1171
M46
R511
P_SLP_SUS1
C370
R503
R1176
R1177
M47
P_DPWROK1
R405
R404
C404
C405
R534
R516
R518
R531
C374C373
X4
P_PWROK1
R498
R490
R485
R475
R470
R476
C356
R458
P_RTC1
C337
C342
C338
R464
C334
R453
R450
R449
C329
C320
R447
R437
R434
C314
R424 R423
R899
R429
R431
C307R363
R364
M2B_LED1
C420
C413
C419
C412
R536
R497R489
R487
X3
D25
C1162 C214
R1161
R361 R362
LED1
P_VPP1
C411
R545
R543
C388
FB26
R530
R493
Q4
R474
C313
D24
C298 C297 C299
C215 C218
R358
R373
PU5
JAUDIO1
R533
R542
M19
R528C384
C363
J80P1
R454
C296
C221
R359 R360
R379 R378
R357 R374
M14
LED2
R527C387
R547
F2
R520
R525
C372
C376
C380
C385
C361
C358
C366
C369
C343
C341
C344
C349
C333
C332
C331
C336
R421
RN2
D30
RN1
D29
R564
Q6
D28
FB22
FB23
FB24
FB25
FB19
FB18
FB20
FB21
R473 R480
D26
P_V3_3SB1
FB15
FB14
FB17
FB16
FB12
FB11
FB10
FB13
C316 C315
C327
R446R441
C304
R428
U20
R420
C301
C428
R575
R570
R566
R565
R567
C418
C408
FB28
FB27
C396
C410
C400
C395
C394R517
R512
R514
R509
R510
C375
C382
R499
R494
R488
C367
C364
R478
R484
R482
R477
C354
M18
C339R451
C319
R436 C328
R433 R445
C310
U18
C285 C284
C286
R576 P_S2
C425
R574 R573
U26
C402
C401
R539 R538
L8
U21
C359
C355
C353
C357
L7
PU8
R439
R435
R448
R443
C303
C311
C309
C283 C282
C281
C280
C242
FB29
R571
C424
C426
C427
R572
R537
C398
P_V5A1
C379
C365
C360
C351
R455
R461
R459
UP1
R444
C326 C325
C312
C306
C305
R425
R417
R415
C295R401
R408
R414
R402 C279 C278
D23
C262
M2B_SIM1
C423
R569
U27
R568
C422
C421
C397
TC1
R214
R486
D27 R483
R471
R460
R469
C345
R457
FB8
C324
L4
PU7
C260
C266
C272
C265
R561
R562
R546
R535
R532
R541
R544
R529
C391
C389
R526
R524
R515
R481
L6
P_VCCIO_1
R438
C308
R432
R419
R413
C300
R403
R407
R398
R396
R400
C253
M17
R556
R558
R557
R559
R560
U23
RP21
C346
R468
C350
C340
R456
C335
R452
FB9
C322
U19
U17
GPO4
C302
L2
R399
C233
C294
R397
C255
C252
C234
C237 C238
R388 X1
X11
C222
T16
R554 R555
CP16
CP14
RP34
RP33
RP24
CP11
CP10
R491
R496
CP6
RP15
CP4
RP6
R466 R467
R465
C330
C323 R440
C244
R411
R418
C232 C293
D19
T8 T5
R370
T15
C409
C403
C399
C406
C392
C390
C393
RP29 RP28 RP30 RP32 RP31
UP3
RP8
RP10
RP9
RP11
R472
C347
RTP1
UP2
L3
C248 C268
R409 R410
U15
TP2
C249
D18
T7
T6
R369
R368
T14
U25 R563
CP15
RP23
RP26
RP25
RP27
CP13
CP12
RP17
RP19
RP22
CP8
CP7
CP9
RP7
CP5
RP5
R479
RP13
RTP2
R463 R462
L5
C321 R442
C261
M44
R394
R391
C267
C273
Q3
C16
C292
T13
C381
R495
R492
RP18 RP20
RP14
RP16
CT16
RP12
C317
C318
R430R426
R427
C271
C270
R422
R416
R412
C288
R390
X2
Q2
X10
R384
R385
C223
C219
R372
R553
R551
R552 R549
R550
Q5
L1
C251
C291
C259C250
C257
C10 C13
R389
T12
T4
P_SM1
R548
C1670
R500
GPO5 GPO6
GPO3
C20
D17
T3
R366 R367
T11
C416 C417
C1671 C1672
C289 C290
U14
TP1
C14
C258
D16
T1
T2
R365
T10
DIMM1
C1673
C1674
C287
C239
C240
C263
C269
C246
C254
R375 T9
C414 C415
C1665 C1668 C1669
U1
C274 C275
C276 C277
R1181
M49
M48
C220
C1666
C1667
R1180
R1172
R1182
D22
C216
C229 C228
C231
C230
U13
R356
C371
R508 C378
C368
D21
R381 R380
R377 R376
C217
C227 C224 C226
C225
SW2
R371
ESD2
R540
C407
C1681
R522R521
M41
R505 R504 R507 R506
3
15
1
10
10
1
2
CT
BB
AA
A
1
A
C
260
259
6
4
144 146
143145
1
3
4
6
40
3
4
VDD
1
E/D
VDD
E/D
2
GNDGND
113
3
OUTOUT
3
6
37
48
1
1
4
6
4
25
24
13
12
6
4
11
2324
16
15
24
12
6
4
4
40
1
1
3
6
4
21
3
2
GND
GND
3
6
1
40
30
31
21
20
30
31
1
98
37
48
1
1
13
10
SW
C2
C6 C7
1
11
10
9
8
1
27
9
C1
C5
2
1
10
11
20
3
6
VDDVDD
4
1
E/D
E/D
1
13
10
10
9
12
49
21
20
19
11 10
27
9
3
6
2
1
19
C3
17
16
64
1
16
3
2
11
32
33
1
9
DIMM1
CN7
CN2CN3GPI01
M2E_CN1 M2B_CN1
M2b_SIM1

12
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
The PBC-1000 real-time clock is powered by a lithium battery. It is equipped
with Panasonic BR2032 190mAh lithium battery. It is recommended that you not
replace the lithium battery on your own, but if the battery needs to be changed,
please contact the Vecow RMA service team.
2.4.3 BAT2 : Battery
R71
R94 R66
R89
R82
R72
R88
R81
R59
M3
DP1
JSTATUS
M43
R898
R332
U11
R286
C167
U8 R224
R225
R219
R218
R217
R197R196
P_RSMRST1
R175
R180
R164
R178
R140
R147
R143
R139
P_S1
R145
R152
R146
R132 R124
R125
R131 R130 R122
R123
R117
R109
R62
R84
R61
R69
R60
F1
R341
R333
C184
R320
R321
M12
U10
C158
C165
C159
R200 R199
R188
R183
R182
R163
R141
R144
R148
C98
R158
R150
R142
R126
R128
R134
R127R135
U3
Q1
P_SYSPWROK1
R107
R108
C48
R87 R67
C7
C9
C8
FB1
C11
JHDD
R340
C183
C188
C172
R273
R285
R279
R272
R260
R263
P_V1P8A1
R162
R172
C109
R157
R136 C74
D9
R63
R68
M5
D6
R37 R38
C204
C203
C210
C169 C161
R256
C141
C147
C138
R203
C131 PU2
R189 R190
C111
R153C108
C101
M2B_MH1
D7
R39
C211
P_VTT1
R351
R348
C193
C200
R315
C190
R296
R302
U5
R193
R213
FB3
R210
M7
C117
D10
R99
C42
D8
R90
R83
R57
CN7
MH3
R343R342
FB6
FB7
R311
R339R338
R336 FB5
FB4
C179
C181
C180
C144 JUSB1
C75
MH2
C41
JP1
C28
C192 581C102C C189 C175 341C3
6
1
C
BAT2
MH4
3NC1OIPG
R1272
R167
CN2
P_REG1
R64R80
JPWBTN
R53
MH1
CN1
D1
ESD1
M2E_CN1 M2B_CN1
R101
R1271
C18
R1
SW3
C24 C23
D2
FUSE1
M1
JRESET
SATA1
C191
C198
R316
R330
C186 R317
R329
R337
R303
R268
R283
R275
R295
C152
R238
R234
R226
R227
R247
R245
P_V3_3S1
C129
C126
C122
C119
R170
R181
C110
C106
C91
C92
C72 C73
R120
C1676
R119
CT6
C30
C25
R32
C196
C195
C194 R331
R307 R308
R318
R269
C149
P_V5S1
C156 C166
PU4
R229 R230
C132
M10
R168
C118
C133
PU10
R173
R165
R166
C121
M6
R156 R154
FB2
C93
C69
C53 C54
C1675
CT4
C33
C26
R45
R4
C17
P_V12A1
R5
C4
M2
CT1
HDD_PWR_J1
C199
R334
C197
D15
C170
C168
C182
C178
R243
C154 C155
C160
C145
C146
R233
R237
R244
R228
C139
C128
C120
R211
R185
R174R171
C112
C95
CT9
C80
R20
R19
R28
R35 R11R10
R623
R1269
R1264
R1270
M167
C3
C1
R324 R323
R322
U9
R231
R232
C148
R235
R236
R222
R246
R220
C130
C136
C124
C137
U4
R191
R186
R161
R176 R169
C116
CT7
CT3
R26 R25 R24
D3
D14
R309
R326
R325
R291
R267
C150
R261
R257
R221
R215
R198
R187
R192
R177
R184
CT13
C31
C29
GPO1
LAN2
C187
R327
R310
R312
R290
R282
R274
R299
C151
R264
P_VR_READY1
R248
RP2
P_VRON1
RP1
CP2
CP1
CT11
CT8
CT5
R27
CT2
GPO2
C264
C15
U12
R335
R313
M2E_MH1
R242
R241
D11
RP4
R205
RP3
CP3
C47
C46
P_AUX1
C35
C36
C27
U2
R12
P_PWRGD_3V1
R297
R270
R280
R281
R250
R266
C164
R249
R255
C429
C142
R239
R209
R206 R208
R212
R201
M8
C115
CT12
CT14
CT10
C50
C51
P_VCCST_1
R29
C38 C37
D5
R6 R2 C2
R352 R353
R350R349
R305
R304
R306
R287 R288 R289
C177
C171 R251
R253 R252
R254
C153
U6
D12
R240 R202
R204
R207
M9
CT15
C94
C78 C77
C44
C43
C60 C59
R76
R85
P_VCCST_GD1
R30
R56
R36
R54 R55
R21
D4 C247
R14
C205
R271
R276
R293
C173
R300
R277 R278
R258
R262
R265
P_PBT1
P_APWRGD1
D13
C123
C107
C87
C86
R102 R103
R110
C62 C63
R65
R77
R92
R70
R91
R43
R44
R58
R22
R31
R41
R42
C243
C245
R18
LAN1
C206
R354
C134
C103
C76
R113
R111
R112
R114
R79
R95
R98
R86
R47 R46
R48 R49
C21
C241
R8
R15
C97
C104
C68 C1677
C83
C61
C55 C56
C64
C1678
R115
C39
R74
R75
C34
R23
R34
R40
R17
C1682
C207
R344
R346
C202
R345
C140
C127
C88
C99
C105
C100
C85
C84
C79
C71
C66
R100
C49
C40
C19
C32
C22
M42
R1170
C12
R1183
C209C208
R347 C135
R151
C96
C1663
C1664
C70 C67
C89
C52
C45
C58
R116
R104
R93
R78
R33
R52
R51
R50
M4
R9
R13
R7
R319
R328
R314
M11
R284
R298
R292
R301
C174 C176
R294
C157
C162
U7
R223 R216
R195
R194
P_PLTRST1
C125
R160
R179
R159
R138
R137
C90
R149
R155
R133
C65
C82 C81
R129 R121
C57
R118
R97
R106R105
R96
1
1
18
1
9
10
36
32
10
5
13
4
13
12
48
1
14
25
24 37
10 1
12
20
6
5
1
12
1
R11
R1
GR8
R10
R9
Y
R10
R9
Y
R12
O
1
17
7
11
8
R12
G
O
10
11 21
20
R1 R8
15
16
11
10
1
1 30
31
1
5
6
2
1
3 1A
C
2
7
1
1
10 1
75
10
1
10
1
2
2 1
33
23
1
2
32
22
AC
74 3
1
BAT2
Pin No. Function
1+3V_BAT
2GND
2.4.4 DIMM1 : DDR4 Slot
There is a DDR4 channel onboard, support DDR4 3200, max 32GB
C1680
R900
R386 R387
C236
C235
R383R382
D20
M16
M15
M13
M2E_LED1
U24
R1178
R1184
R1179
R1171
M46
R511
P_SLP_SUS1
C370
R503
R1176
R1177
M47
P_DPWROK1
R405
R404
C404
C405
R534
R516
R518
R531
C374C373
X4
P_PWROK1
R498
R490
R485
R475
R470
R476
C356
R458
P_RTC1
C337
C342
C338
R464
C334
R453
R450
R449
C329
C320
R447
R437
R434
C314
R424 R423
R899
R429
R431
C307R363
R364
M2B_LED1
C420
C413
C419
C412
R536
R497
R489
R487
X3
D25
C1162 C214
R1161
R361 R362
LED1
P_VPP1
C411
R545
R543
C388
FB26
R530
R493
Q4
R474
C313
D24
C298 C297 C299
C215 C218
R358
R373
PU5
JAUDIO1
R533
R542
M19
R528C384
C363
J80P1
R454
C296
C221
R359 R360
R379 R378
R357 R374
M14
LED2
R527C387
R547
F2
R520
R525
C372
C376
C380
C385
C361
C358
C366
C369
C343
C341
C344
C349
C333
C332
C331
C336
R421
RN2
D30
RN1
D29
R564
Q6
D28
FB22
FB23
FB24
FB25
FB19
FB18
FB20
FB21
R473 R480
D26
P_V3_3SB1
FB15
FB14
FB17
FB16
FB12
FB11
FB10
FB13
C316 C315
C327
R446R441
C304
R428
U20
R420
C301
C428
R575
R570
R566
R565
R567
C418
C408
FB28
FB27
C396
C410
C400
C395
C394R517
R512
R514
R509
R510
C375
C382
R499
R494
R488
C367
C364
R478
R484
R482
R477
C354
M18
C339R451
C319
R436 C328
R433 R445
C310
U18
C285 C284
C286
R576 P_S2
C425
R574 R573
U26
C402
C401
R539 R538
L8
U21
C359
C355
C353
C357
L7
PU8
R439
R435
R448
R443
C303
C311
C309
C283 C282
C281
C280
C242
FB29
R571
C424
C426
C427
R572
R537
C398
P_V5A1
C379
C365
C360
C351
R455
R461
R459
UP1
R444
C326 C325
C312
C306
C305
R425
R417
R415
C295R401
R408
R414
R402 C279 C278
D23
C262
M2B_SIM1
C423
R569
U27
R568
C422
C421
C397
TC1
R214
R486
D27 R483
R471
R460
R469
C345
R457
FB8
C324
L4
PU7
C260
C266
C272
C265
R561
R562
R546
R535
R532
R541
R544
R529
C391
C389
R526
R524
R515
R481
L6
P_VCCIO_1
R438
C308
R432
R419
R413
C300
R403
R407
R398
R396
R400
C253
M17
R556
R558
R557
R559
R560
U23
RP21
C346
R468
C350
C340
R456
C335
R452
FB9
C322
U19
U17
GPO4
C302
L2
R399
C233
C294
R397
C255
C252
C234
C237 C238
R388 X1
X11
C222
T16
R554 R555
CP16
CP14
RP34
RP33
RP24
CP11
CP10
R491
R496
CP6
RP15
CP4
RP6
R466 R467
R465
C330
C323 R440
C244
R411
R418
C232 C293
D19
T8 T5
R370
T15
C409
C403
C399
C406
C392
C390
C393
RP29 RP28 RP30 RP32 RP31
UP3
RP8
RP10
RP9
RP11
R472
C347
RTP1
UP2
L3
C248 C268
R409 R410
U15
TP2
C249
D18
T7
T6
R369
R368
T14
U25 R563
CP15
RP23
RP26
RP25
RP27
CP13
CP12
RP17
RP19
RP22
CP8
CP7
CP9
RP7
CP5
RP5
R479
RP13
RTP2
R463 R462
L5
C321 R442
C261
M44
R394
R391
C267
C273
Q3
C16
C292
T13
C381
R495
R492
RP18 RP20
RP14
RP16
CT16
RP12
C317
C318
R430R426
R427
C271
C270
R422
R416
R412
C288
R390
X2
Q2
X10
R384
R385
C223
C219
R372
R553
R551
R552 R549
R550
Q5
L1
C251
C291
C259C250
C257
C10 C13
R389
T12
T4
P_SM1
R548
C1670
R500
GPO5 GPO6
GPO3
C20
D17
T3
R366 R367
T11
C416 C417
C1671 C1672
C289 C290
U14
TP1
C14
C258
D16
T1
T2
R365
T10
DIMM1
C1673
C1674
C287
C239
C240
C263
C269
C246
C254
R375 T9
C414 C415
C1665 C1668 C1669
U1
C274 C275
C276 C277
R1181
M49
M48
C220
C1666
C1667
R1180
R1172
R1182
D22
C216
C229 C228
C231
C230
U13
R356
C371
R508 C378
C368
D21
R381 R380
R377 R376
C217
C227 C224 C226
C225
SW2
R371
ESD2
R540
C407
C1681
R522R521
M41
R505 R504 R507 R506
3
15
1
10
10
1
2
CT
BB
AA
A
1
A
C
260
259
6
4
144 146
143145
1
3
4
6
40
34
VDD
1
E/D
VDD
E/D
2
GNDGND
113
3
OUTOUT
3
6
37
48
1
1
4
6
4
25
24
13
12
6
4
11
2324
16
15
24
12
6
4
4
40
1
1
3
6
4
21
3
2
GND
GND
3
6
1
40
30
31
21
20
30
31
1
98
37
48
1
1
13
10
SW
C2
C6 C7
1
11
10
9
8
1
27
9
C1
C5
2
1
10
11
20
3
6
VDDVDD
4
1
E/D
E/D
1
13
10
10
9
12
49
21
20
19
11
10
27
9
3
6
2
1
19
C3
17
16
64
1
16
3
2
11
32
33
1
9
DIMM1

13
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
2.4.5 M2E_CN1 : M.2 key E Slot for USB 2.0, PCIe Gen3x1 support
M.2 key E connector is suitable for applications that use wireless connectivity including
Wi-Fi, Bluetooth, NFC of GNSS. Module card types include 2230. The pin assignments of
M2E_CN1 are listed in the following table :
Pin No. Signal Name Pin No. Signal Name
74 3.3V 75 GND
72 3.3V 73 NC
70 NC 71 NC
68 NC 69 GND
66 NC 67 NC
64 NC 65 NC
62 ALERT# (O)(0/3.3V) 63 GND
60 12C_CLK (I)(0/3.3V) 61 NC
58 12C_DATA (I/O)(0/3.3V) 59 NC
56 NC 57 GND
54 NC 55 PEWAKE0# (I/O)(0/3.3V)
52 PERST0# (I)(0/3.3V) 53 CLKREQ0# (I/O)(0/3.3V)
50 NC 51 GND
48 NC 49 REFCLKn0
46 NC 47 REFCLKp0
44 NC 45 GND
R71
R94 R66
R89
R82
R72
R88
R81
R59
M3
DP1
JSTATUS
M43
R898
R332
U11
R286
C167
U8 R224
R225
R219
R218
R217
R197R196
P_RSMRST1
R175
R180
R164
R178
R140
R147
R143
R139
P_S1
R145
R152
R146
R132 R124
R125
R131 R130 R122
R123
R117
R109
R62
R84
R61
R69
R60
F1
R341
R333
C184
R320
R321
M12
U10
C158
C165
C159
R200 R199
R188
R183
R182
R163
R141
R144
R148
C98
R158
R150
R142
R126
R128
R134
R127R135
U3
Q1
P_SYSPWROK1
R107
R108
C48
R87 R67
C7
C9
C8
FB1
C11
JHDD
R340
C183
C188
C172
R273
R285
R279
R272
R260
R263
P_V1P8A1
R162
R172
C109
R157
R136 C74
D9
R63
R68
M5
D6
R37 R38
C204
C203
C210
C169 C161
R256
C141
C147
C138
R203
C131
PU2
R189 R190
C111
R153C108
C101
M2B_MH1
D7
R39
C211
P_VTT1
R351
R348
C193
C200
R315
C190
R296
R302
U5
R193
R213
FB3
R210
M7
C117
D10
R99
C42
D8
R90
R83
R57
CN7
MH3
R343R342
FB6
FB7
R311
R339R338
R336 FB5
FB4
C179
C181
C180
C144
JUSB1
C75
MH2
C41
JP1
C28
C192 581C102C C189 C175 341C3
6
1
C
BAT2
MH4
3NC1OIPG
R1272
R167
CN2
P_REG1
R64R80
JPWBTN
R53
MH1
CN1
D1
ESD1
M2E_CN1
M2B_CN1
R101
R1271
C18
R1
SW3
C24 C23
D2
FUSE1
M1
JRESET
SATA1
C191
C198
R316
R330
C186 R317
R329
R337
R303
R268
R283
R275
R295
C152
R238
R234
R226
R227
R247
R245
P_V3_3S1
C129
C126
C122
C119
R170
R181
C110
C106
C91
C92
C72 C73
R120
C1676
R119
CT6
C30
C25
R32
C196
C195
C194 R331
R307 R308
R318
R269
C149
P_V5S1
C156 C166
PU4
R229 R230
C132
M10
R168
C118
C133
PU10
R173
R165
R166
C121
M6
R156 R154
FB2
C93
C69
C53 C54
C1675
CT4
C33
C26
R45
R4
C17
P_V12A1
R5
C4
M2
CT1
HDD_PWR_J1
C199
R334
C197
D15
C170
C168
C182
C178
R243
C154 C155
C160
C145
C146
R233
R237
R244
R228
C139
C128
C120
R211
R185
R174R171
C112
C95
CT9
C80
R20
R19
R28
R35 R11R10
R623
R1269
R1264
R1270
M167
C3
C1
R324 R323
R322
U9
R231
R232
C148
R235
R236
R222
R246
R220
C130
C136
C124
C137
U4
R191
R186
R161
R176 R169
C116
CT7
CT3
R26 R25 R24
D3
D14
R309
R326
R325
R291
R267
C150
R261
R257
R221
R215
R198
R187
R192
R177
R184
CT13
C31
C29
GPO1
LAN2
C187
R327
R310
R312
R290
R282
R274
R299
C151
R264
P_VR_READY1
R248
RP2
P_VRON1
RP1
CP2
CP1
CT11
CT8
CT5
R27
CT2
GPO2
C264
C15
U12
R335
R313
M2E_MH1
R242
R241
D11
RP4
R205
RP3
CP3
C47
C46
P_AUX1
C35
C36
C27
U2
R12
P_PWRGD_3V1
R297
R270
R280
R281
R250
R266
C164
R249
R255
C429
C142
R239
R209
R206 R208
R212
R201
M8
C115
CT12
CT14
CT10
C50
C51
P_VCCST_1
R29
C38 C37
D5
R6 R2 C2
R352 R353
R350R349
R305
R304
R306
R287 R288 R289
C177
C171 R251
R253 R252
R254
C153
U6
D12
R240 R202
R204
R207
M9
CT15
C94
C78 C77
C44
C43
C60 C59
R76
R85
P_VCCST_GD1
R30
R56
R36
R54 R55
R21
D4 C247
R14
C205
R271
R276
R293
C173
R300
R277 R278
R258
R262
R265
P_PBT1
P_APWRGD1
D13
C123
C107
C87
C86
R102 R103
R110
C62 C63
R65
R77
R92
R70
R91
R43
R44
R58
R22
R31
R41
R42
C243
C245
R18
LAN1
C206
R354
C134
C103
C76
R113
R111
R112
R114
R79
R95
R98
R86
R47 R46
R48 R49
C21
C241
R8
R15
C97
C104
C68 C1677
C83
C61
C55 C56
C64
C1678
R115
C39
R74
R75
C34
R23
R34
R40
R17
C1682
C207
R344
R346
C202
R345
C140
C127
C88
C99
C105
C100
C85
C84
C79
C71
C66
R100
C49
C40
C19
C32
C22
M42
R1170
C12
R1183
C209C208
R347 C135
R151
C96
C1663
C1664
C70 C67
C89
C52
C45
C58
R116
R104
R93
R78
R33
R52
R51
R50
M4
R9
R13
R7
R319
R328
R314
M11
R284
R298
R292
R301
C174 C176
R294
C157
C162
U7
R223 R216
R195
R194
P_PLTRST1
C125
R160
R179
R159
R138
R137
C90
R149
R155
R133
C65
C82 C81
R129 R121
C57
R118
R97
R106R105
R96
1
1
18
1
9
10
36
32
10
5
13
4
13
12
48
1
14
25
24 37
10
1
12
20
6
5
1
12
1
R11
R1
GR8
R10
R9
Y
R10
R9
Y
R12
O
1
17
7
11
8
R12
G
O
10
11 21
20
R1 R8
15
16
11
10
1
130
31
1
5
6
2
1
3 1A
C
2
7
1
1
10 1
75
10
1
10
1
2
2 1
33
23
1
2
32
22
AC
74 3
1
M2E_CN1

14
©Vecow PBC-1000 User Manual GETTING TO KNOW YOUR PBC-1000
42 NC 43 PERn0
40 NC 41 PERp0
38 NC 39 GND
36 NC 37 PETn0
34 NC 35 PETp0
32 NC 33 GND
Module Key Module Key
Module Key Module Key
Module Key Module Key
Module Key Module Key
22 NC 23 NC
20 NC 21 NC
18 NC 19 NC
16 LED2# (O)(od) 17 NC
14 NC 15 NC
12 NC 13 NC
10 NC 11 NC
8 NC 9 NC
6 LED1# (O)(od) 7 GND
4 3.3V 5USB_D-
23.3V 3 USB_D+
1GND
