Vega VEGASWING 51 User manual

Operating Instructions
VEGASWING 51
-contactless electronic switch

Contents
1About this document
1.1Function ............................. 4
1.2Target group .......................... 4
1.3Symbolism used ....................... 4
2For your safety
2.1Authorised personnel .................... 5
2.2Appropriate use........................ 5
2.3Warning about misuse ................... 5
2.4CE conformity ......................... 5
2.5Manufacturer declaration ................. 6
2.6Environmental instructions ................ 6
3Product description
3.1Configuration.......................... 8
3.2Principle of operation.................... 8
3.3Operation ............................ 9
3.4Storage and transport ................... 9
4Mounting
4.1General instructions..................... 11
4.2Mounting instructions.................... 13
5Connecting to voltage supply
5.1Preparing the connection ................. 16
5.2Wiring plan ........................... 17
6Setup
6.1Indication of the switching status ........... 21
6.2Function test .......................... 21
6.3Function chart ......................... 22
7Maintenance and fault rectification
7.1Maintenance .......................... 23
7.2Remove interferences ................... 23
7.3Exchange of the electronics ............... 24
7.4Instrument repair ....................... 26
8Dismounting
8.1Dismounting steps ...................... 27
8.2Disposal ............................. 27
2VEGASWING 51 --contactless electronic switch
Contents
30212-EN-070201

9Supplement
9.1Technical data......................... 28
9.2Dimensions ........................... 31
9.3Industrial property rights.................. 34
9.4Trademark ........................... 34
VEGASWING 51 --contactless electronic switch 3
Contents
30212-EN-070201

1About this document
1.1Function
This operating instructions manual has all the information you
need for quick setup and safe operation.Please read this
manual before you start setup.
1.2Target group
This operating instructions manual is directed to trained,
qualified personnel.The contents of this manual should be
made available to these personnel and put into practice by
them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or
malfunctions can result.
Warning:If this warning is ignored,injury to persons and/or
serious damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons
and/or destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGASWING 51 --contactless electronic switch
About this document
30212-EN-070201

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator.For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2Appropriate use
VEGASWING 51 is a sensor for level detection.
Detailed information on the application range of VEGASWING
51 is available in chapter "Product description".
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4General safety instructions
VEGASWING 51 is a high-tech instrument requiring the strict
observance of standard regulations and guidelines.The user
must take note of the safety instructions in this operating
instructions manual,the country-specific installation standards
(e.g.the VDE regulations in Germany)as well as all prevailing
safety regulations and accident prevention rules.
2.5CE conformity
VEGASWING 51 is in CE conformity with EMC (89/336/EWG),
fulfils NAMUR recommendation NE 21 and NE 23 and is in CE
conformity with NSR (73/23/EWG).
Conformity has been judged according to the following
standards:
lEMC:
-Emission EN 61326:1997 (class B)
-Susceptibility EN 61326:1997/A1:1998
lLVD:EN 61010-1:2001
VEGASWING 51 --contactless electronic switch 5
For your safety
30212-EN-070201

2.6Manufacturer declaration
In conformity with DIN EN 60079-14/2004,para.5.2.3,point
c1,VEGASWING 51 is suitable for use in zone 2.
The operator must use the instrument as it was intended to be
used and follow the specifications of the following documents:
lthis operating instructions manual
lthis manufacturer declaration (24625)
lthe applicable installation regulations
Max.increase of the surface temperature during operation:
82 K(individual components in the instrument)
With an ambient temperature of 70 °C(158 °F)on the housing
and a process temperature of 70 °C(158 °F), the max.ambient
temperature during operation is 135 °C(275 °F).
Measures to maintain explosion protection during operation:
lOperate the instrument in the range of the specified
electrical limit values.Permissible supply voltage:see
"Technical data"
lMount and operate the instrument in such a way that
ignition danger by electrostatic charge is not expected.
lMake sure that no explosive atmosphere exists when the
plug of the connection cable is pulled or plugged
lMake sure that the cable gland is tight and strain-relieved.
The outer diameter of the connection cable must be
adapted to the cable gland.Tighten the pressure screw of
the cable gland carefully.
lThe surface temperature of the housing must not exceed
the ignition temperature of the surrounding explosive
atmosphere
This instrument was assessed by a person who fulfils the DIN
EN 60079-14 requirements.
2.7Environmental instructions
Protection of the environment is one of our most important
duties.That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection.The environment man-
agement system is certified according to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environ-
mental instructions in this manual:
lChapter "Storage and transport"
6VEGASWING 51 --contactless electronic switch
For your safety
30212-EN-070201

lChapter "Disposal"
VEGASWING 51 --contactless electronic switch 7
For your safety
30212-EN-070201

3Product description
3.1Configuration
The scope of delivery encompasses:
lVEGASWING 51 level sensor
lTest magnet
lDocumentation
-this operating instructions manual
-if necessary,certificates
VEGASWING 51 consists of the following components:
lHousing with electronics
lprocess fitting with tuning fork

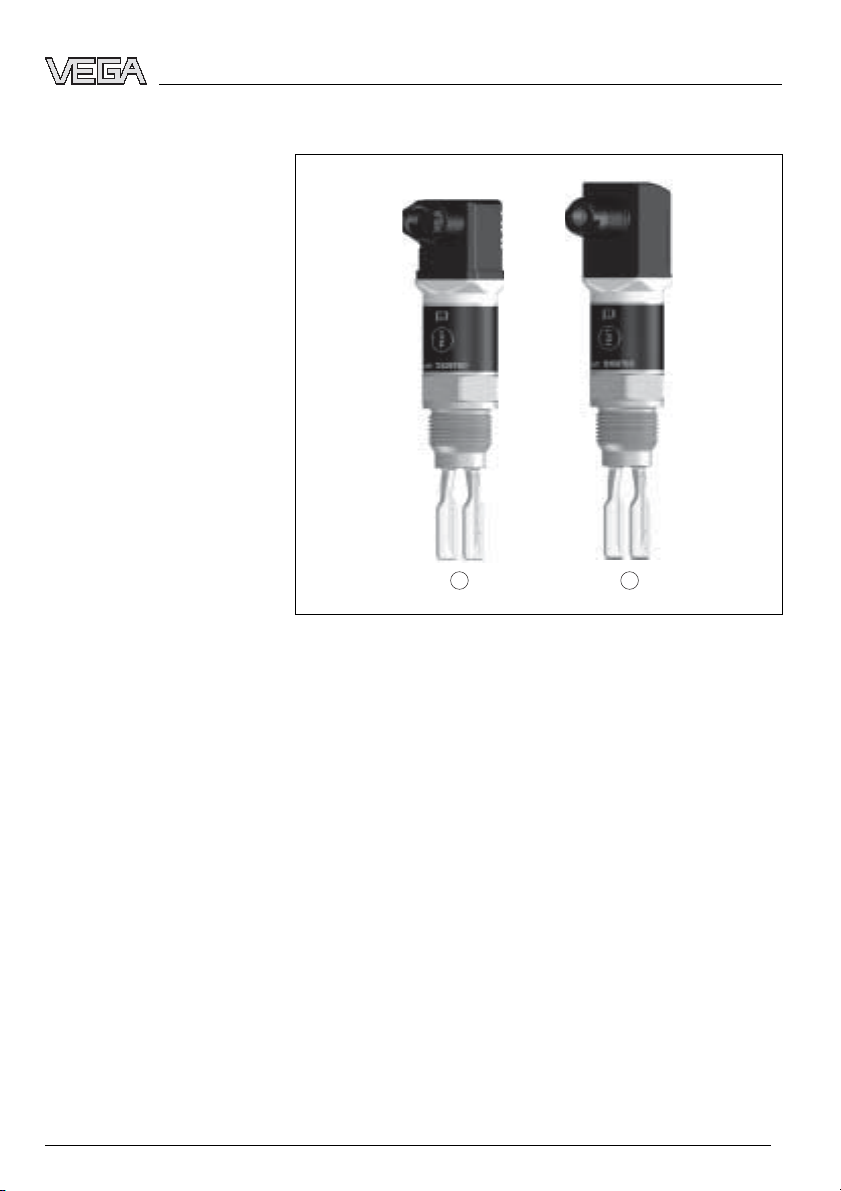

Fig.1:VEGASWING 51
3.2Principle of operation
VEGASWING 51 is a level sensor with tuning fork for level
detection.
It is designed for industrial use in all areas of process
technology and can be used in liquids.
Typical applications are overfill and dry run protection.With a
tuning fork of only 40 mm length,VEGASWING 51 can be also
mounted,e.g.in pipelines from DN 25.The small tuning fork
Scope of delivery
Components
Area of application
8VEGASWING 51 --contactless electronic switch
Product description
30212-EN-070201

allows use in vessels,tanks and pipes.Thanks to its simple
and robust measuring system,VEGASWING 51 is virtually
unaffected by the chemical and physical properties of the
liquid.
It functions even under difficult conditions such as turbulence,
air bubbles,foam generation,buildup,strong external vibration
or changing products.
Fault monitoring
The electronics module of VEGASWING 51 continuously
monitors via frequency evaluation the following criteria:
lStrong corrosion or damage on the tuning fork
lloss of vibration
lLine break to the piezo drive
If a malfunction is detected or in case of power failure,the
electronics takes on a defined switching condition,i.e.the
contactless electronic switch opens (safe condition).
The tuning fork is piezoelectrically energised and vibrates at its
mechanical resonance frequency of approx.1200 Hz.The
piezos are fixed mechanically and are hence not subject to
temperature shock limitations.The frequency changes when
the tuning fork is covered by the medium.This change is
detected by the integrated oscillator and converted into a
switching command.
VEGASWING 51 is a compact instrument,i.e.it can be
operated without external evaluation system.The integrated
electronics evaluates the level signal and outputs a switching
signal.With this switching signal,a connected device can be
operated directly (e.g.a warning system,aPLC,a pump etc.).
The data for power supply are stated in chapter "Technical
data"in the "Supplement".
3.3Operation
The switching status of VEGASWING 51 can be checked with
closed housing (signal lamp). Products with a density >0.7g/
cm³(>0.025 lbs/in³)can be detected.
3.4Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test according to DIN EN 24180.
Functional principle
Supply
Packaging
VEGASWING 51 --contactless electronic switch 9
Product description
30212-EN-070201

The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
lStorage and transport temperature see "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Storage and transport tem-
perature
10 VEGASWING 51 --contactless electronic switch
Product description
30212-EN-070201

4Mounting
4.1General instructions
In general,VEGASWING 51 can be mounted in any position.
The instrument must be mounted in such a way that the tuning
fork is at the height of the requested switching point.
The tuning fork has lateral marking (notches), marking the
switching point with vertical mounting.The switching point
refers to water (1g/cm³/0.036 lbs/in³). When mounting
VEGASWING 51,make sure that this marking is at the height
of the requested switching point.Keep in mind that the
switching point of the instrument is shifted if the medium has a
density other than water.
2
3
1
13mm
(33/64")
13mm
(33/64")

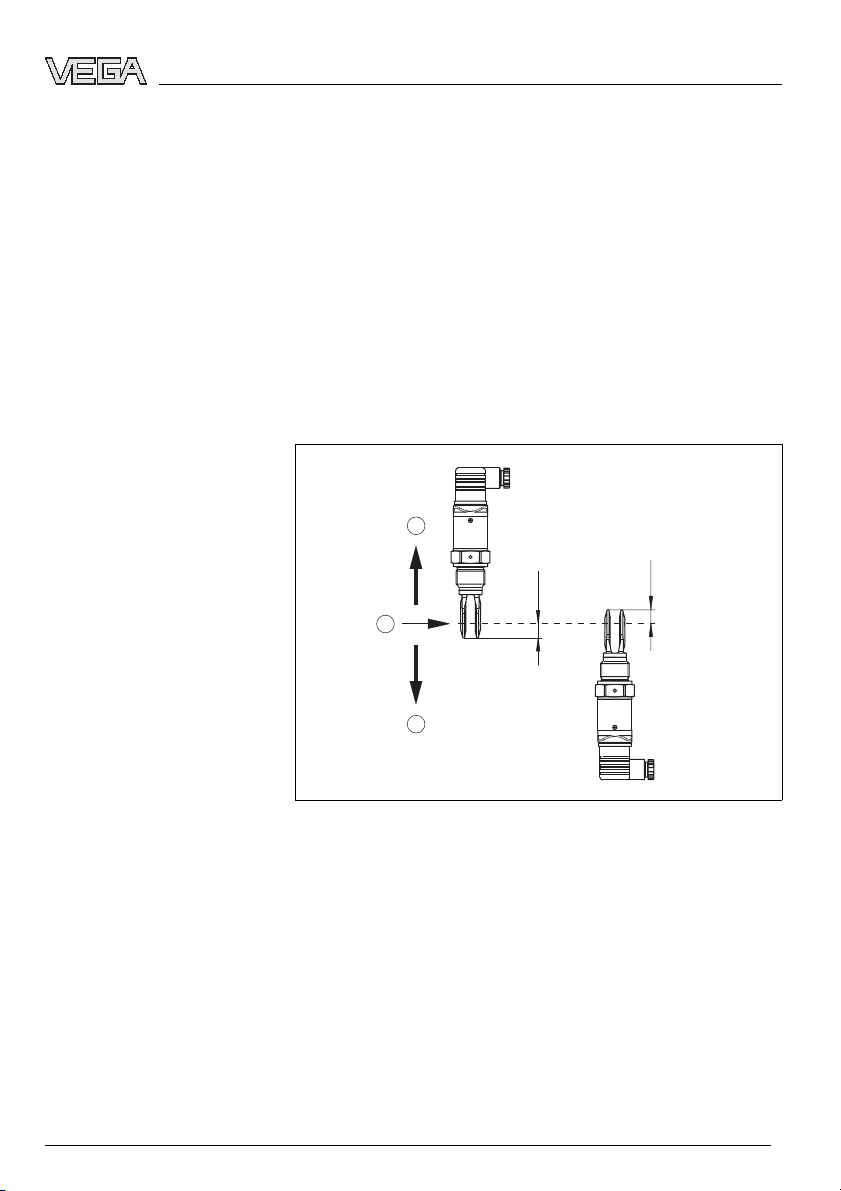

Fig.2:Vertical mounting
1Switching point approx.13 mm (0.51 in)
2Switching point with lower density
3Switching point with higher density
Switching point
VEGASWING 51 --contactless electronic switch 11
Mounting
30212-EN-070201

1
2

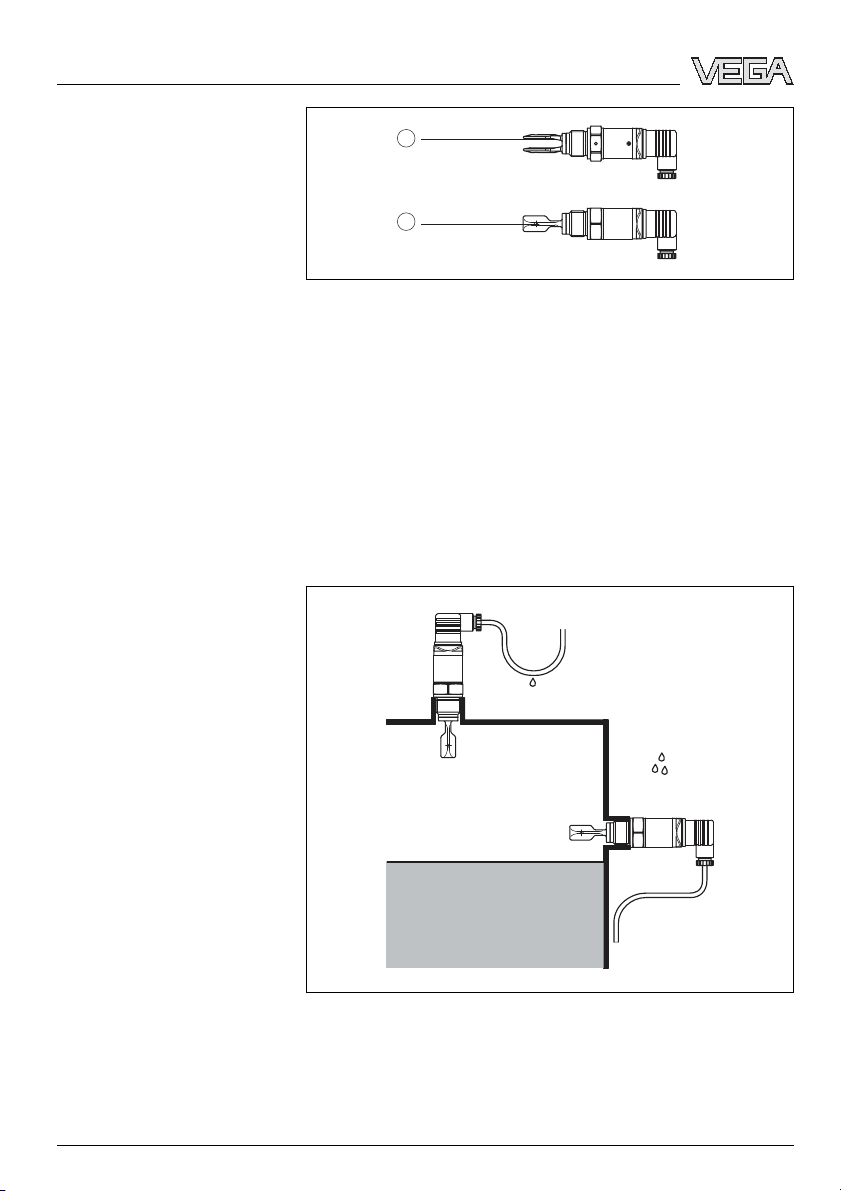

Fig.3:Horizontal installation
1Switching point
2Switching point (recommended mounting position,particularly for adhesive
products)
Use the recommended cables (see chapter "Connecting to
power supply")and tighten the cable gland.
You can give your VEGASWING 51 additional protection
against moisture penetration by leading the connection cable
downward in front of the cable entry.Rain and condensation
water can thus drain off.This applies mainly to mounting
outdoors,in areas where moisture is expected (e.g.by
cleaning processes)or on cooled or heated vessels.
Fig.4:Measures against moisture penetration
Do not hold VEGASWING 51 on the tuning fork.
Moisture
Transport
12 VEGASWING 51 --contactless electronic switch
Mounting
30212-EN-070201

The process fitting must be sealed if there is gauge or low
pressure in the vessel.Before use,check if the seal material is
resistant against the measured product and the process
temperature.
The max.permissible pressure is stated in chapter "Technical
data"in the "Supplement"or on the type label of the sensor.
The vibrating level switch is a measuring instrument and must
be treated accordingly.Bending the vibrating element will
destroy the instrument.
Warning:
The housing must not be used to screw the instrument in!
Applying tightening force on the housing can damage its
rotational mechanical parts.
To screw in,use the hexagon above the thread.
4.2Mounting instructions
For welded socket with O-ring in front and welding marking.
VEGASWING 51 has a defined thread runout point.This
means that every VEGASWING 51 is in the same position after
being screwed in.Remove therefore the supplied flat seal from
the thread of VEGASWING 51.This flat seal is not required
when using a welded socket with front-flush O-ring.
Before welding,unscrew VEGASWING 51 and remove the
rubber ring from the welded socket.
The welded socket has a marking (notch). For horizontal
mounting,weld the socket with the notch facing upward or
downward;in pipelines aligned with the direction of flow.
Pressure/Vacuum
Handling
Welded socket
VEGASWING 51 --contactless electronic switch 13
Mounting
30212-EN-070201

1
Fig.5:Marking on the welded socket
1Marking
In case of horizontal mounting in adhesive and viscous
products,the surfaces of the tuning fork should be vertical in
order to reduce buildup on the tuning fork.The position of the
tuning fork is indicated by a marking on the hexagon of
VEGASWING 51.With this,you can check the position of the
tuning fork when screwing it in.When the hexagon touches the
seal,the thread can still be turned by approx.half a turn.This
is sufficient to reach the recommended installation position.
In adhesive and viscous products,the surfaces of the tuning
fork should protrude into the vessel to avoid buildup.Therefore
sockets for flanges and mountings bosses should not exceed
a certain length.
30mm
(1 3/16")
Fig.6:Adhesive products
IfVEGASWING 51 is mounted in the filling stream,unwanted
false measurements may be generated.Mount VEGASWING
51 at a location in the vessel where no disturbing influence
from e.g.filling openings,agitators,etc.can occur.
Adhesive products
Inflowing medium
14 VEGASWING 51 --contactless electronic switch
Mounting
30212-EN-070201

To minimise flow resistance caused by the tuning fork,
VEGASWING 51 should be mounted in such a way that the
surfaces of the blades are parallel to the product movement.
Flows
VEGASWING 51 --contactless electronic switch 15
Mounting
30212-EN-070201

5Connecting to voltage supply
5.1Preparing the connection
Generally note the following safety instructions:
lConnect only in the complete absence of line voltage
VEGASWING 51 is connected with standard cable with round
cross section.Depending on the plug connection,you have to
select the outer diameter of the cable respectively so that the
seal effect of the cable gland is ensured.
lValve plug DIN 43650,ø4.5…7mm
lValve plug DIN 43650 with IDC method of termination,
ø5.5…8mm
Use cable with a round wire cross section and tighten the
cable gland.
When mounting outdoors,on cooled vessels or in humid
areas,in which cleaning is carried out e.g.with steam or high
pressure,it is particularly important to seal the cable gland.
Note safety instructions
Selecting connection cable
Cable glands
16 VEGASWING 51 --contactless electronic switch
Connecting to voltage supply
30212-EN-070201

5.2Wiring plan
1 2
Fig.7:Overview of the connection versions
1Valve plug DIN 43650
2Valve plug DIN 43650 with IDC connections
Valve plug DIN 43650
For this plug version,standard cable with round wire cross-
section can be used.Cable diameter 4.5…7mm,protection
IP 65.
Housing overview
Plug versions
VEGASWING 51 --contactless electronic switch 17
Connecting to voltage supply
30212-EN-070201

1
4
5
6
7
8
9
10
2 3

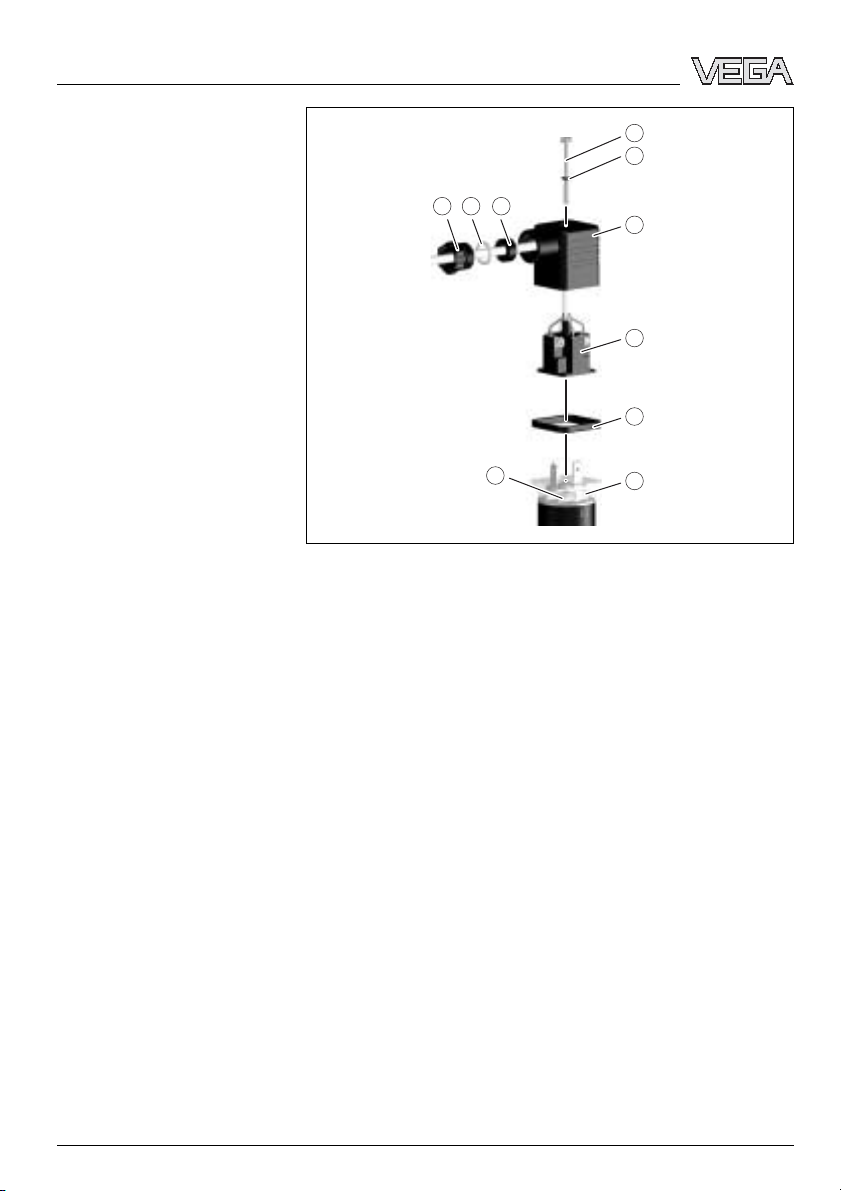

Fig.8:Connection,valve plug DIN 43650
1Pressure screw
2Pressure disk
3Seal ring
4Fixing screw
5Seal washer
6Plug housing
7Plug insert
8Profile seal
9Control lamp
10 VEGASWING 51
Valve plug DIN 43650 with IDC connections
For this plug version you can use standard cable with round
wire cross-section.The inner cables must not be dismantled.
The plug connects the cables automatically when screwing in.
Cable diameter 5.5…8mm,protection IP 67.
18 VEGASWING 51 --contactless electronic switch
Connecting to voltage supply
30212-EN-070201

1 2 3
4
Fig.9:Connection,valve plug DIN 43650 with IDC method of termination
1Compression nut
2Cable
3Split taper socket
4Seal insert
5Strand
6Plug housing
The instrument is used for direct control of relays,contactors,
magnet valves,warning lights,horns etc.It must not be
operated without intermediately connected load,because the
electronic would be destroyed if connected directly to mains.It
is not suitable for connection to low voltage PLC inputs.
Domestic current is temporarily lowered below 1mAafter
switching offthe load so that contactors,whose holding current
is lower than the constant domestic current of the electronics
(3mA), are reliably switched off.
Contactless electronic switch
VEGASWING 51 --contactless electronic switch 19
Connecting to voltage supply
30212-EN-070201

R
L
R
L
1 1
3
21
3
21
N- L1+L1+ N-
Max. Min.
PE PE
Fig.10:Wiring plan,contactless electronic switch with valve plug DIN 43650
PE Protective ground
RL Load resistance (contactor,relay etc.)
20 VEGASWING 51 --contactless electronic switch
Connecting to voltage supply
30212-EN-070201
