Vent-Axia Sentinel Kinetic 200Z User manual

V:\Technical\ARTWORK\Fitting & Wiring\Word Files HOLDING\449355 D.doc
449355 D.docCopyright © 2009 Vent-Axia Limited. All rights reserved.
Sentinel
Kinetic 200Z & 200ZH
300ZH
User Instructions
PLEASE
RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.
Model
Stock Ref. N°
200Z
448733A
200ZH
449540A
300Z
H 449536A

About this Document
Sentinel Kinetic MVHR Operation & Monitoring 2
IMPORTANT SAFETY INFORMATION
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE USING THE UNIT.
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Young children should be supervised to
ensure that they do not play with the
appliance.
2. Do not attempt to remove the covers of
this unit. High Voltage is present in this unit.
NEW PROPERTY FILTER MAINTENANCE
When fitted to a new build property the
supply and exhaust filters should be
checked at one month intervals for the first
six months.
Disposal
This product should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local authority
for recycling advice.
Contents
Product Description 3
Sentinel Kinetic 200Z, 200ZH & 300ZH ........................................3
Remote Wired Control Display.......................................................4
Technical Specification 5
Technical Specification ..................................................................5
Getting Started 6
Powering Up the Unit .....................................................................6
Startup Screens .............................................................................6
Operation and Monitoring 7
Overview ........................................................................................7
User Menu Screens .......................................................................8
Summer Mode Screens…………………………………………….. .9
Boost & Purge Screens................................................................10
Status Message Screens .............................................................11
Maintenance 13
Caring for the Unit........................................................................13
Filter Maintenance........................................................................13
12 Monthly Maintenance..............................................................13
Troubleshooting 17
Diagnosing a Problem 17
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE USING THE UNIT.

Product Description
Sentinel Kinetic MVHR Operation & Monitoring 3
Product Description
Sentinel Kinetic 200Z, 200ZH, 300ZH
The Vent-Axia Sentinel Kinetic 200Z, 200ZH, 300ZH Mechanical Ventilation / Heat Recovery (MVHR) is a
heat recovery unit designed for the energy efficient ventilation of houses and similar dwellings, conforming to
the latest requirements of the Building Regulations document F 2010.
The unit is designed for continuous 24 hour exhaust ventilation of stale moist air from bathrooms, toilets and
kitchens. As the stale air is extracted a heat exchanger within the unit transfers the heat into the supply air
entering the bedrooms and lounge.
Sentinel Kinetic 200Z, 200ZH, 300ZH Summer By Pass.
The Sentinel Kinetic units are fitted with a Summer By Pass (SBP) and will provide energy-free heating and
energy-free cooling when the house temperature and ambient temperature allows.
If the room is warmer than the set (shown as "indoor") temperature (i.e. you need the room to be cooler) and the
outdoor air is cooler than the actual room temperature (i.e. the outdoor air could cool your room) then the SBP will
open and the unit will supply cooler air to your room.
If the room is cooler than the set ("indoor") temperature (i.e. you need the room heating) and the outdoor air is
warmer than the actual room temperature (i.e the outdoor air could heat your room) then the SBP will open and
the unit will supply warmer air to your room.
Note that the above only applies whilst the outdoor air temperature is above 14C (adjustable) in order to prevent
cold draughts.
The set ("indoor") temperature should be set 2 or 3 degrees higher than the central heating thermostat and 2 or 3
degrees below any air conditioning thermostat if fitted. This will prevent any clash between the separate systems
Models
448733A- Sentinel Kinetic 200Z with Summer Bypass and Wired Remote Control.
449540A - Sentinel Kinetic 200ZH with Summer Bypass, Integral humidity sensor & Wired Remote
Control.
449536A - Sentinel Kinetic 300ZH with Summer Bypass, Integral humidity sensor & Wired Remote
Control.
Accessories
441838 - Sentinel Kinetic plug-in integral humidity sensor
441780 - Vent-Wise accessory pack.
A range of sensors can be used to manage system demand and control the ventilation rate. These include an
internal humidity sensor, humidity sensors for independent mounting in rooms, CO2sensor, Ventwise sensors,
manual switches and pull cords. For these alternative control options, see www.vent-axia.com

Product Description
Sentinel Kinetic MVHR Operation & Monitoring 4
Wired remote Control Display
The Wired remote Control provides the user interface for commissioning and monitoring purposes.
Display
The main display is an LCD
(see Overview on page 7).Normal Airflow
30%
Buttons
Four buttons on the Control Unit provide the controls for configuring and monitoring the unit.
Table 1: Control Unit Buttons
Button
Function
Press to adjust settings and press to save settings.
Press to go to the above screen or to increase a parameter value. Press
and hold for more than 2 seconds for fast scrolling.
Press to go to the next screen or to decrease a parameter value. Press and
hold for more than 2 seconds for fast scrolling.
Press to activate Boost mode.
No. of presses
Boost action
1
Boosts for 30 minutes
2
Boosts for 60 minutes
3
Boosts continuously
4
Back to Normal flow rate
Press and hold for 5 seconds to activate Purge mode. (Press and hold for
5 seconds to cancel Purge).

Technical Specification
Sentinel Kinetic MVHR Operation & Monitoring 5
Sentinel Kinetic 200Z & 200ZH Sentinel Kinetic 300ZH
Power
AC Voltage Input 220-240 V AC (single phase)
AC Frequency Input 50 Hz nominal
Supply Fuse 3 A (located in fused spur)
Product Fuse
2 A (located on main PCB)
Rated Power 175W (max.) 180W (max.)
Physical
Height excluding
mounting brackets 200mm 300mm
Width
570mm 700mm
Length excluding spigots 800mm 890mm
Weight 26.5Kg 38.5Kg
Spigot diameter 125 mm 150mm
Condensate pipe
diameter
22 mm
Environmental
IP Rating IP22
Operating Temperature -10°C to +45°C
Operating Humidity
0% to 95% RH
For all other technical details, please see the Product Catalogue or our website at www.vent-axia.com.

Starting Up
Sentinel Kinetic MVHR Operation & Monitoring 6
Powering Up the Unit
Switching On (The unit is designed to run continuously)
To switch the unit on:
1. Switch on the power at the mains supply isolator feeding the unit.
2. Following switch-on, the fan motors will start and the Control Unit will display a series of startup screens,
described below.
Switching Off
To switch the unit off: at the unit’s local isolator, turn the power off.
Startup Screens
Sentinel Kinetic Version Screen
The Sentinel Kinetic Version screen displays the
firmware version number for 3 seconds.
No adjustments are possible on this screen.
V--
Language Screen
The Language screen displays the language used for
the screens. It is typically displayed for 5 seconds, or
longer if changing the setting.
Language
English
Control Mode Screen
This allows a choice between the control mode
described in this document and an alternative control
mode.
Control Mode
01
Airflow Units Screen
The Airflow Units is a percentage of the unit’s
maximum flow. Airflow Units
%
Wireless Control Screen
Not Available. Wireless Control
Not Fitted
Humidity Sensor Screen
The Humidity Sensor screen displays whether the
humidity sensor is fitted. It is typically displayed for
3 seconds.
(200ZH & 300ZH will display Fitted )
Humidity Sensor
Not Fitted

Operation and Monitoring
Sentinel Kinetic MVHR Operation & Monitoring 7
Press for
Boost
Dryout Mode
168 h
Defrost Active
Airflow Mode
Room Too Cold
Fan Off
BMS
Fan Off
CVP Control
Switched Off
V--
Language
English
Control Mode
01
Wireless Control
Not Fitted
Humidity Sensor
Not Fitted
Airflow Units
%
Timeout after 2 m
Normal Airflow
30%
Set Clock
Mon 12:30
Summer Mode
On
Indoor Temp
25 C
Outdoor Temp
14 C
Press
for > 5 s
Purge 120 m
100 %
Boost Airflow
50%
Low Airflow
20%
Cooker Hood
100 %
Operation and Monitoring
Overview
When the Sentinel Kinetic unit has been installed and commissioned it should require no further intervention in
order to operate, unless external switches are used to control on/off/boost, etc, or BMS control requires user
action.
Start
-up Screens
Status
User Menu
Low Speed - If selected on
installation.

Operation and Monitoring
Sentinel Kinetic MVHR Operation & Monitoring 8
User Menu Screens
From the Normal Airflow screen, press the button to access the rest of the User Menu screens.
Changing the value of a setting (if adjustable) is typically a 3-step procedure:
1. Press to select the setting (the setting will flash).
2. Use the or buttons to adjust the value. To scroll quickly, press and hold the or buttons for
more than 2 seconds.
3. Press again to enter the new settings and move to the next screen.
To return to the Normal Airflow screen, press the button repeatedly or press and hold the button for 5
seconds. Alternatively, the Normal Airflow screen will be restored if no buttons are pressed for two minutes
(timeout). Settings are stored in a the memory and will be retained in the event of mains power supply failure.
Low Airflow / Normal Airflow / Boost Airflow Screen
When the start-up screens are finished, the Low or
Normal screen is displayed showing operating status
(Low Airflow X % or Normal Airflow X % or Boost
Airflow X %).
The Normal screen displays the rate of normal airflow
(supply air) through the unit.
If the installation has proportional sensors or an internal
humidity sensor fitted, an αsymbol will be displayed
when they are boosting the airflow.
Normal Airflow
30 %
When the summer bypass is active, the normal screen
top line will alternate (for 3 seconds) with Summer
Bypass.
SUMMER BYPASS ON
30 %
An interval can be set, see the Installation and
Commissioning manual, at which the unit reminds the
user to check the filters. This will be 6, 12 or 18
months. The normal screen top line will include Check
Filter as a reminder to check and, if necessary, clean or
replace the filters.
When this has been done, press and hold the and
buttons for 5 seconds to reset the automatic
message.
Check Filter
30 %

Operation and Monitoring
Sentinel Kinetic MVHR Operation & Monitoring 9
Set Clock Screen
From the Normal Airflow screen, simply press the
button once to access the Set Clock screen.
The Set Clock Control screen enables you to change
the clock settings. The clock retains its settings for
approximately two weeks without mains power, after
which it will need resetting when power is reconnected
Values are DDD HH:MM.
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
The unit will not automatically switch for Daylight
saving time.
Set Clock
Mon 12:30
Summer Mode Screen
From the Set Clock screen, simply press the button
twice to access the Summer Mode screen.
If the unit is a summer bypass model, the Summer
Mode screen enables you to switch the summer
bypass control on or off. This screen is only displayed
when the bypass is fitted.
Options available are On (default) and Off.
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
Summer Mode
On
Indoor Temp Screen
From the Summer Mode screen, simply press the
button 3 times to access the Indoor Temp screen.
The Indoor Temp screen enables you to choose the
target room temperature in degrees Centigrade – only
displayed when the bypass is fitted.
Selectable range is 16-40 (25 default).
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
Indoor Temp
25 C

Operation and Monitoring
Sentinel Kinetic MVHR Operation & Monitoring 10
Boost & Purge Screens
Boost Screen
Pressing the button activates boost airflow mode
when extra ventilation is required.
No. of presses
Boost action
1
Boosts for 30 minutes
2
Boosts for 60 minutes
3
Boosts continuously
4
Back to Normal flow rate
If the installation has switch sensors, is wired to the
lighting, has Vent-Wise sensors or if the internal time
switch is set for periodic operation, operation will
change from normal to boost automatically. Pressing
the button will reveal a code to show which device
has activated boost.
s1 = Switch S/W1
s2 = Switch S/W2
s3 = Switch S/W3
s4 = Switch SW4
s5 = Switch SW5
v1 = Vent-Wise Input S/W1
v2 = Vent-Wise Input S/W2
v3 = Vent-Wise Input S/W3
ls = Switched live (LS)
c1-3 = Internal Time switch
If running on boost due to pressing the button, a
device will ‘take over’ the boost. Flow will return to low /
normal when that device switches off. If a number of
different devices are calling for boost flow, the unit will
run at boost until the last one has reverted to normal.
Boost Airflow
50 %
Purge Screen
Pressing and holding the button for 5 seconds
activates purge mode when you want to purge air from
the building. The unit will revert to normal flow by
pressing and holding the button again for 5
seconds. If the wireless boost option is fitted, this can
be triggered from the wireless transmitter/boost switch.
Purge mode runs the fans at full speed for 2 hours (120
minutes). The Purge screen displays a countdown of
the time remaining.
Purge 120m
100 %

Operation and Monitoring
Sentinel Kinetic MVHR Operation & Monitoring 11
Low Airflow Screen
Low Airflow mode is activated when the Normal Airflow
is set to Off.
The Normal Airflow mode can be set to run during the
daytime i.e. from 6am to 11pm, the Low Airflow mode
will then run during the night from 11pm to 6pm.
Low Airflow
20 %
Status Message Screens
The status message screens override the Normal Airflow and other user screens, and display status and key
operational conditions (temperatures or pressures, etc.) according to how the unit has been configured. If there
is more than one status item to be displayed, the highest priority message is shown.
These screens are displayed in a loop during normal operation of the unit, either after displaying the start-up
screens, or when commissioning has been completed. After a few seconds the display backlight is turned off in
order to minimise power consumption. The and buttons can be used to stop the loop sequence in order
to display individual screens for a longer period with the backlight turned on, if required.
Dryout Mode Screen
The Dryout Mode screen displays the time remaining
for the building to dry out. The unit runs at maximum
flow for 1 week.
Dryout Mode
168 h
Defrost Active Screen
The Defrost Active screen displays the status of the
defrost (antifrost) mode. If the external air drops below
0°C, to reduce the risk of frost forming in the heat
exchanger the defrost mode is activated. Defrost mode
can either alter the airflows or open the bypass and will
be pre-set by the commissioning engineer.
Defrost Active
Airflow Mode
Bottom line of display may be (Airflow Mode, Bypass
Mode).
Airflow Mode - When the supply air temperature is
between 0° and -20°C, antifrost will automatically
activate. This will reduce the supply airflow rate and
increase the extract airflow rate to prevent frost forming
on the heat exchanger. During antifrost operation the
supply motor can stop for 15 minutes and run for 45,
depending on the temperature below 0°C. If the supply
air temperature is -20°C or below the supply fan
switches off and the extract fan continues to run at
reduced rate to prevent frost forming on the heat
exchanger.
Bypass Mode - While the supply air temperature is
below 0°C, the defrost mode will automatically activate.
This mode will open the bypass to prevent frost forming
on the heat exchanger.

Operation and Monitoring
Sentinel Kinetic MVHR Operation & Monitoring 12
Heating Failure Screen
The Room Too Cold screen displays the status of the
fan. If the heating system in the building fails or is
switched off and the internal temperature drops below
5°C, the unit will stop running so as to not bring cold air
into an already cold house. The unit will start up every
hour and will run for a short time to measure the
temperature of the property. When the temperature
rises, e.g. the heating system is switched back on, the
unit will restart and continue normal operation.
Bottom line of display may be ( Fan Off, Fan
Restarting).
Room Too Cold
Fan Off
BMS Screen
The BMS screen shows if a Fan Off command has
been received from a Building Management System
(BMS), if used.
A Fan Off command could be received from the BMS
in the event of a fire alarm.
BMS Mode
Fan Off

Maintenance
Sentinel Kinetic MVHR Operation & Monitoring 13
Maintenance
Caring for the Unit
Heat recovery units, by their very nature, require regular maintenance. The Sentinel Kinetic unit has been
designed to facilitate access to enable maintenance to be carried out easily.
Filter Maintenance
Item Action
Fan Filters When the unit displays “Check filters”. This is a reminder to ensure that the filters are not so
dirty that they are blocking the airflow or allowing dirt to pass through. The rate at which the
filters become dirty will vary hugely depending on the environment and the activity within the
property.
1. Remove 2 filter cover plates and filters.
2. Clean gently by tapping or carefully using a vacuum cleaner if necessary.
3. Replace the filters and cover plates
4. Reset the automatic message, press and hold the and
buttons for 5 seconds.
12 Monthly Maintenance
Item Action
Fan Filters
(Interval to suit
environment)
Change the Fan Filters depending on which environment the unit has been installed; urban,
suburban or rural.
1. Remove 2 filter cover plates and filters.
2. Insert the replacement filters.
3. Replace the filters and cover plates.
4. Reset the automatic message, press and hold the and
buttons for 5 seconds.
Unit & Heat Exchanger
Cell Inspect and clean the unit: See the following pages
Motors Inspect the motors for build-up of dust and dirt on the impeller blades, which could cause
imbalance and increased noise levels. Vacuum or clean if necessary.
Condensate Drain Check the condensate drain tube is secure and clear of debris. Clean if necessary.
Fastenings Check that all unit and wall-mount fastenings are sufficiently tight and have not become
loose. Re-tighten if necessary.

Maintenance
Sentinel Kinetic MVHR Operation & Monitoring 14

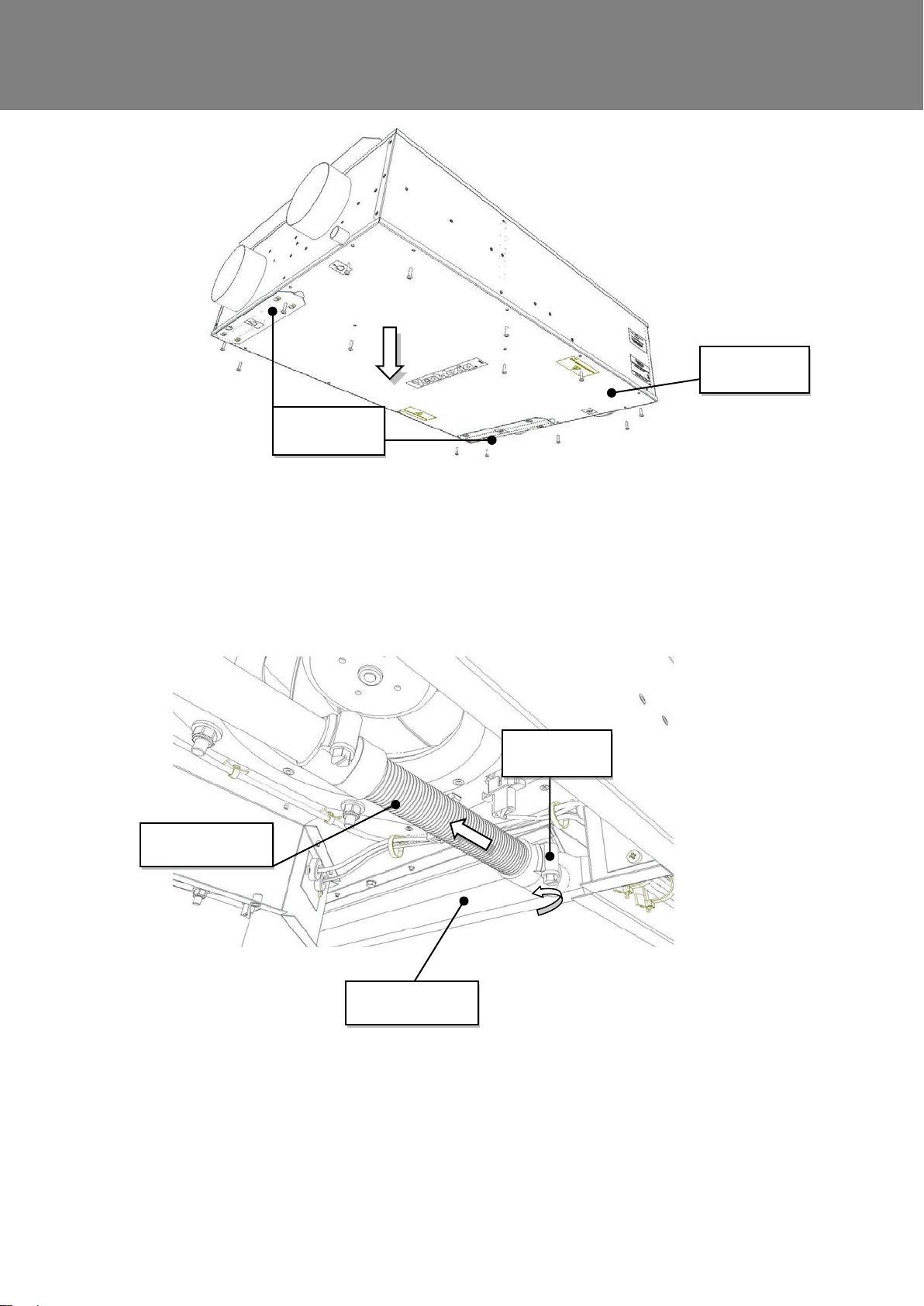

Stage 1: Isolate the mains power supply and remove the Filter access Panels and Filters.
Undo the securing screws and remove the Cover .
Stage 2: Loosen the Condensate Pipe Jubilee Clip and remove Pipe from Condensate Tray.
Filter access
Panels
Condensate Tray
Jubilee Clip
Condensate Pipe
Cover

Maintenance
Sentinel Kinetic MVHR Operation & Monitoring 15
Stage 3: Remove the Condensate Tray.
Note: Remove the additional Security Strap on the 300ZH before removing the Condensate Tray
Caution: Keep the Tray as horizontal as possible as this may contain condensate.
Stage 5: Remove the two Heat Exchanger fixing Brackets and Heat Recovery Cell.
Note : Take care when removing the Heat Recovery Cell.
Cleaning the Heat Exchanger Cell:
Wash the outer cover and heat exchanger in warm water using a mild detergent (such as Milton Fluid) and dry thoroughly.
Brackets
Security Strap

Maintenance
Sentinel Kinetic MVHR Operation & Monitoring 16
Reassembly after maintenance:
For re assembly, please reverse this process ensuring the Heat Exchanger Cell is re positioned with the “TOP” label visible
and that the same level of care and attention is retained in re-applying all fixings to their previous locations.
Spares
The following spares may be ordered from Vent-Axia
Description
Part No 200Z & 200ZH
Part No 300ZH
Filters, 2 per pack
449524
449575
Heat Recovery Cell
449525
449576
Motor assembly
449526
449526
Control PCB
449527
449527
Temperature sensor kit (consists of a T1 & T2 sensor)
449528
449577
Wired remote controller (complete with 15 metre control cable)
443283
443283

Maintenance
Sentinel Kinetic MVHR Operation & Monitoring 17
Troubleshooting
Diagnosing a Problem
In the event of a problem, always troubleshoot the unit according to:
Fault code displayed on the Remote Wired Control.
Fault LED if connected.
If no indications are displayed, then troubleshoot problem according to the fault symptom as described in the
following table.
Service/Fault Code Screens
The Service screen is displayed, alternating with the
Fault Code screen, when a fault has caused the unit to
switch off and you must phone the telephone number
displayed on the screen for assistance.
Service Phone
01293nnnnnn
The Fault Code screen is displayed, alternating with
the Service screen, when a fault has occurred. Take
note of the fault code when reporting a fault.
Fault Code
01
For assistance contact the service provider and quote the fault code number. The following fault codes numbers
may be displayed. Code numbers are added together if more than one is detected.
Table 2: Fault Codes
Code Problem
01 Supply Fan not running
02 Extract Fan not running
04 PCB 24 V fuse (FS1) failure
08 Temperature sensor T1 (supply) faulty
16 Temperature sensor T2 (extract) faulty
32 Wired Remote Control failure
Troubleshooting

PRODUCT FICHE
For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014)
Name: Vent-Axia Vent-Axia Vent-Axia
Model ID (Stock Ref.) : Kinetic 200 Z -
448733
Kinetic 200 ZH -
449540
Kinetic 300 ZH -
449536
SEC Class
A
A
A
SEC Value ('Average')
-39.08
-39.08
-37.20
SEC Value ('Warm')
-15.06
-15.06
-13.42
SEC Value ('Cold') -81.78 -81.78 -79.51
Label Required? (Yes/No=Out of scope)
Yes
Yes
Yes
Declared as: RVU or NRVU/UVU or BVU
RVU/BVU
RVU/BVU
RVU/BVU
Speed Drive
Variable Speed
Variable Speed
Variable Speed
Type HRS (Recuperative, Regenerative, None) Recuperative Recuperative Recuperative
Thermal Eff: [ (%), NA(if none)]
79.00
79.00
77.00
Max. Flow Rate (m3/h)
252.00
252.00
295.20
Max. Power Input (W): (@Max.Flow Rate)
150
150
150
LWA: Sound Power Level (dB) 57.43 57.43 58.23
Ref. Flow Rate (m3/s)
0.05
0.05
0.06
Ref. Pressure Diff. (Pa)
50
50
50
SPI [W/(m3/h)]
0.39
0.39
0.50
Control Factor & Control Typology: (CTRL/ Typology)
Control Factor; CTRL
0.65
0.65
0.65
Control Typology Local Demand
Control
Local Demand
Control
Local Demand
Control
Declared: -Max Internal & External Leakage Rates(%) for BVUs
or carry over (for regenerative heat exchangers
only),
-&Ext. Leakage Rates (%) for Ducted UVUs;
<5% Internal, <5%
External
<5% Internal, <5%
External
<5% Internal, <5%
External
Mixing Rate of Non-Ducted BVUs not intended to be equipped
with one duct connection on either supply or extract air side; N/A N/A N/A
Position and description of visual filter warning for RVUs
intended for use with filters, including text pointing out the
importance of regular filter changes for performance and
energy efficiency of the unit
Refer to User
Instructions
Refer to User
Instructions
Refer to User
Instructions
For UVUs (Instructions Install Regulated Supply/Extract Grilles
Façade) N/A N/A N/A
Internet Address (for Disassembly Instructions) www.vent-
axia.com
www.vent-
axia.com
www.vent-
axia.com
Sensitivity p. Variation@+20/-20 Pa: (for Non-Ducted VUs)
N./A
N./A
N./A
Air Tightness-ID/OD-(m3/h) (for Non-Ducted VUs) N./A N./A N./A
Annual Electricity Consumption: AEC (kWh/a)
2.50
2.50
3.09
Annual Heating Saved: AHS (kWh/a)
AHS: Average
44.66
44.66
44.24
AHS: Warm 20.19 20.19 20.01
AHS: Cold
87.36
87.36
86.55

Head Office: Fleming Way, Crawley, West Sussex, RH10 9YX.
EU Authorised Representative: Vent-Axia Bedrijvenweg 17 7442 CX Nijverdal Nederland
[e-mail]
UK NATIONAL CALL CENTRE, Newton Road, Crawley, West Sussex, RH10 9JA
SALES ENQUIRIES: Tel: [phone] Fax: [phone]
TECHNICAL SUPPORT Tel: [phone] Fax: [phone]
For details of the warranty and returns procedure please refer to www.vent-axia or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX
449355D © 2021 Vent-Axia. All rights reserved. 0521
The Guarantee
Applicable only to products installed and used in the United Kingdom. For details of guarantee outside the United Kingdom contact your local supplier.
Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to
be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:-
•Has been installed and used in accordance with the instructions given with each unit.
•Has not been connected to an unsuitable electricity supply. (The correct electricity supply voltage is shown on the product rating label
attached to the unit).
•Has not been subjected to misuse, neglect or damage.
•Has not been modified or repaired by any person not authorised by the company.
IF CLAIMING UNDER TERMS OF GUARANTEE
Please return the complete product, carriage paid to your original supplier or nearest Vent-Axia Centre, by post or personal visit. Please ensure that it is adequately packed
and accompanied by a letter clearly marked “Guarantee Claim” stating the nature of the fault and providing evidence of date and source of purchase.
