Vent-Axia Integra Series Guide

Integra
Integra Plus ECA MVHR
Kinetic
Kinetic Plus E MVHR
Installation & Commissioning
Installation & Commissioning
Stock Ref. N°
437666ECA
Integra Plus ECA
PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.

Warnings & Safety Information
Integra Plus ECA MVHR Installation & Commissioning 3
IMPORTANT SAFETY INFORMATION
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE COMMENCING
INSTALLATION.
1. Do not install this product in areas where
the following may be present or occur:
• Excessive oil or a grease laden
atmosphere.
• Corrosive or flammable gases, liquids or
vapours.
• Subject to direct water spray from hoses.
• Ambient temperatures higher than 40°C
and lower than -20°C.
• Possible obstructions that may hinder
access to or removal of the unit.
2. All wiring must be in accordance with the
current IEE wiring regulations BS7671, or
appropriate standards of your country.
Installation should be inspected and tested
by a suitably qualified person after
completion.
3. Ensure the mains supply (voltage,
frequency and phase) complies with the
rating label.
4. The power feed to the unit should be
provided with a local double pole fused spur
fitted with a 3A fuse having a contact
separation of at least 3mm.
Depending on the installation, if LS1 and/or
LS2 are used they should also have
isolating switch of similar specification to the
main power feed installed.
5. This unit must be earthed.
6. Precautions must be taken to avoid the
back-flow of gases into the building from the
open flue of gas or other fuel-burning
appliances.
7. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
8. Young children should be supervised to
ensure that they do not play with the
appliance.
INSTALLATION GUIDANCE
1. The installer is responsible for the installation and
electrical connection of the system on site. It is the
responsibility of the installer to ensure that the equipment is
safely and securely installed and left only when
mechanically and electrically safe.
2. All regulations and requirements must be strictly
followed to prevent hazards to life and property, both
during and after installation, and during any subsequent
servicing and maintenance.
3. The unit’s condensate drain must be connected to the
building’s wastewater drainage system.
4. Certain applications may require the installation of sound
attenuation to achieve the sound levels required.
5. The unit must not be connected directly to a tumble
drier.
6. The supply and exhaust valves must be fully opened
prior to commissioning.
7. The supply air must be drawn from the exterior of the
property.
8. The unit should be allowed to stabilise during
commissioning for a minimum period of 5 minutes when
changing between boost and normal speeds.
9. Ensure that the unit’s external grilles are a minimum of
1500mm apart. The exhaust grille should be located at
least 600mm away from any flue outlet. The inlet grille
should be located 2000mm away from any flue outlet.
10. This product and associated duct installation should be
carried out in accordance with the domestic ventilation
compliance guide.
Disposal
This product should not be disposed of with household
waste. Please recycle where facilities exist. Check with
your local authority for recycling advice.

About this Document
Integra Plus ECA MVHR Installation & Commissioning 4
Contents
IMPORTANT SAFETY INFORMATION....................................... 3
INSTALLATION GUIDANCE ....................................................... 3
Product Description..................................................................... 5
Installation Guidance................................................................... 8
Electrical Installation...................................................................11
Powering Up the Unit..................................................................14
Commissioning Overview...........................................................14
Modes of Operation....................................................................15
Maintenance...............................................................................16
Spares........................................................................................16
PRODUCT FICHE......................................................................17
UK Building Regulations (Part F)
Declaration of Conformance
Integra Plus ECA conform to the 2010 Building Regulations
(Part F - Means of Ventilation) installed performance of a
ducted mechanical extract fan when installed in
accordance with the instructions in this document and the
domestic ventilation compliance guide.

Product Description
Integra Plus ECA MVHR Installation & Commissioning 5
Product Description
The Vent-Axia Integra Plus ECA Mechanical Ventilation/Heat Recovery (MVHR) is heat recovery unit
designed for the energy efficient ventilation of houses and similar dwellings, conforming to the latest
requirements of the Building Regulations document F 2010.
The unit is designed for continuous 24 hour exhaust ventilation of stale moist air from bathrooms, toilets and
kitchens. As the stale air is extracted, a heat exchanger within the unit transfers up to 70% of the heat and
transfers it into the supply air entering the bedrooms and lounge.

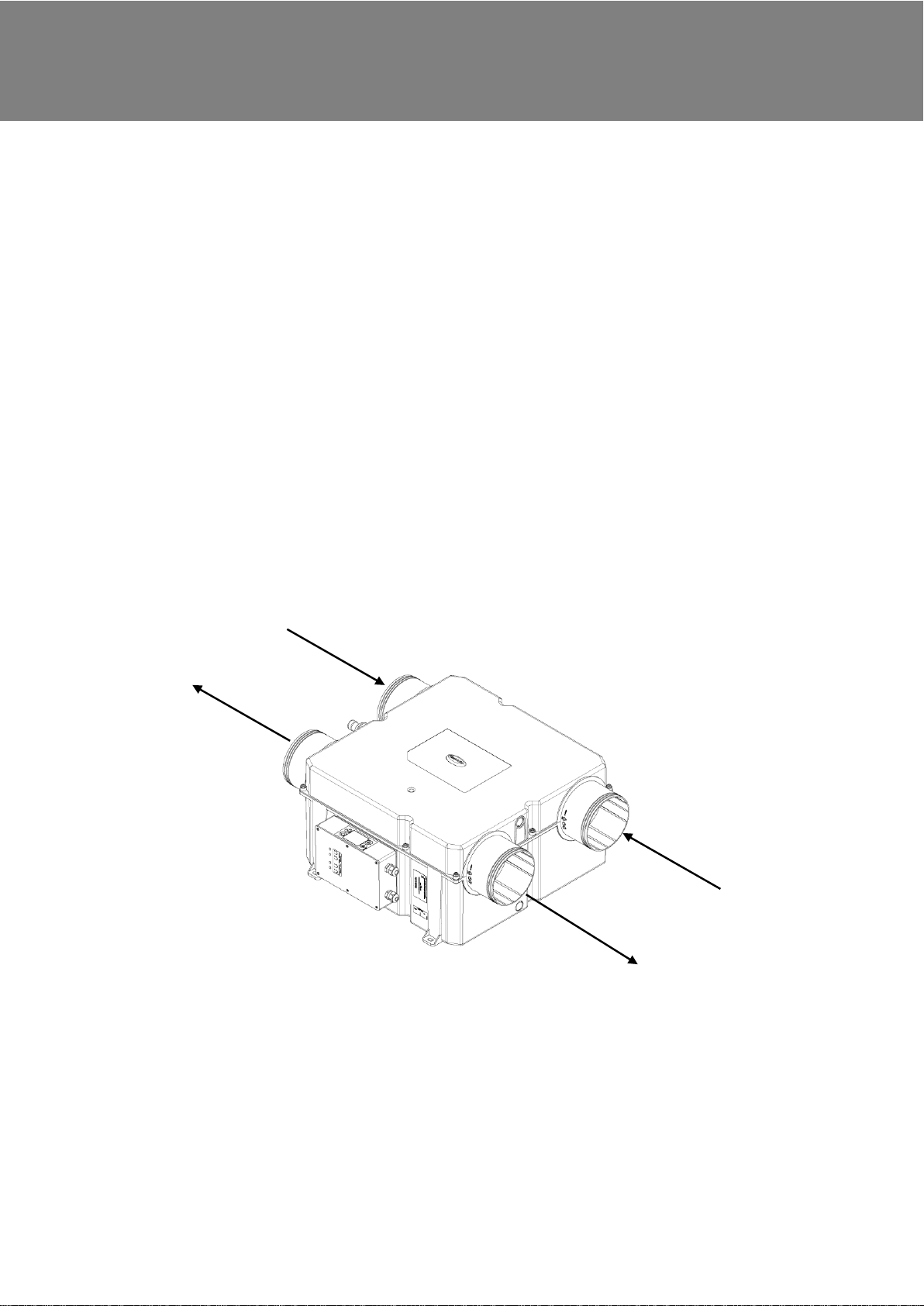

Air Direction
Supply to
Rooms
Extract from
Rooms
Intake from
Outside
Exhaust to
Outside

Product Description
Integra Plus ECA MVHR Installation & Commissioning 6

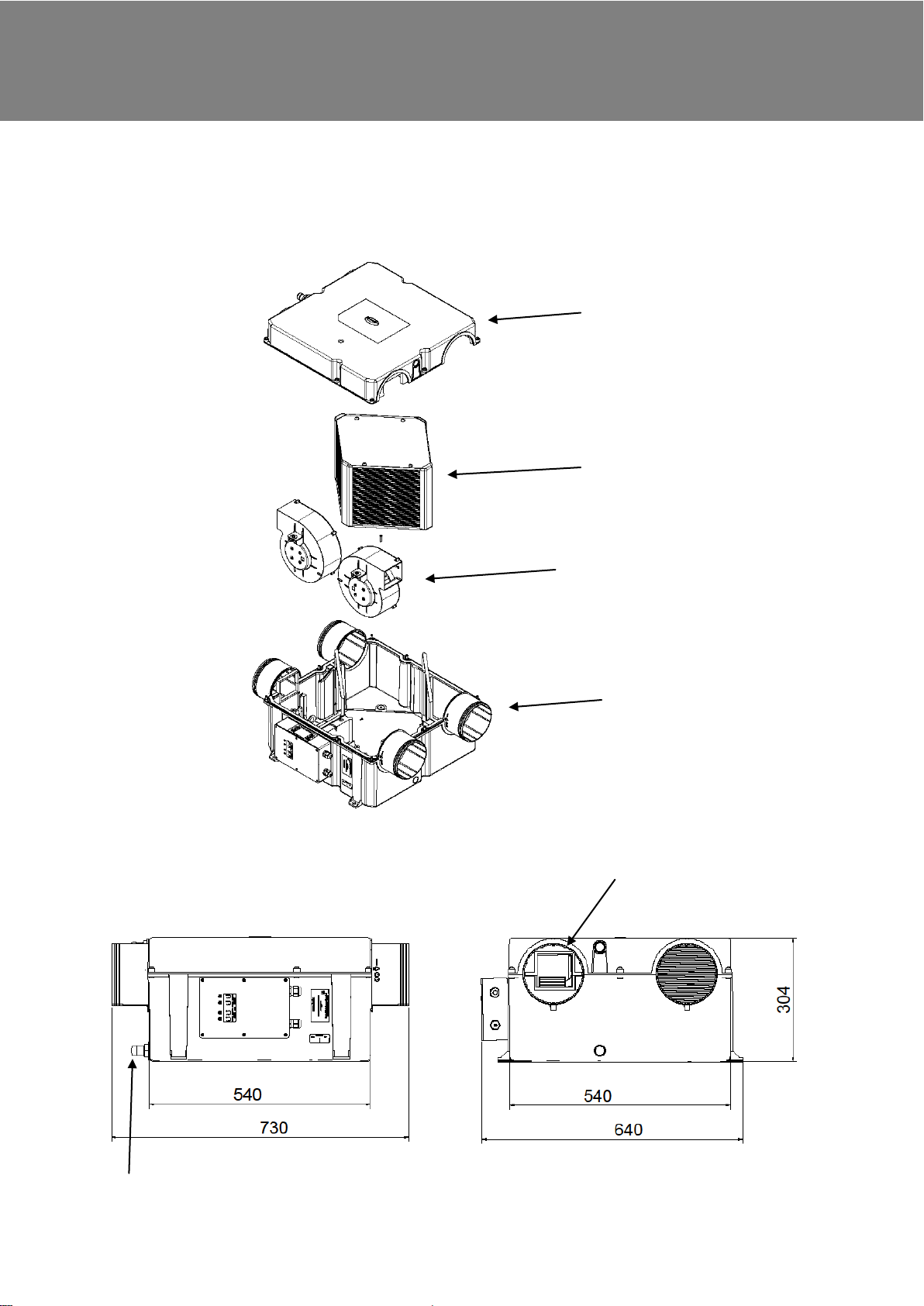

Exploded View of Fan Unit
Integra Plus ECA Dimensions
Ø150
Ø22
Cover
Heat recovery cell
Motor assemblies
Base assembly

Product Description
Integra Plus ECA MVHR Installation & Commissioning 7
Performance
Integra Plus ECA
Airflow
Maximum, FID, 478 m3/h
Sound levels (@ 3 m)
48.8 dB(A) (70%), 56.8 dB(A) (boost)
Power
AC Voltage Input
220-240 V AC (single phase)
AC Frequency Input
50 Hz nominal
Rated Power
167 W (max.)
Physical
Height (excluding spigots)
304mm
Width (excluding spigots)
540mm
Depth
640mm
Weight
17.7 kg
Spigot diameter
150 mm
Condensate pipe diameter
22 mm
Environmental
IP Rating
IPX2
Operating Temperature
-10C to +45C
Air Intake Temperature
As above
Operating Humidity
0% to 95% RH
Storage Temperature
-10C to +45C
Storage Humidity
0% to 95% RH
For all other technical details, please see the Product Catalogue or our website at www.vent-axia.com
A wide range of sensors are available that can be used to switch the Integra Plus ECA from normal to boost
speed:
563519
TimeSpan
563506
Air Quality Sensor
563550
Ambient Response Humidity
563532
HumidiSwitch
563502
ThermoSwitch
455213
Normal Boost Switch
435960/446409
Vent Wise
459623
VisionX PIR

Installation
Integra Plus ECA MVHR Installation & Commissioning 8
Installation Guidance
The following instructions are intended to help prevent potential hazards and installation should only be carried
out by a qualified electrician and installer.
NOTE: we advise installers to fix all mains and sensor wiring prior to fixing the MVHR unit in position.
Before Installation of the Unit
Inspect the Unit
When taking delivery of the unit, check the items delivered against the enclosed delivery note. Inspect the unit
for damage in transit. If in doubt, contact Customer Services. Each box contains a Integra Plus ECA MVHR unit,
Remote Boost Switch and an accessory pack containing condensate drain link pipes, clips, energy rating labels
and product documentation.
Lift and Move the Unit Safely
On page 7 check the weight of the unit that you are installing.
Always use appropriate lifting techniques and appliances when moving heavy equipment.
Check Site Requirements and Safety Notices
Check that the physical and environmental conditions for the site meet, or exceed, the requirements detailed in
the table on page 7.
Read and observe the safety notices listed in Warnings and Safety Information on page 3.
Unit Installation
The Integra Plus ECA unit is typically installed on a wall in a utility room, storage cupboard, roof void, or similar.
The wall should have sufficient strength to support the unit.
Take into consideration the position of the electrical services and the condensate drain.
Ensure there is an adequate access for installation, operation and maintenance.
It is recommended that a local isolation switch is installed within 1m of the unit to facilitate future maintenance.
The unit can be mounted on a horizontal or vertical face, care should be taken to ensure the unit is angled
towards the condensate drain.

Installation
Integra Plus ECA MVHR Installation & Commissioning 9

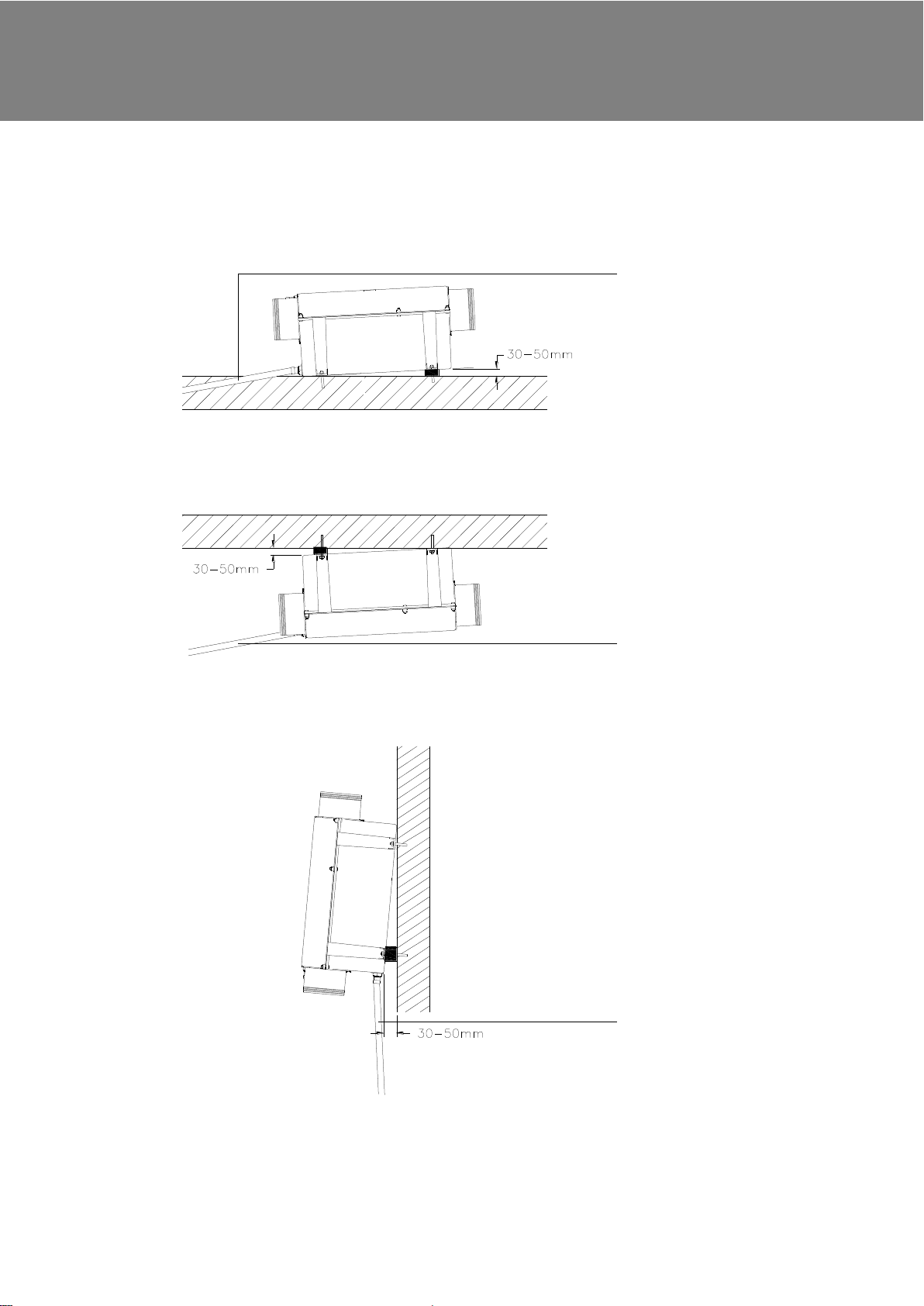

Select Unit Orientation
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 3°- 5° TOWARDS
THE CONDENSATE DRAIN)
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 3°- 5° TOWARDS
THE CONDENSATE DRAIN)
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 3°- 5° TOWARDS
THE CONDENSATE DRAIN)
Fig 3a. Mounted on joists
Fig 3b. Ceiling mounted
Fig 3c. Wall mounted
FOR FURTHER INFORMATION ON CONDENSATION WATER TRAP DETAIL, SEE FIG 4

Installation
Integra Plus ECA MVHR Installation & Commissioning 10
Fig 4. Water trap details
WATER TRAP
CONDENSATION
DRAIN FROM UNIT
SILICON SEALER
FALL TOWARDS
THE BUILDINGS
DRAINAGE SYSTEM
A
NOTE:
INSTALL THE CONDENSATE DRAINAGE TUBING IN
ACCORDANCE WITH THE DIAGRAM.
ENSURE THE WATER TRAP IS BELOW THE DRAIN
ELBOW OUT LET "A"
To mount the unit on joists:
Place the unit on a suitable platform across joists and attach the appropriate cabling, drainage and ductwork to the unit, with the
Vent-Axia badge facing up. For optimum performance, ensure the ductwork does not turn 90° directly off the spigots. The unit
should, for optimum drainage, be tilted by 3°- 5° towards the drain side. See Fig. 3a.
Ceiling mounted:.
Invert the unit with the Vent-Axia logo facing down and attach the unit securely to the rafters. For optimum performance, ensure
the ductwork does not turn 90° directly off the spigots. The unit should, for optimum drainage, be tilted 3°- 5° towards the drain
side. See Fig. 3b.
Please note - the location and position of installation for the unit must be decided before any drainage knockouts are removed, as
they cannot be refitted.
5. Having decided upon a location and position remove the knock out for the condensate drain, this must be at the lowest point.
Connect the drain of the ventilation unit to the drainage system using suitable ‘U’-bends (see fig 4).
6. Install suitable internal and external grilles/ terminals and connect them to the ventilation unit using suitable 150mm ducting. If
flexible ducting is used, it should be stretched in order to obtain the best performance.

Installation
Integra Plus ECA MVHR Installation & Commissioning 11
Electrical Installation
Connect Switches and Sensors
Table 1: Mains Cable Connections
Terminal No.
Name
Cable connection
Description
L
Mains Live
Brown
220-240 V AC, 50 Hz input
N
Mains Neutral
Blue
220-240 V AC, 50 Hz input
EARTH
Mains Earth
Yellow/Green
Earth connector
LS1
Switched Live 1
Black
220-240 V AC, 50 Hz input
LS2
Switched Live 2
Black colour with white stripe
220-240 V AC, 50 Hz input
Main power lead (2m)
Remote boost lead (10m)

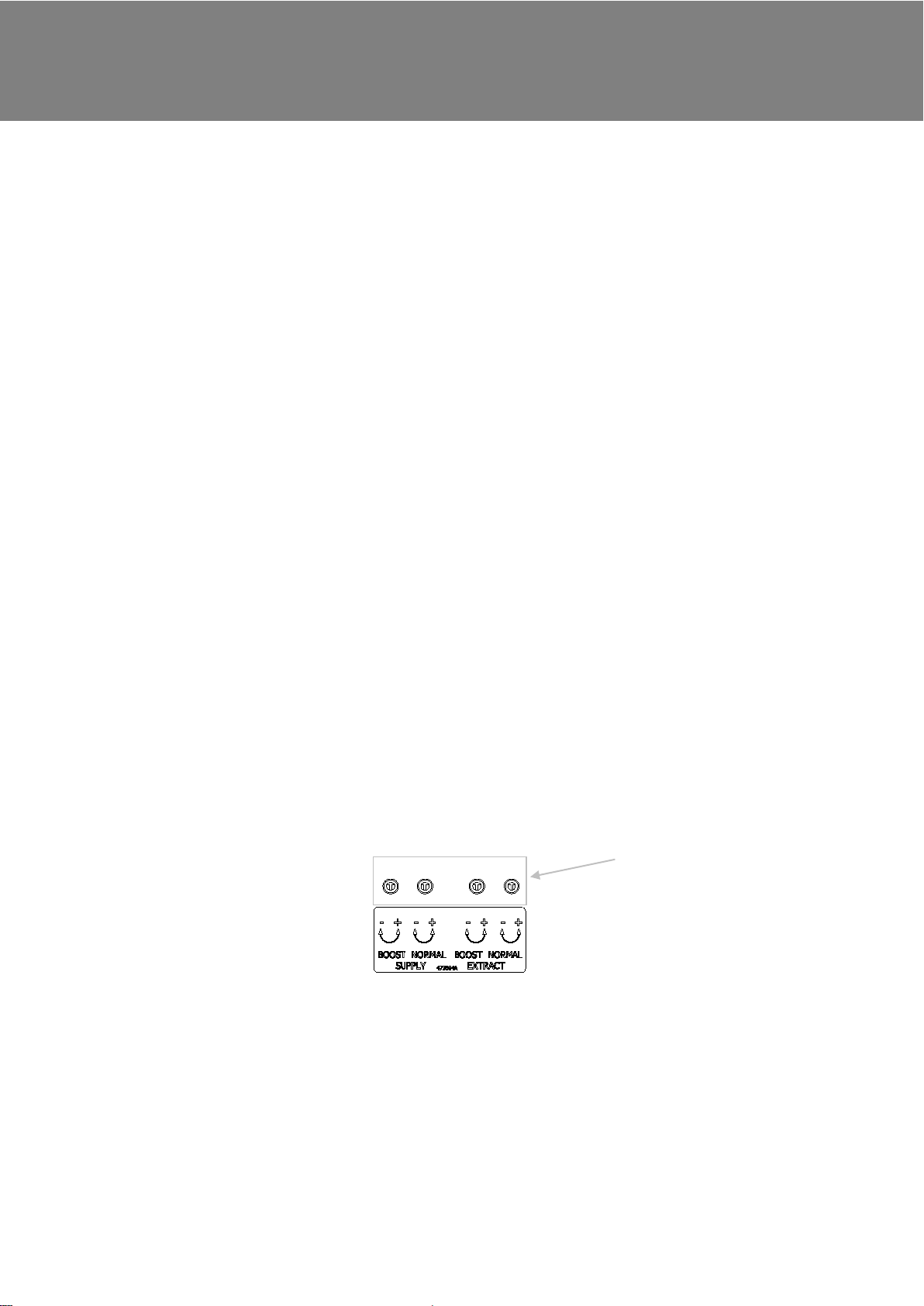

Speed adjustment ports.
Ports must be covered by label (supplied
in accessory pack) to maintain the
Moisture Ingress Protection rating.

Installation
Integra Plus ECA MVHR Installation & Commissioning 12
Connect the Power Supply
WARNINGS
1. MAINS SUPPLY VOLTAGES (220-240 V AC) ARE PRESENT IN THIS EQUIPMENT, WHICH MAY CAUSE
DEATH OR SERIOUS INJURY BY ELECTRIC SHOCK. ONLY A QUALIFIED ELECTRICIAN OR INSTALLER
SHOULD CONNECT THE POWER SUPPLY TO THIS UNIT.
2. THIS UNIT MUST BE CORRECTLY EARTHED.
This unit is designed for operation from a single-phase alternating current source (220-240 V AC).
A 2m cable is connected internally to the unit for connection to a switched fused spur.
To connect the power supply:
1. Ensure the local AC power supply is switched off.
2. One end of the power cable supplied is already connected to the unit and routed into the control housing via a
suitable gland to ensure the IP rating of the unit is not affected.
3. Connect the other end of the cable to the switched fused spur.
4. Use cable clamps and clips to secure the cable, as appropriate.
Connecting the Remote Boost Switch
The Integra Plus ECA is supplied with a Remote Boost Switch, the boost switch is also used to enable Summer
Mode.
The lead for the Remote Boost Switch is supplied connected to the main unit. The lead should be run from the
main unit to the intended location of the Remote Boost Switch.
The lead should be shortened and the wires bared in preparation for fitting the Remote Boost Switch.
If the remote lead is exposed at any point between the main unit and the Remote Switch, then the supplied
Back Box and strain relief bushing must be used in the manner shown below.
Strain relief bushing

Installation
Integra Plus ECA MVHR Installation & Commissioning 13

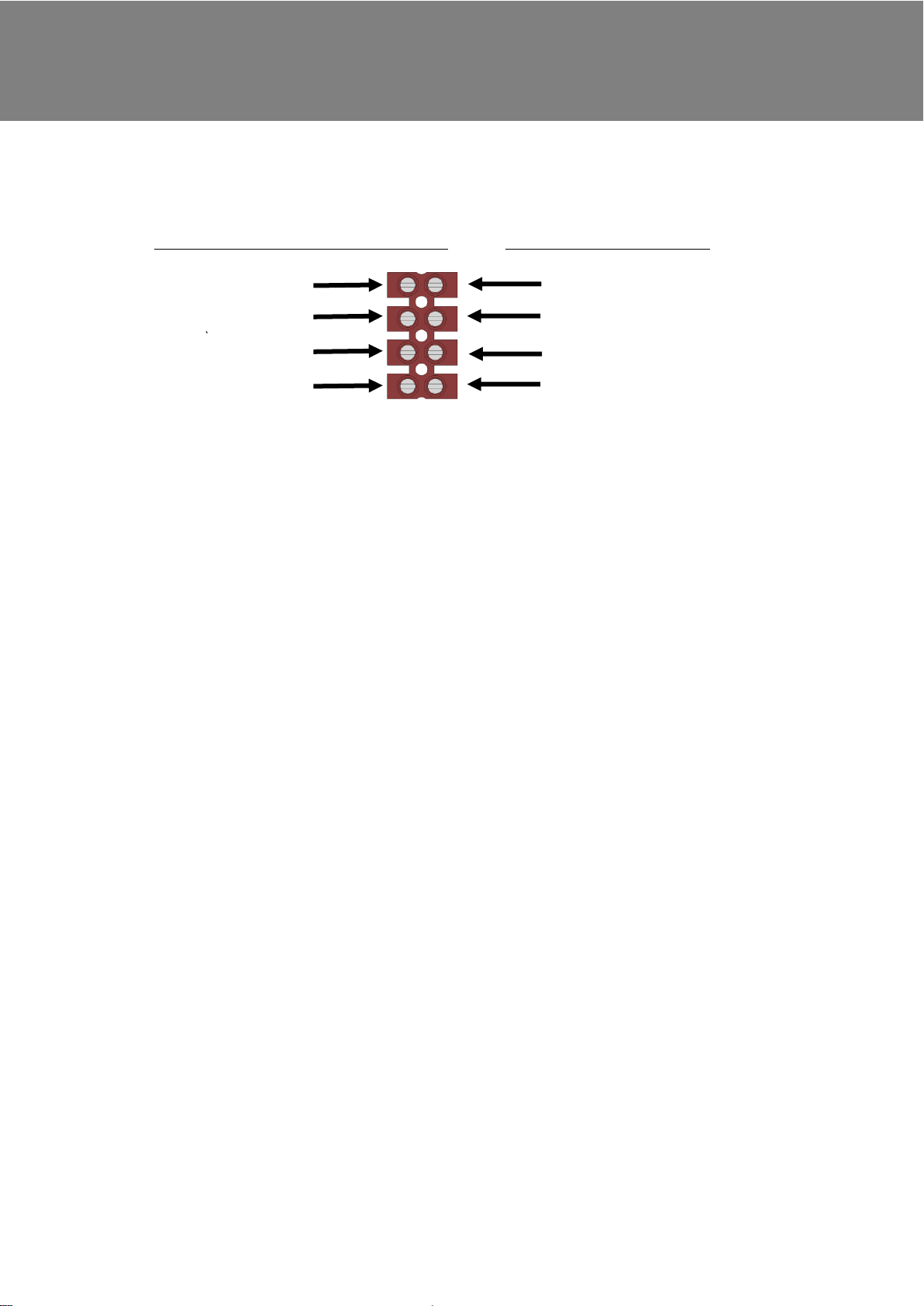

The remote lead is connected to the Remote Boost Switch
Wires from Remote Boost Switch (factory fitted) Remote Lead colour wire colours
The unit can be switched to boost by applying 220-240V to the LS1 or LS2 inputs. Alternatively, the boost
button on the Remote Boost Switch may be used.
LS1 and LS2 inputs can be from a lighting circuit or other mains voltage supply, alternatively an optional
external control unit can be used. Note that the LS2 connection has a boost start time delay of 5 minutes.
In the event that the unit is inadvertently left running on boost, it will revert to normal speed after 2 hours.
LED Positive (RED)
LED Negative (BLACK
)
Boost Switch (BLACK)
Boost Switch (BLACK)
WHITE / ORANGE
ORANGE
WHITE / BLUE
BLUE

Commissioning
Integra Plus ECA MVHR Installation & Commissioning 14
Powering Up the Unit
Switching On
Switch on the power at the mains supply isolator feeding the unit and the fan motors will start.
Switching Off
Turn the power off at the mains supply isolator switch.
Commissioning Overview
The instructions in this section are intended to provide configuration and operation information for setting up the
equipment.
Follow good practice when commissioning the unit. Ensure that the system is installed according to the system
designers intent incorporating any acoustic ducting, that all joints are air tight, ducting is well supported, bends
are avoided close to vents, and that the vent valves are fully open at the start of the commissioning process.
Commissioning and Control
The commissioning control enables you to adjust the fan flow rates. These are factory set to minimum and can
be adjusted by using a small flat screwdriver through the four holes as shown below.
Measure the flow from the extract and supply grilles in the usual way. Adjust the potentiometers to suit.
Apply the label supplied in the accessory pack after the flow rates have been set to ensure that the holes are
sealed and the Moisture Ingress Protection rating is maintained.
Label applied to this
area to cover the 4 adjusters

Operation
Integra Plus ECA MVHR Installation & Commissioning 15

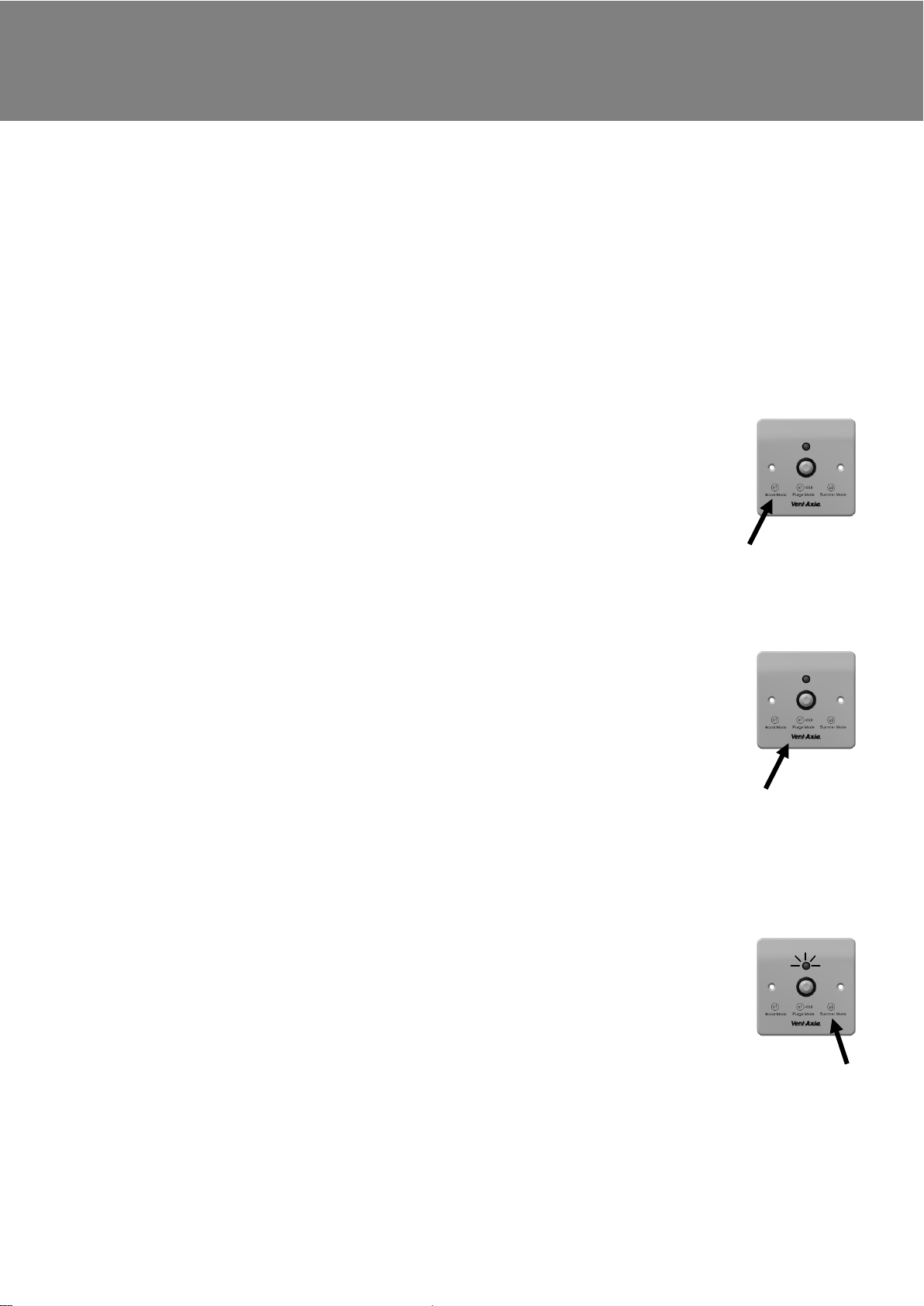

Modes of Operation
Normal Mode
Normal Mode is the default operating mode of the unit. The unit will run continuously in Normal Mode unless a
signal input is received from the Remote boost switch, LS1 or LS2. The Normal Mode flow rate is adjustable
within the full range of the unit, but would normally be set for background ventilation.
Boost Mode
Boost Mode can be triggered when additional ventilation is needed. Boost Mode is triggered
by an input from the Remote Boost switch, LS1 or LS2. Boost Mode will timeout after 2-
hours unless cancelled. The Boost Mode flow rate is adjustable within the full range of the
unit but is normally set at a level required when cooking or showering. The LED will not
illuminate when Boost Mode is triggered.
Remote Boost switch: Press once to activate Boost mode, press once to exit Boost mode.
LS1: Boost will activate while LS1 is active
LS2: Boost will activate while LS2 is active, after a 5-minute delay
Purge Mode
Purge mode will run the unit at 100% and can only be triggered and cancelled via the
Remote Boost switch. A 5-second press and hold of the Boost Switch will trigger, or cancel
Purge Mode. Purge mode will timeout after 30 minutes. The LED will not illuminate when
Purge Mode is triggered.
Summer Mode
Summer Mode is useful when the indoor temperature is higher than desired, and the outdoor temperature is
lower than the indoor temperature. Summer mode stops the supply fan, this prevents the recovery of heat from
the extract air stream by thereby allowing the cooler outdoor air to enter the property via an open window or
trickle vent.
To activate Summer Mode press the Boost button 3 times in less than three seconds, after a
short pause the LED will illuminate green and the supply fan will stop.
To exit Summer Mode press 3 times in less than three seconds, after a short pause the
green LED will turn off and the supply fan will restart.
Summer mode must be cancelled by the user, it will not timeout.
If the LED on the Remote Boost switch flashes green, there is an error with the units Temperature sensor. The sensor is used
by the frost protection system. If the unit was in Summer mode it will return to normal operation. Please contact the Vent-Axia
Technical Support for assistance.

Maintenance
Integra Plus ECA MVHR Installation & Commissioning 16
WARNING
THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY
DURING MAINTENANCE.
Maintenance
Heat recovery units require regular maintenance. The Integra Plus ECA has been designed to facilitate access to enable
maintenance to be carried out easily. The actions below should be carried out at least every 12 months, however in areas with
increased humidity or pollution more frequent maintenance may be necessary.
Item
Action
Unit & Heat Exchanger
Cell
Inspect and clean the unit
1. Isolate the mains power supply.
2. Remove front cover from the unit.
3. Undo the two cell retaining screws
4. Slide out the heat exchanger.
5. Wash the outer cover and heat exchanger in warm water using a mild detergent (such as
Milton Fluid) and dry thoroughly.
NOTE: Keep water away from all electrical components and wiring within the unit.
Motors
Inspect the motors for build-up of dust and dirt on the impeller blades, which could cause
imbalance and increased noise levels. Vacuum or clean if necessary.
Condensate Drain
Check the condensate drain tube is secure and clear of debris. Clean if necessary.
Fastenings
Check that all unit and wall-mount fastenings are sufficiently tight and have not become
loose. Re-tighten if necessary.
Spares
The following spares may be ordered from Vent-Axia:
Integra Plus ECA
Part No
Description
431485
Heat Recovery Cell
443048
Temperature Sensor
474049
Motor Assembly Extract
474048
Motor Assembly Supply
428612
Spigot (Single)
474805
Remote Boost Switch
454965
Condensate Hose
474050
Accessory Pack
474811
Fitting and Wiring Leaflet
474813
Control PCB

Integra Plus ECA MVHR Installation & Commissioning 17
PRODUCT FICHE
For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014
Name:
Vent-Axia
Vent-Axia
Model ID (Stock Ref.) :
Integra Plus ECA - 437666ECA
Integra Plus ECA –437666ECA
SEC Class
B
A
SEC Value ('Average')
-32.34
-38.85
SEC Value ('Warm')
-11.18
-15.86
SEC Value ('Cold')
-70.06
-79.77
Label Required? (Yes/No=Out of scope)
Yes
Yes
Declared as: RVU or NRVU/UVU or BVU
RVU/BVU
RVU/BVU
Speed Drive
Multi-Speed
Multi-Speed
Type HRS (Recuperative, Regenerative, None)
Recuperative
Recuperative
Thermal Eff: [ (%), NA(if none)]
70
70
Max. Flow Rate (m3/h)
478.80
478.80
Max. Power Input (W): (@Max.Flow Rate)
167.00
167.00
LWA: Sound Power Level (dB)
48.83
48.83
Ref. Flow Rate (m3/s)
0.09310
0.09310
Ref. Pressure Diff. (Pa)
50.00
380.00
SPI [W/(m3/h)]
0.21
0.21
Control Factor & Control Typology: (CTRL/ Typology)
Control Factor; CTRL
1.00
0.65
Control Typology
Manual Control
Local Demand Control
Declared: -Max Internal & External Leakage Rates(%) for BVUs or carry over (for
regenerative heat exchangers only),
-&Ext. Leakage Rates (%) for Ducted UVUs;
<5% Internal, <5% External
<5% Internal, <5% External
Mixing Rate of Non-Ducted BVUs not intended to be equipped with one duct
connection on either supply or extract air side;
N/A
N/A
Position and description of visual filter warning for RVUs intended for use with
filters, including text pointing out the importance of regular filter changes for
performance and energy efficiency of the unit
N/A
N/A
For UVUs (Instructions Install Regulated Supply/Extract Grilles Façade)
N/A
N/A
Internet Address (for Disassembly Instructions)
www.vent-axia.com
www.vent-axia.com
Sensitivity p. Variation@+20/-20 Pa: (for Non-Ducted VUs)
N./A
N./A
Air Tightness-ID/OD-(m3/h) (for Non-Ducted VUs)
N./A
N./A
Annual Electricity Consumption: AEC (kWh/a)
3.11
1.85
Annual Heating Saved: AHS (kWh/a)
AHS: Average
39.45
42.79
AHS: Warm
17.84
19.35
AHS: Cold
77.17
83.71
Product Fiche

Notes:-

Integra Plus ECA MVHR Installation & Commissioning 19
Notes:-

Integra Plus ECA MVHR Installation & Commissioning 20
Head Office: Fleming Way, Crawley, West Sussex, RH10 9YX.
UK NATIONAL CALL CENTRE, Newton Road, Crawley, West Sussex, RH10 9JA
SALES ENQUIRIES: Tel: [phone] Fax: [phone]
TECHNICAL SUPPORT Tel: [phone] Fax: [phone]
For details of the warranty and returns procedure please refer to www.vent-axia or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX
474811 B © 2016 Vent-Axia Limited. All rights reserved. 0819
The    Guarantee
Applicable only to products installed and used in the United Kingdom.
For details of guarantee outside the United Kingdom contact your local supplier.
Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found
to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:
Has been installed and used in accordance with the instructions given with each unit.
Has not been connected to an unsuitable electricity supply. (The correct electricity supply voltage is shown on the product rating label
attached to the unit).
Has not been subjected to misuse, neglect or damage.
Has not been modified or repaired by any person not authorised by the company.
IF CLAIMING UNDER TERMS OF GUARANTEE
Please return the complete product, carriage paid to your original supplier or nearest Vent-Axia Centre, by post or personal visit.
Please ensure that it is adequately packed and accompanied by a letter clearly marked “Guarantee Claim” stating the nature of the fault and
providing evidence of date and source of purchase.
The guarantee is offered to you as an extra benefit, and does not affect your legal rights
