Sentinel
Kinetic MVHR Range
User Instructions
Stock Ref. N°
438222 Kinetic B Right
438222L Kinetic B Left
443319 Kinetic BH Right
443319L Kinetic BH Left
408167 Kinetic FH Right
408169 Kinetic FH Left
443028 Kinetic Plus B Right
443028L Kinetic Plus B Left
408449 Kinetic High Flow Right
408451 Kinetic High Flow Left
PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.
SEE PAGE 16 FOR SPARE FILTERS

SAFETY INFORMATION AND CONTENTS
Sentinel Kinetic MVHR User Instructions 2
IMPORTANT SAFETY INFORMATION
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE USING THE UNIT.
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Young children should be supervised to
ensure that they do not play with the
appliance.
2. Do not attempt to remove the covers of
this unit. High Voltage is present in this unit.
NEW PROPERTY FILTER MAINTENANCE
When fitted to a new build property the
supply and exhaust filters should be
checked at one month intervals for the first
six months.
Disposal
This product should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local authority
for recycling advice.
Contents
IMPORTANT SAFETY INFORMATION ......................................... 2
NEW PROPERTY FILTER MAINTENANCE.................................. 2
Product Description 3
Sentinel Kinetic Sentinel Kinetic F Sentinel Kinetic Plus & Sentinel
Kinetic High Flow............................................................................. 3
Control Unit Display......................................................................... 6
Powering Up the Unit ...................................................................... 8
Control Unit Display......................................................................... 8
Start-up Screens.............................................................................. 9
Operation and Monitoring 11
Overview........................................................................................ 11
User Menu Screens....................................................................... 12
Boost & Purge Screens................................................................. 14
Status Message Screens .............................................................. 15
Maintenance 17
Caring for the Unit ......................................................................... 17
Filter Maintenance......................................................................... 17
Periodic Maintenance.................................................................... 17
Spares............................................................................................ 18
Troubleshooting 19
Diagnosing a Problem................................................................... 19
Appendix One: Control Mode 02 Description 20
Overview........................................................................................ 20
Airflow Mode Selection.................................................................. 20
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE USING THE UNIT.

Technical Specification
Sentinel Kinetic MVHR User Instructions 3
Product Description
Sentinel Kinetic Sentinel Kinetic F Sentinel Kinetic Plus & Sentinel Kinetic High Flow
The Vent-Axia Sentinel Kinetic, Sentinel Kinetic F, Sentinel Kinetic Plus & Sentinel Kinetic High Flow
Mechanical Ventilation/Heat Recovery (MVHR) are heat recovery units designed for the energy efficient
ventilation of houses and similar dwellings, conforming to the latest requirements of the Building Regulations
document F 2010.
The units are designed for continuous 24 hour exhaust ventilation of stale moist air from bathrooms, toilets and
kitchens. As the stale air is extracted, a heat exchanger within the unit transfers up to 90% of the heat into the
supply air entering the bedrooms and lounge.
Fig 1: Sentinel Kinetic Right handed Fig 2: Sentinel Kinetic F, Sentinel Kinetic Plus and High Flow
Right handed
Fig 3: Sentinel Kinetic Left handed
Fig 4: Sentinel Kinetic F, Sentinel Kinetic Plus and High Flow
Left handed

Technical Specification
Sentinel Kinetic MVHR User Instructions 4
Sentinel Kinetic Range Summer By Pass Models.
The Sentinel Kinetic B, BH, FH, Plus B, Plus BH and High Flow are fitted with a Summer By Pass (SBP) and will
provide energy-free cooling when the house temperature and ambient temperature allows.
Note that the volume of air provided by this ventilation system is a fraction of that required for space heating or
space cooling and will not in itself be sufficient to cool a room. It will however, provide a contribution and make a
difference.
There are three operating modes, Normal, Evening Purge and Night-time purge.
Normal Mode.
Air flow rate is determined by sensors, boost and timing settings, otherwise is normal rate.
If the room is warmer than the set (shown as "indoor") temperature (i.e. you need the room to be cooler) and the
outdoor air is cooler than the actual room temperature (i.e. the outdoor air could cool your room) then the SBP will
open and the unit will supply cooler air to your room.
Note that the above only applies whilst the outdoor air temperature is above 14 C (adjustable) in order to prevent
cold draughts.
The set ("indoor") temperature should be set 2 or 3 degrees higher than the central heating thermostat and 2 or 3
degrees below any air conditioning thermostat if fitted. This will prevent any clash between the separate systems.
Evening purge Mode.
Intended for use as the outdoor temperature cools in the evening, but reverts to normal control after a set time so
that any increase in noise is avoided overnight.
Air flow rate is always at boost.
The bypass closes and the purge stops if the temperature conditions described in Standard Mode are no longer
met or 5 hours after the bypass opened.
Night-time purge Mode.
Intended for use as the outdoor temperature cools in the evening and continues through the night when cooling is
a higher priority than any increase of noise. Note that the air noise in your system is influenced by the ducting
design and layout and the size and type of vents used in the rooms. If improvements are required speak to your
installer.
Air flow rate is boost.
The bypass closes and the purge stops if the temperature conditions described in Standard Mode are no longer
met.

Technical Specification
Sentinel Kinetic MVHR User Instructions 5
Models
438342 - Sentinel Kinetic V without summer bypass.
438222 -Sentinel Kinetic B Right, right handed with summer bypass.
438222L -Sentinel Kinetic B Left, left handed with summer bypass.
443319 -Sentinel Kinetic BH Right, right handed with summer bypass and integral humidity sensor.
443319L -Sentinel Kinetic BH Left, left handed with summer bypass and integral humidity sensor.
408167 - Sentinel Kinetic FH Right, right handed with summer bypass and integral humidity sensor.
408169 -Sentinel Kinetic FH Left, left handed with summer bypass and integral humidity sensor.
443028 - Sentinel Kinetic Plus B Right, right handed with summer bypass and integral humidity sensor.
447938 - Sentinel Kinetic Plus B Left, left handed with summer bypass and integral humidity sensor.
408449 - Sentinel Kinetic High Flow Right, right handed with summer bypass and integral humidity sensor.
408451 - Sentinel Kinetic High Flow Left, left handed with summer bypass and integral humidity sensor.
Accessories
441838 -Sentinel Kinetic Plug-in integral humidity sensor
442367 -Monza System Cooker Hood 600mm wide
442368 -Latina System Cooker Hood 900mm wide
443283 -Wired Remote Control.
447340 -Opto-Coupler
448356 - LED
A range of sensors can be used to manage system demand and control the ventilation rate. These include an internal
humidity sensor, humidity sensors for independent mounting in rooms, wireless receiver and wireless boost switches,
CO2sensor, manual switches and pull cords. For these alternative control options, see www.vent-axia.com

Technical Specification
Sentinel Kinetic MVHR User Instructions 6
Control Unit Display
The Control Unit is located at the front of the Sentinel Kinetic unit. The Control Unit provides the user interface
for commissioning and monitoring purposes.

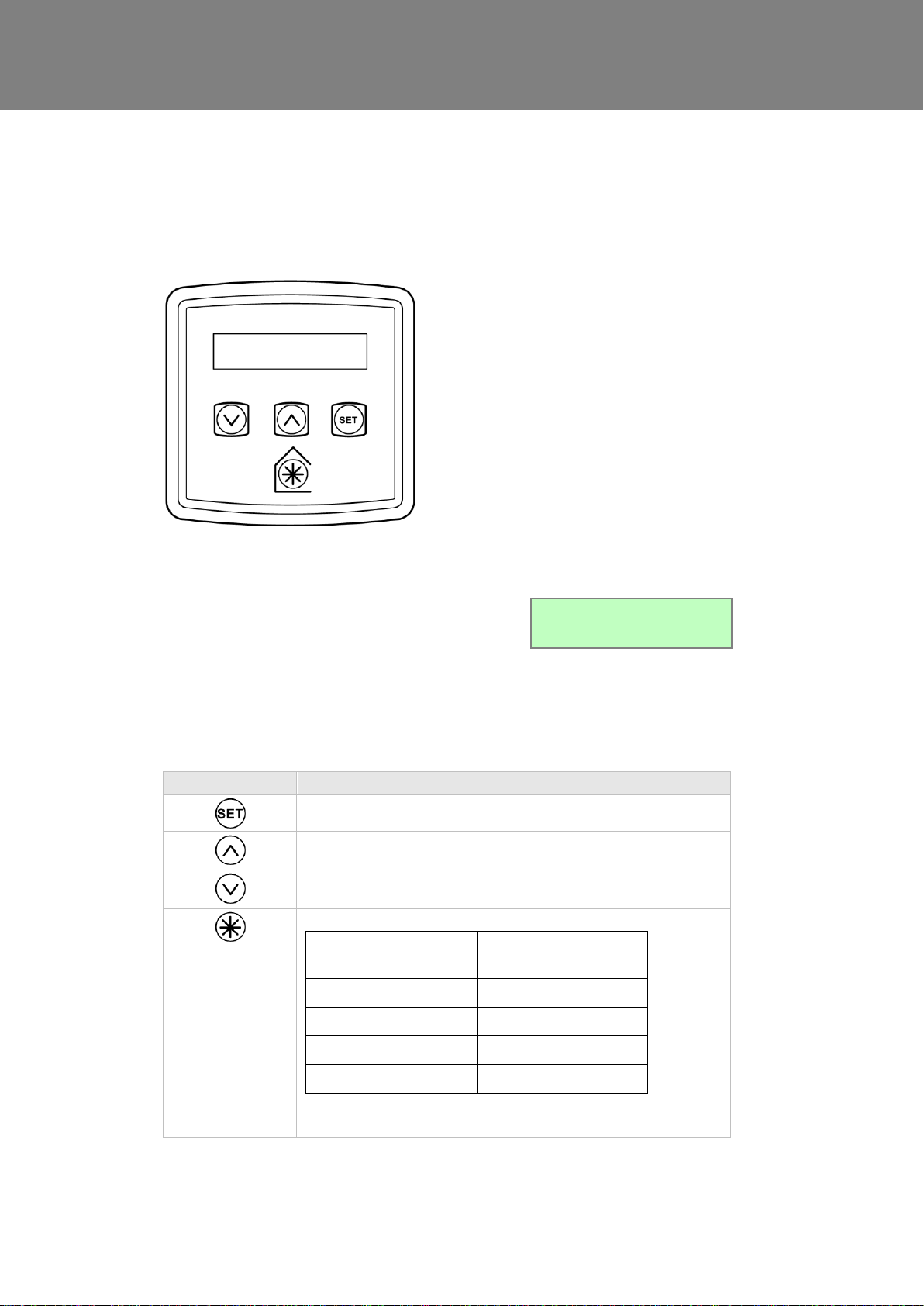

Figure 3: Control Unit
Display
The main display is an LCD with automatic backlight,
which is turned off to minimise power consumption
when the unit is operational (see Overview on page
11).
Normal Airflow
30%
Buttons
Four buttons on the Control Unit provide the controls for configuring and monitoring the unit.
Table 1: Control Unit Buttons
Button
Function
Press to adjust settings and press to save settings.
Press to go to the above screen or to increase a parameter value. Press
and hold for more than 2 seconds for fast scrolling.
Press to go to the next screen or to decrease a parameter value. Press and
hold for more than 2 seconds for fast scrolling.
Press to activate Boost mode.
No. of presses
Boost action
(Control Mode 01)
1
Boosts for 30 minutes
2
Boosts for 60 minutes
3
Boosts continuously
4
Back to Normal flow rate
Press and hold for 5 seconds to activate Purge mode. (Press and hold for
5 seconds to cancel Purge).

Technical Specification
Sentinel Kinetic MVHR User Instructions 7
N.B Additional airflow modes are available from the button when Control Mode 02 is selected in the
start-up screens see Appendix One for further details.
For all other technical details, please see the Product Catalogue or our website at www.vent-axia.com.
Performance
Sentinel Kinetic
Sentinel Kinetic F
Sentinel Kinetic Plus
Sentinel Kinetic High Flow
Airflow
Maximum, FID,
290 m3/h
Low default 20%
Normal default 30%
Boost default 50%
Purge 100%
Maximum, FID,
335 m3/h
Low default 20%
Normal default 30%
Boost default 50%
Purge 100%
Maximum, FID,
500 m3/h
Low default 20%
Normal default 30%
Boost default 50%
Purge 100%
Maximum, FID,
650 m3/h
Low default 20%
Normal default 30%
Boost default 50%
Purge 100%
Power
AC Voltage Input
220-240 V AC (single phase)
AC Frequency
Input
50 Hz nominal
Supply Fuse
3 A (located in fused spur)
Product Fuse
2 A (located on main PCB)
Rated Power
150 W (max.)
180 W (max.)
190 W (max.)
360 W (max.)
Physical
Height (excluding
spigots)
550 mm
550mm
630 mm
630 mm
Width (excluding
spigots)
550 mm
555mm
775 mm
775 mm
Depth
285 mm
350mm
524 mm including filter
flap hinge protrusion
524 mm including filter flap
hinge protrusion
Weight
15 kg
19 kg
24 kg
38 kg
Spigot diameter
125 mm
125 mm
150 mm
180 mm
Condensate pipe
diameter
22 mm
Environmental
IP Rating
IP22
Operating
Temperature
-20C to +45C
Air Intake
Temperature
As above
Operating
Humidity
0% to 95% RH
Storage
Temperature
-20C to +45C
Storage Humidity
0% to 95% RH
Software Version
V426

Starting Up
Sentinel Kinetic MVHR User Instructions 8
Powering Up the Unit
Switching On
To switch the unit on:
1. Switch on the power at the mains supply isolator feeding the unit.
2. Following switch-on, the fan motors will start and the Control Unit will display a series of start-up screens,
described below (see Start-up Screens on page 25).
3. N.B. If you are intending to carry out work or maintenance inside the unit, switch off the power at
the mains outlet supplying the unit before you remove the covers.
Switching Off
To switch the unit off:
4. Turn the power off at the mains supply isolator.
Control Unit Display
The Control Unit is located at the front of the Sentinel Kinetic unit. The Control Unit provides the user interface
for commissioning and monitoring purposes.
Display
The main display is a 16 character by 2-line liquid crystal
display (LCD) with automatic backlight, which is turned
off to automatically minimise power consumption.
Normal Airflow
30%
Buttons
Four buttons on the Control Unit provide the controls for configuring and monitoring the unit.
Button
Function
Press to adjust settings and press to save settings.
Press to go to the previous screen or to increase a parameter value. Press
and hold for more than 2 seconds for fast scrolling.
Press to go to the next screen or to decrease a parameter value. Press and
hold for more than 2 seconds for fast scrolling.
Press to activate Boost mode. See page 25 for options.
Press and hold for 5 seconds to activate Purge mode. (Press and hold for 5
seconds to cancel Purge).

Starting Up
Sentinel Kinetic MVHR User Instructions 9
Start-up Screens
(Refer to Control Mode 01 unless otherwise indicated)
Sentinel Kinetic Version Screen
The Sentinel Kinetic Version screen displays the
firmware version number for 3 seconds.
No adjustments are possible on this screen.
Loading...
Language Screen
The Language screen displays the language used for
the screens. It is typically displayed for 5 seconds, or
longer if changing the setting.
(To re select a new language disconnect and then
reconnect to the mains supply).
Control Mode Screen
Language
English
Selects between Control Mode 01 operation described
herein and the alternative Control Mode 02 described
in Appendix One.
Control Mode
01
Airflow Units Screen
The Airflow Units is a percentage of the unit’s
maximum flow.
Airflow Units
%
Wireless Control Screen
The Wireless Control screen automatically displays
whether the wireless boost control switch is fitted. It is
typically displayed for 3 seconds.
Wireless Control
Not Fitted
Humidity Sensor Screen
The Humidity Sensor screen displays whether the
humidity sensor is fitted. It is typically displayed for
3 seconds.
Humidity Sensor
Not Fitted
Low Airflow / Normal Airflow / Boost Airflow Screen
When the start-up screens are finished, the low or normal screen is
displayed showing operating status (Low Airflow X % or Normal Airflow
X % or Boost Airflow X %).
The Normal screen displays the rate of normal airflow (supply air)
through the unit.
If the installation has proportional sensors or an internal humidity
sensor fitted, and any of these are boosting the airflow, an αsymbol
will be displayed.
Normal Airflow
30 %

Starting Up
Sentinel Kinetic MVHR User Instructions 10
If Control Mode 02 has been selected then the Normal Airflow screen
includes either “Auto” or “Manual” to indicate if the boost level has been
triggered by the button on the controller or automatically via a sensor.
Normal Airflow
30% Auto
When the summer bypass is active, the normal screen top line will
alternate (for 3 seconds) with Summer Bypass On.
Summer Bypass On
30 %
An interval can be set, see page 40, at which the unit reminds the user
to check the filters. The normal screen top line will include Check Filter
as a reminder to check and, if necessary, clean or replace the filters.
When this has been done, press and hold the and buttons for 5
seconds to reset the automatic message.
Check Filter
30 %

Operation and Monitoring
Sentinel Kinetic MVHR User Instructions 11
Outdoor Temp
14 C
Press for Boost
Dryout Mode
168 h
Defrost Active
Airflow Mode
Room Too Cold
Fan Off
BMS
Fan Off
CVP Control
Switched Off
Loading…
Language
English
Control Mode
01
Wireless Control
Not Fitted
Humidity Sensor
Not Fitted
Airflow Units
%
Press
Timeout after 2 m
Normal Airflow
30%
Set Clock
Mon 12:30
Summer Mode
On
Indoor Temp
25 C
Press for > 5 s
Purge 120 m
100 %
Boost Airflow
50%
Cooker Hood
100 %
Low Airflow
20%
Reset Filter?
Filter Reset!
Press for > 5 s
+
Set

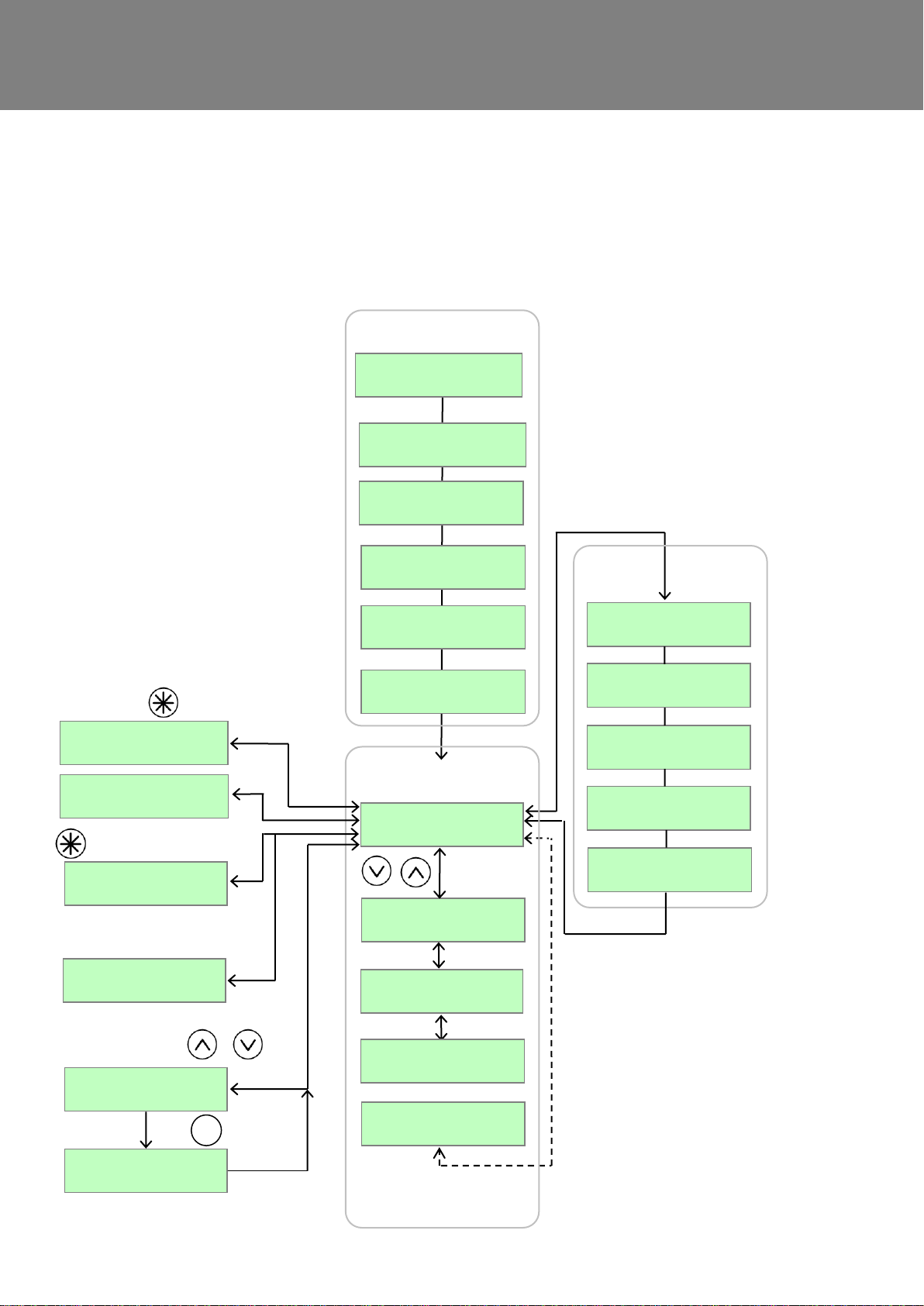

Operation and Monitoring
Overview
When the Sentinel Kinetic unit has been installed and commissioned it should require no further intervention in order to operate,
unless external switches are used to control on/off/boost, etc., or BMS control requires user action
Low Speed –If timer selected
on installation.
Start-up Screens
Status
Screens
User Menu
Screens

Operation and Monitoring
Sentinel Kinetic MVHR User Instructions 12
User Menu Screens
From the Normal Airflow screen, press the button to access the rest of the User Menu screens.
Changing the value of a setting (if adjustable) is typically a 3-step procedure:
5. Press to select the setting (the setting will flash).
6. Use the or buttons to adjust the value. To scroll quickly, press and hold the or buttons for
more than 2 seconds.
7. Press again to enter the new settings and move to the next screen.
To return to the Normal Airflow screen, press the button repeatedly or press and hold the button for 5
seconds. Alternatively, the Normal Airflow screen will be restored if no buttons are pressed for two minutes
(timeout). Settings are stored in a the memory and will be retained in the event of mains power supply failure.
Low Airflow / Normal Airflow / Boost Airflow Screen
When the start-up screens are finished, the Low or
Normal screen is displayed showing operating status
(Low Airflow X % or Normal Airflow X % or Boost
Airflow X %).
The Normal screen displays the rate of normal airflow
(supply air) through the unit.
If the installation has proportional sensors or an internal
humidity sensor fitted, and any of these are boosting
the airflow, an αsymbol will be displayed.
Normal Airflow
30 %
When the summer bypass is active, the normal screen
top line will alternate (for 3 seconds) with Summer
Bypass.
SUMMER BYPASS ON
30 %
An interval can be set, see page 40 of the Installation
and Commissioning manual, at which the unit reminds
the user to check the filters. This will be 6, 12 or 18
months. The normal screen top line will include Check
Filter as a reminder to check and, if necessary, clean or
replace the filters.
When this has been done, press and hold both the
and buttons for 5 seconds to reset the automatic
message.
Filter Service
Suburban

Operation and Monitoring
Sentinel Kinetic MVHR User Instructions 13
Set Clock Screen
From the Normal Airflow screen, simply press the
button once to access the Set Clock screen.
The Set Clock Control screen enables you to change
the clock settings. The clock retains its settings for
approximately two weeks without mains power, after
which it will need resetting when power is reconnected
Values are DDD HH:MM.
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
The unit will not automatically switch for Daylight
saving time.
Set Clock
Mon 12:30
Summer Mode Screen
From the Set Clock screen, simply press the button
twice to access the Summer Mode screen.
If the unit is a summer bypass model, the Summer
Mode screen enables you to switch the summer
bypass control on or off. This screen is only displayed
when the bypass is fitted.
Options available are On (default) and Off.
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
Summer Mode
On
Indoor Temp Screen
From the Summer Mode screen, simply press the
button 3 times to access the Indoor Temp screen.
The Indoor Temp screen enables you to choose the
target room temperature in degrees Centigrade –only
displayed when the bypass is fitted.
Selectable range is 16-40 (25 default).
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
Indoor Temp
25 C

Operation and Monitoring
Sentinel Kinetic MVHR User Instructions 14
Boost & Purge Screens
Boost Screen
Pressing the button activates boost airflow mode
when extra ventilation is required.
No. of presses
Boost action
(Control Mode 01)
1
Boosts for 30 minutes
2
Boosts for 60 minutes
3
Boosts continuously
4
Back to Normal flow rate
N.B Additional airflow modes are available from the
button when Control Mode 02 is selected in the
start-up screens see Appendix One for further
details.
If the installation has switch sensors, is wired to the
lighting, has Vent-Wise sensors or if the internal time
switch is set for periodic operation, operation will
change from normal to boost automatically. Pressing
the button will reveal a code to show which device
has activated boost.
s1 = Switch S/W1
s2 = Switch S/W2
s3 = Switch S/W3
s4 = Switch SW4
s5 = Switch SW5
ls = Switched live (LS)
c1-3 = Internal Time switch
If running on boost due to pressing the button, a
device will ‘take over’ the boost. Flow will return to low /
normal when that device switches off. If a number of
different devices are calling for boost flow, the unit will
run at boost until the last one has reverted to normal.
Boost Airflow
50 %
Purge Screen
Pressing and holding the button for 5 seconds
activates purge mode when you want to purge air from
the building. The unit will revert to normal flow by
pressing and holding the button again for 5
seconds. If the wireless boost option is fitted, this can
be triggered from the wireless transmitter/boost switch.
Purge mode runs the fans at full speed for 2 hours (120
minutes). The Purge screen displays a countdown of
the time remaining.
Purge 120m
100 %

Operation and Monitoring
Sentinel Kinetic MVHR User Instructions 15
Cooker Hood Boost Screen
There is a separate connection for a cooker hood
control which allows the boost level to be higher when
triggered by a Cooker Hood.
Cooker Hood
100 %
Low Airflow Screen
Low Airflow mode is activated when the Normal Airflow
is set to Off, (see page 33 in the Installation and
Commissioning manual for set up details).
The Normal Airflow mode can be set to run during the
daytime i.e. from 6am to 11pm, the Low Airflow mode
will then run during the night from 11pm to 6pm.
Low Airflow
20 %
Status Message Screens
The status message screens override the Normal Airflow and other user screens, and display status and key
operational conditions (temperatures or pressures, etc.) according to how the unit has been configured. If there
is more than one status item to be displayed, the highest priority message is shown.
These screens are displayed in a loop during normal operation of the unit, either after displaying the start-up
screens, or when commissioning has been completed. After a few seconds the display backlight is turned off in
order to minimise power consumption. The and buttons can be used to stop the loop sequence in order
to display individual screens for a longer period with the backlight turned on, if required.
Dryout Mode Screen
The Dryout Mode screen displays the time remaining
for the building to dry out. The unit runs at maximum
flow for 1 week.
Dryout Mode
168 h

Operation and Monitoring
Sentinel Kinetic MVHR User Instructions 16
Defrost Active Screen
The Antifrost screen is only displayed if a summer
bypass is fitted. In installations where a negative
pressure is not permitted during antifrost operation, set
this to bypass mode.
Available options: Airflow Mode (default) and Bypass
Mode.
Airflow Mode - When the supply air temperature is
between 0° and -20°C, antifrost will automatically
activate. This will reduce the supply airflow rate and
increase the extract airflow rate to prevent frost forming
on the heat exchanger. During antifrost operation the
supply motor can stop for 15 minutes and run for 45,
depending on the temperature below 0°C. If the supply
air temperature is -20°C or below the supply fan
switches off and the extract fan continues to run at
reduced rate to prevent frost forming on the heat
exchanger.
Bypass Mode - While the supply air temperature is
below 0°C, the antifrost mode will automatically
activate. This mode will open the bypass to prevent
frost forming on the heat exchanger.
Defrost Active
Airflow Mode
Room Too Cold Screen
The Room Too Cold screen displays the status of the
fan. If the heating system in the building fails or is
switched off and the internal temperature drops below
5°C, the unit will stop running so as to not bring cold air
into an already cold house. The unit will start up every
hour and will run for a short time to measure the
temperature of the property. When the temperature
rises, e.g. the heating system is switched back on, the
unit will restart and continue normal operation.
Bottom line of display may be ( Fan Off, Fan
Restarting).
Room Too Cold
Fan Off
BMS Screen
The BMS screen shows if a Fan Off command has
been received from a Building Management System
(BMS), if used.
A Fan Off command could be received from the BMS
in the event of a fire alarm.
BMS Mode
Fan Off

Troubleshooting
Sentinel Kinetic MVHR User Instructions 17
Maintenance
Caring for the Unit
Heat recovery units, by their very nature, require regular maintenance. The Sentinel Kinetic has been designed
to facilitate access to enable maintenance to be carried out easily.
Filter Maintenance
Item
Action
Fan Filters
When the unit displays “Check filters”. This is a reminder to ensure that the filters are not so
dirty that they are blocking the airflow or allowing dirt to pass through. The rate at which the
filters become dirty will vary hugely depending on the environment and the activity within the
property.
1. Open the filter flaps and remove the 2 filters.
2. Clean gently by tapping or carefully using a vacuum cleaner if necessary.
3. Replace the filters
4. Close the filter flaps.
5. To Reset the filter service time:-
i) press and hold both the and buttons for 5 seconds until “Reset Filter?” is shown.
ii) Press to confirm reset “Filter Reset” will be shown.
Periodic Maintenance
Item
Action
Fan Filters
(Interval to suit
environment)
Change the Fan Filters depending on which environment the unit has been installed; urban,
suburban or rural.
1. Open the filter flaps and remove the 2 filters.
2. Insert the replacement filters.
3. Close the filter flaps.
4. To Reset the filter service time:-
i) press and hold both the and buttons for 5 seconds until “Reset Filter?” is shown.
ii) Press to confirm reset “Filter Reset” will be shown.
Unit & Heat Exchanger
Cell
Inspect and clean the unit
1. Isolate the mains power supply.
2. Remove front cover from the unit.
3. Remove the 2 filters.
4. Slide out the heat exchanger.
5. Wash the outer cover and heat exchanger in warm water using a mild detergent and dry
thoroughly.
NOTE: Keep water away from all electrical components and wiring within the unit.
Motors
Inspect the motors for build-up of dust and dirt on the impeller blades, which could cause
imbalance and increased noise levels. Vacuum or clean if necessary.
Condensate Drain
Check the condensate drain tube is secure and clear of debris. Clean if necessary.
Fastenings
Check that all unit and wall-mount fastenings are sufficiently tight and have not become
loose. Re-tighten if necessary.

Troubleshooting
Sentinel Kinetic MVHR User Instructions 18
Spares
Part No
Description
497808
Control PCBA & Patch Cable Kit
497814
Sensor Leads & Patch Cable Kit
SENTINEL KINETIC B/BH SPARES
442356
G3 Filters, 2 per pack (438222 & 438242)
444199
M5 Single Filter (438222 & 438242)
441764
Heat Recovery Cell (bypass version 438222)
441996
Heat Recovery Cell (non-bypass version 438242)
497812
Supply Motor & Cable Kit
497810
Extract Motor & Cable Kit
441776
Summer Bypass
438378
Spigot, one per pack
SENTINEL KINETIC F SPARES
409764
G3 Filters, 2 per pack
472153
M5 Single Filter
409766
Heat Recovery Cell
497816
Motor Assembly & Patch Cable Kit
409772
Summer Bypass
409774
Spigot, one per pack
SENTINEL KINETIC PLUS SPARES
403702
G3 Filters, 2 per pack
444201
M5 Single Filter
443352
Heat Recovery Cell
497818
Motor Assembly & Patch Cable Kit
443355
Summer Bypass
444057
Spigot diameter 150 mm, one per pack
446523
Spigot diameter 180 mm, one per pack, complete with foam adaptor to make 200mm spigot.
SENTINEL KINETIC HIGH FLOW SPARES
403702
G3 Filters, 2 per pack
444201
M5 Single Filter
443352
Heat Recovery Cell
497820
Motor Assembly & Patch Cable Kit
443355
Summer Bypass
446523
Spigot diameter 180 mm, one per pack, complete with foam adaptor to make 200mm spigot.
SALES ENQUIRIES: THIS QR CODE POINTS TO THE KINETIC ADVANCE WEBPAGE
www.vent-axia.com
Tel: [phone]

Troubleshooting
Sentinel Kinetic MVHR User Instructions 19
Troubleshooting
Diagnosing a Problem
In the event of a problem, always troubleshoot the unit according to:
Fault code displayed on the Control Unit or Remote Wired Control.
Fault LED if connected.
If no indications are displayed, then troubleshoot problem according to the fault symptom as described in the
following tables.
Service/Fault Code Screens
The Service screen is displayed, alternating with the
Fault Code screen, when a fault has caused the unit to
switch off and you must phone the telephone number
displayed on the screen for assistance.
Service Phone
01293nnnnnn
The Fault Code screen is displayed, alternating with
the Service screen, when a fault has occurred. Take
note of the fault code when reporting a fault.
Fault Code
01
For assistance contact the service provider and quote the fault code number. The following fault codes numbers
may be displayed. Code numbers are added together if more than one is detected.
Table 2: Fault Codes
Code
Problem
01
Supply Fan not running
02
Extract Fan not running
08
Temperature sensor T1 (supply) faulty
16
Temperature sensor T2 (extract) faulty
32
Wired Remote Control failure

Sentinel Kinetic MVHR User Instructions
Appendix One: Control Mode 02 Description
Overview
The functional differences described in this Appendix are available when Control Mode 02 is selected from the start-up
screens. Control Mode 02 assigns alternative functions to certain wiring Terminal Connections (described in Appendix
One of the Installation and Commissioning Manual) and allows additional airflow settings to be accessed via the
button on the front of the Kinetic unit or remote control as shown below:
Airflow Mode Selection
The following switching Functions are available via the button with Control Mode 02:
No. of presses
Airflow Mode
(Control Mode 02)
1
Low
2
Normal
3
Boosts 30 minutes
4
Boosts 60 minutes
5
Boosts continuously
6
Cancel
Press 10 seconds after last press to cancel and return to normal operation.
If the wireless boost option is fitted, this can be triggered from the wireless transmitter/boost switch.
If the installation has switch sensors, is wired to the lighting, has Vent-Wise sensors, Vent-Wise momentary switch or if
the internal time switch is set for periodic operation, operation will change from normal to boost automatically. Pressing
the button will reveal a code to show which device has activated boost.
s4 = Switch SW4
ls = Switched live (LS)
w1-4 = Wireless controller
c1-3 = Internal Time switch
If running on boost due to pressing the button, another device may ‘take over’ the boost. Flow will return to normal
when that device switches off. If a number of different devices are calling for boost flow, the unit will run at boost until the
last one has reverted to normal.
Appendix Two
Appendix One
