Vent-Axia Sentinel Kinetic 200ZH Guide

Copyright © 2009 Vent-Axia Limited. All rights reserved.
Sentinel
Kinetic 200Z & 200ZH
300ZH
Installation & Commissioning
Model Stock Ref. N°
200Z 448733A
200ZH 449540A
300ZH 449536A
PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.

Warnings & Safety Information
Sentinel Kinetic MVHR Installation & Commissioning 2
IMPORTANT SAFETY INFORMATION
PLEASE READ THESE
INSTRUCTIONS CAREFULLY
BEFORE COMMENCING
INSTALLATION.
1. Do not install this product in areas where
the following may be present or occur:
• Excessive oil or a grease laden
atmosphere.
• Corrosive or flammable gases, liquids or
vapours.
• Subject to direct water spray from hoses.
• Ambient temperatures higher than 40°C
and lower than -20°C.
• Possible obstructions that may hinder
access to or removal of the unit.
2. All wiring must be in accordance with the
current IEE wiring regulations BS7671, or
appropriate standards of your country.
Installation should be inspected and tested
by a suitably qualified person after
completion.
3. Ensure the mains supply (voltage,
frequency and phase) complies with the
rating label.
4. The unit should be provided with a local
double pole fused spur fitted with a 3A fuse
having a contact separation of at least 3mm.
5. These units must be earthed.
6. Precautions must be taken to avoid the
back-flow of gases into the building from the
open flue of gas or other fuel-burning
appliances.
7. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
8. Young children should be supervised to
ensure that they do not play with the
appliance.
INSTALLATION GUIDANCE
1. The installer is responsible for the installation and
electrical connection of the sentinel system on site. It is the
responsibility of the installer to ensure that the equipment is
safely and securely installed and left only when
mechanically and electrically safe.
2. All regulations and requirements must be strictly
followed to prevent hazards to life and property, both
during and after installation, and during any subsequent
servicing and maintenance.
3. The unit’s condensate drain must be connected to the
building’s wastewater drainage system.
4. Certain applications may require the installation of sound
attenuation to achieve the sound levels required.
5. The unit must not be connected directly to a tumble
drier.
6. The supply and exhaust valves must be fully opened
prior to commissioning.
7. The supply air must be drawn from the exterior of the
property.
8. The unit should be allowed to stabilise during
commissioning for a minimum period of 5 minutes when
changing between boost and normal speeds.
9. Ensure that the unit’s external grilles are a minimum of
1500mm apart. The exhaust grille should be located at
least 600mm away from any flue outlet. The inlet grille
should be located 2000mm away from any flue outlet.
10. This product and associated duct installation should be
carried out in accordance with the domestic ventilation
compliance guide.
Disposal
This product should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local authority
for recycling advice.

About this Document
Sentinel Kinetic MVHR Installation & Commissioning 3
Contents
Product Description 4
Sentinel Kinetic 200Z, 200ZH & 300ZH .........................................4
Technical Data 5
Overview ........................................................................................6
Before Installation of the Unit .........................................................6
Unit Installation...............................................................................6
Installation of Unit Brackets............................................................7
Dimensions and Ducting for the Sentinel Kinetic ........................10
Attaching the ducting....................................................................10
Powering Up the Unit ...................................................................14

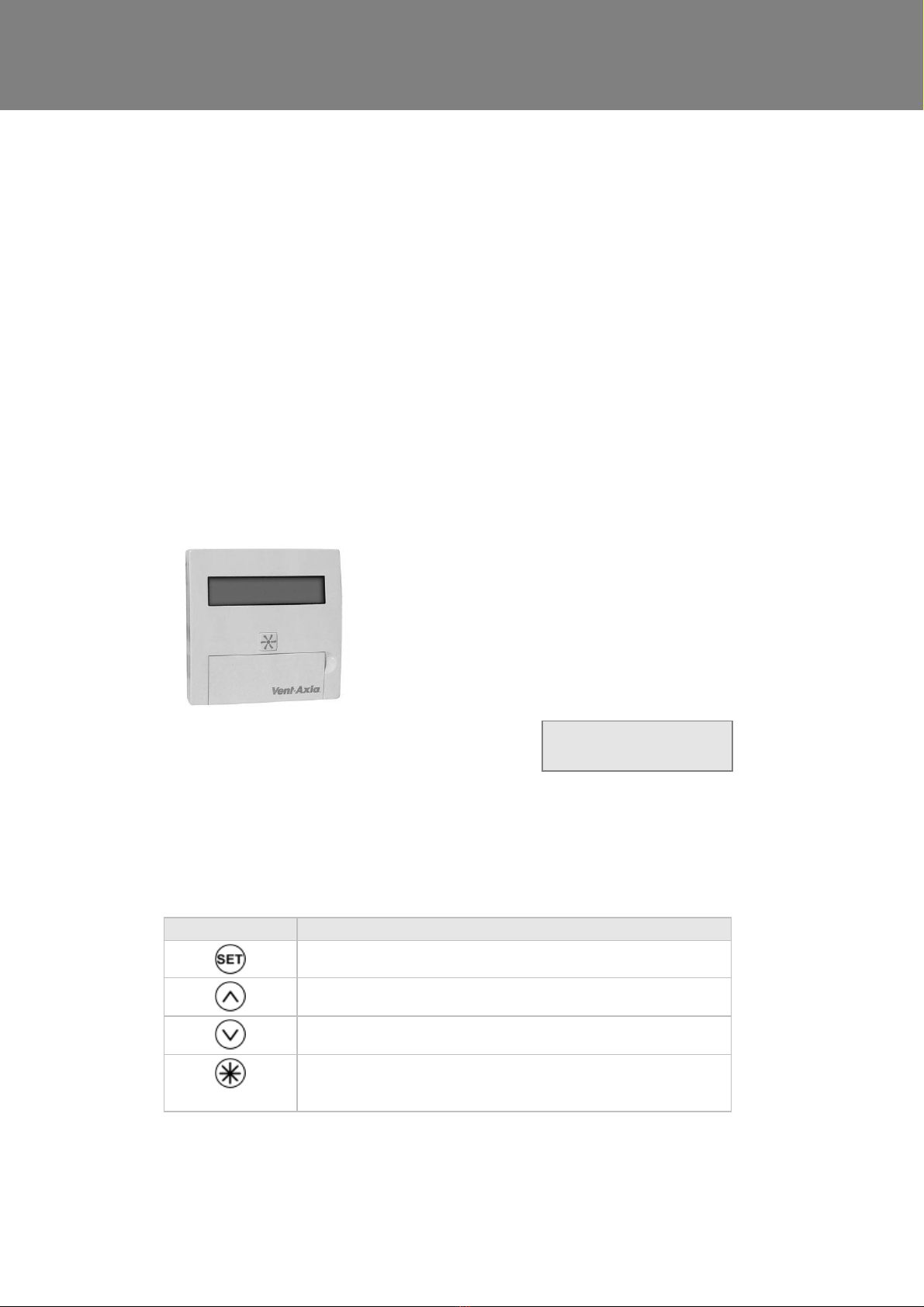

Remote Wired Control Display....................................................14
Start-up Screens ..........................................................................15
Commissioning 19
Overview……………………………………………………………….19
Commissioning Screens...............................................................20
Maintenance 30
Filter Maintenance........................................................................30
12 Monthly Maintenance ..............................................................30
Spares ..........................................................................................33
Troubleshooting 34
Diagnosing a Problem..................................................................34
Appendix: Options and Accessories 35
CO2 / Temperature Sensor…………………………………………35
Normal / Boost switch……………………………………................35
Humidistat …………………………………………………………....35
UK Building Regulations (ADF)
Declaration of Conformance
The Sentinel Kinetic conforms to the 2010 Building
Regulations (Approved Document F - Means of Ventilation)
for installed performance of a ducted mechanical extract
fan when installed in accordance with the instructions in
this document.
Note: Read in conjunction with Operating and Monitoring
manual 449355.

Product Description
Sentinel Kinetic MVHR Installation & Commissioning 4
Product Description
Sentinel Kinetic 200Z, 200ZH & 300ZH
The Vent-Axia Sentinel Kinetic Mechanical Ventilation / Heat Recovery (MVHR) heat recovery unit is
designed for the energy efficient ventilation of houses and similar dwellings, conforming to the latest
requirements of the Building Regulations document F 2010.
The unit is designed for continuous 24 hour exhaust ventilation of stale moist air from bathrooms, toilets and
kitchens. As the stale air is extracted, a heat exchanger within the unit transfers the heat into the supply air
entering the bedrooms and lounge.
Sentinel Kinetic 200Z, 200ZH & 300ZH Summer By Pass.
The Sentinel Kinetic is fitted with a Summer By Pass (SBP) and will provide energy-free heating and energy-free
cooling when the house temperature and ambient temperature allows.
If the room is warmer than the set (shown as "indoor") temperature (i.e. you need the room to be cooler) and the
outdoor air is cooler than the actual room temperature (i.e. the outdoor air could cool your room) then the SBP will
open and the unit will supply cooler air to your room.
If the room is cooler than the set ("indoor") temperature (i.e. you need the room heating) and the outdoor air is
warmer than the actual room temperature (i.e. the outdoor air could heat your room) then the SBP will open and
the unit will supply warmer air to your room.
Note that the above only applies whilst the outdoor air temperature is above 14C (adjustable) in order to prevent
cold draughts.
The set ("indoor") temperature should be set 2 or 3 degrees higher than the central heating thermostat and 2 or 3
degrees below any air conditioning thermostat if fitted. This will prevent any clash between the separate systems
Models
1. 448733A - Sentinel Kinetic 200Z with Summer Bypass and Wired Remote Control.
2. 449540A - Sentinel Kinetic 200ZH with Summer Bypass, Integral humidity sensor & Wired Remote
Control.
3. 449536A - Sentinel Kinetic 300ZH with Summer Bypass, Integral humidity sensor & Wired Remote
Control.
Accessories
441838 - Sentinel Kinetic plug-in integral humidity sensor
441780 - Vent-Wise accessory pack (Requires sensors)
447340 – Opto Coupler
A range of sensors can be used to manage system demand and control the ventilation rate. These include an
internal humidity sensor, humidity sensors for independent mounting in rooms, CO2sensor, Vent-Wise sensors,
manual switches and pull cords. For these alternative control options, see www.vent-axia.com

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 5
Technical Data
For all other technical details, please see the Product Catalogue or our website at www.ventaxia.com
Performance Sentinel Kinetic 200Z & 200ZH Sentinel Kinetic 300ZH
Airflow See Graph below See Graph below
Power
AC Voltage Input 220-240 V AC (single phase)
AC Frequency Input 50 Hz nominal
Supply Fuse 3 A (located in fused spur)
Product Fuse 2 A (located on main PCB)
Rated Power 175W (max.) 180W (max.)
Physical
Height excluding
mounting brackets
200mm 300mm
Width 570mm 700mm
Length excluding spigots 800mm 890mm
Weight 26.5kg 38.5kg
Spigot diameter 125 mm 150 mm
Condensate pipe
diameter
22 mm
Environmental
IP Rating IP22
Operating Temperature -10C to +45C
Operating Humidity 0% to 95% RH

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 6
Overview
The following instructions are intended to help prevent potential hazards and installation should only be carried out
by a qualified electrician and installer.
NOTE: we advise installers to fix all mains, sensor wiring and wired remote control along with any internal
accessories prior to fixing the MVHR unit in position.
Before Installation of the Unit
Inspect the Unit
When taking delivery of the unit, check the items delivered against the enclosed delivery note. Inspect the unit for
damage in transit. If in doubt, contact Customer Services. Each box contains a Kinetic unit and ceiling mounting
brackets and product documentation.
Lift and Move the Unit Safely
Check the weight of the unit that you are installing. Always use appropriate lifting techniques and appliances when
moving heavy equipment.
Check Site Requirements and Safety Notices
Check that the physical and environmental conditions for the site meet, or exceed, the requirements detailed in the
Technical Specification.
Unit Installation
The unit MUST always be mounted horizontally. Do not use this unit as a support for any other equipment.
The ceiling should have sufficient strength to support the unit.
Take into consideration the position of the electrical services and the condensate drain.
Ensure there is adequate access for installation, operation and maintenance.
It is recommended that a local disconnection mains and sensor terminal box is installed within 1m of the unit to
facilitate future maintenance.

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 7
Ceiling Mounting
Fix the 2 Brackets to the ceiling, the fixings must be suitable for the surface type intended (concrete,
wood) they must also be compatible for the units weight , 200 Z & ZH = 26.5Kg - 300ZH = 38.5Kg
200Z & 200ZH
Note:
Security
fixing
Note:
Security
fixing
Note:
Security
fixing
Note:
Security
fixing

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 8
300ZH
Installation of Unit Brackets
Stage 1: Drill the holes according to the guide on the
previous page; make sure the holes you drill enable the
brackets to be moved apart within the guide holes on the
bracket.
Stage 2: Place each of the bolts into position and do not
fully tighten. Leave approximately “a half turn” loose on
each of the fixings. This will allow each bracket to be
moveable until final fitting of the unit and makes any
adjustments easier while installing the unit in position.
Stage 3: The brackets are in their approximate location
and the unit can now be raised into position.
Once the unit is in its located position, the brackets can
be moved and secured.
Stage 4: Finally, with the unit secure you can now fix the
security fixing (as pictured right).
Once secured you may proceed with the rest of the
installation.

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 9

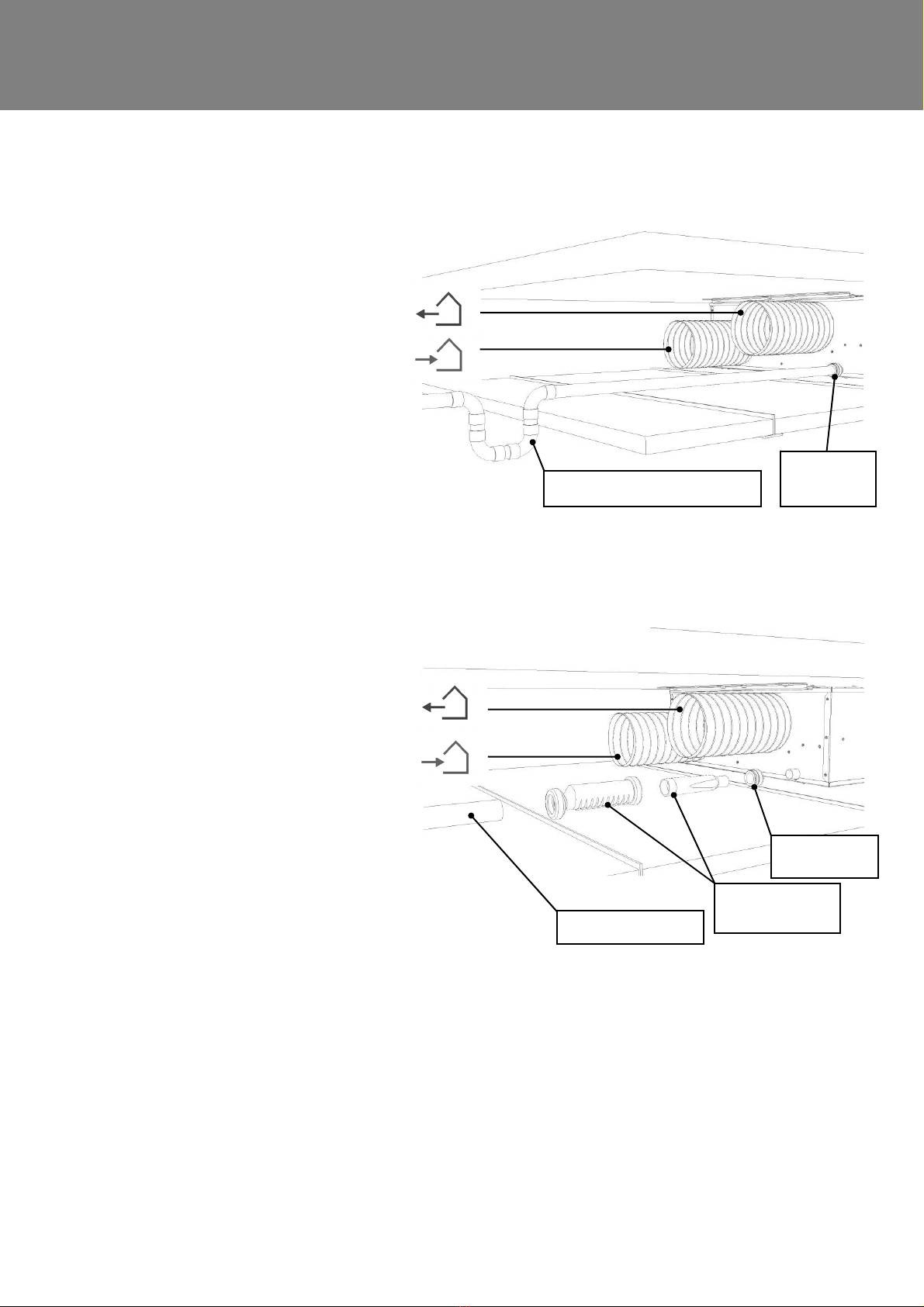

Connecting the condensate drain
There are two ways of connecting the condensate drain
of the unit, which is dependent on the installation
scenario.
Install A: U-Trap configuration (22mm Waste)
Using a 22mm (dia) fitting the U-Trap is formed of four
90(deg) elbow bends and 22mm standard waste pipe to
connect between the elbows. A further 22mm (dia)
waste pipe then connects to the unit’s drainage via an
inline 22mm (dia) coupler.
Please note you must ensure that there is a minimum of
a 3(deg) downward angle to allow water to drain away
from the unit naturally.
Install B: In-line configuration (32mm/22mm waste)
For installations in a ceiling void where it is too shallow
for a traditional U-Trap configuration. Our
recommendation is to use a HepVO inline waste valve
and Tundish Adaptor kit (Part number: BV1/21-32mm).
The Tundish adaptor will allow a connection to the
existing 22mm dia condensate leaving the unit via an
inline 22mm coupler.
However the opposite exhaust end of the HepV0 valve
will require a 32mm Waste pipe connection to exhaust
waste from the property.
All mentioned parts are available from your nearest
Plumbing trade centre.
Please Note: In areas where cold conditions inc frost
are possible, outlet pipes must be insulated to avoid
blockage and potentional damage to the unit and
surroundings. 32 mm straight waste
HepVO Valve and
Tundish ada
p
to
r
In-line 22mm
coupler
U-bend trap x4 Elbows 22mm (dia)
Inline 22mm
coupler

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 10
Dimensions and Ducting for the Sentinel Kinetic 200Z & 200ZH ( 300ZH )
KEY:
Yellow Red Green Brown
Airflow Extract
(Air from room)
Airflow Supply
(Air into room)
Airflow Intake
(Air from atmosphere)
Airflow Exhaust
(Air to atmosphere)
Attaching the ducting
1. Always use a short piece of flexible ducting 100-150mm long, extended to its full length when connecting to
ductwork.
2. Securely connect this ducting to the spigots using worm-drive clips or cable ties and duct tape.
3. Insulate any ducting passing through an unheated space to prevent any heat losses and surface condensation.
Green Yellow
Red
Brown

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 11
Electrical Installation
Connect the Wired remote Control
1. The Wired remote Control uses a 15 metre long cable to connect to the unit, it can be permanently mounted in a
living space for the end user or used for commissioning the unit.
2. Fit the 15 metre Remote Control cable plug into the cable socket fitted to the Heat Recovery Unit.
3. Connect the cable assembly to the Remote Control terminal block (the terminal block is colour coded to match
the individual coloured cables and mount onto a single gang recessed wall box with the 2 screws provided.
The wired remote Control will automatically be detected.
Cable shortened for
illustrative purposes
Black
Green Red
Yellow

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 12
Brown
Blue Green/Yellow
Black
Connect Switches and Sensors
The unit can be switched to boost by a variety of methods:
Applying 240 V to the LS input.
Switching across 1 of 5 pairs of switch terminals.
Applying between 0 and 10 V as a proportional input to two input terminals.
In addition, fitting a Vent-Wise Accessory to the unit means that switch terminals 1-3 can be connected to be
switched by a current detector (for example, detecting a hob being switched on) or a temperature sensor (for
example, detecting the flow of hot water). Terminal 4 can be used in conjunction with a momentary switch or
switches. (Refer to fitting sheet supplied with Vent-Wise control module 441780 for correct orientation)
Connect any switches or sensors required to control the unit by connecting to the terminal connectors at the bottom
of the control unit as shown below and in Table 1. If necessary contact Vent-Axia regarding the wiring and fixing of
accessories and sensors.
Ensure that you use a grommet or gland to protect against potential water ingress.
J6

Technical Specification & Installation
Sentinel Kinetic MVHR Installation & Commissioning 13
Table 1: Terminal Connections
Name Description
S/W1 Switch 1 With link fitted on J6 - activates volt-free contact for sensor input
between + and - terminals
With Vent-Wise PCB fitted to J6 - enables Vent-Wise sensor input
Note do not fit standard sensors or Volt- free switch contact in this
mode.
S/W2 Switch 2
S/W3 Switch 3
SW4 Switch 4 Volt-free contact for sensor input between + and – terminals
With Vent-Wise PCB fitted to J6 - enables Vent-Wise momentary switch
input
SW5 Switch 5 Volt-free contact for sensor input between + and - terminals
P1 0-10V Proportional 1 A 24 V DC sensor supply is output between the + and - terminals.
A 10 V proportional sensor input is received between S and - terminals
P2 0-10V Proportional 2 A 24 V DC sensor supply is output between the + and - terminals.
A 10 V proportional sensor input is received between S and - terminals
LED Red Light Emitting Diode
Output
A 5 V LED driving signal output between the + and – terminals that
enables remote indication of a unit fault. See the Control Panel for fault
code (see Service/Fault Code Screens on page 34).
L Mains Live 220-240 V AC, 50 Hz input
N Mains Neutral 220-240 V AC, 50 Hz input
EARTH Mains Earth Earthing connector
LS Switched Live 220-240 V AC, 50 Hz input
Connect the Power Supply
WARNINGS
1. MAINS SUPPLY VOLTAGES (220-240 V AC) ARE PRESENT IN THIS EQUIPMENT WHICH MAY CAUSE
DEATH OR SERIOUS INJURY BY ELECTRIC SHOCK. ONLY A QUALIFIED ELECTRICIAN OR INSTALLER
SHOULD CONNECT THE POWER SUPPLY TO THIS UNIT.
2. THIS UNIT MUST BE CORRECTLY EARTHED.
This unit is designed for operation from a single-phase alternating current source (220-240 V AC). A 2 m cable is
connected internally to the unit for connection to a switched fused spur.
To connect the power supply:
1. Ensure the local AC power supply is switched off.
One end of the power cable supplied is already connected to the unit.
Connect the other end of the cable to the switched fused spur.
Use cable clamps and clips to secure the cable, as appropriate.
Connecting a Boost (Light) Switch
A Switched Live (LS) may be used to boost the airflow when a light is turned on, for instance in a bathroom or
kitchen.
Power supplied to the unit via a Switched Fused Spur must be supplied via the same circuit as the LS connection.
J6

Start Up
Sentinel Kinetic MVHR Installation & Commissioning 14
Powering Up the Unit
Switching On
To switch the unit on:
1. Switch on the power at the mains supply isolator feeding the unit.
2. Following switch-on, the fan motors will start and the Remote Wired Control will display a series of start-up
screens, described below.
N.B. If you are intending to carry out work or maintenance inside the unit, switch off the power at the
mains outlet supplying the unit before you remove the covers.
Switching Off
To switch the unit off:
1. Turn the power off at the mains supply isolator.
Wired Remote Control Display
Display
Normal Airflow
30%
Buttons
Four buttons on the Control Unit provide the controls for configuring and monitoring the unit.
Button Function
Press to adjust settings and press to save settings.
Press to go to the previous screen or to increase a parameter value. Press
and hold for more than 2 seconds for fast scrolling.
Press to go to the next screen or to decrease a parameter value. Press and
hold for more than 2 seconds for fast scrolling.
Press to activate Boost mode. See page 16 for options.
Press and hold for 5 seconds to activate Purge mode. (Press and hold for 5
seconds to cancel Purge).
The main display is an LCD, see overview on page 20.

Start Up
Sentinel Kinetic MVHR Installation & Commissioning 15
Start-up Screens
Sentinel Kinetic Version Screen
The Sentinel Kinetic Version screen displays the
firmware version number for 3 seconds.
No adjustments are possible on this screen.
V--
Language Screen
The Language screen displays the language used for
the screens. It is typically displayed for 5 seconds, or
longer if changing the setting.
(To re select a new language disconnect and then
reconnect to the mains supply).
Language
English
Control Mode Screen
This allows a choice between the control mode
described in this document and an alternative control
mode.
Control Mode
01
Airflow Units Screen
The Airflow Units is a percentage of the unit’s
maximum flow. Airflow Units
%
Wireless Control Screen
Not available. Wireless Control
Not Fitted
Humidity Sensor Screen
The Humidity Sensor screen displays whether the
humidity sensor is fitted. It is typically displayed for
3 seconds.
Humidity Sensor
Not Fitted
Low Airflow / Normal Airflow / Boost Airflow Screen
When the start-up screens are finished, the low or
normal screen is displayed showing operating status
(Low Airflow X % or Normal Airflow X % or Boost
Airflow X %).
The Normal screen displays the rate of normal airflow
(supply air) through the unit.
If the installation has proportional sensors or an internal
humidity sensor fitted, an αsymbol will be displayed
when humidity sensor is boosting the airflow.
Normal Airflow
30 %
When the summer bypass is active, the normal screen
top line will alternate (for 3 seconds) with Summer
Bypass On.
Summer Bypass On
30 %

Start Up
Sentinel Kinetic MVHR Installation & Commissioning 16
An interval can be set, see page 28, at which the unit
reminds the user to check the filters. The normal
screen top line will include Check Filter as a reminder
to check and, if necessary, clean or replace the filters.
When this has been done, press and hold the and
buttons for 5 seconds to reset the automatic
message.
Check Filter
30 %
Pressing the button activates the boost airflow
mode when extra ventilation is required.
No. of presses Boost action
1 Boosts for 30 minutes
2 Boosts for 60 minutes
3 Boosts continuously
4 Back to Normal flow rate
If the wireless boost option is fitted, this can be
triggered from the wireless transmitter/boost switch.
If the installation has switch sensors, is wired to the
lighting, has Vent-Wise sensors, Vent-Wise momentary
switch or if the internal time switch is set for periodic
operation, operation will change from normal to boost
automatically. Pressing the button will reveal a code
to show which device has activated boost.
s1 = Switch S/W1
s2 = Switch S/W2
s3 = Switch S/W3
s4 = Switch SW4
s5 = Switch SW5
v1 = Vent-Wise Input S/W1
v2 = Vent-Wise Input S/W2
v3 = Vent-Wise Input S/W3
ls = Switched live (LS)
c1-3 = Internal Time switch
If running on boost due to pressing the button,
another device may ‘take over’ the boost. Flow will
return to normal when that device switches off. If a
number of different devices are calling for boost flow,
the unit will run at boost until the last one has reverted
to normal.
Boost Airflow
50 %

Start Up
Sentinel Kinetic MVHR Installation & Commissioning 17
Purge Screen
Pressing and holding the button for approximately 5
seconds activates purge mode when you want to purge
air from the building. The unit will revert to normal flow
by pressing and holding the button again for 5
seconds. If the wireless boost option is fitted, purge can
be triggered from the wireless transmitter/boost switch.
Purge mode runs the fans at full speed for 2 hours (120
minutes). The Purge screen displays a countdown of
the time remaining.
Purge 120m
100 %
Low Airflow Screen
Low Airflow mode is activated when the Normal Airflow
is set to Off.
The Normal Airflow mode can be set to run during the
daytime i.e. from 6am to 11pm, the Low Airflow mode
will then run during the night from 11pm to 6pm.
Low Airflow
20 %
Set Clock Screen
From the Normal Airflow screen, simply press the
button once to access the Set Clock screen.
The Set Clock Control screen enables you to change
the clock settings. The clock retains its settings for
approximately two weeks without mains power, after
which it will need resetting when power is reconnected
Values are DDD HH:MM.
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
The unit will not automatically switch for daylight saving
time.
Set Clock
Mon 12:30
Summer Mode Screen
From the Normal Airflow screen, simply press the
button twice to access the Summer Mode screen.
If the unit is a summer bypass model, the Summer
Mode screen enables you to switch the summer
bypass control on or off. This screen is only displayed
when the bypass is fitted.
Options available are On (default) and Off.
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
Summer Mode
On

Start Up
Sentinel Kinetic MVHR Installation & Commissioning 18
Indoor Temp Screen
From the Normal Airflow screen, simply press the
button until the Indoor Temp screen is displayed.
The Indoor Temp screen enables you to choose the
target room temperature in degrees Centigrade – only
displayed when the bypass is fitted.
Selectable range is 16-40 (25 default).
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
This function will only work when the Summer Mode is
set to on.
Indoor Temp
25 C
Outdoor Temp Screen
From the Normal Airflow screen, simply press the
button until the Indoor Temp is displayed. Press
button to choose the required temperature and then
press button again to confirm the entry and this will
call up Outdoor Temp.
The Outdoor Temp screen enables you to choose the
minimum outdoor temperature at which the bypass will
operate in degrees Centigrade – only displayed when
the bypass is fitted.
Use this to prevent cold draughts being introduced.
Selectable range is 5C – 20C (14C default).
Return to the normal display by pressing the button
or leave to timeout and return automatically after 2
minutes.
This function will only work when the Summer Mode is
set to on.
Outdoor Temp
14 C

Commissioning
Sentinel Kinetic MVHR Installation & Commissioning 19
Commissioning
Overview
The instructions in this section are intended to provide configuration and operation information for setting up the
equipment. In the event of problems, see Troubleshooting on page 34
Follow good practice when commissioning the unit. Ensure that the system is installed according to the system
designers intent incorporating any acoustic ducting, that all joints are air tight, ducting is well supported, bends
are avoided close to vents, and that the vent valves are fully open at the start of the commissioning process.
The following is attached to the unit and should be used as a check list prior to setting the air flows.

Commissioning
Sentinel Kinetic MVHR Installation & Commissioning 20
Wired remote Control Screens Summary
PIN number not set
PIN number set
if fitted
if fitted
if fitted
if fitted
if fitted
Filter Service
Suburban
Sub-menus
Summer Bypass
Not Fitted
Antifrost
Airflow Mode
Dryout
Off
Running Time
12345
BMS 00
Security PIN?
Restore Defaults
No
BMS Mode
On
Proportional 2
CO2
Sub-menus
SW4 Momentary
Off
Sub-menus
Ventwise Input 2
Load pot 60 %
Sub-menus
Ventwise Input 3
Load pot 60 %
Sub-menus
Proportional 1
Humidity
Sub-menus
Sub-menus
Ventwise Input 1
Load pot 60 %
if fitted
CVP Control
Off/CV
Security PIN?
****
Boost Supply
50 %
Boost Extract
50 %
Normal Supply
30 %
Normal Extract
30 %
Low Supply
20%
Low Extract
20%
Ckr Hood Supply
30 %
Ckr Hood Extract
100 %
Boost Overrun
15 m
Boost Delay
00 m
Boost On
O
ff
Mon1 00:00 00:00
Boost On Off
All Set
Humidity Sensor
Off
Normal On Off
Mon
Normal On Off
All Set
Set Service No
Press
for > 5 s
Press for
Boost
Timeout after 2 minutes
Press
User Menu
Screens
Commissioning Screens
Timeout after 2 minutes
Press fo
r
>5 s to exit the
commissioning
screens
Language
English
V--
Control Mode
01
Airflow Units
%
Wireless Control
Not Fitted
Humidity Sensor
Not Fitted
Normal Airflow
30%
Set Clock
Mon 12:30
Summer Mode
On
Indoor Temp
25 C
Purge 120m
100%
Boost Airflow
50%
Start-up Screens
Low Airflow
20%
CookerHood
100%
Outdoor Temp
14 C
Commissioning Screens
The commissioning screens enable you to configure the operational settings of the unit. Settings are stored in a
non-volatile memory and will be retained irrespective of mains supply breaks.
