Vents VUE2 200 P User manual

USER’S MANUAL
VUT2 200 P
VUE2 200 P
VUTE2 200 P
Heat (energy / heat and energy)
recovery air handling unit

www.ventilation-system.com
2
Introduction................................................................................................................ 3
Purpose.........................................................................................................................5
Delivery set................................................................................................................. 5
Designation key........................................................................................................ 5
Technical data........................................................................................................... 6
Unitdesignandoperatinglogic............................................................................. 7
Installationandset-up............................................................................................. 8
Connectiontopowermains................................................................................... 11
Unitcontrol.................................................................................................................. 12
Technicalmaintenance........................................................................................... 14
Troubleshooting........................................................................................................ 15
Storageandtransportationregulations............................................................. 15
Manufacturer'swarranty........................................................................................ 16
Acceptancecerticate............................................................................................. 17
Sellerinformation...................................................................................................... 17
Installationcerticate.............................................................................................. 17
Warranty card............................................................................................................ 17
CONTENTS

3
• Read the user’s manual carefully prior to installing and operating the unit.
• Full the user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical and
technical norms and standards.
• The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
• After a careful reading of the manual, keep it for the entire service life of the unit.
• While transferring the unit control the user’s manual must be turned over to the receiving operator.
Symbol legend:
WARNING!
DO NOT!
SAFETY REQUIREMENTS
This user’s manual consisting of the technical details, operating instructions and technical specication covers the installation and mounting
of theVU_2 200 P heat (energy / heat and energy) recovery air handling unit (hereinafter referred to as «the unit»).
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from power mains prior
to any installation operations. • The unit must be grounded!
• Do not lay the power cable of the unit
inclose proximity to heating equipment.
• While installing the unit follow the
safety regulations specic to the use
ofelectric tools.
• Do not change the power cable length
atyour own discretion.
• Do not bend the power cable.
• Avoid damaging the power cable.
• Do not put foreign objects on the power
cable.
• Unpack the unit with care.
• Do not use damaged equipment or cables
when connecting the unit to power mains.
• Do not operate the unit outside the
temperature range stated in the user’s
manual.
• Do not operate the unit in aggressive
or explosive environments.
• Do not touch the unit controls with wet
hands.
• Do not carry out the installation and
maintenance operations with wet hands.
• Do not wash the unit with water.
• Protect the electric parts of the unit
against ingress of water.

www.ventilation-system.com
4
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS
• Do not allow children to operate the unit. • Disconnect the unit from power mains
prior to any technical maintenance.
• Do not store any explosive or highly ammable
substances in close proximity to the unit.
• When the unit generates unusual sounds,
odour or emits smoke disconnect it from
power supply and contact the Seller.
• Do not open the unit during operation.
• Do not direct the air ow produced
bythe unit towards open ame or
ignition sources.
• Do not block the air duct when the unit is
switched on.
• In case of continuous operation
oftheunit periodically check the security
ofmounting.
• Do not sit on the unit and avoid placing foreign
objects on it.
• Use the unit only for its intended
purpose.

5
Due to the ability to save heating energy by means of energy recovery the unit is an important element of energy-ecient premises.
Theunit is a component part and is not designed for independent operation.
The unit is designed to provide permanent controlled air exchange by means of mechanical ventilation in houses, oces, hotels, cafés,
meeting halls and other mechanically ventilated premises as well as utilization of extract air heat energy to warm up supply puried air.
The unit is designed for ceiling mounting, the VUE2 200 P model is designed for ceiling as well as for wall mounting.
The unit is rated for continuous operation.
Transported air must not contain any ammable or explosive mixtures, evaporation of chemicals, sticky substances, brous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic
germs).
PURPOSE
THE UNIT MAY NOT BE OPERATED BY CHILDREN OR PERSONSWITH REDUCED PHYSICAL,
MENTAL OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE UNIT INSTALLATION SITES MUST PREVENT ACCESS BY UNATTENDED CHILDREN.
DELIVERY SET
DESIGNATION KEY
Name Number
Air handling unit 1 item
Mounting bracket 2 items
User's manual 1 item
Packing box 1 item
VU_2 200 P
Design features
P — suspended mounting
Unit type
VUT - ventilation with heat recovery
VUE - ventilation with energy recovery
VUTE - ventilation with heat and energy recovery
Air capacity [m3/h]
Number of heat exchangers [items]

www.ventilation-system.com
6
TECHNICAL DATA
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +50 °C and relative humidity up to 80 %.
Hazardous parts access and water ingress protection rating:
• IP 44 for the unit motors;
• IP 22 for the assembled unit connected to the air ducts.

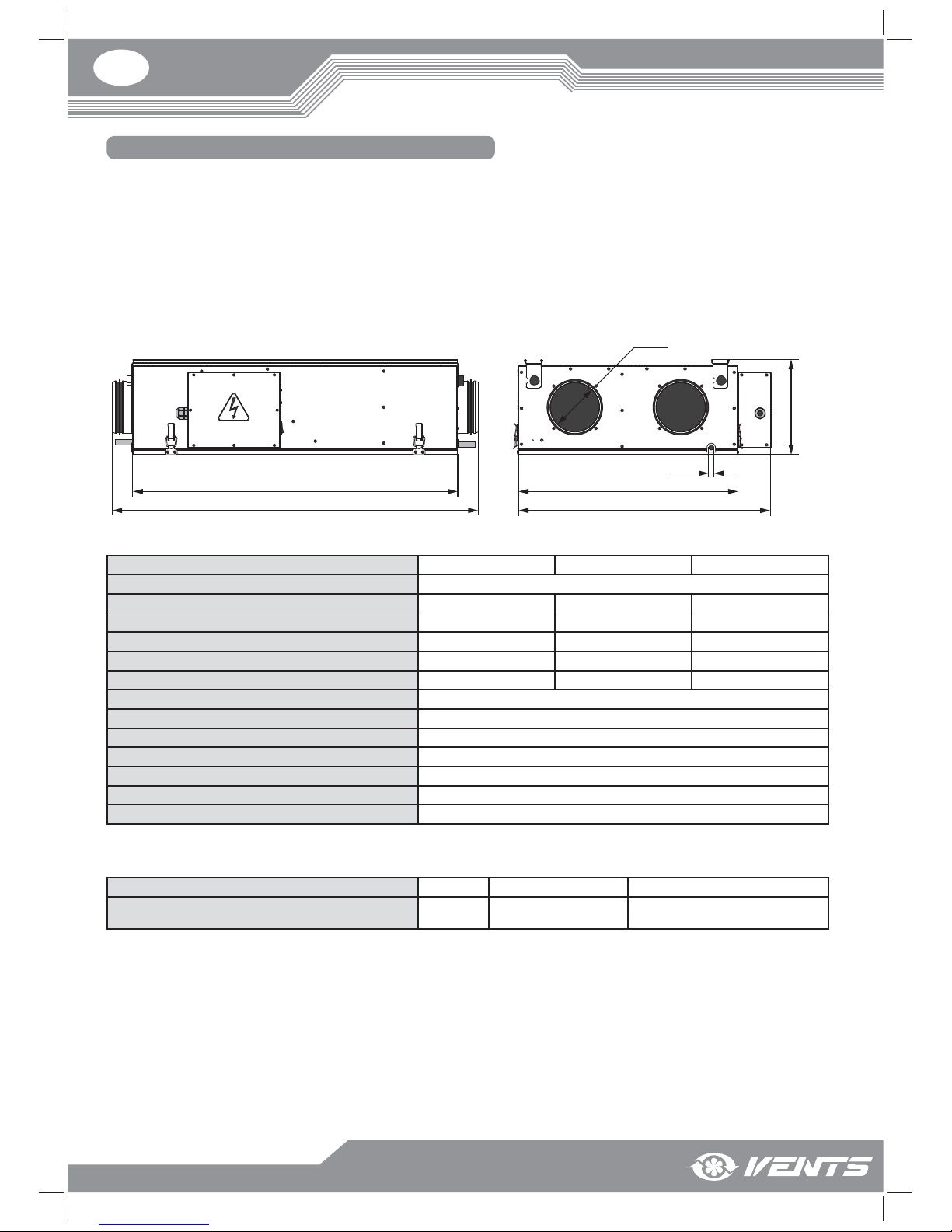

Designation of the unit series, main overall and connecting dimensions as well as the unit view and technical parameters of the unit
areshown in gure and table below.
The unit design is constantly being improved, so some models can slightly dier from those ones described in this manual.
597864
518
766
Ø12
Ø125
222
OVERALL DIMENSIONS OF THE UNIT, MM
UNIT TECHNICAL DATA
Ventilation mode (speed) LOW (low) MED (medium) MAX (maximum)*
Unit supply voltage, 50 Hz [V] 1 ~ 230
Maximum fan power [W] 67 104 142
Fan current [A] 0,58 0,63 0,68
Maximum air capacity [m3/h] 80 143 220
R.p.m. 1120 1890 2910
Sound pressure level at 3 m distance [dB(A)] 20 28 36
Maximum transported air temperature [°C] from -25 ° C to +40 ° C
Casing material aluzinc
Insulation foamed polypropylene, 10 mm
Filter: extract/intake pocket G4
Connected air ducts diameter [mm] ø 125
Heat recovery eciency up to 89 %
Heat exchanger type cross ow, 2 items
* — maximum speed is activated by a signal from peripheral control elements: control panel, humidity sensor, thermostat, CO2 sensor etc.
MODIFICATIONS
Model VUT 200 P VUE2 200 P VUTE2 200 P
Heat exchanger material aluminum polymerized cellulose aluminium / polymerized cellulose

7
UNIT DESIGN AND OPERATING LOGIC
The unit has the following operating logic:
Warm stale extract air from the room ows to the unit, where it is ltered, then air ows through the heat exchangers and is exhausted
outside by the extract fan. Clean cold air from outside is moved to the supply lter. Then ltered air ows through the heat exchangers and is
moved to the room with the supply fan.
Heat energy of warm extract air is transferred to clean intake fresh air from outside and warms it up. Heat recovery minimizes thermal en-
ergy losses and space heating expenses in cold seasons.
The polymerized cellulose heat exchangers are used to recover both sensible and latent energy contained in the extract air and transfer it
to the cold intake air ow from outside.
The polymerized cellulose heat exchangers act as air moisture accumulators when the ambient air humidity is too low or as supply air de-
humidiers if the ambient humidity is high. Due to the excellent water-absorbing properties of the heat exchanger material the unit drainage
is not required. Heat recovery minimizes heat losses, which reduces the cost of space heating in the cold season.
Freeze protection
The heat exchanger freeze protection function of the unit is implemented with a thermostat installed in the exhaust air duct downstream
of the heat exchanger. In case of a freezing danger the supply fan is turned o and the heat exchanger is warmed up with warm extract air
ow. The recommended thermostat operating temperature is +3 °C (factory setting).
extract air
intake air
exhaust air
supply air

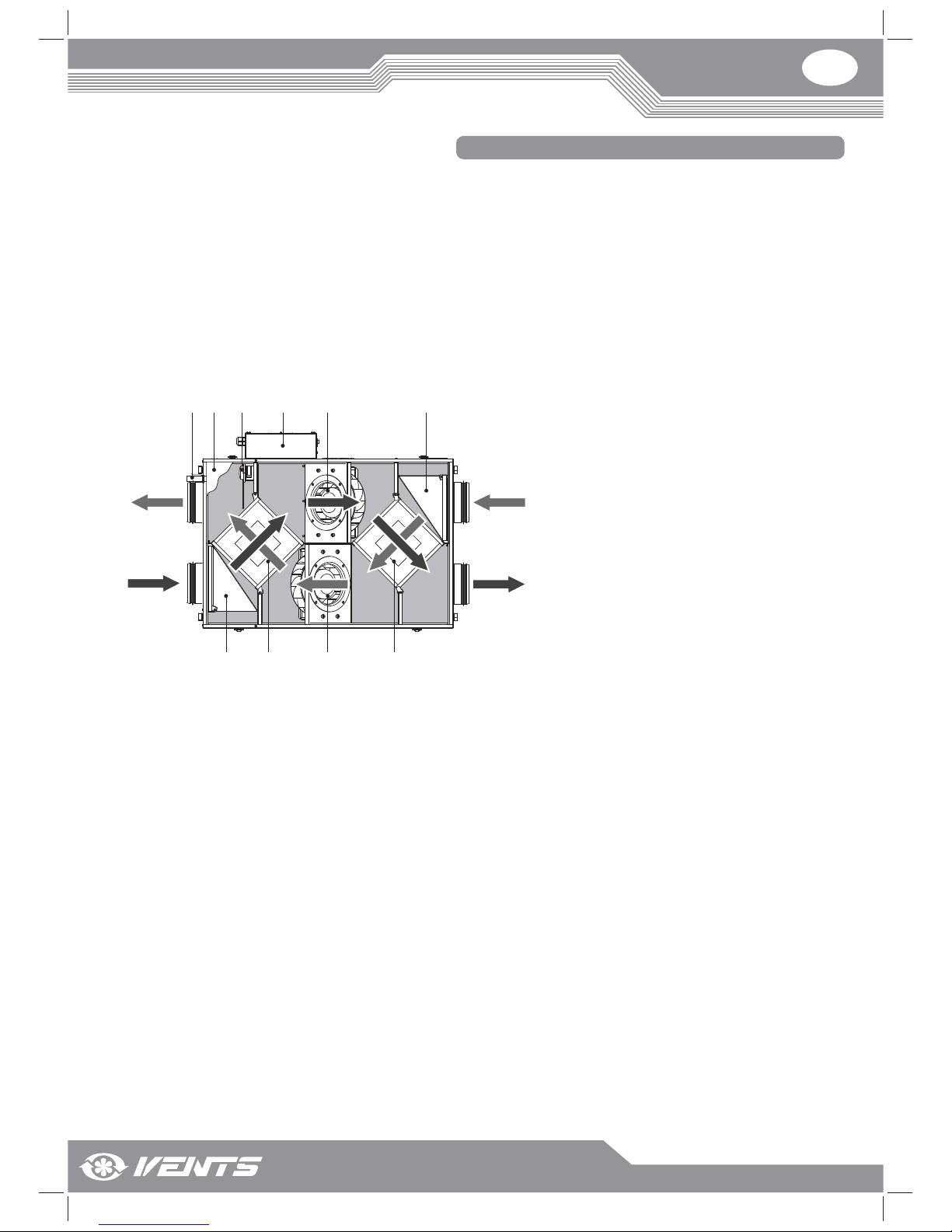

1 5
33 24
7689 1. The supply centrifugal fan has an impeller with backward
curved blades and a maintenance-free electric motor
with an external rotor and built-in overheat protection
thermostats.
2. The extract centrifugal fan has an impeller with backward
curved blades and a maintenance-free electric motor
with an external rotor and built-in overheat protection
thermostats.
3. Plate cross ow heat exchanger
4. G4 intake air lter.
5. G4 extract air lter.
6. Freeze protection thermostat relay.
7. Control unit.
8. Drain pan (except VUE 2 200 P).
9. Drain pipe (except VUE 2 200 P).
UNIT DESIGN AND OPERATING LOGIC

www.ventilation-system.com
8
MOUNTING AND SETUP
UNIT MOUNTING
THE UNIT MUST BE MOUNTED BY A QUALIFIED EXPERT ONLY, PROPERLY
TRAINED AND HAVING THE REQUIRED TOOLS AND MATERIALS.
DISTANCE TO THE UNIT
When selecting the installation site provide minimum allowed distances to the unit.
min 50 mm min 200 mm
min 250 mm
min 50 mm min 200 mm
min 250 mm
min 50 mm
While mounting the unit provide enough access for maintenance or repair work.
When selecting a mounting location of the unit provide free opening of the service panel.
To attain the best performance of the unit and to minimise turbulence-induced air pressure losses connect a straight air duct section on both
sides of the unit while mounting.
Minimum straight air duct length:
• equal to 1 air duct diameter on intake side
• equal to 3 air duct diameters on outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects, e.g. by covering the spigots with apro-
tecting grille or other protecting device with mesh width not more than 12.5 mm to prevent uncontrollable access to the fans.
While installing the unit ensure convenient access for subsequent maintenance and repair. The unit must be mounted on a plane surface.
Mounting of the unit to an uneven surface can lead to the unit casing distortion and operation disturbance.
SUSPENDED MOUNTING OF THE UNIT
The unit is suspended with the suspension brackets (included in
thedelivery set) or belts.
Attach two mounting brackets within a distance of 400 mm away
from each other using dowels with screws or self-tapping screws (not
included in the delivery set) depending on the type of the surface.
When attaching the mounting bracket consider the surface material
and the unit weight.

9
Loosen the three-sided thumbscrews. Set the unit thumbscrews into the mating cutouts in the mounting brackets as it is gured below. Then
tighten the three-sided thumbscrews to x the unit.
Mounting using belts
The unit is suspended with the belts which must be selected to match the unit weight. The belt must have an opening or a hook to x
thethree-sided thumbscrews to the unit.
Remove all the three-sided thumbscrews from the unit for suspended mounting by means of belts. Then insert them into a mounting
opening or a belt hook. Fix the belts as necessary and screw the three-sided thumbscrews back to the unit.
Example of a suspended mounting is gured below.
UNIT WALL SURFACE MOUNTING (only for VUE2 200 P)
Attach the wall mounting bracket to the wall considering the wall material and the unit weight.
400 mm

www.ventilation-system.com
10
CONDENSATE DRAINAGE
The unit is equipped with drain pans designed to remove condensate formed in the process of heat exchangers operation.
Connect the drain pipes, the U-traps and the sewage system with plastic or rubber pipes for condensate disposal arrangement. The pipe
slope downwards must be at least 3°.
Before starting the unit ll the system with water and check that the U-trap is always lled with water. Check for any obstructions to the
free ow of water into the sewage system to prevent condensate accumulation inside the unit, which may cause equipment failure and water
ingress into the premises.
min 3°
Condensate
drain pipe
Pipe U-trap
Sewage
system
Pipe
Install the unit on the mounting brackets. Tighten the three-sided thumbscrews on the mounting brackets.

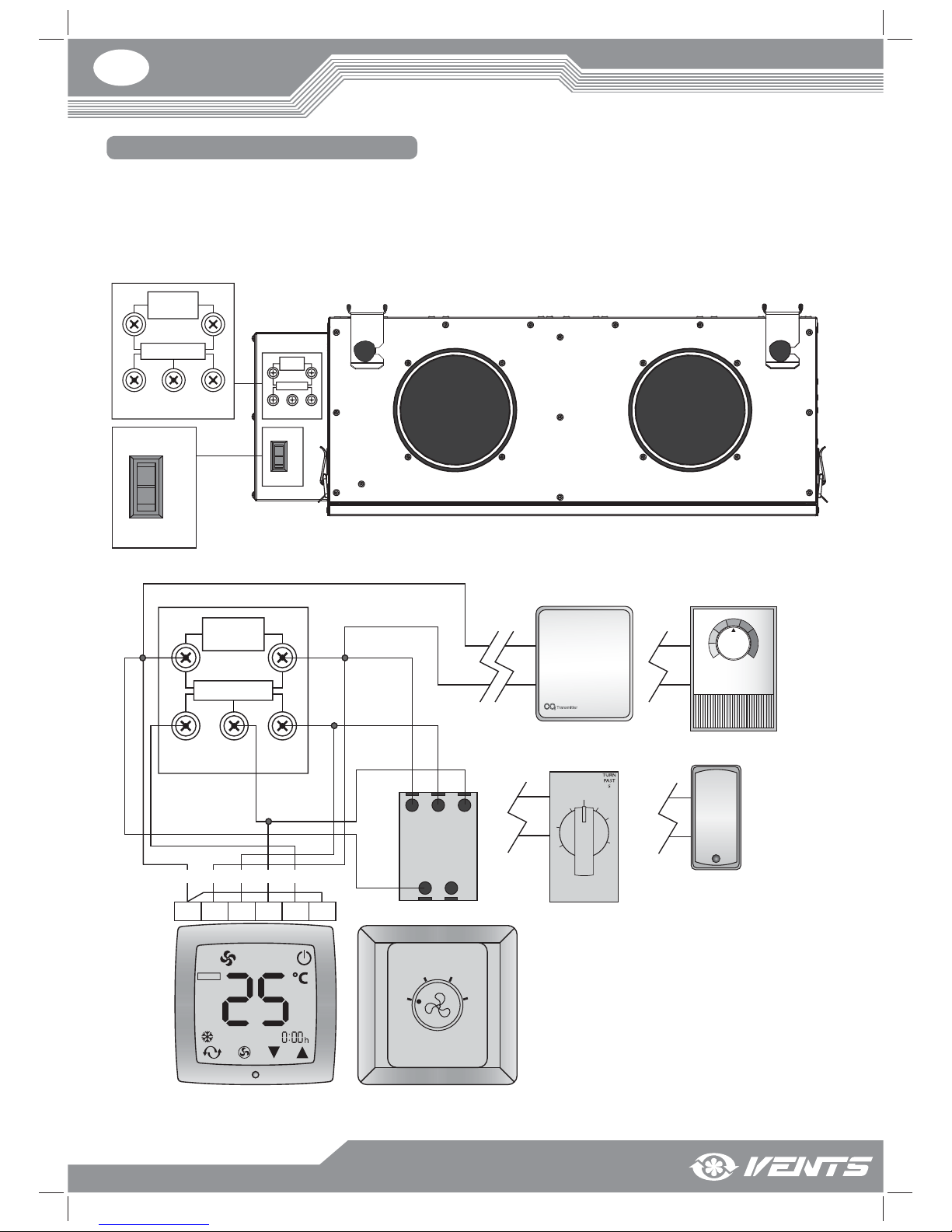

Термостат
Средняяскорос ть
Низкаяскорос ть
Режим
ожидания
Двухпроводной
пульт(NO)
1
2
910
11
Термостат
Средняяскорос ть
Низкаяскорос ть
Режим
ожидания
Двухпроводной
пульт(NO)
1
2
910
11
Термостат
Средняяскорос ть
Низкаяскорос ть
Режим
ожидания
Двухпроводной
пульт(NO)
1
2
910
11
