Veratron VMH 35 User manual

B00xxxx
VMH 35
MARINE DISPLAY
USER MANUAL
rev. AA (DRAFT)
EN
DE
IT
FR
ES
PT

TABLE OF CONTENTS
B00xxxx
TABLE OF
CONTENTS
Introduction 3
Safety Information 5
Installation 7
Connections 9
Electrical Schematic 10
Description 12
General Settings 16
Sensors’ Configurations 19
Sensor Curves 22
Alarms 24
Troubleshooting 26
Technical Data 27
Spare Parts, Sensors and Accessories 29

INTRODUCTION
B00xxxx
INTRODUCTION
VMH35 is a NMEA 2000 certified device designed for
monitoring outboard engines.
Equipped with analogue inputs it is also well suited to
refitting older engines allowing the direct connection of
various sensors such as fuel, trim and tachometer, while
the built-in NMEA 2000 gateway distributes these
measurements to other digital network devices such as
chartplotters, saving the need for an external converter.
Its sleek black glass design is complemented by a
stainless-steel frame crimped onto the mineral glass
front where the sunlight-readable hybrid display is
glued.
The VMH35 has an IP X7 protection rating from the front
and back to ensure the best performance in outdoor
environments.
The built-in GPS makes the VHM35 the perfect
standalone solution by integrating speed, compass and
position data with engine information, while the
dedicated IBS input allows you to interface an external
12V smart battery sensor to keep your boat's energy
supply under control at all times
ARCHITECTURE
OPERATION
The VMH35 indicator is a versatile device. It allows the operation of all connected motors to be monitored at the same time.
The selection of the motor whose data is to be displayed is made during the configuration of the data pages.

INTRODUCTION
B00xxxx
PRIORITY OF RECEIVED SIGNALS
Sensors and engine
•Two analogue resistive inputs
•Analog frequency input
•NMEA 2000
•LIN bus for Intelligent Battery Sensor (IBS)
GPS position
•Integrated GPS module
•NMEA 2000
SWITCHING ON AND OFF
The on/off mode depends on the connection made during installation.
At power up, the tachometer and warning lights come on for two seconds, the Veratron logo appears and then the last data
page displayed before powering off.
You can customize the loading image displayed at power up using the Veratron Configuration Tool.
Note: Contact your veratron dealer for more information.

SAFETY INFORMATION
B00xxxx
SAFETY INFORMATION
WARNING
• No smoking! No open fire or heat sources!
•The product was developed, manufactured and
inspected according to the basic safety requirements
of EC Guidelines and state-of-the-art technology.
•The instrument is designed for use in grounded
vehicles and machines as well as in pleasure boats,
including non-classified commercial shipping.
•Use our product only as intended. Use of the product
for reasons other than its intended use may lead to
personal injury, property damage or environmental
damage. Before installation, check the vehicle
documentation for vehicle type and any possible
special features!
•Use the assembly plan to learn the location of the
fuel/hydraulic/compressed air and electrical lines!
•Note possible modifications to the vehicle, which
must be considered during installation!
•To prevent personal injury, property damage or
environmental damage, basic knowledge of motor
vehicle/shipbuilding electronics and mechanics is
required.
•Make sure that the engine cannot start
unintentionally during installation!
•Modifications or manipulations to VDO products can
affect safety. Consequently, you may not modify or
manipulate the product!
•When removing/installing seats, covers, etc., ensure
that lines are not damaged and plug-in connections
are not loosened!
•Note all data from other installed instruments with
volatile electronic memories.
SAFETY DURING INSTALLATION
•During installation, ensure that the product’s
components do not affect or limit vehicle functions.
Avoid damaging these components!
•Only install undamaged parts in a vehicle!
•During installation, ensure that the product does not
impair the field of vision and that it cannot impact the
driver’s or passenger’s head!
•A specialized technician should install the product. If
you install the product yourself, wear appropriate
work clothing. Do not wear loose clothing, as it may
get caught in moving parts. Protect long hair with a
hair net.
•When working on the on-board electronics, do not
wear metallic or conductive jewelry such as
necklaces, bracelets, rings, etc.
•If work on a running engine is required, exercise
extreme caution. Wear only appropriate work
clothing as you are at risk of personal injury, resulting
from being crushed or burned.
•Before beginning, disconnect the negative terminal
on the battery, otherwise you risk a short circuit. If the
vehicle is supplied by auxiliary batteries, you must
also disconnect the negative terminals on these
batteries! Short circuits can cause fires, battery
explosions and damages to other electronic systems.
Please note that when you disconnect the battery, all
volatile electronic memories lose their input values
and must be reprogrammed.
•If working on gasoline boat motors, let the motor
compartment fan run before beginning work.
•Pay attention to how lines and cable harnesses are
laid so that you do not drill or saw through them!
•Do not install the product in the mechanical and
electrical airbag area!
•Do not drill holes or ports in load-bearing or
stabilizing stays or tie bars!
•When working underneath the vehicle, secure it
according to the specifications from the vehicle
manufacturer.
•Note the necessary clearance behind the drill hole or
port at the installation location. Required mounting
depth: 65 mm.
•Drill small ports; enlarge and complete them, if
necessary, using taper milling tools, saber saws,
keyhole saws or files. Deburr edges. Follow the safety
instructions of the tool manufacturer.
•Use only insulated tools, if work is necessary on live
parts.
•Use only the multimeter or diode test lamps
provided, to measure voltages and currents in the
vehicle/machine or boat. Use of conventional test

SAFETY INFORMATION
B00xxxx
lamps can cause damage to control units or other
electronic systems.
•The electrical indicator outputs and cables
connected to them must be protected from direct
contact and damage. The cables in use must have
enough insulation and electric strength and the
contact points must be safe from touch.
•Use appropriate measures to also protect the
electrically conductive parts on the connected
consumer from direct contact. Laying metallic,
uninsulated cables and contacts is prohibited.
SAFETY AFTER INSTALLATION
•Connect the ground cable tightly to the negative
terminal of the battery.
•Reenter/reprogram the volatile electronic memory
values.
•Check all functions.
•Use only clean water to clean the components. Note
the Ingress Protection (IP) ratings (IEC 60529).
ELECTRICAL CONNECTION
•Note cable cross-sectional area!
•Reducing the cable cross-sectional area leads to
higher current density, which can cause the cable
cross-sectional area in question to heat up!
•When installing electrical cables, use the provided
cable ducts and harnesses; however, do not run
cables parallel to ignition cables or to cables that lead
to large electricity consumers.
•Fasten cables with cable ties or adhesive tape. Do not
run cables over moving parts. Do not attach cables to
the steering column!
•Ensure that cables are not subject to tensile,
compressive or shearing forces.
•If cables are run through drill holes, protect them
using rubber sleeves or the like.
•Use only one cable stripper to strip the cable. Adjust
the stripper so that stranded wires are not damaged
or separated.
•Use only a soft soldering process or commercially
available crimp connector to solder new cable
connections!
•Make crimp connections with cable crimping pliers
only. Follow the safety instructions of the tool
manufacturer.
•Insulate exposed stranded wires to prevent short
circuits.
•Caution: Risk of short circuit if junctions are faulty or
cables are damaged.
•Short circuits in the vehicle network can cause fires,
battery explosions and damages to other electronic
systems. Consequently, all power supply cable
connections must be provided with weldable
connectors and be sufficiently insulated.
•Ensure ground connections are sound.
•Faulty connections can cause short circuits. Only
connect cables according to the electrical wiring
diagram.
•If operating the instrument on power supply units,
note that the power supply unit must be stabilized
and it must comply with the following standard: DIN
EN 61000, Parts 6-1 to 6-4.

INSTALLATION
B00xxxx
INSTALLATION
WARNING
Before starting work, disconnect the negative terminal of the battery to avoid the risk of a short circuit. If the vehicle is
equipped with additional batteries, the negative terminal of all batteries must also be disconnected if necessary. Short
circuits can burn cables, explode batteries and cause damage to other electronic systems. Remember that by
disconnecting the battery, all data entered in the temporary electronic memory will be lost and will have to be
reprogrammed.

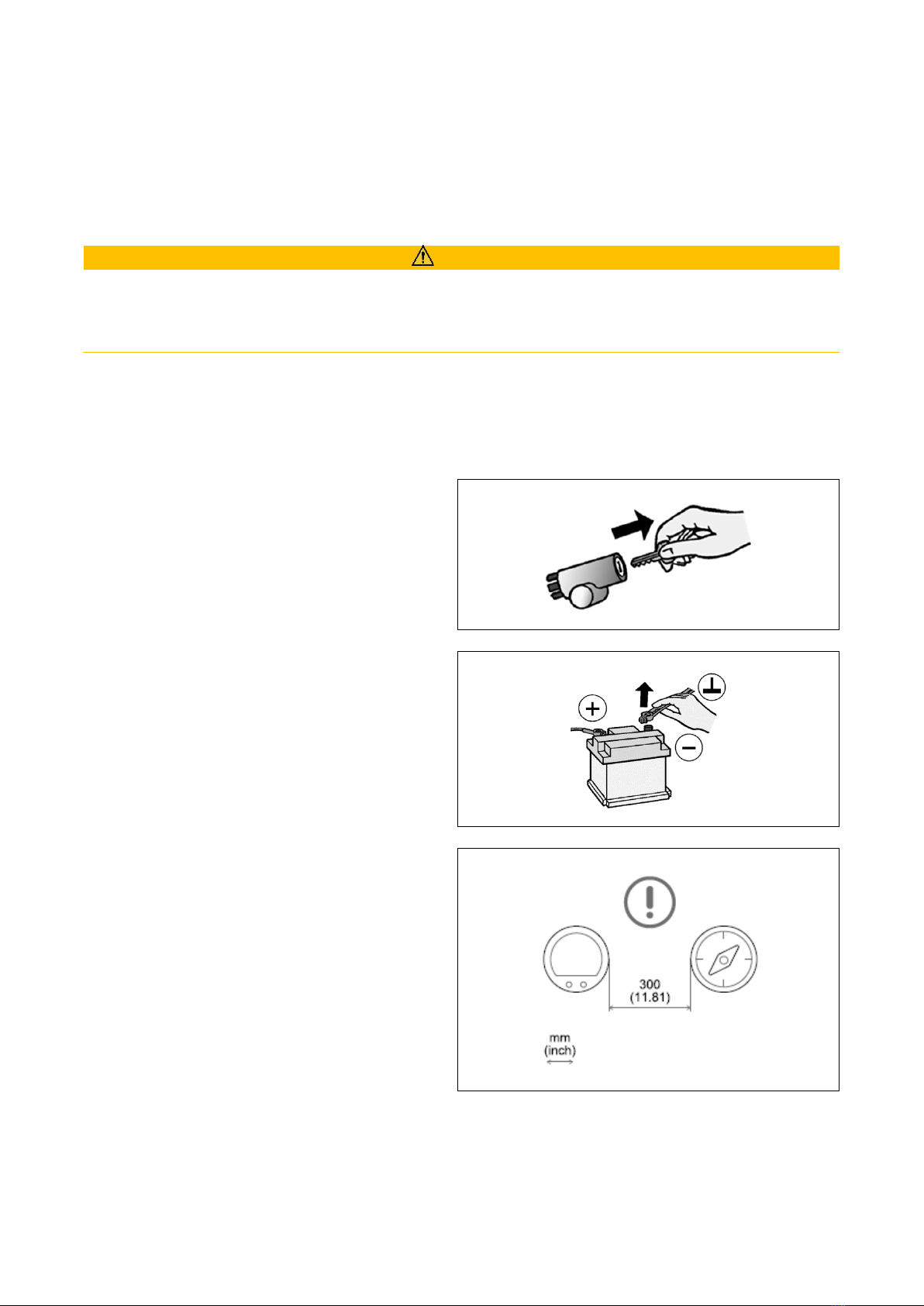

BEFORE THE ASSEMBLY
1. Before starting work, switch off the ignition
and remove the ignition key. If necessary,
remove the main power switch..
2. Disconnect the negative terminal of the
battery. Do not allow the battery to be
reconnected by mistake.
3. When mounting the device in the vicinity of a
magnetic compass, maintain a protective
distance from the compass.

INSTALLATION
B00xxxx

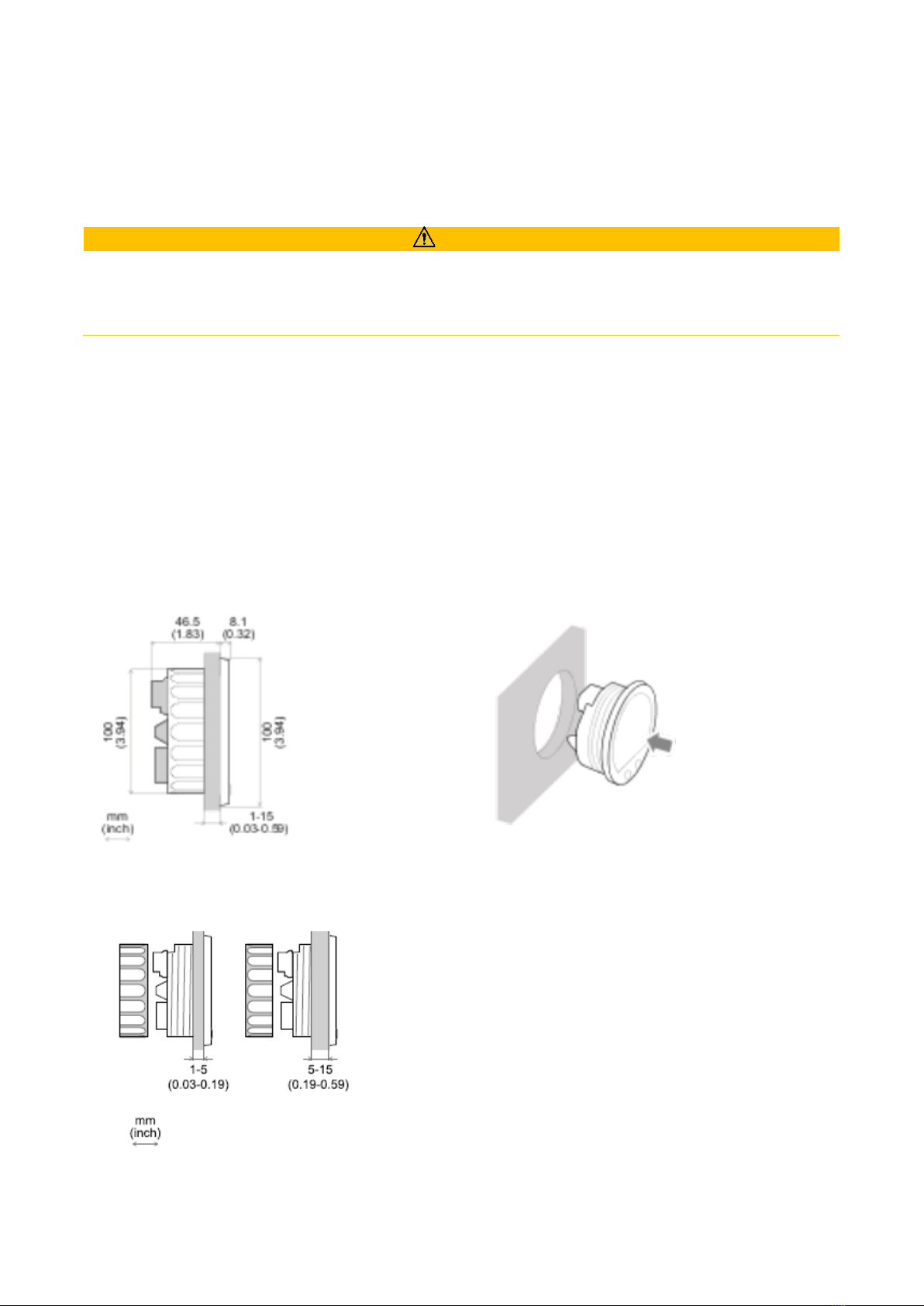

SPINLOCK MOUNTING
The panel thickness may be within a range of 2 to 20 mm.
The drill hole must have a diameter of 86 mm.
WARNING
•
Do not drill holes or installation openings in supporting or stabilizing beams!
•The mounting location must have sufficient clearance behind the mounting holes or openings. The required
mounting depth is 65 mm.
•Drill small holes with the drill, if necessary, enlarge them using a conical cutter, scroll saw, tail saw or file and finish
them. Deburr the edges. It is essential to observe the safety instructions of the tool manufacturer.
•Create a circular hole in the panel considering the
footprint of the device.
•Remove the spinlock and insert the device from the
front.
•Orient the spinlock as shown according to the panel
thickness.
•Feed the cables through the spinlock and carefully
screw it in for at least two turns.
•Install the connector.
A.
B.
C

CONNECTIONS
B00xxxx
CONNECTIONS
PINOUT
Pin No.
Wire color
Description
1 Red KL. 30 – Battery power 12 / 24 V
2 Black KL. 31 - Ground
3 White Alarm output
4 Green Frequency sensor signal - RPM
5 Blue LIN bus - IBS sensor
6 Blue / White N.C.
7 Yellow KL. 15 – Ignition positive
8 Grey Resistive sensor signal - RES 1
9 Brown Resistive sensor signal - RES 2
10 Orange Day/Night switch
11 - EasyLink - Power
12 - EasyLink - Signal
VMH 35 rear view
Connettore Molex MX150 12-poles
and DeviceNet 5-poles

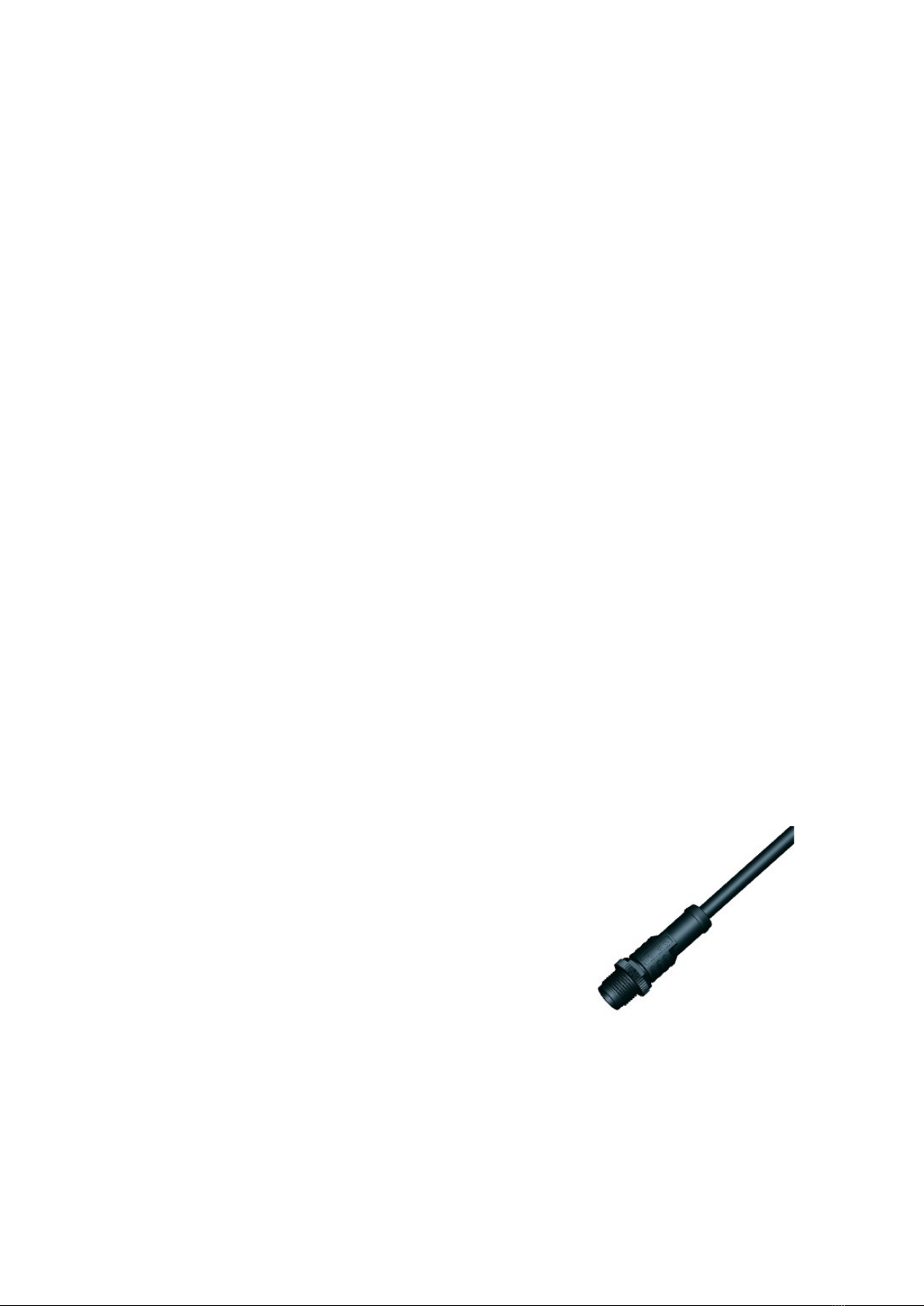

NMEA 2000® CONNECTOR PINOUT
Pin No.
Description
1 Shield
2 NET-S (V+)
3 NET-C (V-)
4 NET-H (CAN H)
5 NET-L (CAN L)
Micro-C M12 5 poles plug
male, cable view

CONNECTIONS
B00xxxx

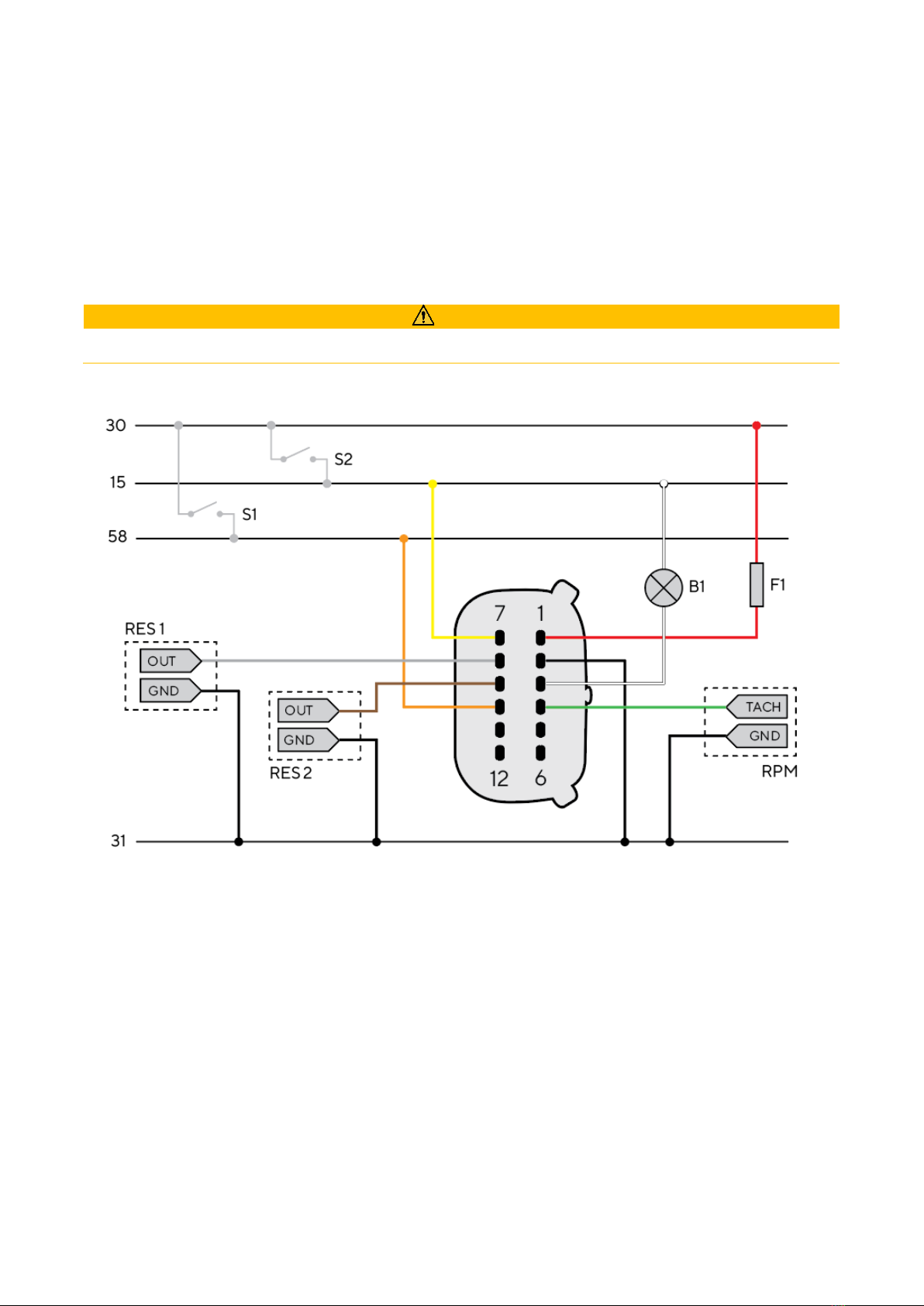

ELECTRICAL
SCHEMATIC
WARNING
•Refer to the safety rules described in the electrical connections section of the safety information chapter of this
document!
Designations in the circuit diagram:
30 - KL.30 – Battery Power 12/24 V
15 - KL. 15 - Ignition positive
31 - KL. 31 - Ground
58 - KL.58 – Illumination positive
S1 - Day/Night mode switch (not included)
S2 - Ignition key
F1 - 3A fuse (not included)
B1 - External beeper (not included)
RES 1 - Resistive analogue input 1
RES 2 - Resistive analogue input 2
RPM - Frequency Analog Input

CONNECTIONS
B00xxxx
ANALOG SENSOR CONNECTION (RES 1, RES 2, RPM)
Any sensor connected to an analog input (RES 1, RES 2, RPM) of the display must be connected as shown in the figure.
It is advisable to use sensors with isolated ground, and it is necessary to ensure that the sensor ground is connected to the
display ground to avoid incorrect readings.
EXTERNAL BUZZER CONNECTION (B1)
The display supports the connection of an external buzzer (B1) via the dedicated alarm output.
This buzzer can be powered at different voltages (consult the buzzer manufacturer's manual), as the alarm output is
connected to ground inside the display.
It is important to note that the maximum current supported is 500mA.
DAY / NIGHT MODE SELECTOR SWITCH (S1)
The display allows you to set two display illumination levels for day and night.
it is possible to switch from day mode to night mode (and vice versa) by means of a switch external to the display (S1)
connected to the power supply (KL.30), or by connecting to the lights signal onboard KL.58, if present.
CONNECTING THE INTELLIGENT BATTERY SENSOR (IBS)
The display supports the direct connection of an intelligent 12V battery monitoring sensor.
This connection can be made through a special adapter cable (optional) that allows you to interface the display to the
battery sensor and the battery itself.
CONNECTION TO THE NMEA 2000® NETWORK
Once the installation is complete, you can interface the device to the
NMEA 2000® network through the dedicated socket on the wiring
harness.
Be sure to tighten the M12 connector by screwing it onto its counterpart
in order to preserve its watertightness.
A drop cable is not required unless the total length of the supplied
wiring is not sufficient to reach the NMEA 2000® backbone. In this
case,
the total length can be extended using one of the accessory drop
cables.
Note that NMEA 2000® does not allow drop cables longer than 6
meters.
Refer to the NMEA 2000® standard for proper network design.
Fare riferimento allo standard NMEA 2000® per una
corretta
progettazione della rete.

DESCRIPTION
B00xxxx
DESCRIPTION
Part Description
A Display to show data pages and menu
B Engaged gear
C
Current speed according to the selected
unit of measurement
D Rev counter
E Alarm lights
SET /
MODE
Buttons to interact with the data pages and
the menu
DATA SCREENS
Single layout
A.
Data symbol
B.
Unit of measured value
C.
Current value
Dual layout
A.
Data symbol
B.
Unit of measured value
C.
Current value
A
B
C
B
C
A

GENERAL SETTINGS
B00xxxx
SCREENS SCROLLING
To...
Then...
scroll through the pages •To return to the previous page, briefly press the MODE button.
•To go to the next page, briefly press the SET button.
adjust the backlight
briefly press the SET and MODE buttons simultaneously
reset a resettable value
Press and hold the SET button until the value resets.
acknowledge the alarm pop-up
press any button
SELECT THE PAGES TO DISPLAY
By default, all pages are displayed.
You can choose which pages to hide/show in the settings menu, under Show screen.
ELENCO DEI DATI GESTITI
Icon/Text Information
Input signal
Output
Unit
Internal Frequency Resistive LIN
NMEA
2000
NMEA
2000
EasyLink
POS
Now
x *
-
-
-
x
x
hh:mm
GPS position
x *
-
-
-
x
x
COG
Course over
ground (COG)
x *
-
-
-
x
x
°T (nord
geografic
o)
Trim
Trim
-
-
x
-
x
x
x
°
RUDDER
Rudder angle
-
-
x
-
x
x
x
°°S
(dritta)
/ °P
(sinistra)
DEPTH
SEA TEMP
Depth
-
-
-
-
x
m / ft
Seawater
temperature
-
-
-
-
x
°C / °F
1
Fuel level of the
first tank
-
-
x
-
x
x
x
% / L /
Gal
2
Fuel level of
second tank
-
-
x
-
x
x
x
% / L /
Gal
3
Third tank fuel
level
-
-
x
-
x
x
x
% / L /
Gal
4
Fourth tank fuel
level
-
-
x
-
x
x
x
% / L /
Gal

GENERAL SETTINGS
B00xxxx
Icon/Text Information
Input signal
Output
Unit
Internal Frequency Resistive LIN
NMEA
2000
NMEA
2000
EasyLink
T
CONS
Total fuel used
x
-
-
-
-
L / gal.
Fuel flow
-
-
-
-
x
L / h /
gph
FRESH Clear water - - x - x x x % / L /
Gal
WASTE
Dark waters
-
-
x
-
x
x
x
% / L /
Gal
Voltmeter x - - x x x x V
Ammeter
-
-
-
x
x
x
x
A
Battery
charging status
-
-
-
x
x
x
%
Battery life
x
-
-
-
x
d / h
SOH
Battery health
status
-
-
-
x
x
x
%
Battery
temperature
- - - x x x °C / °F
Engine coolant
temperature
-
-
x
-
x
x
x
°C / °F
Engine coolant
pressure
-
-
-
-
x
bar / psi
Engine oil
temperature
- - x - x x x °C / °F
Engine oil
pressure
-
-
x
-
x
x
x
bar / psi
Turbine
pressure
-
-
-
-
x
x
bar / psi
TRIP
Total engine
operating hours
counter
- x - - x ? h
Trip hours
counter
x
-
-
-
-
h
TRIP Distance
travelled
x - - - - Mi / km /
nm
Motor speed
x
x
x
rpm
Speed through
water (STW)
x x ? kmh /
mph / kn
GPS speed
(SOG)
x *
x
?
kmh /
mph / kn
-
Gear position
x
-
Note*: data received from integrated GPS module.

GENERAL SETTINGS
B00xxxx
ENGINE HOURS
In the absence of data received from the NMEA 2000 network, the indicator considers the internal data if it is greater than
300 RPM. In the presence of data from the NMEA 2000 network, the indicator considers the data received from the
network only if higher than the internal data.
DISTANCE TRAVELED
The indicator internally calculates the distance travelled based on the speed value set in Sensors > Speed.

GENERAL SETTINGS
B00xxxx
GENERAL SETTINGS

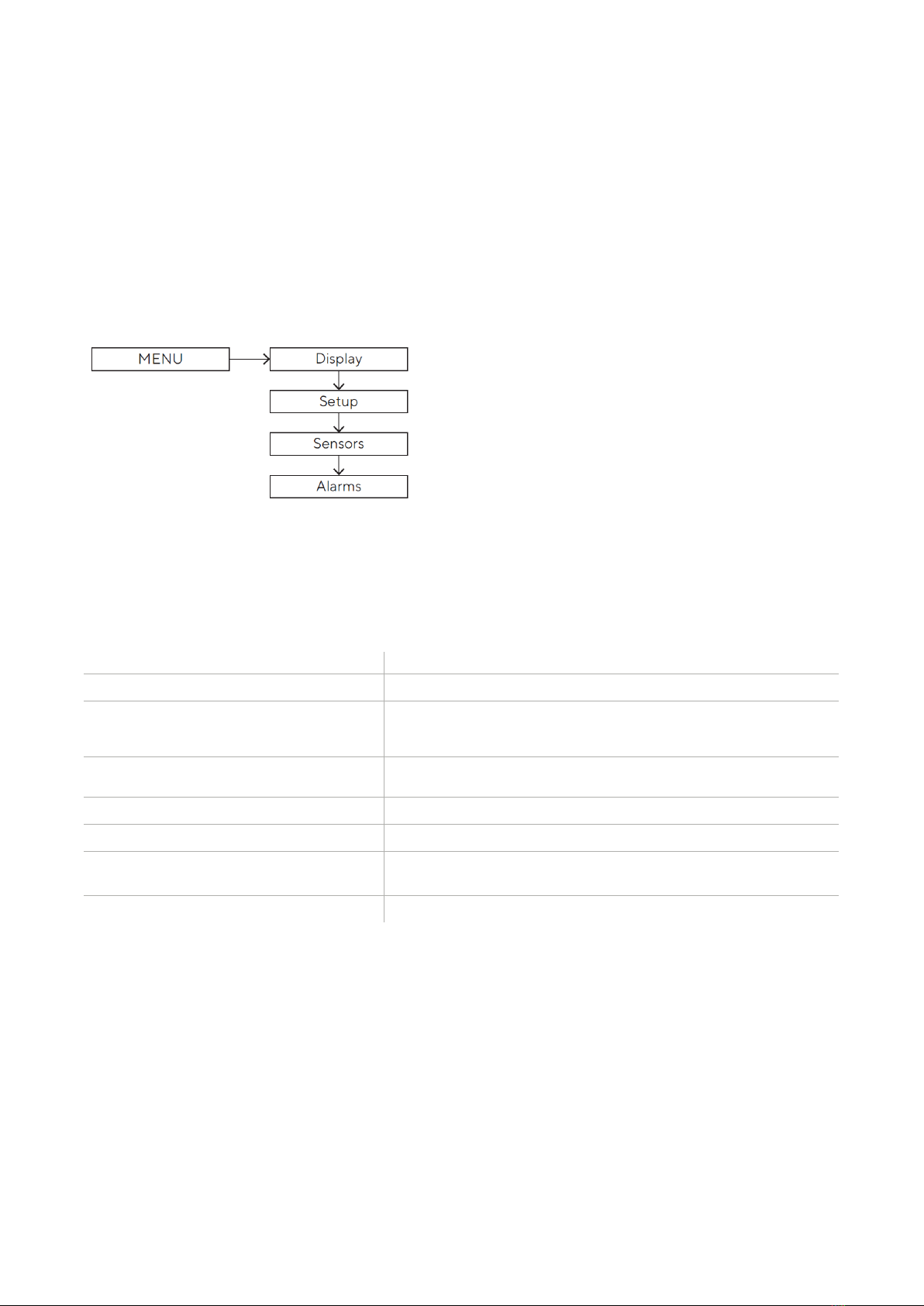

SETTINGS MENU STRUCTURE
OPERATE THE SETTINGS MENU
To...
Then...
enter the settings menu
Press the SET button until the first menu item appears.
scroll through the settings menu items and
possible values
•To go to the previous item/value, briefly press the
MODE
button.
•To go to the next item/value, briefly press the
SET
button.
confirm
Press the SET button until the data is confirmed.
come back
briefly press the MODE button
undo the change
Press the MODE button until the previous data appears.
exit the settings menu
press the SET and MODE buttons until the pop-up disappears, or the
previous data page appears
delete an alarm pop-up
press any button

GENERAL SETTINGS
B00xxxx
UNITS MENU
Setting
Description
Possible values/commands*
Speed
Speed units
kmh/ mph/ kts
TRIP
Unit of measurement of distance travelled
km / mile / nm
Flow
Flow measurement units ...
lh / gph
Tank
Unit of measurement of the liquid in the tank
l / US gal
Temperatures
Temperature units
°C/ °F
Pressure
Pressure units
bar/ PSI
Depth
Depth measurement units
m / ft
Note*: the underlined value/command is the default.
SET THE DAY/NIGHT MODE
To set the desired mode, act on pin 10 of the MX150 connector as follows:
To set the mode...
Then...
day
move the pin switch to GND/OPEN.

GENERAL SETTINGS
B00xxxx
To set the mode...
Then...
night
move the pin switch to BATTERY PLUS.
CHANGE THE BRIGHTNESS OF THE DISPLAY
The change affects the set day or night mode.
•Press the MODE button until the DISPLAY menu appears with Backlight highlighted.
•Press the SET button to confirm the menu item.
•Press the MODE and/or SET buttons to increase or decrease the brightness.
•To exit the settings menu, press the SET and MODE buttons simultaneously until the previously displayed data page
appears.
RESET A TRIP VALUE
•Press the MODE button until the DISPLAY menu appears.
•Briefly press the MODE and/or SET button to scroll through the pages to the one of interest.
•Press the MODE button until the page detail appears.
•Press and hold the SET button until the value resets.
UPLOAD A CUSTOM SPLASH LOGO
A custom splash logo can be loaded from a PC using the veratron Configuration Tool.
For more information, please refer to the veratron Configuration Tool user manual or contact your veratron reseller.

SENSORS CONFIGURATION
B00xxxx
SENSORS’
CONFIGURATIONS
TYPES OF CALIBRATION
Calibration of analog sensors can be:
•Standard: only for veratron sensors. You define the type of sensor and the device reads with good approximation the
value of the sensor without the need of calibration.
•Manual: For non-Veratron sensors or to obtain a more accurate indication from a Veratron sensor. A three- or five-
point procedure instructs the system to detect the sensor value.

SENSORS CONFIGURATION
B00xxxx
SENSORS MENU STRUCTURE
CALIBRATE THE SENSORS
Fuel level sensor
•Connect the sensor of interest. See Connecting an analogue sensor.
•Under Sensors select the resistive input to which the sensor is connected.
•Under Fuel > Sensor, choose the desired configuration type.
•If you have chosen the CUSTOM configuration, follow the wizard on the display to create the sensor curve.
•Under Sensors select the resistive input of step 2.
•Under Fuel > Tank no., select the ID to be assigned to the tank to which the sensor is connected.
Fresh water level sensor
•Connect the sensor of interest. See Connecting an analogue sensor.
