Verbatim 52505 User manual

Recessed Downlight
Instruction Manual
Mode d’emploi
Betriebsanleitung
Manuale d’istruzioni
Manual de instrucciones
Manual de Instruções
Instrukcja
Руководство по эксплуатации
Návod kpoužití
Kezelési útmutató
Priručnik s uputama
Návod na použitie
Part numbers: 52505, 52506, 52507, 52508
52509, 52510, 52511, 52512
52939, 52940, 52944, 52945

LED Indirect Downlight Specifications
*cut out diameter
Specifications subject to change without notice – Caractéristique sujette à modification et ce sans préavis – Technische Daten können ohne
vorherige Ankündigung geändert werden – Specifiche soggette a modifiche senza preavviso – Especificaciones sujetas a cambio sin previo aviso –
Especificação sujeita a alteração sem aviso – Dane techniczne mogą ulec zmianie bez wcześniejszego powiadomienia – Спецификация может быть
изменена без уведомления – Technické údaje podléhají změnám bez předchozího upozornění – Az adatok külön értesítés nélkül megváltozhatnak
– Specifikacija podleže promenama bez obaveštenja – Špecifikácie podliehajú zmene bez oznámenia
Part No. 52505 52506 52507 52508
Power (W) 15 15 15 15
Voltage (V) 220-240 220-240 220-240 220-240
Luminous flux (lm) 1100 1100 1150 1150
CCT (K) 3000 3000 4000 4000
Beam angle (°) 25 40 25 40
Lifetime (hours) 70 000 70 000 70 000 70 000
A102mm 102mm 102mm 102mm
B170 mm 170mm 170 mm 170mm
C* 155mm 155mm 155mm 155mm
Part No. 52509 52510 52511 52512
Power (W) 20/30 20/30 20/30 20/30
Voltage (V) 220-240 220-240 220-240 220-240
Luminous flux (lm) 1650/2450 1650/2450 1700/2550 1700/2550
CCT (K) 3000 3000 4000 4000
Beam angle (°) 25 40 25 40
Lifetime (hours) 70 000 70 000 70 000 70 000
A121mm 121mm 121mm 121mm
B220mm 220mm 220mm 220mm
C* 205mm 205mm 205mm 205mm

LED Recessed Downlight Specifications
*cut out diameter
Specifications subject to change without notice – Caractéristique sujette à modification et ce sans préavis – Technische Daten können ohne
vorherige Ankündigung geändert werden – Specifiche soggette a modifiche senza preavviso – Especificaciones sujetas a cambio sin previo aviso –
Especificação sujeita a alteração sem aviso – Dane techniczne mogą ulec zmianie bez wcześniejszego powiadomienia – Спецификация может быть
изменена без уведомления – Technické údaje podléhají změnám bez předchozího upozornění – Az adatok külön értesítés nélkül megváltozhatnak
– Specifikacija podleže promenama bez obaveštenja – Špecifikácie podliehajú zmene bez oznámenia
Part No. 52944 52945
Power (W) 15 15
Voltage (V) 220-240 220-240
Luminous flux (lm) 1500 1550
CCT (K) 3000 4000
Lifetime (hours) 70 000 70 000
A102mm 102mm
B170 mm 170mm
C* 155mm 155mm
Part No. 52939 52940
Power (W) 20/30 20/30
Voltage (V) 220-240 220-240
Luminous flux (lm) 2100/3200 2200/3300
CCT (K) 3000 4000
Lifetime (hours) 70 000 70 000
A121mm 121mm
B220mm 220mm
C* 205mm 205mm

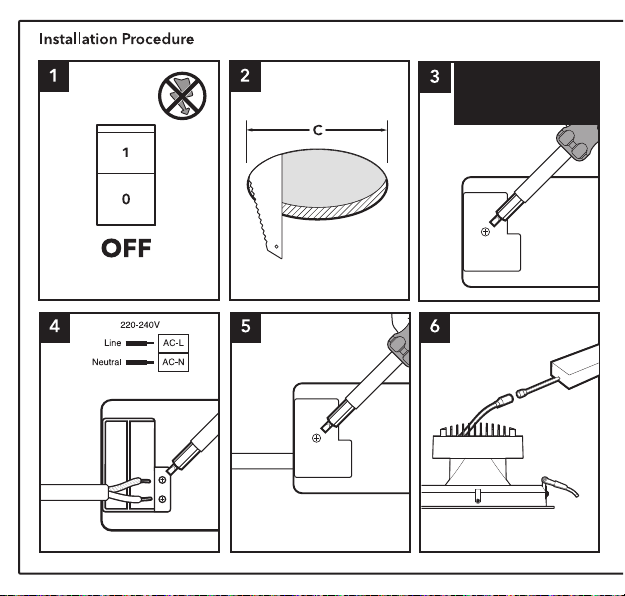

Option A: Standard Driver
52941
52942
52946
(Option A)

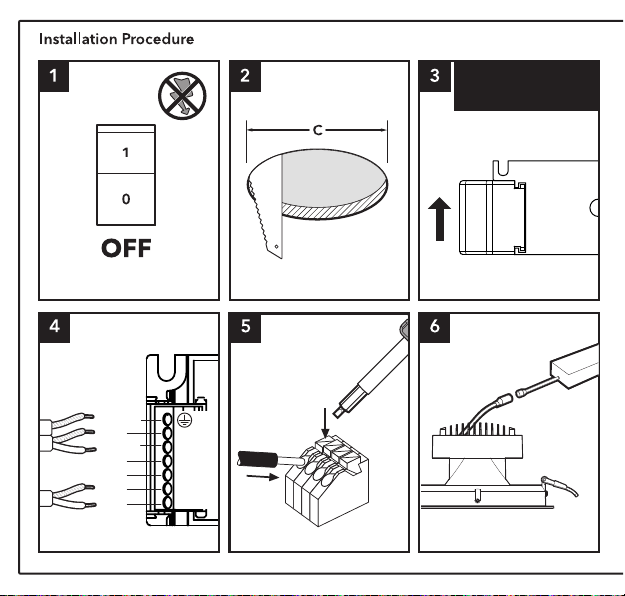

Option B: Dali Driver
52943
52947
(Option B)
Ground
Line
Neutral
No connection
220-240V
DALI
~
~
Isel2-1
Isel2-2 (GND)
DA/N
DA/L
PRI

English
Safety Instructions
This product is for indoor use only.
This product is only dimmable when used in conjunction with a dimmable driver.
Please visit www.verbatimlighting.com for dimming options.
Always disconnect the product from mains voltage before installing or replacing it.
This luminaire can be partially covered with insulating matting or similar material. Do not
cover entirely.
Repairs should only be carried out by a qualified person and using genuine spare parts.
Incorrect repairs could pose a significant risk.
LED Downlight is a sealed unit. If there is any malfunction with the product, please
exchange the whole luminaire.
5 year limited warranty – for further details visit www.verbatimlighting.com/warranty.
If you have any questions about this product, please contact the Verbatim support team – www.verbatim.com/support
