Vermeiren Lagoon User manual

VERMEIREN
INSTALLATION MANUAL
MANUEL D'INSTALLATION
INSTALLATIEHANDLEIDING
INSTALLATIONSANLEITUNG
MANUALE DI INSTALLAZIONE
MANUAL DE INSTALACIÓN
INSTRUKCJA INSTALACJI
PŘÍRUČKU PRO INSTALACI
2202
2215
2217
2219


Tricycles
2023-06
Preface
Installation manual
- 1 -
EN
NL
Contents
Preface........................................................................................................................ 2
1 This product .................................................................................................. 3
2 Scope of delivery .......................................................................................... 5
3 Tools .............................................................................................................. 5
4 Assembly and adjustments ......................................................................... 6
4.1 Torque ............................................................................................................. 7
4.2 Adjust the brakes ............................................................................................ 8
4.3 Adjusting the chain .......................................................................................... 8
4.3.1 2202, 2215 ........................................................................................... 8
4.3.2 2217, 2219 ........................................................................................... 8
4.4 Adjusting the handlebar .................................................................................. 9
4.5 Tyre changing ................................................................................................. 9

Tricycles
2023-06
Preface
Installation manual
- 2 -
EN
NL
Preface
To support you on the installation and repairs of this tricycle, this manual is offered. Please read
it carefully. If you still have questions after reading this manual, do not hesitate to contact
Vermeiren.
The information in this manual applies to all tricycles in the following list:
2202
2215
2217
2219
2217E
2219E
Pictures of the product are used to clarify the instructions. Details of the shown product may
deviate from your product.
On our website http://www.vermeiren.com/ you will always find the most recent version of the
following information. Please consult this website regularly for possible updates.
Visually impaired people can download the electronic version of this manual and have it read out
by means of a text-to-speech software application.
Instruction manual
For user and specialist dealer
Installation instructions (Instructions for detail adjustments)
For specialist dealer
Torque table (maximum torques for bolts and nuts)
For specialist dealer
Service manual for tricycles
For specialist dealer
Drawings of (spare) parts
For specialist dealer

Tricycles
2023-06
This product
Installation manual
- 3 -
EN
NL

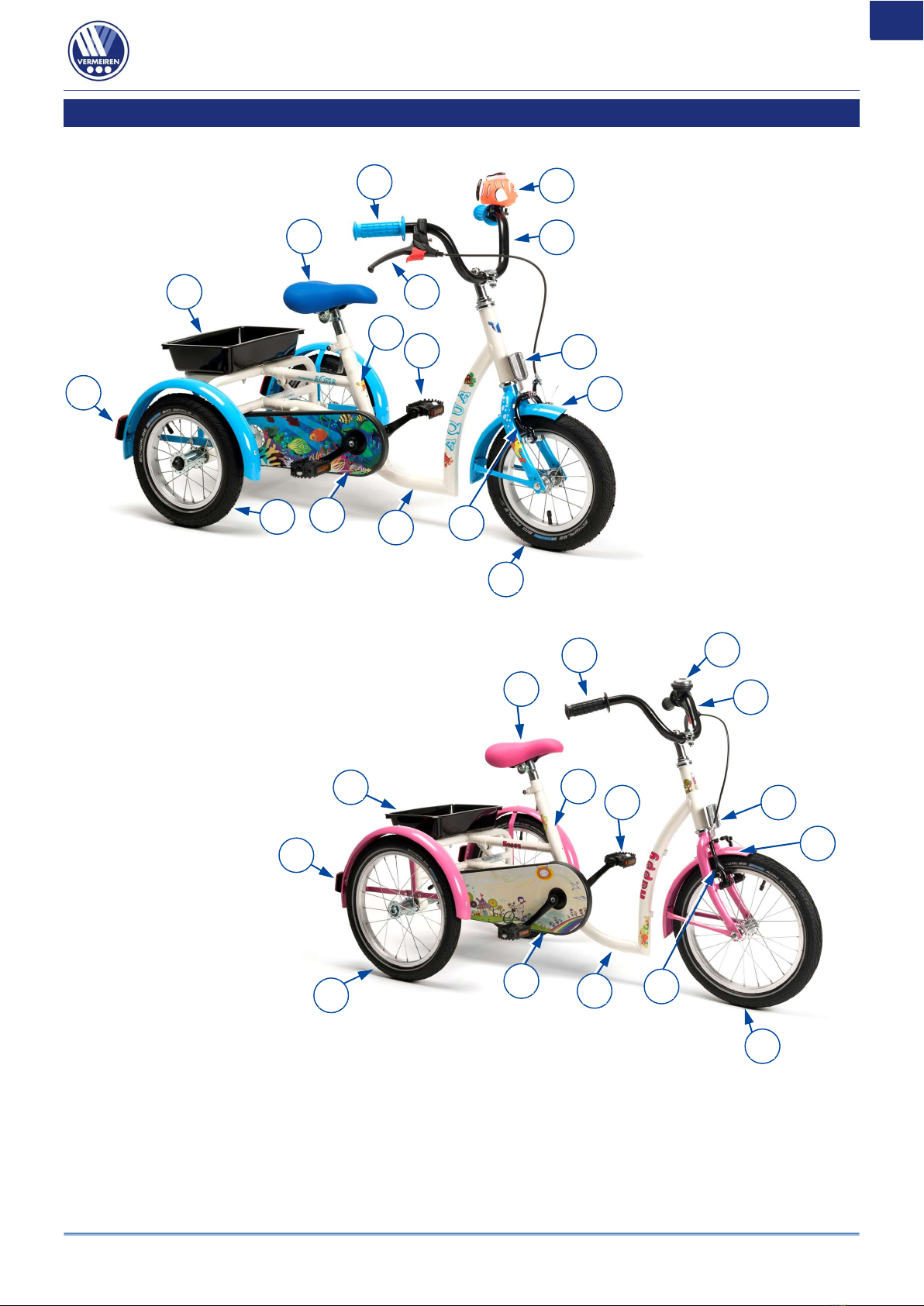

1 This product
2202
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2215
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
1. Handgrips
2. Bell
3. Handlebar
4. Brake levers
5. Front reflector
6. Mudguards
7. Front brakes
8. Front wheel
9. Frame
10. Pedals
11. Chain cover
12. Rear wheels
13. Rear reflector
14. Tray
15. Saddle
16. Identification
plate

Tricycles
2023-06
This product
Installation manual
- 4 -
EN
NL
2217
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2219
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
4
1. Handgrips
2. Bell
3. Handlebar
4. Brake levers
5. Front reflector
6. Mudguards
7. Front brakes
8. Front wheel
9. Frame
10. Pedals
11. Chain cover
12. Rear wheels
13. Rear reflector
14. Tray
15. Saddle
16. Identification
plate

Tricycles
2023-06
Scope of delivery
Installation manual
- 5 -
EN
NL
2 Scope of delivery
The following items are part of the delivery.
1 frame with rear and front wheels
pedals
saddle
handlebar + handgrips
bell
basket
instruction manual
accessories
3 Tools
To repair and adjust the tricycle, the following tools are needed:
Wrench set no. 13
Allen keyset no. 5, 6

Tricycles
2023-06
Assembly and adjustments
Installation manual
- 6 -
EN
NL
4 Assembly and adjustments
Important remark
Read the user manual of this tricycle.
Be aware of the technical details and limits of intended use; see the user manual.
For more information
,
contact Vermeiren
. S
ee
the website
http://www.
vermeiren
.com/
.
Risk of injuries or damage
Any modification to the product will lapse the warranty and will cease the responsibility of
Vermeiren.
Only use parts and tools described in this manual.
Prevent bystanders from accessing the working area.
While adjusting and operating the tricycle
, make sure no objects or body parts get caught
between moving parts.
Only use the settings described in this manual.
Deviation of the adjustment settings may influence the stability of the tricycle
with risk of tilting
and falling.
Make sure all screws are firmly secured before riding the tricycle.
Adhere to the
tightening torques for screws according to the Torque table on our website.
CAUTION

Tricycles
2023-06
Assembly and adjustments
Installation manual
- 7 -
EN
NL
4.1 Torque
2202, 2215
2217, 2219

Tricycles
2023-06
Assembly and adjustments
Installation manual
- 8 -
EN
NL
4.2 Adjust the brakes
1. The brake tightness can be adjusted by the brake cable
adjuster .
4.3 Adjusting the chain
4.3.1 2202, 2215
The wheels of the tricycle are driven by a chain on the rear axle.
For first time use the chain is set in the factory. After a while it is possible that the chain runs
off the axle, the chain has to be tightened by extending
the frame of the tricycle:
On the frame behind the saddle tube you see two
horizontally-mounted length-adjustable tubes.
By unscrewing the clamping screws on both tubes, the
frame can be extended. When the chain between the
two chain-wheels can be moved ± 20 mm, the chain
tension is correct.
After adjusting the frame length, retighten the clamping
screws .
4.3.2 2217, 2219
For first time use the chains are set in the factory.
After a while it is possible that the chains runs off the
axle.
Tightening torpedo chain :
Loosen the nut . The torpedo system can now
be moved on the frame of the tricycle.
When the chain between the two chain-wheels can
be moved ± 20 mm, the chain tension is correct.
Retighten the nut .

Tricycles
2023-06
Assembly and adjustments
Installation manual
- 9 -
EN
NL

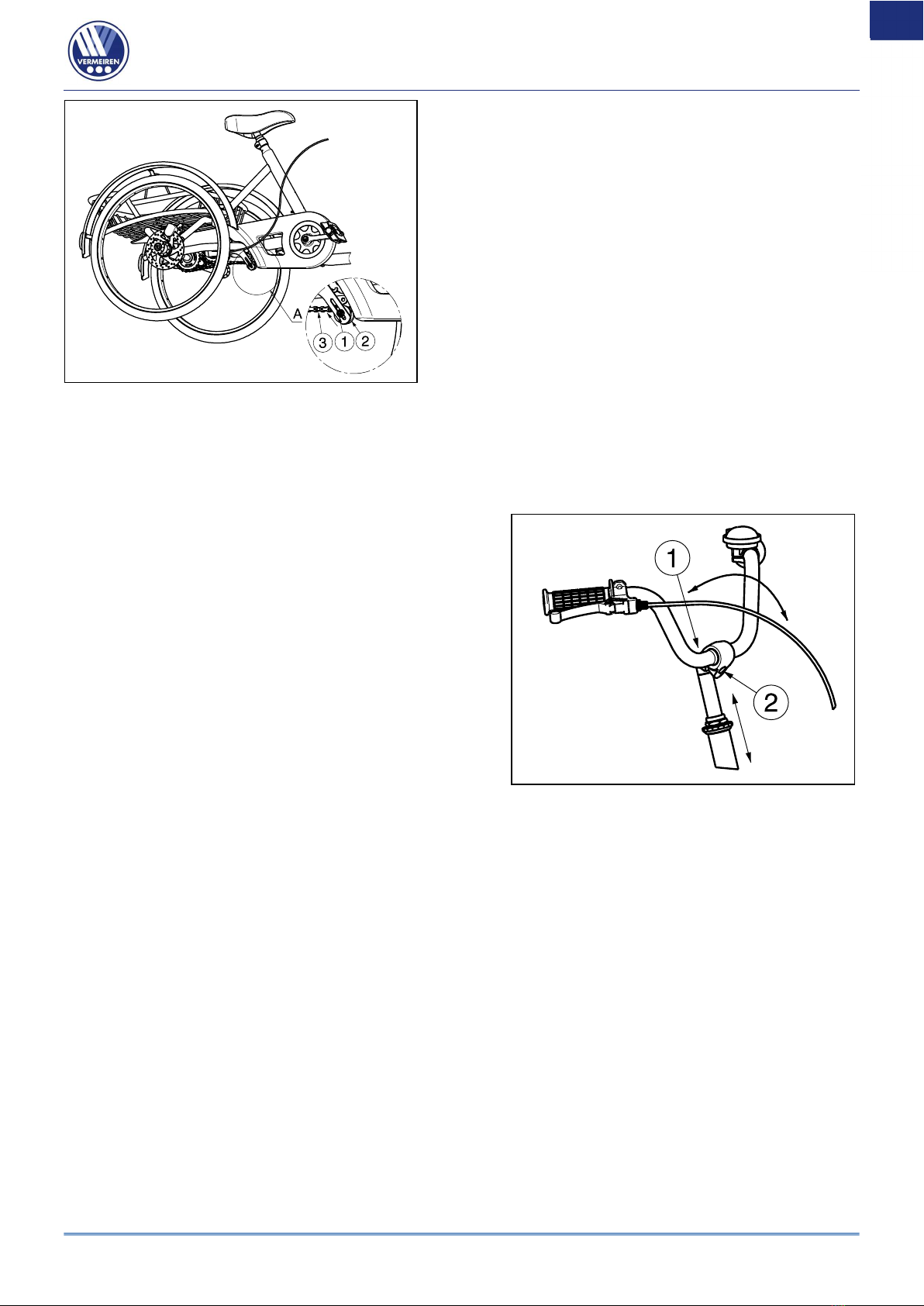

Tightening driving chain :
Loosen the nut . The wheel can now be moved
upwards to tighten the chain .
When the chain between the two chain-wheels can
be moved ± 20 mm, the chain tension is correct.
Retighten the nut .
4.4 Adjusting the handlebar
L CAUTION: Risk of injury – Check that the handlebar is firmly secure before using the
tricycle.
Adjusting height:
1. Loosen the screw .
2. A softly tap on the head of the cone.
3. Adjust the height of the handlebar to a
comfortable position (stepless -- depends on
handlebar model).
4. Tighten the screw properly.
Adjusting angle:
1. Loosen the screw .
2. Adjust the angle of the handlebar to a
comfortable position (stepless).
3. Tighten the screw properly.
4.5 Tyre changing
L CAUTION: There must be no air in the tube before it can be removed.
L CAUTION: Risk of damage - If handled improperly, the rim might be damaged.
If you want to change the tyres or inner tubes, you should note the following:
Before you can remove a tyre, you must let all the air out of the tube, and insert a tyre lever
between the tyre and the rim. Then slowly and carefully push the lever downwards. This will pull
the tyre over the edge of the rim. If you then move the lever along the rim, the tyre will jump out.
Now carefully remove the tyre from the rim and then remove the tube.
Note the following before inserting the new tube:
Check the rim bed and the inside wall of the tyre for foreign matter and clean these properly if
necessary. Check the condition of the rim bed, especially around the position of the air valve.
Please use only genuine original replacement parts. No liability is accepted for damage caused
by non-genuine replacement parts. Kindly contact your specialist dealer.

Tricycles
2023-06
Assembly and adjustments
Installation manual
- 10 -
EN
NL

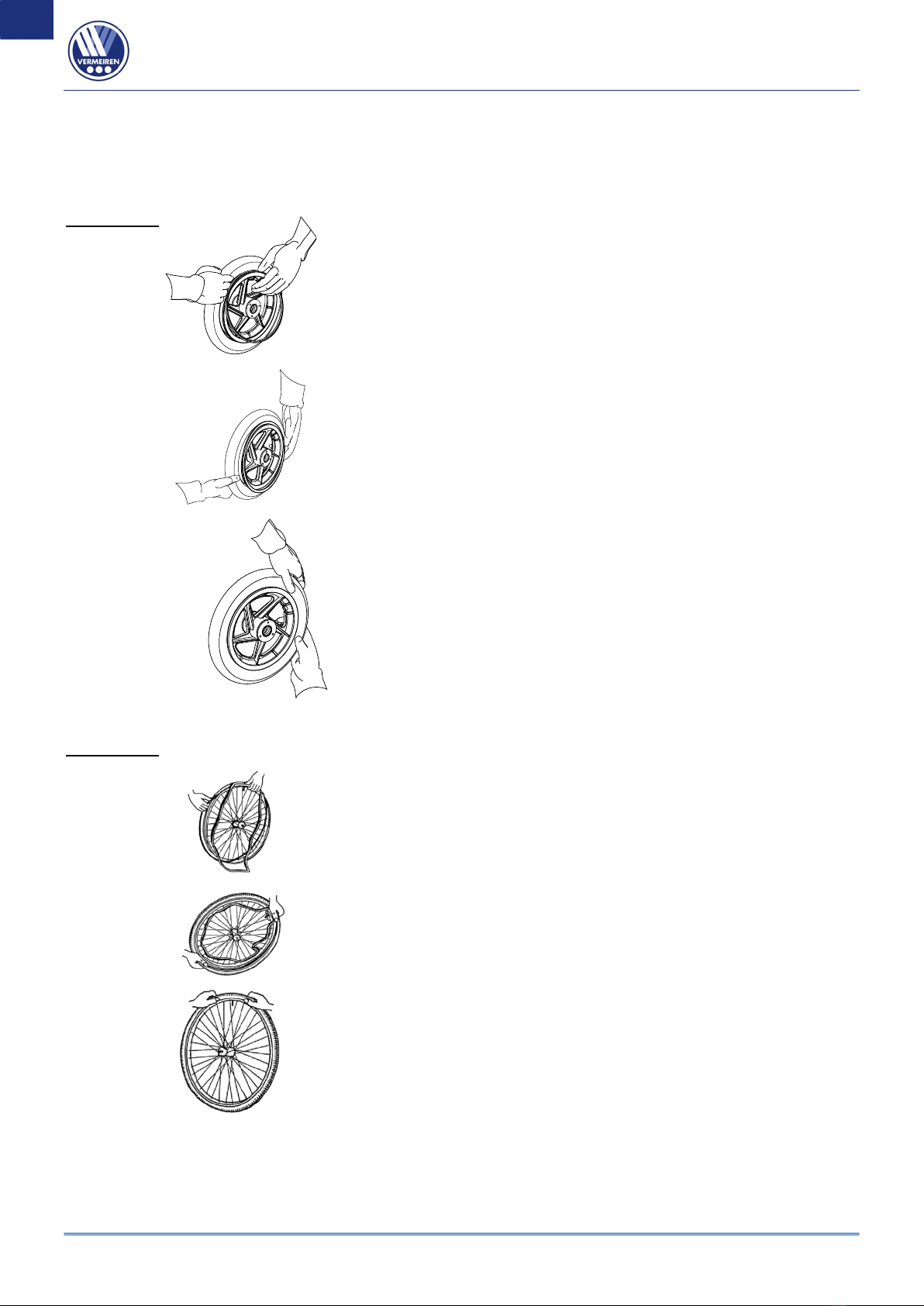

Assembly:
L WARNING: Risk of injury - Check that the pressure is correct.
L CAUTION: Risk of injury - Make sure that no objects or body parts are pinched between
the tyre and the rim when mounting a tyre.
2202, 2215
Put the deflated tube around the center of the rim. Make
sure that the valve juts out the valve opening in the rim.
Push the tyre over the edge of the rim, starting behind
the air valve. Inflate the tube slightly until it is round, and
place it inside the tyre.
If the tube fits snugly inside the tyre without any folds (in
the case of folds: let out some air), then the upper side
of the tyre can be pressed lightly onto the rim with both
hands, starting at the air valve.
2217, 2219
Place the rim belt in position over the air valve before
inserting it into the rim. Then the rim belt can be pulled
over easily. Check that all spoke heads are covered (a
rim belt is not required in the case of a plastic rim).
Push the tyre over the edge of the rim, starting behind
the air valve. Inflate the tube slightly until it is round, and
place it inside the tyre.
If the tube fits snugly inside the tyre without any folds (in
the case of folds: let out some air), then the upper side
of the tyre can be pressed lightly onto the rim with both
hands, starting at the air valve.

Tricycles
2023-06
Assembly and adjustments
Installation manual
- 11 -
EN
NL
Check all around on both sides that the tube is not pinched between the rim and the edge of the
tyre. Lightly push the air valve inwards and pull it out again to make sure that the tyre is positioned
properly in the region of the air valve.
To ensure that the wheel is inflated correctly, admit only so much air initially that the tyre can still
be easily pushed inwards by using your thumbs. If the check-lines are equidistant from the edge
of the rim on both sides of the tyre, then the tyre is centered properly. If not - let out the air and
position the tyre afresh. Now the tyre can be inflated to its full operating pressure (note the
maximum) and the valve cap should be replaced.
Only an expert can guarantee correct assembly. Work not done by your specialist dealer, would
void any warranty claims.
When inflating the tyres, always check that the pressure is correct. The correct pressure is given
on the tyre walls.
Use only inflating equipment which complies with regulations and indicates the pressure in bar.
We do not accept any liability for damage caused by using inflation equipment not supplied by
the manufacturer.



Vermeiren GROUP
Vermeirenplein 1 / 15
2920 Kalmthout
BE
website: www.vermeiren.com
Instructions for specialist dealer
This instruction manual is part and parcel of the product and must accompany
every product sold.
All rights reserved, including translation.
Installation manual - Tricycles_EN_A5_2023-06_A
Basic UDI: 5415174 1218062202 4U
5415174 1218062215 55
5415174 1218062217 59
5415174 1218062219 5D
Version: A, 2023-06
