INSTALLATION MANUAL
Forest 3 SU

Forest 3 SU
2020-07
Content
Installation manual
- 1 -
EN
NL
Content
Content ....................................................................................................................... 1
Preface........................................................................................................................ 2
1 This product .................................................................................................. 3
2 Scope of delivery .......................................................................................... 3
3 Assembly and adjustments ......................................................................... 4
3.1 Tools ............................................................................................................... 4
3.2 Adjusting the wheelchair to the user ............................................................... 5
3.2.1 Adjusting the seat depth ..........................................................................5
3.2.2 Adjusting the armrests .............................................................................6
3.2.3 Adjusting the footplate .............................................................................6
3.2.4 Adjusting the calf rests .............................................................................6
3.2.5 Knee protector .........................................................................................7
3.2.6 Supporting wheels ...................................................................................8
3.2.7 Operating console ....................................................................................8
3.3 Tyre changing ................................................................................................. 9
3.4 Changing the batteries .................................................................................. 10

Forest 3 SU
2020-07
Preface
Installation manual
- 2 -
EN
NL
Preface
To support you on the installation and repairs of this electric wheelchair, we provide you with this
installation manual. Please read it carefully. If you still have questions after reading this manual,
do not hesitate to contact Vermeiren.
The information in this manual applies to the following wheelchair(s):
o Forest 3 SU
Important note
Pictures of the product are used to clarify the instructions. Details of the shown product may
deviate from your product.
Available information
On our website http://www.vermeiren.com/ you will always find the most recent version of
the information described in this manual. Please consult this website regularly for possible
updates.
Visually impaired people can download the electronic version of this manual and have it read out
by means of a text-to-speech software application.
User manual
For user and specialist dealer
User manual of applied operating console and battery charger.
For user and specialist dealer
Installation instructions (Instructions for detail adjustments and (dis)assembly)
For specialist dealer
Service manual for wheelchairs
For specialist dealer
Drawings of (spare) parts
For specialist dealer
EC declaration of conformity

Forest 3 SU
2020-07
This product
Installation manual
- 3 -
EN
NL
1 This product
2 Scope of delivery
The electric wheelchair shall be delivered with:
 Framework with armrests, operator control, rear and front wheels, seat and backrest
 1 footplate (incl. knee/leg protector and support wheels)
 2 x drive batteries, 2 x drive motors
 Charger + manual
 Electronics
 Stand up device
 Tools
 Operator control + manual operator control
 Chest belt
 Tip protector
 Accessories
 Instruction manual
Before use, check that everything is included and that no products are damaged (example by
transport, ...). Please note that the basic configuration may differ in different European countries.
Contact your specialist dealer.

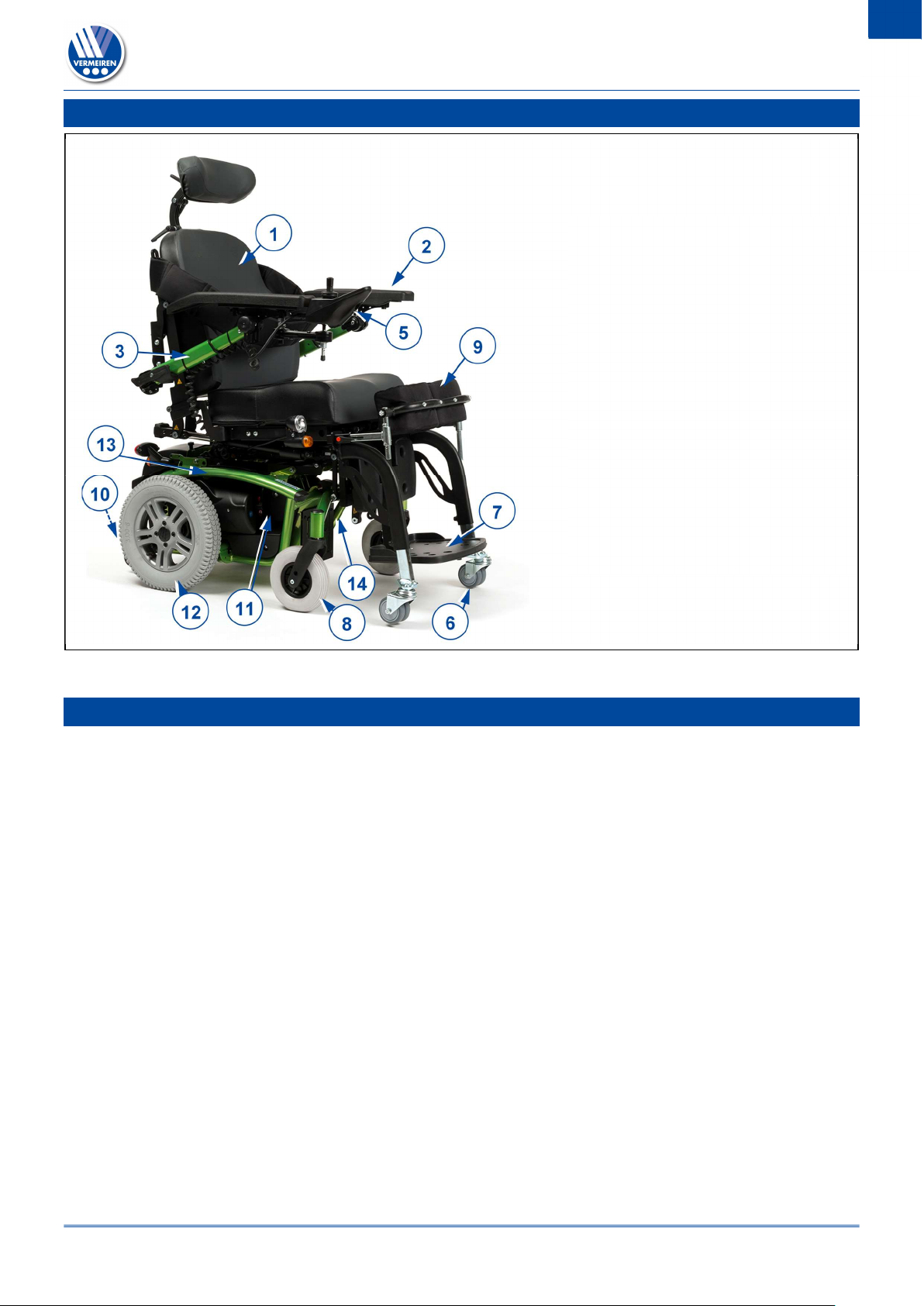

1 = Backrest
2 = Adjustable armpads
3 = Armrests
4 = Operator control
5 = Seat
6 = Support wheels
7 = Footplate
8 = Steering wheels (Front wheels)
9 = Knee protector
10 = Anti-tipping
11 = Battery cover
12 = Driving wheels (rear wheels)
13 = Base frame
14 = Identification plate

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 4 -
EN
NL
3 Assembly and adjustments
Important remarks
 Read the User manual of this wheelchair.
 Be aware of the technical details and limits of intended use; see the user manual.

For more information
,
contact Vermeiren.
3.1 Tools
The Vermeiren Forest 3 SU shall need following tools:
 Wrench set n° 10 to n° 13
 Allen keyset n° 4 to n° 6
Risk of injuries or damage
 The wheelchair needs to be (dis)assembled and adjusted
by a specialist dealer according to
the instructions in this chapter.
 Only use parts and tools described in this manual.
 Prevent bystanders from accessing the (dis)assembling area.
 Keep the (dis)assembling area clean and tidy, to prevent falling.
 Collect all small parts in a box or bag.
 While (dis)assembling and operating the wheelchair, make sure no objects or body parts
get
caught between moving parts. In particular, pay attention to the position of the cables.
 Turn the wheelchair off before you perform any mechanical adjustments and make sure
that
the free-wheel lever is in braking position.
 Make sure all screws are firmly secured before driving.
 Software changes are only allowed if executed by skilled personnel
, taking into account the
user and environment (stability, accellaration, indoor/outdoor
, etc.)
.
CAUTION

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 5 -
EN
NL
3.2 Adjusting the wheelchair to the user

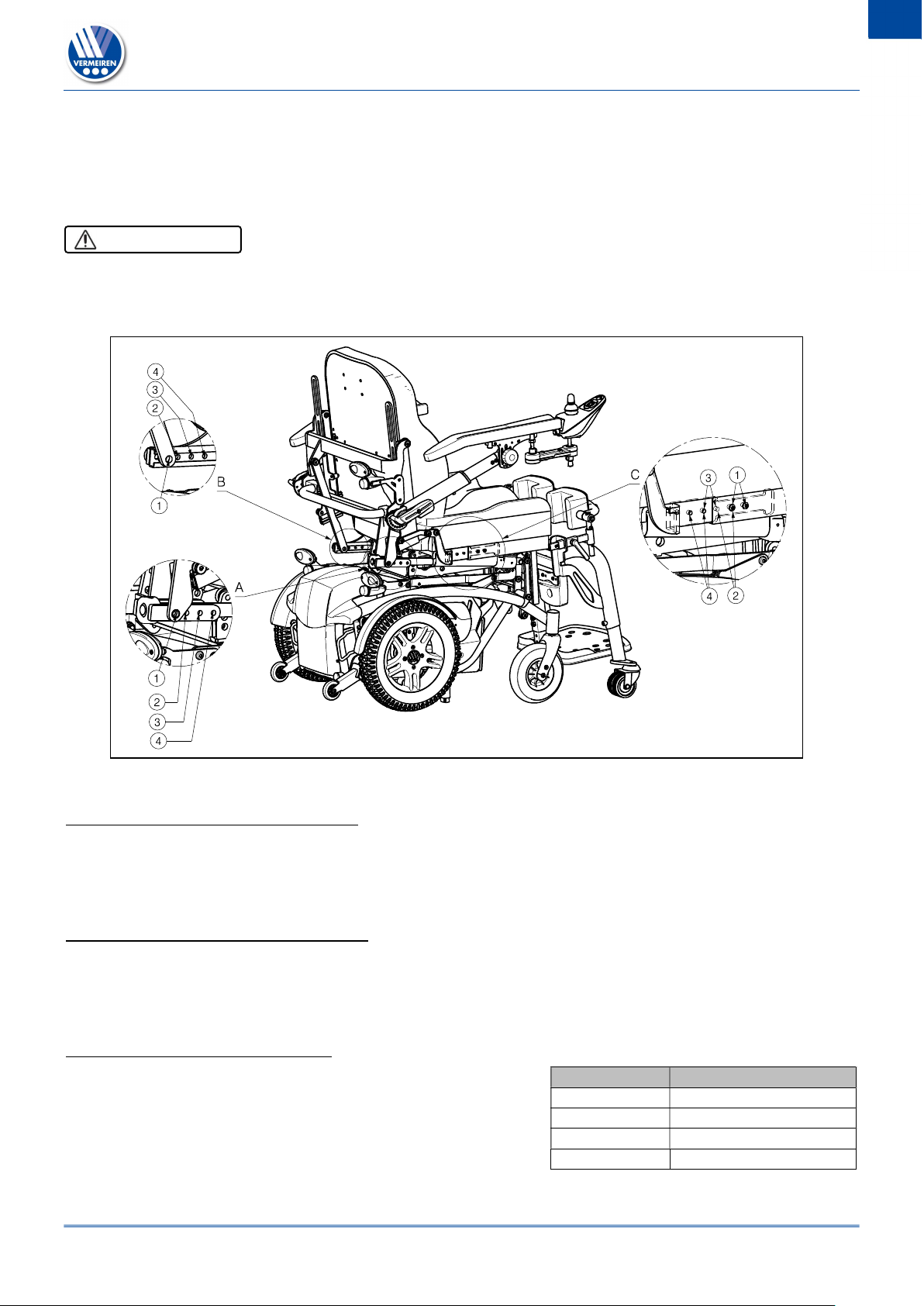

3.2.1 Adjusting the seat depth
The Vermeiren Forest 3 SU is adjustable in 3 different seat depths over a range of 50 mm (steps
of 25 mm). Adjusting the seat depth is at your own risk.
Risk of injury
 Make sure all screws are firmly secured before driving with your electric wheelchair.
 Adjusting the seat depth is on your own risk. Use the instructions below carefully to adjust the
seat depth by yourself.
Adjust the seat depth according to the instructions below (use the sequence below) :
Detail A: Adjust the backrest motor.
1. Loosen the screw from the backrest motor.
2. Move the motor more backwards or forwards until the desired position and until the relevant
holes lie above one another so that the fixing screws can be inserted.
3. Retighten the screw firmly by hand.
Detail B: Adjust the telescopic guide.
1. Loosen the screw from the telescopic guide.
2. Move the telescopic guide more backwards or forwards until the desired position and until the
relevant holes lie above one another so that the fixing screws can be inserted.
3. Retighten the screw firmly by hand.
Detail C: Moving the seat frame.
1. Loosen the two screws on either side of the frame.
2. Pull the seat more backwards or forwards until the
desired position and until the relevant holes lie above
one another so that the fixing screws can be inserted
through the frame.
3. Retighten the screws firmly by hand.
Hole
Seat depth
1 500 mm
2
475 mm
3
450 mm
4 Not used
WARNING

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 6 -
EN
NL
3.2.2 Adjusting the armrests
Adjusting armrest length
Adjust the length of the armrests as follow (range 90
mm: stepless):
1. Loosen the screw  just below the armrest.
2. Adjust the armrest to a comfortable length.
3. Tighten the screw  properly.
Check that the armrests are positioned identically
on both sides.
Adjusting armrest width
Adjust the width of the armrests as follow (range 25
mm: stepless / on each side):
1. Loosen the screw  on the back of the
wheelchair just below the seat frame.
2. Adjust the armrest to a comfortable width.
3. Tighten the screw  properly.
Check that the armrests are positioned identically
on both sides.
3.2.3 Adjusting the footplate
Risk of injury and/or damage
 Make sure that the footplate is properly tightened before using the wheelchair.
 Avoid that the footrest make any contact with the ground. Keep a minimum distance from 60
mm above the ground.
 Never grasp the wheelchair by the footplate in order to move the wheelchair. Only grasp fixed
parts of the frame.
Adjust the height of the footplate as follow (6 different
positions: range 100 mm: steps 20 mm):
1. Loosen and remove the screws .
2. Move the footplate to the desired height.
3. Retighten the screws .
3.2.4 Adjusting the calf rests
Adjusting calf rest height
Adjust the height of the calf rests as follow (range 55
mm: stepless):
1. Incline the footplate with the operator control.
2. Loosen the two screws  a little bit.
3. Adjust the calf rests to a comfortable height.
4. Retighten the two screws  properly.
WARNING

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 7 -
EN
NL

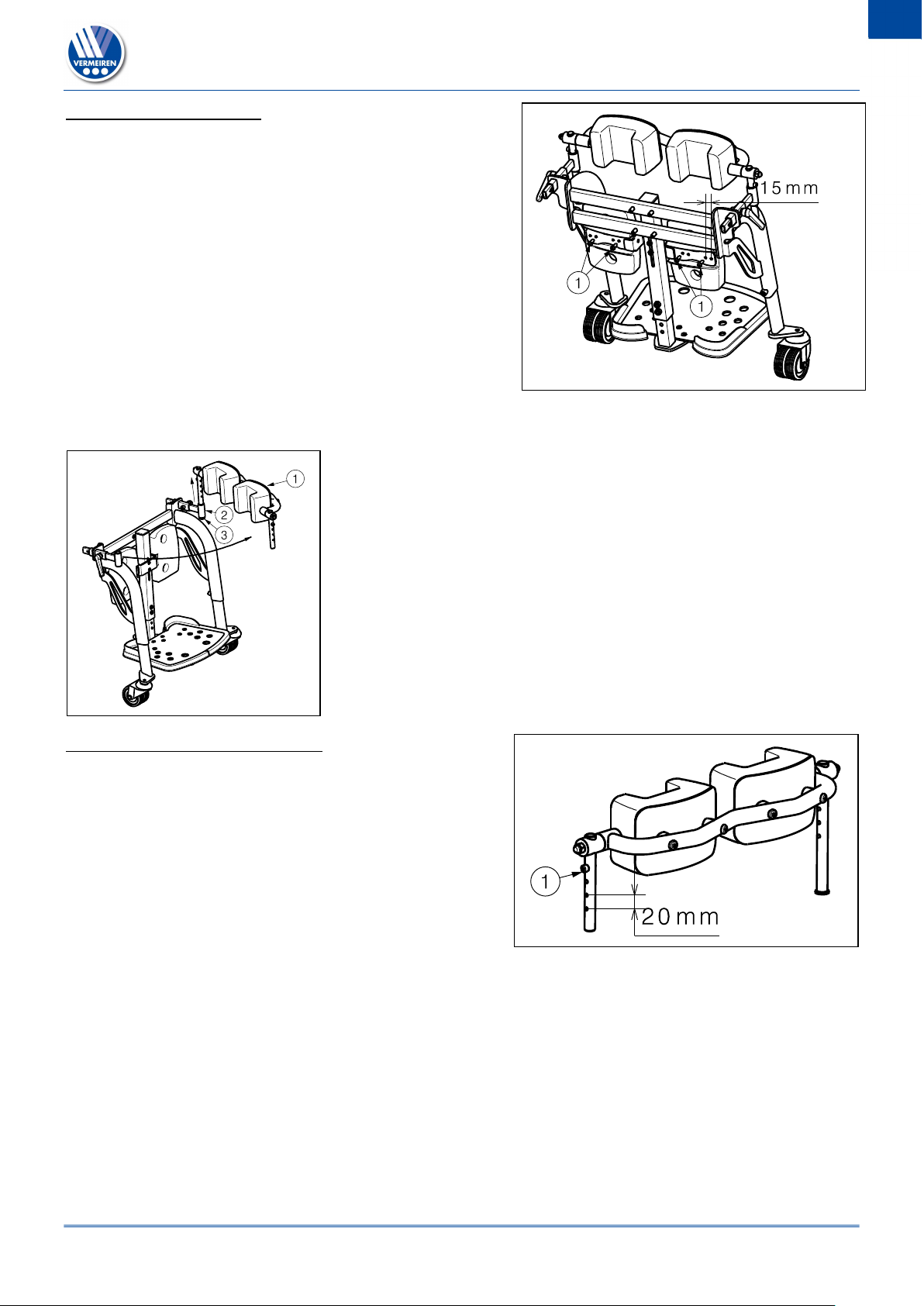

Adjusting calf rest width
Adjust the width of the calf rests as follow (2 different
positions over a range of 15 mm):
1. Incline the footplate with the operator control.
2. Loosen the screws  just below the calf rests.
3. Adjust the calf rests to a comfortable width.
4. Retighten the screws  properly.
3.2.5 Knee protector
The knee protector should always be used for the standing/upright function.
To swing away the knee protector:
1. Lift the knee protector upwards . Not possible to remove
the knee protector, on one side the knee protector is
blocked by part .
2. Swing away the knee protector around tube .
To mount the knee protector:
1. Turn the knee protector around tube .
2. Mount the pen in the holder.
3. Push the knee protector downwards until the screw rest
on the holder.
4. Check the knee protector is attached very well.
Adjusting height knee protector
Adjust the height of the knee protector as follows
(range 60 mm: steps 20 mm):
1. Loosen the two screws  on both sides.
2. Adjust the knee protector to a comfortable
height by placing the two screws in another
hole. See that the screws on each side are
placed in a hole at the same height.
3. Retighten the two screws  properly.

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 8 -
EN
NL
Adjusting depth knee protector
Adjust the depth of the knee protector as follow (range
60 mm: stepless):
1. Loosen the levers  on both sides.
2. Adjust the knee protector to a comfortable depth.
3. Retighten the two levers  properly.
3.2.6 Supporting wheels
Risk of injury
 Make sure that the supporting wheels are properly
tightened before using the wheelchair.
 Make sure that the supporting wheels rest on the
ground and are positioned at the same height.
The supporting wheels are adjustable in 6 different
positions (range: 100 mm steps 20 mm):
1. Loosen the hexagon socket screw .
2. Move the supporting wheel  to the desired
height.
3. Retighten the hexagon socket screw .
3.2.7 Operating console
Mounting position left or right
1. Hold the control with its support (3) while removing
M6 socket screw (41).
2. Loosen hex nut (42) and demount shaft (43) from the
armrest.
3. Mount shaft (43) in the other armrest and lock it with
hex nut (42).
4. Mount the control support (3) with socket screw (41)
on the shaft (43).
5. Make sure all connections are well secured.
6. Guide the cable and plug the cable in the operating
console.
WARNING
3
43
42
41
44
45

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 9 -
EN
NL
Operating console - height
The height of the operating console can be adjusted in 2+4 positions, or 6+4 positions depending
on the type of shaft:
1. Hold the control while removing M6 socket screw (41).
2. Move the control support (3) up/down on shaft (43) and mount the socket screw (41).
3. If necessary adjust the height of the console on shaft (45) in the same way and lock it with
socket screw (44).
4. Make sure all connections are well secured.
5. Guide the cable and plug the cable in the operating console.

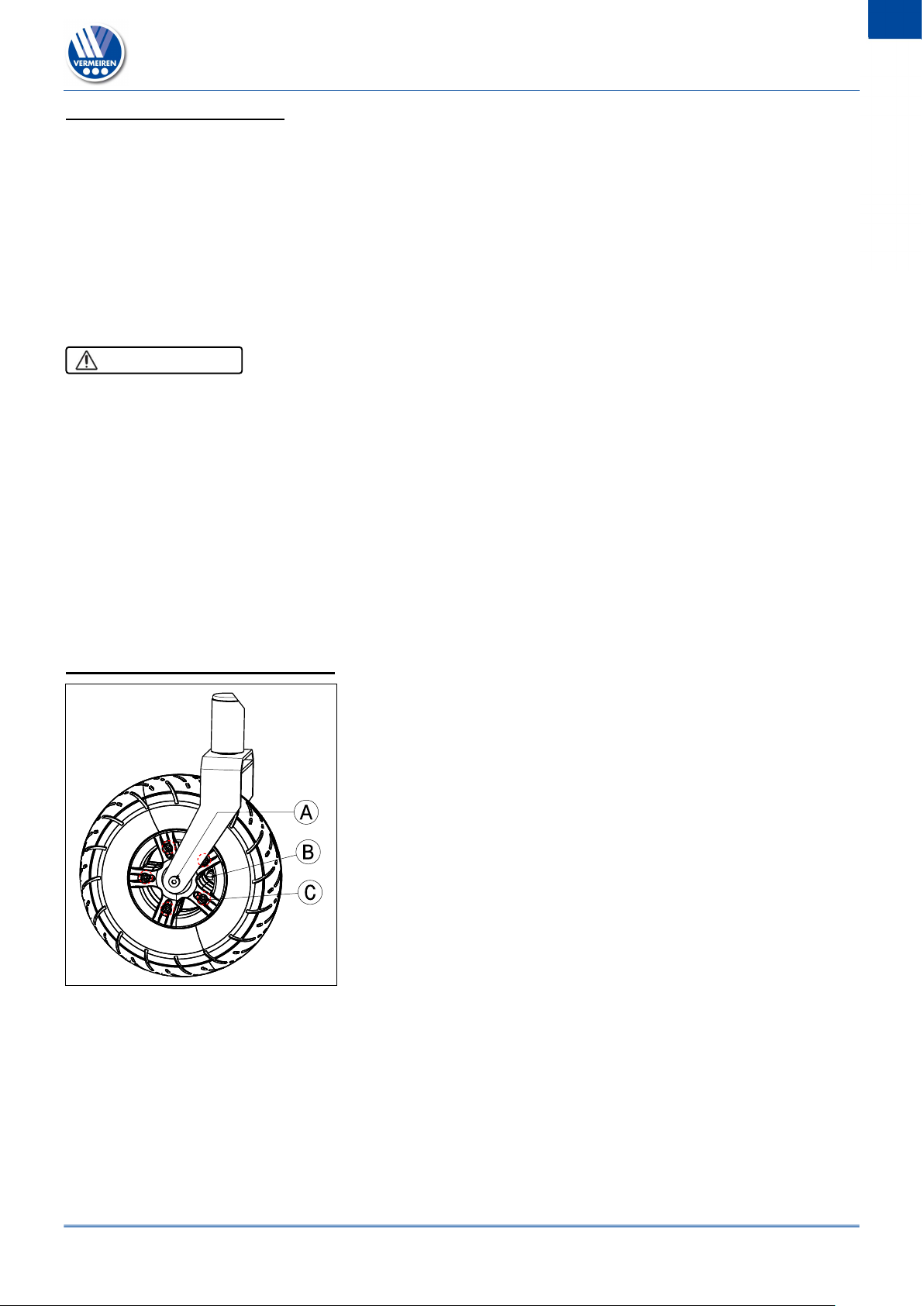

3.3 Tyre changing
Risk of injury and/or damage
 Check that the profile depth of the tyres is adequate.
 There must be no air in the tube before the tyre can be removed.
 If handled improperly, the rim might become damaged.
 Make sure to inflate the tires to the correct pressure (see indication on the tyres).
 Make sure that no objects, body parts or inner tubes are pinched between the tyre and the rim
when mounting a tyre.
 Make sure all screws are firmly secured by hand before driving with your electric wheelchair.
Screw adhesive (ex. Loctite) should be applied to the screws on the flange. Screw adhesive
will only work if the thread is free of grease and particles.
Only use inflating equipment which complies to regulations and indicates the pressure in bar. We
do not accept any liability for damage caused by using wrong inflation equipment or wheels.
Steering wheels (front wheels)
DISMANTLING
A. Loosen the screw on the steering wheel axle and remove
it from the steering wheel fork.
B. Let the air out of the steering wheel by lightly pressing
the pressure pin on the valve.
C. Loosen the 5 screws that hold the split rim together.
Now separate the rim sides.
ASSEMBLY
Insert the partly-filled inner tube into the tyre.
C. Connect the two sides of the rim through the tyres and
use the 5 connecting screws to screw the rim together.
B. Make sure that the valve juts out of the valve opening in
the rim.
A. Put the wheel back into the front wheel fork and inflate
the wheel.
CAUTION

Forest 3 SU
2020-07
Assembly and adjustments
Installation manual
- 10 -
EN
NL
Driving wheels (rear wheels)
DISMANTLING
A. Unscrew and remove the axle nut on
the drive wheel and the 4 screws that
attach the wheel to the flange.
B. Let the air out of the wheel by lightly pressing
the pressure pin on the valve.
C. Unscrew the 5 screws on the inside of
the rim. Separate the rim sides.
ASSEMBLY
Insert the partly-filled inner tube into the tyre.
C. Connect the two sides of the rim through the
tyres and screw them back again.
B. Put the valve through the hole for it in the rim.
A. Put the wheel back on the flange and secure
these connection with the 4 screws. Afterwards
secure the wheel by hand-tightening the axle
nut. Inflate the wheel to the recommended tyre
pressure.
3.4 Changing the batteries
Risk of injuries and damage
 The batteries must only be replaced by trained personnel.
 Do not come into contact with the acid from the batteries.
 Replace the batteries in a well-ventilated room.

Make sure that the ventilation holes of the battery housing are free from any contaminations.
 First read the charging instructions in the user manual before charging the batteries.
 Replace both batteries at the same time and with the
same type as the ones used in the
wheelchair. If this is not possible, contact the nearest Vermeiren
facility.
CAUTION
24 V
+
+
-
-
Black
Red
1
2
1 = Blow fuse
2 = Plug (electronic system)
150 A

© Vermeiren Group 2020 Basic UDI: 5415174
Vermeiren GROUP NV
Vermeirenplein 1 / 15
2920 Kalmthout
BE
website: www.vermeiren.com
Instructions for specialist dealer
This instruction manual is part and parcel of the product and must accompany
every product sold.
Version A, 2020-07
All rights reserved, including translation.
No part of this manual may be reproduced in any form what so ever (print,
photocopy, microfilm or any other process) without written permission of the
publisher, or processed, duplicated or distributed by using electronic systems.
R.E.: Vermeiren GROUP, Vermeirenplein 1/15 - 2920 Kalmthout –Belgium
Installation manual - Forest 3 SU_EN_A5_2020-07_A
