Vertiv Liebert ITA2 Installation and maintenance instructions

Liebert®
ITA2™ UPS
Installer/User Guide
8-kVA to 10-kVA, 60-Hz, 208/220-V, Three-phase UPS

Vertiv | Liebert® ITA2™ Installer/User Guide
Technical Support Site
If you encounter any installation or operational issues with your product, check the pertinent
section of this manual to see if the issue can be resolved by following outlined procedures.
Visit https://www.VertivCo.com/en-us/support/ for additional assistance.
The information contained in this document is subject to change
without notice and may not be suitable for all applications. While
every precaution has been taken to ensure the accuracy and
completeness of this document, Vertiv assumes no responsibility
and disclaims all liability for damages resulting from use of this
information or for any errors or omissions. Refer to other local
practices or building codes as applicable for the correct methods,
tools, and materials to be used in performing procedures not
specifically described in this document.
The products covered by this instruction manual are manufactured
and/or sold by Vertiv. This document is the property of Vertiv and
contains confidential and proprietary information owned by Vertiv.
Any copying, use or disclosure of it without the written permission
of Vertiv is strictly prohibited.
Names of companies and products are trademarks or registered
trademarks of the respective companies. Any questions regarding

TABLE OF CONTENTS
Important Safety Information 1
1 Product Description 3
1.1 Front-panel Components 3
1.2 Rear-panel Components 4
1.3 UPS States and Operating Modes 5
1.3.1 Normal Mode 6
1.3.2 Battery Mode 7
1.3.3 Bypass Mode 8
1.3.4 Auto Restart Mode 9
1.3.5 Fault State 9
1.3.6 Maintenance Bypass Mode 9
2 Installation 11
2.1 Pre-installation Preparation 11
2.1.1 Environment of Installation Area 12
2.1.2 Installation Clearances 12
2.1.3 Installation Tools 13
2.1.4 Storage 13
2.1.5 External Protective Devices 13
2.2 Equipment Handling and Unpacking 15

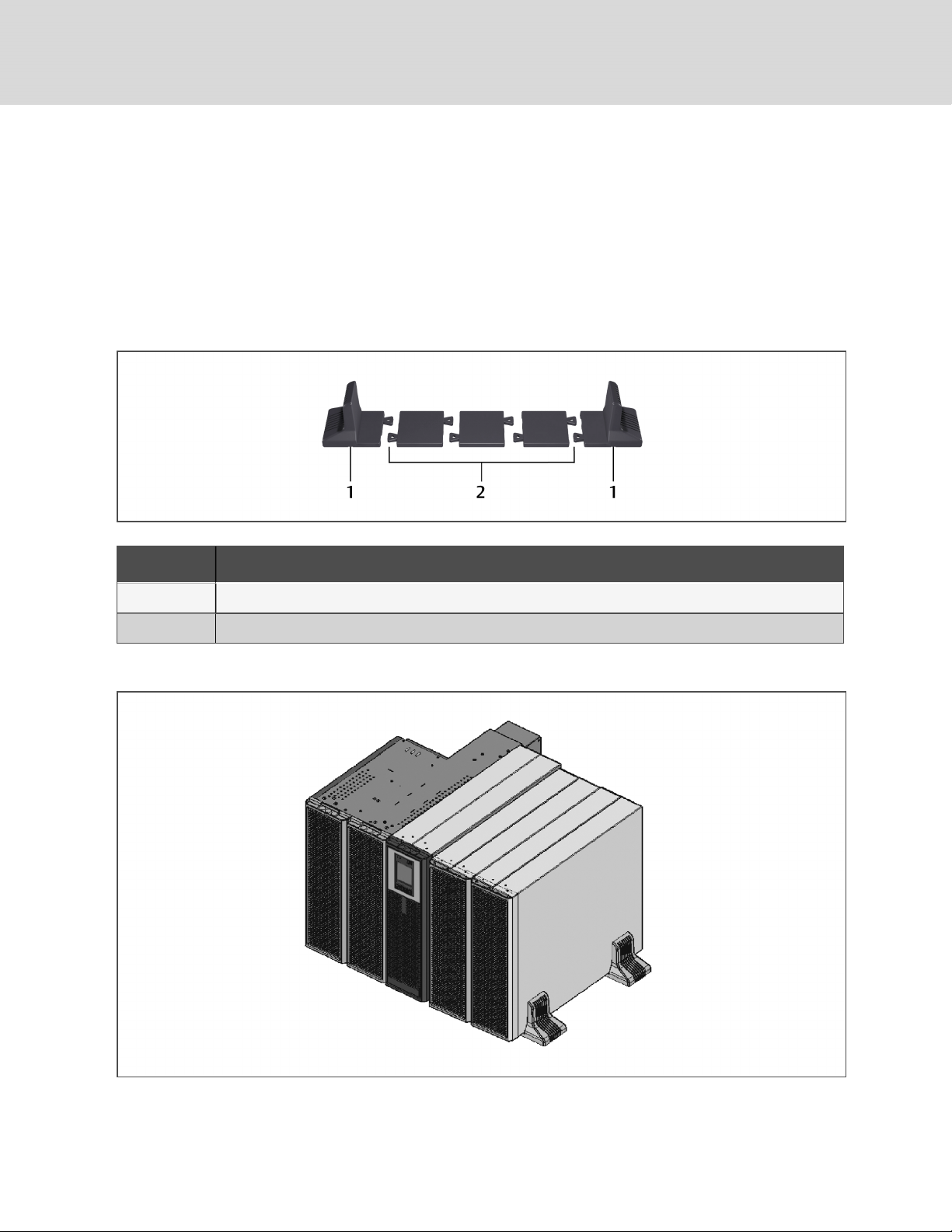

2.3 Tower Installation 15
2.4 Rack Installation 17
2.5 Connecting Power Cables 19
2.5.1 Connecting a Single-input Configuration 20
2.5.2 Connecting a Dual-input Configuration 23
2.6 Connecting a Single Battery-cabinet System 24
2.6.1 Connecting the Cables 24
2.7 Connecting Additional Battery-cabinet systems 32
2.8 Communication Connections 35
2.8.1 Liebert® IntelliSlot™ Ports 35
2.8.2 REPO Connection 36
2.8.3 Dry-contact Connections 37
2.8.4 Connecting USB Communication Cables 38
2.9 Connecting Serial-port Communication Cables 38
i

2.9.1 Connecting Multi-function Port (RJ-45) 39
3 Operation and Display Panel 41
3.1 LED Indicators 42
3.2 Audible Alarm (Buzzer) 42
3.3 LCD Menu and Screens 43
3.3.1 Start-up and UPS Mimic Screens 44
3.3.2 Main Menu 44
3.4 Editing Display and Operation Settings 48
3.4.1 Changing the Password 51
3.4.2 Selecting the Display Language 52
3.4.3 Setting the Date and Time 52
4 Operating the UPS 53
4.1 Silencingthe Audible Alarm 53
4.2 UPS Start-up 53
4.3 Transferring from Normal (Inverter) to Bypass Mode 54
4.4 Transferring from Bypass to Normal (Inverter) Mode 55
4.5 Transferring to Maintenance-bypass Mode 56
4.6 Transferring from Maintenance-bypass to Normal Mode 56
4.7 Remote Emergency Power-off (REPO) 57
5 Maintenance 59
5.1 Cleaning the UPS 59
5.2 Routine Maintenance 59
6 Specifications 63
6.1 Standard Battery Back-up Time with a Single UPS 65
Appendices 67
Appendix A: UPS Prompts and Alarms 67
Vertiv | Liebert® ITA2™ Installer/User Guide
ii

IMPORTANT SAFETY INFORMATION
IMPORTANT! This manual contains important safety instructions that must be followed during the
installation and maintenance of the UPS and batteries. Read this manual thoroughly and the safety and
regulatory information, available at https://www.vertiv.com/ComplianceRegulatoryInfo, before
attempting to install, connect to supply, or operate this UPS.
1

Vertiv | Liebert® ITA2™ Installer/User Guide
2
This page intentionally left blank

1 PRODUCT DESCRIPTION
The Liebert® ITA2™ uninterruptible power system (UPS) is an intelligent, online UPS with sine wave
output. The UPS offers reliable, high-quality AC power to small-scale computer centers, networks,
communication systems, automatic control systems, and similar sensitive electronic equipment.
1.1 Front-panel Components
The front panel of the UPS provides ventilation holes and an operation/display panel with LED indicators
and function keys.
Figure 1.1 ITA2 UPS
Item Description
1 Ventilation holes
2 Menu keys, see 1.1 above.
3 LCD panel. See Operation and Display Panel on page 41.
4 Run/Alarm indicator LEDs, see LED Indicators on page 42.
5 Power button, see 1.1 above.
1 Product Description 3

1.2 Rear-panel Components

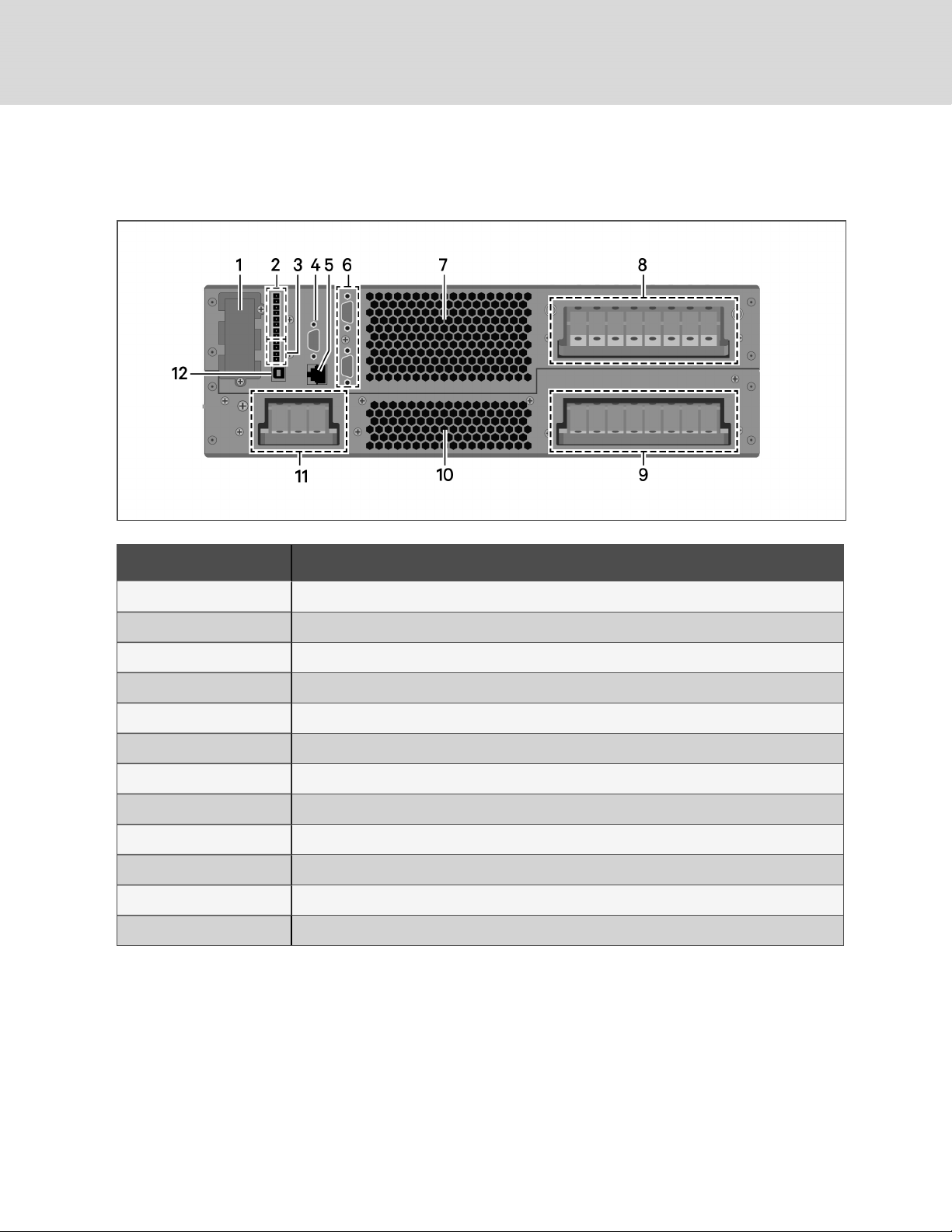

Figure 1.2 UPS Rear Panel with Terminal-block Battery Connectors
Item Description
1 Liebert® IntelliSlot™ port
2 Dry-contact port
3 REPO port
4 RS-232 port
5 Multi-function port
6 Parallel/LBS ports
7 Ventilation holes
8 AC-output terminals
9 AC-input terminals
10 Ventilation holes
11 Battery-input terminals
12 USB port
Vertiv | Liebert® ITA2™ Installer/User Guide
4

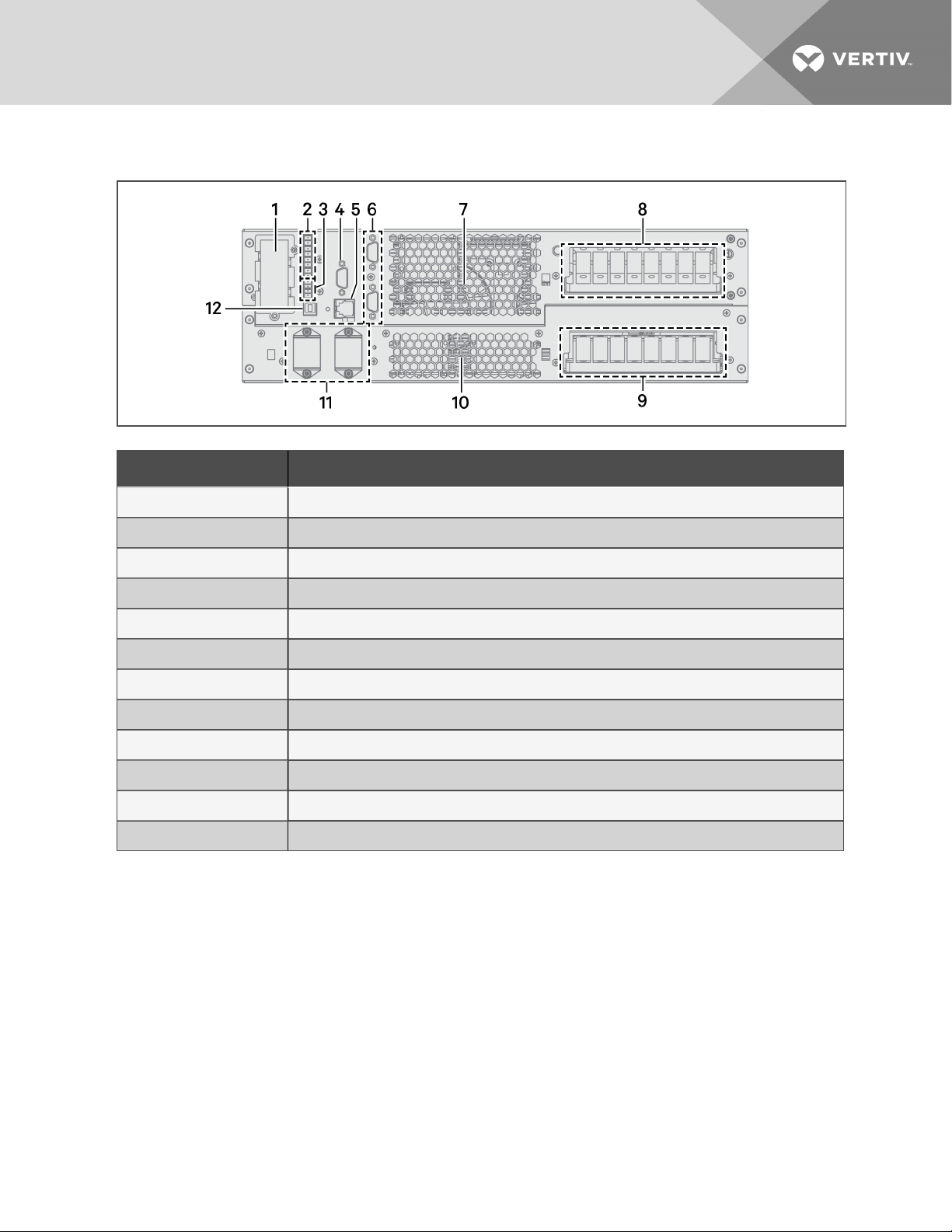

Figure 1.3 UPS Rear Panel with Plug-n-Play Battery Connectors
Item Description
1 Liebert® IntelliSlot™ port
2 Dry-contact port
3 REPO port
4 RS-232 port
5 Multi-function port
6 Parallel/LBS ports
7 Ventilation holes
8 AC-output terminals
9 AC-input terminals
10 Ventilation holes
11 Battery-connector ports
12 USB port
1.3 UPS States and Operating Modes
NOTE: See Table 3.2 on page42, for description of the run-indicator and alarm-indicator LEDs
mentioned in this section.
1 Product Description 5

1.3.1 Normal Mode
Normal operation supplies clean, conditioned, sine-wave power to connected equipment from normal
utility input. The battery charger charges the batteries. On the front-panel display, the run-indicator
(green)is On, the alarm indicator is OFF, and the buzzer is silent.
Figure 1.4 Normal-mode Operation
Vertiv | Liebert® ITA2™ Installer/User Guide
6

1.3.2 Battery Mode
Battery mode supplies battery power to the load if utility power fails or if the utility voltage goes outside of
the permissible range. On the front-panel display, the run indicator (green) is On, the alarm indicator
(yellow)is On, and the buzzer beeps once each second. The LCD "Current" screen displays "On Battery."

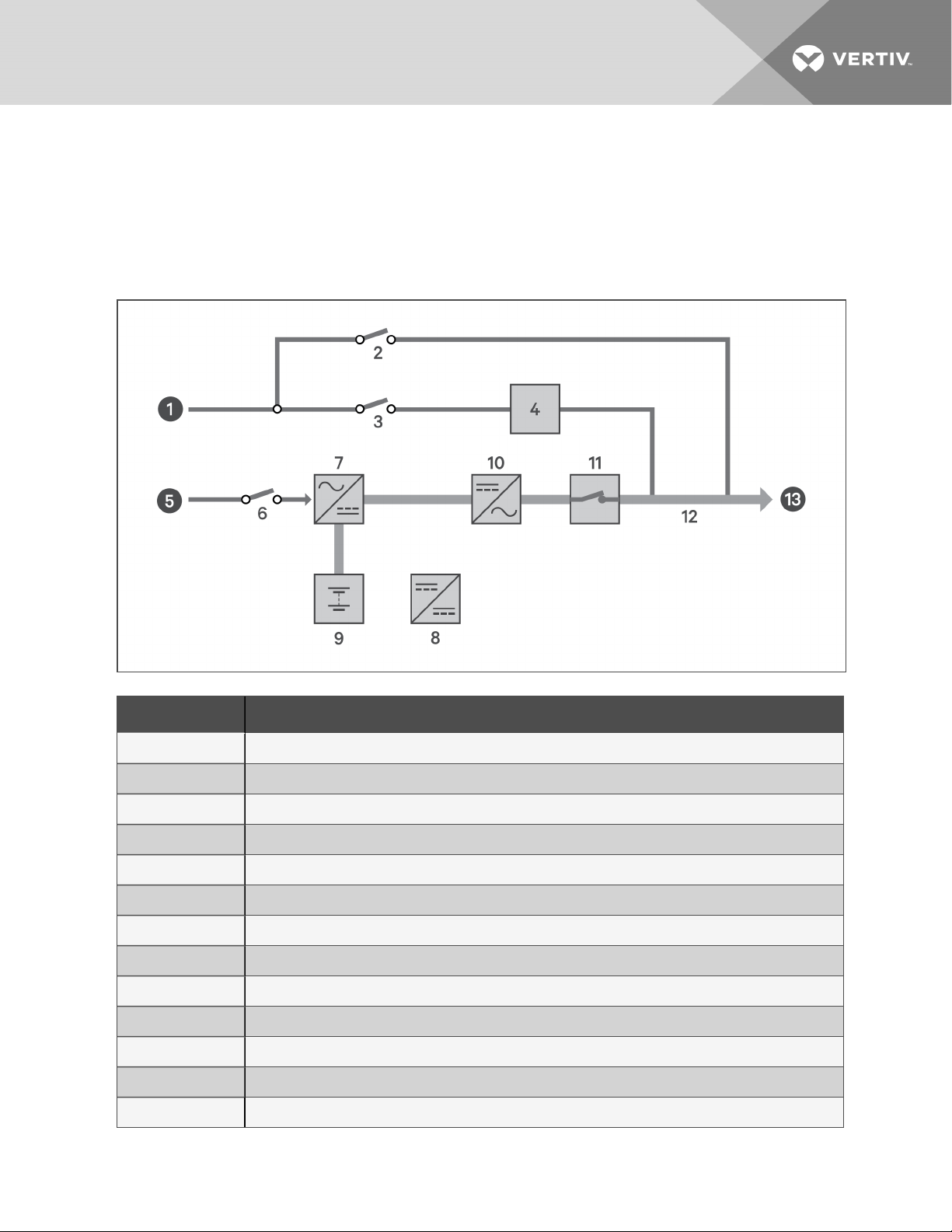

Figure 1.5 Battery-mode Operation
Item Description
1 Bypass input
2 Maintenance-bypass breaker (MBB)
3 Bypass-input breaker (BIB)
4 Static switch
5 Rectifier input
6 Rectifier-input breaker (RIB)
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
11 Automatic inverter switch
12 Maintenance-isolation breaker (MIB)
13 UPSoutput
1 Product Description 7

1.3.3 Bypass Mode
Bypass mode supplies power to the load from the bypass source if an overload or fault occurs during
normal operation. On the front-panel display, the run indicator (green) is On, the alarm indicator
(yellow)is On, and the buzzer beeps once each second. The LCD "Current" screen displays "On Bypass."
Figure 1.6 Bypass-mode Operation
Item Description
1 Bypass input
2 Maintenance-byass breaker (MBB)
3 Bypass-input breaker (BIB)
4 Static switch
5 Rectifier input
6 Rectifier-input breaker (RIB)
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
11 Automatic inverter switch
12 Maintenance-isolation breaker (MIB)
13 UPSoutput
Vertiv | Liebert® ITA2™ Installer/User Guide
8

1.3.4 Auto Restart Mode
When enabled, which is the default setting, Auto Restart mode automatically re-starts the UPS after a
shut-down that resulted from depleted batteries after an extended power outage. A built-in 10-second
delay after utility power is restored allows other equipment to start first and stabilize before the UPS
restarts.
1.3.5 Fault State
When the UPS is in Normal mode and the inverter fails or UPS over-temperature occurs, operation
transfers to Bypass mode. When the UPS is in Battery mode (with no bypass utility), and the inverter fails
or over-temperature occurs, the UPS shuts down and stops output power. During a Fault state, the front-
panel display alarm indicator (red)is On, the buzzer beeps continuously, and fault information displays on
the LCD screen.
1.3.6 Maintenance Bypass Mode
Used when the UPS requires maintenance or repair, Maintenance-bypass-mode operation powers the
connected equipment with utility power while electrically isolating the internal UPS components.
The optional, ITA2 Maintenance Bypass Cabinet (MBC) is required for this mode. If your system includes
an ITA2 MBC, refer to the Liebert® ITA2™ MBC™ Installer/User Guide, available on the product page at
www.Vertiv.com.
NOTICE
Risk of power interruption. Can damage the connected equipment.
If utility power fails or if its quality is out of range while the UPS is in Maintenance Bypass Mode,
the UPS may shut down without notice and shut-off output power to the load.
NOTE: The UPS has no user-serviceable parts. If the UPS malfunctions and requires service, visit
http://www.Vertiv.com/en-us/support/ or contact your local Vertiv representative.
1 Product Description 9

Vertiv | Liebert® ITA2™ Installer/User Guide
10
This page intentionally left blank

2 INSTALLATION
Installation must be performed by properly-trained and qualified personnel. Do not start the UPS until
after the installation is finished, and the system is commissioned by an authorized engineer.
WARNING! Risk of electrical shock. Can cause property damage, injury, and death. The unit has
several circuits that are energized with high DC and AC voltages. Check for voltage with both
AC and DC voltmeters before making contact and before working within the UPS. Only properly
trained and qualified personnel wearing appropriate, OSHA-approved personal protective
equipment (PPE) should prepare for installation, install, and maintain the equipment. When
performing maintenance with any part of the equipment under power, service personnel and
test equipment must stand on rubber mats.
WARNING! Risk of electrical shock. Can cause equipment damage, injury and death. Before
beginning installation, verify that all external overcurrent protection devices are open (Off), and
that they are locked-out and tagged appropriately to prevent activation during the installation.
After the power cables are connected, the terminal block’s protective cover must be reinstalled
to remove the electric shock hazard.
WARNING! Risk of heavy unit falling. Improper handling can cause equipment damage, injury,
and death. Exercise extreme care when handling unit cabinets and rack-mounted units to avoid
equipment damage or injury to personnel. The UPS weighs approximately 50.7lb (23kg).
NOTE: The UPS can be connected to three-phase, five-wire (A, B, C, N, PE) TN, TT and IT AC power
distribution system (IEC60364-3).
2.1 Pre-installation Preparation
Before beginning the installation, consider the environmental requirements, service clearances, and
external protective devices for installing the equipment.
2 Installation 11

2.1.1 Environment of Installation Area
Install the UPS in a clean, well-ventilated environment with the ambient temperature within the
specifications listed in 6on page63.
The environment must:
•Have convenient wiring.
•Have adequate access for operators.
•Be clean and well ventilated.
•Be free from water, heat source, and flammable and explosive substances.
•Be free from dust, volatile gases, and corrosive materials.
•Comply with local fire-code regulations.
2.1.2 Installation Clearances
Internal fans provide forced-air cooling for the UPS. Cooling air enters through the front panel and hot air
is exhausted through the back. Maintain at least 8 in.(200mm) in the front and rear of the UPS, see
Figure 2.1 below.

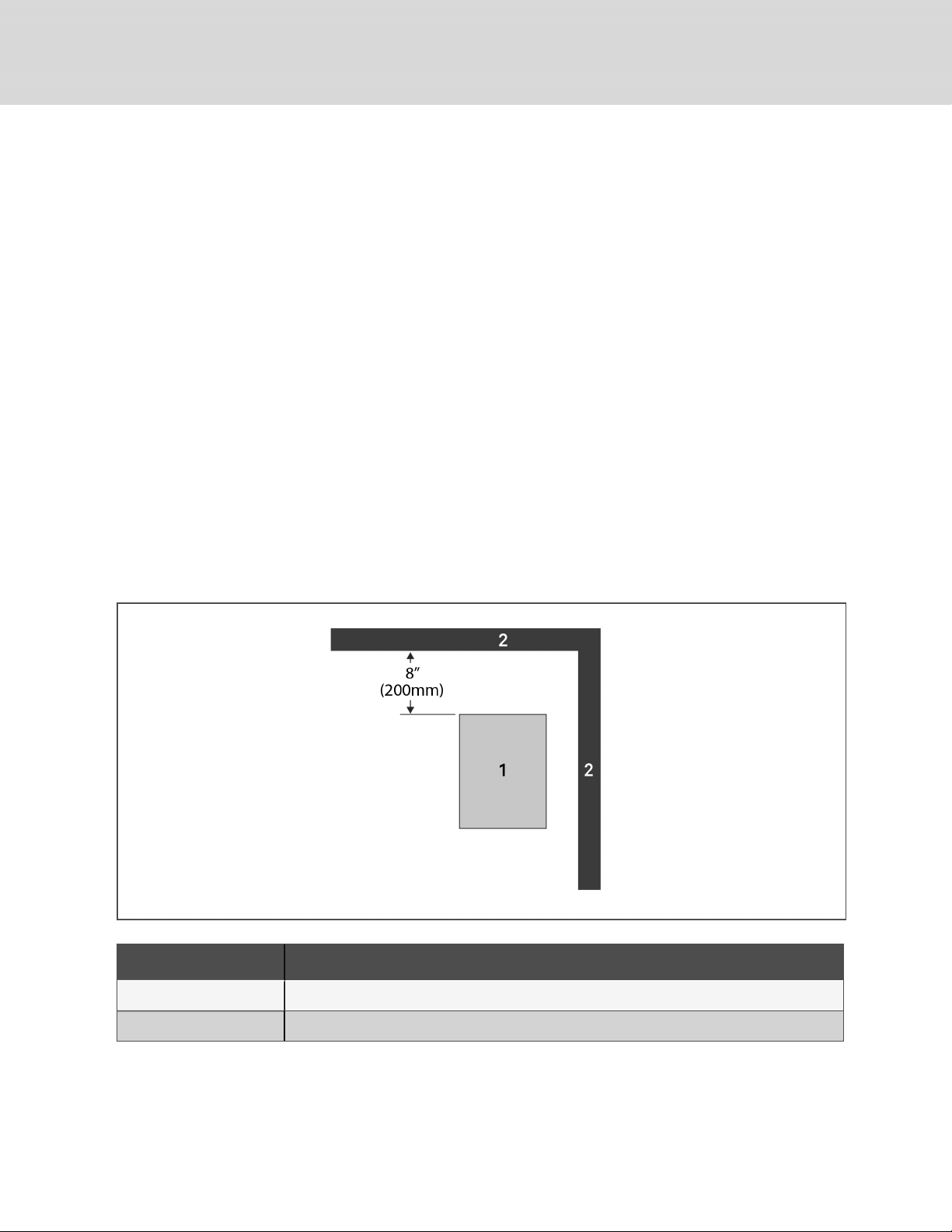

Figure 2.1 Required Clearances
Item Description
1 UPS (top view).
2 Wall or other solid surface.
Vertiv | Liebert® ITA2™ Installer/User Guide
12

2.1.3 Installation Tools
IMPORTANT! All tools used to install and maintain the ITA2 UPS and equipment must be insulated.
The following tools are required to properly install your UPS:
•Torque wrench
•Slotted screwdriver
•Multimeter
•#3 Phillips-head screwdriver
•T10 Torx screwdriver
2.1.4 Storage
If you do not install the UPSimmediately, you must store it indoors and protect it from excessive moisture,
heat, and other harsh conditions. Store the batteries in a dry, well-ventilated environment with a
temperature range of 68°F ~ 77°F (20°C ~ 25°C).
NOTICE
Risk of failure to properly charge batteries can damage the batteries and void the warranty.
Batteries will lose charge during storage. Batteries must be recharged as recommended by the
battery manufacturer every 3 to 6 months, depending on storage temperature:
•At 68-77°F (20-25°C): charge after 6 months in storage
•At 78-86°F (26-30°C): charge after 3 months in storage
•At 87°F or higher (31°C or higher): charge after 1 month in storage.
2.1.5 External Protective Devices
Circuit breakers or other external protective devices must be installed on the UPS input. The following
sections provide general guidance for installation by properly-trained and qualified personnel.
Rectifier and Bypass-input Protection
Overcurrent Protection—Install an appropriate overcurrent protective device should on the utility input
power distribution. Consider the current capacity of power cables and the system-overload requirements
in selection of the input protection and wiring, see Table 2.1 on page20, and Table 2.2 on page20.
Dual-Input System Protection—In a dual-input system, install separate protective devices for the utility
and bypass at the utility input power distribution.
Utility/Bypass Back-Feed Protection—the UPS includes back-feed protection in the event of a fault.
2 Installation 13

Earth Leakage Current—the residual current detector (RCD) for the UPS upstream input power
distribution should be:
•Sensitive to the DC unidirectional pulse (Level A) in the power distribution network
•Insensitive to the transient current pulse
•General sensitivity type, settable: 0.3A ~ 1A
The residual current circuit breaker (RCCB) must be sensitive to the DC unidirectional pulse (Level A) in
the power distribution network, but insensitive to the transient current pulse, see Figure 2.2 below.
Figure 2.2 RCCB symbols
When using the earth RCD in a split-bypass system, the RCD should be installed at the upstream input
power distribution end to prevent false alarms.The earth leakage current fed by the RFI filter in the UPS
ranges from 3.5mAto100mA. We recommend that you verify the sensitivity of each differential device of
the upstream input power distribution and downstream power distribution (to load).
Battery
The UPS includes an overcurrent-protection device for the battery.
UPS Output
The UPS includes output overcurrent protection in all modes of operation. If the customer-provided
output-distribution panel is not within sight of the UPS, the distribution panel must include a main
breaker.
Vertiv | Liebert® ITA2™ Installer/User Guide
14

2.2 Equipment Handling and Unpacking
WARNING! Risk of heavy unit falling. Improper handling can cause equipment damage, injury,
and death. Exercise extreme care when handling unit cabinets and rack-mounted units to avoid
equipment damage or injury to personnel. The UPS weighs approximately 50.7lb (23kg).
During unpacking:
•Inspect the UPS for damage. If you find any problem, file a damage claim with the carrier
immediately and send a copy to Vertiv at:
Attn: Traffic Department
Vertiv Corporation
1050 Dearborn Drive
P.O. Box 29186
Columbus, Ohio 43085 USA
•Check the accessories and model numbers against the delivery list. If you find any problem,
notify your local Vertiv representative immediately.
2.3 Tower Installation
NOTE: The UPS may be installed with a maintenance-bypass cabinet (MBC) or battery cabinets. If so,
install the MBC and battery cabinets before installing the UPS.
2 Installation 15

1. Take the support bases out of the accessories box.
2. If battery cabinets will be connected, take out the spacers shipped with the battery cabinet.
3. If an MBC will be connected, take out the spacers shipped with the accessories.
4. Connect the spacers and the support bases as shown in Figure 2.3 below. Each tower
assembly requires 2support-base/spacer assemblies, one in the front and one in the rear.
5. Place the UPS, battery cabinets, and the MBC on the 2support-base assemblies.
Figure 2.3 Support bases
No. Description
1 Support bases
2 Spacers with connectors
Figure 2.4 Tower-mounted ITA2 UPS System with Battery Cabinets and MBC
Vertiv | Liebert® ITA2™ Installer/User Guide
16
