LIEBERT® EXS™ UPS
208/220‑V 15 – 20 KVA
Quick Installation Guide
590-1912-501B/SL-26156_REV1 1
I M P O R TA N T: Before installing,
connecting to supply or operating
your Liebert EXS UPS, please
review the Safety and Regulatory
Statements sheet. For detailed
installation, operating, maintenance
and troubleshooting information
visit the EXS product page for the
EXS User Guide available at
www.VertivCo.com.
INSTALLATION
Inspecting the UPS
Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed. File a
damage claim with the carrier
immediately and send a copy to:
Vertiv Corporation
1050 Dearborn Drive
P.O. Box 29186
Columbus OH 43085
Attn. Traic Department
Choosing a location
Install the UPS in a clean, well-
ventilated environment with the
ambient temperature range of 32°F
to 104°F (0°C to 40°C).
For installation and maintenance,
3ft (914mm) clearance is required
in the front and rear of the unit. For
proper ventilation during normal
operation, leave 8in. (203mm)
clearance on the rear. No side
clearance is required for installation
or operation of the UPS.
Handling and unpacking
the unit
The UPS ships on a pallet and is
equipped with casters that permit
two or more people to roll it o the
pallet for installation. Use a forklift
or pallet jack to move the palleted
UPS as close as possible to the
installation location before
removing packing material or
loosening shipping brackets.
1. Remove the protective
packaging, shown in the
illustration at the top-right.
2. Locate the accessories
package on top of the UPS and
set aside.
3. Use a 16-mm (5/8-in.) wrench
or socket to un-bolt the
shipping brackets from the
pallet.
4. Un-bolt the shipping brackets
from the front and rear of the
UPS. Remove the front lower
panel from the UPS to remove
the front bracket.
5. Make sure the leveling feet are
raised so they do not interfere
when rolling the unit on the
casters.
6. Roll the unit down the ramp to
the installation location, see
the illustration above, and
lower the leveling feet to fix the
UPS in the install location.
Repositioned ramp placed
for unit transfer to
installation location
Removing Packaging and Moving the UPS
Ramp in
shipping position
Packaging

LIEBERT® EXS™ UPS 208/220‑V 15 – 20 KVA
Quick Installation Guide
2 590-1912-501B/SL-26156_REV1
POWER WIRING AND
CONDUIT
When connecting wiring, follow the
local wiring regulations, and take the
environment situation into account.
NOTE: The conduit size and wiring
method must be in accordance with
all local, regional and national codes
and regulations, including NEC
ANSI/NFPA 70.
The maximum current for operating
modes, the recommended wire
sizes, and the recommended power
cables and plugs are listed in Tables
1 to 3, above, and are based upon an
86°F (30°C) ambient temperature.
Lock-out and tag before
you begin
Ensure that the feeder breakers are
open and locked, and tagged to
prevent inadvertent operation by
unauthorized personnel.
Table 3 Recommended lug sizes
6AWG (13.3mm2)4AWG (21.2mm2)3AWG (26.7mm2)2AWG (33.6mm2)
Part
Number
McMaster-Carr: 7113K366 McMaster-Carr: 7113K441 McMaster-Carr: 6926K54 McMaster-Carr: 6926K54
Thomas & Betts: RE6-14 Thomas & Betts: 54138NT02 Thomas & Betts: 54107NT Thomas & Betts: 54107NT
—Thomas & Betts: 54106NT —Tyco Electronics: 132331-1
Table 1 Currents and Wire Size — UPS rectifier input
Unit Rating Maximum Input
Current (A)
Recommended OPD,
AmpTrip
75°C THW Copper Wire (phase)
Number of Cables per phase:1
75°C THW Copper Wire
neutral)
Number of Cables:1
75°C THW Copper Wire
(ground)
Number of Cables: 1
15 kVA /kW 53 70 3 AWG 4 AWG 6 AWG
20 kVA /kW 71 90 2 AWG 6 AWG 6 AWG
Table 2 AC Currents and Wire Size — UPS bypass input* and output
Unit Rating Maximum Input
Current (A)
Recommended OPD,
AmpTrip
75°C THW Copper Wire (phase)
Number of Cables per phase:1
75°C THW Copper Wire
(neutral)
Number of Cables:1
75°C THW Copper Wire
(ground)
Number of Cables: 1
15 kVA /kW 42 60 4AWG 4 AWG 6 AWG
20 kVA /kW 56 70 3 AWG 3 AWG 6 AWG
*Bypass input for dual-input configurations only.

LIEBERT® EXS™ UPS 208/220‑V 15 – 20 KVA
Quick Installation Guide
590-1912-501B/SL-26156_REV1 3
HARDWIRE INPUT/OUTPUT
CONNECTIONS
Connecting a single-input
configuration with
compression-type terminal
blocks
1. On the rear panel of the UPS,
remove the cover plate to
access the terminal blocks,
shown in the “Compression-
type” illustration above.
2. Remove the conduit-entry
panel, punch holes for the
conduit, connect the conduit to
the panel, and re-install the
conduit-entry panel.
3. Referring to the “compression-
type” illustration, make the
following input connections
from the upstream feeder
panel to the input terminal:
• Phase A to rA
• Phase B to rB
• Phase C to rC
• Neutral to N
• Ground cable to ground bus
4. Make the following output
connections from the UPS
output terminal to the
downstream distribution-panel
main lug breaker:
• Terminal A to Phase A
• Terminal B to Phase B
• Terminal C to Phase C
• Terminal N to neutral bus
• Ground (PE) to ground bus
5. Torque phase conductor
connections to 110 lb-in, and
neutral and ground conductor
connections to 126 lb-in.
6. Reinstall the terminal-block
cover plate.
Connecting a dual-input
configuration with
compression-type terminal
blocks
1. On the rear panel of the UPS,
remove the cover plate to
access the terminal blocks,
shown in the “Compression-
type” illustration above.
2. Remove the conduit-entry
panel, punch holes for the
conduit, connect the conduit to
the panel, and re-install the
conduit-entry panel.
3. Referring to the “Compression-
type” illustration, relocate and
re-torqe the wires from the
factory-connections side of the
input terminal block to the
factory-side bypass terminal
block, and re-torque to 50lb-in.
as follows:
• wire BP-R to bA
• wire BP-S to bB
• wire BP-T to bC
4. Make the following rectifier-
input connections from the
upstream feeder panel to the
input terminal:
• Phase A to rA
• Phase B to rB
• Phase C to rC
• Neutral to N
• Ground cable to ground bus
5. Make the following bypass-
input connections from the
upstream feeder panel to the
input terminal:
• Phase A to bA
• Phase B to bB
• Phase C to bC
• Neutral to N
• Ground cable to ground bus
6. Make the following output
connections from the UPS
output terminal to the
downstream distribution-panel
main lug breaker:
• Terminal A to Phase A
• Terminal B to Phase B

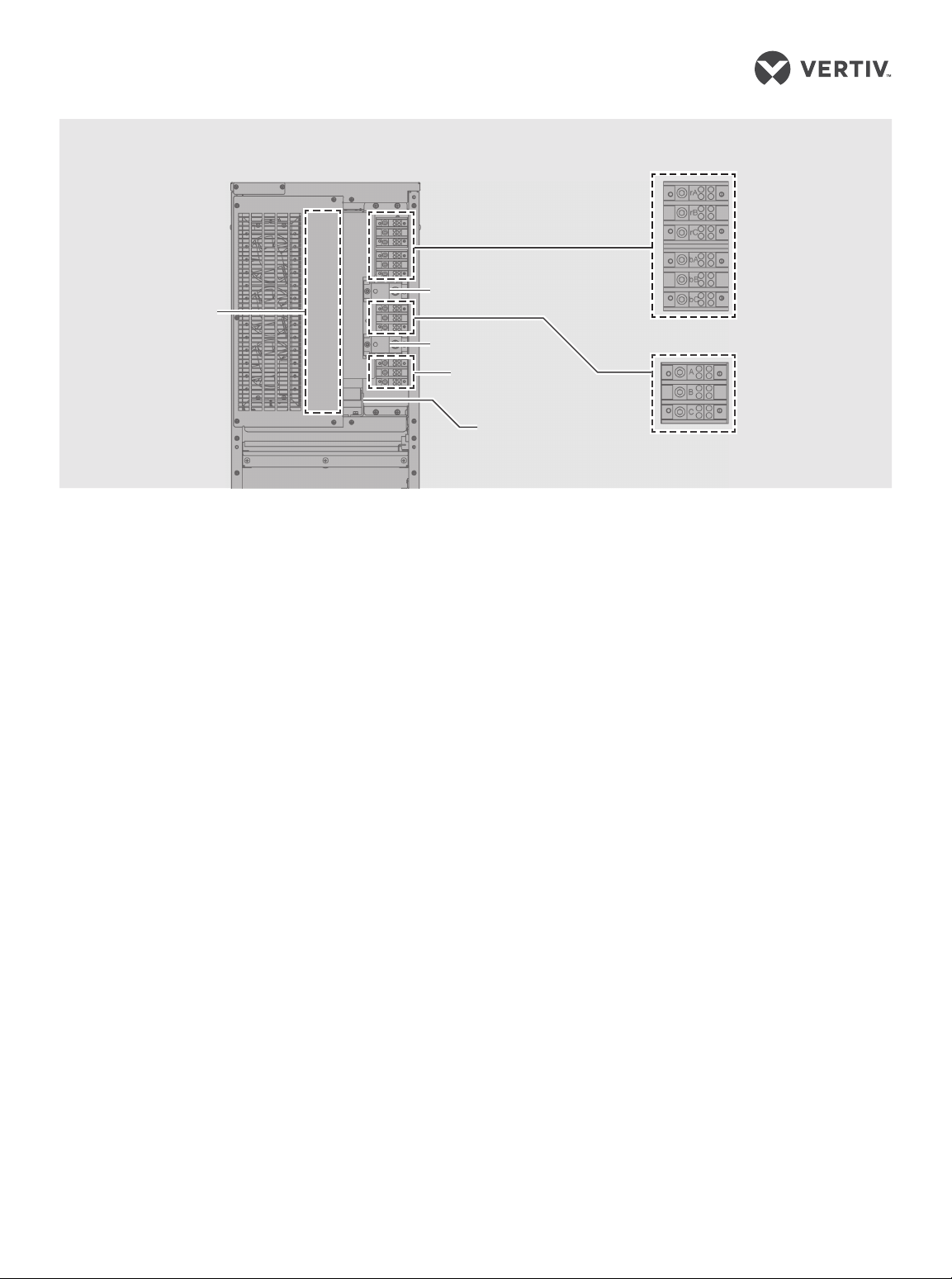

Terminal Block Connections—Compression Type
Conduit-entry
panel OUTPUT
TERMINALS
Single or
rectifier input
Bypass
dual input
Factory connections
Input neutral
Main lug
breaker
Ground busbar
Factory
connections
INPUT
TERMINALS
Output neutral
BATTERY TERMINALS

LIEBERT® EXS™ UPS 208/220‑V 15 – 20 KVA
Quick Installation Guide
4 590-1912-501B/SL-26156_REV1
• Terminal C to Phase C
• Terminal N to neutral bus
• Ground (PE) to ground bus
7. Torque phase conductor
connections to 110 lb-in, and
neutral and ground conductor
connections to 126 lb-in.
8. Reinstall the terminal-block
cover plate.
Connecting a single-input
configuration with stud type
terminal blocks
1. On the rear panel of the UPS,
remove the cover plate to
access the terminal blocks,
shown in the “Stud type”
illustration above.
2. Remove the conduit-entry
panel, punch holes for the
conduit, connect the conduit to
the panel, and re-install the
conduit-entry panel.
3. Referring to the “Stud type”
illustration, make the following
input connections from the
upstream feeder panel to the
input terminal:
• Phase A to A
• Phase B to B
• Phase C to C
• Neutral to N
• Ground cable to ground bus
4. Make the following output
connections from the UPS
output terminal to the
downstream distribution-panel
main lug breaker:
• Terminal A to Phase A
• Terminal B to Phase B
• Terminal C to Phase C
• Terminal N to neutral bus
• Ground (PE) to ground bus
5. Torque phase conductor
connections to 50 lb-in, and
neutral and ground conductor
connections to 126 lb-in.
6. Reinstall the terminal-block
cover plate.
Connecting a dual-input
configuration with stud type
terminal blocks
1. On the rear panel of the UPS,
remove the cover plate to
access the terminal blocks,
shown in the “stud type”
illustration above.
2. Remove the conduit-entry
panel, punch holes for the
conduit, connect the conduit to
the panel, and re-install the
conduit-entry panel.
3. Remove the factory-installed
single-input jumpers from the
input terminal blocks.
Terminal Block Connections—Stud Type
Cable-entry
area
OUTPUT
TERMINALS
Factory connections
Input neutral
Main lug
breaker
Ground busbar
Factory
connections
INPUT
TERMINALS
Output neutral
Single Input Dual Input

LIEBERT® EXS™ UPS 208/220‑V 15 – 20 KVA
Quick Installation Guide
590-1912-501B/SL-26156_REV1 5
4. Make the following
connections from the upstream
feeder panel to the main/
rectifier input terminal block:
• Phase A to rA
• Phase B to rB
• Phase C to rC
• Neutral to N
• Ground cable to ground bus
5. Make the following
connections from the upstream
feeder panel to the bypass-
input terminal block:
• Phase A to bA
• Phase B to bB
• Phase C to bC
• Neutral to N
• Ground cable to ground bus
6. Make the following output
connections from the UPS
output terminal to the
downstream distribution-panel
main lug breaker:
• Terminal A to Phase A
• Terminal B to Phase B
• Terminal C to Phase C
• Terminal N to neutral bus
• Ground (PE) to ground bus
7. Torque phase conductor
connections to 50 lb-in, and
neutral and ground conductor
connections to 126 lb-in.
8. Reinstall the terminal-block
cover plate.
POWERING THE UPS
NOTE: Do not start the UPS until
after the installation is finished, all
UPS wiring is complete, and all
access panels removed for
installation are replaced and
secured on the UPS.
1. Close the upstream feeder
breaker for the UPS rectifier
and, for dual-input
configuration, close the
upstream feeder breaker for the
UPS bypass.
2. Close all downstream breakers
including distribution-panel
main breaker and/or branch
circuit breakers.
3. Referring to the above
illustration, Front-panel
Components:
• Open the maintenance-
bypass breaker (MBB) and
secure the mechanical
interlock near the breaker
hand in the lower position.
• Close the rectifier-input
breaker (RIB), bypass-input
breaker (BIB), and
maintenance-isolation
breaker) MIB.
Front-panel Components
RIB
BIB
MBB
MIB

LIEBERT® EXS™ UPS 208/220‑V 15 – 20 KVA
Quick Installation Guide
6 590-1912-501B/SL-26156_REV1
The UPS starts and performs
boot-up system checks for 20 to 30
seconds.
4. Power-on the UPS using the
Operation and Display Panel by
pressing the power button until
the confirmation dialog
appears. Use the Up/Down
arrows to select “YES”, then
press Enter.
NOTE:During operation, the UPS
may sound an alarm. You may
press-and-hold the Esc button for
3seconds to silence the audible
alarm.
Operation and Display Panel
Power
Alarm
Run
Escape
Up
Down
Enter
Display

LIEBERT® EXS™ UPS 208/220‑V 15 – 20 KVA
Quick Installation Guide
590-1912-501B/SL-26156_REV1 7

To contact Vertiv Technical Support: visit www.VertivCo.com
© 2019 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names,
trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no
responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.
8 590-1912-501B/SL-26156_REV1
