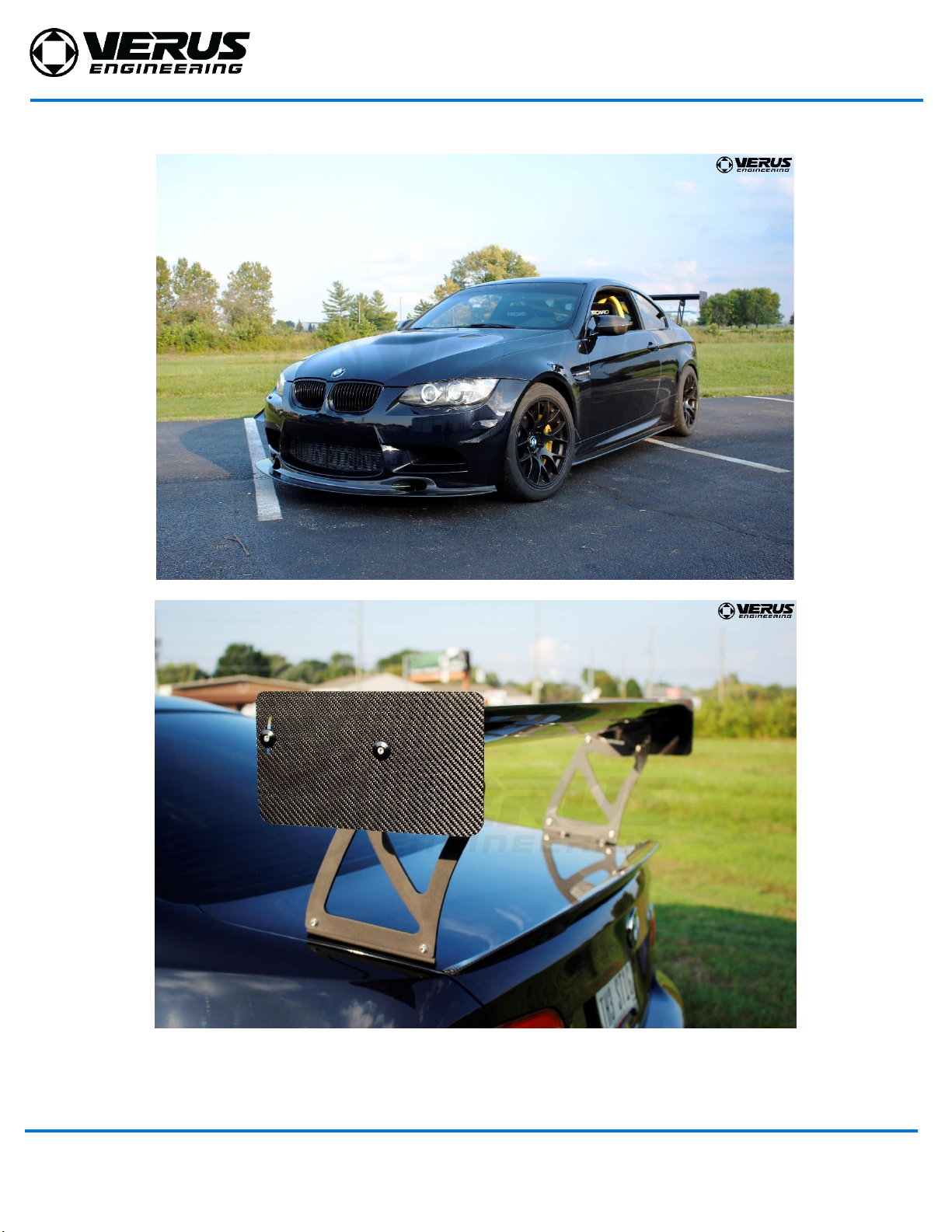

Verus Engineering UCW Rear Wing Kit Manual

UCW Rear Wing Kit –E92 BMW M3
Install Manual
Author: Clay Warner
Release Date: 2023/09/01
Approvals:E. Hazen
Document Revisions
Rev
Date
Author
Description
01
2020/09/01
C. Warner
Initial release of install manual
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]

2 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
CONTENTS
1. Introduction ....................................................................................................................................... <3>
1.1. Overview .................................................................................................................................... <3>
1.2. Difficult....................................................................................................................................... <3>
1.3. Time Required............................................................................................................................ <3>
1.4. Tools Needed ............................................................................................................................. <3>
1.5. UCW Rear Wing Components.................................................................................................... <4>
2. UCW Rear Wing Install..................................................................................................................<4-13>

3 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
1. Introduction
1.1. Overview: Detailed instructions on installing the Verus Engineering UCW Rear Wing Kit for
the E92 BMW M3.
1.2. Difficulty: Moderate
1.3. Time Required: 1.5 –2.5 hour
1.4. Tools Needed:
1.4.1. Drill
1.4.2. Starter Drill Bit
1.4.3. Center Punch
1.4.4. Step Drill Bit *Needs to have 17/32”*
1.4.5. Hammer
1.4.6. 10mm Socket or Wrench
1.4.7. Ratchet
1.4.8. 4mm Allen Wrench or Socket
1.4.9. 2.5mm Allen Wrench or Socket
1.4.10. Scissors
1.4.11. Painter’s Tape
1.4.12. Microfiber Towel
1.4.13. 50/50 mix of Isopropyl Alcohol and Water

4 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
1.5. UCW Rear Wing Kit Components
1.5.1. UCW Rear Wing Assembly
1.5.2. (2) Upright
1.5.3. (1) Trunk Mount - Left
1.5.4. (1) Trunk Mount - Right
1.5.5. (2) Carbon Endplate
1.5.6. Hardware Bag
1.5.6.1. (2) Spacer - M6, 11mm Long - Aluminum
1.5.6.2. (2) Spacer - M6, 8mm Long - Aluminum
1.5.6.3. (4) M6 x 1.0, 35mm Long BHCS (Button Head Cap Screw), Stainless
1.5.6.4. (8) M6 x 1.0, 18mm OD Fender Washer
1.5.6.5. (4) M6 x 1.0, 20mm Long BHCS, Stainless
1.5.6.6. (20) M6 x 1.0, 12mm OD Flat Washer
1.5.6.7. (12) M6 x 1.0, Nyloc Nut
1.5.6.8. (4) M6 x 1.0, 25mm Long BHCS
1.5.6.9. (4) Machined Aluminum Endplate Washer
1.5.6.10. (4) Buna-N O-Ring, #013
1.5.6.11. (4) M4 x 0.7 FHCS (Flat Head Cap Screw) x 16mm Long, Stainless
1.5.6.12. (1) VHB Double Sided Tape - Left
1.5.6.13. (1) VHB Double Sided Tape - Right
1.5.6.14. (1) Drill Template, Paper
2. UCW Rear Wing Install
2.1. Verus Engineering is not responsible for damage to you or your vehicle by following this
manual and/or installing Verus Engineering products.
2.2. We begin by gaining access to the trunk. You can leave the trunk on car during the install
but removing the trunk is also quite easy. We decided to keep the trunk installed on the car.

5 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
2.3. First, we have to cut the drill template out.
2.4. Install the paper template onto the trunk with painter’s tape using the guidelines noted on
the template. These markings are outlined in yellow in the below photo.
2.5. Using a center punch, mark the center of the holes outlined in the following image in
orange.

6 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
2.6. Using a 1/8” drill bit to start, create a starter hole for all of the holes. Drill through both the
top and the bottom surface of the trunk. Make sure you are drilling as perpendicular to the
trunk surface as possible. Note: If you are installing the wing with the trunk on-car, ensure
you do not drill into the chassis underneath the trunk. Opening the trunk slightly helps
ensure this does not happen.
2.7. We now need to open these holes to 1/4" for the M6 bolts to slip through.
2.8. On the top side of the trunk surface only, we need to enlarge these holes to 17/32” so that
the aluminum spacers can fit inside the trunk skins as shown below. We recommend
utilizing a large step bit for this. Note: Do not enlarge the holes on the bottom side of the
trunk. The holes on the bottom side need to stay 1/4”.

7 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual

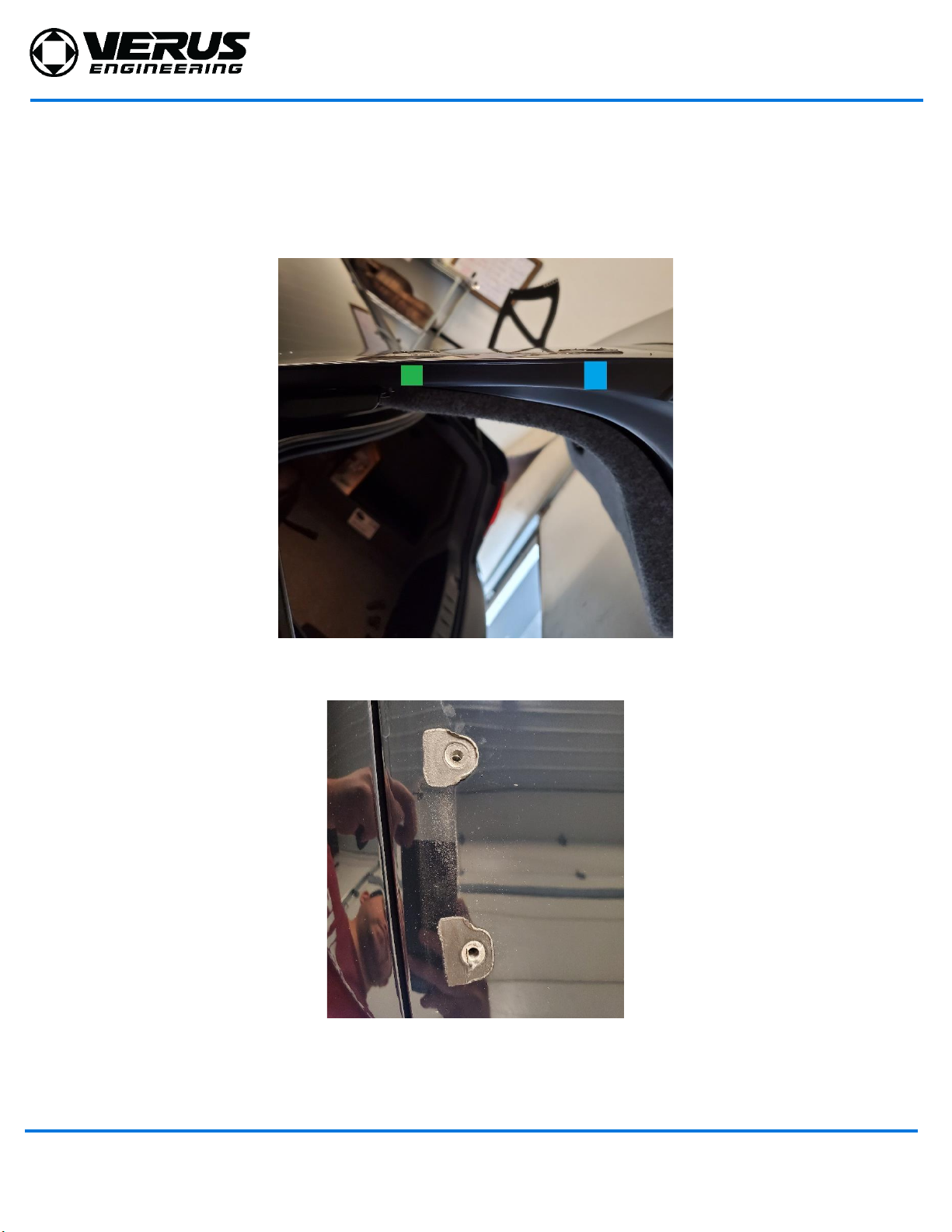

2.9. Once all of the holes on the top side of the trunk are opened up to 17/32”, slide the
aluminum spacers in the locations mentioned below. Keep the trunk slightly open for this
step. The forwardmost spacer (green) is the smaller of the two sizes at 8mm tall. The
rearward spacer (blue) will be the larger of the two and is 11mm tall.
2.10. The top side of the trunk should now look like the following image.
2.11. Prep the trunk and trunk mount surfaces for the 3M VHB install. Using your microfiber
towel, wipe both surfaces clean with your 50/50 isopropyl alcohol and water mixture.

8 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual

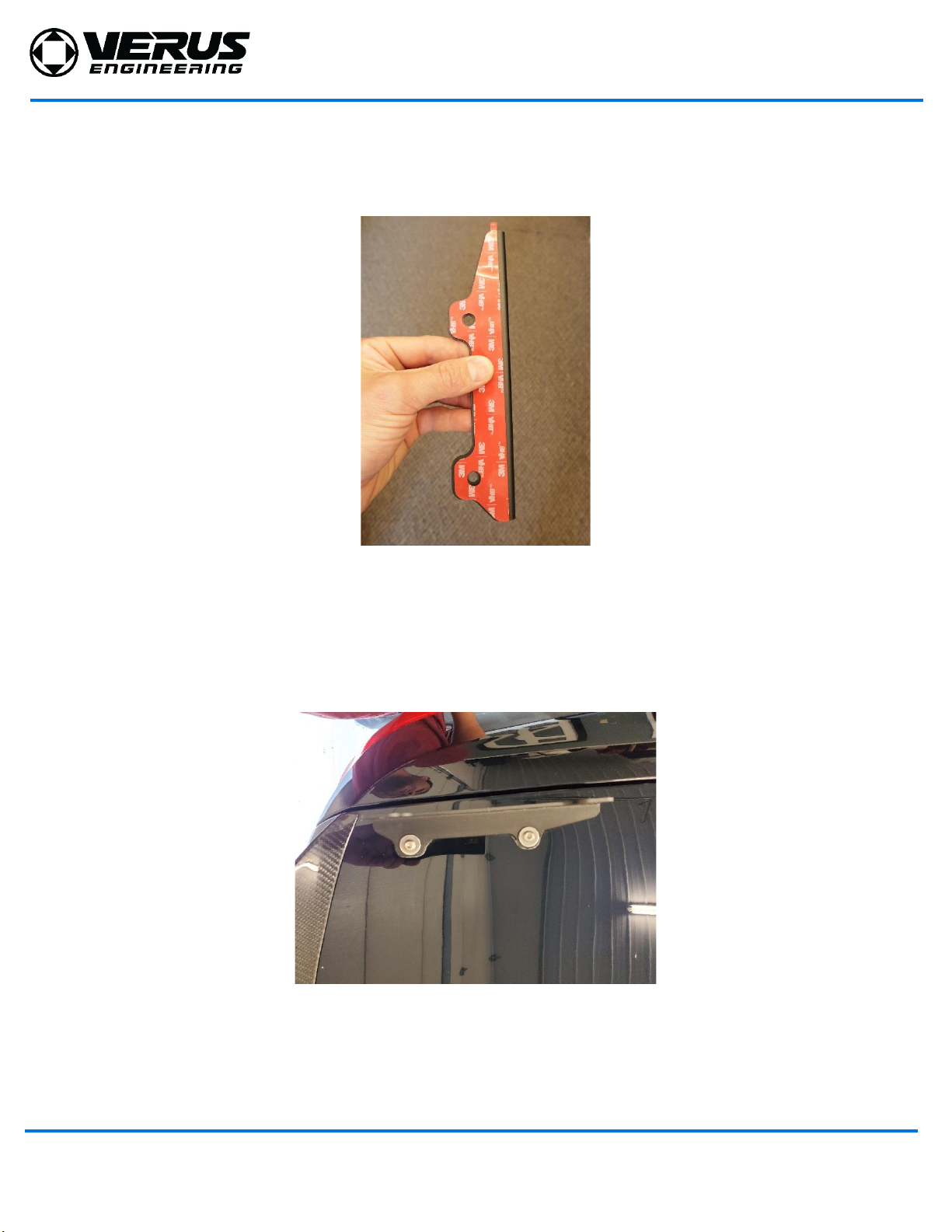

2.12. Install the pre-cut 3M VHB onto the trunk mounts as shown below.
2.13. Remove the red backing from the 3M VHB and install onto trunk using the holes in the
aluminum spacers are your reference points.
2.14. Using four M6x1.0, 35mm long BHCS and 18mm OD washers, place these through the
mounting holes in the trunk mount and aluminum spacers until you see the threads poke
out on the bottom side of the trunk.

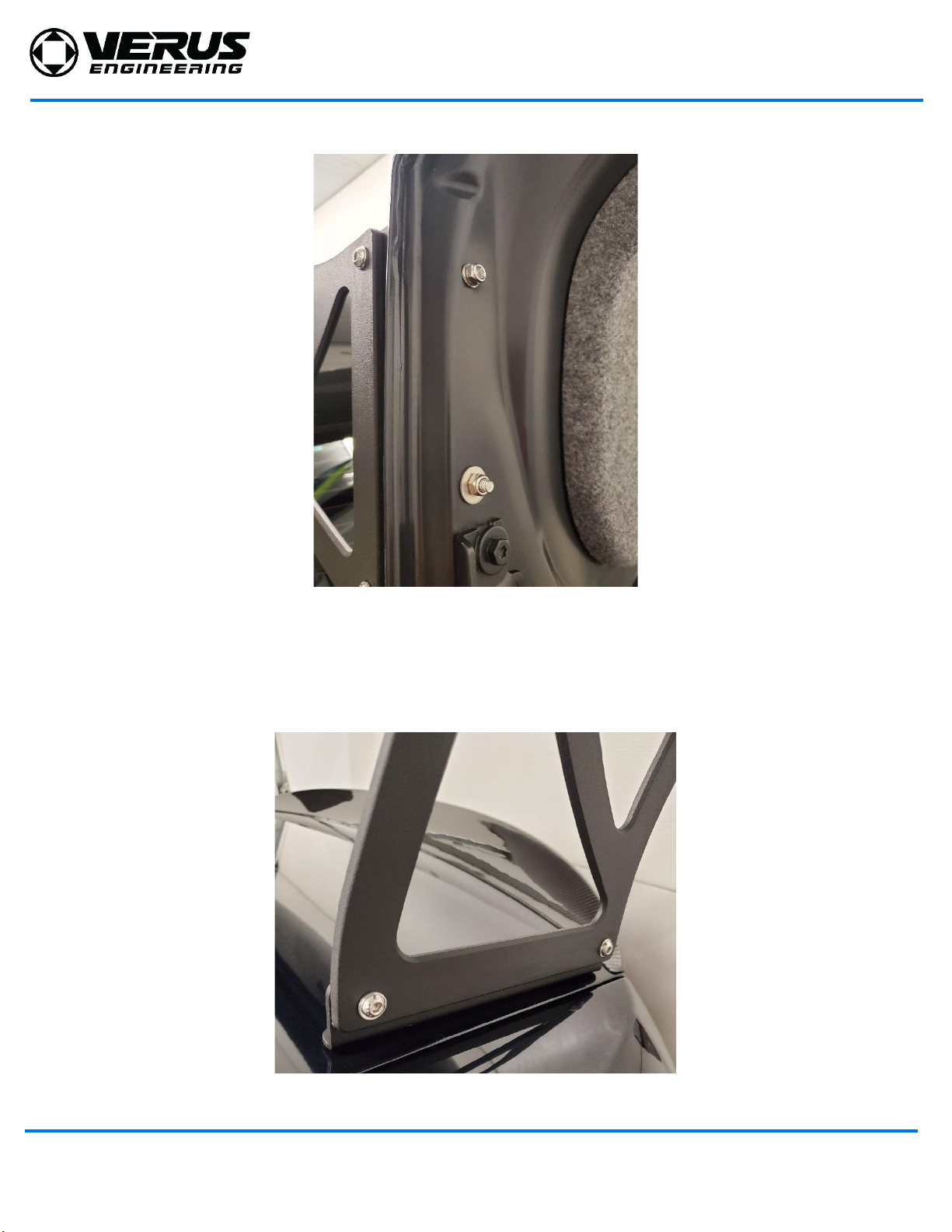

2.15. Using M6x1.0 nyloc nuts and associated washers, fully install the trunk mounts as shown
below. Tighten to roughly 6 ft-lbs. Note: The frontmost location uses an 18mm OD washer,
whereas the rearmost location a 12mm OD washer is needed.

9 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
2.16. It is now time to install the uprights. Using the four M6x1.0, 20mm long BHCS, eight
12mm OD washers, and four nyloc nuts, install the uprights as shown below. Tighten to
roughly 6 ft-lbs. Note that the upright is on the *outside* of the upright in the below
image. However, if you feel the aesthetics are better with the upright on the inside of the
trunk mount, feel free to install in that fashion.

10 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
2.17. Choose the angle or attack, you would like to set the wing at. Below is a guideline of
what we have designed and tested internally. That being said, every install and car can vary
from this slightly. To ensure proper AOA, you should lay a straight edge from front to rear of
the wing and check the degree measurement *in relation to the ground plane*.

11 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
2.18. Use the four M6 x 1.0 x 25mm long BHCS, eight 12mm OD washers, and four nyloc nuts
to install the rear wing onto the uprights. Tighten to roughly 6 ft-lbs.
2.19. To finish installing the rear wing, we have to install the endplates. We include aluminum
washers that accept M4 flat head cap screws and o-rings to reduce marring of the endplate.
Install the o-ring in the washer groove and install into the endplate and rear wing as shown
below.

12 3/6/2016
Author: Clay Warner
Date: 2023/09/01
Recipients: Public
ENGINEERING | NORTH AMERICA
REVISION: R01
Confidential: Property of Verus Engineering. Not for Distribution outside intended recipient list.
Verus Engineering
[e-mail]
UCW Rear Wing Kit, E92 BMW M3–Install Manual
2.20. The endplate, top or bottom edge, should be parallel to the ground. Utilize a level and
snug the bolts once the endplates are parallel to the ground. They are M4 and do not need
much torque.
2.21. Congratulations on installing the UCW rear wing for the E92 BMW M3! For more
information on performance, please visit our website and take a look at the Ventus
informative packets.
2.22. Please send any questions, comments, concerns, or photos to Verus Engineering via e-
mail; [e-mail].
