ETS-Series Self-Adjusting Work Tables
Instruction Manual
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: [phone] -or-Toll Free [phone]
Fax: [phone]
Web: www.vestilmfg.com e-mail: [e-mail]
Table of Contents
Specifications..…………………………………………………………………………………………………….…...... 2
Signal Words…………....…………………………………………………...……………………………………….......2
Hazards of Improper Use………………………………………………………………………………………...……2 – 3
ETS-230 Exploded View and Bill of Materials………………….……………………………………………………..3
ETS-460 Exploded View and Bill of Materials…………………………….…………………………………………..4
Load Chart…….………………………………………………………………………………………………….............5
Using the Table…..…………….…………………………………………………………………………………………5
Record of Normal Condition……………………………………………………………………………………………. 6
Inspections & Maintenance….…………………………………………………………………………………………..6
Labeling Diagram……………….…………………………..……………………………………………………………6
Limited Warranty……………………………………………………………………………………………...................7
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of
it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE:The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Replacement Parts and Technical Assistance:
For answers to questions not addressed in these instructions and to order replacement parts,
labels, and accessories, call our Technical Service and Parts Department at [phone]. The
department can also be contacted online at http://www.vestilmfg.com/parts_info.htm.

Table of Contents Rev. 10/9/2018 ETS MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 2of 7
Specifications:
Dimensions, capacity, and net weight information appear in the table and diagrams.
Signal Words:
This manual uses SIGNAL WORDS to indicate the likelihood that a particular action will cause personal injuries
or
property damage. Signal words also specify the level of seriousness of injury if the product is misused in the
ways
described. The following signal words are used in this manual.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS
INJURY.
Identifies practices likely to result in product/property damage, such as operation that might
damage the product.
Identifies practices likely to result in product/property damage, such as operation that might
damage the ladder.
Hazards of Improper Use:
Vestil strives to identify all hazards associated with the use of our products. However, material handling is dangerous
and
no manual can address every risk. The most effective means for preventing accidents is for the end-user to
exercise
common sense and sound judgment whenever using this product.
Improper or careless use might result in serious personal injuries.
• Do not remove, alter, or obscure any label. If a label is damaged or unreadable, replace it. DO NOT use the lifter
until all replacement labels are applied.
• Do not exceed the capacity of your table! Each table is labeled with its capacity. See Label 287 in Labeling
Diagram on p. 6).
• The table should never be used with fewer than 4 springs.
• Center and evenly distribute loads applied to the table.
• Apply both caster brakes whenever the table is stationary and particularly whenever loads are applied.
• Do not move the table across sloped terrain while it is loaded.
• ALWAYS remain uphill of the (unloaded) table whenever moving up or down inclines. If you cannot easily handle
the table, do not attempt to move it by yourself.
• Keep your hands away from pinch points and openings. Do not reach beneath the table while it is loaded.
Model Capacity Net weight
ETS-230
230 lb.
104.5 kg
118 lb.
53.6 kg
ETS-460
460 lb.
209.1 kg
119 lb.
54.1 kg

Table of Contents Rev. 10/9/2018 ETS MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 3of 7
• Carefully load the table, i.e. do not drop loads onto it.
• Do not modify this table without express, written approval from Vestil. Unauthorized modifications automatically
void
the Limited Warranty on p. 7 and might make the table unsafe to use.
• Maintain the device according to the Inspections & Maintenance instructions on p. 6. If replacement parts are needed,
only install manufacturer-approved parts.

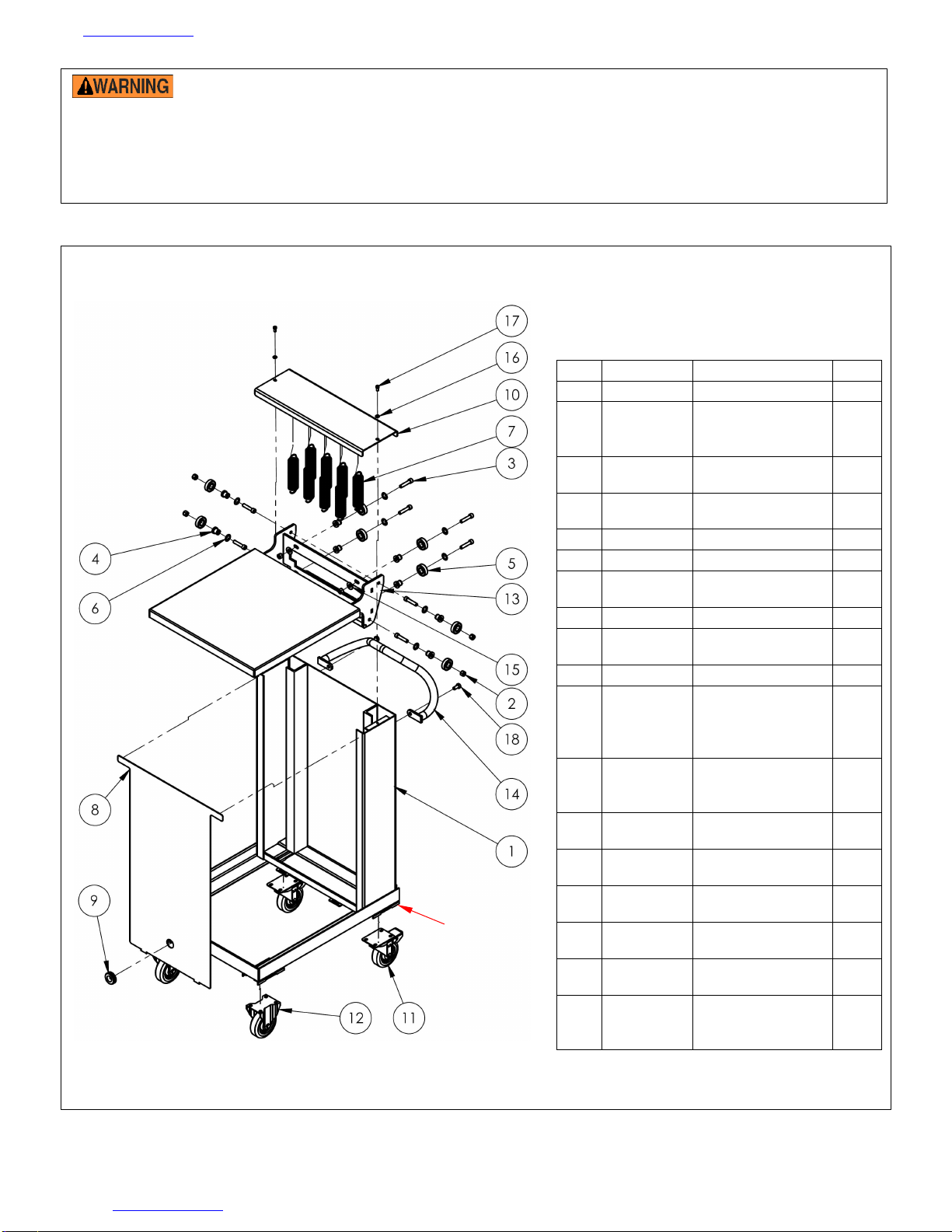

ETS-230 Exploded View and Bill of Materials
(continued from p. 2)
Item
Part no.
Description
Qty.
1
21-514-151
Weldment, body
1
2 37024
Nylon insert lock
nut, gr. 2, zinc
finish,
3
/8”-16
8
3 23310
Bolt, SHCS, 3/
8
”-
16x1
3
/4”
8
4 21-113-021
Spacer, bearing
shaft
8
5
20-110-006
Roller bearing
8
6
68083
E-clip, steel, for 5/8”
8
7 21-146-003
Spring, extension,
#3
8
8
21-024-071
Cover, front, frame
1
9 01-034-021
Grommet, black
rubber
1
10
21-524-006
Weldment, top
1
11 16-132-195
Caster, poly-on-
poly, swivel with
brake, PP-4/1.25-
S-TTL
2
12 16-132-197
Rigid caster,
4”x1.25”,PP-
4/1.25-R
2
13 21-513-101
Weldment, deck,
carriage
1
14 16-025-025
Handle, formed,
ergo
1
15 33007
3/
8
” USS flat
washer, plain
4
16 33617
1/
4
” split lock
washer
2
17 23201
Socket head bolt,
1
/4”-20 UNC x
1
/2”
2
18 11003
Hex bolt, gr. A,
zinc plated, 1/4”-20
x
3
/4”
2
Caster
receiver

Table of Contents Rev. 10/9/2018 ETS MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 4of 7
ETS-460 Exploded View and Bill of Materials
Item Part no. Description Qty. Item Part no. Description Qty.
1 21-514-151 Weldment, body 1 10 21-524-006 Weldment, top 1
2 37024 Nylon insert lock nut, gr. 2, zinc
finish, 3/8”-16 8 11 16-132-195
Caster, poly-on-poly, swivel
with brake, PP-4/1.25-S-
TTL
2
3 23310 Bolt, SHCS, 3/8”-16x13/4” 8 12 16-132-197
Rigid caster, 4”x1.25”,PP-
4/1.25-R
2
4 21-113-021 Spacer, bearing shaft 8 13 21-513-101
Weldment, carriage & load
deck
1
5 20-110-006 Roller bearing 8 14 16-025-025 Handle, formed, ergo 1
6 68083 E-clip, steel, for 5/8” 8 15 33007 3/8” USS flat washer, plain 4
7 21-146-003 Spring, extension, #3 14 16 33617 1/4” split lock washer 2
8 21-024-071 Cover, front, formed 1 17 23201
Socket head bolt, 1/
4
”-20
UNC x
1
/2”
2
9 01-034-021 Grommet, black rubber 1 18 11003
Hex bolt, gr. A, zinc plated,
1
/4”-20 x
3
/4”
2
Caster
receiver

Table of Contents Rev. 10/9/2018 ETS MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 5of 7
Using the table:
1. Position the table as needed.
2. Apply both caster brakes.
3. Determine the net weight that will be applied to
the table.
4. Use the load chart above to determine how many
springs to use.
5. Remove the top cover by unscrewing the socket
head bolts.
6. Unhook the springs that will not be used.
Disconnect springs from the lower hanger bar, but
leave them connected to the upper hanger bar.
7. Replace the cover and reinstall the bolts.
8. Carefully apply the load to the table.
(Shown without top cover, front cover, and load deck for clarity)
Socket head bolt
Top cover
Front cover
Load deck
Lower hanger bar
Upper hanger bar
Socket
head bolt
Caster brake
lever: press
down on
brake lever
to engage
the brake.
Lift the lever
to release
the brake
Mast
Mast track

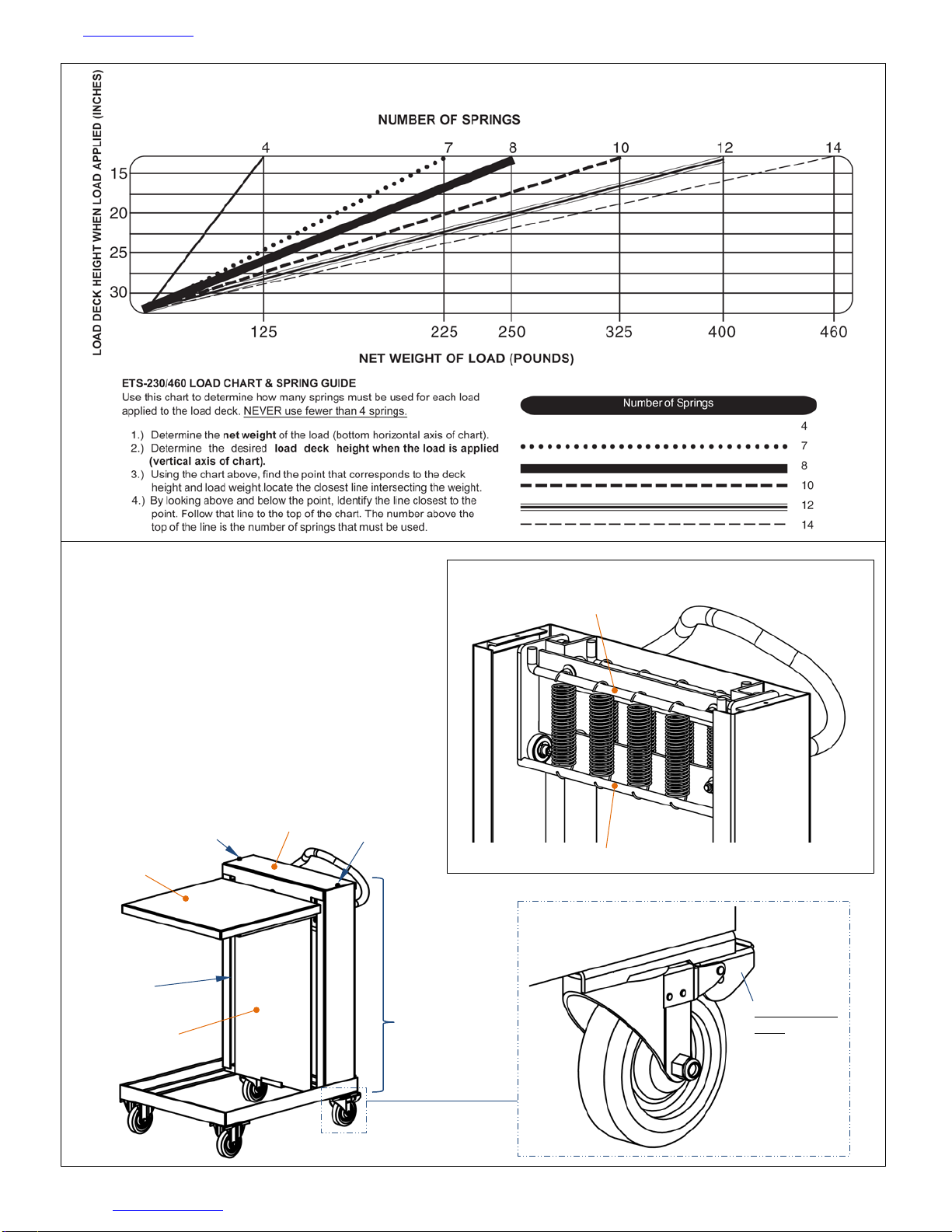

Load chart:

Table of Contents Rev. 10/9/2018 ETS MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 6of 7
Record of Normal Condition:
Before using the table for the first time, create a written record of its appearance and functions. Include detailed
descriptions about the frame, casters, load deck, and the mast. Include observations about how the load deck
responds when a test weight is applied to it as well as any sounds you hear. Thoroughly photograph the unit and all
labels. Add the photographs to the record. This record establishes “normal condition”. When conducting future
inspections, compare your observations with the record to determine if a component is in normal condition or requires
repair or replacement.
Inspections & Maintenance:
Regular inspections and maintenance are necessary to keep the table in normal condition for as long as possible.
Do not use the table unless it is in normal operating condition. Complete all replacements and repairs before
returning the table to service.
Step 1: Tag the table “Out of Service.”
Step 2: At least once per month, inspect the elements listed below. Refer to the appropriate Exploded View on p. 3 or 4.
A. Frame: Inspect all welds for cracks. Inspect the metal tubing for damage, warps, and cracks. Also examine
the connection points between the frame and the formed base piece. Make sure that the nuts and bolts are
securely fastened together and that the bolt holes in the frame are not elongated, warped, or cracked.
B. Casters, caster receivers, and retaining hardware: Check casters for excessive wear. All 4 casters should
solidly contact the ground and should roll smoothly without wobbling. Examine the center hub of each
caster for cracks. Confirm that caster receivers (see p. 3 or 4) and retaining hardware are in normal condition.
C. Mast (body), load deck, and carriage: Inspect all parts of the deck and carriage for cracks, bends, and other
damage. The deck should be level, square, and rigid. Apply a test load to the deck. Make sure that the deck
descends smoothly and evenly from side to side. If the deck makes a lot of noise as it moves, apply a silicon
wax to the mast track and lubricate the roller bearings.
D. Springs: Remove the top cover and examine the springs. Confirm that every spring is intact. Apply a
test load to the deck and slowly reduce it. Confirm that the springs recoil normally. Replace a spring
if it is stretched, bent, or severely rusted.
Step 3: Complete all necessary repairs/replacements. Deformities, severe corrosion or rusting, or excessive wear of
any part warrants immediate replacement of that part. DO NOT return the table to service until adjustments and
repairs are complete!
NOTE: Adjustments and repairs differ significantly from modifications.
a) Adjustment (or repair) means a simple correction that restores the cart to normal condition. Examples include
tightening loose fasteners and lubricating moving parts.
b) Modifications are changes that alter the cart from original condition, like bending the frame. NEVER modify the
cart without express, written approval from Vestil. Modifications automatically void the limited warranty and might
make the device unsafe to use.
Step 4: Make a dated record of all repairs, adjustments and replacements.
Step 5: Store the cart indoors in a dry location.
Labeling Diagram:
Each unit should be labeled as shown in the diagram. However, label content and location are subject to
change so your product might not be labeled exactly as shown. Replace all labels that are damaged, missing, or
not easily readable (e.g. faded). To order replacement labels, contact the technical service and parts department
online at http://www.vestilmfg.com/parts_info.htm. Alternatively, you may request replacement parts and/or service
by calling [phone] and asking the operator to connect you to the Parts Department.
C
B
A
A: Label 287
B: Label 658
C: Label 212

Table of Contents Rev. 10/9/2018 ETS MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 7of 7
LIMITED WARRANTY
Vestil Manufacturing Corporation (“Vestil”) warrants this product to be free of defects in material and workmanship
during the warranty period. Our warranty obligation is to provide a replacement for a defective, original part covered
by the warranty after we receive a proper request from the Warrantee (you) for warranty service.
Who may request service?
Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an
authorized distributor AND Vestil has been fully paid.
Definition of “original part”?
An original part is a part used to make the product as shipped to the Warrantee.
What is a “proper request”?
A request for warranty service is proper if Vestil receives: 1) a photocopy of the Customer Invoice that displays the
shipping date; AND 2) a written request for warranty service including your name and phone number. Send requests
by one of the following methods:
US Mail Fax Email
Vestil Manufacturing Corporation [phone] [e-mail]
2999 North Wayne Street, PO Box 507 Phone Enter “Warranty service request”
Angola, IN 46703 [phone] in subject field.
In the written request, list the parts believed to be defective and include the address where replacements should be
delivered. After Vestil receives your request for warranty service, an authorized representative will contact you to
determine whether your claim is covered by the warranty. Before providing warranty service, Vestil will require you to
send the entire product, or just the defective part (or parts), to its facility in Angola, IN.
What is covered under the warranty?
The warranty covers defects in the following original, dynamic parts: motors, hydraulic pumps, motor controllers,
and cylinders. It also covers defects in original parts that wear under normal usage conditions (“wearing parts”), such
as bearings, hoses, wheels, seals, brushes, and batteries.
How long is the warranty period?
The warranty period for original dynamic components is 1 year. For wearing parts, the warranty period is 90 days.
Both warranty periods begin on the date Vestil ships the product to the Warrantee. If the product was purchased from
an authorized distributor, the periods begin when the distributor ships the product. Vestil may, at its sole discretion,
extend a warranty period for products shipped from authorized distributors by up to 30 days to account for shipping
time.
If a defective part is covered by the warranty, what will Vestil do to correct the problem?
Vestil will provide an appropriate replacement for any covered part. An authorized representative of Vestil will
contact you to discuss your claim.
What is not covered by the warranty?
The Warrantee (you) is responsible for paying labor costs and freight costs to return the product to Vestil for
warranty service.
Events that automatically void this Limited Warranty.
•Misuse;
•Negligent assembly, installation, operation or repair;
•Installation/use in corrosive environments;
•Inadequate or improper maintenance;
•Damage sustained during shipping;
•Collisions or other accidents that damage the product;
•Unauthorized modifications: Do not modify the product IN ANY WAY without first receiving written authorization
from Vestil.
Do any other warranties apply to the product?
Vestil Manufacturing Corp. makes no other express warranties. All implied warranties are disclaimed to the extent
allowed by law. Any implied warranty not disclaimed is limited in scope to the terms of this Limited Warranty. Vestil
makes no warranty or representation that this product complies with any state or local design, performance, or safety
code or standard. Noncompliance with any such code or standard is not a defect
