VEVOR S3018 Pro User manual
1/14
S3018 Pro CNC Engraving Machine
Catalog
1. Pa Li...2
2. Machine Assembly....................................................3
3. Control board and Laser.............................7
4. Candle Sofae............7
5. Lae Gbl Sofae..............................................................11
6. Offline Conolle ....13
7. Restore factory setting..................................14
8. Online guide and video...................................14
Safty Notice
Avoid direct laser radiation on eyes or skin
Away from children
Always wear protective glasses when use the laser
Prohibited from use in flammable objects or gases
Please cut off the power immediately in case of emergency
Shutdown steps: first cut off the power, then pull out the USB cable
Precautions
(1). All parts description just for illustrative purpose. If there is any difference, please refer to the actual part shape.
(2). Please make sure that the machine is under care when it is working.
(3). If your machine is equipped with an offline controller, please note that the offline controller and the computer
cannot be connected to the engraving machine at the same time, otherwise it will not work normally.
(4). If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and
related content.
Scan for videos and guides
S3018 Pro Ver 2.3
1.Parts List
Part No Part Name Eplanation Quantit Picture Part No Part Name Eplanation Quantit Picture
01 Aluminum profile 15180*300mm 1
02 Aluminum profile 2020*370mm,Black 2
03 Aluminum profile 2040*295mm,Black 2
A3 T8 Nut (Z T8*15mm 1
05 Connecting plate (back) Black bakelite 1 A4 Z Lead scre T8*88mm 1
A5 Z Smooth ais 8*92mm 2
A6 Stepper motor 42HD 1
07 Connecting plate (right) Black bakelite 1 A7 Inner heagon scre M3*10 4
08 X Smooth ais 10*370mm 2 A8 Spindle motor 775 1
09 Y Smooth ais 10*295mm 2 A9 Inner heagon scre M4*30 1
10 X Lead scre T8*393mm 1 A10 Square Nut M4*2.5mm 1
11 Y Lead scre T8*308mm 1 A11 Inner heagon scre M3*18 4
14 Muff coupling(Z 8-5 1 Set
17 Spring 10.5 1
12 T8 Nut (X/Y 2 Part No Part Name Eplanation Quantit Picture
13 Stepper motor 42HD 2 C1 Control board VIGO 1
14 Muff coupling (X/Y 8-5 2 Set C2 Column PA,M5*3 4
15 Nut support seat (Y) T8 1 C3 Inner heagon scre M5*10 4
16 Guide block (Y) 4 C4 Ship nut M5-10 4
17 Spring 10.5 2 C5 Stepper motor ire 4P 3
18 Hand knobX/Y 8*18mm 2 C6 Spindle motor ire 2P 1
19 Hand knobZ 5*18mm 1
20 Inner heagon scre M5*16 12
21 Inner heagon scre M5*20 20 C8 USB cable 1
22 Inner heagon scre M3*14 4 C9 Poer suppl 24V,5A 1
23 Inner heagon scre M3*18 4
24 Inner heagon scre M6*12 10 Part No Part Name Eplanation Quantit Picture
25 Trapeoidal nut M5-20 12 L1 Laser kit Optional 1 Set
26 Trapeoidal nut M6-30 10 L2 Laser ire 3P 1
L3 Protective glass Optional 1
28 ER11 C16-ER11-35L 5mm 1 Set
29 Milling cutter 1 Set Part No Part Name Eplanation Quantit Picture
30 Fiture 4 Set 30-1 Pressing plate 50*20 4 PCS
31 Inner Heagon Wrench 2/2.5/3/4/5mm 1 Set 30-2 Scre M6*40 4 PCS
32 Nut Wrench 14# / 17mm 1 Set 30-3 Scre M6*45 4 PCS
33 Soft brush 1 30-4 Butterfl nut M6 4 PCS
34 U Disk 1 30-5 Washer M6*2mm 4 PCS
Laser package Optional
Fiture30 assembl
06 Connecting plate (left) Black bakelite 1
1
04 Connecting plate (font) Black bakelite 1
1
A2 Guide block (Z)
A1 Guide block (X)
Component A ( Alread assembled )3018Pro Parts List
Control board package
2/14
27 Set Scre for knob M4*5 3
C7 Offline controller
and date cable Optional 1 Set
A Component Alread assembled 1 Set
0-
0- 0-2
0-1
0-
S3018 Pro Ver 2.3
12: T8 Nut 1PCS
17: Spring 1PCS
15: Nut support seat 1PCS
Press T8 nut to the bottom and
turn Y Lead screw at the same time
11:Y Lead screw T8*308mm 1PCS
15: Nut support seat 1PCS
03: Aluminum profile
2040*295mm 2PCS
25: Trapezoidal nut
M5-20 12PCS
16: Guide block 4PCS
09: Φ10*295mm 2PCS
Y Smooth axis
27: M4*5 1PCS
Set Screw for knob
20: M5*16 12PCS
Screw
05: Connecting plate (back) 1PCS
13: Stepper motor 1PCS
22: M3*14 4PCS
Screw
18: Φ8*18mm 1PCS
Hand knob (Y)
04: Connecting plate (font) 1PCS
Direction of
connecting wire
26: Trapezoidal nut
M6-30 10PCS
01: Aluminum profile
15180*300mm 1PCS
3/14
24: M6*12 Screw 10PCS
14: Muff coupling 1PCS
13: Stepper motor 1PCS
Step ①
Step ②
2. Machine Assembly
The direction of the
big hole is outward.
The direction of the
big hole is outward.
S3018 Pro Ver 2.3
12: T8 Nut (X1PCS
17: Spring 1PCS
Component A
28: ER11 1Set
27: M4*5 1PCS Set Screw for knob
19: Hand knobZΦ5*18mm 1PCS
10: X Lead screw
T8*393 1PCS
08: X Smooth axis
Φ10*370 2PCS
Component A
02: Aluminum profile
2020*370mm 2PCS
08: X Smooth axis
Φ10*370mm 2PCS
10: X Lead screw
T8*393mm 1PCS
21: M5*20 Screw 4PCS
13: Stepper motor 1PCS
23: M3*18 screw 4PCS
Direction of
connecting wire
06: Connecting plate (left) 1PCS
25: Trapezoidal nut
M5-20 6PCS
21: M5*20 Screw 10PCS
18: Hand knobX
Φ8*18mm 1PCS
27: M4*5 1PCS
Set Screw for knob
46mm
21: M5*20 6PCS
Screw
25: Trapezoidal nut
M5-20 6PCS
07: Connecting plate (right) 1PCS
14: Muff coupling 1PCS
13: Stepper motor 1PCS
Step ③
Step ④
Step ⑤
Step ⑥
Press T8 nut to the bottom and turn X Lead screw at the same time
Component A
4/14

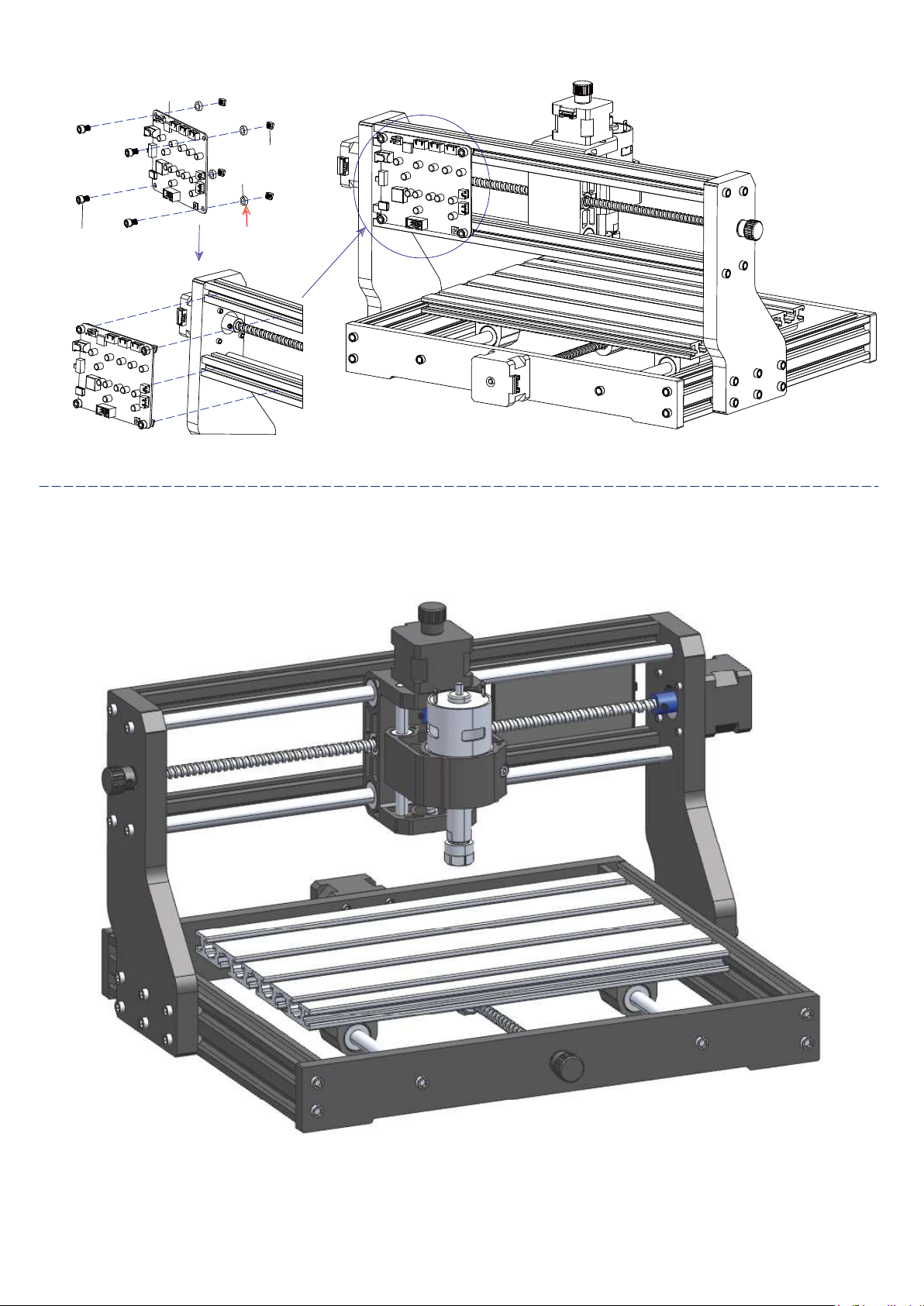

28: ER11 assembly
S3018 Pro Ver 2.3
Step
5/14
The plastic column must
be assembled between
the control board and
the aluminum parts.
C4: M5-10 4PCS
Ship nut
C1: Control board 1PCS
C2: Column 4PCS
C3: M5*10 4PCS
Screw
S3018 Pro Ver 2.3
6/14
3. Control-Board and Laser (Laser is optional)
3.1 Instructions for control board connection
The Motor-X/Y/Z interface on
board should be connected to the
X/Y/Z motors correspondingly. The
6Pin plug is for the motor, and the 4Pin
is for the control panel. Power interface
connects to the power supply and USB
connects to the computer. Connect the
spindle motor wire according to the
correct polarity.
In general, there is no need to
adjust the motor driver current.
If using laser, please connect the
laser to the control board with the 3pin
wire. Correctly focus the laser on the
materials to be engraved referring to
the laser instructions below before
starting engraving.
3.2 Instructions for laser (Optional).
Please wear the protective glasses before operating the laser!
When all the connections are completed, turn on the power, and the laser is standby for working. The red light on
the top of the laser is continuous lighting in this time.
Turn on the weak light and adjust the focal length (except the Fixed-Focus Laser)
Please lay the materials to be engraved flat under the laser. The recommended distance from laser outlet to
materials is 3~10cm. Out of range may be out of focus.
Turn on the weak light. Rotate the focusing ring slowly on the laser outlet to shrink the laser spots. When the laser
spot is smallest and clearest, it is the optimum state for laser engraving, then turn off the weak light.
If you use the fixed-focus laser XTS15D, please use the focusing measuring column to adjust the distance between
the light outlet and the engraved surface to 18mm.
Note: Laser XTS05/XTS08/XTS10 have a weak light switch on top of the lasers, you also can use the switch to turn
on weak light. Be sure to turn of the switch before you start laser engraving.
4. Candle Software
Candle is a GUI application for GRBL-based CNC-machines with G-Code visualizer.
Candle is an open-source software suitable for CNC machine tool processing. It supports
G code file processing and visual display.
XTS05
XTS08
XTS10
Is adjustable
XTS15D Laser
Is fixed-focus
Can't be adjusted
XTS15 Laser
Is adjustable
Focusing
R
ing
Focusing Ring Focusing Column
18mm
The terminal of the red dot of
the spindle motor is positive,
please plug in the red wire.
S3018 Pro Ver 2.3
7/14
Supported functions:
(1) Controlling GRBL-based CNC-machine via console commands, buttons on form, numpad.
(2) Monitoring CNC-machine state.
(3) Load, edit, save and send G-code files to CNC-machine.
(4) Visualizing G-code files.
4.1 States
Work coordinates:
Represents current X, Y & Z local coordinates of the CNC.
Machine coordinates:
Represents current X, Y & Z absolute machine coordinates.
One of following CNC status:
Idle - waiting for a G-code command Running - running a G-code command
Home - homing cycle is executing
Check - G-code command check mode is turned on
Hold - paused by a "!" command, need to be restarted by a "~" command
Alarm - CNC doesn't know where it is and blocks all G-code commands
4.2 Control
Home button
Starts the homing cycle procedure with "$H" command
Z-probe
Starts the zero Z-axis search procedure using the command specified in the
settings ("Z-probe commands" box). Example command:G91G21;
G38.2Z-30F100; G0Z1; G38.2Z-1F10
Zero X/Y
Zeroes the "X" and "Y" coordinates in the local coordinate system. Also retains an local system offset ("G92") for later use.
Restore X/Y/Z
Restores local system coordinates with "G92" command.
Safe Z
Moves tool by "Z"-axis to safe position. Position coordinate can be specified in the "Safe Z" setting. Position must be
specified in machine coordinates.
Reset
Resets CNC with "CTRL+X" command
Unlock
Unlocks CNC with "$X" command.
4.3 Software using steps
(1). Install the driver
For the first time use, please connect the device to the computer via USB cable, and click the CH340-Driver.exe file in
the driver folder to install the driver. Under normal circumstances, the Win10 system will automatically identify and
install the driver. For Win7 and Win8 systems, please install it manually.
(2) Set the port and connection
After installing the driver, open the device manager of the computer and click on
the port option to see the content inside the red box on the screen shown in the
figure below (the port information is in brackets).
Remember the port information queried above, switch to the Candle software
interface and click the "Settings" option in the upper left corner. Selecting the setting
will pop up the setting window. Under "Connection", select the port name you queried, select the baud rate 115200,
and then click the "ok" to finish the setting.
S3018 Pro Ver 2.3
8/14
(3). Complete connection
After setting the port and baud rate, click Finish. The
status bar at the top right of the Candle interface will show
Idle, and at the same time, the console at the bottom right
will display the information shown below, indicating that the
connection has been successfully established.
(4). Processing documents
Click "File" option at the top of candle, then click "New" to
create G-Code. On the command bar at the bottom of the
interface, click "Open" to select a G code file that has been
made to import the file. After importing, the middle of the
interface will display a visual graph composed of tool paths
(the position of the pen-shaped graph in the graph is the
current tool position). In the visualization window, hold down
the left mouse button to move to rotate the graph, and hold
down the right button to move. Graphics, scrolling the
middle wheel can zoom in and out of the graphics. At the
same time, the content of the G-Code will be displayed in the lower command bar. During processing, the machine will
run one by one according to the G-Code commands.
S3018 Pro Ver 2.3
9/14
(5). Fixture, tool installation and Set the working coordinate origin
The fixture in the product kit is not
assembled. There are four sets in total. The
appearance and usage of the assembled
fixture are shown in the right figures.
Before running the G code program, you
need to find the position of the engraving
figure relative to the overall engraving plate.
There is a three-axis coordinate system in the
visual graphics. The origin of the three-axis
coordinate system is the tool setting point of
the actual processing graphic.
You can move the tool to determine the position of the engraving graphic relative to the overall engraving plate
based on the position of this origin. The engraving figure in the figure below is taken as an example.
After the selected tool position is started, the X/Y and Z axes are reset to zero (the are zeroing X/Y and Z axes
buttons). Before returning to zero, make sure that the tool approaches the distance of one sheet of paper for engraving,
and then return the X/Y and Z axes to zero (please use a flat-bottom sharp knife when engraving, and use a cylindrical
milling cutter when machining planes, slots, and holes) The effect is that the sculpted figure will be carved with the
blade tip as the origin.
The ER11 collet on the spindle motor should be clamped into the fixed head first, and it must be clamped in place.
When installing the cutter, please do not extend the collet too much, as shown in the first figure below.
(6) Start carving
After finding the engraving position, click the send button below and the device will automatically start engraving.
The status bar at the top right shows running. The visualization window shows that the tool is moving along the tool
path. You can choose the pause and stop buttons below when engraving. (After pausing, click again to continue the
previous carving. After termination, click Send to start processing from the beginning).
(7). Finished processing
After the processing is completed, the visualization window prompts that the engraving is completed and the time
required for carving.
S3018 Pro Ver 2.3
10/14
5. Laser GRBL software
Laser GRBL is an excellent and practical opening source controls software in the field of laser engraving. Compared
with similar software, it has a simple interface, simple operation, and supports multiple languages. There are a lot of
learning resources used on the Internet, which is convenient for beginners to understand and master the software.
Mastering a laser engraving software is the basic condition for using laser engraving machine. It is recommended that
beginners first learn the operation method of the software online before using it to prevent damage to the laser
engraving machine and surrounding items by improper operation.
5.1 Download and installation
Download from Laser GRBL official website or ask our customer service to get the archive contains two files:
(1) CH340 USB driver Unzip the package and find the file DRVSETUP64.exe. Double-click to install, the user needs to
install this driver when running the software for the first time.
(2) Laser GRBL software locate the file (install.exe) in the archive, double-click it to install it.
5.2 Online operation steps
Online operation is the operation of controlling the device through software after the device is connected to the
computer.
(1). Connect the device to the computer with a USB cable.
(2). Place the material to be engraved in the working area of the engraving machine. Turn on the weak light, focus by
rotating the laser focus knob until the spot becomes smallest and clearest, then the focus is complete.
(3) Open the Laser GRBL software, select the COM port (except COM1, you can plug and unplug the USB cable to see
which one is) and the baud rate (generally set to 115200), then click the connection, the color of the button will become
darker after the connection is successful (if Click the connect button and the color does not become darker. You can
unplug the USB cable and plug it in again.)
(4). Afer he connecion is sccessfl, click File on he men bar of he inerface o ener he selecion file inerface,
selec Open File, impor he picre o be engraved, etc.
(5). Selec he file o be engraed, click Open, he
Inp Raser Imagedialog box will pop up. Here is the setting engraving mode and some other engraving
parameers. Click Ne afer seing.
(6). Click Ne o pop p he Targe Image dialog bo, here o can se he engraing speed, minimm poer
and maximum poer and he lengh and idh of he image o be engraed and offse. Click Creae afer seing.
S3018 Pro Ver 2.3
11/14
(7). After clicking "Create", enter the preparation for
engraving.
Move to the position you want to engrave, click the
Posiion bon (he position where the laser head is
located at the lower left corner of the engraved pattern),
set the number of times to be engraved, and click the
Sar Engraing bon o sar he engraing. Afer
the engraving is completed, the machine returns to the
zero position.
5.3 About Engraving effect
In general, the use of relatively high power, the
engraving depth is relatively deep, but due to the focal
length, it will be less detailed than the low power. Small power engraving is shallow but very fine. When engraving, you
can adjust the power, engraving speed, and moving speed for better results. In addition, when the speed is slow, it can
be cut, but if the edge is not fine and the degree of burning is obvious, you can try to adjust the speed and repeat the
engraving several times to achieve better results. If it is cutting, please adjust the speed as appropriate to achieve the
cutting effect. If it is engraving, please adjust the parameters such as power and speed according to the depth of
engraving.
5.4 FAQ
Q: What's the difference between different power levels?
The higher the power, the greater the luminous energy of the laser head, the higher the temperature of the material hit,
the harder the material of the material that can be engraved, and even the full cutting can achieve the cutting effect. If
cutting, it is recommended to choose high power; if it is required to engrave shallower, more delicate, it is
recommended to choose low power.
Q: Which formats are supported?
Support all formats of images, support GCODE, NC files. If you want to engrave .DXF file, please use the VigoWorks
software. Visit our website www.VevorEngraver.com to download it.
Q: Whether to support the grayscale engraving function
Supports the grayscale engraving function, which can engrave pictures and photos of different shades of color by
controlling the intensity of the laser according to the color depth of the image.
Q: What is the reason why the engraved picture is very light?
Quality: ** line / mm, generally set to 10 lines / mm, the larger the value, the darker the color, the set according to your
needs Engraving speed: the moving speed when the laser is turned on, the faster the speed is engraved the shallower.
Minimum maximum power: The general minimum power is set to 0 and the maximum power is set to 1000. The greater
the maximum power, the deeper the engraved color.
Q: Why does the fan of the laser module not turn?
Please confirm that the laser head is working properly. If the laser head does not work, there may be a bad contact of
the power supply line of the laser head; if the laser head works normally, the fan may be broken.
Q: What is the reason for the software connection failed?
Please confirm whether the USB interface is in contact with normal. Please confirm whether the COM port is selected
correctly (do not select COM1); please confirm whether the baud rate is selected correctly (select 115200).
Q: How long does it take to engrave a picture?
The length of time required for engraving depends mainly on the speed of the engraving, the speed of the idling, and
the size of the picture. Users can view the total time spent on the software or on the progress bar on the touch screen.
S3018 Pro Ver 2.3
12/14

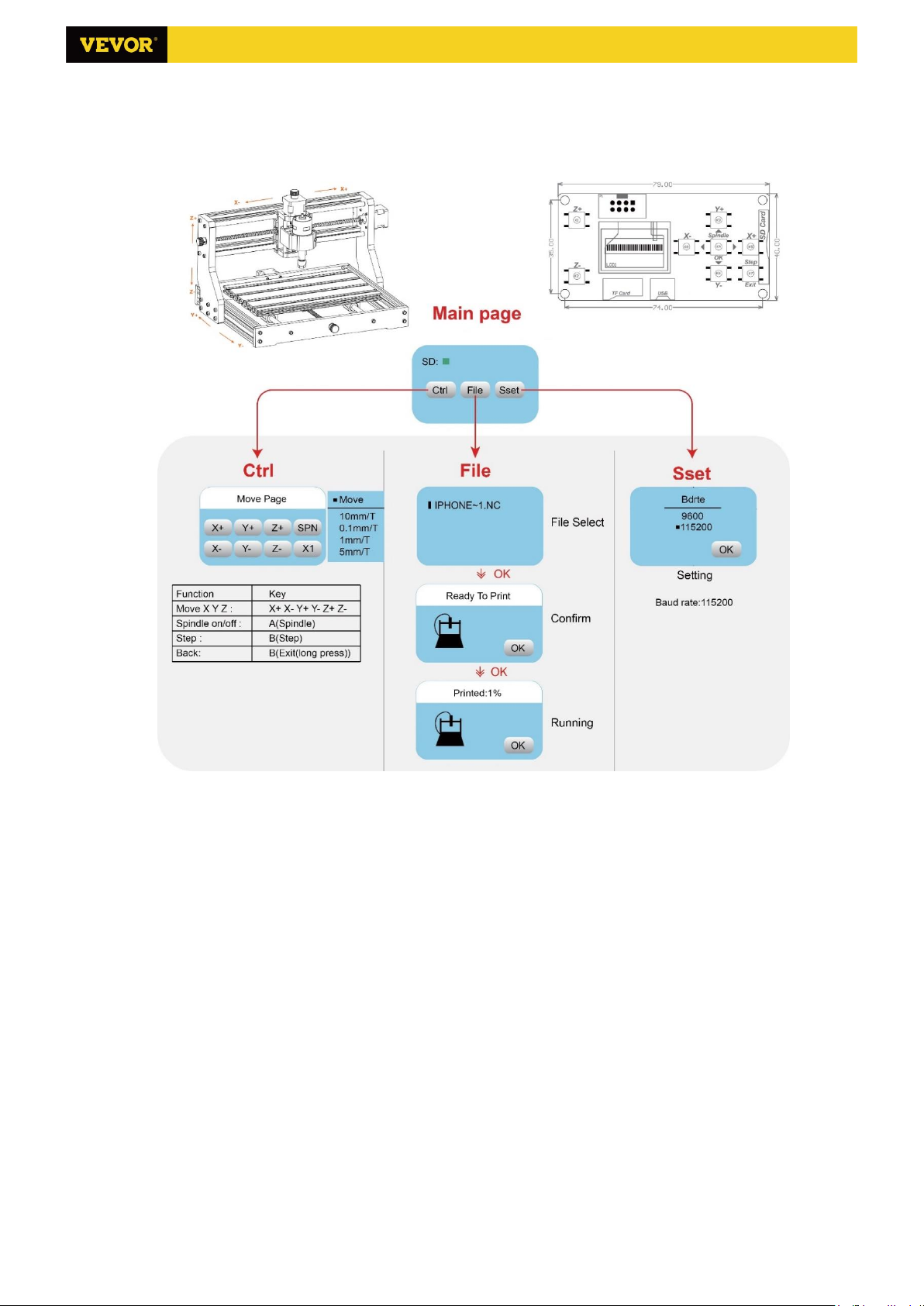

6. Offline controller (Optional)
Note: The offline controller and the computer cannot be connected to the engraving machine at the same time. When
using the offline controller, please make sure that the USB cable of the machine and the computer is disconnected.
6.1 Main page:
Y-: right Y+: left Z+: Send $X to the GRBL motherboard to unlock it.
OK/SPN: Confirm button.
6.2 Control page:
Manually move each axis to the desired position.
X+: X axis move right direction, X- opposite. Y+: Y axis move forward direction, Y- opposite. Z+: Z axis move up
direction, Z- opposite.
OK/SPN: Spindle test switch, press to open the spindle (corresponding to SPN gray on the screen), press again to close
the spindle (the corresponding SPN on the screen returns to normal). Long press to enter changing spindle speed page.
At this page, Y+/Y- is High/Low spindle speed, long press OK/SPN to exit the changing spindle speed page.
Exit/STP: Function 1: Tap on each axis button of XYZ to change the movement distance by 0.1, 1, 5, 10 cycles each time.
Function 2: Press and hold for about 2 seconds to exit.
6.3 File page:
File list Select the file to be engraved. Support documents include: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC .
Y+: up, Y-: down
OK/SPN: Confirm the selection and enter the confirmation engraving page.
6.4 Confirm the engraving page:
Confirm that the engraving file is started without errors.
S3018 Pro Ver 2.3
13/14
OK/SPN: Confirmation starts, ready to print becomes the progress display percentage, the file selection page is
returned after the engraving is completed.
6.5 Settings page:
X+/ X-: Chang Baud rate; Y+/Y-: Change Feed rate by 100/Click; Z+/Z-: Change Feed rate by 10/Click;
6.6 WiFi Network
The offline controller has WiFi wireless network function. By default, the WiFi hotspot of VIGO-STK**** is automatically
established. You can connect to the hotspot through the WiFi of your computer or mobile phone, and then open
192.168.0.1 or vigostick.local in browser to manage (upload or delete) the files on the SD card of the offline controller,
and you can also enter the SSID (Only support 2.4G signal) account and password to help the offline controller access
your local WiFi network. After the controller is connected to the local 2.4G WiFi, the current IP address of the controller
or the domain name vigostick.local can still be opened to enter the web management interface. You can open About
page of the controller to check the IP address.
Network status: There is a dot in the upper left corner of the main page. The RED dot indicates that VIGO-STK****
hotspot is active, and the GREEN dot indicates that the controller has connected to Local WiFi.
The web management interface is as follows:
7. FAQ
Q: How to use the lasers
A: 1. For XTS05/XTS08/XTS10/XTS15 laser, please place the material flat under the laser, and make the distance between
them within 3~10cm (Less distance will not be able to focus). Turn on the weak light, then there will be a light spot on
the material, just turn around the focus ring on laser to adjust the spot become smallest and clearest, which means the
best focus.
2. XTS15D laser is fixed focus laser which is not adjustable. The fixed focal Length is 18mm. Please use the focusing
column to determine the distance from the engraved object to the top surface of copper ring of light outlet.
Q: Laser module can't burn anything, no light, weak power.
A: 1. Please check power, speed setting on software and adjust focus length for laser [refer to 3.2 above to adjust focus].
Q: The picture engraved is the opposite of the original picture
A: Just need to adjust on software [ Reversal X/Y axis]
Q: The picture engraved distortion.
A: The screw rod and motor shaft are not locked and slipping.
S3018 Pro Ver 2.3
14/14
8. Restore factory settings
If the mechanical movement of the machine is smooth, but the engraving movement appears stuck, or the stepper
motor does not move, please try to restore the factory settings of the main-board. The recovery method is as follows:
Method 1: Go to our website www.VevorEngraver.com to download VigoWorks software (For Windows) and run it.
Click the button Connect. After the software connected the machine successfully, click Settings. On the settings
window, Click Restore Factory button, then reboot the machine.
Method 2: Run Candle software and send command $RST=* to the
machine, then reboot the machine.
9. Assembly video and online guide
Please scan the QR code below to watch the machine assembly video. If the U disk in the
machine kit can't be read, please scan the QR code to see how to download the
software and related documents.
Powered by VEVOR 2020
S3018 Pro Ver 2.3
Table of contents
Other VEVOR Printer manuals
