VEVOR S3018 Prover User manual

1/14
S3018 CNC Engraving Machine
Catalog
1. Part List…………………………………………………………………...…2
2. Machine Assembly………………....................................................3
3. Control board and Laser………….………..….…...........…..............7
4. Candle Software………………………………………………......…......7
5. Laser Grbl Software……..............................................................11
6. Offline Controller ……………………………………………..……..…13
7. Restore factory settings…….……………….................................14
8. Online guide and video……..……………….................................14
Safty Notice
Avoid direct laser radiation on eyes or skin
Away from children
Always wear protective glasses when use the machine
Prohibited from use in flammable objects or gases
Please cut off the power immediately in case of emergency
Shutdown steps: first cut off the power, then pull out the USB cable
Precautions
(1). All parts description just for illustrative purpose. If there is any difference, please refer to the actual part shape.
(2). Please make sure that the machine is under care when it is working.
(3). If your machine is equipped with an offline controller, please note that the offline controller and the computer
cannot be connected to the engraving machine at the same time, otherwise it will not work normally.
(4). If the U disk in the machine kit can't be read, please scan the QR code to see how to download the software and
related content.
Scan for assembly videos
S3018 Ver 2.5

1.Parts List
Part No Part Name Explanation Quantity Picture Part No Part Name Explanation Quantity Picture
01 Aluminum profile 15180*300mm 1
02 Aluminum profile 2020*360mm 5
03 Aluminum profile 2020*330mm 2
04 Aluminum profile 2020*220mm 2
05 Right angle connector 2028 16 A3 T8 Nut (Z） T8*15mm 1
06 Right angle connector 2040 2 A4 Z Lead screw T8*88mm 1
07 X Smooth axis Φ10*400mm 2 A5 Z Smooth axis Φ8*92mm 2
08 Y Smooth axis Φ10*330mm 2 A6 Stepper motor 42HD 1
09 X Lead screw T8*403mm 1 A7 Inner hexagon screw M3*10 4
10 Y Lead screw T8*325mm 1 A8 Spindle motor 775 1
11 Support for smooth axis SK10 8 A9 Inner hexagon screw M4*30 1
A10 Square Nut M4*2.5mm 1
A11 Inner hexagon screw M3*18 4
15 Muff coupling(Z） Φ8-Φ5 1 Set
20 Spring Φ10.5 1
12 T8 Nut (X/Y） —— 2
13 Stepper motor 42HD 2 Part No Part Name Explanation Quantity Picture
14 Mounting for motor 3mm 2 C1 Control board VIGO 1
15 Muff coupling (X/Y） Φ8-Φ5 2 Set C2 Column PA,M5*3 4
16 X-bearing support seat Flange bearings 1 24 Inner hexagon screw M5*10 4
17 Nut support seat (Y) T8 1 28 Ship nut M5-10 4
18 Y-bearing support seat —— 1 C3 Stepper motor wire 4P 3
19 Guide block (Y) —— 4 C4 Spindle motor wire 2P 1 ——
20 Spring Φ10.5 2
21 Hand knob（X/Y） Φ8mm 2
22 Hand knob（Z） Φ5mm 1 C6 USB cable —— 1 ——
23 Coverplate —— 6 C7 Power supply 24V,5A 1
24 Inner hexagon screw M5*10 59
25 Inner hexagon screw M5*8 4 Part No Part Name Explanation Quantity Picture
26 Inner hexagon screw M3*6 8 L1 Laser kit Optional 1 Set ——
27 Inner hexagon screw M6*12 10 L2 Laser wire 3P 1 ——
L3 Protective glass Optional 1
29 Trapezoidal nut M5-20 8
30 Trapezoidal nut M6-30 10 Part No Part Name Explanation Quantity Picture
31 Washer M5*1mm 32 35-1 Pressing plate 50*20 4 PCS
32 Set Screw for knob M4*5 3 35-2 Screw M6*40 4 PCS
33 ER11 C16-ER11-35L 5mm 1Set 35-3 Screw M6*45 4 PCS
34 Milling cutter 3.175 1 Set 35-4 Butterfly nut M6 4 PCS
35 Fixture —— 4 Set 35-5 Washer M6*2mm 4 PCS
36 Inner Hexagon Wrench 2/2.5/3/4/5mm 1 Set
37 Nut Wrench 14# / 17mm 1 Set
38 Soft brush —— 1
39 U Disk —— 1
28 Ship nut M5-10 55
Control board package
Laser package （ Optional ）
C5 Offline controller
and date cable Optional 1 Set
Fixture（35） assembly
2/14
Component A ( Already assembled )
A1 Guide block (X) —— 1
A2 Guide block (Z) —— 1
3018 Parts List
A Component Already assembled 1 Set
35-3
35-4 35-2
35-1
35-5
S3018 Ver 2.4
S3018 Ver 2.5

Step ①
Step ②
Step ③
12: T8 Nut 1PCS
20: Spring 1PCS
17: Nut support seat 1PCS
05: Right angle connector
2028 1PCS
31: Washer 2PCS
28: Ship nut M5 -10 2PCS
24: M5*10 2PCS Screw
56mm
02：Aluminum profile
2020*360 mm 3PCS
03：Aluminum profile
2020*330 mm 2PCS
8Set
02：Aluminum profile
2020*360 mm 1PCS
First assemble 16 sets of
components for reserve
Press T8 nut to the bottom and turn Y Lead screw at the same time
17: Nut support seat 1PCS
10: Y Lead screw T8*325mm 1PCS
32: M4*5 1PCS
21: Hand knob
Φ8mm 1PCS
25: M5*8 2PCS Screw
13: Stepper motor 1PCS
Direction of
connecting wire
14: Mounting for motor 1PCS
26: M3*6 4PCS Screw
28: M5-10 2PCS Ship nut
18: Y-bearing support seat 1PCS
24: M5*10 2PCS Screw
28: Ship nut M5 -10 2PCS
3/14
2. Machine Assembly
15: Muff coupling 1PCS
S3018 Ver 2.3
S3018 Ver 2.4
S3018 Ver 2.5

19: 4PCS
Guide block
11: Support for smooth axis 1PCS
28: Ship nut 2PCS
24: M5*10 screw 2PCS
30: M6-30 10PCS
Trapezoidal nut
08: Y Smooth axis
Φ10*330mm 2PCS
27: M6*12 10PCS Screw
Step ④
Step ⑤
Step ⑥
4/14
4Set
6Set
01：Aluminum profile
15180*300 mm 1PCS
02：Aluminum profile
2020*360 mm 2PCS
04：Aluminum profile
2020*220 mm 2PCS
The direction of the
big hole is outward.
The direction of the
big hole is outward.
S3018 Ver 2.3
S3018 Ver 2.5

12: T8 Nut 1PCS
20: Spring 1PCS
Component A
Component A
33: ER11 1Set
33: ER11 assembly
32: M4*5 1PCS
22: Hand knob Φ5mm 1PCS
09: X Lead screw
T8*403mm 1PCS
Component A
06: 2040 1PCS
28: M5-10 4PCS
Ship nut
24:M5*10 4PCS
Screw
2Set
2Set
2Set
56mm
4Set
07: X Smooth axis
Φ10*400mm 2PCS
Step ⑦
Step ⑧
Step ⑨
⑨-1.The support for smooth axis slides into
the aluminum profile T-slot from the top
⑨-2. First, fix the above two 11 (Support for
smooth axis) on the aluminum profile.
⑨-3. Then, component A and 07（X Smooth axis）are
assembled on the 11（Support for smooth axis).
⑨-4. Finally, assemble 07（X Smooth axis）,
adjust component A to left-right movement is smooth,
fixt the 11（Support for smooth axis）.
Press T8 nut to the bottom and turn X Lead screw at the same time
5/14
24: M5*10 2PCS
Screw
29: Trapezoidal nut
M5-20 2PCS
11: 1PCS Support for
smooth axis
S3018 Ver 2.3
S3018 Ver 2.5

32: M4*5 1PCS
21: Hand knob（X）
Φ8mm 1PCS
24: M5*10 1Pcs Screw
16: X-bearing 1PCS
28: Ship nut
1PCS
23: Coverplate 6PCS
Step ⑩
13: Stepper motor 1PCS
26: M3*6 screw 4PCS 14: Mounting for motor 1PCS
Direction of
connecting wire
25： M5*8 2PCS Screw
28: Ship nut 2PCS
11
Step
6/14
28: Ship nut 4PCS
C1: Control board 1PCS
C2: Column 4PCS
24: M5*10 4PCS
Screw
The plastic column must
be assembled between
the controlboard and
the aluminum parts.
15: Muff coupling 1PCS
S3018 Ver 2.3
S3018 Ver 2.5

7/14
3. Control-Board and Laser (Laser is optional)
3.1 Instructions for control board connection
The Motor-X/Y/Z interface on
board should be connected to the
X/Y/Z motors correspondingly. The
6Pin plug is for the motor, and the 4Pin
is for the control panel. Power interface
connects to the power supply and USB
connects to the computer. Connect the
spindle motor wire according to the
correct polarity.
In general, there is no need to
adjust the motor driver current.
If using laser, please connect the
laser to the control board with the 3pin
wire. Correctly focus the laser on the
materials to be engraved referring to
the laser instructions below before
starting engraving.
3.2 Instructions for laser (Optional).
Please wear the protective glasses before operating the laser!
When all the connections are completed, turn on the power, and the laser is standby for working. The red light on
the top of the laser is continuous lighting in this time.
Turn on the weak light and adjust the focal length (except the Fixed-Focus Laser)
Please lay the materials to be engraved flat under the laser. The recommended distance from laser outlet to
materials is 3~10cm. Out of range may be out of focus.
Turn on the weak light. Rotate the focusing ring slowly on the laser outlet to shrink the laser spots. When the laser
spot is smallest and clearest, it is the optimum state for laser engraving, then turn off the weak light.
If you use the fixed-focus laser XTS15D, please use the focusing measuring column to adjust the distance between
the light outlet and the engraved surface to 18mm.
Note: Laser XTS05/XTS08/XTS10 have a weak light switch on top of the lasers, you also can use the switch to turn
on weak light. Be sure to turn of the switch before you start laser engraving.
4. Candle Software
Candle is a GUI application for GRBL-based CNC-machines with G-Code visualizer. Candle
is an open-source software suitable for CNC machine tool processing. It supports G code
file processing and visual display.
XTS05
XTS08
XTS10
Is adjustable
XTS15D Laser
Is fixed-focus
Can't be adjusted
XTS15 Laser
Is adjustable
Focusing Ring
Focusing Ring
Focusing Column
18mm
The terminal of the red dot of
the spindle motor is positive,
please plug in the red wire.
S3018 Ver 2.5

8/14
Supported functions:
(1) Controlling GRBL-based CNC-machine via console commands, buttons on form, numpad.
(2) Monitoring CNC-machine state.
(3) Load, edit, save and send G-code files to CNC-machine.
(4) Visualizing G-code files.
4.1 States
Work coordinates:
Represents current X, Y & Z local coordinates of the CNC.
Machine coordinates:
Represents current X, Y & Z absolute machine coordinates.
One of following CNC status:
◎ Idle - waiting for a G-code command Running - running a G-code command
◎ Home - homing cycle is executing
◎ Check - G-code command check mode is turned on
◎ Hold - paused by a "!" command, need to be restarted by a "~" command
◎ Alarm - CNC doesn't know where it is and blocks all G-code commands
◎ Door - door sensor has triggered
4.2 Control
Home button
Starts the homing cycle procedure with "$H" command
Z-probe
Starts the zero Z-axis search procedure using the command specified in the
settings ("Z-probe commands" box). Example command: G91G21;
G38.2Z-30F100; G0Z1; G38.2Z-1F10
Zero XY
Zeroes the "X" and "Y" coordinates in the local coordinate system. Also retains an local system offset ("G92") for later use.
Restore XYZ
Restores local system coordinates with "G92" command.
Safe Z
Moves tool by "Z"-axis to safe position. Position coordinate can be specified in the "Safe Z" setting. Position must be
specified in machine coordinates.
Reset
Resets CNC with "CTRL+X" command
Unlock Unlocks CNC with "$X" command.
4.3 Software using steps
(1). Install the driver
For the first time use, please connect the device to the computer via USB cable, and click the CH341SER.exe file in the
driver folder to install the driver. Under normal circumstances, the Win10 system will automatically identify and install
the driver. For Win7 and Win8 systems, please install it manually.
(2) Set the port and connection
After installing the driver, open the device manager of the computer and click on
the port option to see the content inside the red box on the screen shown in the
figure below (the port information is in brackets).
Remember the port information queried above, switch to the Candle software
interface and click the "Settings" option in the upper left corner. Selecting the setting
will pop up the setting window. Under "Connection", select the port name you
queried, select the baud rate 115200, and then click the "ok" to finish the setting.
S3018 Ver 2.5

9/14
(3). Complete connection
After setting the port and baud rate, click Finish. The
status bar at the top right of the Candle interface will show
Idle, and at the same time, the console at the bottom right
will display the information shown below, indicating that the
connection has been successfully established.
(4). Processing documents
Click "File" option at the top of candle, then click "New" to
create G-Code. On the command bar at the bottom of the
interface, click "Open" to select a G code file that has been
made to import the file. After importing, the middle of the
interface will display a visual graph composed of tool paths
(the position of the pen-shaped graph in the graph is the
current tool position). In the visualization window, hold down
the left mouse button to move to rotate the graph, and hold
down the right button to move. Graphics, scrolling the
middle wheel can zoom in and out of the graphics. At the
same time, the content of the G-Code will be displayed in the lower command bar. During processing, the machine will
run one by one according to the G-Code commands.
S3018 Ver 2.5

10/14
(5). Fixture, tool installation and Set the working coordinate origin
The fixture in the product kit is not
assembled. There are four sets in total. The
appearance and usage of the assembled
fixture are shown in the right figures.
Before running the G code program, you
need to find the position of the engraving
figure relative to the overall engraving plate.
There is a three-axis coordinate system in the
visual graphics. The origin of the three-axis
coordinate system is the tool setting point of
the actual processing graphic.
You can move the tool to determine the position of the engraving graphic relative to the overall engraving plate
based on the position of this origin. The engraving figure in the figure below is taken as an example.
After the selected tool position is started, the X/Y and Z axes are reset to zero (the are zeroing X/Y and Z axes
buttons). Before returning to zero, make sure that the tool approaches the distance of one sheet of paper for engraving,
and then return the X/Y and Z axes to zero (please use a flat-bottom sharp knife when engraving, and use a cylindrical
milling cutter when machining planes, slots, and holes) The effect is that the sculpted figure will be carved with the
blade tip as the origin.
The ER11 collet on the spindle motor should be clamped into the fixed head first, and it must be clamped in place.
When installing the cutter, please do not extend the collet too much, as shown in the first figure below.
(6) Start carving
After finding the engraving position, click the send button below and the device will automatically start engraving.
The status bar at the top right shows running. The visualization window shows that the tool is moving along the tool
path. You can choose the pause and stop buttons below when engraving. (After pausing, click again to continue the
previous carving. After termination, click Send to start processing from the beginning).
(7). Finished processing
After the processing is completed, the visualization window prompts that the engraving is completed and the time
required for carving.
S3018 Ver 2.5

11/14
5. Laser GRBL software
Laser GRBL is an excellent and practical opening source controls software in the field of laser engraving. Compared
with similar software, it has a simple interface, simple operation, and supports multiple languages. There are a lot of
learning resources used on the Internet, which is convenient for beginners to understand and master the software.
Mastering a laser engraving software is the basic condition for using laser engraving machine. It is recommended that
beginners first learn the operation method of the software online before using it to prevent damage to the laser
engraving machine and surrounding items by improper operation.
5.1 Download and installation
Download from Laser GRBL official website or find in the USB-disk contains two files:
(1) CH341SER.EXE, USB driver Unzip the package and find the file CH341SER.exe. Double-click to install, the user needs
to install this driver when running the software for the first time.
(2) LaserGRBL, software locate the file (install.exe) in the archive, double-click it to install it.
5.2 Online operation steps
Online operation is the operation of controlling the device through software after the device is connected to the
computer.
(1). Connect the device to the computer with a USB cable.
(2). Place the material to be engraved in the working area of the engraving machine. Turn on the weak light, focus by
rotating the laser focus knob until the spot becomes smallest and clearest, then the focus is complete.
(3) Open the Laser GRBL software, select the COM port (except COM1, you can plug and unplug the USB cable to see
which one is) and the baud rate (generally set to 115200), then click the connection, the color of the button will become
darker after the connection is successful (if Click the connect button and the color does not become darker. You can
unplug the USB cable and plug it in again.)
(4). After the connection is successful, click “File” on the menu bar of the interface to enter the selection file interface,
select “Open File”, import the picture to be engraved, etc.
(5). Select the file to be engraved, click “Open”, the
“Input Raster Image”dialog box will pop up. Here is the setting engraving mode and some other engraving
parameters. Click “Next” after setting.
(6). Click “Next” to pop up the “Target Image” dialog box, where you can set the engraving speed, minimum power
and maximum power and the length and width of the image to be engraved and offset. Click “Create” after setting.
S3018 Ver 2.5

12/14

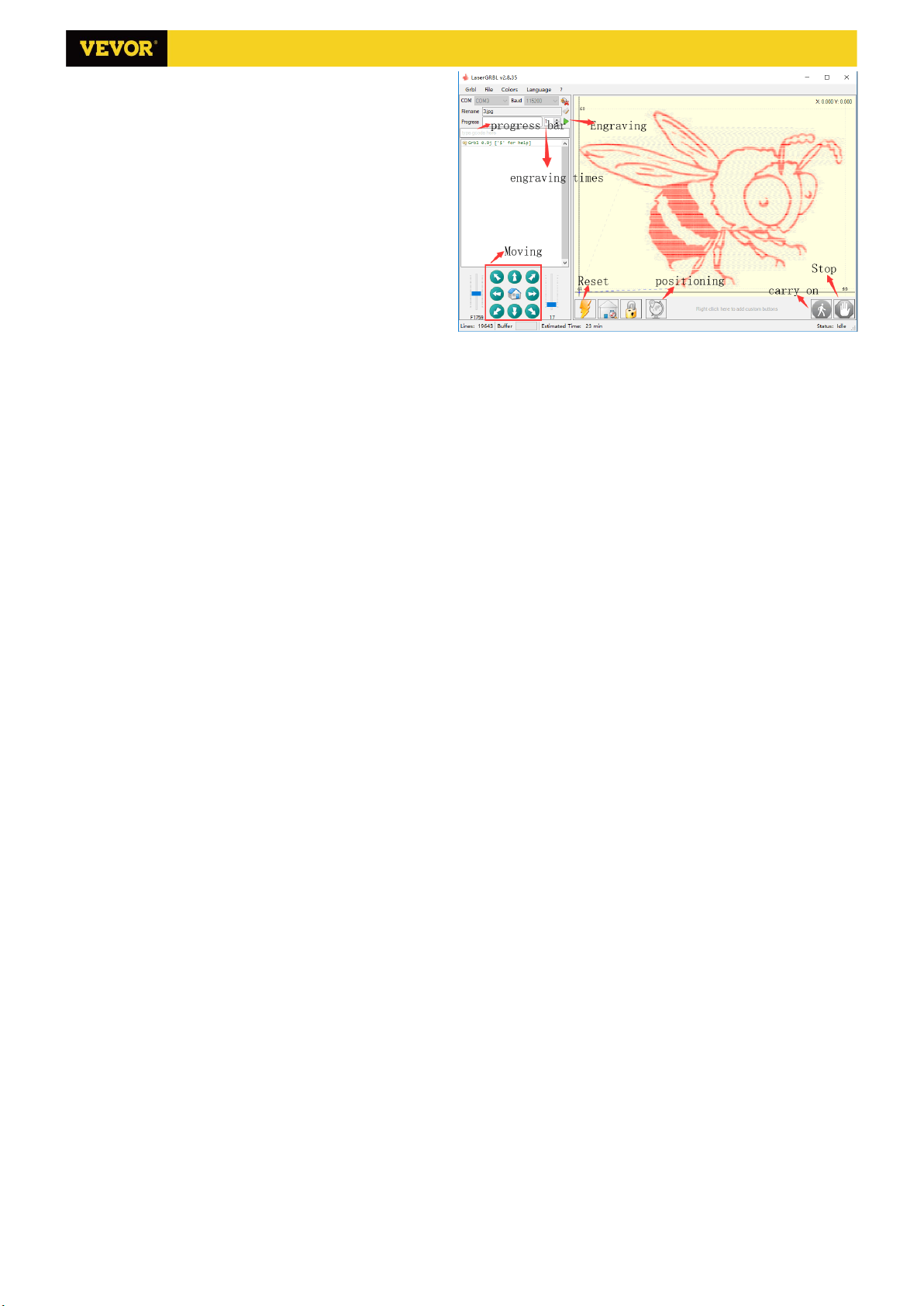

(7). After clicking "Create", enter the preparation for
engraving.
Move to the position you want to engrave, click the
“Position” button (the position where the laser head is
located at the lower left corner of the engraved pattern),
set the number of times to be engraved, and click the
“Start Engraving” button to start the engraving. After
the engraving is completed, the machine returns to the
zero position.
5.3 About Engraving effect
In general, the use of relatively high power, the
engraving depth is relatively deep, but due to the focal
length, it will be less detailed than the low power. Small power engraving is shallow but very fine. When engraving, you
can adjust the power, engraving speed, and moving speed for better results. In addition, when the speed is slow, it can
be cut, but if the edge is not fine and the degree of burning is obvious, you can try to adjust the speed and repeat the
engraving several times to achieve better results. If it is cutting, please adjust the speed as appropriate to achieve the
cutting effect. If it is engraving, please adjust the parameters such as power and speed according to the depth of
engraving.
5.4 FAQ
Q: What's the difference between different power levels?
The higher the power, the greater the luminous energy of the laser head, the higher the temperature of the material hit,
the harder the material of the material that can be engraved, and even the full cutting can achieve the cutting effect. If
cutting, it is recommended to choose high power; if it is required to engrave shallower, more delicate, it is
recommended to choose low power.
Q: Which formats are supported?
Support all formats of images, support GCODE, NC files and so on. If you want to engrave .DXF file, we recommend the
LightBurn software.
Q: Whether to support the grayscale engraving function
Supports the grayscale engraving function, which can engrave pictures and photos of different shades of color by
controlling the intensity of the laser according to the color depth of the image.
Q: What is the reason why the engraved picture is very light?
Quality: ** line / mm, generally set to 10 lines / mm, the larger the value, the darker the color, the set according to your
needs Engraving speed: the moving speed when the laser is turned on, the faster the speed is engraved the shallower.
Minimum maximum power: The general minimum power is set to 0 and the maximum power is set to 1000. The greater
the maximum power, the deeper the engraved color.
Q: Why does the fan of the laser module not turn?
Please confirm that the laser head is working properly. If the laser head does not work, there may be a bad contact of
the power supply line of the laser head; if the laser head works normally, the fan may be broken.
Q: What is the reason for the software connection failed?
Please confirm whether the USB interface is in contact with normal. Please confirm whether the COM port is selected
correctly (do not select COM1); please confirm whether the baud rate is selected correctly (select 115200).
Q: How long does it take to engrave a picture?
The length of time required for engraving depends mainly on the speed of the engraving, the speed of the idling, and
the size of the picture. Users can view the total time spent on the software or on the progress bar on the touch screen.
S3018 Ver 2.5

13/14
6. Offline controller (Optional)
Note: The offline controller and the computer cannot be connected to the engraving machine at the same time. When
using the offline controller, please make sure that the USB cable of the machine and the computer is disconnected.
The off-line controller has an external 12V standby power supply interface. When users use other mainboards with no
power supply and weak power supply capacity, they can connect an external power supply to supply power to the
controller.
6.1 Main page:
Y-: right Y+: left Z+: Send $X to the GRBL motherboard to unlock it.
OK/SPN: Confirm button.
6.2 Control page:
Manually move each axis to the desired
position.
X+: X axis move right direction, X- opposite.
Y+: Y axis move forward direction, Y- opposite.
Z+: Z axis move up direction, Z- opposite.
OK/SPN: Spindle test switch, press to open the
spindle (corresponding to SPN gray on the
screen), press again to close the spindle (the
corresponding SPN on the screen returns to
normal). Long press to enter changing spindle
speed page. At this page, Y+/Y- is High/Low
spindle speed, long press OK/SPN to exit the
changing spindle speed page.
Exit/STP: Function 1: Tap on each axis button
of XYZ to change the movement distance by
0.1, 1, 5, 10 cycles each time. Function 2: Press
and hold for about 2 seconds to exit.
6.3 File page:
File list Select the file to be engraved. Support
documents include: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC .
Y+: up, Y-: down
OK/SPN: Confirm the selection and enter the confirmation engraving page.
6.4 Confirm the engraving page:
Confirm that the engraving file is started without errors.
OK/SPN: Confirmation starts, ready to print becomes the progress display percentage, the file selection page is
returned after the engraving is completed.
6.5 Settings page:
X+/ X-: Chang Baud rate; Y+/Y-: Change Feed rate by ±100/Click; Z+/Z-: Change Feed rate by ±10/Click; OK/SPN:
Change Laser Mode ON/OFF
6.6 Wi-Fi Network and Web
The offline controller has WiFi wireless network function. By
default, the WiFi hotspot of VIGO-STK**** is automatically
established. You can connect to the hotspot through the WiFi
of your computer or mobile phone with password 12345678,
and then open 192.168.0.1 or vigostick.local in browser to
manage (upload or delete) the files in SD card of the offline
controller or control the machine to carve instead of the
controller’s buttons and screen, and you can also enter the
SSID (Only support 2.4G signal) account and password to
help the offline controller access your local WiFi network.
After the controller is connected to the local 2.4G WiFi, the
current IP address of the controller or the domain name
Turn on the laser mode for
laser engraving
Turn off the laser mode for
CNC tools carving
S3018 Ver 2.5

14/14
vigostick.local can still be opened to enter the web management interface. You can open About page of the controller
to check the IP address.
Network status: There is a dot in the upper left corner of the main page. The RED dot indicates that VIGO-STK****
hotspot is active, and the GREEN dot indicates that the controller has connected to Local WiFi. The web management
interface is as previous page.
The web pages functions as follows:
Click the menu "Control", the MOVE Control interface appears, you can click the corresponding button to control the
CNC machine movement.
Click the menu "File", shows the carving files currently stored in the SD card of the current offline controller. You can
upload new files to the controller. After selecting the corresponding carving file to start the carving, the interface
displays the file being carved and the carving progress. You can click the button to pause or stop the carving process.
Click the menu "Settings", enter the carving machine setting interface, where you can set some control parameters, or
perform reset, unlock, restore settings, tools setting, turn on/off laser mode and other commands.
6.7 Laser Engraving App
The offline controller support mobile laser engraving App (For Android and iOS). Before using
the App, please turn on the laser mode in settings of the controller. Please get the VevorWorks
App form our website www.VevorEngraver.com ,or scan the right QR-code to download.
App supports Android and IOS. It can import mobile phone pictures, take photos with mobile
camera, edit graphics and text, generate engraving content, support gray, black and white,
contour and other engraving modes, and control engraving in real time.
7. FAQ
Q: How to use the lasers
A: 1. For XTS05/XTS08/XTS10/XTS15 laser, please place the material flat under the laser, and make the distance between
them within 3~10cm (Less distance will not be able to focus). Turn on the weak light, then there will be a light spot on
the material, just turn around the focus ring on laser to adjust the spot become smallest and clearest, which means the
best focus.
2. XTS15D laser is fixed focus laser which is not adjustable. The fixed focal Length is 18mm. Please use the focusing
column to determine the distance from the engraved object to the top surface of copper ring of light outlet.
Q: Laser module can't burn anything, no light, weak power.
A: 1. Please check power, speed setting on software and adjust focus length for laser [refer to 3.2 above to adjust focus].
Q: The picture engraved is the opposite of the original picture
A: Just need to adjust on software [ Reversal X/Y axis]
Q: The picture engraved distortion.
A: The screw rod and motor shaft are not locked and slipping.
8. Restore factory settings
If the mechanical movement of the machine is smooth, but the engraving movement appears stuck, or the stepper
motor does not move, please try to restore the factory settings of the main-board.
Method : Run Candle software and send command $RST=* to the machine, then reboot the machine.
9. Assembly video and online guide
Please scan the QR code below to watch the machine assembly video. If the U disk in the machine kit can't be read,
please scan the QR code to see how to download the software and related documents.
Powered by VEVOR 2022
S3018 Ver 2.5
