Viavi FIT-82P01-PRO User manual

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA
FBP-HD4i/HD4iP
and OLP-82/82P
SmartClass™ Fiber
Quick Start Guide
22002195
2022.11
English
Product data subject to change
without notice.
Quick Start Guide
Manufacturer:
Viavi
Product Name:
Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope &
High-Power Optical Power Meter
Manufacturer Part Number:
FIT-82P01-PRO
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
Please direct all enquiries to your local VIAVI sales office.
The addresses can be found at: www.viavisolutions.com/contact-us

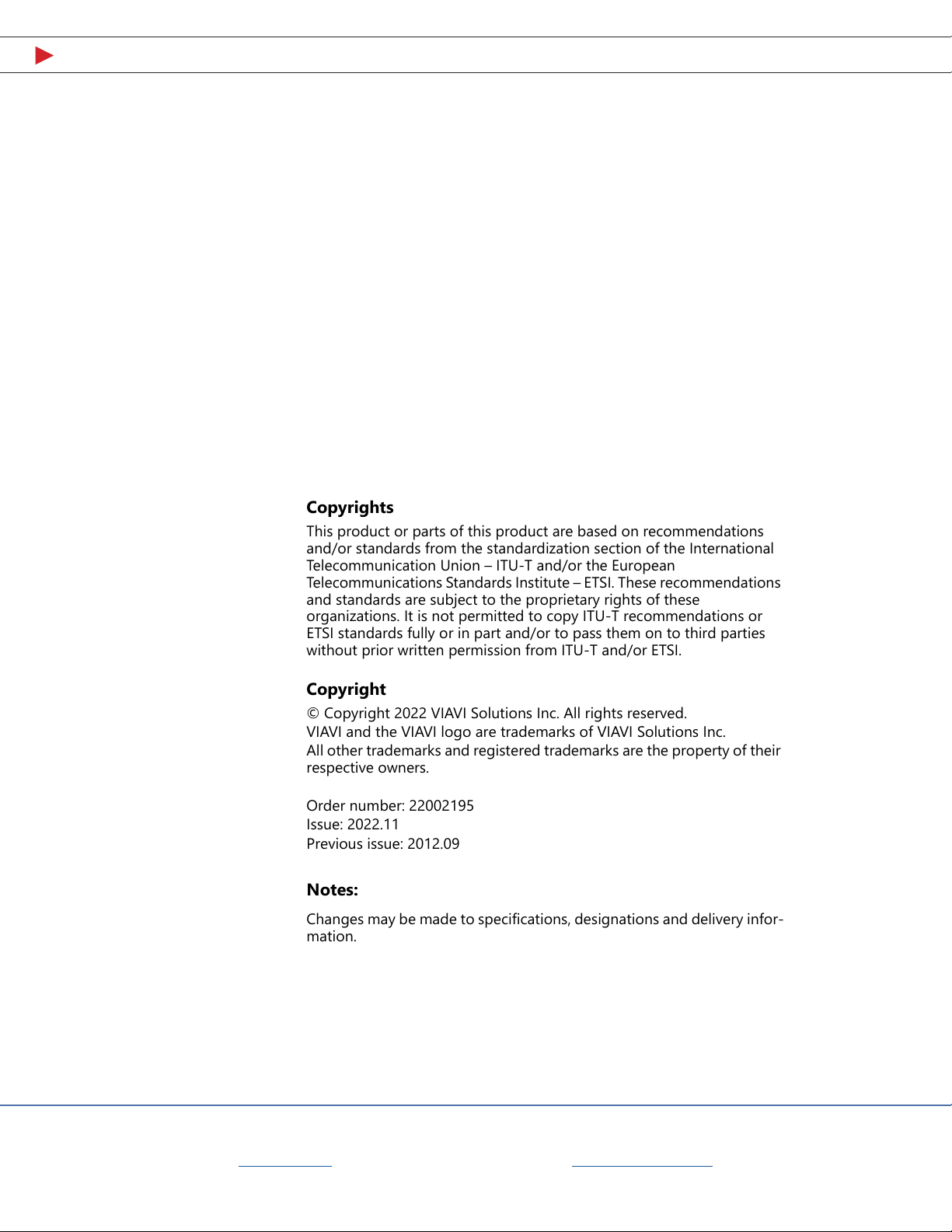

Copyrights
This product or parts of this product are based on recommendations
and/or standards from the standardization section of the International
Telecommunication Union – ITU-T and/or the European
Telecommunications Standards Institute – ETSI. These recommendations
and standards are subject to the proprietary rights of these
organizations. It is not permitted to copy ITU-T recommendations or
ETSI standards fully or in part and/or to pass them on to third parties
without prior written permission from ITU-T and/or ETSI.
Copyright
© Copyright 2022 VIAVI Solutions Inc. All rights reserved.
VIAVI and the VIAVI logo are trademarks of VIAVI Solutions Inc.
All other trademarks and registered trademarks are the property of their
respective owners.
Order number: 22002195
Issue: 2022.11
Previous issue: 2012.09
Notes:
Changes may be made to specifications, designations and delivery infor-
mation.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
FBP-HD4i/HD4iP / OLP-82/82P 3

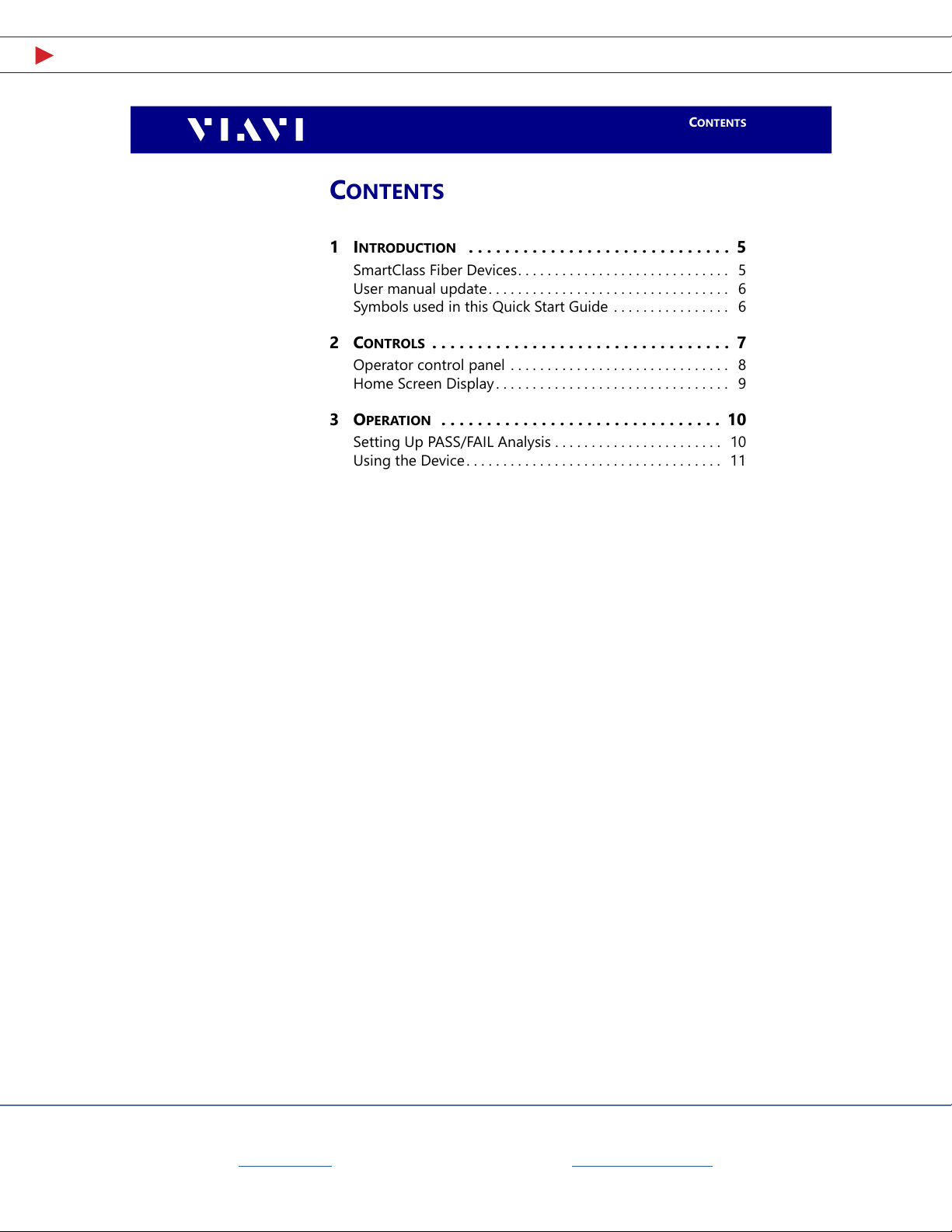

CONTENTS
CONTENTS
1INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SmartClass Fiber Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
User manual update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Symbols used in this Quick Start Guide . . . . . . . . . . . . . . . . 6
2CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operator control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Home Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting Up PASS/FAIL Analysis . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
FBP-HD4i/HD4iP / OLP-82/82P 5
SMARTCLASS FIBER DEVICES
1 INTRODUCTION
1INTRODUCTION
SmartClass Fiber Devices

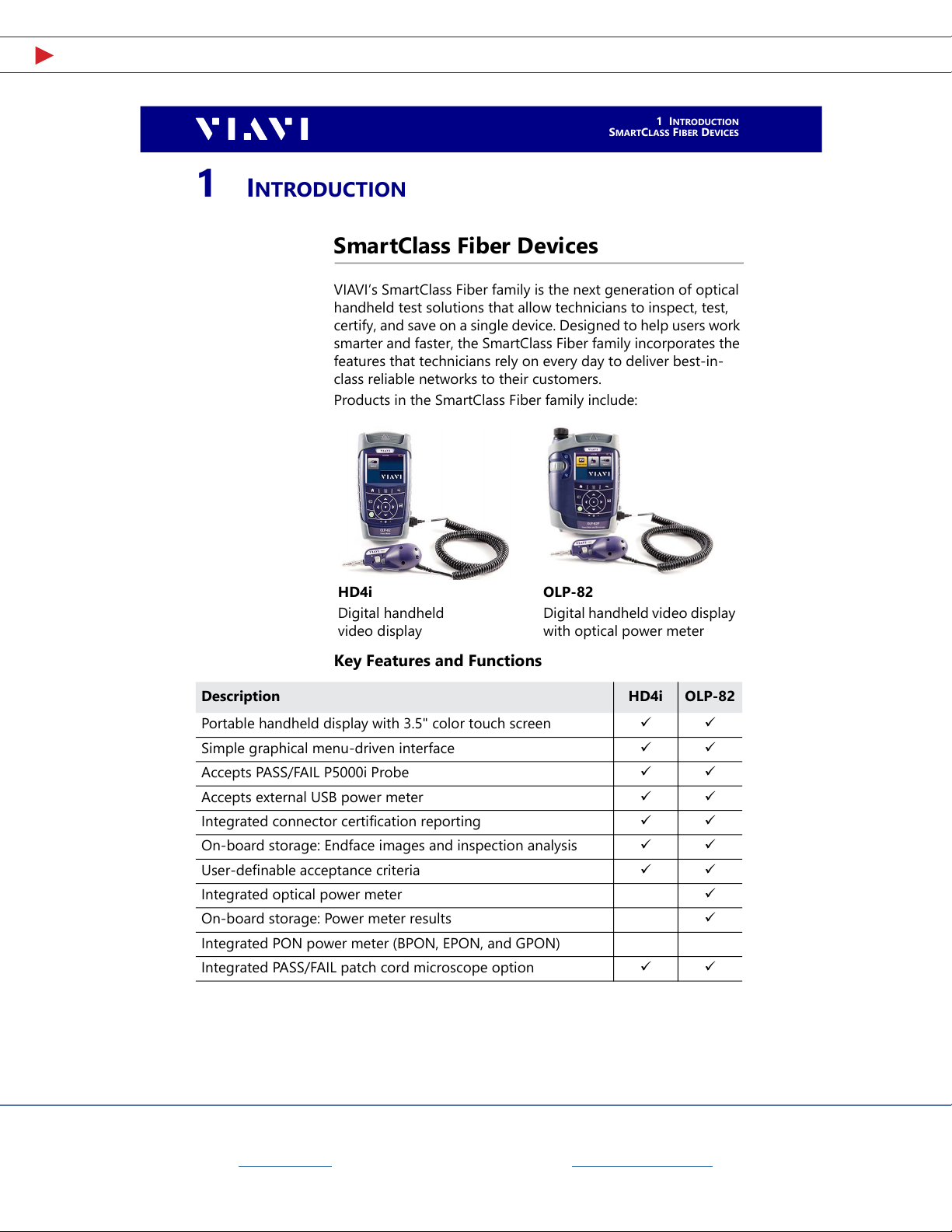

VIAVI’s SmartClass Fiber family is the next generation of optical
handheld test solutions that allow technicians to inspect, test,
certify, and save on a single device. Designed to help users work
smarter and faster, the SmartClass Fiber family incorporates the
features that technicians rely on every day to deliver best-in-
class reliable networks to their customers.
Products in the SmartClass Fiber family include:
Key Features and Functions
HD4i
Digital handheld
video display
OLP-82
Digital handheld video display
with optical power meter
Description HD4i OLP-82
Portable handheld display with 3.5" color touch screen 
Simple graphical menu-driven interface 
Accepts PASS/FAIL P5000i Probe 
Accepts external USB power meter 
Integrated connector certification reporting 
On-board storage: Endface images and inspection analysis 
User-definable acceptance criteria 
Integrated optical power meter 
On-board storage: Power meter results 
Integrated PON power meter (BPON, EPON, and GPON)
Integrated PASS/FAIL patch cord microscope option 

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
6 FBP-HD4i/HD4iP / OLP-82/82P
1 INTRODUCTION
USER MANUAL UPDATE
This Quick Start Guide will focus on the HD4i and OLP-82
products. For further information on other VIAVI fiber test tools,
visit www.viavisolutions.com
User Manual Update
If the operating instructions about features provided by your
device are missing, please visit the VIAVI web site to check if
additional information is available.
To download the latest user manual:
1. Visit the VIAVI web site at www.viavisolutions.com.
2. Search for HD4i or OLP-82.
3. Open the download area and download the user manual if
available.
Symbols Used in this Quick Start Guide
The following character formats are used in this guide:
IRequirement
This requirement must be met first; e.g.
IThe device is switched on.
J
1.
2.
Instruction
Follow the instructions given (the numbers indicate the order
in which the instructions should be followed); e.g.
JSelect mode.
Bold type face Pages, controls, and display elements
Screen pages, controls, and display elements are indicated in
bold type.
6 FBP-HD4i/HD4iP / OLP-82/82P
1 INTRODUCTION
USER MANUAL UPDATE
This Quick Start Guide will focus on the HD4i and OLP-82
products. For further information on other VIAVI fiber test tools,
visit www.viavisolutions.com
User Manual Update
If the operating instructions about features provided by your
device are missing, please visit the VIAVI web site to check if
additional information is available.
To download the latest user manual:
1. Visit the VIAVI web site at www.viavisolutions.com.
2. Search for HD4i or OLP-82.
3. Open the download area and download the user manual if
available.
Symbols Used in this Quick Start Guide
The following character formats are used in this guide:
IRequirement
This requirement must be met first; e.g.
IThe device is switched on.
J
1.
2.
Instruction
Follow the instructions given (the numbers indicate the order
in which the instructions should be followed); e.g.
JSelect mode.
Bold type face Pages, controls, and display elements
Screen pages, controls, and display elements are indicated in
bold type.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
FBP-HD4i/HD4iP / OLP-82/82P 7
2 CONTROLS
2CONTROLS
1
2
3
4
5
6
with Patch Cord Microscope (PCM)
7
8
10
9

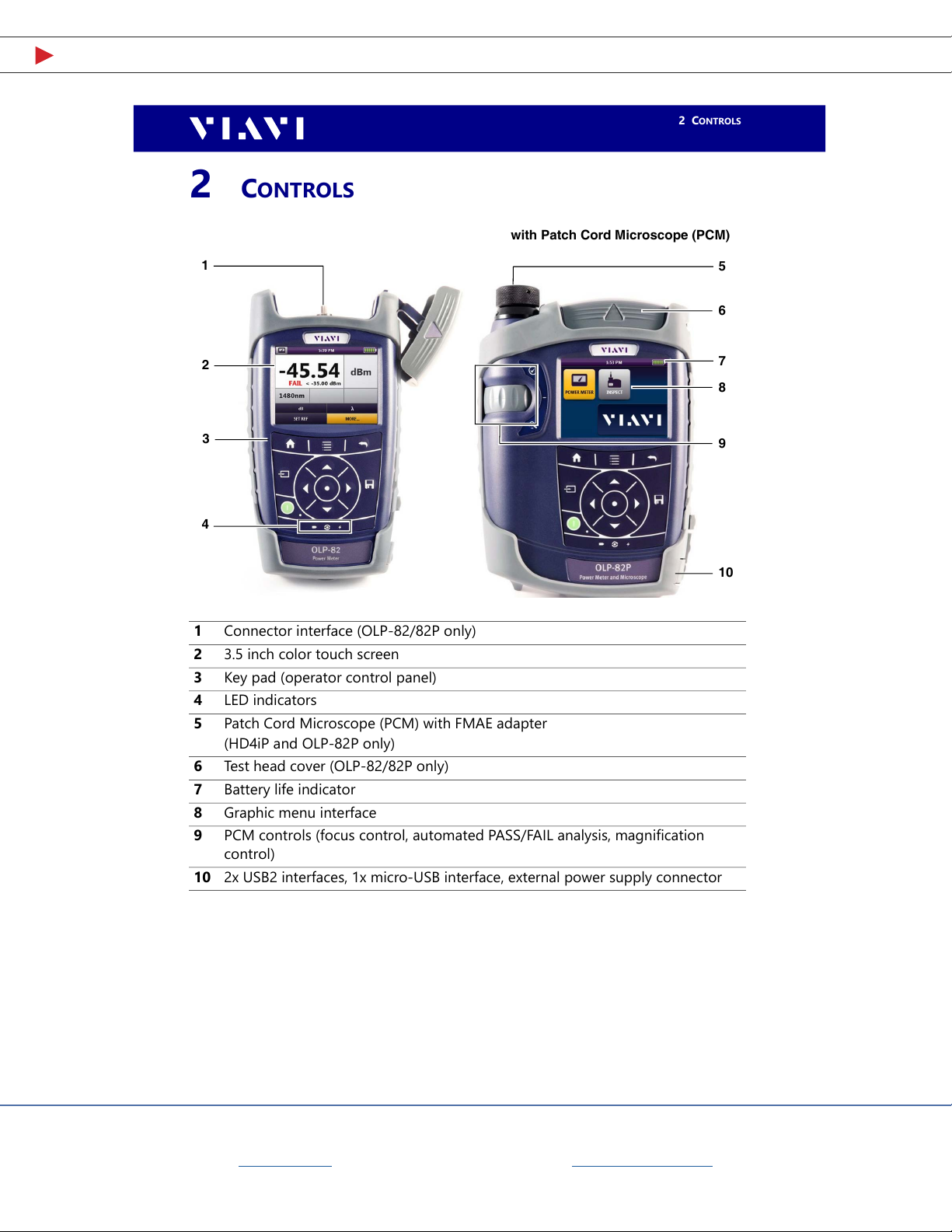

1Connector interface (OLP-82/82P only)
23.5 inch color touch screen
3Key pad (operator control panel)
4LED indicators
5Patch Cord Microscope (PCM) with FMAE adapter
(HD4iP and OLP-82P only)
6Test head cover (OLP-82/82P only)
7Battery life indicator
8Graphic menu interface
9PCM controls (focus control, automated PASS/FAIL analysis, magnification
control)
10 2x USB2 interfaces, 1x micro-USB interface, external power supply connector

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
8 FBP-HD4i/HD4iP / OLP-82/82P
2 CONTROLS
OPERATOR CONTROL PANEL
Operator Control Panel
Mode Description
Home key
JPress to go to the home screen.
Menu key
JPress to open a menu.
Back key
JPress to go back one step.
Input Select Key (ISK)
JPress for fast toggling between device functions.
Power key
JPress to switch the instrument ON and OFF.
LED glows green when the instrument is ON.
Arrow keys
JPress to navigate through the menus.
JPress to change values in the menus.
Center key
JPress to confirm the selection.
Save key
JPress to save results
Low battery LED
Glows red when battery is low
Test in process LED
Glows red when a measurement is running in the background
Charge LED
Glows amber when battery is charging.
If the power is OFF, charging will continue with no LED
indicator.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
FBP-HD4i/HD4iP / OLP-82/82P 9
HOME SCREEN DISPLAY
2 CONTROLS
Home Screen Display
Fig. 1: OLP-82P Home Screen shown with P5000i Probe and MP-series
USB OPM attached via USB
Icon Description
Battery Status
Indicates the battery charge level / status.
Optical Power Meter (OPM)
Activates the on-board OPM to view optical power
measurement results, edit acceptance criteria, and view saved
results.
Inspect (PCM)
Activates the integrated Patch Cord Microscope (PCM) to
inspect and analyze fiber endfaces, detect scratches and
defects, and provide PASS/FAIL results. The PCM is ideal for
inspecting male fiber connectors such as patch cords and test
leads.
Inspect (Probe)
Activates the handheld P5000i Digital Probe microscope to
inspect and analyze fiber endfaces, detect scratches and
defects, and provide PASS/FAIL results. The probe is ideal for
inspecting connectors located behind bulkheads.
USB Optical Power Meter (OPM)
Activates OPM devices (such as MP-60 or MP-80) that are
connected to one of the USB ports to view optical power
measurement results, edit acceptance criteria, and view saved
results.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter
10 FBP-HD4i/HD4iP / OLP-82/82P
3 OPERATION
SETTING UP PASS/FAIL ANALYSIS
3OPERATION
Setting Up PASS/FAIL Analysis
Select acceptance criteria
Inspection (Probe)
1. Open the INSPECT (Probe) application.
2. Press MENU.
3. Select PROFILE (choose desired PROFILE from list).
4. Select TIP (choose from list).
Inspection (PCM)
1. Open the INSPECT (PCM) application.
2. Press MENU.
3. Select PROFILE (choose desired PROFILE from list).
Set up OPM PASS/FAIL thresholds
IWavelengths are measured in dBm.
1. Open the POWER METER application.
2. Select MORE... > EDIT WAVELENGTH TABLE.
3. Select a wavelength from the list.
4. Press MENU.
5. Select ENTER LIMIT.
6. Enter you desired limit value (measured in dBm) using the
numeric keypad.
7. Press OK.
8. Repeat steps 4–7 for all desired OPM wavelengths.
9. Check the boxes for only the wavelengths you want to use.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Viavi SmartClass™ OLP-82P Digital Video Display Pro Kit with Patch Cord, Probe Scope & High-Power Optical Power Meter

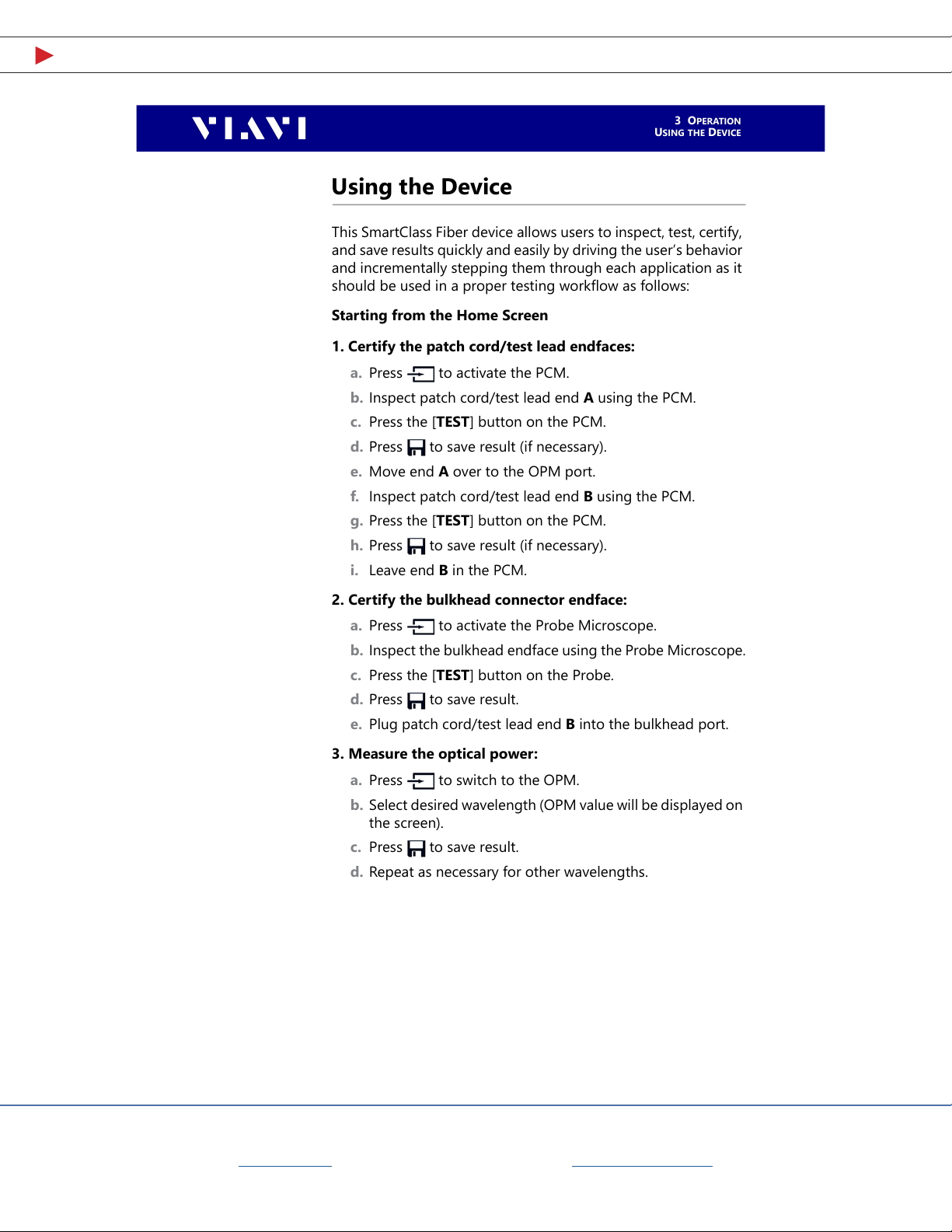

FBP-HD4i/HD4iP / OLP-82/82P 11
USING THE DEVICE
3 OPERATION
Using the Device
This SmartClass Fiber device allows users to inspect, test, certify,
and save results quickly and easily by driving the user’s behavior
and incrementally stepping them through each application as it
should be used in a proper testing workflow as follows:
Starting from the Home Screen
1. Certify the patch cord/test lead endfaces:
a. Press to activate the PCM.
b. Inspect patch cord/test lead end A using the PCM.
c. Press the [TEST] button on the PCM.
d. Press to save result (if necessary).
e. Move end A over to the OPM port.
f. Inspect patch cord/test lead end B using the PCM.
g. Press the [TEST] button on the PCM.
h. Press to save result (if necessary).
i. Leave end B in the PCM.
2. Certify the bulkhead connector endface:
a. Press to activate the Probe Microscope.
b. Inspect the bulkhead endface using the Probe Microscope.
c. Press the [TEST] button on the Probe.
d. Press to save result.
e. Plug patch cord/test lead end B into the bulkhead port.
3. Measure the optical power:
a. Press to switch to the OPM.
b. Select desired wavelength (OPM value will be displayed on
the screen).
c. Press to save result.
d. Repeat as necessary for other wavelengths.
