Viavito ST1000 User manual

Owner’s Manual.
Manual version 1.1
R
Squat Stand
ST1000
www.viavito.com

02 www.viavito.com
Manual Contents
R
Congratulations
on purchasing your
very own ST1000
Squat Stand.
You have chosen a high-quality, safe and
innovative piece of exercise equipment as
your training partner and we are certain
it will keep you motivated on the way to
achieving your personal tness goals.
Please take the time to read this owner’s
manual as it will help you to get the most
out of your new piece of equipment.
For more information, or if you require
any assistance please email us at
[e-mail]
Safety Standards:
The weight bench conforms
to the following standard:
EVS-EN ISO 20957-1-2013
Safety Information 03
Assembly 04/10
Product Overview 04
Part Identication Chart 05
Before You Begin 06
Assembly Instructions 07/09
Adjustment 10
Conditioning Guidelines 11/14
Beginner’s Guide to Exercise 12
Stretching Guide 13/14
Customer Support 15/16
Contact Information 15
Manufacturer’s Warranty 16
Technical Information 17/19

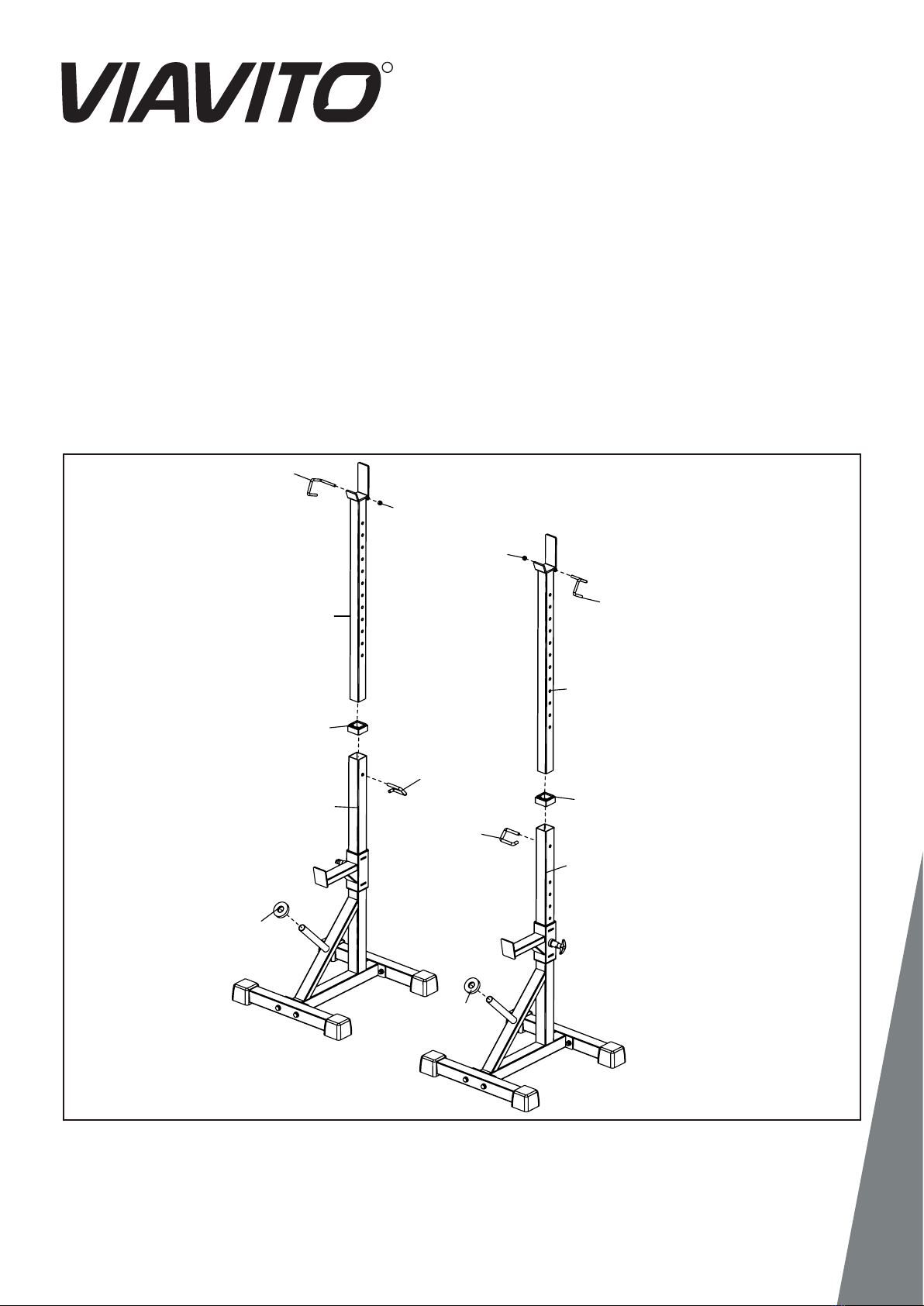

Exploded Diagram 17
Parts List 18

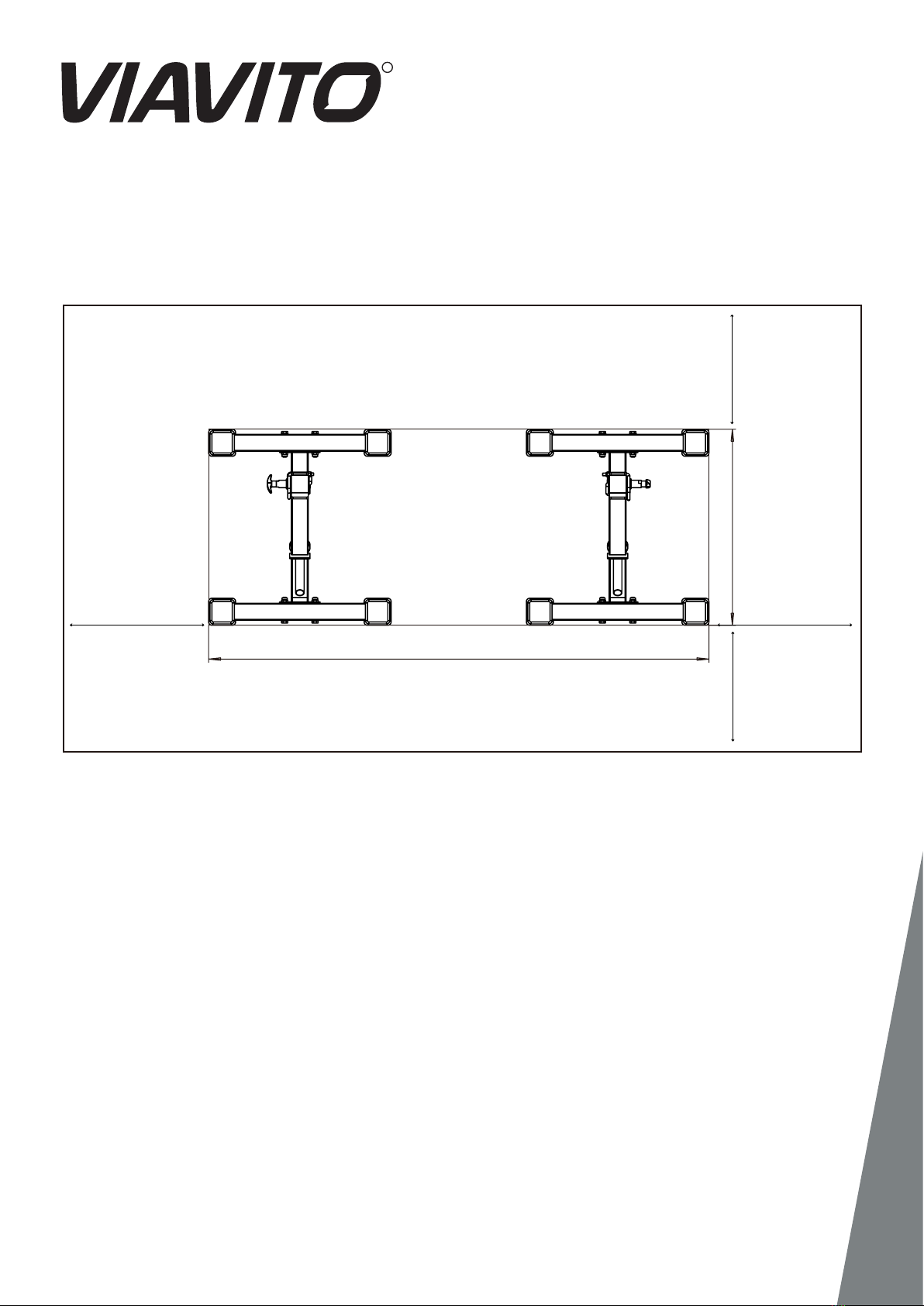

Space Required 19

03www.viavito.com
Safety Information
• Please read all the instructions carefully
before using this product.
• Retain this manual for future reference.
• The specications of this product may
vary slightly from the illustrations and
are subject to change without notice.
This exercise machine is built for optimum
safety. However, certain precautions apply
whenever you operate a piece of exercise
equipment. Be sure to read the entire
manual before you operate your machine.
In particular, note the following safety
precautions:
02 This product is intended for indoor, home
use only. Do not use the stand in any
commercial, rental, or institutional setting.
03 Set up the stand in a dry, level place and
keep it away from moisture and water.
04 Choking hazard! Keep small parts and
polybags away from children.
05 Place the stand on a stable and level
surface with enough clearance around.
06 Only use the stand for its intended
purpose. It is not suitable for
therapeutic or medical purposes.
04 Always wear appropriate workout
clothing when exercising. Sports
shoes are required when using this
equipment.
05 Always examine your unit before using
to ensure all parts are in working order.
07 Keep children and pets away from the
squat stand at all times.
08 Damaged or worn parts may be
dangerous for users and the integrity
of the squat stand. Replace worn or
damaged components immediately
and do not use the squat stand until
any issues have been resolved. Use only
spare parts supplied by Viavito.
09 Periodically check all bolts, nuts and
other connections to make sure that
they are secure and in good working
condition.
09 The squat stand is designed to support
a maximum loading weight, including
a barbell, of 140kg. Note: The squat
stand does not include a barbell or
weights.
10 Unauthorized repairs or altering the
squat stand’s design or functions
may be dangerous and will void the
warranty.
11 If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
WARNING: Before beginning using this
equipment or doing any exercise program,
consult your doctor. This is especially
important for people over the age of 35 or
those with pre-existing health problems.
Viavito assumes no responsibility for
personal injury and/or property damage
sustained by or through the use of this
product.
SAVE THESE INSTRUCTIONS.
R

04
Assembly
Product Overview
Thank you for selecting the Viavito ST1000 squat stand. This manual will guide you
through the assembly process.
www.viavito.com
R
LEFT RIGHT
Safety Spotter
ASSEMBLED DIMENSIONS:
148 x 58 x 177cm
Weight Rest
Upright
Left Safety Hook
Right Safety Hook
U-Pin
Adjustment Knob

05
www.viavito.com
R
M10 Washer (17)
M10 Locknut (19)
M8 Locknut (18)
M10 x 70mm Bolt (16)
Refer to the drawings below to identify small parts used in assembly. The number in
brackets by each drawing is the key number of the part, from the Parts List on page 18.
Note: Some small parts may have been preattached. If a part is not in the hardware
kit, check if it has been preattached.
Part Identication Chart

06
Before You Begin
www.viavito.com
R
Before beginning assembly, carefully
read the following information and
instructions:
• Assembly requires two persons.
• Place all parts in a cleared area and
remove the packing materials. Do not
dispose of the packing materials until
assembly is completed.
• For help identifying small parts, use the
PART IDENTIFICATION CHART on page 5.
• The following tools (not included) may
be required for assembly:
- 2 adjustable wrenches
- 1 rubber mallet
- 1 standard screwdriver
- 1 Phillips screwdriver
Assembly may be more convenient if you
have a socket set, a set of open-end or
closed-end wrenches, or a set of ratchet
wrenches.

1
3
3
16
16 17
17
19
19
19
19
07
www.viavito.com
R
Assembly Instructions
Step One.
01 02
Repeat this step for the Right Upright
(2) and the other Base (3).
Attach the Left Upright (1) to the
Bases (3) with four M10 x 70mm
Bolts (16) , four M10 Washers (17)
and four M10 Locknuts (19).

08 www.viavito.com
Step Two.
01 Attach the Adjustment Knobs (11) to
the Right Safety Spotter (5) and orient
it as shown.
02 Pull the Adjustment Knob (11). Slide
the Right Safety Spotters (5) onto the
Right Upright (2) and then release the
Adjustment Knob to the adjustment
hole, tighten the Adjustment knob.
03 Repeat this step for the Left Upright (1)
and the Left Safety Spotter (4). Make
sure to Safety Spotters to the same
height.
R
1
2
11
11
4
5

09
www.viavito.com
R
Step Three.
01 Insert the Weight Rest (6) into the
Uprights (1,2) with two Bushings (9)
and two U-Pins (12).
02 Attach the Safety Hooks (7,8) to the Weight
Rests (6) with two M8 Locknuts (18).
03 Slide two Bumpers (14) onto the
Uprights(1,2).
04 Make sure to Weight Rest (6) to the
same height.
05 Make sure that all parts are properly
tightened before you use the Squat
Stand. Congratulations! You have
completed assembly of your Squat
Stand.
18
18
7
8
6
6
12
12
9
9
1
2
14
14

Right
Upright
Left Upright
10 www.viavito.com
ADJUSTING THE WEIGHT RESTS AND THE
SAFETY SPOTTERS
To adjust the height of the Weight Rests
(6), raise the Weight Rests to the desired
height and tighten an U-Pin (12) into
Uprights (1,2). Make sure that the Weight
Rests are at the same height and that the
U-Pins (12) are fully tightened into the
Uprights.
Pull the Adjustment Knob (11) outward,
slide the Safety Spotters (4,5) upward or
downward to the desired position, and
then release the Adjustment Knob into one
of the adjustment holes in the uprights
(1,2), tighten the adjustment knob.

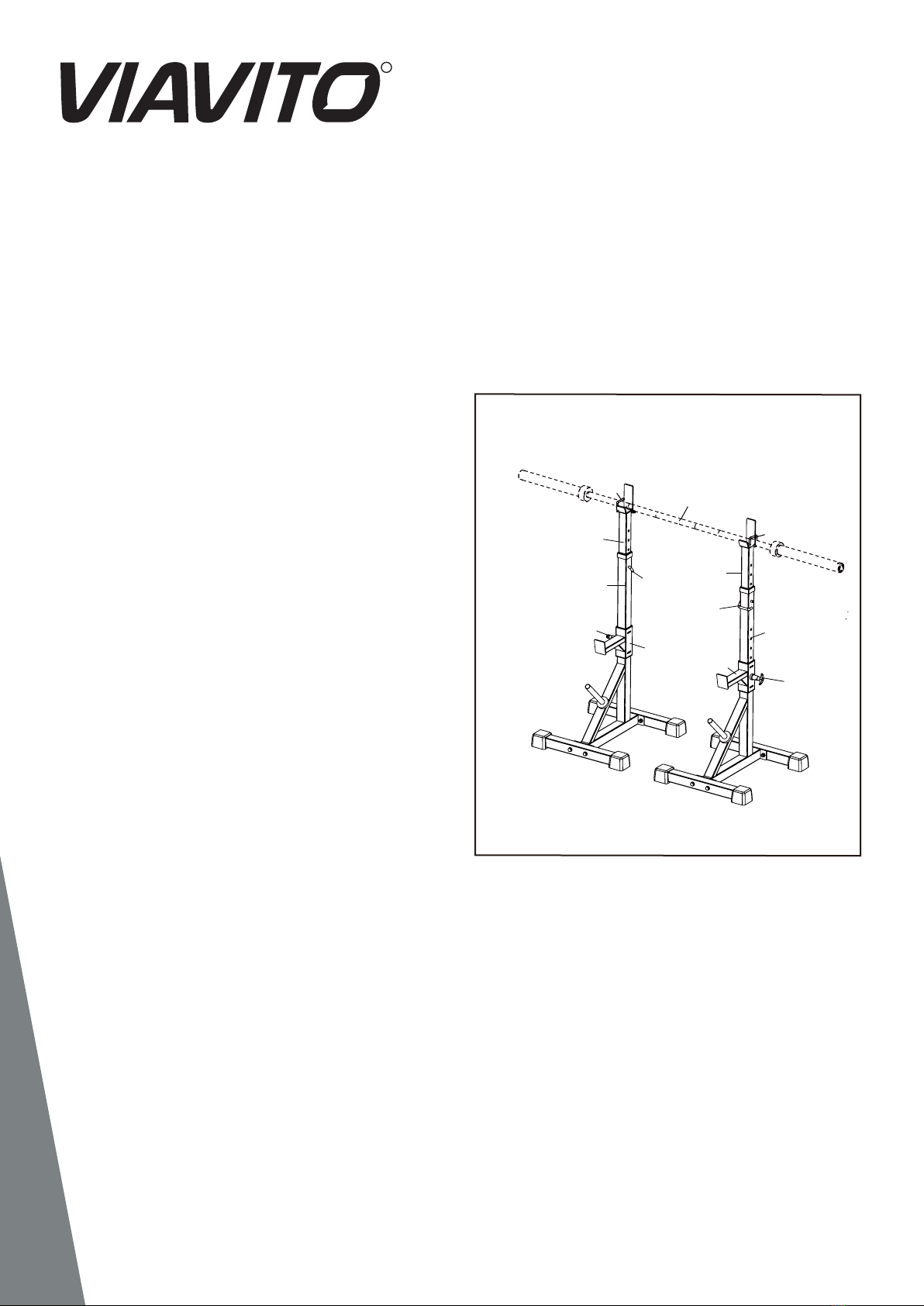

Put the Barbell (A) (not included) on the
Weight Rests (6).Then, slide the Safety
Adjustment
Make sure all parts are properly tightened each time you use the Squat Stand. Replace
any worn parts immediately. The Squat Stand can be cleaned with a damp cloth and a
mild, non-abrasive detergent; do not use solvents.
R
6
6
12
12
11
11
4
5
A
7
8
1
2
Hooks (7,8) against the Barbell.

11
www.viavito.com
R
Conditioning Guidelines
The following guidelines will help you to
plan your exercise program and exercise
safely. Remember that proper nutrition
and adequate rest are essential for
successful results.
WARNING: Before beginning this or any
other exercise program consult your
doctor. This is especially important for
pregnant women and new mothers, all
people over the age of 35, and those
with medical problems such as heart
disease, high or low blood pressure,
injuries, joint problems, obesity and
asthma.
Why exercise?
Exercise has been proven essential for
good health and general wellbeing.
Regular exercise will:
• Relieve tension and stress
• Provide enjoyment and fun
• Stimulate the mind
• Help maintain stable weight
• Control appetite
• Boost self-image
• Improve muscle tone and strength
• Improve exibility
• Lower blood pressure
• Relieve insomnia

12 www.viavito.com
R
If you’re beginning an exercise program
for the rst time or starting a new exercise
program, you must check with your doctor
that you are t to do so, particularly if:
• You have been diagnosed with heart
problems, high blood pressure or other
medical conditions.
• You have not exercised for over a year.
• You are over 35 and do not currently
exercise.
• You are pregnant or are a new mother.
• You have diabetes.
• You have chest pain, or experience
dizziness or fainting spells.
• You are recovering from an injury
or illness.
Workout tips
• Always perform a warm-up and
stretching exercises before your
workout and a cool-down and
stretching exercises at the end.
• Start slowly and build up your time,
speed and resistance gradually; doing
too much too soon can lead to injuries.
• If you are sore or tired, give yourself
a few extra days to recover.
How to begin
• Start with two or three 15-minute
sessions per week with a rest day
between workouts.
• Warm up for 5 to 10 minutes with gentle
movements incorporating the whole
body such as walking while swinging your
arms in a circle and then stretch
the muscles you’ll use during your
workout.
• Increase the intensity to slightly harder
than comfortable and exercise for as
long as you can. You may only be able
to exercise for a few minutes at a time,
but that will change quickly when you
exercise regularly.
• End each workout with a 5-minute
cool-down. You should then stretch the
muscles you’ve just worked to develop
exibility, reduce muscle soreness and
prevent injury.
• Increase your workout time by a few
minutes each week until you can work
continuously for 30 minutes per session.
How hard should you work?
Always be aware of how you feel when you
exercise. If you feel dizzy or light-headed,
stop immediately and rest.
Beginner’s Guide to
Exercise

13
www.viavito.com
R
Stretching Guide
Tips for stretching
• Begin with small mobility exercises of all
the joints e.g. simply rotate the ankles,
bend the knees and roll your hips.
Gradually make the movements larger
and faster. This will allow the body’s
natural lubrication (synovial uid) to
protect the surface of your bones at
these joints.
• Always warm up the body before stretch-
ing, as this increases blood ow around
the body, creating warmth which makes
the muscles more supple.
• Start with your legs, and steadily work up
the body.
• Each stretch should be held for at least
10 seconds (working up to 20 to 30
seconds) and usually repeated
about 2 or 3 times.
• Do not stretch until it hurts. If there’s any
pain, ease o.
• Don’t bounce. Stretching should be
gradual and relaxed.
• Don’t hold your breath during a stretch.
• Stretch after exercising to prevent
muscles from tightening up.
• Stretch at least three times a week to
maintain exibility.
Warm-up and cool-down
A successful cardio-vascular exercise pro-
gram consists of a full-body warm-up,
aerobic exercise, and a cool-down. Do the
entire program at least two and preferably
three times a week, resting for a day be-
tween workouts. After several months, you
can increase your workouts to four or ve
times per week.
Warm-up
The purpose of warming up is to prepare
your body for exercise and to minimise
injuries. Warm up for ve minutes before
strength-training or exercising aerobically.
Perform activities that raise your heart rate
and warm the working muscles.
Activities may include brisk walking,
jogging, jumping jacks, jump rope, and
running on the spot. Try to incorporate
moves that take the joints through their
full range of motion.
Stretching
Stretching while your muscles are warm af-
ter a proper warm-up and again after your
strength or aerobic training session is very
important. Muscles stretch more easily at
these times because of their elevated tem-
perature, which greatly reduces the risk of
injury. Stretching develops exibility and
reduces muscles soreness.
Stretches should be held for
15 to 30 seconds.

Side Stretch
14 www.viavito.com
COOL-DOWN
The purpose of cooling down is to return the body to its normal or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart
rate, allows blood to return to the heart and helps prevent muscle soreness caused by the
build-up of lactic acid in the muscles.
Do not bounce or over-stretch. Take your time on each stretch. Gradually take each
stretch a little deeper on every out breath to your personal maximum.
R

15
www.viavito.com
R
Customer Support
Should you require any assistance
regarding this product please gather
the following information and then
contact us using the details below:
• Serial No. - This can be found on
a label on the product itself
• Original purchase date
• Place of purchase
• Information about the place and
conditions of use
• Precise description of the issue
or defect.
IMPORTANT! Please retain your sales
receipt. Viavito Customer Care may
request proof of purchase to validate
eligibility for warranty service.
Warranty cover starts from the date
shown on the proof of purchase.
The best way to contact us is via the
website: www.viavito.com
Viavito
94 Cleveland Street
London
W1T 6NW
Email: [e-mail]
Contact Information
https://www.facebook.com/MyViavito
https://instagram.com/Viavito
https://twitter.com/MyViavito

www.viavito.com
16
Viavito warrants this product to be free
of defects of material and workmanship,
under normal use and conditions, for a
period of 12 months from the date of the
original purchase.
Warranty extensions may apply to this
product subject to registering this product
with Viavito. To qualify for this, please
complete the warranty registration form
on the Viavito website at www.viavito.com
Full details of warranty extensions and
the Viavito Manufacturer’s Warranty are
available online at www.viavito.com.
Terms.
This warranty extends only to the original
purchaser and is not transferable.
The warranty does not cover:
01 Normal wear and tear
02 Any changes to upgrade this product
from its normal state or use other than
as described in the user manual
03 Damage resulting from:
a) Transport
b) Abuse, misuse, failure to follow instruc-
tions or improper or abnormal use
c) Non-home use - including commercial,
professional, or rental purposes
d) Repairs not provided by Viavito
e) Accidents, lightning, water, re, or any
other causes beyond the control of Viavito
f) Improper location including, but not
limited to, humid, dusty, or outdoor
environments.
Viavito is not responsible or liable for
direct, indirect, or consequential losses
arising out of or in connection with the use
of this product or damages with respect
to any loss of property, revenue, prots,
enjoyment or use, nor for any costs of
removal or installation of this product.
This warranty covers products purchased
as new inside the United Kingdom.
In the event of the machine requiring a
repair, this may need to be performed at
a Viavito authorised repair centre.
This warranty is in addition and does not
in any way aect your statutory rights.
Manufacturer's Warranty
R

1
2
3
3
3
3
4
5
6
6
7
8
9
9
10
10
10
10
11
11
12
12
13
13
13
13
13
13
13
13
14
14 15
15
16
16
16
16
17
17 17
17
19
19
19
19
19
19
19
18
18
19
17
www.viavito.com
R
Technical Information
Exploded Diagram

18 www.viavito.com
Parts List
KEY NO. DESCRIPTION Q’TY
1 Left Upright 1
2 Right Upright 1
3 Base 4
4 Left Safety Spotter 1
5 Right Safety Spotter 1
6 Weight Rest 2
7 Left Safety Hook 1
8 Right Safety Hook 1
9 Upright Bushing 2
10 Safety Spotter Bushing 4
11 Adjustment Knob 2
12 U-Pin 2
13 End Cap 8
14 Bumper 2
15 Inner Cap 2
16 M10 x 70mm Bolt 8
17 M10 Washer 8
8
18
19
M8 Locknut 2
R
M10 Locknut

19
www.viavito.com
R
Appendix 1: Space Required
1480
580
600
600
600
600
For safety reasons, minimum clearance for the equipment is 0.6m in all directions.
