Victory VP200ESK Installation instructions

VP200ESK SAFETY INSTRUCTIONS
1
IMPORTANT SAFETY INSTRUCTIONS

VP200ESK SAFETY INSTRUCTIONS
2
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
IMPORTANT: The Electrostatic Sprayer has been designed and engineered to be very safe
during normal operation. As with all cordless products certain safety precautions should be
taken.
Please read the following WARNINGS before operating the machine.
UNDERSTAND THESE SAFETY PRECAUTIONS BEFORE OPERATING MACHINE. FAILURE TO
PROPERLY FOLLOW THESE PRECAUTIONS MAY LEAD TO A FIRE, EXPLOSION, OR
ELECTRICAL SHOCK HAZARD.
IMPORTANT SAFETY INSTRUCTIONS
WARNING – When using electric appliances, basic precautions should always be followed,
including the following:
•Read all the instructions before using the appliance.
•To reduce the risk of injury, close supervision is necessary when an appliance is used
near children.
•Do not contact moving parts.
•Only use attachments recommended or sold by the manufacturer.
•To reduce the risk of electrical shock, do not put electrode in water or other liquid. Do
not place or store appliance where it can fall or be pulled into a tub or sink.
•Use only the charger supplied by the manufacturer to recharge.
SAVE THESE INSTRUCTIONS
ITEMS&INCLUDED
1
1
1
1
1
1

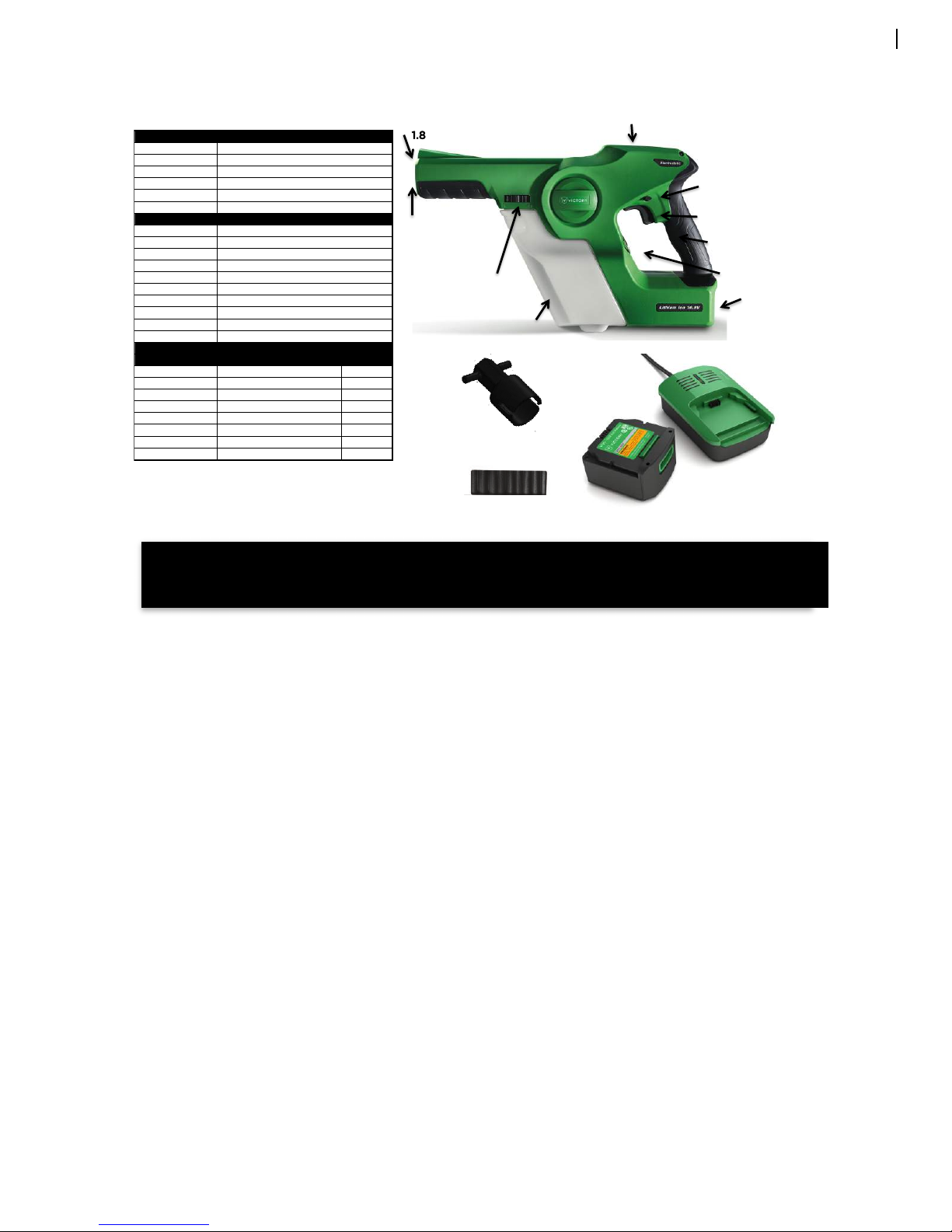

PRODUCT&COMPONENTS
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
OPTIONAL&ACCESSORIES&SOLD&SEPARATELY
Model&Number Description
MSRP
VP20B Professional&16.8&Volt&Battery 129.99$&&&&&
VP10 Professional&16.8&Volt&Charger 79.99$&&&&&&&&
VP30 VP200&Replacement&Tank 19.99$&&&&&&&&
VP49& Nozzle&Wrench 4.99$&&&&&&&&&&
VP50& 3&in&1&Nozzle 29.99$&&&&&&&&
VP55 Single&40&Nozzle 19.99$&&&&&&&&
VP57 Single&80&Nozzle 19.99$&&&&&&&&
VP59 Single&110&Nozzle 19.99$&&&&&&&&
ELECTROSTATIC&CHARGE&ON/OFF

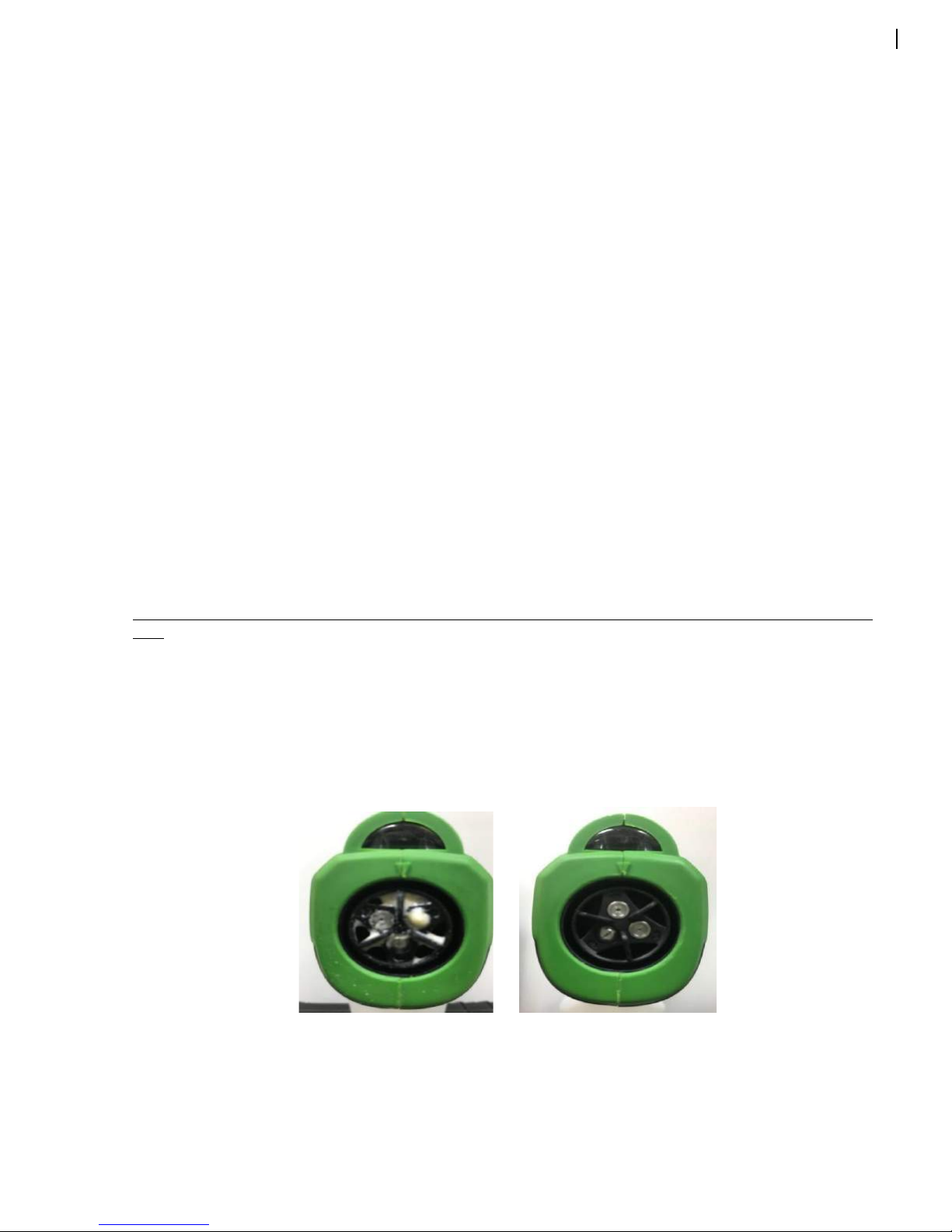

3&IN&1&NOZZLE
HEADLIGHT
GROUNDING&STRAP
SPRAYER
TANK
16.8&VOLT&BATTERY&-3400&mAh
16.8&VOLT&CHARGER
NOZZLE&WRENCH
TANK&CAP
TANK&RELEASE
TANK
TANK&LOCKING&COLLAR
16.8&VOLT&BATTERY
UNIT&ON/OFF
LOCK&OFF&SWITCH
1.0 TANK
1.1 TANK RELEASE
1.2 TANK LOCKING
COLLAR 1.3 16.8 V BATTERY
1.4 UNIT ON/OFF
1.5 LOCK OFF
1.6 CHARGE
ON/OFF
1.7 NOZZLE
1.8 HEADLIGHT
1.9 GROUNDING STRAP
NOZZLE WRENCH
CHARGER
BATTERY
TANK CAP
MAIN COMPONENTS
WARNING: It is the operator’s responsibility to read and understand the cautions and
warnings in this manual before attempting to operate this machine.

VP200ESK SAFETY INSTRUCTIONS
3
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
General Safety Rules – For All Battery Operated Sprayers
SAVE THESE INSTRUCTIONS
•Keep your work area clean and well lit.
•Do not operate cordless sprayer in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Cordless Sprayers create sparks, which may ignite the
dust or fumes.
•Keep bystanders, children, and visitors away while operating a cordless sprayer.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
•CAUTION: To avoid electrical shock do not touch or insert any foreign objects into the
nozzle.
CAUTION((TO(AVOID(ELECTRICAL(SHOCK(
DO(NOT(TOUCH(OR(INSERT(ANYTHING(
IN(THE(NOZZLE(OF(THE(SPRAYER(
WARNING: This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
WARNING: This machine contains an electrostatic device that may interfere with sensitive
medical devices such as pacemakers, defibrillators, or similar devices. DO NOT operate this
machine or stand within 10 feet if you use such medical devices. Contact your physician prior to
operation if you are unsure if this machine will interfere with your medical device.
WARNING: Read and understand all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious personal injury.
WARNING: Always have the machine serviced by a professional, qualified representative. Never
attempt to service the machine or access its internal components.

VP200ESK SAFETY INSTRUCTIONS
4
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
•A cordless sprayer with integral batteries or a separate battery pack must be recharged
only with the specified charger for the battery. A charger that may be suitable for one
type of battery may create a risk of fire when used with another battery.
•Use battery operated sprayer only with the specifically designated battery pack. Use of
any other batteries may create a risk of fire.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use common sense when operating a cordless
sprayer. Do not use cordless sprayer while tired or under the influence of drugs, alcohol,
or medication.
•A moment of inattention while operating cordless sprayer may result in serious personal
injury,
•Avoid accidental starting. Be sure switch is in the locked or OFF position before
inserting battery pack
•Carrying sprayer with your finger on the switch or inserting the battery pack into a tool
with the switch ON invites accidents.
•Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the tool in unexpected situations.
•Use safety equipment. Always comply with any requirements for protective clothing,
goggles, gloves, facial masks, or respirator required by the formulation label.
Formulations.
Most water based chemicals are suited for machine. Questions call 952-843-5100
DO NOT USE THIS CORDLESS SPRAYER TO APPLY FLAMMABLE LIQUIDS.
•Do not use oil base liquids.
•Store formulation in its original labeled container.
•Ensure that formulation is applied only in strict compliance with the formulation label as
well as local, state, and federal regulations.
•Do not use oil-base or flammable formulations with this machine.
TOOL USE AND CARE
•Do not use a machine that is broken or damaged in any way.
•Do not alter the machine by adding or removing parts.
•Do not restrict the motor air inlet area.
•Do not tamper with the output nozzle.
•Do not allow the machine to operate unattended.
•Do not stand in water or hold over water while operating machine.
•Do not use outdoors when it’s raining.
•Do not use cordless sprayer if switch does not turn it on or off. A cordless sprayer that
cannot be controlled with the switch is dangerous and must be repaired.
•Disconnect battery pack from cordless sprayer or place the switch in the locked or OFF
position before making any adjustments, refilling the tank or storing the cordless
sprayer. Such preventative safety measures reduce the risk of starting the cordless
sprayer accidentally.
•Store idle cordless sprayer out of reach of children and other untrained persons.
Cordless sprayers are dangerous in the hands of untrained users.
•When battery pack is not in use, keep it away from other metal objects like: paper clips,
coins, keys, nails, screws, or other small metal objects that can make a connection from
one terminal to another. Shorting the battery terminals together may cause sparks,
burns, or a fire.
•To clean the sprayer use soap, water and a damp cloth to wipe clean. To clean internal

VP200ESK SAFETY INSTRUCTIONS
5
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
components run water through the sprayer for 3 minutes.
Important Safety Instructions for Battery Packs
Your cordless sprayer uses a Victory Innovations, 16.8 volt Lithium Ion battery pack. The battery
pack is not fully charged out of the carton. Before using the battery pack and charger, read the
safety instructions below. Then follow charging procedures outlined.
CAUTION: The battery used in this device may present a risk of fire or chemical burn if
mistreated. Do not disassemble, store in extreme heat or cold.
Keep away from children. Do not disassemble. Do not dispose of in fire.
Do not attempt to disassemble the battery or remove any component projecting from the
battery terminals. The battery and charger have no user serviceable parts. Fire or injury may
result from tampering prior to disposal, protect exposed terminals with heavy insulating tape to
prevent shorting.
DANGER: Electrocution hazard. Never attempt to open the battery pack for any reason. If
battery pack case is cracked or damaged, do not insert into charger. Electric shock or
electrocution may result.
WARNING: Fire hazard. Do not store or carry battery so that metal objects can contact
exposed battery terminals. For example, do not place battery in aprons, pockets, toolboxes,
product kit boxes, drawers, etc., with loose nails, screws, keys, etc.
CAUTION: Battery pack must be securely attached to the cordless sprayer. If battery pack is
detached, personal injury may result.
Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The
battery pack can explode in a fire.
Charge the battery packs only with a Victory Innovations charger.
DO NOT splash or immerse in water or other liquids.
Do not store or use the tool and battery pack in locations where the temperature may reach or
exceed 105°F (40 )!(such as outside sheds or metal buildings in summer).
Damaged battery packs should be recycled.
Transporting batteries can possibly cause fires if the battery terminals inadvertently come in
contact with conductive materials such as keys, coins, hand tools and the like.
The US Department of Transportation Hazardous Material Regulations (HMR) prohibits
transporting batteries in commerce or on airplanes (i.e., packed in suitcases and carry-on
luggage) UNLESS they are properly protected from short circuits. When transporting individual
batteries, make sure that the battery terminals are protected and well insulated from materials
that could contact them and cause a short circuit.
Important Safety Instructions for Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery
chargers. Before using charger, read all instructions and cautionary markings on charger,
battery pack, and product using battery pack.
DANGER: Electrocution hazard. 120 volts are present at charging terminals. Do not probe with
conductive objects.
WARNING: Shock hazard. Do not allow any liquid to get inside charger.
CAUTION: Burn hazard. To reduce the risk of injury, charge only Victory Innovations
rechargeable batteries. Other types of batteries may burst causing personal injury and damage.

VP200ESK SAFETY INSTRUCTIONS
6
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
CAUTION: Under certain conditions, with the charger plugged in to the power supply, the
exposed charging contacts inside the charger can be shorted by foreign material. Foreign
materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any
buildup of metallic particles should be kept away from charger cavities. Always unplug the
charger from the power supply when there is no battery pack in the cavity. Unplug charger
before attempting to clean.
DO NOT attempt to charge the battery pack with any chargers other than the one noted in this
manual. The charger and battery pack are specifically designed to work together.
These chargers are not intended for any uses other than charging Victory Innovations
rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
Do not expose charger to rain or snow.
Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to
electric plug and cord.
Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord
could result in risk of fire, electric shock, or electrocution.
An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety.
The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge
has more capacity than 18 gauge. When using more than one extension to make up the total
length, be sure each individual extension contains at least the minimum wire size.
Recommended Minimum Wire Size for Extension Cords:
Total Length of Cord
25 ft., 50 ft., 75 ft., 100 ft., 125 ft., 150 ft., 175 ft.,
7.6 m, 15.2 m, 22.9 m, 30.5 m, 38.1 m, 45.7 m, 53.3 m,
Wire Size AWG
18, 18, 16, 16, 14, 14, 12
Do not place any object on top of charger or place the charger on a soft surface that might
block the ventilation slots and result in excessive internal heat. Place the charger in a position
away from any heat source. The charger is ventilated through slots in the top and the bottom of
the housing.
Do not operate charger with damaged cord or plug — have them replaced immediately.
Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in
any way.
Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk
of electric shock. Removing the battery pack will not reduce this risk.
NEVER attempt to connect 2 chargers together.
The charger is designed to operate on standard household electrical power (120 Volts)or (240)
with proper country plug
Operation Instructions
1. To start the use of the Victory Cordless Electrostatic Sprayer first charge your battery by
inserting the Victory 16.8 volt battery into the charger and plugging the charger into a
wall socket.

VP200ESK SAFETY INSTRUCTIONS
7
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
2. Next fill the tank (1.0) by first removing it from the unit by rotating the tank locking
collar(1.2) and pulling the tank release ring (1.1). The tank can now be removed. Note:
you must hold on to the tank when you pull the tank release ring or the tank will fall to
the floor.
3. Fill the tank with the desired liquid.
4. Insert the tank into the sprayer and rotate the tank locking collar (1.2) until you hear the
click of the tank release ring (1.1) snap into place.
5. Insert the charged battery into the battery socket and lock in place.
6. Pull the trigger and spray on your desired surface.
To insure maximized electrostatic performance always keep you hand firmly wrapped around
the handle in contact with the grounding strap
Nozzle Instructions
To Adjust the Nozzle
•Remove the battery from the unit.
•Insert the nozzle wrench into the front end of the unit.
•Rotate wrench until the tabs on the nozzle and the slots on the wrench are lined up.
•When the wrench slots and the nozzle tabs are lined up, the wrench will be completely
inserted into the front end, rotate the wrench clockwise to adjust to a different size
spray. The largest particle tip has a line cut through it, rotate clockwise until you hear a
click to get the medium particle and rotate clockwise again until it clicks again to get the
smallest particle.
•Remove the wrench when complete.
To Remove the Nozzle
ITEMS INCLUDED
1
1
1
1
1
1
PRODUCT COMPONENTS
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
OPTIONAL ACCESSORIES SOLD SEPARATELY
Model Number Description MSRP
VP20B Professional 16.8 Volt&Battery 129.99$&&&&
VP10 Professional 16.8 Volt&Charger 79.99$&&&&&&&
VP30 VP200 Replacement&Tank 19.99$&&&&&&&
VP49 Nozzle Wrench 4.99$&&&&&&&&&
VP50 3 in 1 Nozzle 29.99$&&&&&&&
VP55 Single 40 Nozzle 19.99$&&&&&&&
VP57 Single 80 Nozzle 19.99$&&&&&&&
VP59 Single 110 Nozzle 19.99$&&&&&&&
ELECTROSTATIC CHARGE ON/OFF
3 IN 1 NOZZLE
HEADLIGHT
GROUNDING STRAP
SPRAYER
TANK
16.8 VOLT BATTERY -3400 mAh
16.8 VOLT CHARGER
NOZZLE WRENCH
TANK&CAP
TANK RELEASE
TANK
TANK LOCKING COLLAR
16.8 VOLT BATTERY
UNIT ON/OFF
LOCK OFF SWITCH
1.0 TANK
1.1 TANK RELEASE
1.2 TANK LOCKING
COLLAR 1.3 16.8 V BATTERY
1.4 UNIT ON/OFF
1.5 LOCK OFF
1.6 CHARGE
ON/OFF
1.7 NOZZLE
1.8 HEADLIGHT
1.9 GROUNDING STRAP
NOZZLE WRENCH
CHARGER
BATTERY
TANK CAP
MAIN COMPONENTS

VP200ESK SAFETY INSTRUCTIONS
8
VICTORY INNOVATIONS – 4021 VERNON AVE S. SUITE 304 – ST. LOUIS PARK MN 55416
www.victorycomplete.com
•Remove the battery from the unit.
•Insert the nozzle wrench into the front of the unit.
•Rotate wrench until the tabs on the nozzle line up with the slots in the wrench.
•When the tabs and slots are lined up the wrench will be completely inserted into the
front end.
•To remove, rotate the wrench in the counter clockwise direction until the nozzle comes
loose (1/4 rotation).
•Remove the wrench when complete.
To Insert Nozzle
•Remove the battery from the unit.
•Insert the nozzle into the wrench, lining up the tabs on the nozzle and the slots on the
wrench.
•Insert the wrench with nozzle into the front end of the unit.
•Push in and rotate the wrench ¼turn counter clockwise. When you hear a click the
nozzle is in position.
•Remove the wrench when complete.
Cleaning Electric static sprayers
All users follow safe cleaning practices to protect themselves from harmful exposure when
cleaning the sprayer.
It is recommended that user should purchase a second tank to wash out cordless electric static
sprayers to prevent residual solution build up. Disconnect storage tank from sprayer use the
black threaded cap that's is provided inside caring case. Disconnect storage tank from sprayer
use the locking threaded cap to secure tank and solution when not in use.
Review chemical MSDS sheet how best to secure and store your chemical solution when not in
use.
Cleaning Nozzle
If your nozzles becomes plugged soak in hot soapy water and blow out with pressurized air to
remove blockage.
Example below dirty nozzle #1 and clean nozzle #2. Nozzle #1 have not been properly cleaned
after being use. When not properly cleaned, the sprayer nozzles residual chemical deposits
build up. Deposit build up results in decreased bar pressure and decreased spray patterns
#1 Nozzle (Dirty) #2 Nozzle (Clean)
To reduce the chance of blockage we recommend that after every few days of use spray a tank
of water through the unit to rinse out any residual chemical build up that may have occurred.

VP200ESK SAFETY INSTRUCTIONS
9
One Year Limited Warranty
VICTORY will repair or replace, without charge, any defects due to faulty materials or
workmanship for one year from the date of purchase. This warranty does not cover part failure
due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair
information, email us at [e-mail]. This warranty does not apply
to damage caused where repairs have been made or attempted by others. This warranty gives
you specific legal rights and you may have other rights, which vary in certain states or
provinces.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing,
email us at [e-mail] for a free replacement.
Charge Battery Remove Tank / Fill Connect Tank
Adjust Nozzle Spray Clean Up
This side is fully
illuminated when
charged. This side is fully
illuminated
when empty.
2. Pull locking ring
to remove.
1. Rotate collar to
unlock icon
position.
1. Align tank
grooves into slide
rail, lower machine
onto tank.
2. Listen for a
“click”.
3. Rotate collar to
lock icon position.
Rotate the nozzle
clockwise to
change the size of
the particles.
Large
Medium
Small
After use, spray a tank of
water to rinse.
Optimum Sprayer
Distance is 24 inches.
2 hour charge time
3. Lift unit off the
tank.
How To Use.
The Largest Nozzle has a “line” Through it
