MAXIMUS MMX
Ex-proof FULL HD camera in a compact design
Manual B

EN
English - Instruction manual
ENGLISH
MAXIMUS MMX
Ex-proof FULL HD camera in a compact design
Manual B

Instruction manual - English - EN
3MNVCMMXCAM_1905_EN
Contents
ENGLISH 1
1 About this manual ....................................................................................................................5
1.1 Typographical conventions ................................................................................................................................................ 5
2 Notes on copyright and information on trademarks.............................................................5
3 Identification.............................................................................................................................5
3.1 Product marking..................................................................................................................................................................... 5
4 Installation ................................................................................................................................5
4.1 Range of use............................................................................................................................................................................. 5
4.2 Housing board description................................................................................................................................................. 6
4.3 Connection of the power supply line.............................................................................................................................. 6
4.3.1 Connection of the power supply line (version of the product not cabled)........................................................................ 6
4.3.1.1 Connection of the power supply line (24Vac/24Vdc).........................................................................................................................................6
4.3.1.2 Connection of the power supply line (PoE+) ........................................................................................................................................................7
4.3.2 Connection of the power supply line (version of the product cabled)................................................................................ 7
4.3.2.1 Connection of the power supply line (24Vac/24Vdc).........................................................................................................................................7
4.3.2.2 Connection of the power supply line (PoE+) ........................................................................................................................................................7
4.4 Connection of the Ethernet cable.................................................................................................................................... 8
4.4.1 Connection of the Ethernet cable (version of the product not cabled)............................................................................... 8
4.4.2 Connection of the Ethernet cable (cabled version of the product)....................................................................................... 8
5 Switching on .............................................................................................................................8
6 Configuration............................................................................................................................8
6.1 Default IP address................................................................................................................................................................... 8
6.2 Web interface........................................................................................................................................................................... 9
6.2.1 First access to the web pages.............................................................................................................................................................. 9
7 Maintenance .............................................................................................................................9
7.1 Factory Default........................................................................................................................................................................ 9
8 Information on disposal and recycling .................................................................................10
9 Troubleshooting .....................................................................................................................10
10 Technical data .......................................................................................................................11
10.1 Cameras.................................................................................................................................................................................11

EN - English - Instruction manual
4 MNVCMMXCAM_1905_EN

Instruction manual - English - EN
5MNVCMMXCAM_1905_EN
1 About this manual
Install the product following all the
operations outlined in the manual below.
The following manual should be consulted
after conducting all the operations
indicated in Manual A.
Read all the documentation supplied carefully before
installing and using this unit. Keep the manual in a
convenient place for future reference.
1.1 Typographical conventions
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
DANGER!
Hot surface.
Avoid contact. Surfaces are hot and may
cause personal injury if touched.
CAUTION!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The mentioned names of products or companies are
trademarks or registered trademarks.
ONVIF® is a trademark of Onvif, Inc.
3 Identification
3.1 Product marking
See the label attached to the product.
4 Installation
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
The external multi-polar cable shield
(armature), if present, must be earthed.
During installation, remember to comply
with the curvature radius of the multi-polar
cable (if present).
Minimum bending radius: 190mm (7.5in).
4.1 Range of use
The installation temperature range is: from -60°C
(-76°F) to +65°C (149°F) or +70°C (158°F) (depending
on the temperature class of the product).
The device operates within a temperature range of:
from -40°C (-40°F) to +65°C (149°F).

EN - English - Instruction manual
6 MNVCMMXCAM_1905_EN

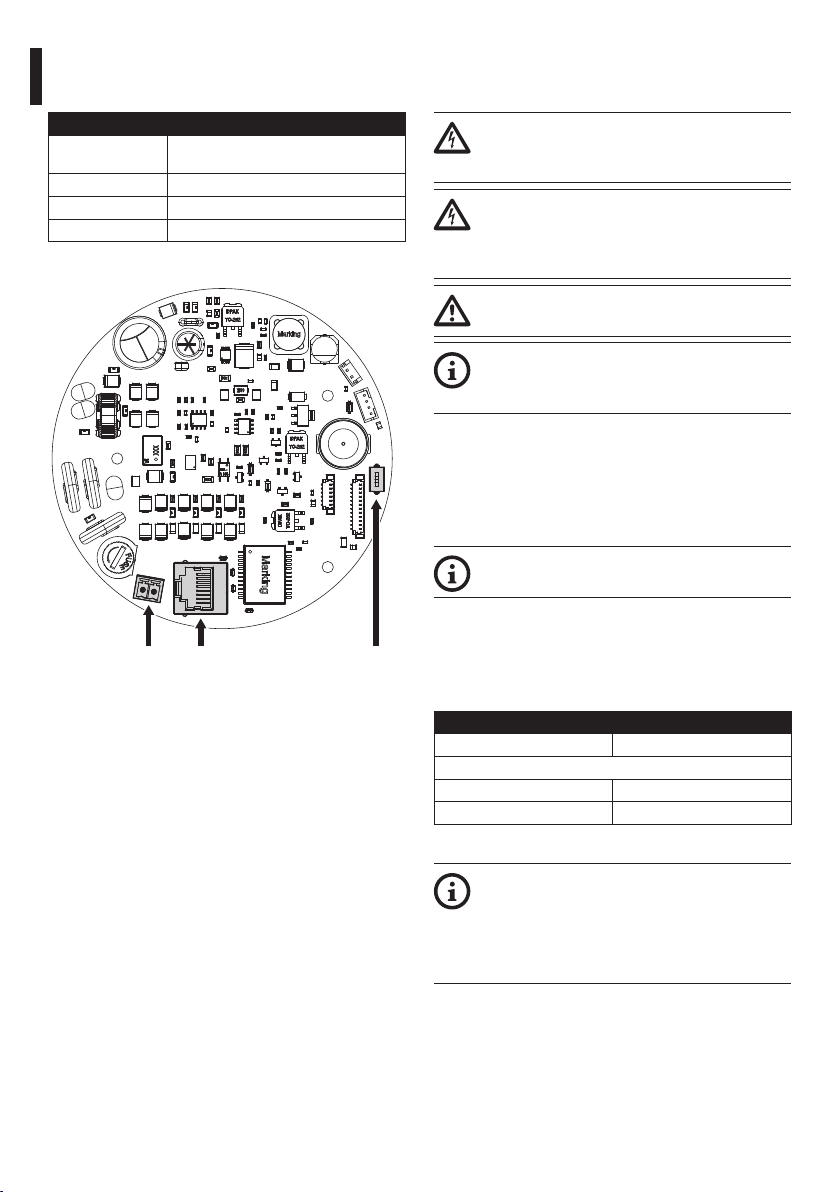

4.2 Housing board description
BOARD DESCRIPTION
Connector/
Terminal
Function
J1 Power supply line (24Vac/24Vdc)
J8 Ethernet, PoE+ power supply
SW1 Reset dip-switch
Tab. 1
J8J1 SW1
Fig. 1
4.3 Connection of the power
supply line
Electrical connections must be performed
with the power supply disconnected and
the circuit-breaker open.
When commencing installation make sure
that the specifications for the power supply
for the installation correspond with those
required by the device.
Check that the power supply is adequately
dimensioned.
The product can be powered in
24Vac/24Vdc or via PoE+ (Power Over
Ethernet).
4.3.1 Connection of the power supply
line (version of the product not cabled)
4.3.1.1 Connection of the power supply line
(24Vac/24Vdc)
Earthing is not planned since the product
does not require it.
The power supply cables should be connected to the
power supply terminal of the housing board (J1, 4.2
Housing board description, page 6).
Perform the connections following the instructions
reported in the table .
CONNECTION OF THE POWER SUPPLY LINE
Colour Terminals
Power supply 24Vac/24Vdc
Defined by the installer ~/+
Defined by the installer ~/-
Tab. 2
The power supply terminal can host cables
with the characteristics outlined below.
Nominal section of the cables used: From
0.2mm² (24AWG) to 1mm² (17AWG).

Instruction manual - English - EN
7MNVCMMXCAM_1905_EN
4.3.1.2 Connection of the power supply line
(PoE+)
The Ethernet cable shield must always be
earthed via the connector. Always use a
shielded RJ45 connector.
The product can be powered using PoE+ (Power Over
Ethernet) devices in compliance with international
standard for technological information IEEE 802.3at,
with the help of an Ethernet data cable of Category
5E (or higher).
The Ethernet cable should be connected to
connector RJ45 of the housing board (J8, 4.2 Housing
board description, page 6).
Carry out the connections as described in the table
(according to the standard specifications: TIA/EIA-
568-B).
CONNECTION OF THE ETHERNET CABLE
Pin number Cable color
1 Orange-White
2 Orange
3 Green-White
4 Blue
5 Blue-White
6 Green
7 Brown-White
8 Brown
Tab. 3
4.3.2 Connection of the power supply
line (version of the product cabled)
4.3.2.1 Connection of the power supply line
(24Vac/24Vdc)
Perform the connections following the instructions
reported in the table .
CONNECTION OF THE POWER SUPPLY LINE 24VAC/24VDC
Colour Function
Black 1 ~/+
Black 2 ~/-
Tab. 4
4.3.2.2 Connection of the power supply line
(PoE+)
The product can be directly connected to an
Ethernet switch equipped with a PoE+ (End-Span
configuration) port or a classic Ethernet switch using
a PoE Injector (Mid-Span configuration).

EN - English - Instruction manual
8 MNVCMMXCAM_1905_EN
4.4 Connection of the Ethernet
cable
The Ethernet cable shield must always be
earthed via the connector. Always use a
shielded RJ45 connector.
4.4.1 Connection of the Ethernet cable
(version of the product not cabled)
Use of Ethernet cables with the following
characteristics is highly recommended:
• STP (shielded)
• Category 5E (or higher)
For further information refer to the relative chapter (
4.3.1.2 Connection of the power supply line (PoE+),
page 7).
4.4.2 Connection of the Ethernet cable
(cabled version of the product)
The product can be directly connected to an Ethernet
switch.

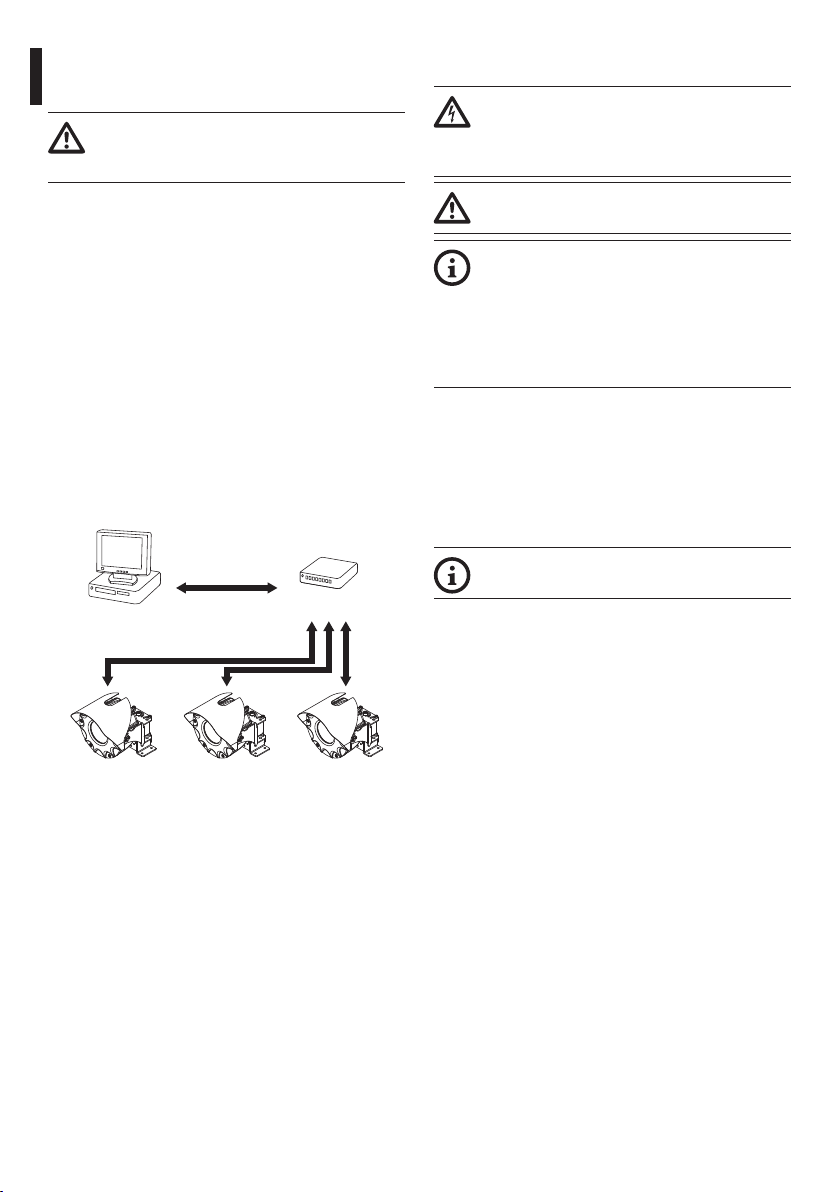

The example below shows a typical installation.
Switch
Personal
Computer
Fig. 2
5 Switching on
Make sure that the unit and other
components of the installation are closed
so that it is impossible to come into contact
with live parts.
Make sure that all parts are fastened down
firmly and safely.
The automatic pre-heating (De-Ice) process
could be started whenever the device is
switched on and the ambient temperature
is below -10°C (+14°F). The procedure is
necessary to guarantee correct operation of
the devices even at low temperatures. Pre-
heating procedure length: 60 minutes.
The unit is switched on by connecting the power
supply.
To switch off the unit disconnect the power.
6 Configuration
6.1 Default IP address
The unit is configured to obtain an IP
address from a DHCP server.
The IP address acquired via DHCP is visible in the
DHCP server log file.
If the DHCP server is not available, the unit
automatically configures itself with a self-generated
IP address in the 169.254.x.x/16 subnet. Configuring
the IP address of the PC as belonging to the same
subnet (example: IP address: 169.254.1.1, subnet
mask: 255.255.0.0).
Use an ONVIF compliant VMS or a network sniffer to
find the IP address of the device (IP scan utility).
