Instructions for Use
Multiplex Trio drain and overflow
functional unit Visign MT5
for water inlet through the overflow unit
Model Year built (from)
6161.50 01/2015
INT

Table of contents
1About these instructions for use 3
1.1 Target groups 3
1.2 Labelling of notes 3
1.3 About this translated version 4
2Product information 5
2.1 Intended use 5
2.1.1 Areas of use 5
2.2 Product description 6
2.2.1 Overview 6
2.2.2 Technical data 7
2.3 Accessories 7
3Handling 9
3.1 Assembly information 9
3.1.1 Mounting conditions 9
3.1.2 Installation dimensions 10
3.1.3 Required tools and materials 10
3.2 Assembly 12
3.2.1 Mounting the overflow 12
3.2.2 Mounting the drain 14
3.2.3 Connecting the overflow and drain 15
3.2.4 Connecting the wastewater system 16
3.2.5 Connecting the inlet 16
3.2.6 Mounting the equipment set 18
3.2.7 Leakage test 18
3.2.8 Removing the rotatable rosette 18
3.3 Use 20
3.4 Care 21
3.5 Disposal 21
Table of contents
Multiplex Trio drain and overflow functional unit Visign MT5 2

1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nOperators
nConsumers
Individuals without the abovementioned training or qualification are not
permitted to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
This symbol gives additional information and hints.
About these instructions for use
Multiplex Trio drain and overflow functional unit Visign MT5 3

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e.g. EN) and/or in Germany
(e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Multiplex Trio drain and overflow functional unit Visign MT5 4

2 Product information
2.1 Intended use
2.1.1 Areas of use
NOTICE!
Risk of damage due to unsuitable liquids
To avoid damaging the drain, only introduce the following
liquids:
nTypical household wastewater with temperatures up to
95 °C
nThe pH value must be higher than 4 but lower than 10.
The Multiplex Trio drain/overflow is a combined inlet, drain and overflow
with odour trap for bathtubs with a 52 mm drain hole. The inlet flows
through the overflow opening.
The drain/overflow is suitable for standard bathtubs with the drain on
the head end.
Detailed information regarding all bathtub models and the corre‐
sponding Viega drains/overflows can be found in the catalogue or on
the Internet.
Product information
Multiplex Trio drain and overflow functional unit Visign MT5 5

2.2 Product description
2.2.1 Overview
The following components are included in the scope of delivery of the
Multiplex Trio drain / overflow:

Fig. 1: Component overview
1 Overflow unit
2 Profile seal
3 Additional seal (for steel bathtubs)
4 Supply flange
5 Fixing screw
6 Mounting aid
7 Flange cover
8 Rotatable rosette
9 Valve cone
10 Site protection
11 Fixing screw
12 Valve top
13 Double seal
14 Drain elbow
15 Sliding ring
16 Seal
17 Odour trap
18 Seal
19 Sliding ring
20 Union nut
21 Bowden cable
Product information
Multiplex Trio drain and overflow functional unit Visign MT5 6

22 Overflow pipe
23 Sleeve
24 Connecting piece

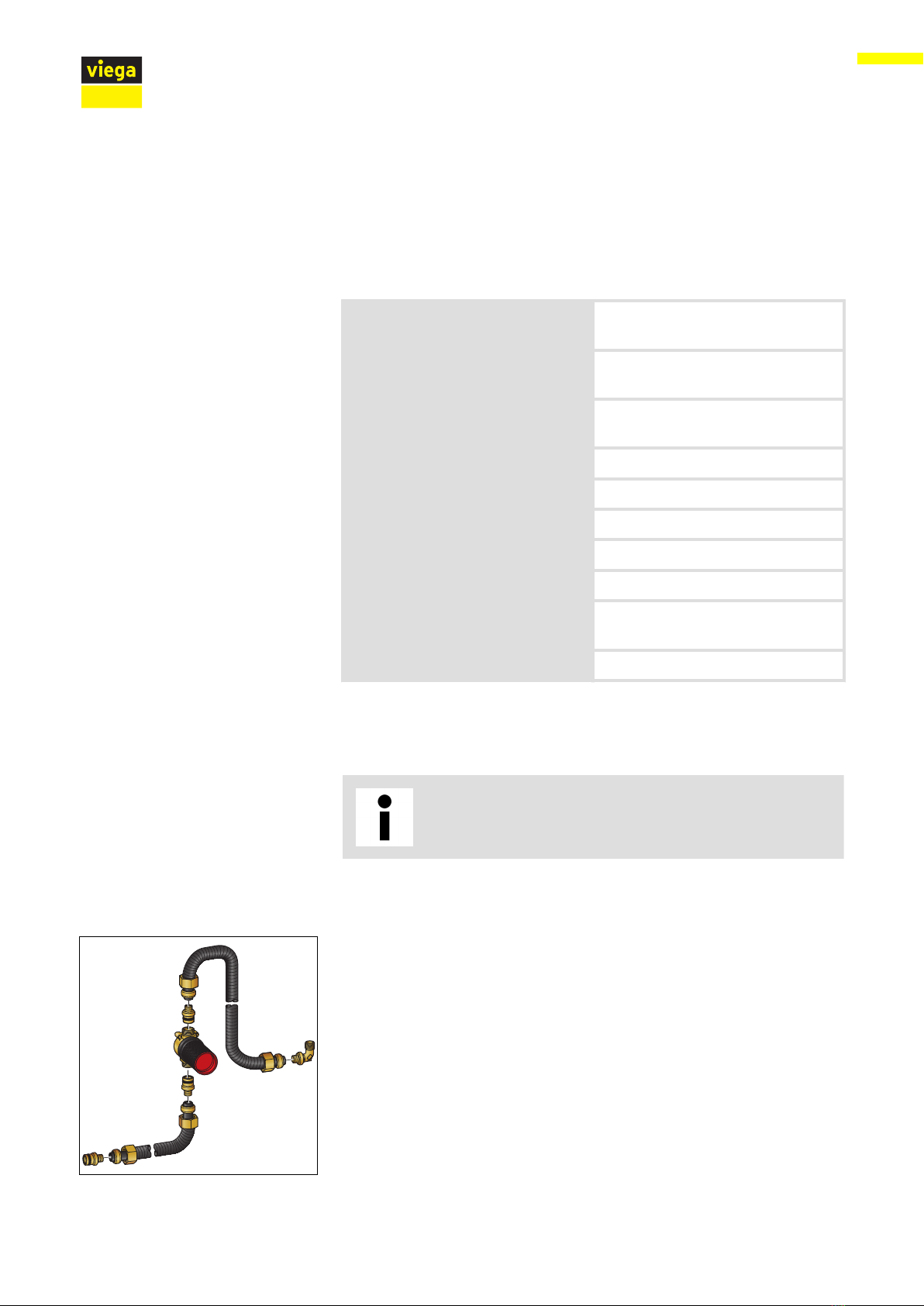

2.2.2 Technical data
Drainage capacity (at an accumu‐
lation height of 300 mm)
0.92 l/s
Overflow capacity (at an accumu‐
lation height of 60 mm)
0.63 l/s
Inlet capacity (at 0.25 MPa
(2.5 bar))
20 l/min
Diameter of bathtub drain hole 52 mm
DN (nominal width) outlet pipe 40 / 50 mm
Length of Bowden cable 560 mm
Length 120–260 mm
Height 180–400 mm
Dimensions and installation depth Ä Chapter 3.1.2 „Installation
dimensions“ on page 10
Water seal level 50 mm
2.3 Accessories
The accessories shown here are not included in the scope
of delivery. If required, it must be purchased separately.
Pipe interrupter
To ensure that no bath water flows back into the potable water installa‐
tion, a pipe interrupter must be installed, e.g. the connection set with
concealed pipe interrupter DN 20, model 6161.86. A suitable cover
rosette for the pipe interrupter must be purchased separately.
Required accessories
Product information
Multiplex Trio drain and overflow functional unit Visign MT5 7

Equipment set with water level increase
The water level of the overflow can be increased by 5 cm with the
equipment set. The equipment set contains a rotatable rosette, a fixing
flange, a valve cone, a fixing screw, a flange cover and a mounting aid
for the drain of the functional unit.
Equipment set Multiplex Trio Visign MT9: model 6170.0
Multiplex extension set
It is possible to extend the odour trap below the bathtub in the case of
bathtubs with a very thick floor. The extension set, model 6161.7, is
available for such cases.
Optional accessories
Product information
Multiplex Trio drain and overflow functional unit Visign MT5 8

3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
The following requirements exist for the mounting of the drain / over‐
flow:
nThe bathtub is installed.
nThe drainage line is installed all the way to the bathtub.
nThe underside of the bathtub is accessible.
Backflow situation: If a negative pressure situation should occur when
the bathtub is filled, bath water may flow back into the potable water
installation.
To ensure that no bath water flows back into the potable water installa‐
tion, a pipe interrupter must be installed in the pipeline between the
shut-off valve and the bathtub inlet.
The following schematic diagram shows what this should look like:

≥
Fig. 2: Mounting scheme with pipe interrupter
It is important that the pipe interrupter is mounted vertically, in the
direction of flow and at least 150 mm above the upper edge of the
bathtub.
Observe the local standards and regulations.
Pipe interrupter
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 9

The pipe interrupter is not included in the scope of delivery and must be
ordered separately. Observe the instructions for use of the pipe inter‐
rupter.
3.1.2 Installation dimensions
-
)
煦煦

煦煦
Fig. 3: Dimensional drawing
The following values are valid for L (length) and H (height):
L = 100–260
H = 180–400
3.1.3 Required tools and materials
The following tools are required for mounting:
nFine-toothed saw
nMounting aid (included in the scope of delivery)
nFork spanner (size 26)
Tool
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 10

The following material must be purchased separately and must be avail‐
able during mounting:
nPipe interrupter (e.g. the pipe interrupter set incl. material for the inlet
connection)
nConnection set for the inlet connection (e.g. the pipe interrupter set)
Material
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 11

3.2 Assembly
3.2.1 Mounting the overflow
Proceed as follows to mount the overflow:
▶Push the rubber sleeve onto the pipe of the overflow unit.
The lower edge must be flush with the edge of the overflow pipe.
▶Fit the profile seal in the overflow unit.
▶If the wall thickness a is less than 3 mm (steel bathtubs only), insert
the addition seal between profile seal and bathtub.
▶Fit the supply flange into the overflow unit.
B
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 12

▶Screw in the fixing screw and tighten hand tight with the mounting
aid.
On the hexagon of the mounting aid, there is a groove, which must
be positioned on the lip of the fixing screw.
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 13

3.2.2 Mounting the drain
Proceed as follows to mount the drain:
▶Place the double seal onto the drain unit in such a way that the
recess is positioned above the connecting pipe.
▶Pull the edge of the double seal over the edge of the drain.
▶Hold the drain with the double seal onto the drain hole of the
bathtub from below.
▶Pull the top of the double seal through the drain hole.
▶Fit the valve top in the double seal.
INFO! The cross-shaped structures of the drain unit and
the valve top must be positioned parallel on top of each
other to ensure the full drainage capacity.
▶Place the fixing screw in the drain unit and tighten using the
mounting aid.
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 14

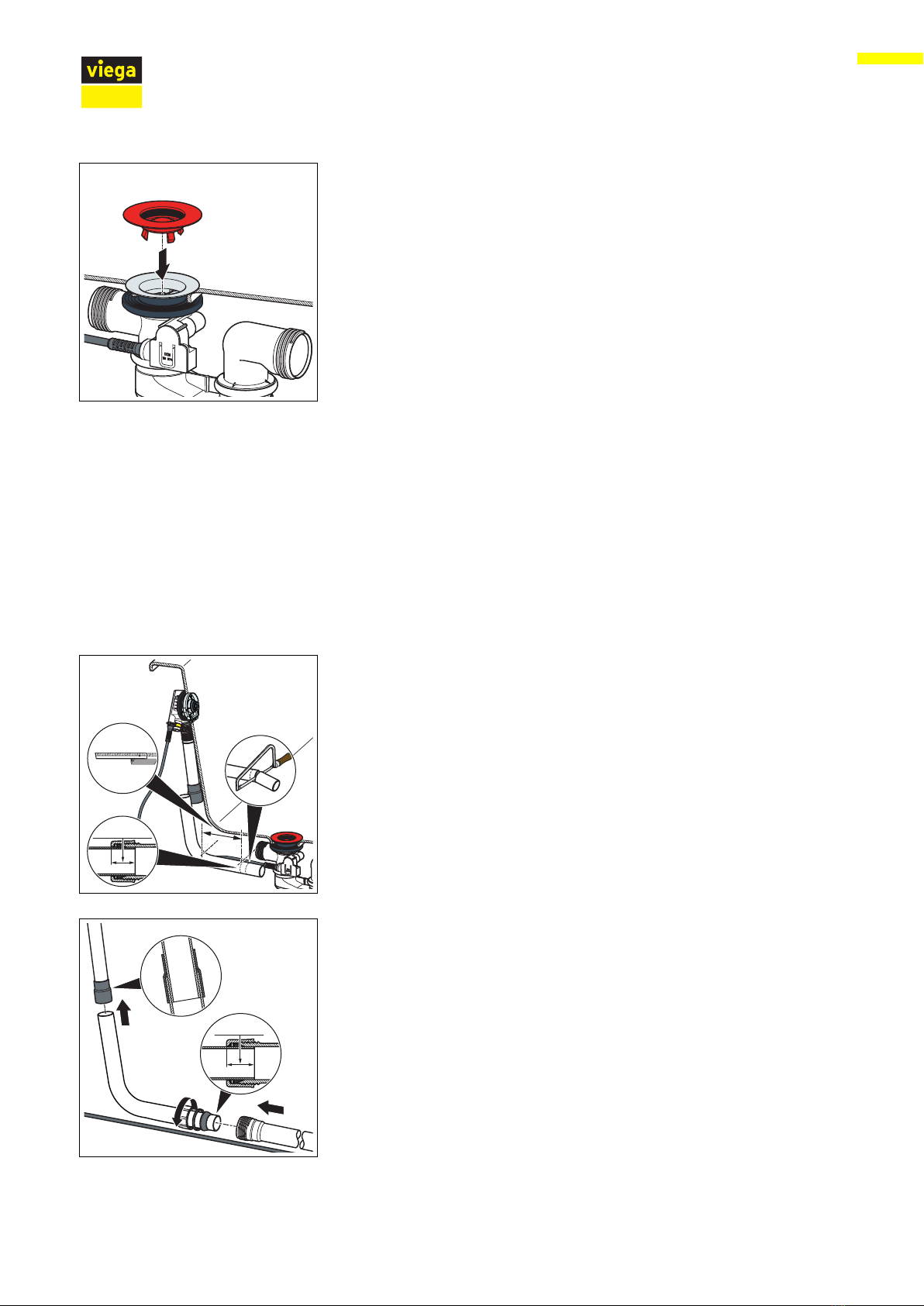

▶Insert the site protection.
3.2.3 Connecting the overflow and drain
After the overflow and the drain have been mounted, you must connect
them both using the overflow pipe. Proceed as follows:
Requirements:
nThe overflow is mounted in the overflow opening.
nThe drain is securely mounted on the base of the bathtub.
NOTICE! Connections where the pipes are not inserted far
enough into each other become leaky. For this reason, maintain
a minimum insertion depth of 15 mm for every connection.
▶Hold the pipe of the overflow unit parallel to the overflow pipe and
mark the positions where the drain and the overflow should be con‐
nected.
Minimum insertion depth: 15 mm
▶Cut the overflow pipe to the marked length and deburr it.
▶Push the top end of the overflow pipe into the rubber sleeve.
Minimum insertion depth: 15 mm
▶Push the union nut, sliding ring and seal onto the bottom end of the
drain elbow.
▶Screw the union nut on the drain unit.
NN
NN
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 15

3.2.4 Connecting the wastewater system
Proceed as follows to connect the drain/overflow to the wastewater
system:
Requirements:
nThe overflow and drain units are installed on the bathtub.
nThe connection between overflow and drain has been made.
▶If the wastewater pipe only has a diameter of 40 mm, cut off drain
elbow.
▶Push the union nut, sliding ring and seal onto the drain elbow.
▶Screw the union nut on the drain unit.
Minimum insertion depth: 15 mm
▶Align the odour trap in such a way that the drain elbow can be con‐
nected to the wastewater pipe.
Turn the drain at the two joints until the required position has been
reached.
▶Push the wastewater pipe in the drain elbow.
3.2.5 Connecting the inlet
Proceed as follows to connect the water supply to the overflow unit:
%/%/
%/%/
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 16

Requirements:
nA connection set (e. g. the pipe interrupter set) is available.
nA pipe interrupter is installed in the supply pipeline.
nThe overflow and the drain are mounted.
nThe overflow and the drain are connected.
nThe connection to the wastewater system has been made.
INFO! Mounting with the Viega plug connection is described in
the following. Mounting can also be carried out with other con‐
necting materials. If necessary, observe the manufacturer's
instructions.
▶Push the union nut and the clamping ring (parts of the connection
set) onto the water-carrying pipe.
▶Push the narrow end of the screw fitting (part of the connection set)
into the pipe as far as it will go.
▶Push the free end of the screw fitting into the connecting piece.
▶Use the union nut to screw the pipe tight at the connecting piece.
▶Insert the connecting piece into the overflow unit.
The connecting piece must click into place in the overflow unit with
a noticeable clicking sound.
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 17

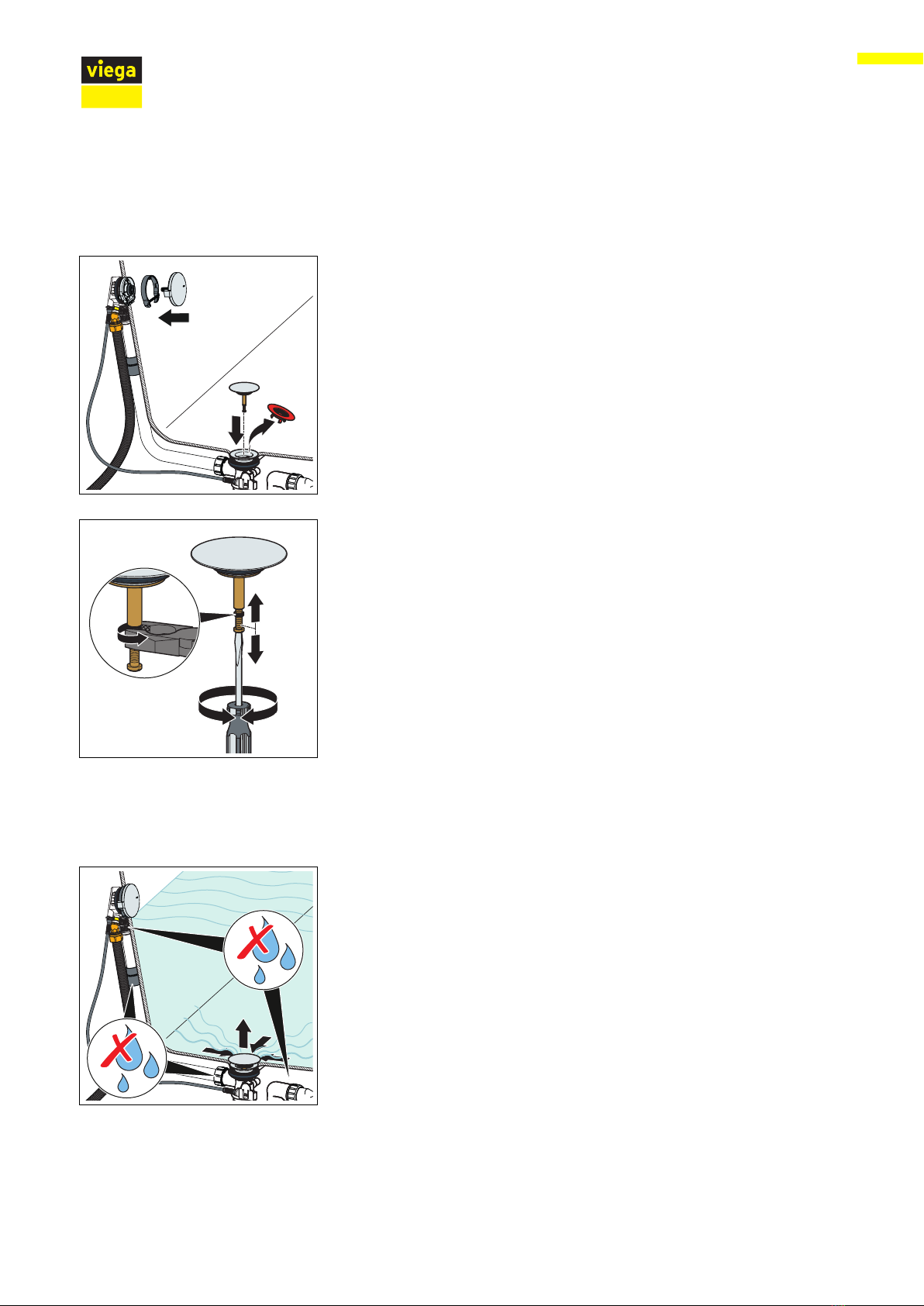

3.2.6 Mounting the equipment set
To avoid damage to the rosette and valve cone, mount the equipment
set only after finishing all other work on the building site. Proceed as fol‐
lows:
▶Place the flange cover onto the supply flange with the straight side
facing downwards and affix.
▶Align and fit the rotatable rosette.
▶Fit the valve cone.
▶Turn the rotatable rosette to check function and alignment.
The opening of the valve cone should be 2–3 cm wide when
opened. If necessary, regulate the width of the opening of the valve
cone using the adjusting screw (see next step).
▶Set the valve cone with the help of the adjusting screw and counter
with the nut.
3.2.7 Leakage test
The leakage test is only carried out as a visual inspection.
Check the points marked in the following drawing with particular care:
▶Check for visible leaks.
3.2.8 Removing the rotatable rosette
If the rotatable rosette on the overflow is to be removed, proceed as fol‐
lows to prevent damaging the rosette and the flange cover:

Handling
Multiplex Trio drain and overflow functional unit Visign MT5 18

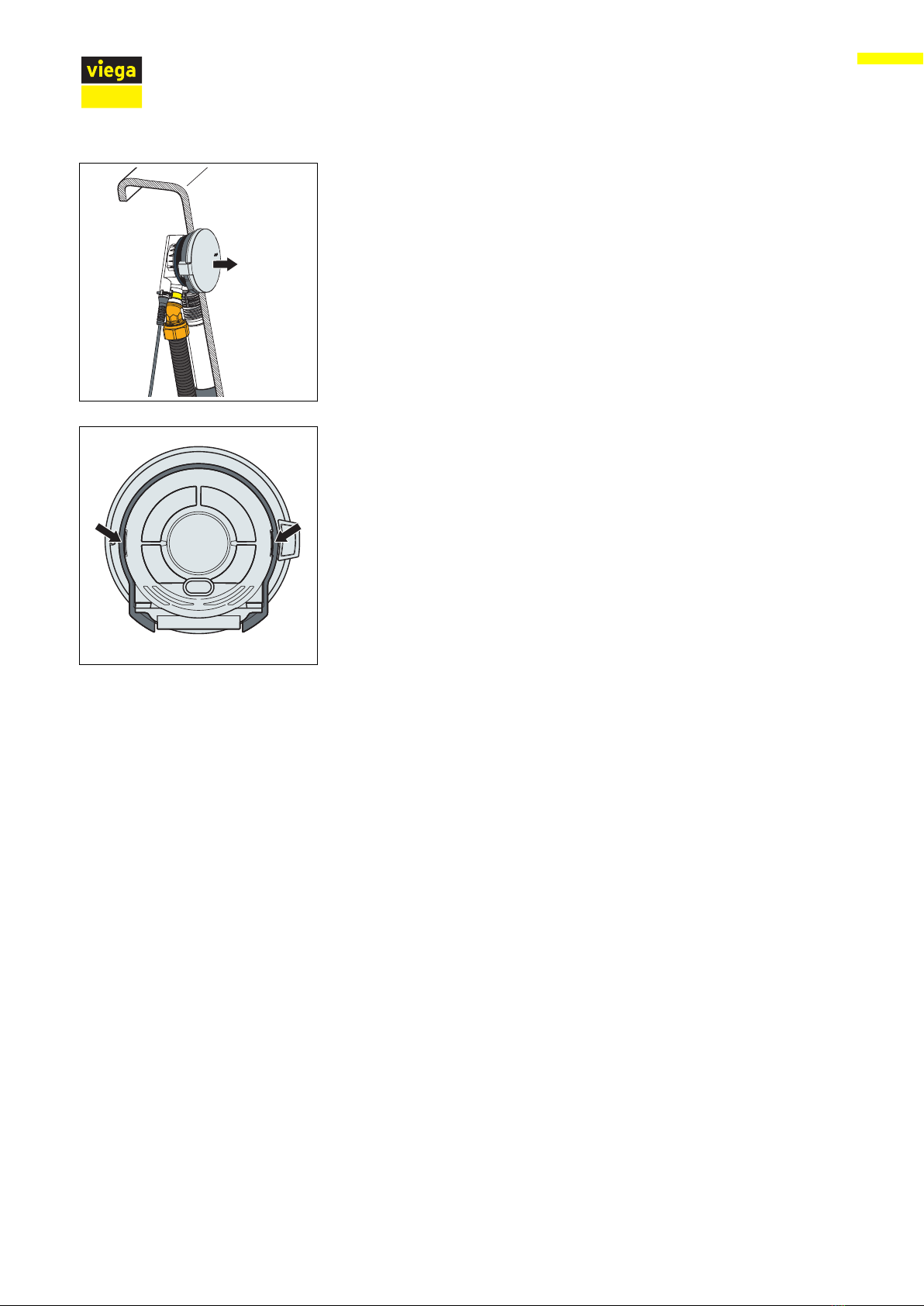

▶Remove the rotatable rosette in the axial direction.
▶Remove the flange cover at the marked points.
▶Remove flange cover.
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 19

3.3 Use
The drain / overflow are controlled via the rotatable rosette on the over‐
flow. Proceed as follows to open or close the drain:
▶Turn the rotatable rosette to the left.
▷The drain closes itself.
▶Turn the rotatable rosette to the right.
▷The drain opens itself.
There is a regulator for the water jet on the underside of the rotatable
rosette. Proceed as follows to adjust the water jet:
▶Push the flow control backwards or forwards with your finger. The
water flows closer or further away from the side of the bathtub
depending on the direction set.
Setting the water supply direction
Handling
Multiplex Trio drain and overflow functional unit Visign MT5 20
