Viega Advantix base unit User manual

for bonded sealing (tiled shower) with sealing mat
Model Year built:
4982.10 from 04/2016
en_INT
Advantix base unit for Advantix shower
channel
Instructions for Use

Advantix base unit for Advantix shower channel 2 from 33

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Standards and regulations 6
2.2 Intended use 7
2.2.1 Areas of use 7
2.2.2 Media 7
2.2.3 Drainage capacity 7
2.3 Product description 8
2.3.1 Overview 8
2.3.2 Technical data 9
2.3.3 Sound protection 9
2.4 Information for use 9
2.4.1 Sealing 9
2.4.2 Fire protection 11
2.5 Required accessories 11
3Handling 15
3.1 Assembly information 15
3.1.1 Important note 15
3.1.2 Installation dimensions 16
3.1.3 Tools and materials 17
3.2 Assembly 17
3.2.1 Determine height 17
3.2.2 Mount base unit 18
3.2.3 Align shower channel 20
3.2.4 Connect shower channel 21
3.2.5 Preparing for further work 21
3.2.6 Sealing the shower channel 24
3.3 Care 31
3.3.1 Care tips 31
3.3.2 Cleaning 31
3.4 Disposal 33
Table of contents
Advantix base unit for Advantix shower channel 3 from 33

1 About these instructions for use
Trade mark rights exist for this document, further information can be
found at viega.com/legal .
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nConsumers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Advantix base unit for Advantix shower channel 4 from 33

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand-
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Advantix base unit for Advantix shower channel 5 from 33

2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe.
National regulations can be found on the relevant web site of your
country at viega.com/standards .
Regulations from section: Sealing
Scope / Notice Regulations applicable in Ger-
many
Stress class of the underground,
as well as suitable bonded sealing
ZDB-Merkblatt 8/2012
Stress class of the underground,
as well as suitable bonded sealing
Leitfaden zur Abdichtung im Ver-
bund (AIV)
Approved bonded sealings with
proof of practicability in keeping
with building law for stress
classes A and AO
ETAG 022 T1
Approved bonded sealings with
proof of practicability in keeping
with building law for stress
classes A, B and C
DIBt-Bauregelliste A, Teil 2 des
DIBt und Prüfgrundsätze für
Abdichtungen im Verbund
(PG AIV-F)
Permitted bonded sealings EN 14891
Regulations from section: Media
Scope / Notice Regulations applicable in Ger-
many
Typical domestic wastewater DIN 1986-3
Regulations from section: Sound protection
Scope / Notice Regulations applicable in Ger-
many
Fulfilled noise protection require-
ments
DIN 4109
Fulfilled noise protection require-
ments
VDI 4100
Product information
Advantix base unit for Advantix shower channel 6 from 33

Regulations from section: Important notes
Scope / Notice Regulations applicable in Ger-
many
Dimensions of slots and recesses EN 1996
2.2 Intended use
2.2.1 Areas of use
The shower channel is used in the bathroom as a drain for a floor-level
shower. It is designed for small to medium volumes of water, which
occur in e. g. residential building.
Technical information, see
ÄChapter 2.3.2 „Technical data“ on page 9 .
2.2.2 Media
nThe short-term temperature of the wastewater may reach up to
95° C. The temperature must be considerably lower in constant
operation.
nThe pH value must be higher than 4 but lower than 10.
It is not permitted to introduce wastewater which would damage the
product material.
2.2.3 Drainage capacity
The drainage capacity is dependent on the odour trap used and on the
chosen installation height. The installation height is the distance from
the drain to the flange.
Odour trap Installation height Water seal level Accumulation height
10 mm
Accumulation
height 20 mm
Model 4982.92 95–155 mm 50 mm 0.5 l/s 0.55 l/s
Model 4982.93 70–110 mm 25 mm 0.4 l/s 0.45 l/s
Model 4982.94 95 mm and up 50 mm 0.9 l/s 1.1 l/s
Product information
Advantix base unit for Advantix shower channel 7 from 33

2.3 Product description
2.3.1 Overview
1
2
3
45
Fig. 1: Scope of delivery
1 - building protection cardboard
2 - hard foam block
3 - base unit
4 - connection element
5 - adhesive points
The following parts are not included in the scope of delivery and must
be ordered separately:
nodour trap
nadjustable feet
nmounting frame
nGrate
nsealing material
See ÄChapter 2.5 „Required accessories“ on page 11
Product information
Advantix base unit for Advantix shower channel 8 from 33

2.3.2 Technical data
Nominal width
[DN]
40
Material Stainless steel 1.4301
Drainage capacity
ÄChapter 2.2.3 „Drainage capacity“ on page 7
Dimensions
ÄChapter 3.1.2 „Installation dimensions“
on page 16
Installation height with odour trap model 4982.92: 95–155 mm
with odour trap model 4982.93: 70–110 mm
with odour trap model 4982.94: 95 mm and up
Water seal level with odour trap model 4982.92 and 4982.94:
50 mm
with odour trap model 4982.93: 25 mm
Load class K = 300 kg
2.3.3 Sound protection
The measured sound level during water drainage is 19 dB(A). For infor-
mation on sound protection requirements met, see Ä„Regulations from
section: Sound protection“ on page 6 .
2.4 Information for use
2.4.1 Sealing
To protect against moisture penetration, apply sealing foils, which are to
be processed in liquid state, directly below the tiles on screed and
walls. The determination of the stress class and the underground as well
as the selection of the suitable bonded seal must be carried out in com-
pliance with the valid standards and regulations, see: Ä„Regulations
from section: Sealing“ on page 6 .
Bonded sealing
Product information
Advantix base unit for Advantix shower channel 9 from 33

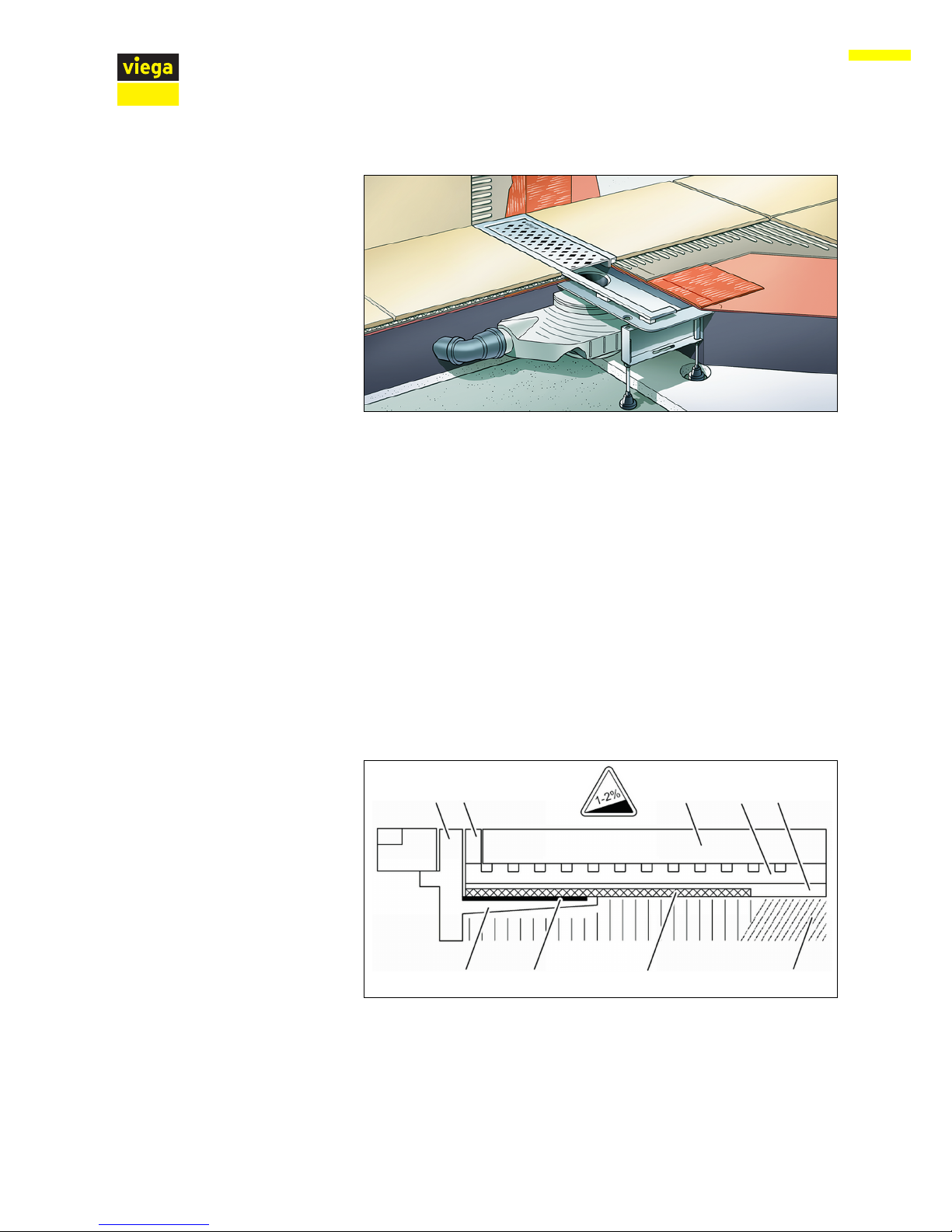

Fig. 2: Diagram of a bonded seal
Careful planning is required for professional sealing. In addition,
depending on the individual dampness wear class and the type of foun-
dation, a suitable BS system with a building regulations certificate of
suitability must be chosen.
Furthermore, the following factors should be taken into account:
nDrain or shower channel must be equipped with a special flange,
which has an adhesive surface and a width of at least 30 mm.
nFor bridging the material change from drain to screed, either a suit-
able sealing collar or sealing tape designed for overlapping with the
BS over a width of at least 50 mm must be used.
nThe screed must be laid at a minimum incline of 1–2 %.
nThe installation must be carried out properly in acc. with the
mounting instructions and the manufacturer's information.
1
9 8 7 6
2 3 4 5
Fig. 3: Construction diagram of the bonded seal - min. screed incline 1–2 %
1 - Grate
2 - Top piece with adhesive flange
3 - Tile
4 - Tile cement
5 - Bonded sealing
6 - Screed
Important note
Product information
Advantix base unit for Advantix shower channel 10 from 33

7 - Sealing collar
8 - Mat
9 - Adhesive flange
In connection with suitable drains, only approved bonded sealing with
proof of practicability in keeping with building law may be used. See
Ä„Regulations from section: Sealing“ on page 6 .
Information regarding the procedure can be found in the instructions for
use of the corresponding product.
2.4.2 Fire protection
Advantix shower channels and drains can both be fitted to be fire proof.
The R120 pipe lead-in can be used for this purpose in the floor con-
struction. In this way, a fire resistance time of up to 120 minutes can be
achieved.
Fig. 4: Example: fire protection pipe lead-in
Mounting instruction of the R120 pipe lead-in see model 4923.5,
Art.-No. 491 673.
2.5 Required accessories
The following parts are not included in the scope of delivery and can be
ordered separately:
nodour trap
nadjustable feet
nmounting frame
ngrate (see catalogue)
nSealing tape for Advantix shower channels, model 4964.95,
art. no. 619 121
nif required: mounting adhesive, model4938.22, art. no. 571 788
Permitted bonded seals
Product information
Advantix base unit for Advantix shower channel 11 from 33

Model 4982.92
Water seal level 50 mm
Construction height 95–155 mm
Drainage capacity Accumulation height 10 mm:
0.5 l/s
Accumulation height 20 mm:
0.55 l/s
Model 4982.93
Water seal level 25 mm
Construction height 70–110 mm
Drainage capacity Accumulation height 10 mm:
0.4 l/s
Accumulation height 20 mm:
0.45 l/s
Model 4982.94
Water seal level 50 mm
Construction height 95 mm and up
Drainage capacity Accumulation height 10 mm:
0.9 l/s
Accumulation height 20 mm:
1.1 l/s
Odour trap

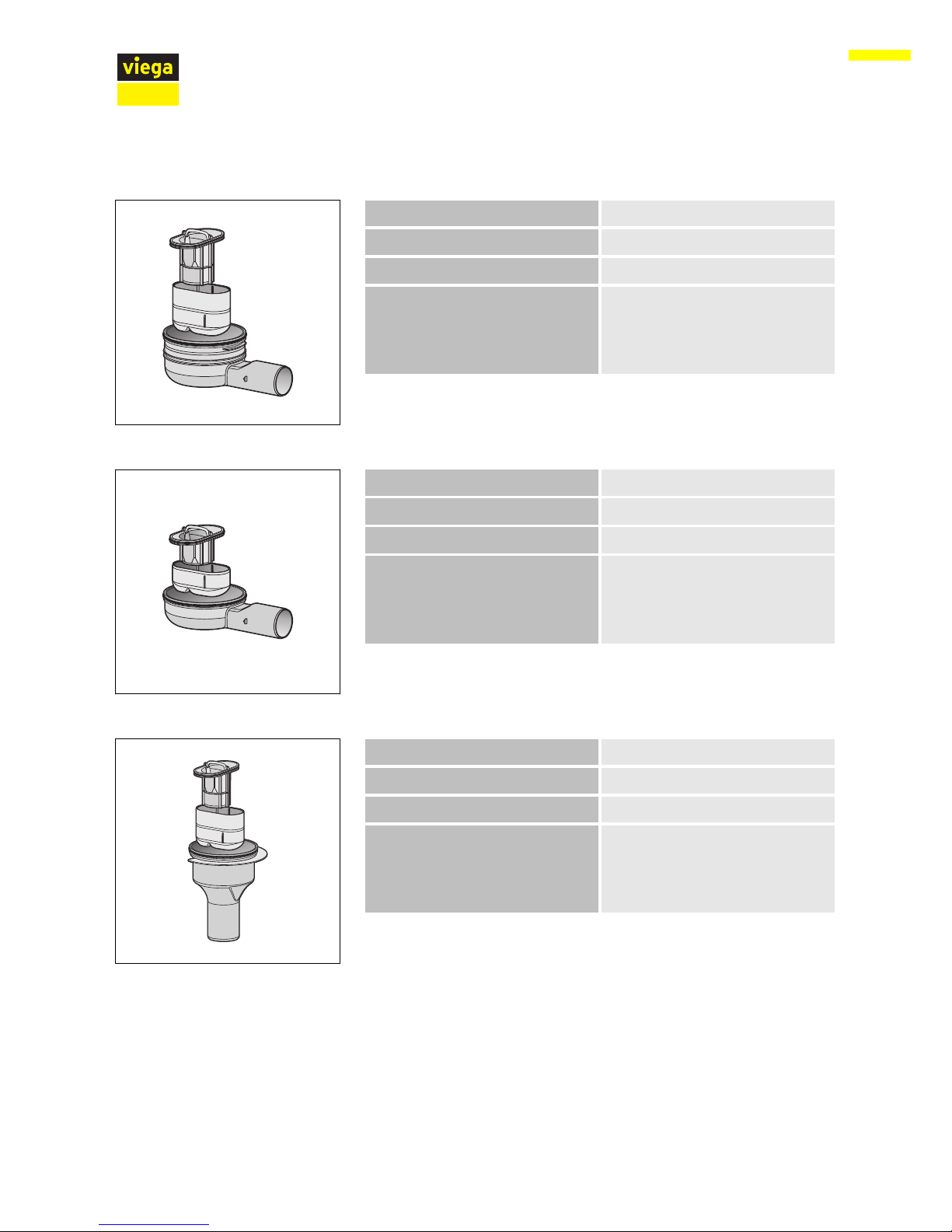

Fig. 5: Odour trap model 4982.92
Fig. 6: Odour trap model 4982.93
Fig. 7: Odour trap model 4982.94
Product information
Advantix base unit for Advantix shower channel 12 from 33

For installation height 95–155 mm
For installation height 70–110 mm
Rectangular design
Adjusting feet set
Fig. 8: Adjusting feet set model 4982.90
Fig. 9: Adjusting feet set model 4982.91
Mounting frame
Fig. 10: Mounting frame model 4982.30
Product information
Advantix base unit for Advantix shower channel 13 from 33

Round design
Rectangular design, standard
Fig. 11: Mounting frame model 4982.40
Fig. 12: Mounting frame model 4982.45
Product information
Advantix base unit for Advantix shower channel 14 from 33

3 Handling
3.1 Assembly information
3.1.1 Important note
Before assembly:
nCheck if the drainage capacity of the model chosen is sufficient for
the arising water volume
ÄChapter 2.2.3 „Drainage capacity“
on page 7 .
nAn adequate level of floor covering stability must be guaranteed
ÄChapter 2.3.2 „Technical data“ on page 9 . This can be achieved
either through an adequate covering of screed or another alternative
solution. Relevant measures must be considered before mounting.
nThe dimensions of slots and recesses must be in compliance with
the regulations from section Ä„Regulations from section: Important
notes“ on page 7 .
During assembly:
nObserve installation dimensions.
nDo not use mounting adhesive older than 18 months.
nPosition the shower channel in such a way that the grate is remov-
able.
After assembly:
nThe shower channel must be fully lined with mortar.
nCoordinate all relevant installation details, especially regarding the
bonded sealing, with those responsible for the subsequent work.
Handling
Advantix base unit for Advantix shower channel 15 from 33

3.1.2 Installation dimensions
130
180°
A
B
20
50
40
Fig. 13: Niche dimensions
Art. no. A1) B2) Standard dimension
of shower door
736 965 750 670 750
736 972 800 720 800
736 989 900 820 900
736 996 1000 920 1000
737 009 1200 1120 1200
1) linear dimension of the base unit
2) inner dimension of the base unit (grate size)
Handling
Advantix base unit for Advantix shower channel 16 from 33

3.1.3 Tools and materials
nSpanner size 8 for mounting grate
nDrill, 6 mm
nTool for the removal of the grate (e. g. model 4965.90,
art. no. 689 704)
3.2 Assembly
3.2.1 Determine height
Depending on the selected odour trap, different installation heights can
be implemented.
A - Model 4982.92
B - Model 4982.93
C - Model 4982.94
Determine screed height.
Special tools
≥95
≥70
≥40
A
B
C
Handling
Advantix base unit for Advantix shower channel 17 from 33

Check the connection element for soiling, clean if necessary.
3.2.2 Mount base unit
Lay the greased O-Ring into the casing.
Observe the proper orientation of the O-ring (see arrow).
Press the drain straight into the connection element until it snaps
home.
Mounting the drain
Mounting the adjustable feet and drain sockets
Handling
Advantix base unit for Advantix shower channel 18 from 33

For installation heights of up to 70 mm:
Align the base unit in the mortar bed.
Select the adjusting feet set in compliance with the installation
height:
nA – Model 4982.90, installation height: 95–155 mm
nB – Model 4982.91, installation height: 70–95 mm
Mount the adjustable feet.
Regarding mounting, refer to the instructions for use for the
adjusting feet set.
Put in the odour trap insert.
95 - 160
70 - 95
A
B
Handling
Advantix base unit for Advantix shower channel 19 from 33

Turn the odour trap insert clockwise through 90°.
Insert the immersion pipe of the odour trap.
Insert the immersion pipe of the odour trap to fasten the odour trap
insert.
3.2.3 Align shower channel
Set the feet to screed height to adjust the base unit.
Align the base unit horizontally in all directions.
Handling
Advantix base unit for Advantix shower channel 20 from 33
