Viessmann TECTO CI6 PI 45 72 User manual

User Guide
EN
05/2022 Please keep these instructions for future reference!
TECTO
CI6 PI 45 72
CI6 PI 45 72 GL

PI ENGLISH
Version 05/2022 2
Tecto CI6 PI 45 72
Tecto CI6 PI 45 72 GL
1
LED
POWER
N L
+ –
LED LED
DC 12 V
EVAPORATOR
FAN
AC 240 V, 50 Hz
- Tecto CI6 PI 45 72
- Tecto CI6 PI 45 72 GL
COMPRESSOR
EMBRACO
L N 1
CONDENSER
FAN
CONTROLLER.
DANFOSS
ERC111
DO1 L N
L
N
2
345 mm
Load limit

PI ENGLISH
Version 05/2022 3
ENGLISH
1. Before you start............................................................................................................................4
1.1.Warranty................................................................................................................................4
2. Tecto CI6 PI ...................................................................................................................................4
2.1.Warnings...............................................................................................................................4
2.2.Restrictions ..........................................................................................................................5
2.3.Package ................................................................................................................................6
2.4.Transport damage................................................................................................................ 6
2.5.Installing ...............................................................................................................................6
3. Identifying the equipment............................................................................................................ 7
3.1.Cleaning before use............................................................................................................. 8
4. Electrical connections .................................................................................................................8
5. Operation ......................................................................................................................................8
5.1.Starting up ............................................................................................................................8
5.2.Loading cabinet ................................................................................................................... 9
5.3.Setting operating thermostat.............................................................................................. 9
5.4.Danfoss ERC111A control device....................................................................................... 9
5.4.1. Display messages...................................................................................................... 9
5.4.2. Checking temperature settings..................................................................................9
5.4.3. Defrosting .................................................................................................................. 9
6. Cleaning ......................................................................................................................................10
7. Interruptions in electricity distribution .................................................................................... 10
8. Troubleshooting ......................................................................................................................... 11
9. Servicing and spare parts ......................................................................................................... 11
10. Disposal of equipment............................................................................................................... 11
11. Product information ...................................................................................................................12
12. Wiring diagram ...........................................................................................................................12

PI ENGLISH
Version 05/2022 4
1. Before you start
Read these instructions carefully. They explain how to install, place, use and service the
cabinet correctly and safely.
Keep these instructions in a safe place and available for other users.
The cabinet must be installed and started up in compliance with the manufacturer’s instructions
and in conformance with local instructions and regulations.
If a defect occurs in the cabinet or cabinet equipment, or the cabinet does not operate normally,
check that this does not create a hazard to people or property. If necessary, disconnect the
cabinet and contact the nearest service organisation*. All users of the cabinet must be aware of
how to use the cabinet correctly and safely.
1.1. Warranty
Each cabinet has a one (1) year durability and material warranty for normal ambient conditions
(class 3).
The environmental conditions of the cabinet according to the EN ISO 23953 Class 3 are:
• Relative humidity 60 % RH
• Ambient temperature +25 °C
• Frontal airow < 0.2 m/s
NOTE The warranty does not extend to any breakage of glass, accidental or
otherwise.
2. Tecto CI6 PI
Tecto CI6 PI is a cooled display cabinet for drinks and dairy products, aimed at impulse buyers.
The cabinet maintains the storage temperature required by the products.
NOTE Tecto CI6 PI 45 72 GL comes equipped with covering glass ligs. Mounting or
demounting lids requires changing the operating thermostat settings.
2.1. Warnings
WARNING If the machinery contains isobutane R600a, there is a re hazard. The
isobutane content is declared on the rating plate and the machinery.
WARNING Do not obstruct airow within the machinery and the cabinet.
WARNING Do not hasten defrosting by mechanical or any other means not specied in
these instructions.
*You can nd the contact information at the end of these instructions

PI ENGLISH
Version 05/2022 5
WARNING Do not damage the refrigeration circuit.
WARNING Due to re hazard, only a qualied technician is allowed to install the system.
WARNING No electrical equipment should be placed inside the cabinet unless specically
approved by the manufacturer.
WARNING Do not use the product without protective lighting covers / reectors under the
handrails. If the lighting covers are damaged or missing, they must be replaced
and installed without delay to rule out any risk of electric shock from the lighting
components. Using the product with lighting covers in place is perfectly safe.
2.2. Restrictions
Using the cabinet in any way other than specied in these instructions is prohibited. Only
products that are specied in these instructions or in the brochure for the cabinet may be
stored in the cabinet.
The manufacturer accepts no liability for incidents that are caused by using the cabinet in
contravention of these instructions, or with disregard for the warnings in these instructions or
without following these instructions.
NOTE Climbing inside or on the top of the cabinet is prohibited. Standing on any part
of the cabinet is prohibited.
NOTE Handle cabinets with glass lids and doors with care to avoid nger or other
injuries.
NOTE Always wear protective gloves when handling H version, surfaces inside the
cabinet are hot.
NOTE Cabinet is for indoor use only.
NOTE Ventilate the premises if refrigerant leakage is suspected.
NOTE Disconnect the cabinet from the power supply before replacing the source of
light. Only a qualied technician is allowed to replace the source of light.

PI ENGLISH
Version 05/2022 6
NOTE Storing ammable or hazardous liquids in the cabinet is strictly prohibited.
2.3. Package
Transport or move the cabinet to its destination site in the original factory packing, whenever
possible. The packaging materials are recyclable.
NOTE (This applies to cabinets using R600a as refrigerant): do not turn on the power
to the cabinet if you suspect that a refrigerant leakage has occurred during
transportation.
2.4. Transport damage
Unpack the cabinet and check for any sign of damage during transport. Report any damage
immediately to your insurance company, or to the supplier or manufacturer of the cabinet.
2.5. Installing
1. Set the cabinet in its place.
NOTE Do not lift the cabinet from the top frame, it may
break. min 20cm
2. Ensure that the airow to the condenser unit is not
obstructed.
Leave an unobstructed air gap of at least 20 cm behind the
cabinet.
When installing the cabinet, make sure of the following:
• The area where the cabinet is placed is at and level.
• No objects are placed on top of the cabinet.
• The cabinet is not placed in the immediate vicinity of a heat source
such as a radiator, air blown heater or spotlight.
• The cabinet is not exposed to direct sunlight. If necessary, use blinds in
any nearby window.
• The air conditioning for the premises does not blow onto the cabinet.
The correct positioning of the cabinet optimises temperature conditions and
performance.
Cabinets with castors / wheels may be anchored to the wall behind them as
a safety precaution.

PI ENGLISH
Version 05/2022 7
3. Identifying the equipment

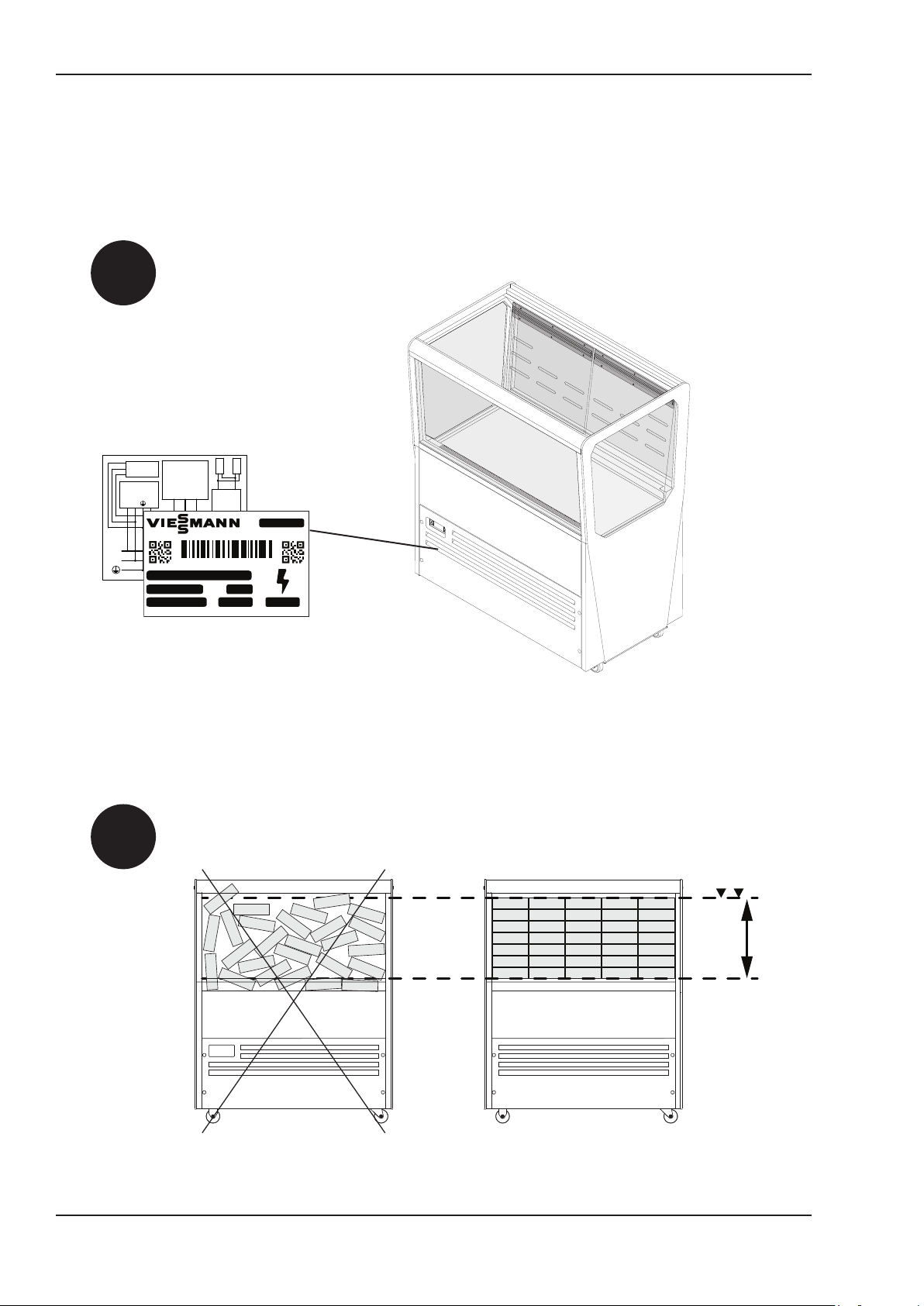

Find the label a󰀩xed on the machine under the ventilation grating as shown in the beginning of
these instructions (Figure 1) to read the technical data.
Check the machine model and the power supply voltage before you perform any operation.
If discrepancies are found, contact the manufacturer or the company that o󰀨er the supply
immediately.

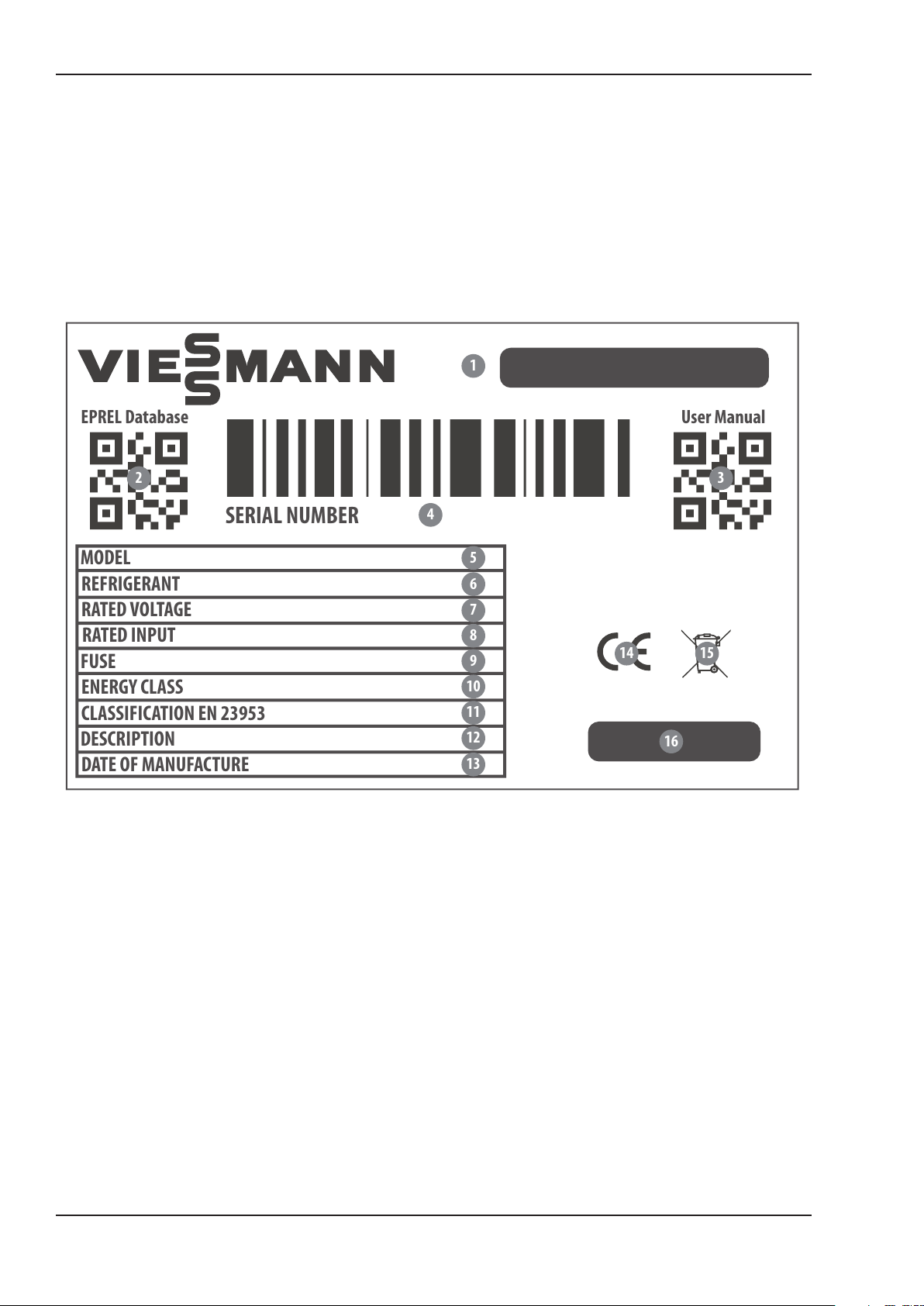

1Identication of the company responsible
for the product
9 Fuse value
2 EPREL database QR-code 10 Energy class
3 User manual QR-code 11 Product class
4 Serial no. 12 Type
5 Model name 13 Date of manufacture
6 Type and weight of coolant 14 Symbols of compliance
7 Rated voltage 15 WEEE mark
8 Rated input 16 Identication of the manufacturer
EPREL Database
SERIAL NUMBER
User Manual
MODEL
REFRIGERANT
RATED VOLTAGE
RATED INPUT
FUSE
ENERGY CLASS
CLASSIFICATION EN 23953
DESCRIPTION
DATE OF MANUFACTURE
5
1
4
2 3
1514
16
6
7
8
9
10
11
12
13

PI ENGLISH
Version 05/2022 8
3.1. Cleaning before use
1. Clean the cabinet surfaces and the storage compartment for foodstu󰀨s with a mild liquid
detergent (pH 6-8) before using the cabinet.
Follow the instructions provided with the detergent.
NOTE Make sure that all cleaning uids are classed as non-toxic.
2. Dry the surfaces carefully.
4. Electrical connections
NOTE The symbol marked on the cabinet (a lightning bolt inside a triangle) indicates
that there are components and wires under the cover containing live voltage.
Only personnel qualied to install and service electrical equipment are
permitted access to areas that contain live voltage.
Check the voltage and size of the fuse required on the rating plate attached to the cabinet.
The supply socket must be earthed and protected by a 10 A slow fuse. No other appliances
may be connected to the same fuse.
NOTE All electrical connections must be carried out by approved and qualied
personnel and comply with all IEE and local regulations, failure to do this could
result in personal or fatal injury.
5. Operation
Cooling is achieved by a fan evaporator system. The evaporator is located at the bottom of the
cabinet’s tray. Cold air is blown inside through the perforated side wall.
The cabinet is equipped with Danfoss ERC111A controller.
5.1. Starting up
1. Connect the plug to the supply socket.
The compressor and fans start operating.
2. Wait for 90 minutes or until the desired temperature is reached.
The cabinet is now ready to be lled.

PI ENGLISH
Version 05/2022 9
5.2. Loading cabinet
• Position the products carefully.
• Do not ll the cabinet above the load limits marked in the cabinet.
See gure 2 on the inside cover.
• Do not exceed the load limit.
Exceeding the load limit will disrupt the designed airow pattern and cause the
temperature of products to rise.
• Do not drop or throw products into the cabinet.
NOTE The cabinet is not designed to cool down products but to maintain them at the
temperature at which they are placed in the cabinet. Food products warmer
than the specied temperature should not be placed in the cabinet.
5.3. Setting operating thermostat
The operating thermostat for the cabinet is located in the panel on the side of the cabinet’s
bottom part.
The thermostat is preset to the correct temperature of +5 °C at the factory for the open version.
For the glass lid version, the factory setting is +6 °C

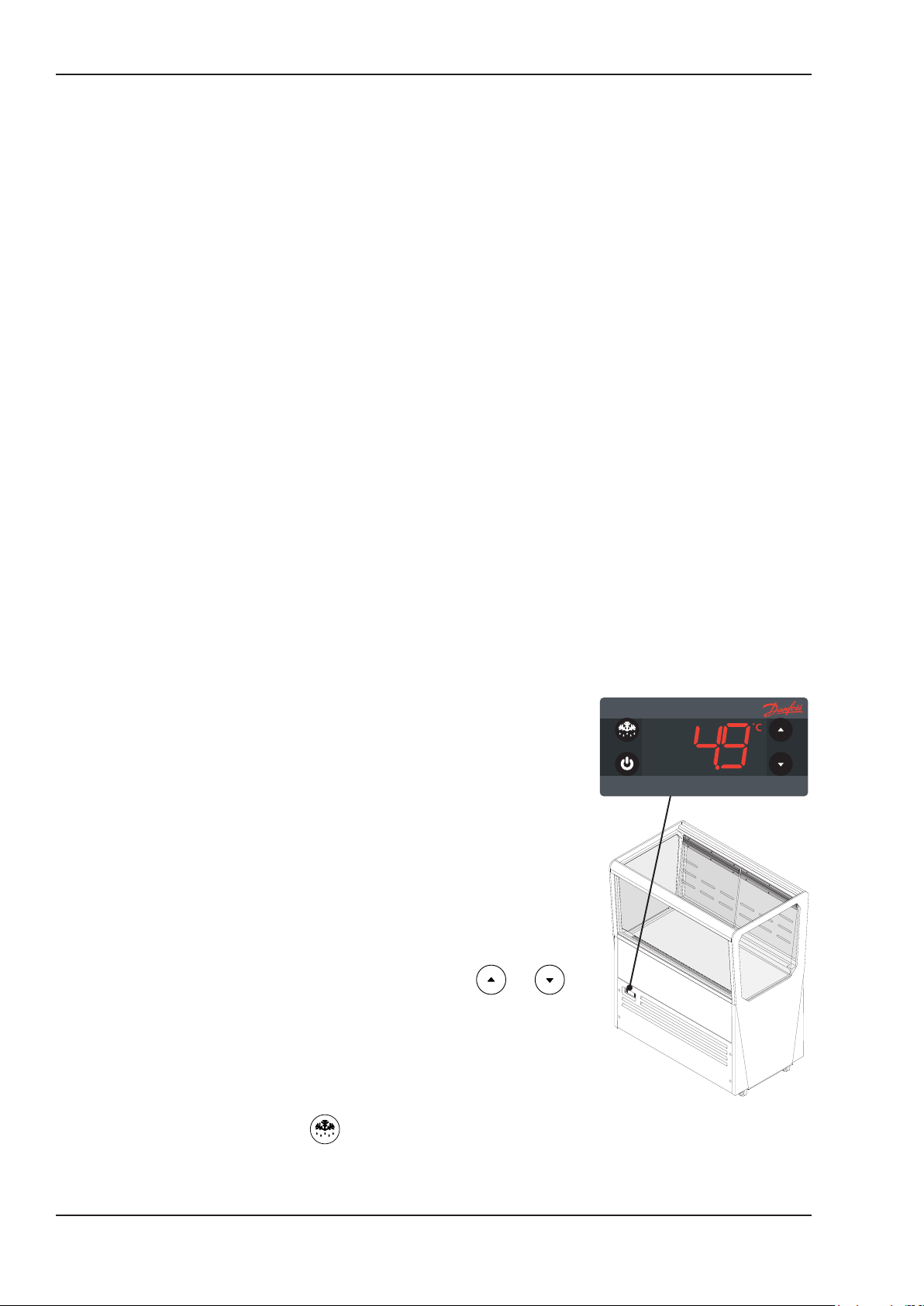

5.4. Danfoss ERC111A control device
NOTE The type of the control device depends on the
cabinet
ERC 111A is a cabinet controller that directs the cabinet functions
and defrosting by means of temperature sensors.
5.4.1. Display messages
In normal status, the display shows cabinet temperature.
5.4.2. Checking temperature settings
Select the desired target temperature by pressing or .
The normal temperature view also reappears
if you do not touch any button for ve (5) seconds.
5.4.3. Defrosting
Start defrosting by pressing .
Thawing is fully automatic.

PI ENGLISH
Version 05/2022 10
6. Cleaning
The following cleaning procedure must be carried out at least twice a year.
NOTE The cabinet must not be cleaned while the fans are running. To disable the
fans, disconnect the cabinet from the electricity supply.
WARNING Evaporators, condensers and parts made of stainless steel may have sharp
edges. Wear protective gloves and work cautiously to avoid cut injuries.
1. Disconnect the cabinet from the mains supply or turn the separate switch to the cleaning
position.
2. Demount lids if present. Empty the cabinet.
3. Allow the cabinet to reach the ambient temperature.
4. Remove any debris.
Do not use picks or sharp tools to remove ice from the evaporator. Damage to the coil may
lead to refrigerant leakage.
5. Inspect for drain water and remove it, if there is any.
6. Clean the interior surfaces of the cabinet with a mild liquid detergent (non-toxic, pH 6-8)
and dry the surfaces carefully using a clean towel.
7. When cleaning is completed, start up the cabinet. Mount lids if present.
See section Starting up.
Check at regular intervals also that
• the operating noise of the cabinet is normal,
• the evaporator is clean and
• the inlet and outlet grids are not obstructed or dirty.
NOTE Clean the drain sump located in the machinery compartment. Inadequate or
infrequent cleaning may shorten the service life of the electric heater / hot gas
piping for the drain sump. Detergent residues must be cleaned without delay
from the tray.
NOTE In the event of a refrigerant leakage all products displayed in the cabinet must
be disposed of and then the cabinet must be cleaned.
7. Interruptions in electricity distribution
The cabinet will start up automatically after a power cut or an interruption in the electricity
supply. The evaporation drain sump may overow during a power cut. After a power cut, check
that the cabinet operates normally. If necessary, contact your nearest service organisation.

PI ENGLISH
Version 05/2022 11
8. Troubleshooting
If a defect occurs in the cabinet or cabinet equipment, or the cabinet does not operate normally,
check that this does not create a hazard to people or property. If necessary, disconnect the
cabinet and contact your nearest service organisation.
Before contacting a service representative, check that
• the plug has not come out of the supply socket and that the mains supply is working.
• the fuse for the cabinet is intact.
• the cabinet is correctly positioned.
• the condenser is not blocked or dirty.
• the products are placed in the cabinet correctly.
• the airow in the cabinet is not disrupted.
• defrosting is not in progress, see the thermometer.
If the reason for the malfunction cannot be identied, disconnect the electrical supply to the
cabinet and contact the service organisation.
Check at regular intervals that the operating noise of the cabinet is normal, the condenser and
evaporator are clean, and the air ow through the inlet and outlet grids is not obstructed by
debris, packaging waste or other such material.
9. Servicing and spare parts
The specications of the cabinet are marked on the rating plate, see the inside cover. Please
inform your authorised service organisation of the cabinet type, name, serial number and
the Control markings marked on the rating plate. The rating plate and the wiring diagram are
located behind the ventilation grating close to the digital controller. The service periods of the
cabinet are dened in a service contract.
NOTE Only authorised tters may carry out servicing and repair of the machinery
and electrical equipment in the cabinet. The evaporator should be cleaned by
authorised service personnel.
It is recommended to use Viessmann spare parts.
The minimum period during which spare parts, necessary for the repair of the appliance is 8
years after placing the last unit of the model on the market
10. Disposal of equipment
After reaching the end of its service life, the cabinet must be disposed of in compliance with
local regulations and instructions. Seek expert advice when disposing of substances that are
harmful to the environment and when utilising recyclable material.
WARNING R600a is highly ammable, this applies to cabinets using R600a isobutane as
refrigerant.

PI ENGLISH
Version 05/2022 12
11. Product information
Product information can be retrieved from European product database (EPREL).
1. Remove the ventilation grating covering the rating plate
2. Read the QR code on the rating plate to retrieve the product information from EPREL
OR
Access EPREL via https://eprel.ec.europa.eu/ and use the model ID provided in the rating
plate to nd the product information.
NOTE Detailed product information, recommendations for optimal temperature for
food and beverage preservation, and more documentation can be found at
www.cooling.viessmann.com
12. Wiring diagram
LED
POWER
N L
+ –
LED LED
DC 12 V
EVAPORATOR
FAN
AC 240 V, 50 Hz
COMPRESSOR
EMBRACO
L N 1
CONDENSER
FAN
CONTROLLER.
DANFOSS
ERC111
DO1 L N
L
N
5
1
4
2
3
6
1 Condenser fan 4 Compressor
2 Danfoss ERC 111 control device 5 LED. Power
3 LED. Source of light 6 Evaporator fan

Austria
kuehlen.viessmann.at
Belgium
froid.viessmann.be
Czech Republic
chlazeni.viessmann.cz
Denmark
koele.viessmann.dk
Estonia
kylm.viessmann.ee
Finland
kylma.viessmann.fi
France
froid.viessmann.fr
Germany
kuehlen.viessmann.de
Ireland
cooling.viessmann.co.uk
Latvia
dzesesana.viessmann.lv
Lithuania
saldymas.viessmann.lt
Netherlands
koelen.viessmann.nl
Norway
kjol.viessmann.no
Poland
chlodnicze.viessmann.pl
Russia
holod.viessmann.ru
Spain
refrigeracion.viessmann.es
Sweden
kyla.viessmann.se
Switzerland
kuehlen.viessmann.ch
United Kingdom
cooling.viessmann.co.uk
EN 05/2022
Copyright Viessmann
Duplication and alternative use only with prior written consent.
Subject to technical modifications.
