Viessmann VITOTRONIC 100 User manual

Operating instructions
for the system user
VIESMANN
Multi boiler system with control unit for constant temperature
operation (Vitotronic 100, type GC1B, GC4B or HC1B) and weather-
compensated cascade control unit (Vitotronic 300-K, type MW1B or
MW2B)
VITOTRONIC 100
VITOTRONIC 300-K
5592 675 GB 3/2011 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are for the
heating system user.
This unit is not designed to be used by
persons (including children) with limited
bodily, sensory or mental capacities, or
lacking experience and/or lacking knowl-
edge, unless they are supervised by a
person responsible for their safety, or
have received instructions from such a
person as to how to use the unit.
!Please note
Children should be supervised.
Ensure that children do not play
with the unit.
Danger
Incorrectly executed work on the
heating system can lead to life-
threatening accidents.
■ Work on gas appliances must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier and your heating con-
tractor from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 675 GB

3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
In case of fire
Danger
Fire creates the risk of burning
and explosions.
■ Shut down the heating system.
■ Close the shut-off valves of the
fuel lines.
■ Use a tested fire extinguisher,
class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions can
lead to damage to the heating
system and put the safe opera-
tion at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
■ Never close existing ventilation
apertures.
Ancillary components, spare and
wearing parts
!Please note
Components that are not tested
with the heating system may lead
to damage to the heating system,
or may affect their various func-
tions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 675 GB

4
Introductory information
Commissioning..................................................................................................... 7
Your system is preset at the factory..................................................................... 7
Terminology.......................................................................................................... 8
About the controls
Where to find the controls.................................................................................... 9
Controls, Vitotronic 100........................................................................................ 9
■Opening the control unit.................................................................................... 9
■Programming unit.............................................................................................. 10
How to use the controls, Vitotronic 100................................................................ 11
■ Symbols............................................................................................................ 11
Controls, Vitotronic 300-K.................................................................................... 12
■ Opening the control unit.................................................................................... 12
■ Programming unit.............................................................................................. 12
Menu, Vitotronic 300-K......................................................................................... 13
■ Standard menu................................................................................................. 13
■ Extended menu................................................................................................. 14
How to use the controls, Vitotronic 300-K............................................................ 15
Start-up/shutdown
Starting the heating system.................................................................................. 17
■ Controls with cover flap open............................................................................ 17
Stopping the heating system................................................................................ 19
■ With frost protection monitoring........................................................................ 19
■ Without frost protection monitoring (shutdown)................................................ 20
Central heating
Required settings (central heating)...................................................................... 21
Selecting a heating circuit.................................................................................... 21
Setting the room temperature............................................................................... 22
Setting the heating program for central heating................................................... 22
Setting the time program for central heating........................................................ 23
Changing the heating curve................................................................................. 24
Stopping the central heating................................................................................. 25
Comfort and energy saving functions
Selecting comfort function "Party mode".............................................................. 26
Selecting energy saving function "Economy mode"............................................. 27
Selecting energy saving function "Holiday program"............................................ 27
DHW heating
Required settings (DHW heating)......................................................................... 29
Index
Index
5592 675 GB

5
Setting the DHW temperature.............................................................................. 29
Setting the heating program for DHW heating..................................................... 29
Setting the time program for DHW heating.......................................................... 30
■ Heating system with DHW circulation pump..................................................... 31
Stopping DHW heating......................................................................................... 32
Further adjustments
Selecting the boiler sequence.............................................................................. 33
Setting the display contrast.................................................................................. 33
Setting the display brightness.............................................................................. 33
Entering names for the heating circuits................................................................ 34
Setting the time and date..................................................................................... 35
Language selection.............................................................................................. 35
Setting the temperature unit (°C/°F)..................................................................... 35
■ Vitotronic 100.................................................................................................... 35
■ Vitotronic 300-K................................................................................................ 35
Restoring factory settings..................................................................................... 36
■ Vitotronic 100.................................................................................................... 36
■ Vitotronic 300-K................................................................................................ 36
Scanning options
Scanning information............................................................................................ 37
■ Vitotronic 100 — scans for every boiler............................................................ 37
■ Vitotronic 300-K — scans for the heating system............................................. 38
Scanning service messages................................................................................. 39
■ Vitotronic 100.................................................................................................... 39
■ Vitotronic 300-K................................................................................................ 39
Scanning fault messages..................................................................................... 40
■ Vitotronic 100.................................................................................................... 40
■ Vitotronic 300-K................................................................................................ 40
Emissions test mode......................................................................................... 42
What to do if...
Rooms are too cold.............................................................................................. 43
Rooms are too hot................................................................................................ 44
There is no hot water............................................................................................ 45
The DHW is too hot.............................................................................................. 46
"OFF" is displayed at the Vitotronic 100............................................................... 46
"ë" is displayed at the Vitotronic 100.................................................................. 46
"ã" is displayed at the Vitotronic 100.................................................................. 46
"ã" flashes and "Fault" is displayed at the Vitotronic 300-K................................ 46
"Controls locked out" is displayed at the Vitotronic 300-K.................................... 47
Index
Index
5592 675 GB

6
"External hook-up" is displayed at the Vitotronic 300-K....................................... 47
"Central control" is displayed at the Vitotronic 300-K........................................... 47
"External program" is displayed at the Vitotronic 300-K....................................... 47
Repair work
Maintenance......................................................................................................... 48
■ Cleaning............................................................................................................ 48
■ Inspection and maintenance............................................................................. 48
Appendix
Menu overview Vitotronic 300-K........................................................................... 50
■ Extended menu................................................................................................. 50
■ Scanning options in the extended menu........................................................... 51
Terminology.......................................................................................................... 52
Keyword index.................................................................................................... 57
Index
Index (cont.)
5592 675 GB

7
The commissioning and matching of the
control unit to local conditions and build-
ing characteristics, as well as instructing
the user in the operation of the system,
must be carried out by your heating con-
tractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector will also inform you [where
appropriate] about work he may be
required to perform on your combustion
equipment (e.g. regular checks, clean-
ing).
Your system is preset at the factory
The control units are factory-set for cen-
tral heating and DHW heating:
■ Vitotronic 100:
" "
■ Vitotronic 300-K:
"Heating and DHW"
Your heating system is therefore ready
for use.
Central heating
■ Between 6:00 and 22:00 h, the rooms
are heated to 20 °C "Set room tem-
perature" (standard heating mode).
■ Between 22:00 and 6:00 h, the rooms
are heated to 3 °C "Set reduced room
temp" (reduced heating mode, frost
protection).
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating").
DHW heating
■ Between 5:30 and 22:00 h, the DHW
is heated to 50 °C "Set DHW temper-
ature". Any installed DHW circulation
pump is on.
■ Between 22:00 and 05:30 h, the DHW
cylinder temperature will not be rehea-
ted. Any installed DHW circulation
pump is off.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Your boiler, heating circuits and DHW
cylinder are protected against frost.
Wintertime/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Introductory information
Commissioning
5592 675 GB

8
Power failure
■ All data is saved if there is a power
failure.
Terminology
To provide you with a better understand-
ing of the functions of your control unit,
the appendix contains the chapter "Ter-
minology" (see page 52).
Introductory information
Your system is preset at the factory (cont.)
5592 675 GB

9
Each boiler is equipped with its own con-
trol unit for constant temperature opera-
tion. These control units are regulated by
a higher weather-compensated cascade
control unit.
■ Control unit for constant temperature
operation on the boiler:
Vitotronic 100
■ Higher weather-compensated cas-
cade control unit:
Vitotronic 300-K
You can change all settings for your
heating system centrally at the control
unit programming unit.
You may also make such changes at the
remote control units, if your system is
equipped with such units.
Remote control operating instruc-
tions
The settings at the Vitotronic 100 are
described in these operating instruc-
tions. You do not need the operating
instructions provided with these control
units.
Controls, Vitotronic 100

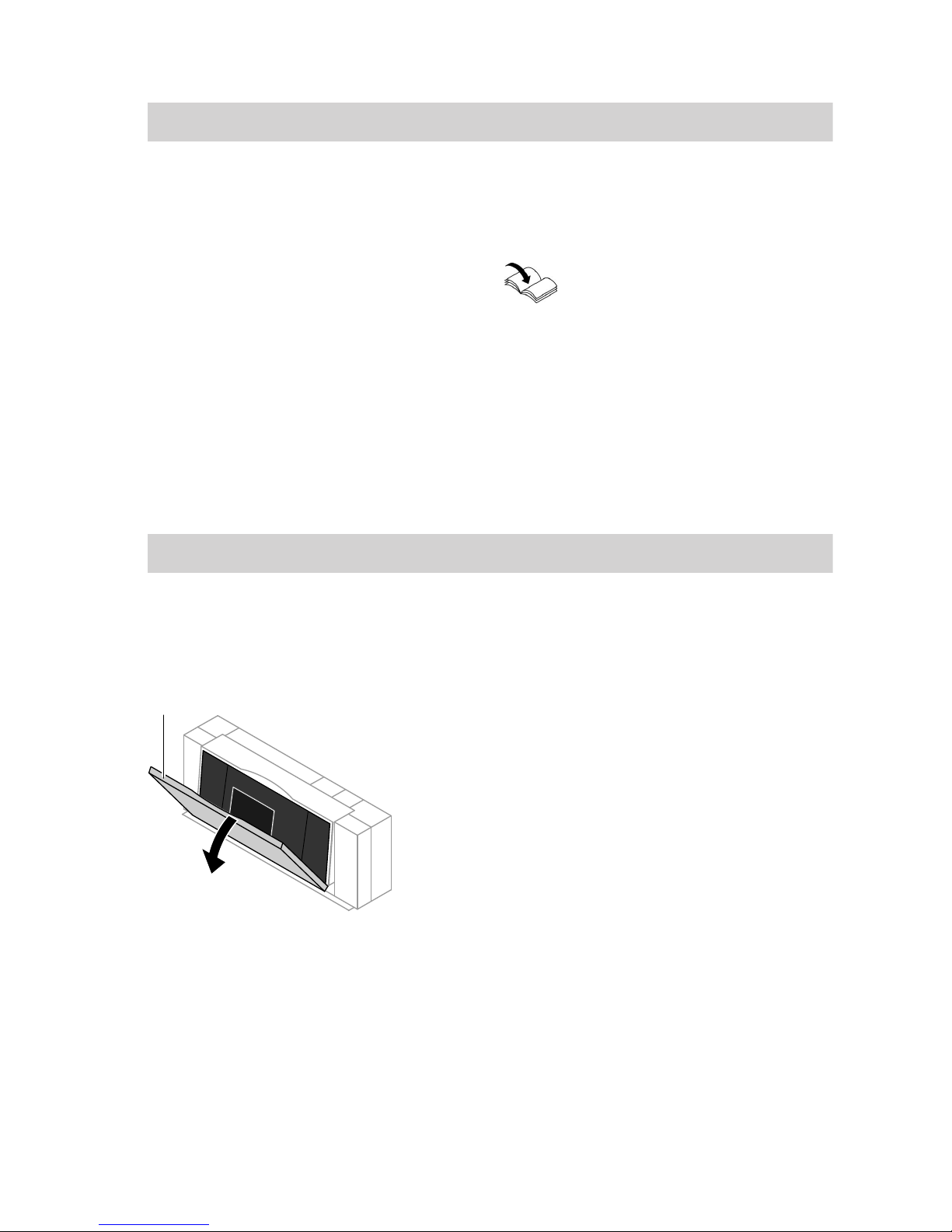

Opening the control unit
Vitotronic 100, types GC1B and GC4B
A
ACover flap
The programming unit is located behind
the cover flap.
To open, pull the flap from the top edge
forward.
About the controls
Where to find the controls
5592 675 GB

10
Vitotronic 100, type HC1B
0
123
4
bar
3 4 8°C
A
Programming unit
3 4 8°C
A
Takes you to the previous step in
the menu or cancels a setting that
has been started.
Cursor keys
To scroll in the menu or to set val-
ues.
OK Confirms your selection or saves
the setting.
No function.
Enables you to call up the menu for
settings and scanning.
About the controls
Controls, Vitotronic 100 (cont.)
5592 675 GB

11
In multi boiler systems, each Vitotronic
100 indicates the boiler number on the
standard display. The following exam-
ple shows the boiler water temperature
as indicated by boiler 3.
34 8°C
Press .
This takes you to the menu for settings
and scanning.
Note
If the boiler is not in operation, the fol-
lowing display is shown:
30
Symbols
These symbols are not always dis-
played, but appear subject to the system
version and the operating state. Flashing
displays indicate that modifications can
be made.
Menu
Information
Further adjustments
Emissions test mode
Heating program
Standby mode with frost protection
monitoring
The boiler is available to the cascade
control unit for heat production.
Messages
Service message
The service interval has expired.
Fault message
Only for type HC1B:
Burner fault
Displays
Circulation pump at output 20 is
running (only for type HC1B)
Burner in operation
Factory settings
About the controls
How to use the controls, Vitotronic 100
5592 675 GB

12
Opening the control unit
A
ACover flap
The programming unit is located behind
the cover flap.
To open, pull the flap from the top edge
forward.
Programming unit
Boiler
1423
Boiler sequence
Common flow temp 40°C
Takes you to the previous step in
the menu or cancels a setting that
has been started.
Cursor keys
To scroll in the menu or to set val-
ues.
OK Confirms your selection or saves
the setting.
Calls up the "Help" menu (see the
following chapter) or additional
information.
Calls up the extended menu.
"Help" menu
You can view a short guide giving an
explanation of the controls and informa-
tion about heating circuit selection (see
page 21).
About the controls
Controls, Vitotronic 300-K
5592 675 GB

13
Call up the short guide as follows:
■ If the screen saver is active (see
page 15):
Press .
■ If you are somewhere in the menu:
Press until the standard menu is
shown (see the following chapter).
Press .
Menu, Vitotronic 300-K
There are two control levels available,
the "Standard menu" and the "Extended
menu".
The menu overview can be found on
page 50.
Standard menu
Call up the standard menu as follows:
■ If the screen saver is active (see
page 15):
Press OK.
■ If you are somewhere in the menu:
Keep pressing the button until the
standard menu appears.
In the standard menu, the number of
boilers installed in the heating system is
shown in a specific order (boiler
sequence). You can change the boiler
sequence (see page 33).
The meanings of the icons are as fol-
lows:
■ Solid white:
The boiler has been enabled by the
cascade control unit (boiler 3 in this
example).
■ Solid grey:
The boiler has been enabled by the
cascade control unit (boilers 2 and 4 in
this example).
■ Solid black and crossed out:
This boiler is not available for heat pro-
duction (boiler 1 in this example).
About the controls
Controls, Vitotronic 300-K (cont.)
5592 675 GB

14
Boiler
1423
Boiler sequence
Common flow temp 40°C
Note
2 minutes after any setting has been
made, the display automatically reverts
to the standard menu.
Extended menu
Call up the extended menu as follows:
■ If the screen saver is active (see
page 15):
Press OK and then .
■ If you are somewhere in the menu:
Press .
Note
Your heating contractor can block oper-
ation for the extended menu. In this
case, you can only scan fault mes-
sages.
Menu
Solar energy
Continue with
DHW
Heating
Boiler sequence
OK
A
ADialogue line
About the controls
Menu, Vitotronic 300-K (cont.)
5592 675 GB

15

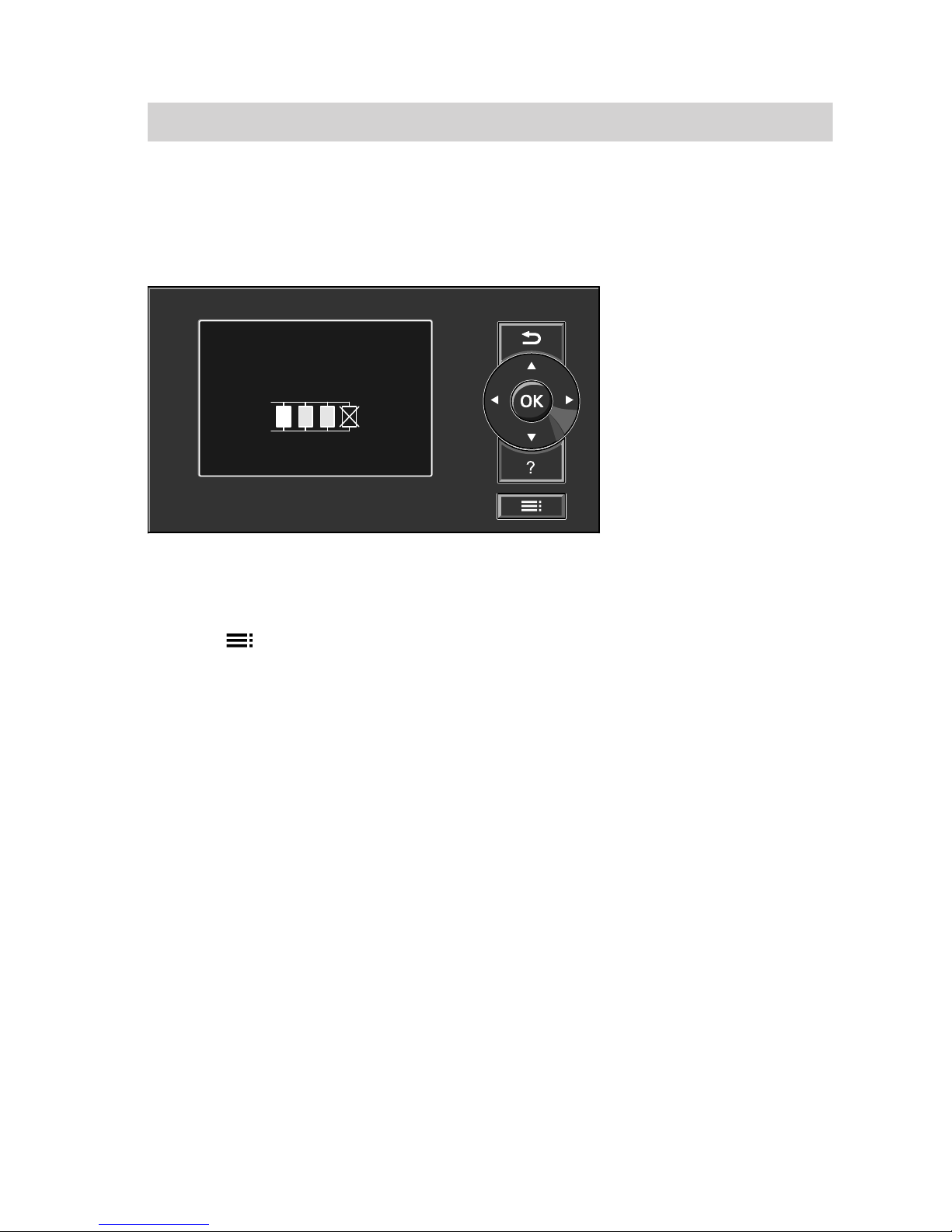

The screen saver will become active if
you have not adjusted any settings on
the programming unit for a few minutes.
The display brightness is reduced.
Boiler
1423
1. Press OK. This takes you to the
standard menu (see page 13).
2. Press . This takes you to the
extended menu (see page 14).
The selected menu option is highligh-
ted in white.
The dialogue line A (see diagram on
page 14) then shows the necessary
instructions.

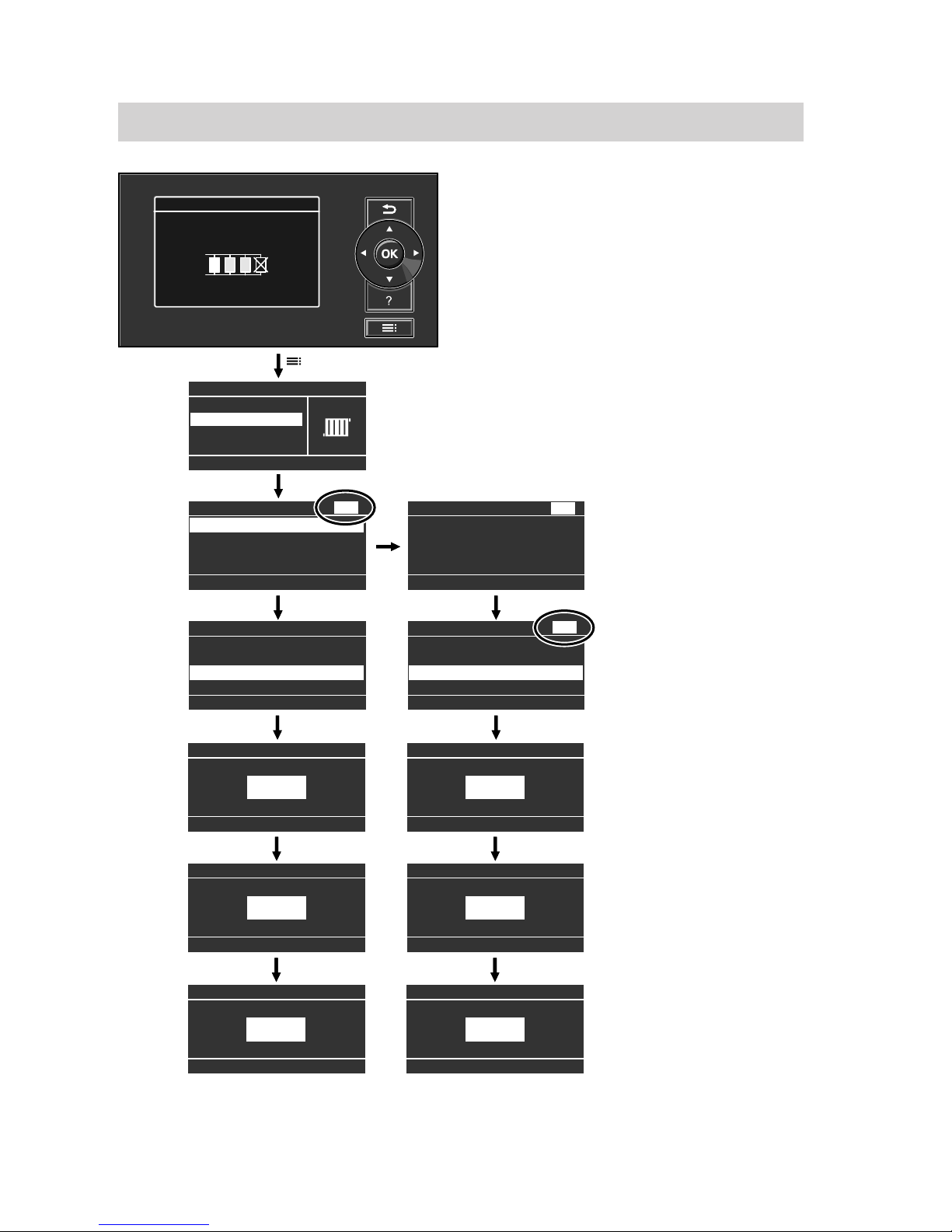

The following diagram shows how to
make settings with different dialogue
lines, using the set room temperature
setting as an example.
About the controls
How to use the controls, Vitotronic 300-K
5592 675 GB

16
Vv
or
Ú
OK
OK
Heating circuit 1
Economy mode
ÙÚ
Party mode
HC1
Continue with
Htg circ. selection ÙÚ
HC2
Was selected
Heating circuit 2
Set room temperature HC1
20°C
Change with (
Set room temperature HC1
22°C
Adopt with OK
OK
ê
ê
ÙÚ
HC1
Heating circuit 2
Economy mode
ÙÚ
Party mode
HC1
Continue with OK
ê
ê
ÙÚ
HC2
Set reduced room temp
Set reduced room temp
Set room temperature
Set room temperature
Vv
or
Set room temperature HC2
20°C
Change with (
Set room temperature HC2
22°C
Adopt with OK
OK / /
v v
Heating circuit 1
Economy mode
Party mode
HC1
Continue with OK
ê
ê
Set reduced room temp
Set room temperature
/
v v
OK
Boiler
1423
Boiler sequence
Common flow temp 40°C
Menu
Continue with OK
Solar energy
DHW
Boiler sequence
Heating
/v
OK
OK
Set room temperature HC1
22°C
Adopted
OK
Set room temperature HC2
22°C
Adopted
About the controls
How to use the controls, Vitotronic 300-K (cont.)
5592 675 GB

17

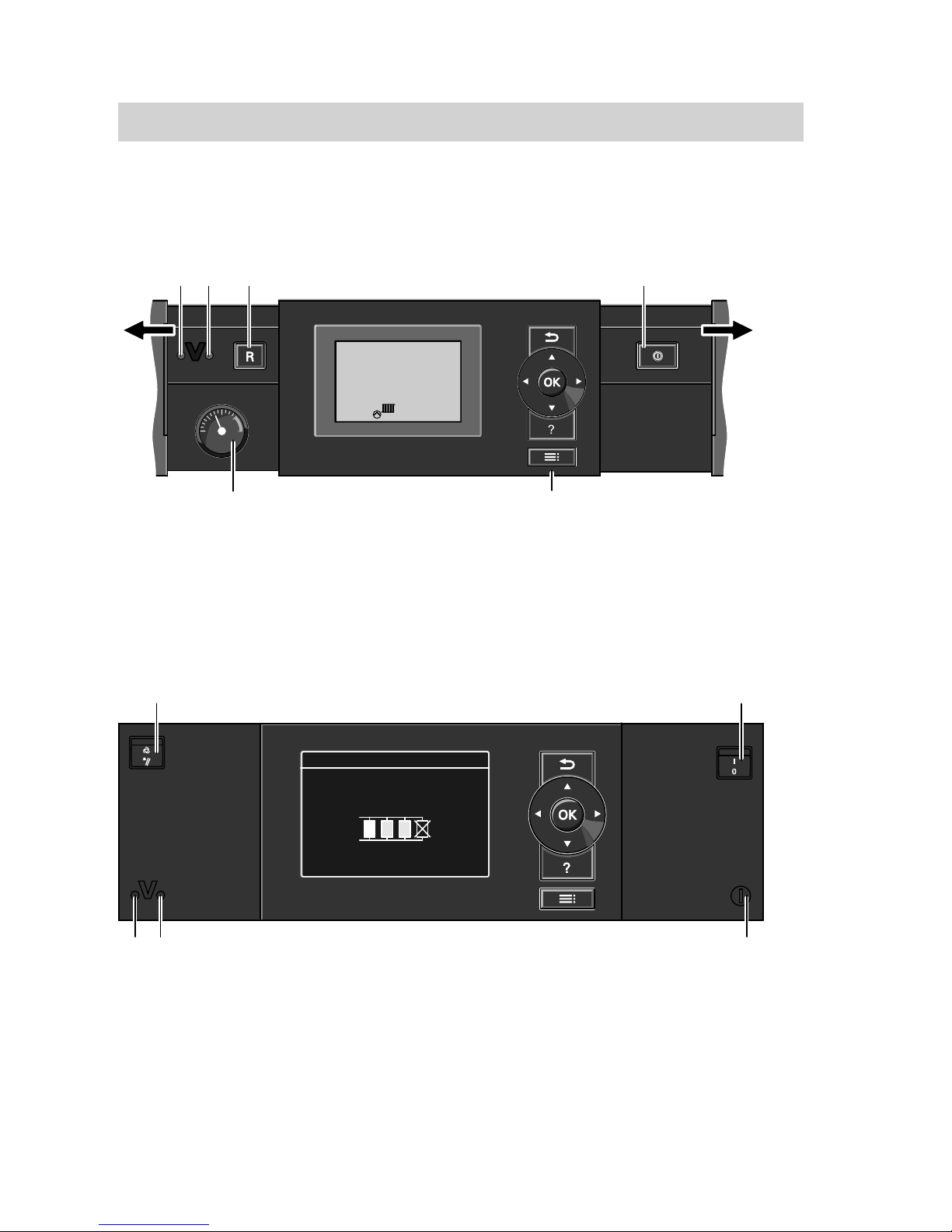

Controls with cover flap open
Vitotronic 100, type GC1B
A
C
B
DEF
GH
4 8°C
s A
AOn indicator (green)
BFault indicator (red)
CEmissions test switch
(only for service purposes)
DTest key
(only for service purposes)
EExcess temperature reset
FON/OFF switch
GTemperature controller
HFuses
Vitotronic 100, type GC4B
A
B
D
E
4 8°C
s A
C
AOn indicator (green)
BFault indicator (red)
CEmissions test switch
(only for service purposes)
Start-up/shutdown
Starting the heating system
5592 675 GB

18
DON/OFF switch EFuses
Vitotronic 100, type HC1B
0
123
4
bar
CD
F
BA
3 4 8°C
s A
D
AFault indicator (red)
BOn indicator (green)
CReset button
DON/OFF switch
EUser interface
FPressure gauge (pressure display)
Vitotronic 300-K
A
C
B
D
E
Boiler
1423
Boiler sequence
Common flow temp 40°C
AOn indicator (green)
BFault indicator (red)
CEmissions test switch
(only for service purposes)
DON/OFF switch
EFuse
Start-up/shutdown
Starting the heating system (cont.)
5592 675 GB

19
1. Check the heating system pressure
at the pressure gauge. The system
pressure is too low if the indicator
points to the area below 1.0 bar or is
below the red band. In this case, top
up with water or notify your local heat-
ing contractor.
2. Check that the ventilation apertures
of the installation room are open and
unrestricted.
Note
With open flue operation, the com-
bustion air is drawn from the installa-
tion room.
3. Open the shut-off valves in the oil
lines (at the tank and filter) or open
the gas shut-off valve.
4. Switch ON the power supply, e.g. at
a separate MCB/fuse or a mains iso-
lator.
5. Switch ON the ON/OFF switches at
all Vitotronic 100 and at the
Vitotronic 300-K (see chapter "Con-
trols").
After a short time, the following is
shown on the display:
■ Vitotronic 100: the standard display
(see page 11)
■ Vitotronic 300-K: the standard
menu (see page 13)
The green ON indicator illuminates.
Your heating system and, if installed,
your remote control units are now
ready to operate.
Note
On every Vitotronic 100, " " must be
selected, otherwise the Vitotronic 300-K
cannot use the corresponding boiler to
produce heat.
Stopping the heating system
With frost protection monitoring
At the Vitotronic 300-K, select the heat-
ing program "Standby mode" for
every heating circuit.
■ No central heating.
■ No DHW heating.
■ Frost protection for the heating circuits
and the DHW cylinder is active.
Extended menu
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 21).
4. "Heating program"
5. "Standby mode" (frost protection
monitoring)
Note
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
Start-up/shutdown
Starting the heating system (cont.)
5592 675 GB

20
Ending the heating program "Standby
mode"
Select another heating program.
Stopping individual boilers at the rel-
evant Vitotronic 100
Press the following keys:
1. for settings; " " flashes.
2. OK to confirm; " " flashes.
3. OK to confirm; " " flashes.
4. until " " flashes.
5. OK to confirm.
Note
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
Ending the heating program "Standby
mode"
Select another heating program.
Without frost protection monitoring (shutdown)
1. Switch OFF the ON/OFF switches at
all Vitotronic 100 and Vitotronic 300-
K (see chapter "Controls").
2. Close the shut-off valves in the oil
lines (at the tank and filter) or close
the gas shut-off valve.
3. Isolate the heating system from its
main power supply, e.g. at a separate
MCB/fuse or a mains isolator.
4. Where outside temperatures of
below 3 °C are anticipated, please
take suitable measures to protect the
heating system against frost. If nec-
essary, contact your heating contrac-
tor.
Information on a prolonged shutdown
■ Circulation pumps may seize up as
they are not supplied with power.
■ Vitotronic 300-K:
It may be necessary to reset the date
and time (see page 35).
Start-up/shutdown
Stopping the heating system (cont.)
5592 675 GB
