Viessmann Vitodens 100-W User manual

Operating instructions
for the system user
VIESMANN
Heating system
with control unit for constant temperature or weather-compensated
operation
VITODENS 100-W
5592 584 GB 1/2014 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for heating system users.
This appliance can also be operated by
children of 8 years and older, as well as
by individuals with reduced physical,
sensory or mental faculties or those lack-
ing in experience and knowledge, provi-
ded such individuals are being super-
vised or have been instructed in the safe
use of this appliance as well as in any
risks arising from it.
!Please note
Supervise children in the proxim-
ity of the appliance.
■ Never permit children to play
with the appliance.
■ Cleaning and maintenance
must not be carried out by
unsupervised children.
Danger
Incorrectly executed work on the
heating system can lead to life
threatening accidents.
■ Work on gas installations must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
Danger
The appliance generates heat.
Hot surfaces can cause burns.
■ Never open the appliance.
■ Never touch the hot surfaces of
uninsulated pipes, fittings or
flue pipes.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Do not
switch lights or electrical appli-
ances on or off.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Evacuate any people from the
danger zone.
■ Notify your gas or electricity
supplier and your local heating
contractor from outside the
building.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 584 GB

3
If you smell flue gas
Danger
Flue gas can lead to life threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the installation site.
■ Close all doors in the living
space.
In case of fire
Danger
If there is a fire, there is a risk of
burns and explosion.
■ Shut down the heating system.
■ Close shut-off valves in the fuel
supply lines.
■ Use a tested fire extinguisher,
class ABC.
What to do if the heating system
develops faults
Danger
Fault messages indicate faults in
the heating system. If faults are
not rectified, they can have life
threatening consequences.
Do not acknowledge fault mes-
sages several times in quick suc-
cession. Inform your heating con-
tractor so the cause can be ana-
lysed and the fault rectified.
Installation room conditions
Danger
Sealed vents result in a lack of
combustion air. This leads to
incomplete combustion and the
formation of life threatening car-
bon monoxide.
Never cover or close existing
vents.
Do not make any subsequent
modifications to the building
characteristics that could affect
safe operation (e.g. cable/pipe-
work routing, cladding or parti-
tions).
Danger
Easily flammable liquids and
materials (e.g. naphtha, solvents,
cleaning agents, paints or paper)
can cause deflagration and fire.
Never store or use such materials
in the installation room or in direct
proximity to the heating system.
!Please note
Incorrect ambient conditions can
lead to heating system damage
and can put safe operation at
risk.
■ Ensure ambient temperatures
are above 0 °C and below
35 °C.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through continu-
ous drying of washing).
Safety instructions
For your safety (cont.)
5592 584 GB

4
Extractors
Operating appliances that extract air to
the outside (cooker hoods, extractors, air
conditioning units, etc.) can create neg-
ative pressure. If the boiler is operated at
the same time, this can lead to reverse
flow of the flue gas.
Danger
The simultaneous operation of
the boiler and appliances that
extract air to the outside can
result in life threatening poison-
ing due to reverse flow of the flue
gas.
Take suitable steps to ensure an
adequate supply of combustion
air. If necessary, contact your
heating contractor.
Auxiliary components, spare and
wearing parts
!Please note
Components not tested with the
heating system may damage it or
affect its functions.
Have installation or replacement
work only carried out by qualified
contractors.
Safety instructions
For your safety (cont.)
5592 584 GB

5
Introductory information
Commissioning..................................................................................................... 7
Terminology.......................................................................................................... 7
Your system is preset at the factory..................................................................... 7
Energy saving tips................................................................................................ 8
Tips for greater comfort........................................................................................ 9
Operation
Summary of controls and indicators..................................................................... 10
■ Opening the control unit.................................................................................... 10
■ Controls and display elements.......................................................................... 10
■ Indicators on display......................................................................................... 11
Operating mode of the heating system................................................................ 11
■ Operation without room temperature control unit.............................................. 11
■ Operation with room temperature control unit................................................... 11
■ Weather-compensated operation...................................................................... 12
Start-up/shutdown
Starting the heating system.................................................................................. 13
Shutting down the heating system....................................................................... 13
■ With frost protection monitoring........................................................................ 13
■ Without frost protection (shutdown).................................................................. 14
Settings
Heating................................................................................................................. 15
Domestic hot water............................................................................................... 15
Switching the comfort function on and off ........................................................... 16
Displays
Heating water temperature................................................................................... 18
What to do if...
Rooms are too cold.............................................................................................. 19
Rooms are too hot................................................................................................ 20
There is no hot water............................................................................................ 20
The DHW is too hot.............................................................................................. 21
"U" flashes on the display..................................................................................... 21
"U" is displayed..................................................................................................... 21
Fault code "58" is displayed................................................................................. 21
Fault indicator on display...................................................................................... 22
Resetting a burner fault ....................................................................................... 22
Index
Index
5592 584 GB

6
Upkeep
Cleaning............................................................................................................... 23
Inspection and maintenance................................................................................ 23
■.......................................................................................................................... 23
Appendix
Terminology.......................................................................................................... 24
Keyword index.................................................................................................... 26
Index
Index (cont.)
5592 584 GB

7
The commissioning and adjusting of the
control unit to local conditions and to
building characteristics, plus the instruc-
tion of the user in operating the system,
must be carried out by your heating con-
tractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector (where applicable) will
also provide you with information on
additional activities concerning your
combustion equipment (such as regular
testing, cleaning, etc.).
g Gas council no.
Rated heating output range
kW
Gas condensing boil-
er
Gas condensing combi
boiler
6.5 - 19 41-819-26 —
6.5 - 26 41-819-27 41-819-20
8.8 - 30 41-819-28 41-819-21
8.8 - 35 41-819-29 41-819-22
Terminology
To provide you with a better understand-
ing of the functions of your Viessmann
control unit some terminology is
explained.
The terms are marked as follows:
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
Your system is preset at the factory
Your heating system is preset at the fac-
tory and is therefore ready for opera-
tion.
Your heating contractor can make fur-
ther adjustments for you during commis-
sioning.
You can change these settings at any
time to suit your individual require-
ments.
Introductory information
Commissioning
5592 584 GB

8
Power failure
All settings are saved if there is a power
failure.
Energy saving tips
Central heating
■Room temperature:
Never overheat your rooms. Every
degree of room temperature reduction
saves up to 6 % on your heating bills.
Set your room temperature no higher
than 20 °C.
■Operating modes:
If you do not require central heating,
select one of the following operating
modes:
– If you do not wish to heat rooms in
summer but require domestic hot
water, set rotary selector "tw" (see
page 15) and turn rotary selector
"tr" to "0".
– If you require neither central heating
nor DHW for a prolonged period, set
rotary selectors "tr" and "tw" to
"0".
■Ventilation:
To ventilate, open windows fully
briefly, and meanwhile close the ther-
mostatic valves (if there is no mechan-
ical ventilation system installed).
■Roller shutters:
Close roller shutters (where installed)
at dusk.
■Thermostatic valves:
Ensure that thermostatic valves are
properly set.
■Radiators:
Never cover radiators or thermostatic
valves.
DHW heating
■DHW temperature:
Never set the DHW cylinder tempera-
ture excessively high (see page 15).
■Hot water consumption:
Consider showering instead of running
a bath. A shower generally uses less
energy than a full bath.
Introductory information
Your system is preset at the factory (cont.)
5592 584 GB

9
DHW heating
■Comfort function:
If the comfort function is switched on,
the instantaneous water heater is kept
up to temperature (standby). Hot water
is therefore quickly available. Start
comfort function, see page 16.
Introductory information
Tips for greater comfort
5592 584 GB

10

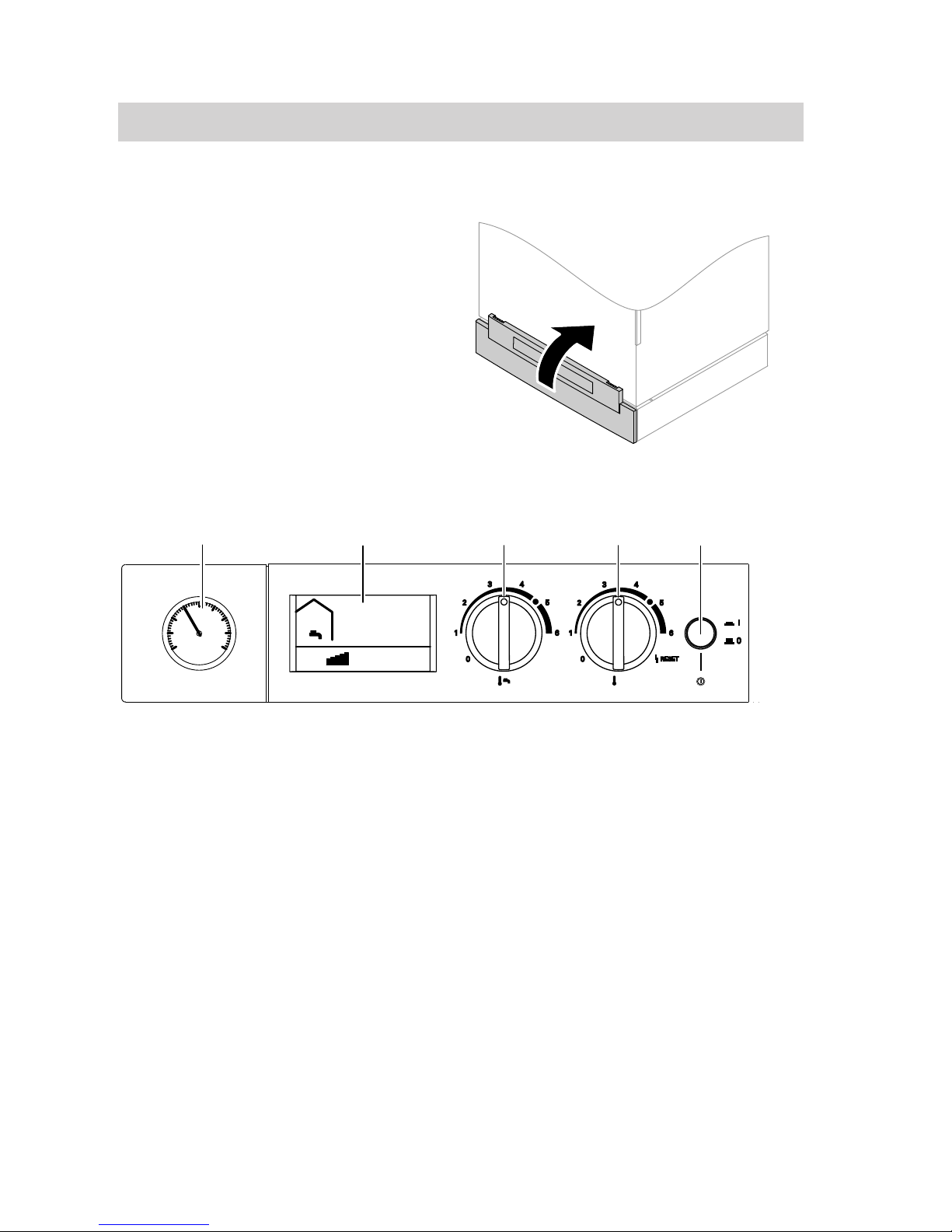

Opening the control unit
The controls and display elements are
behind the cover flap at the front.
Controls and display elements
AB C D E
r
r
A COMFORT
1
0
2
3
4
°C
06
bar
APressure gauge
BDisplay
Ctw rotary selector "DHW tempera-
ture"
Dtr rotary selector "Heating water
temperature" and "Reset"
EON/OFF switch
Operation
Summary of controls and indicators
5592 584 GB

11
Indicators on display
r
AECO COMFORT SERV
8:8:8°C
°F
A B C D
LK H G F E
8:8:8
AHeating mode
BDHW heating
CDisplay value or fault code
DTemperature in °C or °F (in conjunc-
tion with the display value)
EService setting active (only for con-
tractors)
FComfort function switched on
GComfort function switched off
HCurrent burner output
KBurner in operation
LFault
Operating mode of the heating system
Operation without room temperature control unit
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
Set the required heating water tempera-
ture at rotary selector "tr" (see
page 15).
Operation with room temperature control unit
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
Please make any adjustments to the
connected room temperature control unit
using the relevant operating instruc-
tions.
Operation
Summary of controls and indicators (cont.)
5592 584 GB

12
Note
The heating water temperature must be
set sufficiently high using rotary selector
"
tr
" for the required room temperature
to be reached.
Weather-compensated operation
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
In weather-compensated operation, the
boiler water temperature is regulated
according to the outside temperature.
Rotary selector "tr" enables you to
increase or reduce the room tempera-
ture.
Operation
Operating mode of the heating system (cont.)
5592 584 GB

13
We recommend you contact your local
heating contractor if you are planning to
start up a heating system that has not
been used for a long period.
1
0
2
3
4
bar
1. Check the pressure of your heating
system on the pressure gauge.
Minimum system pressure 0.8 bar
Notify your heating contractor if the
system pressure is too low.
2. In open flue operation:
Combustion air is drawn from the
installation room.
Check whether the vents in the instal-
lation room are open and unobstruc-
ted.
3. Open the gas shut-off valve.
4. Turn ON the ON/OFF switch.
Your heating system and room tem-
perature control unit (if connected)
are now ready for operation.
Shutting down the heating system
With frost protection monitoring
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
If you do not wish to use your boiler for
several days you can switch the appli-
ance off.
Start-up/shutdown
Starting the heating system
5592 584 GB

14
r
Turn both rotary selectors to "0".
Frost protection monitoring is now active
for the boiler and the DHW cylinder.
Note
Frost protection for the entire heating
system - see operating instructions for
the room temperature control unit.
Without frost protection (shutdown)
Shut down your heating system com-
pletely if it will not be needed for longer
periods (several months).
We recommend you contact your local
heating contractor if you are planning to
take your heating system out of use for
long periods. Your heating contractor
can then take suitable steps such as
frost protection for the system or heating
surface preservation as required.
1. Close the gas shut-off valve and safe-
guard against unauthorised reopen-
ing.
2. Turn off the ON/OFF switch.
The power to the system is now at
zero volt.
Note that the system is no longer
frost-protected.
Start-up/shutdown
Shutting down the heating system (cont.)
5592 584 GB

15
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
r
Switching on:
Set rotary selector "tr" to the required
heating water temperature.
Note
If a room temperature control unit is con-
nected, use this unit to set the required
room temperature.
If central heating is active, the display
shows "r".
Switching off:
Move rotary selector "rt" to "0".
Domestic hot water
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
Select the DHW temperature in accord-
ance with your personal requirements
(e.g. for showering).
Note
If the boiler does not have a DHW cylin-
der connected or an integral instantane-
ous water heater, turn rotary selector
"
tw
" to "0".
Settings
Heating
5592 584 GB

16
Switching on:
Move rotary selector "tw" to the
required DHW temperature.
If DHW heating is active, the display
shows "w".
Switching off:
Turn rotary selector "tw" to "0".
Switching the comfort function on and off
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
If the comfort function is switched on, the
instantaneous water heater is kept up to
temperature (standby). Hot water is
therefore quickly available.
Switching on the comfort function
Briefly turn rotary selector "tw" clock-
wise as far as it will go (for less than 2 s)
and then turn it anticlockwise again.
"COMFORT" appears on the display.
Settings
Domestic hot water (cont.)
5592 584 GB

17
Switching off the comfort function
Briefly turn rotary selector "tw" anti-
clockwise as far as it will go (for less than
2 s) and then turn it clockwise again.
"ECO" appears on the display.
Settings
Switching the comfort function on and off (cont.)
5592 584 GB

18
Further information can be found
in chapter "Terminology" in the Ap-
pendix.
A
°C
06
The boiler water temperature appears on
the display at all times during operation.
Displays
Heating water temperature
5592 584 GB

19
Cause Remedy
The heating system is off. ■ Turn ON the ON/OFF switch " " (see
figure on page 10).
■ Switch ON the mains isolator if installed
(outside the boiler room).
■ Set the MCB in the power distribution
board (main domestic MCB).
Control unit or room temperature control
unit incorrectly adjusted.
■" " must be set (see page 15)
■ Check and correct the heating water
temperature at rotary selector "
" (see page 15).
■ For room temperature control unit:
Check and correct the room tempera-
ture required (see operating instruc-
tions for the room temperature control
unit).
Only when operating with DHW heating:
DHW priority is enabled (" " is dis-
played).
Wait until the DHW cylinder has been
heated up (" " disappears).
In the case of operation with an instanta-
neous water heater, stop DHW draw-off.
No fuel. In the case of LPG:
Check the fuel reserves and re-order if
required.
In the case of natural gas:
Open the gas shut-off valve. If necessary,
check with your gas supply utility.
"U" is shown on the display. Notify your heating contractor of the fault
code shown.
"U" flashes on the display. The burner
does not start.
Reset burner fault (see page 22).
Air in the heating system. Bleed radiators.
The burner is switched off. Blockage in
the ventilation air supply or flue system.
Notify your local heating contractor.
What to do if...
Rooms are too cold
5592 584 GB

20
Cause Remedy
Control unit or room temperature control
unit incorrectly set.
Check and correct the room temperature
or boiler water temperature (see
page 15
Room temperature control unit op-
erating instructions
"U" is displayed. Inform your heating contractor of the fault
code.
There is no hot water
Cause Remedy
The heating system is off. ■ Turn ON the ON/OFF switch " " (see
page 10).
■ Switch ON the mains isolator if installed
(outside the boiler room).
■ Set the MCB in the power distribution
board (main domestic MCB).
Control unit incorrectly set. Check settings and correct if required:
■"tw" has to be set (see page 15).
■ Check and correct the DHW tempera-
ture at rotary selector "tw" (see
page 15).
No fuel. In the case of LPG:
Check the fuel reserves and re-order if
required.
In the case of natural gas:
Open the gas shut-off valve. If necessary,
check with your gas supply utility.
"U" is shown on the display. Notify your heating contractor of the fault
code shown.
"U" flashes on the display. The burner
does not start.
Reset burner fault (see page 22).
What to do if...
Rooms are too hot
5592 584 GB
