Viessmann Vitosol 200-T User manual

Installation instructions
for contractors
VIESMANN
Vitosol 200-T
Type SP2A
Vitosol 300-T
Type SP3B
Vacuum tube collectors according to the heat pipe principle
VITOSOL 200-T
VITOSOL 300-T
5513 758 GB 11/2015 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Safety instructions
5513 758 GB

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 5
2. Preparing for installation Distribution of fixings on the rafters ....................................................... 6
3. Installation sequence Pitched roof installation with rafter flanges ............................................ 8
■Vertical installation .............................................................................. 8
■Horizontal installation ......................................................................... 11
Pitched roof installation with rafter hooks .............................................. 15
■Fitting the rafter hooks ........................................................................ 16
■Vertical installation .............................................................................. 17
■Horizontal installation (only Vitosol 200-T) ......................................... 20
Pitched roof installation with rafter anchors ........................................... 24
■Fitting rafter anchors ........................................................................... 25
■Vertical installation .............................................................................. 28
■Horizontal installation (only Vitosol 200-T) ......................................... 31
Pitched roof installation with mounting brackets .................................... 34
■Vertical installation .............................................................................. 34
■Horizontal installation (only Vitosol 200-T) ......................................... 38
Pitched roof installation with roof hooks ................................................ 43
■Fitting the roof hooks .......................................................................... 43
■Vertical installation .............................................................................. 44
■Horizontal installation (only Vitosol 200-T) ......................................... 47
Installation on collector supports ........................................................... 50
■Collector supports with fixed angle of inclination ................................ 51
■Collector supports with variable angle of inclination ........................... 54
Level installation (only Vitosol 200-T) .................................................... 57
Installation on walls (only Vitosol 200-T) ............................................... 61
Hydraulic connections ............................................................................ 63
■Connecting the header casing ............................................................ 63
■Fitting the connection set .................................................................... 64
Fitting the vacuum tubes ........................................................................ 65
Fitting the collector temperature sensor ................................................ 66
4. Installation ................................................................................................................ 68
5. Commissioning and
adjustment
................................................................................................................ 70
Index
5513 758 GB

4
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Disposal of packaging
5513 758 GB

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
5513 758 GB

6
Fixings:
■Rafter flanges (from page 8)
■Rafter hooks (from page 15)
■Rafter anchors (from page 24)
■Mounting brackets (from page 34)
Each number of collectors and collector combination
has a specific number of fixings allocated to it.
Subject to the spacing between rafters, a specific num-
ber of rafters is used for attaching the fixings.
The following tables detail the rafters to which the fix-
ings should be attached.
Example:
■3 collectors
■Combination comprising 1 x 1.51 m2 and
2 x 3.03 m2
■Rafter spacing 600 mm
Look up the combination in the table for 3 collectors on
page 7 (highlighted grey):
Of the 9 rafters, the following are used:
Rafters 1, 2, 3, 6, 7, 9
A
a
74 74
790 790
Fig. 1
Position of fixings
ATube retainer
1 collector
Combination Rafter spacing a in mm Rafters used
1 x 1.51 m2
≤ 600 1, 2
≤ 700 1, 2
≤ 800 1, 2
1 x 3.03 m2
≤ 600 1, 4
≤ 700 1, 3
≤ 800 1, 3
2 collectors
Combination Rafter spacing a in mm Rafters used
1 x 1.51 m2/
1 x 3.03 m2
≤ 600 1, 2, 3, 5
≤ 700 1, 2, 3, 5
≤ 800 1, 2, 3, 4
2 x 3.03 m2
≤ 600 1, 4, 5, 7
≤ 700 1, 3, 4, 6
≤ 800 1, 3, 4, 6
Distribution of fixings on the rafters
5513 758 GB

7
3 collectors
Combination Rafter spacing a in mm Rafters used
1 x 1.51 m2/
2 x 3.03 m2
≤ 600 1, 2, 3, 6, 7, 9
≤ 700 1, 2, 3, 5, 6, 8
≤ 800 1, 2, 3, 4, 5, 7
3 x 3.03 m2
≤ 600 1, 4, 5, 7, 8, 11
≤ 700 1, 3, 4, 6, 7, 9
≤ 800 1, 3, 4, 6, 7, 8
4 collectors
Combination Rafter spacing a in mm Rafters used
1 x 1.51 m2/
3 x 3.03 m2
≤ 600 1, 2, 3, 5, 6, 9, 12
≤ 700 1, 2, 3, 5, 6, 8, 9, 11
≤ 800 1, 2, 3, 5, 6, 8, 9, 11
4 x 3.03 m2
≤ 600 1, 4, 5, 7, 8, 9, 11, 12, 14
≤ 700 1, 3, 4, 6, 7, 8, 9, 10, 11, 12
≤ 800 1, 3, 4, 6, 7, 8, 9, 11
5 collectors
Combination Rafter spacing a in mm Rafters used
1 x 1.51 m2/
4 x 3.03 m2
≤ 600 1, 2, 3, 6, 7, 9, 10, 13, 14, 16
≤ 700 1, 2, 3, 5, 6, 9, 10, 12, 13, 16
≤ 800 —
5 x 3.03 m2
≤ 600 1, 4, 5, 7, 8, 11, 12, 14, 15, 18
≤ 700 1, 3, 4, 5, 6, 7, 9, 10, 12, 13, 15
≤ 800 1, 3, 4, 6, 7, 8, 11, 12, 13
Distribution of fixings on the rafters (cont.)
5513 758 GB

8

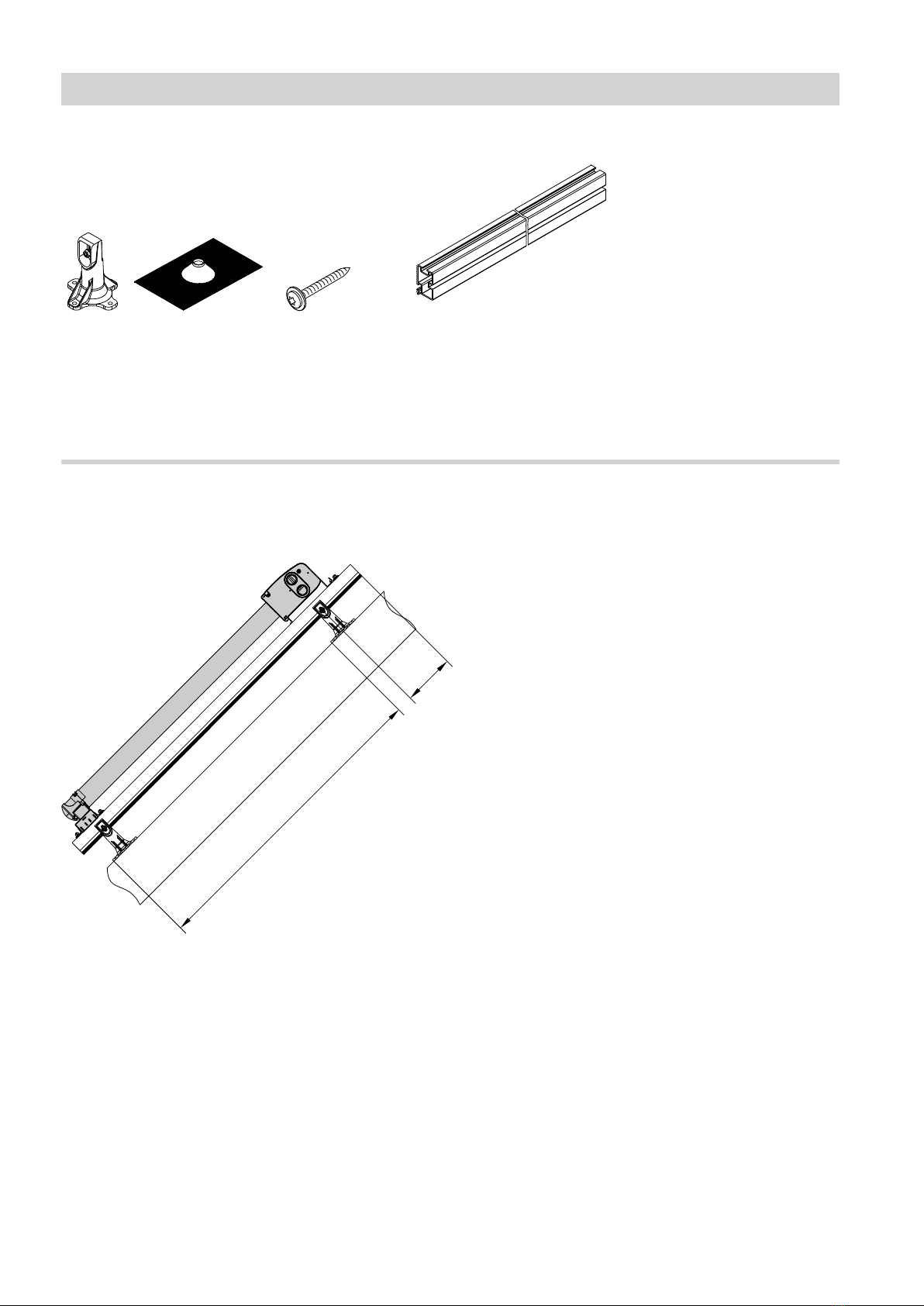

For plain tiled and slate roofs
1 432
Fig. 2
1Rafter flange
2Seal
3Screws
4Mounting rail for vertical and horizontal installa-
tion
Vertical installation
The vacuum tubes are positioned vertically to the roof
ridge.
2070 190
Fig. 3
The tables from page 6 detail the rafters on which the
rafter flanges should be mounted.
Pitched roof installation with rafter flanges
5513 758 GB

9

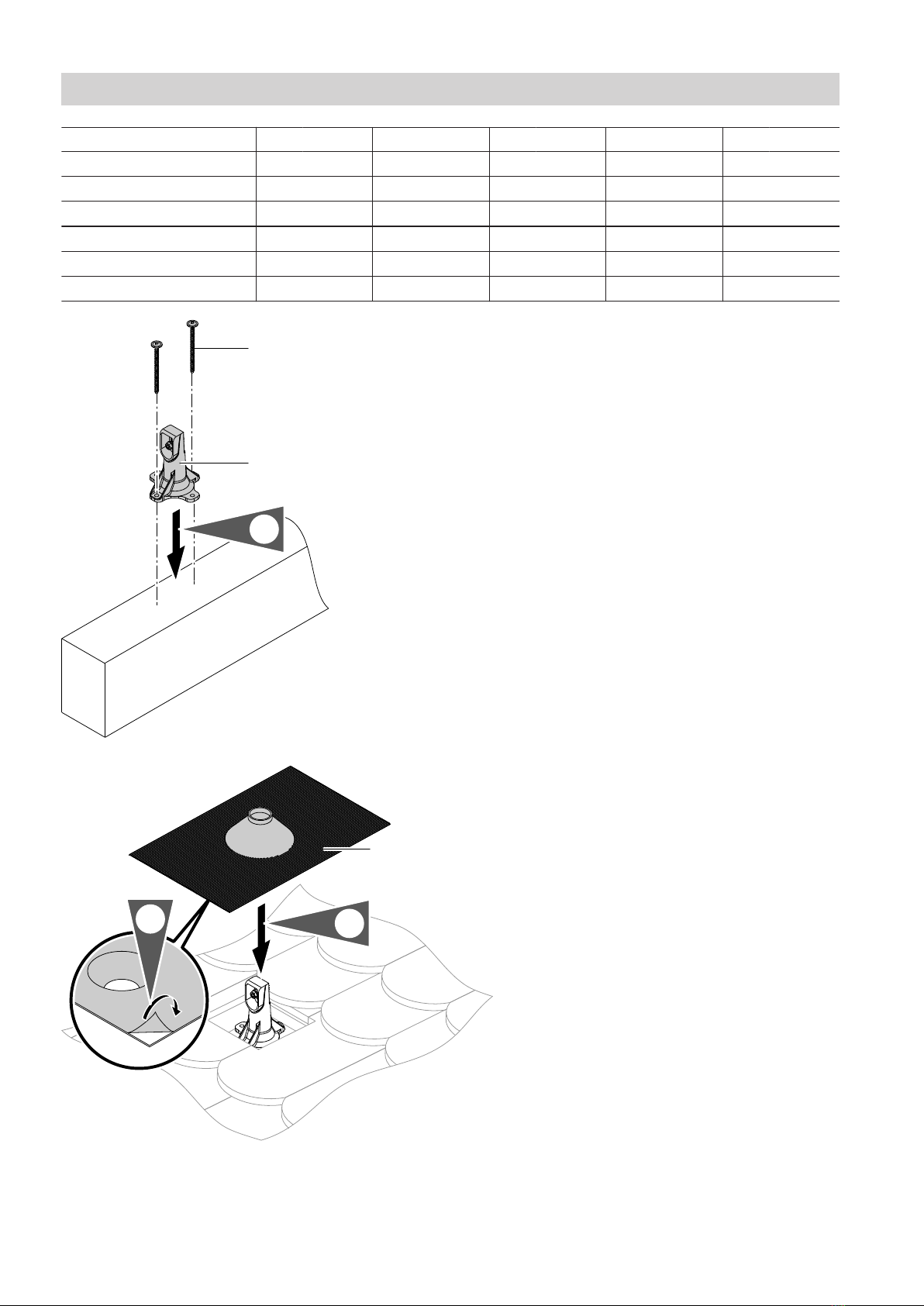

1.
1
3
Fig. 4
2.
2
3.
Fig. 5
90°
4.
Fig. 6
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

10
74
55

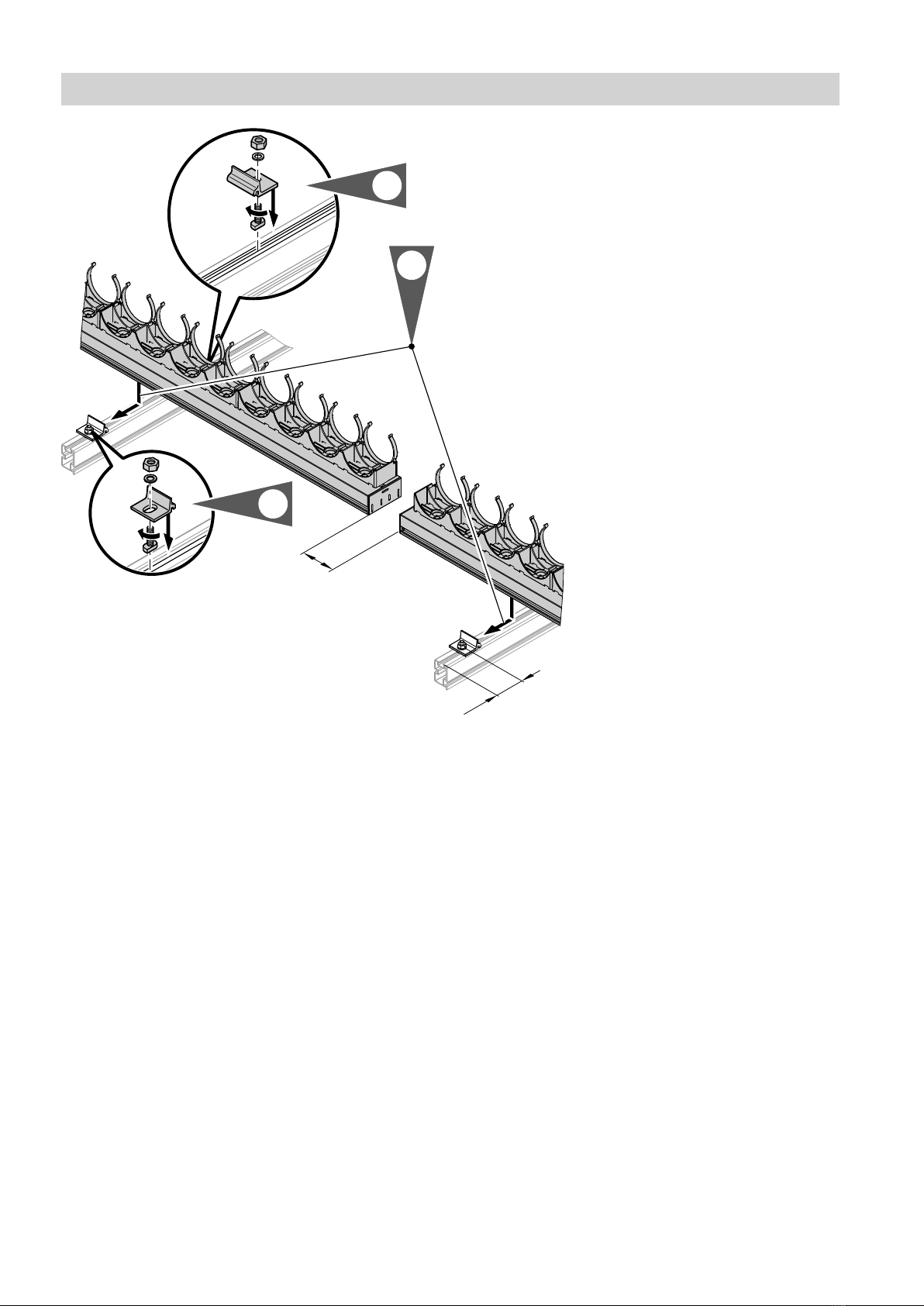

6.
90°
5.
90°
7.
Fig. 7
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

11
305
9.
90°
8.
90°
2x
10.
Fig. 8
Continue with chapter "Hydraulic connections" (see
page 63).

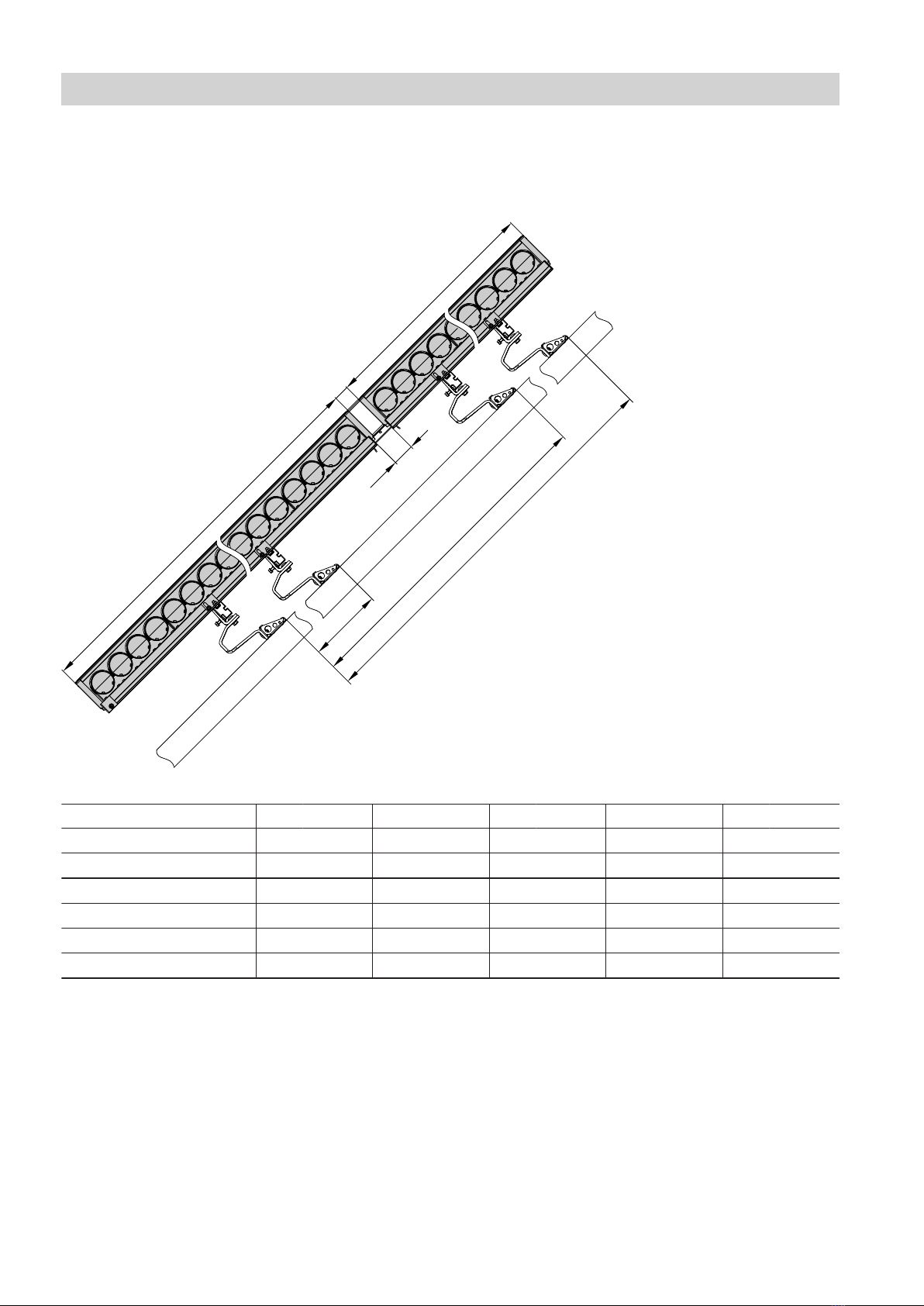

Horizontal installation
The vacuum tubes are positioned parallel to the roof
ridge.
70
44
cd
e
f
g
Fig. 9
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

12
Combination c mm d mm e mm f mm g mm
1.51 m21053 —525 — —
3.03 m22061 —1030 — —
1.51 m2/1.51 m21053 1053 525 1105 1630
1.51 m2/3.03 m21053 2061 525 1355 2385
3.03 m2/1.51 m22061 1053 1030 1860 2385
3.03 m2/3.03 m22061 2061 1030 2110 3140
1.
1
3
Fig. 10
3.
2.
2
Fig. 11
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

13
k
h
C
A
B
90°
4.
Fig. 12
ARafter flange
BMounting rail
CTube retainer
Rafter spacing k in mm Projection h in mm
600 400
700 300
800 200
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

14
90°
5.
305
155
90°
8.
90°
90°
90°
90°
90°
9.
b
6.
7.
Fig. 13 Note dimension b in the following table.
Vitosol 200-T a mm b mm
1.51 m2 230 265
3.03 m2 480 515
Install the header casing offset against the tube
retainer. This inclines the vacuum tubes towards the
horizontal.
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

15
90°
Ø9

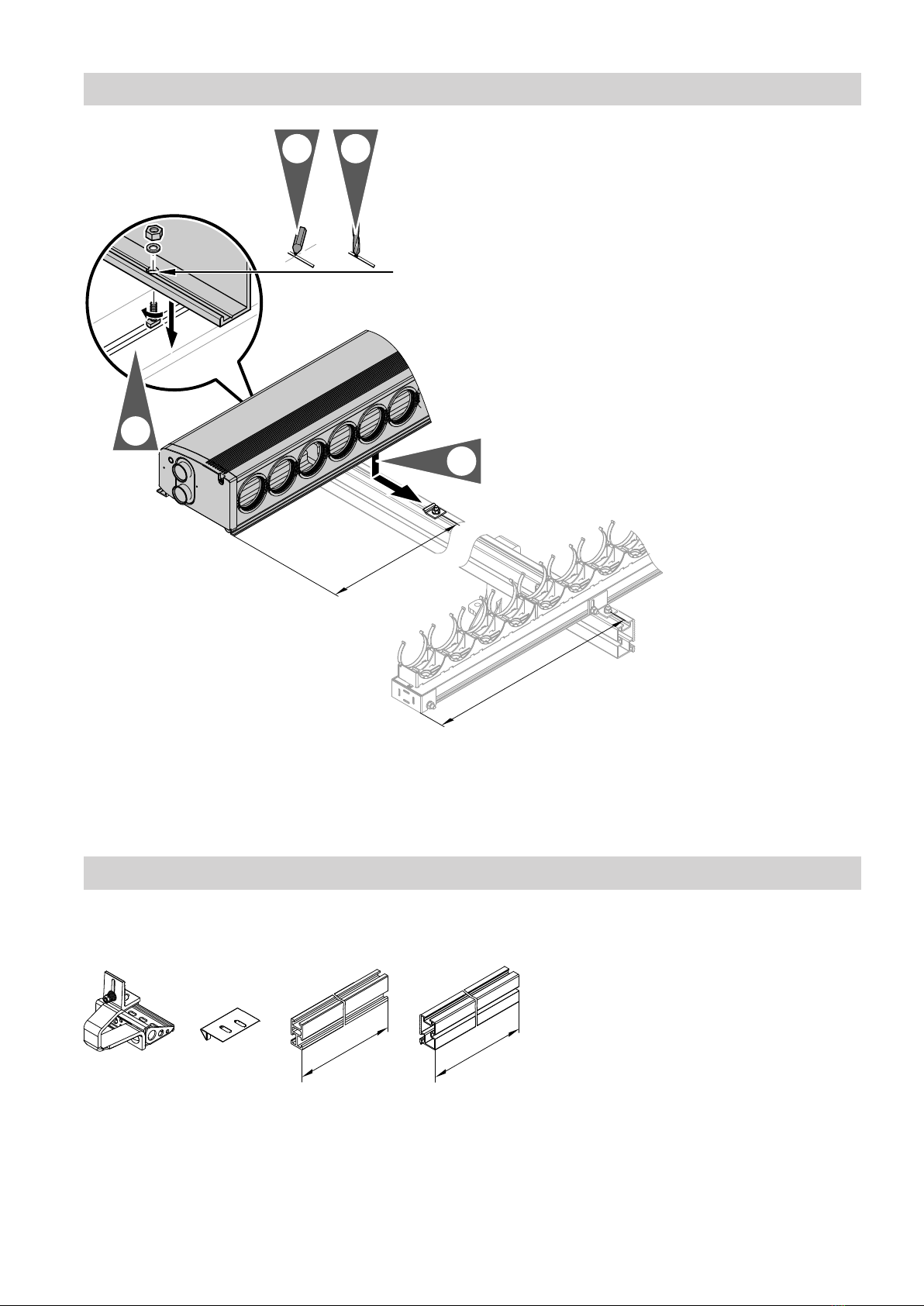

12.11.
10.
13.
a
b
Fig. 14
Note on step 12:
Use the centring groove on the back of the header
casing as a drilling guide.
Continue with chapter "Hydraulic connections" (see
page 63).
Pitched roof installation with rafter hooks
For tiled roofs
2380
2380
31 42
Fig. 15
1Rafter hook
2Support bracket
3Mounting rail for vertical installation
4Mounting rail for horizontal installation
Pitched roof installation with rafter flanges (cont.)
5513 758 GB

16
Fitting the rafter hooks
Fitting rafter hooks applies to vertical and horizontal
collector installation.
■Version I:
Fitting rafter hook 1 onto counter batten B with
support bracket 2
■Version II:
Fitting rafter hook 1 directly onto rafter A
■Trim the roof tiles with an angle grinder, for example
by removing drip tabs.
!Please note
Take care to avoid breaking tiles.
The rafter hook must not be supported by the
roof tiles. Observe the dimensions.
A
B
1.
2.
A75
B
20
A
3.
1
2
1
2
1
5
4.
Fig. 16
Note
For spacing between rafter hooks, see chapter "Verti-
cal installation" or "Horizontal installation".
Pitched roof installation with rafter hooks (cont.)
5513 758 GB

17
5.
7.
5
6.
Fig. 17
Continue on page 17 or 20
Vertical installation
The vacuum tubes are positioned vertically to the roof
ridge.
1800 x 2130 190
Fig. 18
The tables from page 6 detail the rafters to which the
rafter hooks should be fitted.
Pitched roof installation with rafter hooks (cont.)
5513 758 GB

18
90°
2.
1.
90°
Fig. 19
55
74
90°
90°
4.
5.
3.
Fig. 20
Pitched roof installation with rafter hooks (cont.)
5513 758 GB

19
305
2x
90°
90°
7.
6.
8.
Fig. 21
Continue with chapter "Hydraulic connections" (see
page 63).
Pitched roof installation with rafter hooks (cont.)
5513 758 GB

20
Horizontal installation (only Vitosol 200-T)
The vacuum tubes are positioned parallel to the roof
ridge.
cd
e
f
g
50
74
Fig. 22
Combination c mm d mm e mm f mm g mm
1.51 m21053 —525 — —
3.03 m22061 —1030 — —
1.51 m2/1.51 m21053 1053 525 1105 1630
1.51 m2/3.03 m21053 2061 525 1355 2385
3.03 m2/1.51 m22061 1053 1030 1860 2385
3.03 m2/3.03 m22061 2061 1030 2110 3140
Pitched roof installation with rafter hooks (cont.)
5513 758 GB
