Viessmann VITOSOL-F User manual

Installation instructions
for contractors
VIESMANN
Vitosol-F/-FM
Type SV and SH
Flat-plate collector for installation on collector supports
Collector supports with fixed angle of inclination
VITOSOL-F/-FM
5698352 GB/en 9/2017 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment may only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Safety instructions
5698352

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 4
Product information ................................................................................ 5
■Collector support standard set and collector support extension ......... 5
■Retaining rail 6 for 1 collector ........................................................... 6
■Retaining rail 7 for 2 collectors ......................................................... 6
■Cross brace ........................................................................................ 6
■Installation aid template ...................................................................... 7
2. Installation sequence Calculating collector row clearance z .................................................... 8
Fitting collector supports ........................................................................ 8
Fitting cross braces ................................................................................ 10
Installing the collectors .......................................................................... 10
Connecting the collectors ...................................................................... 12
Covering the collector ............................................................................ 14
Installation .............................................................................................. 14
3. Commissioning ................................................................................................................ 16
Index
5698352

4
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
The collectors provide central heating backup and
solar backup for DHW heating. They are only intended
to be installed and operated in sealed systems that
comply with EN 12976 and EN 12977, with due atten-
tion paid to the associated installation, service and
operating instructions. Only operate the collectors with
heat transfer medium approved by the manufacturer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating a building or DHW shall be deemed inap-
propriate.
Disposal of packaging
5698352

5
Any usage beyond this must be approved by the man-
ufacturer in each individual case.
Incorrect usage of the collectors or the installation sys-
tem or incorrect operation is prohibited (e.g. the collec-
tors being opened by the system user, failure to
observe the installation instructions). Failure to
observe these instructions can change functions,
endanger life and limb of the user or third parties and
will result in an exclusion of liability.
Incorrect usage also applies if components in the sys-
tem are modified from their intended use (e.g. through
direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Product information
Vitosol 100-F, 200-F, -FM and 300-F, type SV and SH,
are high performance flat-plate collectors.
The fixing system, with structurally tested and corro-
sion-resistant components made from stainless steel
and aluminium, is easy to install.
The following component assemblies are available for
collector types SV and SH, for a 30°, 45° or 60° angle
of collector inclination.
Collector support standard set and collector support extension
■Standard set: 2 collector supports
■Extension: 1 collector support
421 3 5
Fig. 1
1Collector support with footplates
2Washer 7 8.4 mm
3Hexagon bolt M 8 x 25
4Clamping bracket
5Self-tapping screw
Intended use (cont.)
5698352

6
Retaining rail 6 for 1 collector
6
Fig. 2
Retaining rail 7 for 2 collectors
7
Fig. 3
Cross brace
8 9 qP 2
Fig. 4
2Washer 7 8.4 mm
8Cross brace
9Hexagon nut M 8
qP Hexagon bolt M 8 x 20
Product information (cont.)
5698352

7

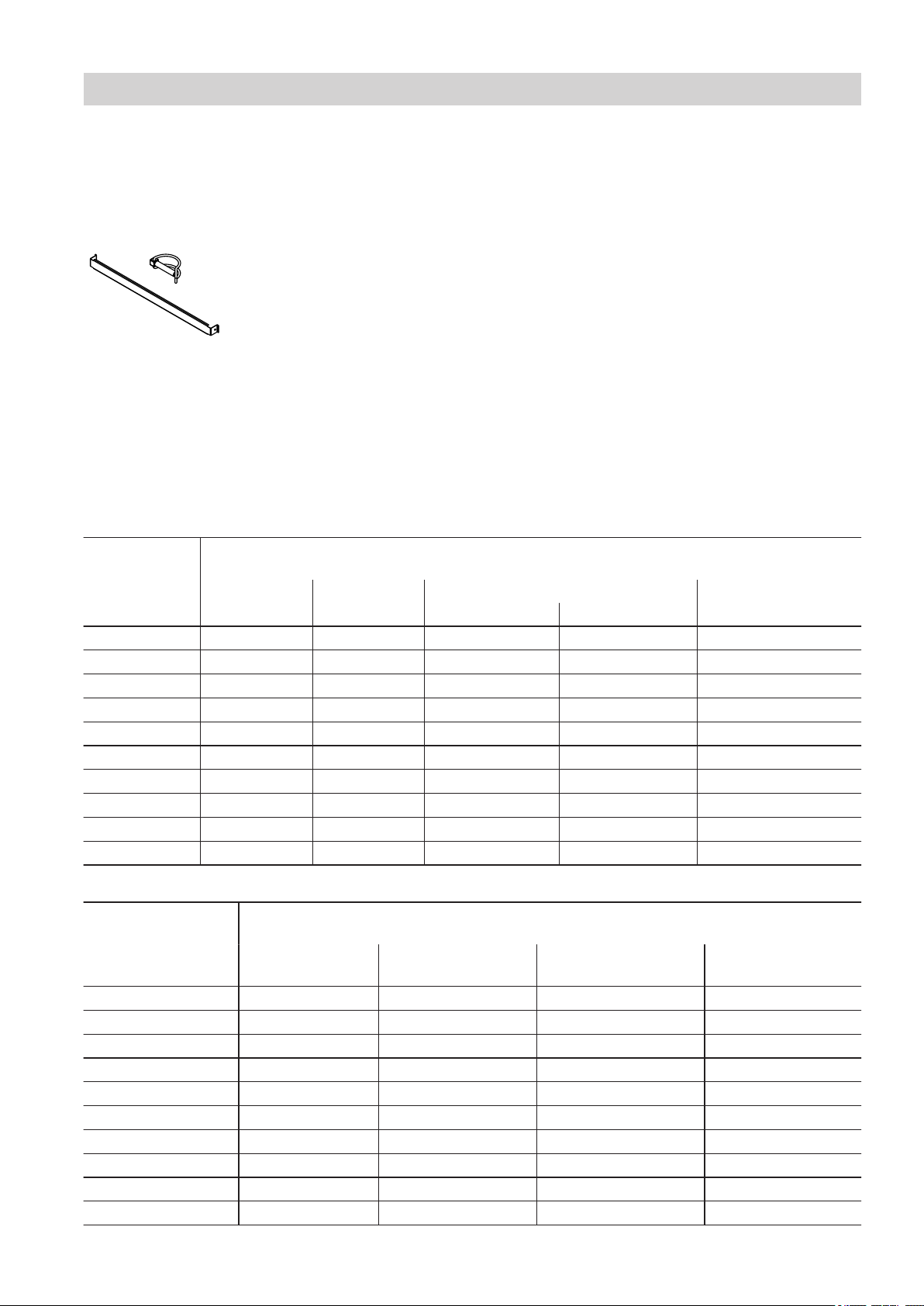

Installation aid template
To prevent slipping of collectors during installation
(accessories).
qQ qW
Fig. 5
qQ Template
qW Hinged clip
The following tables contain the number of required
component assemblies subject to the number of col-
lectors to be installed.
Type SV
Number of col-
lectors
Number of component assemblies
Standard set Extension Retaining rail Cross brace
1 collector 2 collectors
1 1 —1—1
2 1 1 —1 1
3 2 —1 1 1
4 2 1 —2 1
5 3 —1 2 1
6 3 1 —3 2
7 4 —1 3 2
8 4 1 —4 2
9 5 —1 4 2
10 5 1 —5 2
Type SH
Number of collec-
tors
Number of component assemblies
Standard set Extension Retaining rail for 1
collector
Cross brace
1 1 —1 1
2 1 1 2 1
3 2 —3 1
4 2 1 4 1
5 3 —5 1
6 3 1 6 2
7 4 —7 2
8 4 1 8 2
9 5 —9 2
10 5 1 10 2
Product information (cont.)
5698352

8
When installing several collectors one behind the
other, maintain clearance z to prevent unwanted shad-
ing.
z
β
α α
Fig. 6
z Collector row clearance
αCollector angle of inclination
βAngle of the sun
Collector angle of inclination αCollector row clearance z in mm
Type SV Type SH
Flensburg
30° 7630 5715
45° 9600 4260
60° 10890 4830
Kassel
30° 6385 2845
45° 7840 3480
60° 8720 3870
Munich
30° 5595 2485
45° 6710 2980
60° 7350 3260
Fitting collector supports
■Observe the maximum load and distance from the
edge of the roof for the on-site substructure to
DIN 1055.
■Install the on-site substructure, e.g. steel beams, at
right angles to and horizontally level with the collec-
tor orientation.
■Provide screws on site for securing the collector sup-
ports to the substructure.
Calculating collector row clearance z
5698352

9
y
6
7
1.
4x
5
x
1
2.

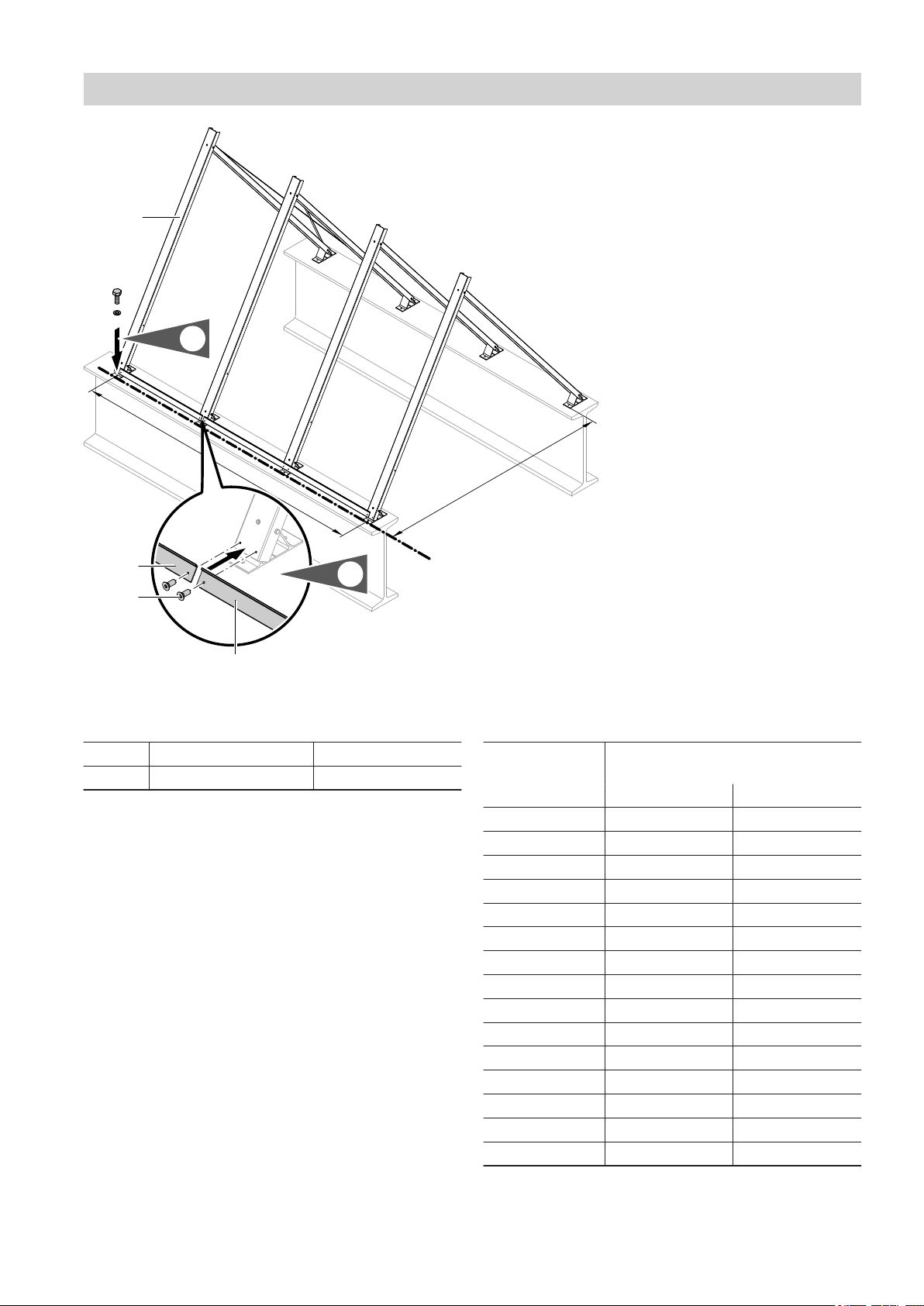

Fig. 7 Use retaining rails as spacers between the
collector supports.
Type SV SH
x in mm 2580 1000
Number of col-
lectors
y in mm
Type SV Type SH
1 1080 2400
2 2155 4805
3 3235 7205
4 4310 9610
5 5390 12010
6 6470 14410
7 7545 16815
8 8625 19215
9 9700 21620
10 10780 24020
11 11860 26420
12 12935 28825
13 14015 31225
14 15090 33630
15 16170 36030
Fitting collector supports (cont.)
5698352

10

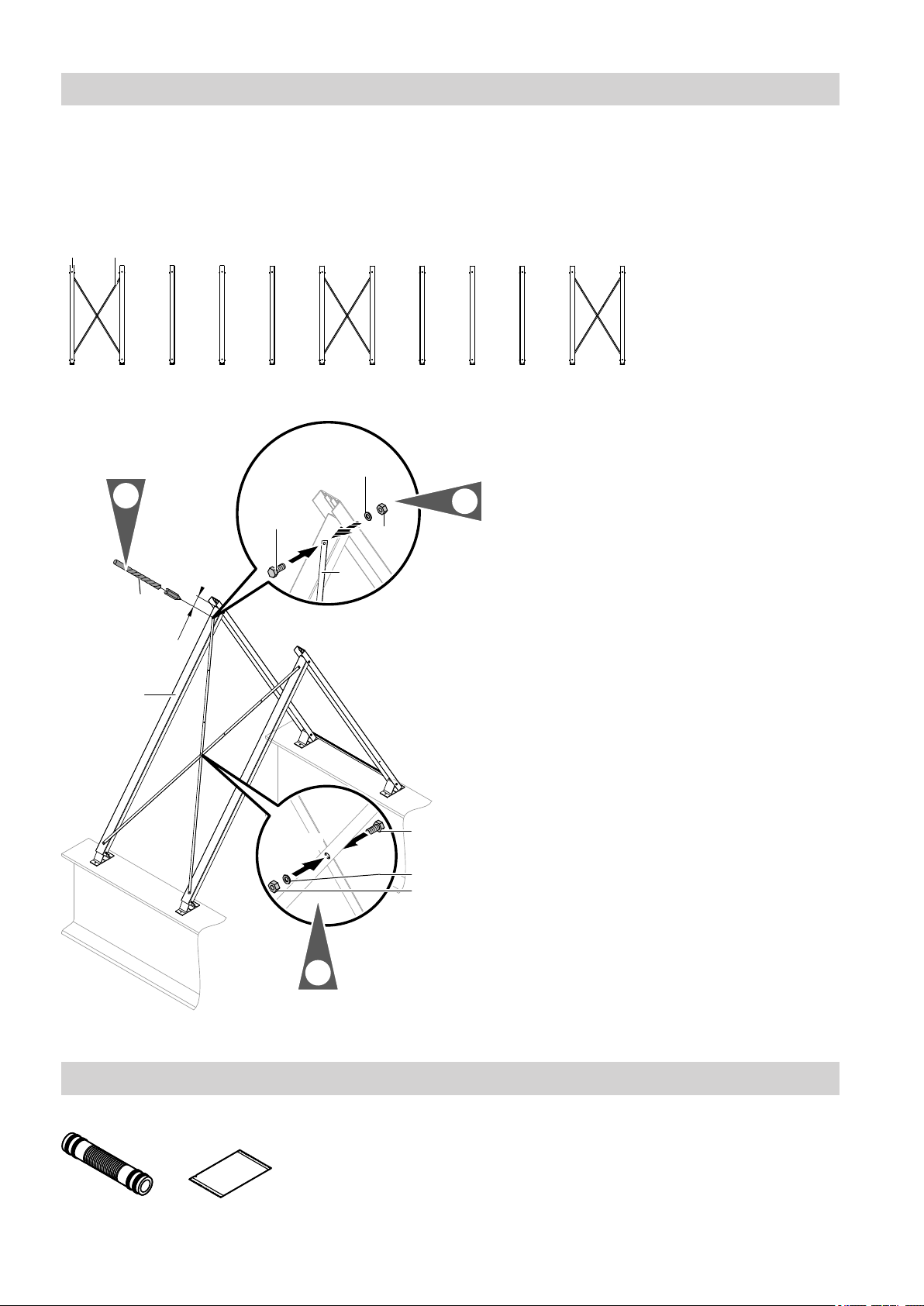

To stabilise the collector array, secure cross braces
diagonally to the collector supports using screws at the
back (see diagram below).
To install the cross braces, holes in the collector sup-
ports and the cross braces must be drilled on site.
1 2 3 54 6 7 8 9 10 11
18
Fig. 8
100
Ø 8.5
4x
2
9
qP
8
2.
Ø 8.5
9
2
qP
3.
1. 4x
1
Fig. 9
Installing the collectors
Connection pipes (packed separately)
Armaturenfett
Fig. 10
Fitting cross braces
5698352

11
Installation information
■The side with the type plate must be on the outside
of the first and last collector (see label).
■On just one of the collectors, fit the pipework at the
side opposite the type plate side.
!Please note
The connection pipes must be free of any signs
of damage.
Lubricate O-rings only with the special valve
grease provided.
Use the template as an aid for installing the second
collector and all others between the supports. Once
the second collector has been secured, remove the
template and install it between the next pair of sup-
ports.
qQ
qW
1.
Fig. 11
Installing the collectors (cont.)
5698352

12
Armaturenfett
C
6.
4.
2.
2x
2x
D
42x
4
7.
2x
4
2
3
2
3
2
3
3.
5.

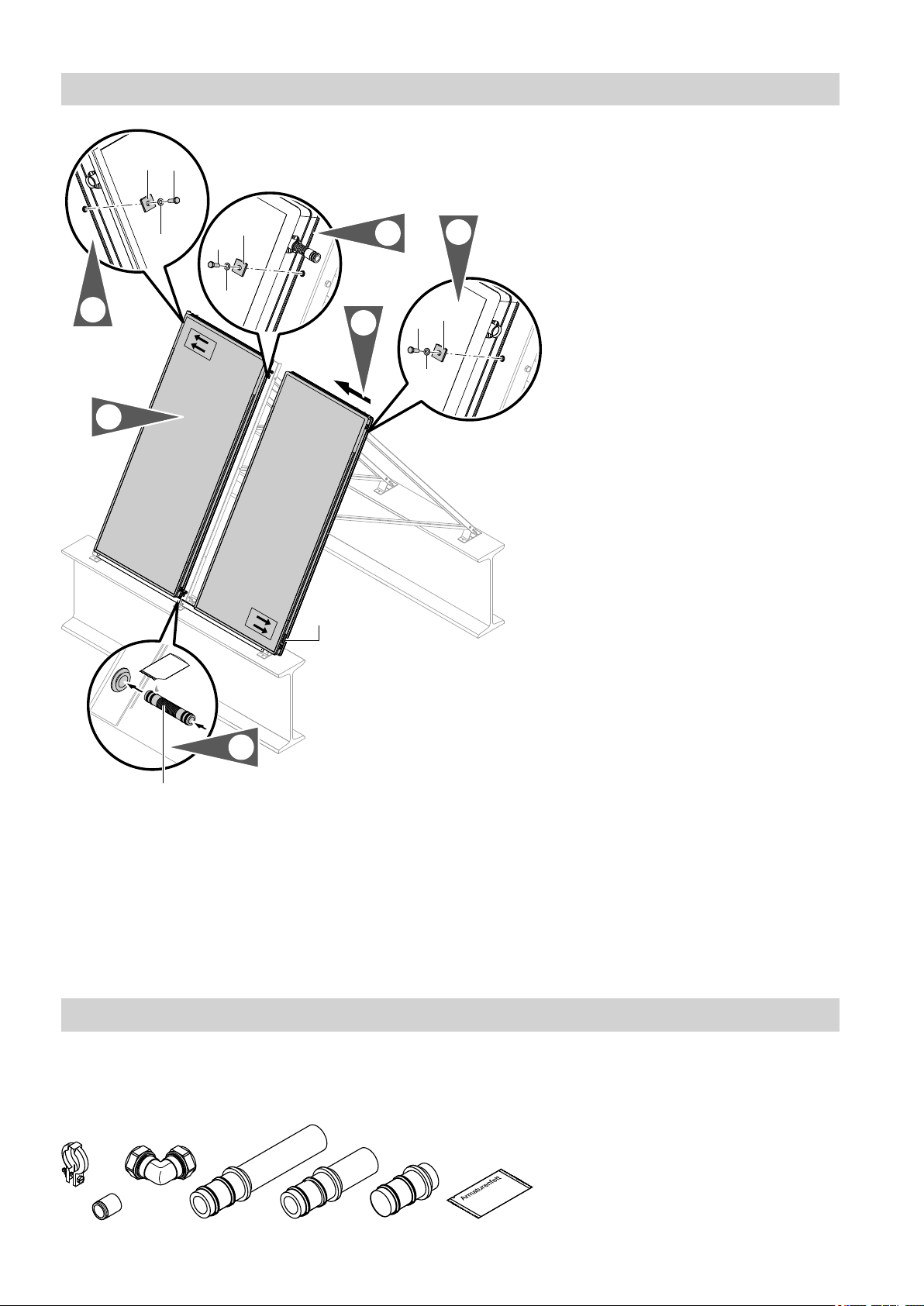

Fig. 12 Repeat steps 4 to 6 according to the number
of collectors.
CConnection pipe
DType plate
5. Do not tighten the clamping brackets between 2
collectors until the next collector has been connec-
ted to the previous one.
Connecting the collectors
The connection and sensor well sets are packed sepa-
rately.
Connection set
Fig. 13
Installing the collectors (cont.)
5698352

13

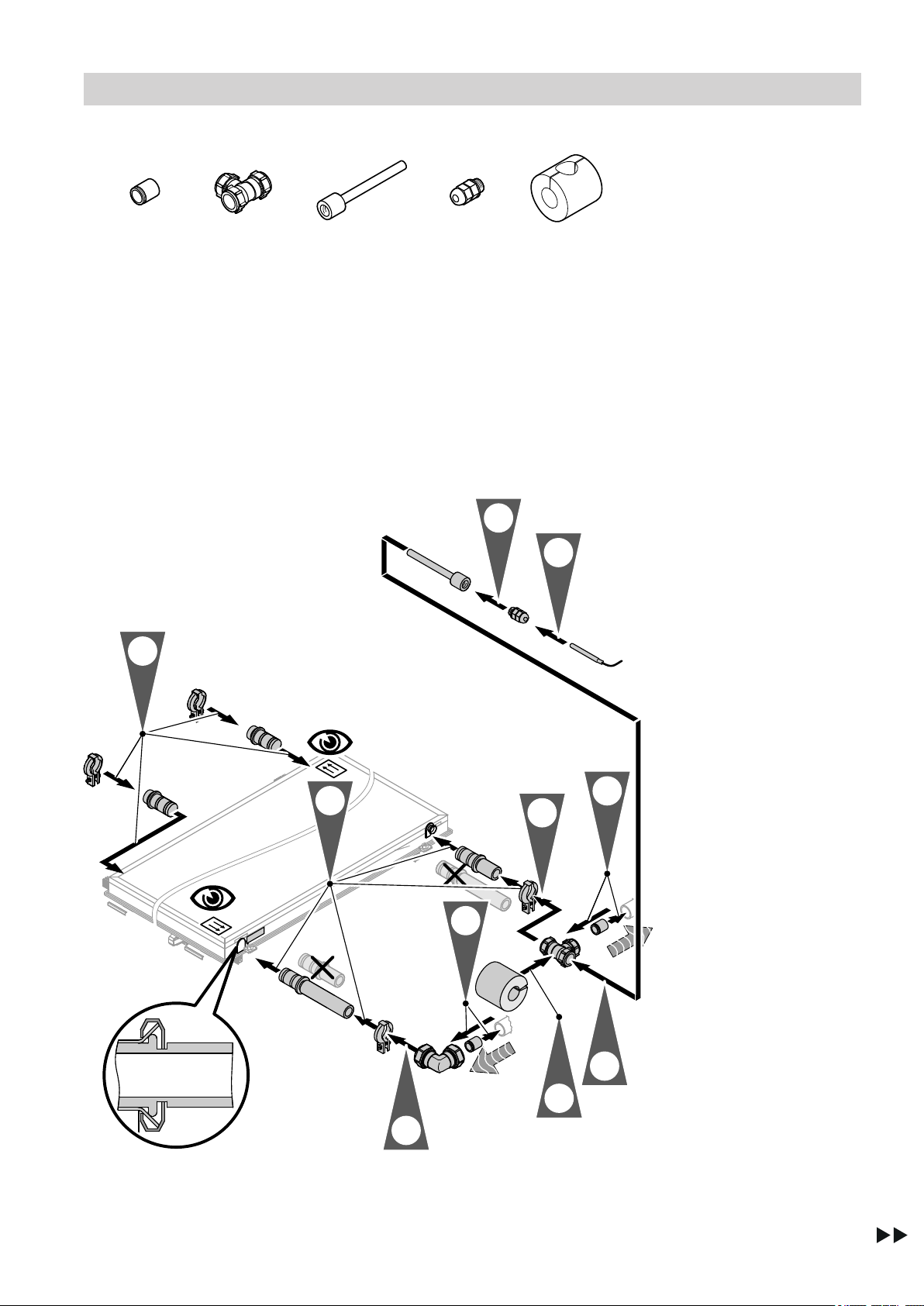

Sensor well set
Fig. 14
Note
The collector temperature sensor is part of the stand-
ard delivery of the solar control unit.
Installation information
■Lubricate O-ring seals only with the special valve
grease provided.
■Initially tighten the union nut by hand, then tighten
with an open-ended spanner by a further ¾ turn.
■Never use annealed copper pipes with locking ring
fittings.
8.
6.
7.
3.
2.
1.
X
Y
9.
5.
4.
8.
Fig. 15
XReturn
YFlow
Connecting the collectors (cont.)
5698352

14
Commission the solar thermal system as quickly as
possible once the collectors have been installed.
To reliably prevent steam hammer, the collectors must
be cold when filled. Cover the collector arrays.
In the delivered condition, the collectors are covered
with a protective film for this purpose. Remove this
protective film no later than 4 weeks following col-
lector installation.
Note
If commissioning takes place at a later date, cover the
collector arrays.
Do not use the protective foil provided to cover the col-
lectors!
Installation
!Please note
Incorrect installation can lead to collector dam-
age.
Use only gunmetal or brass fittings and copper
pipes for the installation.
Never step on the collectors.
Never solder on or near the collectors.
■Route pipes so that complete ventilation is ensured.
Install an air separator in the solar flow upstream of
the DHW cylinder.
Note
An air separator is integrated into the flow line of the
Solar-Divicon (see diagram).
■Braze or press fit the copper pipes in the solar cir-
cuit.
Soft solder could be weakened, particularly near the
collectors, due to the high temperatures that occur
there. Metal seal connections, locking ring fittings or
Viessmann plug-in connections with double O-rings
are the most suitable.
If other seals such as flat gaskets are used, ade-
quate glycol, pressure and temperature stability must
be guaranteed by the manufacturer.
■Design all connections to be resistant to pressure
and temperature (observe the maximum stagnation
temperature of the collector).
Never use:
–Teflon (inadequate glycol resistance)
–Hemp connections (insufficiently gas-tight)
■Equip the system to EN 12975 or EN ISO 9806 with
an expansion vessel, safety valve and circulation
pump.
■The expansion vessel must be approved to DIN
4807.
The diaphragms and seals of the expansion vessel
and safety valve must be suitable for the heat trans-
fer medium.
To calculate the pre-charge pressure, see the
"Vitosol" service instructions.
■For operation without a Solar-Divicon, use only
safety valves that meet the following conditions:
–Designed for 120 °C and up to 6 bar (0.6 MPa)
–Letter ID "S" (solar) in the component identification
Covering the collector
5698352

15
P
O
A
K
M
NR
UL
G
B
C
H
EF
D
C
B
M
L
T
S
Fig. 16
ASolar-Divicon
BShut-off valves
CNon-return valves
DSolar circuit pump
EAir separator
FShut-off valve (adjusting screw above flow indica-
tor H)
GDrain valve
HFlow indicator
KFill valve
LStagnation heat sink
MExpansion vessel
NDrip pan
OCollector
RDHW cylinder
SCylinder temperature sensor
TCollector temperature sensor
USolar control unit
Installation (cont.)
5698352

16
"Vitosol-F/-FM" service instructions
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH & Co. KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5698352 Subject to technical modifications.
Commissioning
