VNB107
ViewBook
ViewSonic®
Model No. : VS13323

ViewSonic VNB107 i
Compliance Information
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted
municipal waste, but use the return and collection systems according to local law.
If the batteries, accumulators and button cells included with this equipment, display
the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal
content of more than 0.0005% Mercury, or more than 0.002% Cadmium, or more than
0.004% Lead.
R&TTE Compliance Statement
This wireless module device complies with the Essential Requirements of the R&TTE Directive
of the European Union (1999/5/EC). This equipment meets the following conformance
standards:
ETSI EN 300 328
EN 301 489-01
EN 301 489-17
EN 62209-2
NotiedCountries:Germany, UK, Netherlands, Belgium, Sweden, Denmark, Finland,
France, Italy, Spain, Austria, Ireland, Portugal, Greece, Luxembourg, Estonia, Latvia,
Lithuania, Czech Republic, Slovakia, Slovenia, Hungary, Poland and Malta.

ViewSonic VNB107 ii
Important Safety Instructions
DO NOT press or touch the LCD Screen. DO NOT place notebook PC with small items,
they may scratch LCD Screen or penetrate the vents of notebook PC.
DO NOT expose notebook PC to dirty or dusty environment. Keep the environment clean
and dry.
DO NOT place notebook PC on uneven or unstable work surface.
DO NOT place or drop objects on the top of notebook PC. DO NOT shove any foreign
objects into notebook PC. DO NOT close with force the LCD Screen lid.
DO NOT expose notebook PC to strong magnetic or electrical elds; DO NOT place oppy
disks near or on notebook PC as this may cause the loss of data on the oppy disks.
DO NOT leave notebook PC facing the sun as it can damage the LCD Screen, especially
when in a car.
SAFE TEMPERATURE: This notebook PC should only be used in environments with
ambient temperatures between 5°C (41°F) and 35°C(95°F).
DO NOT expose notebook PC to or use near liquids, rain, or moisture.
Caution: there is a risk of explosion if the battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions.
DO NOT throw notebook PC in municipal waste. Check local regulations for disposal of
electronic products. Please recycle the Battery Pack, and check with your Local Authority
or retailer for an advice on recycling.
Notebook PC and its power adapter may produce some heat during operation or charging
of its internal battery. DO NOT leave notebook PC on your lap or any part of your body in
order to prevent discomfort or injury from heat exposure.
INPUT RATING: Refer to the rating label on notebook PC and make sure that the Power
Adapter complies with that rating. Only use accessories recommended by ViewSonic.
Check the connections between the main unit and attached devices before turning on your
notebook PC.
DO NOT use notebook PC during eating to avoid dirtying your notebook PC.
DO NOT insert anything into notebook PC that may result in short circuit or can damage
the electronic circuits.
Power off your notebook PC, if you want to install or remove some external devices, which
do not support hot-plugging-in.
Disconnect your notebook PC from the electrical outlet and remove any installed batteries
before cleaning the notebook PC. Keep your notebook PC away from children.
DO NOT disassemble notebook PC. Only a certied service technician should perform
repairs on your computer.
Use only the Battery Packs approved by ViewSonic.
Notebook PC has vents to disperse heat. DO NOT place notebook PC on soft objects
(e.g.: bed, sofa, your lap) as this can block the air ow from those vents and cause system
halt due to overheating.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.

ViewSonic VNB107 iii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC
of the European Parliament and the Council on restriction of the use of certain hazardous
substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply
with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0,1% < 0,1%
Mercury (Hg) 0,1% < 0,1%
Cadmium (Cd) 0,01% < 0,01%
Hexavalent Chromium (Cr6+) 0,1% < 0,1%
Polybrominated biphenyls (PBB) 0,1% < 0,1%
Polybrominated diphenyl ethers (PBDE) 0,1% < 0,1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and
electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or
more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium
containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by
weight.

ViewSonic VNB107 iv
Copyright Information
Copyright © ViewSonic® Corporation, 2010. All rights reserved.
Microsoft®, Windows®, Windows NT®, and the Windows® logo are registered trademarks of
Microsoft® Corporation in the United States and other countries.
ViewSonic®, the three birds logo, OnView®, ViewMatch™, and ViewMeter® are registered
trademarks of ViewSonic® Corporation.
Intel®, Pentium®, and Atom™ are registered trademarks of Intel Corporation.
Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic® Corporation reserves the right
to change product specications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic® Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at:
www.viewsonic.com. The ViewSonic® Wizard CD-ROM also provides an opportunity for you to
print the registration form, which you may mail or fax to ViewSonic®.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VNB107
ViewSonic ViewBook
VS13323
VNB107-1_UG_ENG Rev. 1C 03-18-10
Product disposal at end of product life
ViewSonic® is concerned about the preservation of our environment. Please dispose of this
product properly at the end of its useful life. For the recycling information, please refer to our
website:
1. USA: www.viewsonic.com/company/green/recycle-program/
2. Europe: www.viewsoniceurope.com/uk/support/recycling-information/
3. Taiwan: recycle.epa.gov.tw

ViewSonic VNB107
Contents
Chapter 1: Preparing the netbook for use
Package contents ......................................................................1
Insert the battery ........................................................................1
Connect the power adapter .......................................................1
Chapter 2: Turning on the VNB107
Top View with the lid open .........................................................2
Turn on the VNB107 ..................................................................2
The function keys .......................................................................3
Chapter 3: Conguring BIOS, installing an operating system and drivers
Installing an operating system ...................................................4
Other settings of the Setup CMOS Utility ..................................5
Installing the drivers ...................................................................8
Chapter 4: Devices and interfaces
Expand the interface devices .....................................................9

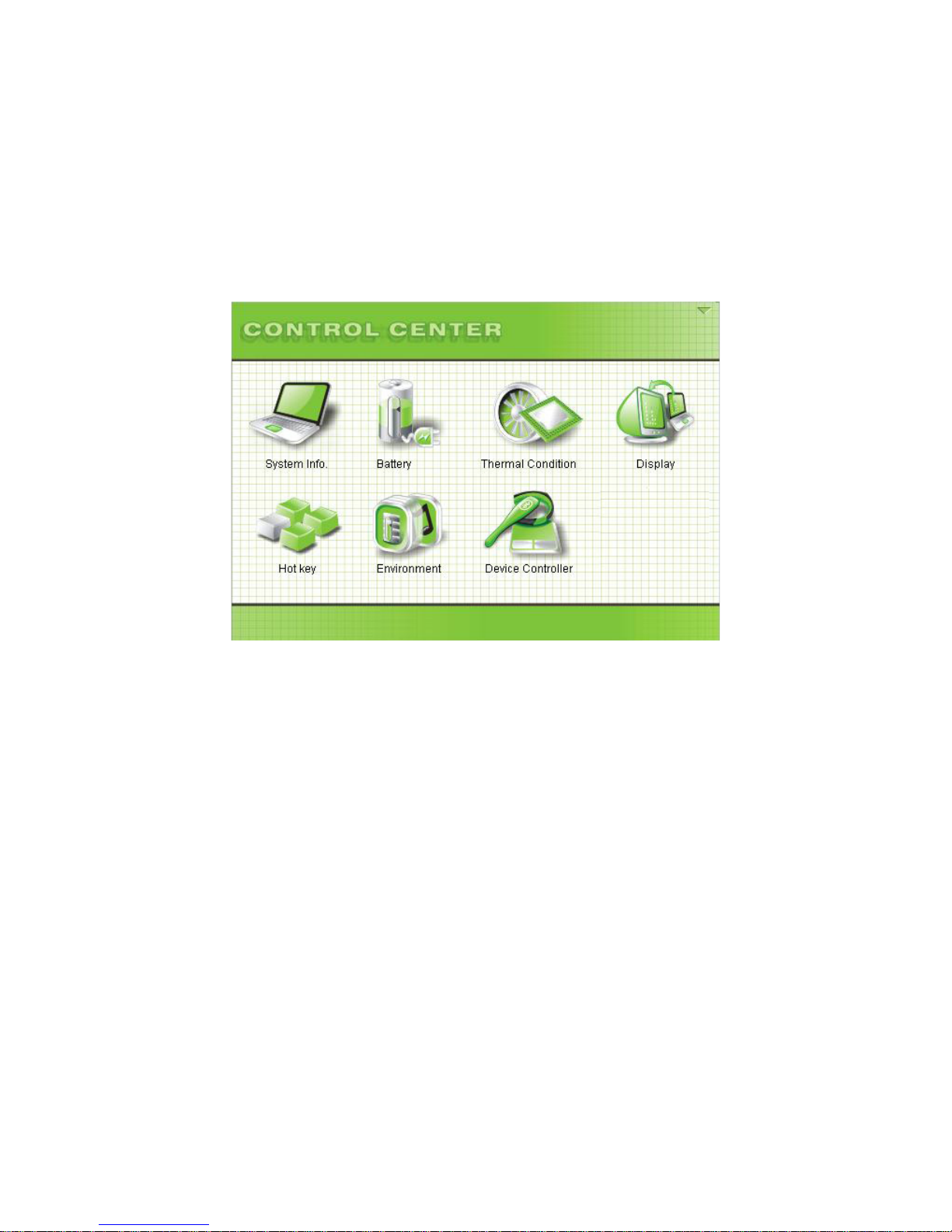

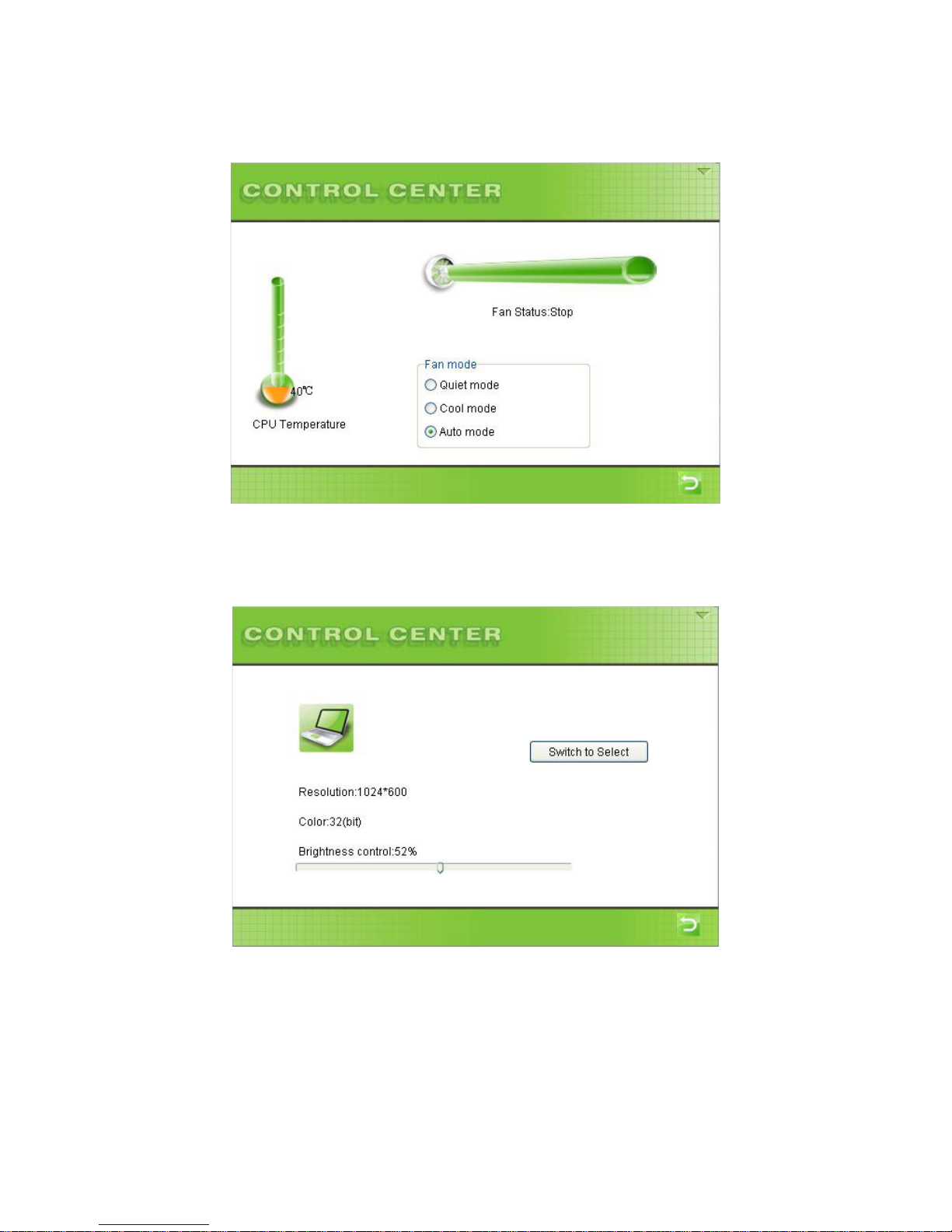

Chapter 5: Control Center Functions
Using the Control Center .........................................................10

ViewSonic VNB107 1
User's Guide
Dear customer!
Thank you for choosing ViewSonic’s VNB107 netbook.
Your VNB107 has powerful information processing capabilities and mobile
characteristics. Whether you are in the ofce, at home, or travelling,
VNB107 is your effective assistant that accompanies you all the time.
This manual will help you master the methods and techniques of using
VNB107 to the best.
Chapter 1
Preparing the netbook for use
NO.1.1 Package contents
First of all, please open the VNB107 box and carefully remove the contents;
check if anything is missing or damaged.

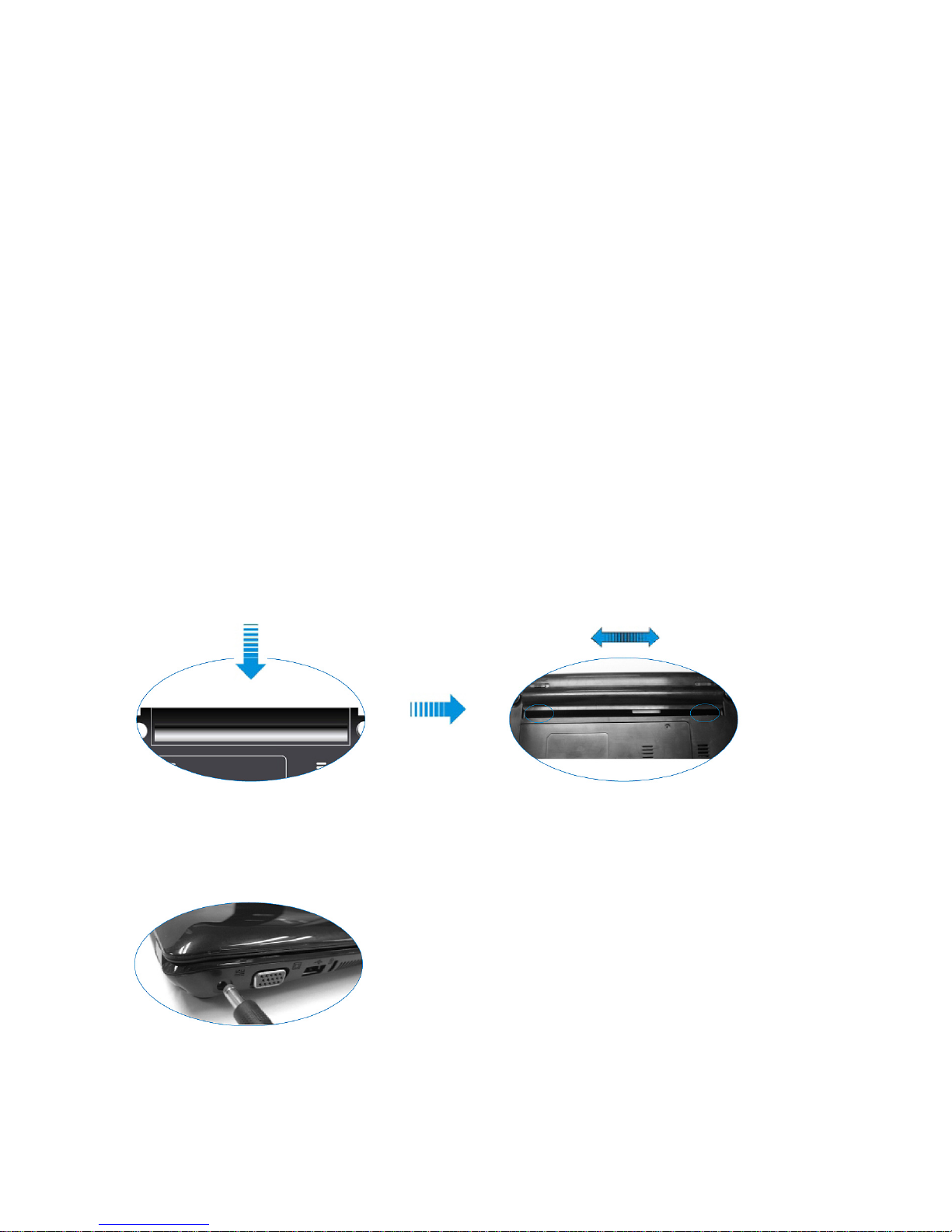

NO.1.2 Insert the battery
Inserting the battery Removing the battery
NO.1.3 Connect the power adapter

ViewSonic VNB107 2
Chapter 2
Turning on the VNB107

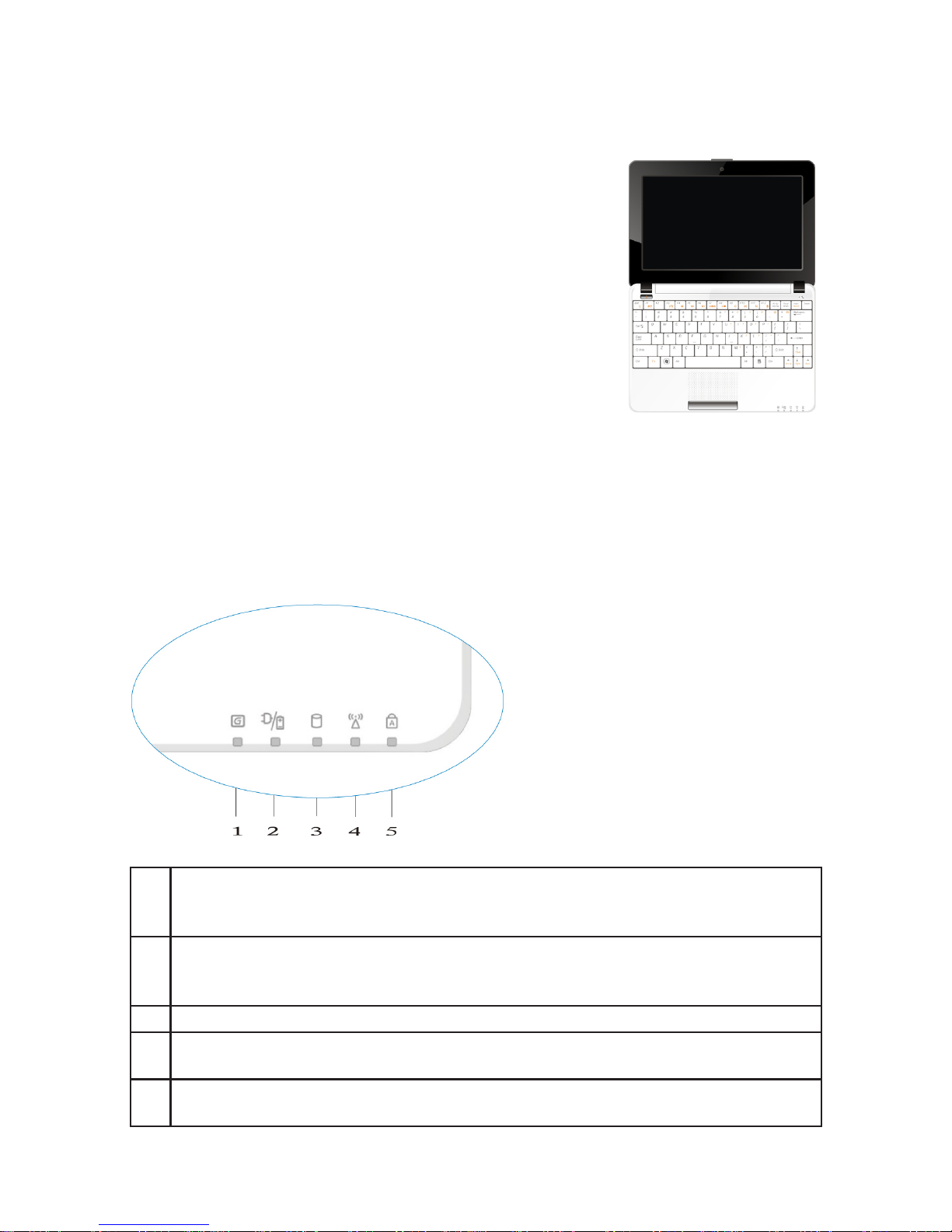

NO.2.1 Top View with the lid open
Open the lid of your VNB107. Please be careful
when opening or closing the lid; do not do it with
excessive force as you can damage the netbook.
NO.2.2 Turn on the VNB107
Make sure both the battery and the power adapter are connected to the
netbook and to wall AC power outlet. Press the Power button for one
second to turn on the netbook.
1
3G indicator: when the 3G LED is ashing in blue, VNB107 is connected to
the 3G network. If the LED is off, either the 3G module is disabled or there is
no connection for the 3G network.
2
The battery and charging status indicator: the LED glowing in amber means
the battery is being charged; once the battery is fully charged the LED
changes its color to blue.
3HDD indicator: ashing in blue, this LED shows the HDD activity.
4Wi-Fi indicator: when the netbook is connected to the wireless AP, the LED is
ashing in blue. When the Wi-Fi module is disabled, the LED is not lit.
5CapsLock: glowing in blue, this LED shows that all the input characters will
appear in upper case.
VNB107
appearance

ViewSonic VNB107 3
NO.2.3 The function keys
Key Description
Fn+Esc Enter suspend state
Fn+F1 Enable or disable the touchpad
Fn+F2 Enable or disable the 3G module
Fn+F3 Enable or disable the Wi-Fi module
Fn+F4 Toggle the sound ON and OFF
Fn+F5 Decrease the brightness of the LCD
Fn+F6 Increase the brightness of the LCD
Fn+F7 Turn ON of OFF the video-out signal for externally connected LCD or
projector
Fn+F8 Turn ON or OFF the internal display
Fn+F9 Customizable; the default setting is to open a web browser
Fn+F10 Customizable; the default setting is to open an email client
Fn+F11 Customizable; the default setting is to open a media player
Fn+F12 Customizable; the default setting is to open the Bluetooth application
(optional)
Fn+ Increase the sound volume
Fn+ Decrease the sound volume
Fn+ ↑ Page up
Fn+ ↓ Page down
Fn+ ← Home
Fn+ → End

ViewSonic VNB107 4
Chapter 3
ConguringBIOS,installingan
operating system and drivers
NO.3.1 Installing an operating system
Before installing OS, you will need to set up BIOS to allow boot from USB-
CD/DVD drive. To do that, turn on VNB107, and press F2 when prompted
to run BIOS setup.
After you enter BIOS setup application, use the [→] and [←] keys to choose
BOOT section of the main menu, select your USB-CD/DVD drive in the
Boot priority list and use the [ + ] and [ - ] buttons to set the order in which
drives and devices will be checked for a useable OS to boot at the time of
startup.

ViewSonic VNB107 5

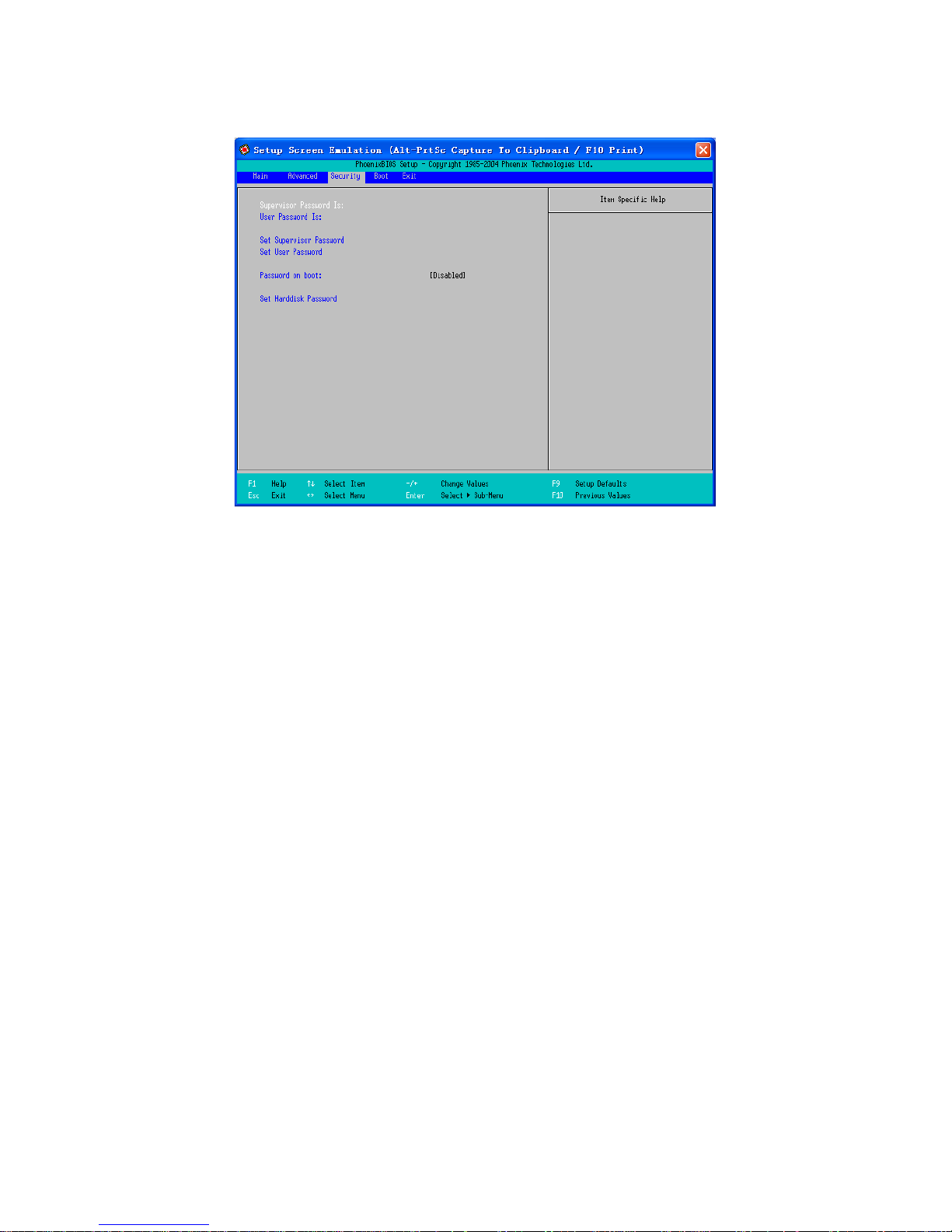

NO.3.2 Other settings of the Setup CMOS Utility
Main Menu: Here you can set the system’s date and time, as well as
check system information like BIOS version, embedded controller rmware
version, motherboard version, and the amount of the system memory and
extended memory.
Sata Port: the settings specic to SATA devices can be done here.
The specic operation can be found in the System promoted screens.
•

ViewSonic VNB107 6
Advanced Menu: you can make the following settings.
Legacy USB: set if a USB device can be used under DOS.
Summary Screen: set if you would like to see system conguration
information each time you boot your VNB107.
Boot-time Diagnostic Screen: choose between the image wallpaper
mode and text information mode during the POST process.
PXE OPROM: Set up if your VNB107 can be booted from LAN.
Sata Controller Mode Option: setup the working mode of your HDD. If
you are using Windows XP, you need to have AHCI disabled.
AHCI Enable: enables or disables the Advanced Host Controller
Interface for SATA devices.
•
•
•
•
•
•

ViewSonic VNB107 7
Security Menu: security settings to enter the system.
Supervisor Password: denes if a supervisor password is asked when
entering the BIOS Setup Utility.
User Password: denes if a user password is asked when entering the
BIOS Setup Utility.
Set User Password: used to dene the User Password.
Set Supervisor Password: used to dene the Supervisor Password,
which authority is higher than that of the User Password.
Password on Boot: denes if a password is required to startup the
VNB107.
Set Harddisk Password: species the password for getting access to the
HDD.
[Warning]: Please write down the passwords if you set any, as to avoid any
inconvenience in the future.
•
•
•
•
•
•

ViewSonic VNB107 8
Exit Menu: options for exiting the BIOS Setup Utility after you have made
changes to the settings.
Exit Saving Changes: to store the values and exit.
Exit Discarding Changes: to exit without storing the values.
Load Setup Defaults: to restore the settings to their factory values.
Discard Changes: to abandon all the settings done during current
session, yet to remain in the BIOS Setup Utility.
Save Changes: to save the settings.
NO.3.3 Installing the drivers
Use the CD bundled with your VNB107 to install drivers and additional
applications.
Choose the driver you need to install, and follow the on-screen instructions.
After a driver is installed you may be requested to restart your system.
•
•
•
•
•

ViewSonic VNB107 9
Chapter 4
Devices and interfaces
NO.4 Expand the interface devices
NO. Item Description
1 DC-in jack Power jack for AC-DC adapter
2 VGA port To connect to an external monitor or projector
3 USB port To connect USB devices, such as pen drives, printers,
etc.
4 Security Lock Slot To connect a key-type security lock
5 Ventilation slot The ventilation slot should not be obstructed while
VNB107 is running
6 3G switch Toggles the 3G module ON and OFF (optional)
7 Card reader Can accommodate SD/MMC/MS/MS PRO cards
8 Headphone-out Jack Used to connect headphones or external speakers
9 Microphone-in jack Used to connect an external microphone
10 RJ-45 LAN Jack Used to connect the Ethernet network cable
11 SIM card Slot Please refer to the drawing next to the slot for a
correct way to insert your SIM card
[Attention]: Your VNB107 may not have all the interfaces listed above.

ViewSonic VNB107 10
Chapter 5
Control Center Functions
NO.5 Using the Control Center
You can search for all kinds of system information through the Control
Center, conduct the system settings and view the help information.
[Note]: To enjoy the functionality of the Control Center, please install it from
the Driver disc bundled with the VNB107.
The Control Center can have some modications and thus be different from
the description herein.

ViewSonic VNB107 11
System Information
Click on the System Info icon on the home-page of the Control Center to
see the VNB107 basic system information.
[Note]: Click on the drop-down menu in the lower right corner of the
window for more information.
Click on the Battery icon on the home-page of the Control Center to view
the system power supply information and change the auto-warning settings.

ViewSonic VNB107 12
Click on the Cooling Control icon on the home-page of the control center to
view the relevant CPU and fan information.
Click on the Display icon on the home-page of the Control Center to do the
display settings and adjust the brightness of the LCD back light.
To adjust the settings of the externally connected monitor, click on the
external monitor icon rst to select it, then click on the Switch button.
[Note]: The Control Center would maximum show two display devices
simultaneously.

ViewSonic VNB107 13
Click on the Shortcuts icon on the home-page of the Control Center to
select the applications you want to be run when you press function key
combinations. You can also restore the settings to their factory defaults.
Click on the Prole icon on the home-page of the Control Center to set up
different power proles.
Windows XP operating system

ViewSonic VNB107 14
Windows Vista operating system
Click on the Device Control icon on the home-page of the Control Center to
enable/disable certain modules of your VNB107.
[Note]: The picture you would see here may be different due to hardware
differences across models.
