Important Safety Instructions
DO NOT press or touch the LCD Screen. DO NOT place notebook PC
with small items, they may scratch LCD Screen or penetrate the vents of
notebook PC.
DO NOT expose notebook PC to dirty or dusty environment. Keep the
environment clean and dry.
DO NOT place notebook PC on uneven or unstable work surface.
DO NOT place or drop objects on the top of notebook PC. DO NOT shove
any foreign objects into notebook PC. DO NOT close with force the LCD
Screen lid.
DO NOT expose notebook PC to strong magnetic or electrical elds; DO
NOT place oppy disks near or on notebook PC as this may cause the loss
of data on the oppy disks.
DO NOT leave notebook PC facing the sun as it can damage the LCD
Screen, especially when in a car.
SAFE TEMPERATURE: This notebook PC should only be used in
environments with ambient temperatures between 5°C (41°F) and
35°C(95°F).
DO NOT expose notebook PC to or use near liquids, rain, or moisture.
Caution: there is a risk of explosion if the battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
DO NOT throw notebook PC in municipal waste. Check local regulations for
disposal of electronic products. Please recycle the Battery Pack, and check
with your Local Authority or retailer for an advice on recycling.
Notebook PC and its power adapter may produce some heat during
operation or charging of its internal battery. DO NOT leave notebook PC on
your lap or any part of your body in order to prevent discomfort or injury from
heat exposure.
INPUT RATING: Refer to the rating label on notebook PC and make sure
that the Power Adapter complies with that rating. Only use accessories
recommended by ViewSonic.
Check the connections between the main unit and attached devices before
turning on your notebook PC.
DO NOT use notebook PC during eating to avoid dirtying your notebook PC.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

ViewSonic VNB108 ii
DO NOT insert anything into notebook PC that may result in short circuit or
can damage the electronic circuits.
Power off your notebook PC, if you want to install or remove some external
devices, which do not support hot-plugging-in.
Disconnect your notebook PC from the electrical outlet and remove any
installed batteries before cleaning the notebook PC. Keep your notebook PC
away from children.
DO NOT disassemble notebook PC. Only a certied service technician
should perform repairs on your computer.
Use only the Battery Packs approved by ViewSonic.
Notebook PC has vents to disperse heat. DO NOT place notebook PC on
soft objects (e.g.: bed, sofa, your lap) as this can block the air ow from
those vents and cause system halt due to overheating.
15.
16.
17.
18.
19.
20.

ViewSonic VNB108 iii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive
2002/95/EC of the European Parliament and the Council on restriction of the
use of certain hazardous substances in electrical and electronic equipment
(RoHS Directive) and is deemed to comply with the maximum concentration
values issued by the European Technical Adaptation Committee (TAC) as
shown below:
Substance
Proposed Maximum
Concentration
Actual
Concentration
Lead (Pb) 0,1% < 0,1%
Mercury (Hg) 0,1% < 0,1%
Cadmium (Cd) 0,01% < 0,01%
Hexavalent Chromium (Cr6+) 0,1% < 0,1%
Polybrominated biphenyls (PBB) 0,1% < 0,1%
Polybrominated diphenyl ethers (PBDE) 0,1% < 0,1%
Certain components of products as stated above are exempted under the
Annex of the RoHS Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in
other lamps not specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes,
and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85%
by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight,
aluminium containing up to 0.4% lead by weight and as a cooper alloy
containing up to 4% lead by weight.

ViewSonic VNB108 iv
Copyright Information
Copyright © ViewSonic®Corporation, 2010. All rights reserved.
Microsoft®, Windows®, Windows NT®, and the Windows®logo are registered
trademarks of Microsoft®Corporation in the United States and other countries.
ViewSonic®, the three birds logo, OnView®, ViewMatch™, and ViewMeter®are
registered trademarks of ViewSonic®Corporation.
Intel®, Pentium®, and Atom™ are registered trademarks of Intel Corporation.
Disclaimer: ViewSonic®Corporation shall not be liable for technical or editorial
errors or omissions contained herein; nor for incidental or consequential
damages resulting from furnishing this material, or the performance or use of
this product.
In the interest of continuing product improvement, ViewSonic®Corporation
reserves the right to change product specications without notice. Information in
this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any
means, for any purpose without prior written permission from ViewSonic®
Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as
it becomes available, please register your product on the Internet at:
www.viewsonic.com. The ViewSonic®Wizard CD-ROM also provides an
opportunity for you to print the registration form, which you may mail or fax to
ViewSonic®.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VNB108
ViewSonic ViewBook
VS13329
VNB108-1_UG_ENG Rev. 1C 04-15-10
Product disposal at end of product life
ViewSonic®is concerned about the preservation of our environment. Please
dispose of this product properly at the end of its useful life. For the recycling
information, please refer to our website:
1. USA: www.viewsonic.com/company/green/recycle-program/
2. Europe: www.viewsoniceurope.com/uk/support/recycling-information/
3. Taiwan: recycle.epa.gov.tw

ViewSonic VNB108
Table of Contents
Chapter 1 Introduction ..................................................................................................1
1.1 Package Checklist................................................................................................1
1.2 Specications ......................................................................................................2
1.3 Knowing the Parts ...............................................................................................3
Top view .........................................................................................................3
Base view........................................................................................................4
Left view.........................................................................................................5
Right view.......................................................................................................5
1.4 Netbook usage ....................................................................................................6
Cell usage .......................................................................................................6

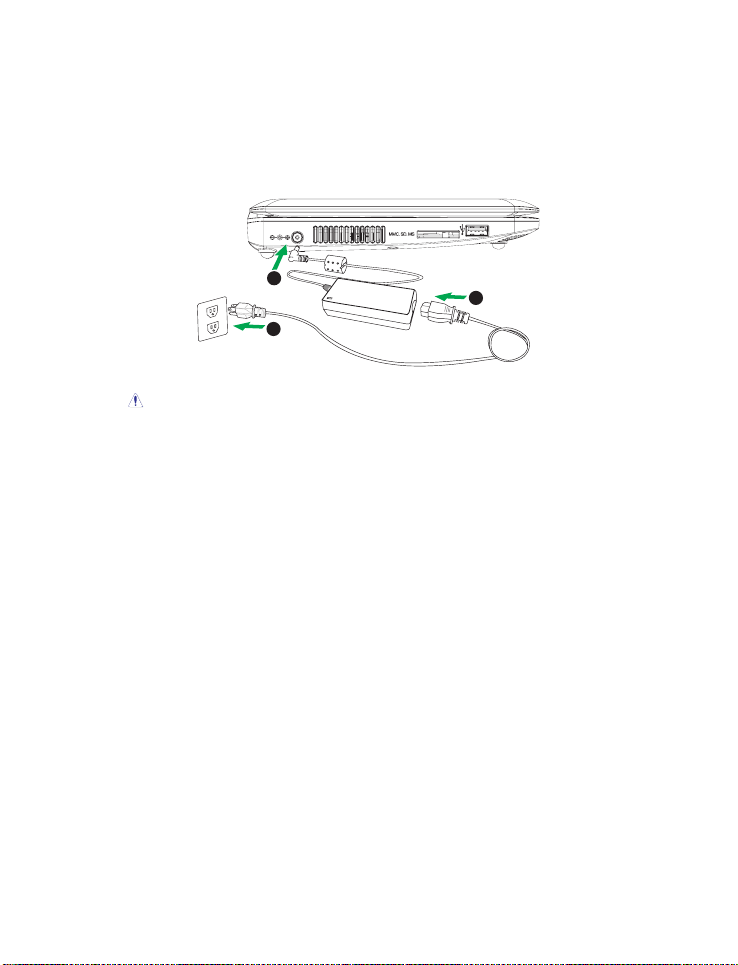

Connect power supply......................................................................................7
Startup ...........................................................................................................8
Shut down.......................................................................................................8

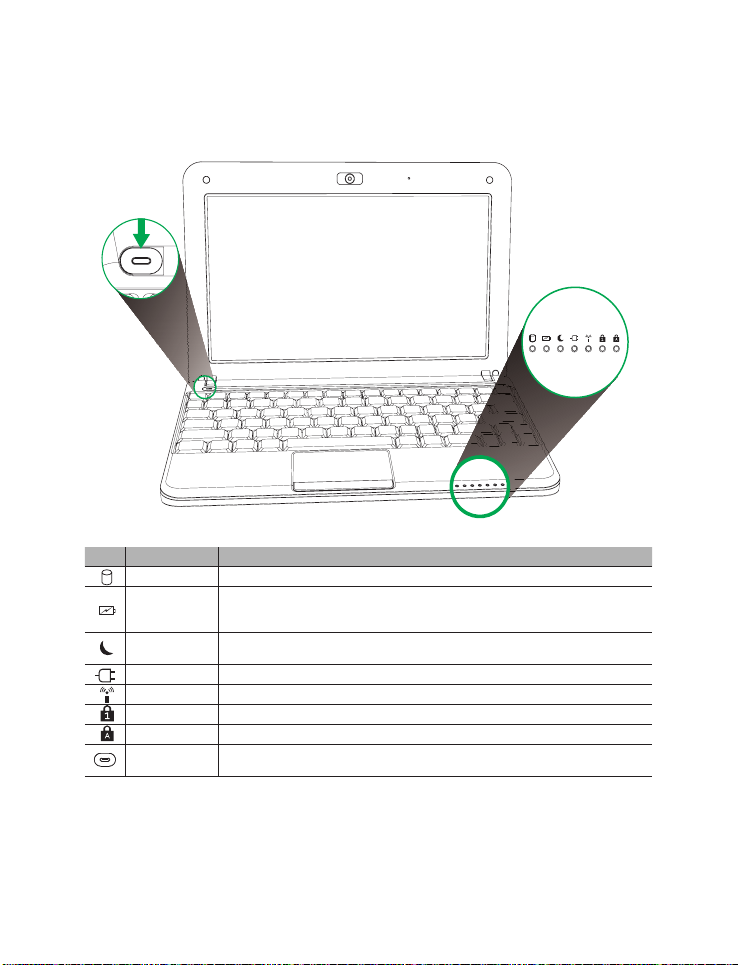

Indicators........................................................................................................9

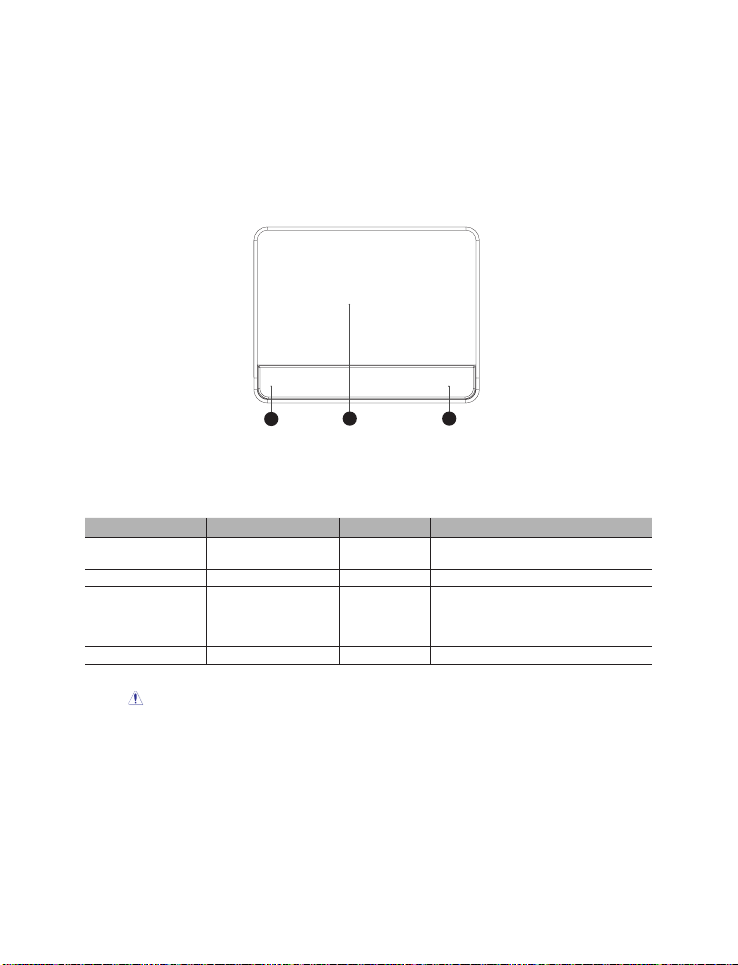

Touchpad ......................................................................................................10

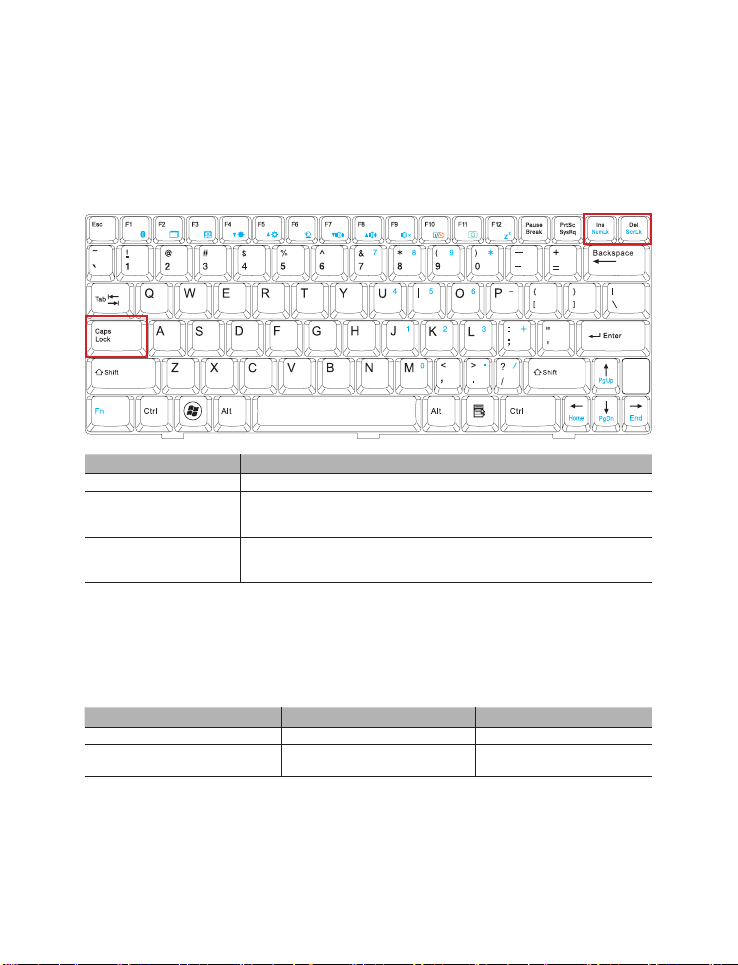

Using the keyboard........................................................................................11
Chapter 2 BIOS Setup Utility ........................................................................................13
2.1 When to Use BIOS Setup ...................................................................................13
2.2 How to Run BIOS Setup.....................................................................................13
2.3 Control Keys......................................................................................................13
2.4 Boot Device Priority ...........................................................................................14
2.5 BIOS Menu .......................................................................................................14
2.5.1 Main Menu ...........................................................................................14
2.5.2 Advanced Setting ..................................................................................15
2.5.3 Boot Setting..........................................................................................15
2.5.4 Security Setting.....................................................................................16
2.5.5 Save &Exit Setting.................................................................................17
Chapter 3 System Recovery .........................................................................................18
How to restore the previously backed up system in Windows .....................................18
Restore the backed up system under DOS mode .......................................................21
Rescue the data under DOS mode............................................................................24
Troubleshooting ..........................................................................................................27

ViewSonic VNB108 1
Chapter 1 Introduction
1.1 Package Checklist
Thank you for choosing ViewSonic ViewBook.
Please check if the packaging or any of the below listed accessories are damaged or
missing, in which case please contact with ViewSonic local representative ofce.
• ViewBook netbook computer
• Lithium-lon Battery
• Power Cord
• Power Adapter
• Quick Start Guide
• Driver disc
* The items listed above are for reference only, and are subject to change without notice.
* Depending on the model you purchased, the actual appearance of your netbook may vary from that
shown in this manual.

ViewSonic VNB108 2
1.2 Specications
CPU - Intel®Atom Processor
Chipset - Intel® Tigerpoint (NM10)
LCD Screen - 25cm/10.1” WSVGA color TFT-LCD with LED Backlight
- Resolution: 1024*600 pixels
Power Management - ACPI V3.0
- S0，S3，S4，S5 support
System Memory - DDR2 667MHz (Single Channel)
- 2×DDR2 SO-DIMM slots
Mass Storage - Supports SATA HDD
- Easy upgradable 6.35cm/2.5’' 9.5mm HDD
User Interface
- 4 in 1 Card Reader (supports MS/MS Pro/SD/MMC)
- 3 x 4-pin USB2.0 Ports
- 1 x VGA Port
- 1 x MIC
- 1 x Line Out
- 1 x RJ45 Port
- 1 x DC-In Port
Audio - Azalia Codec supports 2.1 channel output
- Built-in audio connector and mic connector
Digital Camera - Build-in 0.3 Megapixels camera
Ethernet LAN - 10/100Mbps Fast Ethernet Support
Wireless LAN - Mini PCI-E interface, supports 802.11 b/g/n
Security Port - Kensington Lock
Battery - 3 cells Li-Ion battery pack, 10.8V/24Wh
Dimension - 260 x 180 x 32.5 mm
- 10.24 x 7.09 x 1.28 inches
Weight - Less than 1.2kg/2.64 lbs (including Li-Ion battery pack)

ViewSonic VNB108 3
1.3 Knowing the Parts
After having checked the package and installed your ViewBook, let’s get familiar with
its parts.
Top view
1
1
2
3
4
5
6
7
8
1
9

ViewSonic VNB108 4
1
2
4
3
5
6
NO. Item Description
1 Speakers Left and right speakers deliver stereo audio output.
2 Battery Lock -
Manual
The manual battery lock is used to keep the battery pack secured. Move the
manual lock to the unlocked position to insert or remove the battery pack.
Move the manual lock to the locked position after inserting the battery pack.
3 Battery Lock -
Spring
The spring battery lock keeps the battery pack secure. When the battery pack
is inserted, it automatically locks. When removing the battery pack, this spring
lock must be retained in the unlocked position.
NO. Item Description
1 Built-in camera The built-in 0.3 megapixel camera allows you to snap a photo or create a
video chat or video conference with just a click.
2 Microphone Internal microphone for sound recording.
3 Display screen Also called Liquid-Crystal Display (LCD), displays computer output.
4 Power button This button turns your ViewBook on and off or puts it to sleep.
5 Keyboard A full-size keyboard with dedicated Windows®keys.
6 Palm rest Comfortable support area for your hands when you use the computer.
7 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
8 Click buttons
(left and right)
The left and right buttons function like the left and right mouse buttons.
9 Status indicators Light-Emitting Diodes (LEDs) that light up to show the status of the
computer’s functions and components.
Base view
