1ViewSonic VMP52
Table of Contents
Simple Operation ...................................................................................................2
Please undergoing the below operation before using the product ..................4
End-user License Agreement ...............................................................................7
Precautions ............................................................................................................7
Functional Description ......................................................................................... 9
Packing List..........................................................................................................10
Connection of signal and Memory Devices.......................................................10
Player Setup .........................................................................................................11
Playing Operations ..............................................................................................13
1) Photo playing ................................................................................................13
2) Music playing ................................................................................................14
3) Movie playing ................................................................................................15
4) E-book playing ..............................................................................................16
Specications.......................................................................................................17
Appendix...............................................................................................................18
Customer Support ...............................................................................................19

2ViewSonic VMP52
Simple Operation

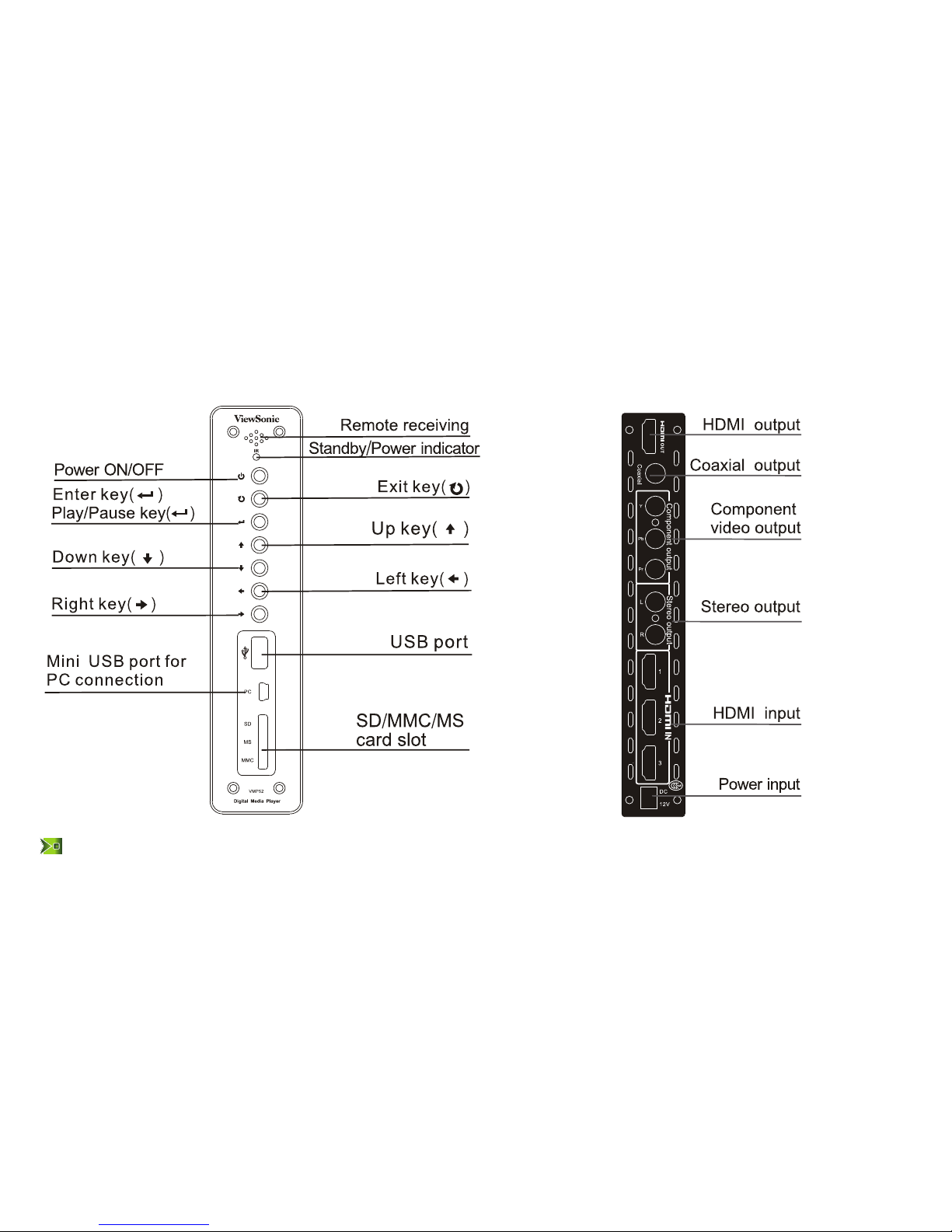

Front pannel Rear pannel
Note: When player is power on, standby indicator turns to green. When the player is in standby, the indicator
turns to red.

3ViewSonic VMP52

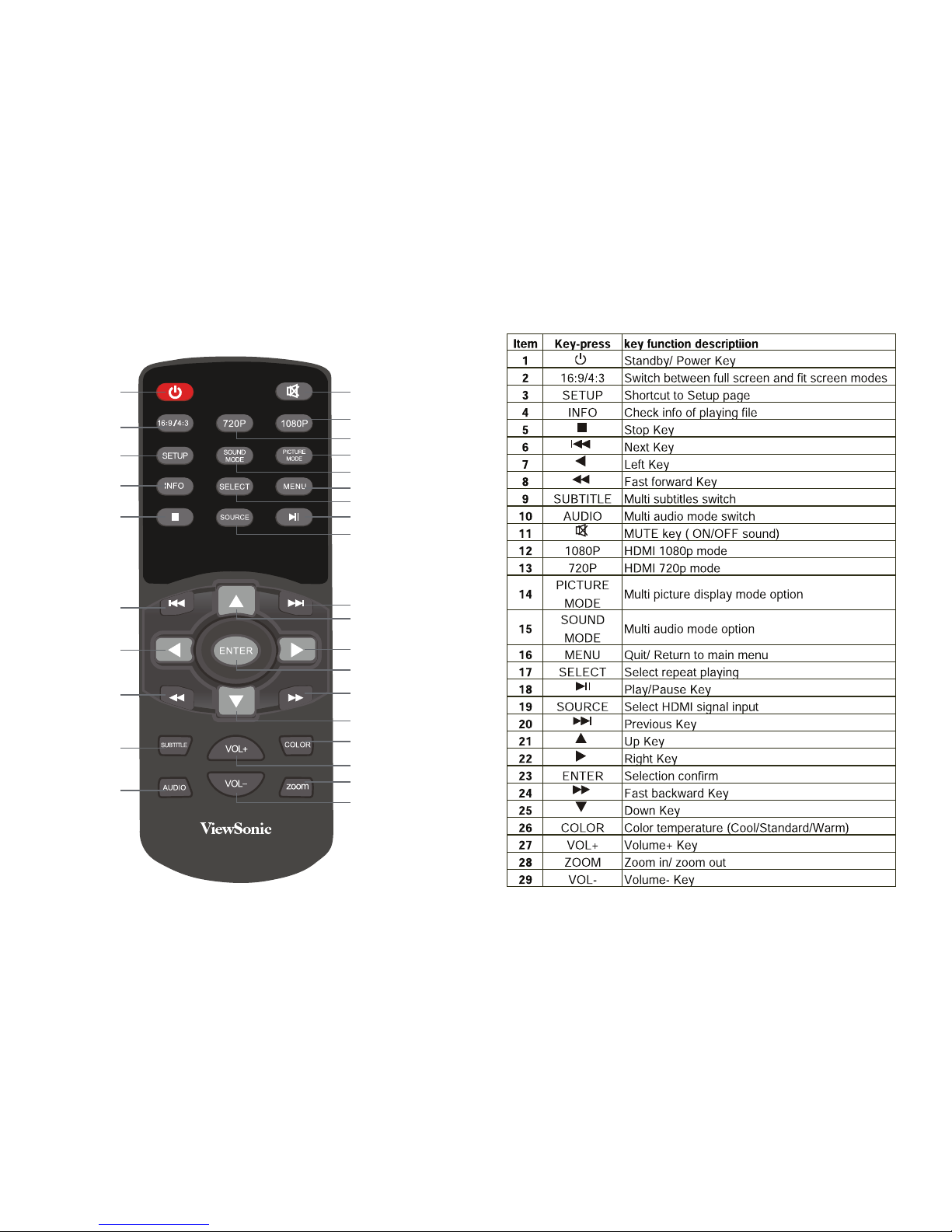

Schematic Diagram of Remote Control
1 11
12
13
14
15
16
17
19
18
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10

4ViewSonic VMP52
Please undergoing the below operation before using the product
1. Connect HDMI cable or component cable,
audio cable and power cord.
2. InsertUSBdeviceormemorycardwith
mediales.
3. SelecttheTVsHDMIinputandpowerupthe
media player, after a few seconds the media
player menu will be displayed.

5ViewSonic VMP52
Instruction to install the built-in SATA(2.5’) HDD
1. Remove four hex screws from the rear (connector panel) us-
ing the supplied tool.
2. Slideouttherearcover,completewithcircuitboard.Itmaybe
necessary to push gently from the front by removing the front
cover via four hex screws.
3. PlacetheSATA(2.5’)HDDcloselyatthebackofcircuitboard,
theninsertitintotheSATAmatchingslot.
4. TightenthescrewsontheSATA(2.5)HDDwiththesupplied
tool.
5. Slidethecircuitboardalongwiththeboardslotintothemain
case, then tighten the screws on the main case.
Note:
1) PleaseformattheSATA(2.5’)HDDbeforettingitinto
the player.
2) Make sure not to damage embedded components on the
circuit board.
3) After successful installation, enter setup menu, and
choose“SATA”indeviceselection,fordetailedinstruction
please refer to Page 11.

6ViewSonic VMP52

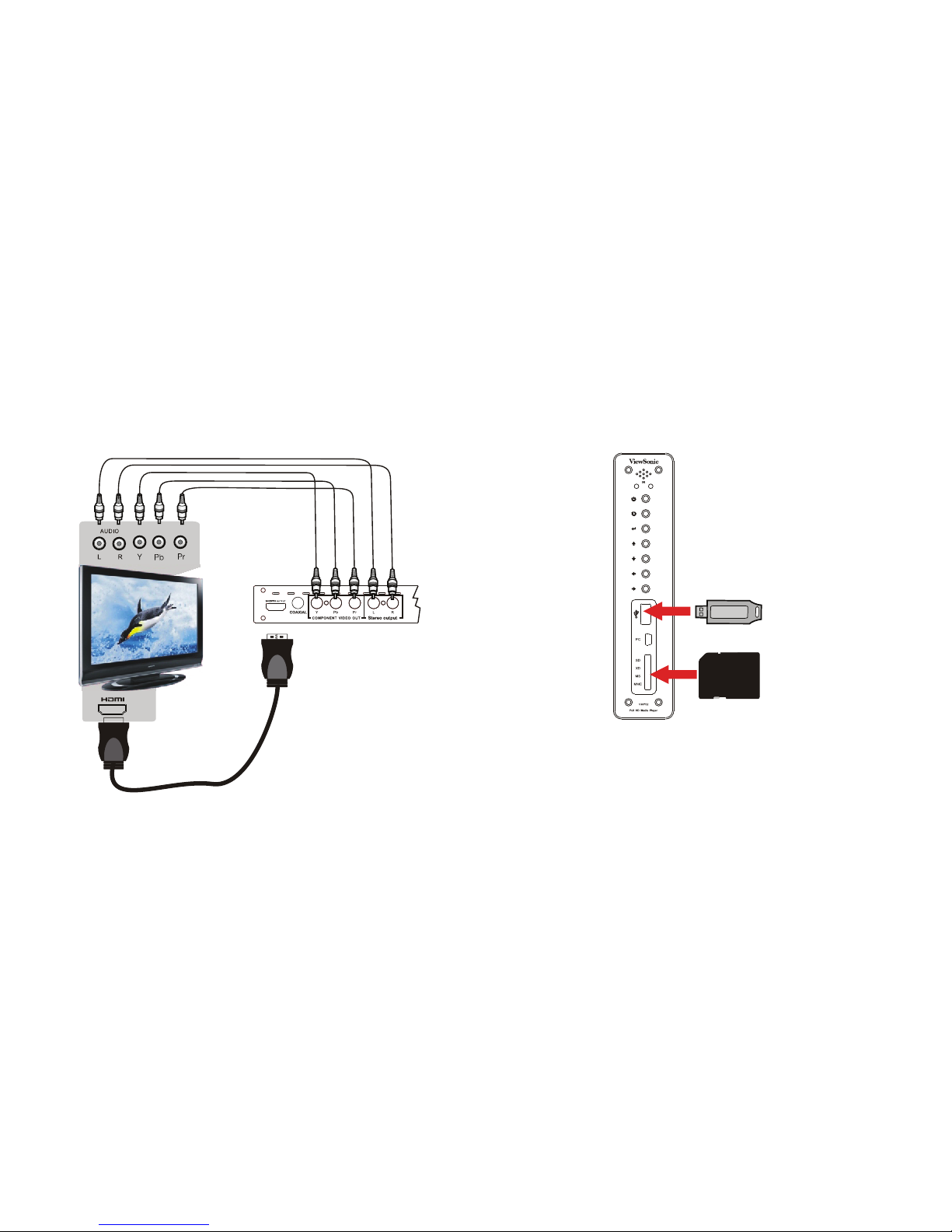

Three input HDMI switcher
1) Possible connections and devices depicted below:
2) Turn on TV set and the connected HDMI device.
3)
Press SOURCEkeyintheremotecontrol,thedisplaywillshow“HDMI1,HDMI2,HDMI3,exit”,press
▲/▼keytoselectHDMIsource,andpressENTERkeytoconrm.

7ViewSonic VMP52
End-user License Agreement
Please read this agreement carefully before using the product:
Please ensure:
1) Do not dismantle the product for improper purposes.
2) Unauthorized access to hardware or software will result in a voided warranty.
How to use this User Manual:
Please read the User Manual carefully before using the product. Our company is not liable for any direct
orindirectlossesarisingfromhardwaredamage,programdamage,lelossandsystembreakdowndue
to improper operations.
Precautions
Dear customer, thank you for buying our product. We sincerely hope that our product will bring pleasure
and happiness to you. Please carefully read and pay special attention to the following before using the
product:
 ●Donotexposetheproducttorainsordampenvironmentstopreventreorelectricshock.
 ● Donotexposetheproducttorains,moisture,drippingorsplashingtoreducethedangerofre,
electric shock or product damage.

8ViewSonic VMP52
Safety Instructions
1) Do not place the power cord and plug of the adapter near heat sources.
2) Do not place any weight on the power cord and plug of the adapter.
3) Do not dismantle and repair the adapter and its power cord.
4) Do not open the enclosure of the product to ensure your safety. Please ask service-trained profes-
sionals to conduct maintenance if necessary.
Maintenance Tips
1) Do not dismantle components of the product on your own. The warranty mark will beinvalidated
automatically if you dismantle and repair the product on your own.
2) Please contact our local warranty department to arrange maintenance properly if necessary.
3) To replace devices or accessories, please select the original ones designated by the manufacturer.

9ViewSonic VMP52
Functional Description
 ●HDMIdigitalinterfacewith720P/1080P(1920*1080)resolution.
 ●HDMI1.3with480p/720p/1080pvideooutput.Componentoutputsupports480p/720p/1080p.
 ● Unique design with three input HDMI switcher to reduce the number of cables routed to your dis-
play.
 ● Innovativebuilt-inSATA(2.5’)HDDslot.
 ●SupportH.264,MPEG1/2/4,DIVX,XVIDetc.trueHDformats.
 ●
SupportHDVideoformatssuchasTS,MKV,RM/RMVB,TP,AVI,VOB,DAT,MPG,MPEG,MOVetc.
 ● FirstMediaPlayerworldwidesupporting720PresolutionHDMIslotforRM/RMVBformats.Fully
support RM8/RM9/RM10 formats.
 ●SurportAudioformatssuchasBTSC/A2/EIA-J,MPEG-1,MPEG-2(LayerI/II),AAC,HE-AAC.
 ●Read*.TXTwithbackgroundmusic.SupportE-bookreading.
 ●Selectablecolourtemperaturemodes.
 ●Selectableaudiomodes
 ●Selectablevideomodes
 ●Supportmulti-subtitlesandmulti-audiotracks.
 ●Fullfunctionremotecontrol.
 ●SupportSD/MMC/MScards.USB2.0Host.
 ●Coaxialaudiooutput.
 ●12V/1.2Apowersupplyfor stable performance.
 ●OSDLanguage:English/TraditionalChinese/French/German/Italian/Spanish/Polish/Russian

10ViewSonic VMP52
Packing List
Main unit......................................1SET QSG.............................................1PCS
Remote control ............................ 1PCS Adapter ........................................1PCS
COAXIALcable ...........................1PCS Hexagon tool ...............................1PCS
Screw...........................................4PCS
In case of missing items, please feel free to contact your dealer without delay.
Connection of Signal and Memory Devices
1) Connecting Display Device
a) Method 1: Connection with component cable. Connect the Y(green), Pb(blue), Pr(red)
component video output signal of the player to the corresponding input interfaces of the display
device(e.g., TV component input jack), and connect the A/V cable to the display device.
b) Method 2: Connect display with HDMI.
  c) Method 3: If you have several devices with HDMI output, such as DVD, PC etc, you can connect
them with this media player via the HDMI slot in the real panel and output to the desired display.
Note: Factory default video output is YPbPr 720P.

11ViewSonic VMP52
2) Connection to Memory Devices
a)TheplayerhasUSBHOSTinterface,whichcanbeusedforconnectingUSBmemorysticks,
externalHDDandotherUSBmemorydevices.
b) Theplayerhasa3inlcardslotcompatiblewithSD/MMC/MScards.
c) AMiniUSBconnectorallowsconnectiontoacomputerfortransferringmediatotheintegrated
HDD, if installed. (Note: Make sure the media player is powered on before connecting PC with
USBcable).
Player Setup
After connecting as described previously, turn on the player, then
it will start initialization (the green indicator will be illuminated),
andthescreenwilldisplay“Loading…”.Afterthecompletionof
initialization, the main menu page will display, including photo,
music,movie,textandsettingicons.Press◄/►keyofRCto
select “Setting”icon,thenitwillshowasbelowpicture:
In this page, press ENTERkeytoconrm,andpressUP/DOWN
key to select icon, and press◄/►key to adjust data.
The parameter setup includes the following items:
 ●Language:SelectOSD8languages(English/TraditionalChinese/French/German/Italian/Spanish/
Polish/Russian)

12ViewSonic VMP52
●Repeat:Settherepeatmodes.ThereareRepeatAll/None/Selectforoptions.
 ●Slideshow speed:Setthepictureslideshowrefreshspeed,ThereareMedium/Slow/Fastforop-
tions.
 ●Movie screen:Setmovieaspectratio,Fullscreen/Normalratioforoption.
 ●Setting: 1080P or 720P .
● Device selection:Choosethebuilt-inSATA(2.5’)HDDorexternalUSBdevice.
Note: when connecting with PC, the player default to SATA HDD mode
 ●Restore Factory Default: Factory Default .

13ViewSonic VMP52
Playing Operations
1) Photo playing
Correctly insert memory device, In the main menu page, press ◄/►key to select “Photo”icon,then
allthelenamesinthisfolderwillbelisted,pressENTER key to enter folder and press UP/DOWN key
and ENTERkeytoselectdesiredletoplay.Pictureprolewillbeshownontherightofthescreen,and
preview starts in thumbnail window.
A. In the photo content page, you can
 ●Press UP/DOWNkeytoselect“UpFolder”,andpressENTER key to return to the previous menu page.
 ●Press / key to turn to previous or next page .
 ●PressUP/DOWN key to move the cursor to select desired picture.
 ●Press key to play single picture in full screen, and slideshow will start.
 ●Press MENU key to return to main menu page.
 ●Press SELECT key to select repeat playing function: when the cursor moves to the folder name.
Press ENTERkey,itwillpopup“selectall”or“unselect”.Press◄/► key to select, and Press EN-
TERkeytoconrm;ifthecursormovestothele,pressSELECT key to tick, player will repeat
playthetickedleuntilthetickiscanceled.
B. In the full-screen picture display status, you can
 ●PressMENUkeyor■keytoreturntothelescontentpage.
 ●Press key to pause slideshow, and display single picture. Press again to restart.
 ●Press / key to play previous/next picture.
 ●PressINFO key, the relevant information of the picture will be shown on the screen.

14ViewSonic VMP52
2) Music playing
In main menu, press ◄/►keytoselect“Music”icon,thenpressUP/DOWN key to choose folder. All the
available folder names will be listed. Press ENTER key to enter the desired folder. Press UP/DOWN key
and ENTERkeytochoosedesiredle.Audioleprolewillappearinbottomrightofdisplayandpreview
starts in thumbnail window. Press ENTER key to enter playing page. ID3 info, process bar, time and
frequencyspectrumwillappearinbottomrightofdisplay.Songscontentsaredisplayedontheleft.
A.Inmusiclecontentpage,youcan:
 ●Press UP/DOWNkeytoselect“UpFolder”,andpressENTER key to return to the previous menu
page.
 ●PressUP/DOWN key to move cursor, to select desired song by SELECT key.
 ●Press / key for previous/next page.
 ●PressENTER key to enter music playing mode.
 ●PressMENU key to return to main menu.
 ●Press key to play music and enter music playing mode.
B. In music playing mode, you can:
 ●PressMENUkeyor■keytoreturntolecontentpage.
 ●PressMUTE key to mute the sound. Press again to resume.
 ●PressPlay/Pause key to play or pause music.
 ●PressVOL+/- key to adjust volume.
 ●PressUP/DOWN key to move cursor, press SELECT key to play selected song.
 ●Press / key to select previous or next song.
 ●Press / key for fast backward and fast forward. 2x/4x/8x/16x are available.

15ViewSonic VMP52
3) Movie playing
Inmainmenupage,press◄/►keytoselect“Movie”icon,thenpressUP/DOWN key to select folder. All
the folder names will be listed. Press ENTER key to enter the desired folder. Press UP/ DOWN key and
ENTER keytoselectdesiredle.Videoleprolewillappearinrightofdisplayandpreviewstartsin
right thumbnail window.
A.Inmovielecontentpage,youcan:
 ●PressUP/DOWNkeySelect“UpFolder”,andpressENTERkeytoreturntothepreviousmenupage.
 ●PressUP/DOWN key to move cursor to select desired movie by select key.
 ●Press / key for previous/next page.
 ●PressENTER key to enter movie playing page.
 ●Press / key for previous/next page.
 ●PressENTER key to enter movie playing page.
 ●PressMENU key to return to main menu page.
 ●PressENTER key to play movie.
B.Inmovieplayingmode,youcan:
 ●PressMENUkeyor■keytoreturntolecontentpage.
 ●PressMUTE key to mute sound, press again to resume.
 ●PressVOL+/- key to adjust volume.
 ●Press key to play or pause.
 ●PressINFOkeytodisplayvideoleprole.
 ●Press /keytoselectpreviousornextvideole.
 ●Press / key for fast backward and fast forward. 2x/4x/8x/16x are available.
