Bright, Light, and Portable

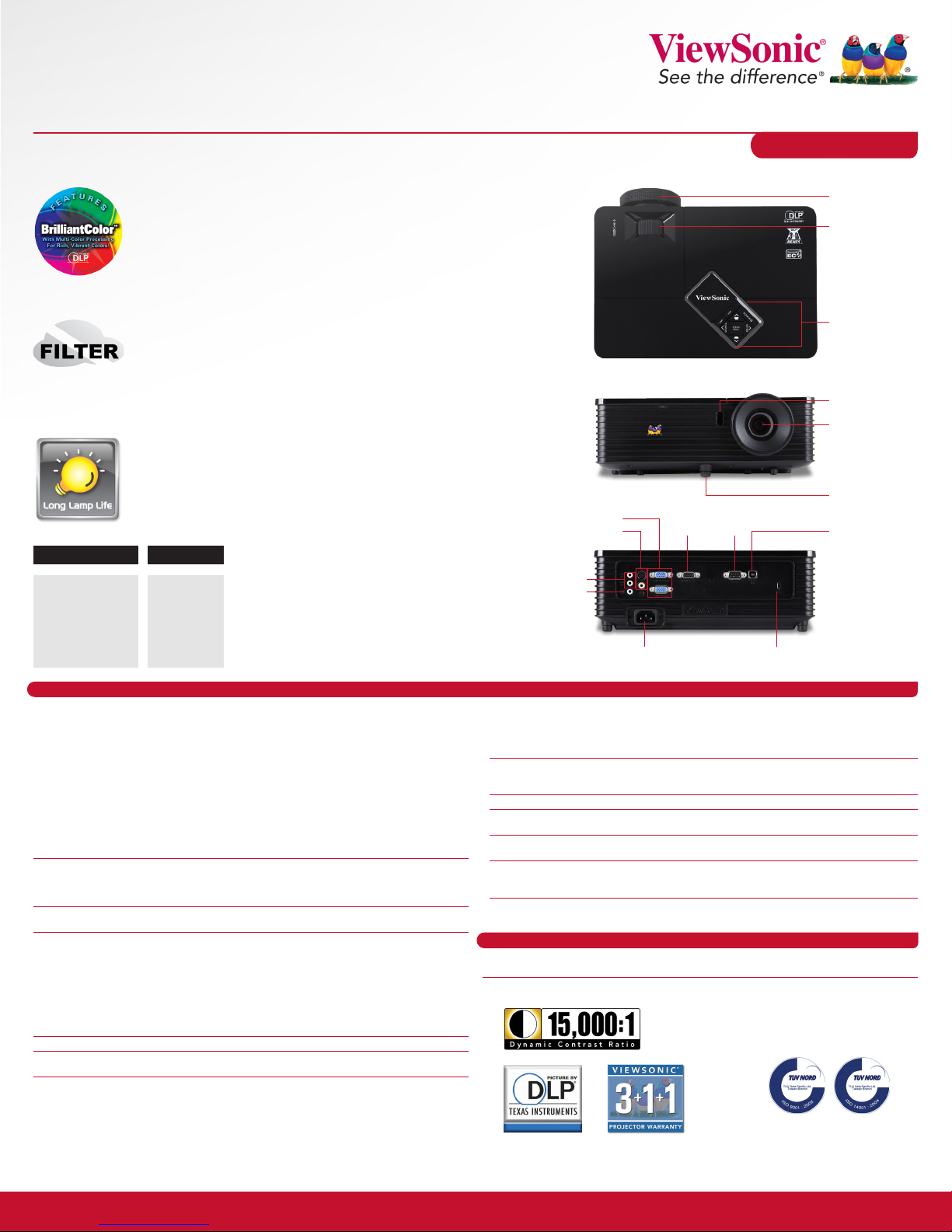

Portable XGA Projector
PJD5232
Just Right for Classroom & Conference Room
Packed with 2800 lumens and a high contrast ratio of 15,000:1 (w/
DynamicEco), the PJD5232 is guaranteed to be bright and shine in classrooms
and conference rooms.
The ViewSonic®PJD5232 is the ideal projector in the
ofce or on the campus. It delivers amazingly clear
images with 2800 ANSI lumens, 15000:1 contrast
ratio and XGA 1024x768 native resolution. The
PJD5232 is packed with features including multiple
PC and video input options, 1.1x optical zoom,
keystone correction, PC 3D-ready/120Hz, support
HD signal, integrated speaker and DynamicEco™.
With DynamicEco™technology, presenters can
put the projector in "standby" mode by reducing
brightness down to 30% when they need to shift
audience’s focus or when the projector is not in use
without restarting the projector. Filter-less design and
energy-saving eco-mode provide for virtually zero
maintenance and product reliability. Slim design,
3.7" high with only 4.7 lbs, makes the PJD5232 the
perfect projector for tabletop use or ceiling mounting
in both classrooms and corporate ofces.
Reliable Picture Quality & Color Performance
ViewSonic’s DLP® projectors provide reliable picture quality you can trust and
superior color performance you can count on after thousands of hours of
usage. Built on DLP technology, the ViewSonic PJD5232 projector virtually
eliminates image degradation known as color decay – yellow/faded tint that
LCD projectors may develop after extended use. Even after years of use, the
PJD5232 is still producing a stunning, sharp image that lasts.
Take Control of Audience’s Focus
With the DynamicEco button on the remote, take command of presentations
by dimming the screen image up to 70%. The projector will also auto activate
DynamicEco when the unit is
not in use. When DynamicEco
is activated, the lamp's power
consumption is signicantly reduced
– a great energy-saving design for
low total cost of ownership (TCO).
With DynamicEco™ Without DynamicEco™
PC 3D-Ready / 120Hz Refresh Rate Powered DLP®Link Technology
With support for DLP® Link technology, you´ll have amazing 3D capabilities at
your disposal. All that’s required to unlock 3D capabilities on the ViewSonic
PJD5232 3D-ready projector are the ViewSonic PGD-250 3D active shutter
glasses, 3D content and 3D-enabled video card. Unleash 3D experience with
the ViewSonic PJD5232 today.

RS-232
Specications
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Lamp life may vary based on actual usage and other factors. **One year Express Exchange®service requires product registration. Programs, specications and availability are subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies, DLP® and DLP logo are registered trademarks of Texas Instruments
and BrilliantColor™ is a trademark of Texas Instruments. Copyright © 2013 ViewSonic Corporation. All rights reserved. [16465-00B-12/12]
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
DISPLAY Type 0.55" Digital Micromirror Device (DLP™)
Resolution XGA 1024x768 (native)
Lens 1.1x Manual optical zoom / manual optical focus
Keystone Vertical digital keystone correction (+/- 40º)
Size 24 – 300 in. / 0.6 – 7.6 m (diagonal)
Throw Distance 3.2 – 39.4 ft. / 1.0 – 12.0 m
Throw Ratio 1.97~2.17:1
Lamp 190 watt
Lamp Life 5000 / 6000 / 8000* hours (Normal/Eco-mode/DynamicEco)
Brightness 2800 Lumens
Contrast Ratio 15,000:1 (w/ DynamicEco™)
Aspect Ratio 4:3 (native)
Color Depth 30 bits, 1.07B Color (10+10+10)
Color Wheel 6-seg RGBCYW / 7200rpm
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i, 1080p
Frequency Fh: 31–100KHz, Fv: 48–120Hz
COMPATIBILITY PC VGA to 1600x1200 UXGA
Mac® Up to UXGA (may require MAC adaptor)
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Component Input 15-pin mini D-sub (x2, shared with RGB)
Composite Input RCA jack
S-Video Input 4-pin mini-DIN
Audio Input 3.5mm mini jack (x2)
Audio Output 3.5mm mini jack
Control RS-232 (DB-9)
USB Type B (mouse control and service)
AUDIO Speaker 2-watt (x1)
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 245W (typ) / <0.5W (stand-by mode)
CONTROLS Basic Power, keystone/arrow keys, left/source, menu/exit,
right/enter
OSD Display, Picture, Source, System Setup (Basic),
System Setup (Advanced), Information
(See user guide for full OSD functionality)
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–90% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL Normal / Eco-mode 32dB / 29dB
DIMENSIONS Physical 11.6 x 3.7 x 8.0 in. / 294 x 95 x 202 mm
(W x H x D) Packaging 15.3 x 12.6 x 6.5 in. / 388 x 320 x 165 mm
WEIGHT Net 4.7 lbs. / 2.1 kg
Gross 7.4 lbs. / 3.3 kg
REGULATIONS CB, UL/cUL, FCC-B, NOM, Argentina, PSB, C-tick, SASO,
KC, CE, GOST-R, UkrSEPRO, CCC, CECP, RoHS,
REACH, SVHC, WEEE, ErP
WARRANTY 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year free Express Exchange® service**
Portable XGA Projector
PJD5232
PJD5232 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic
Wizard DVD (with User Guide).
What's in the box?
Optional Accessories
Replacement Lamp ........................................RLC-083
Wall Mount Kit ..............................................WMK-005
3D Active Shutter Glasses......................... PGD-series
Wireless Presentation Gateway ................WPG-series
Soft Case................................................PJ-CASE-001
Extended 5-Year Warranty ...................PRJ-EW-07-02
Audio In (x2)
AC Power
Monitor Out
S-Video/Video Inputs
Type B USB
(Mouse Control &
Service)
BrilliantColor™Technology
ViewSonic’s PJD5232 projector with BrilliantColor technology features
multi-color processing to produce stunning, vibrant colors. Unlike other
technologies such as LCD which use just 3 primary colors to produce
the image, the PJD5232 uses up to 6 separate colors. The sophisticated
6-segment color wheel enhances the yellow color performance that is the
key to accurate and vivid color reproduction. With multi-color processing,
colors are richer and more vibrant with exquisite and precise detail.
Long Lamp Life up to 6000 Hours
The new advanced lamp technology extends the lamp life
up to 6000 hours* and saves on maintenance costs.
RGB/Component Video Inputs
Focus Ring
Control Panel
IR Remote Sensor
Projection Lens
Elevation Foot
Kensington®Lock Slot
Projection Distance Screen Size (4:3)
Diagonal
Feet
5.3
10.5
15.7
19.7
26.2
32.8
39.4
Inches
40
80
120
150
200
250
300
Meters
1.6
3.2
4.8
6.0
8.0
10.0
12.0
Meters
1.0
2.0
3.0
3.8
5.1
6.4
7.6
Maintenance Free
ViewSonic's PJD5232 projector features a lter-less design. Unlike LCD
projectors that require the user to clean, sometimes to replace, lters after
every 100 to 300 hours of operation, ViewSonic's PJD5232 projector is
lter-less, eliminating the need for lter cleaning or lter replacement. This
saves you signicant maintenance dollars and labor over the projector’s
lifespan, and lowers your total cost of ownership (TCO).
Zoom Ring
Audio Out
