Viking PRX-4 User manual
PRODUCT MANUAL
Designed, Manufactured and Supported in the USA
COMMUNICATION & SECURITY SOLUTIONS
26-Bit Wiegand Keypad for
Entry Systems
Features

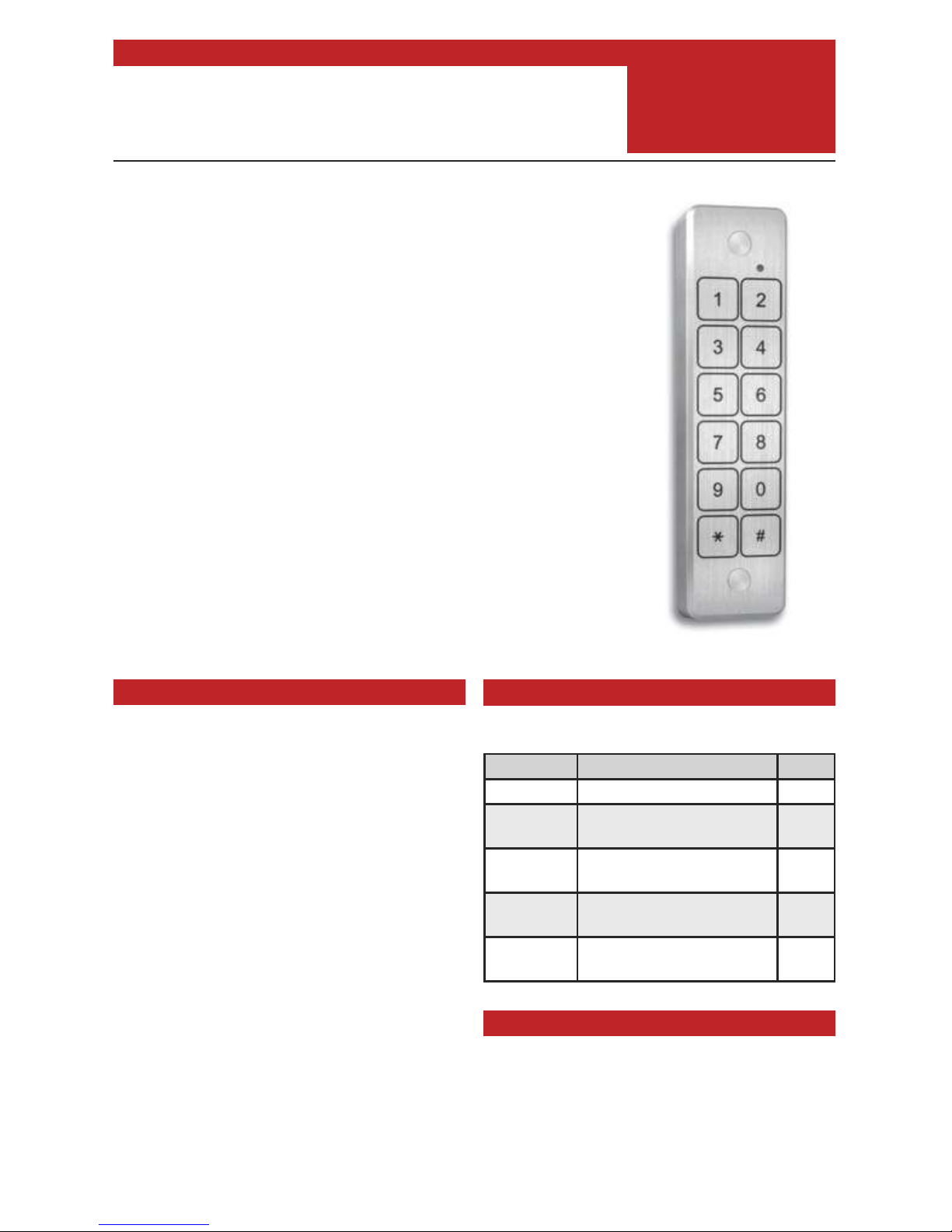

The PRX-4 Keypad with Wiegand output allows keyless entry
for select Viking apartment or office entry systems. The PRX-
4Keypad features standard 26-bit Wiegand interfacing, a metal
enclosure with potted electronics and a pigtail connection for
indoor or outdoor applications.
The Keypad interfaces with the AES-2000 Accessible Entry
System. Up to 32 entry points with PRX-4 Keypads may be
added to the AES-2000 by adding ES-3 Controllers.
Alternatively, the PRX-4 can be used with the ES-1 Stand Alone
Door Entry Controller, and the C-4000 Four Door Entry Con-
troller.
The PRX-4 is equipped with Enhanced Weather Protection
(EWP) for outdoor installations where the unit is exposed to
precipitation or condensation. The PRX-4 features a foam rub-
ber gasket, sealed connections, as well as an epoxy potted cir-
cuit board. For more information, see DOD# 859.
• Standard 26-bit Wiegand interface
• Designed for outdoor use, the PRX-4
comes standard with Enhanced
Weather Protection (EWP)
• PRX-4 is designed to meet IP66 Ingress
Protection Rating (see DOD# 859)
• Pigtail connection for easy installation
• Bi-color LED shows activity
• Screw protection caps
• Beep tones acknowledge key strokes
• Programmable Facility Code stored in
non-volatile memory (no batteries re-
quired)
• Compatible with these Viking products:
Power: 12-28V DC, 30mA - average
Dimensions: 7.1” x 1.7” x 0.5” (181mm x
43mm x 20mm)
Shipping weight: 1 lb (0.45 kg)
Environmental: -40° F to 158° F (-40° C to
70° C) with up to 100% humidity
Connections: 8” long pigtail leads, 22 gauge
PRX-4
Keypad with
Wiegand Output
December 16, 2016
Applications
Specifications
www.vikingelectronics.com
Information: (715) 386-8861
VIKING
Model Description DOD#
AES-2000 Accessible Entry System 202
AES-2005 Accessible Video Entry
System 204
C-4000 Apartment / Office Entry
Controller 164
ES-1 Stand Alone Keyless Entry
System 193
ES-3 Entry System Door Con-
troller 195
Installation
Apartment Entry System with Accessibility Features
The AES-2000 Accessible Entry System provides both audio and visual
assistance for those with disabilities. The LCD display with large 1/2” tall
characters is back-lit and will display a directory of tenants as well as di-
rections and prompts. The unit is available in AES-2000F flush mount
and AES-2000S surface mount, see DOD# 202. Models also available
with a built in video camera: AES-2005F and AES-2005S, see DOD# 204.
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC
outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.
Black
Red
Green
White
Violet
GND
12-28V DC
Data 0
Data 1
Earth
Ground
To Compatible
Viking Product
(Options shown below)
Note: Keep unused
leads from shorting.
Compatible Viking Products
Provide 4 Door Entry Points with Keyless Entry, or
Optional Card Readers, for up to 250 Apartments or Offices
The C-4000 converts any four touch tone phones into multi-number auto
dialers that will store up to 250 telephone numbers in non-volatile memory.
When a call initiated by the C-4000 is answered by an apartment or busi-
ness tenant, a built-in contact closure may be activated to control an elec-
tric gate or door strike. See DOD# 164 for more info.
Stand Alone Door Controller Entry System
The ES-1 is a door controller designed to operate a door strike or mag-
netic lock upon receiving a valid card read and/or keyless entry code from
Wiegand devices. One ES-1, one or two Wiegand devices and a door
strike or magnetic lock of your choice is required for each entry point. All
programming is done with a local touch tone phone and is stored in non-
volatile memory. See DOD# 193 for more information.
Add Up To 32 Access Entry Points to an AES-2000
Up to 32 additional points of entry can be added to Viking’s model AES-
2000 Accessible Entry System. One ES-3, one Wiegand device and a
door strike or magnetic lock of your choice is required for each additional
entry point. The ES-3 is an entry system door controller designed to op-
erate a door strike or magnetic lock upon receiving a valid card read from
a Wiegand device. See DOD# 195 for more information.
Operation
Programming
The red LED on the front of the PRX-4 will light steady to show the keypad is powered up,
and blink yellow with each key stroke. A beep tone will also acknowledge each time a key
is pressed. To gain access, enter the keyless entry code, followed by the “#” key.
Important: 26-bit Wiegand data limits the entry code range from 00001 to 65534.
Warning: Do not program the Viking ES-1, C-4000, AES-2000 or any other entry system
to accept code number 65535. The PRX-4 keypad outputs 65535 as an error code. An
error code is given if one of these three sequences happen:
1. Pressing the “#” key with no preceding digits.
2. Pressing any number of only zeros prior to pressing the “#” key.
3. Pressing 65535 or any number above 65535.
The PRX-4 is factory programmed with the facility code cleared (000). To program a facility
code, press “Q” during the first 3 seconds from when the unit powers up. Then (within 10
seconds) enter any number 000 to 255 as its facility code, followed by “#”.
Printed in the U.S.A.DOD# 199
ZF301970 Rev D
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking
Electronics, and its affiliates and/or subsidiaries assume no responsibility for errors and omissions contained in this information. Revi-
sions of this document or new editions of it may be issued to incorporate such changes.
Product Support: (715) 386-8666
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666
