Vision Fitness R2200HRT User manual

Owner’s
Guide
R2200HRT, R2200,
E3200HRT, AND E3200
FITNESS CYCLES

ongratulations on choosing a VISION FITNESS Bike. You’ve taken an
important step in developing and sustaining an exercise program! Your
Bike is a tremendously effective tool for achieving your personal fitness
goals. Regular use of your Bike can improve the quality of your life in so
many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help In Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new Bike will help you eliminate the obstacles that prevent you from
getting in your exercise time. Snow and rain and darkness won't interfere
with your workout when you have your Bike in the comfort of your home.
This Owner’s Guide provides you with basic information on starting an
exercise program. A more complete knowledge of your new Bike will
assist you in realizing your goal of a healthy lifestyle.
Some kinds of service to your Bike should only be performed by your
VISION FITNESS retailer. Please contact your authorized VISION FITNESS
retailer should service be required. If a question or problem arises which
cannot be handled by your VISION FITNESS retailer, please contact us:
VISION FITNESS
500 South CP Avenue
P.O. Box 280
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

SAFETY INSTRUCTIONS . . . . . . . . . . 4
ASSEMBLY & MOVING . . . . . . . . . . . 6
PLACEMENT & STABILIZING . . . . . . . 7
SEAT ADJUSTMENTS . . . . . . . . . . . . 8
PEDAL STRAP ADJUSTMENT . . . . . . .10
CONTACT HEART RATE . . . . . . . . . . .11
ENGINEERING MODE . . . . . . . . . . . .35
TROUBLESHOOTING:
BIKES . . . . . . . . . . . . . . . . . . . . . 36
HEART RATE MONITOR . . . . . . . . . . 39
COMMON QUESTIONS . . . . . . . . . . 28
HOME WARRANTY . . . . . . . . . . . . . 40
CORPORATE WARRANTY . . . . . . . . . 42
DEVELOPING FITNESS PROGRAM . . . 44
EXERCISE GUIDELINES . . . . . . . . . . 45
TARGET HEART RATE . . . . . . . . . . . . 46
RATE OF PERCEIVED EXERTION . . . . 47
BALANCED FITNESS . . . . . . . . . . . .48
STRETCHING . . . . . . . . . . . . . . . . .49
WEEKLY WORKOUT LOGS . . . . . . . . 52
MONTHLY WORKOUT LOGS . . . . . . 54
ALL MODELS
GENERAL
Table of Contents
ALL MODELS R2200 E3200 R2200HRT E3200HRT GENERAL
PROGRAM OVERVIEWS . . . . . . . . . 28
USING THE PROGRAMS . . . . . . . . . 30
ENTERING TIME, WEIGHT, LEVEL . . . 31
USING THE SPRINT 8 PROGRAM . . . 32
USING THE RACE PROGRAM . . . . . . 33
SET PACER SPEED . . . . . . . . . . . . . .34
CONSOLE
R2200
E3200
DISPLAY CONSOLE OVERVIEW . . . . 12
DISPLAY CONSOLE DESCRIPTIONS . .13
PROGRAM OVERVIEWS . . . . . . . . . 16
USING THE PROGRAMS . . . . . . . . . 20
ENTERING TIME, WEIGHT, & LEVEL . 21
USING THE SPRINT 8 PROGRAM . . . 22
USING HEART RATE TRAINING . . . . . 23
USING THE HEART RATE STRAP . . . . 24
ALL HRT®PROGRAMS . . . . . . . . . . .25
USING CUSTOM PROGRAMS . . . . . .27
CONSOLE
E3200HRT
R2200HRT

2
R2200HRT R2200
FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
SEMI-RECUMBENT FITNESS CYCLES
REAR FOOT
R2200HRT
R2200
SEAT
HANDLEBARS
CONSOLE MAST
HANDLEBARS
CONSOLE
MAST

3
E3200 E3200HRT
FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
REAR FOOT
E3200HRT
UPRIGHT FITNESS CYCLES
E3200
MULTI-POSITION
HANDLEBARS
CONSOLE
MAST SEAT
POST

4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Only use attachments recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Bike sidecovers. Service should be performed only by
an authorized VISION FITNESS retailer.
• Never operate this Bike if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or if it is immersed in water.
Return the Bike to a retailer for examination and repair.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS Bike.
• Never place the power cord under carpeting or place any object on
top of the power cord that may pinch and damage it.
• Unplug your Bike before moving it.
CHILDREN
• Keep children off of your Bike at all times.
• When the Bike is in use, young children and pets should be kept at least
10 feet away.
WARNING!
ALL MODELS

5
OTHER SAFETY TIPS FOR YOUR VISION FITNESS BIKE
CAUTION! If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the Bike.
• Read this Owner’s Guide before operating this Bike.
• Drink plenty of fluids during your workout.
CLEANING
• Clean with soap and slightly damp cloth only; never use solvents.
ALL MODELS

ALL MODELS
6
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Bike. If you have elected to assemble this product
yourself, for your safety, please read and follow each of the steps in the
enclosed assembly instructions. If you have any questions regarding any
component or function of your Bike, contact your retailer.
MOVING

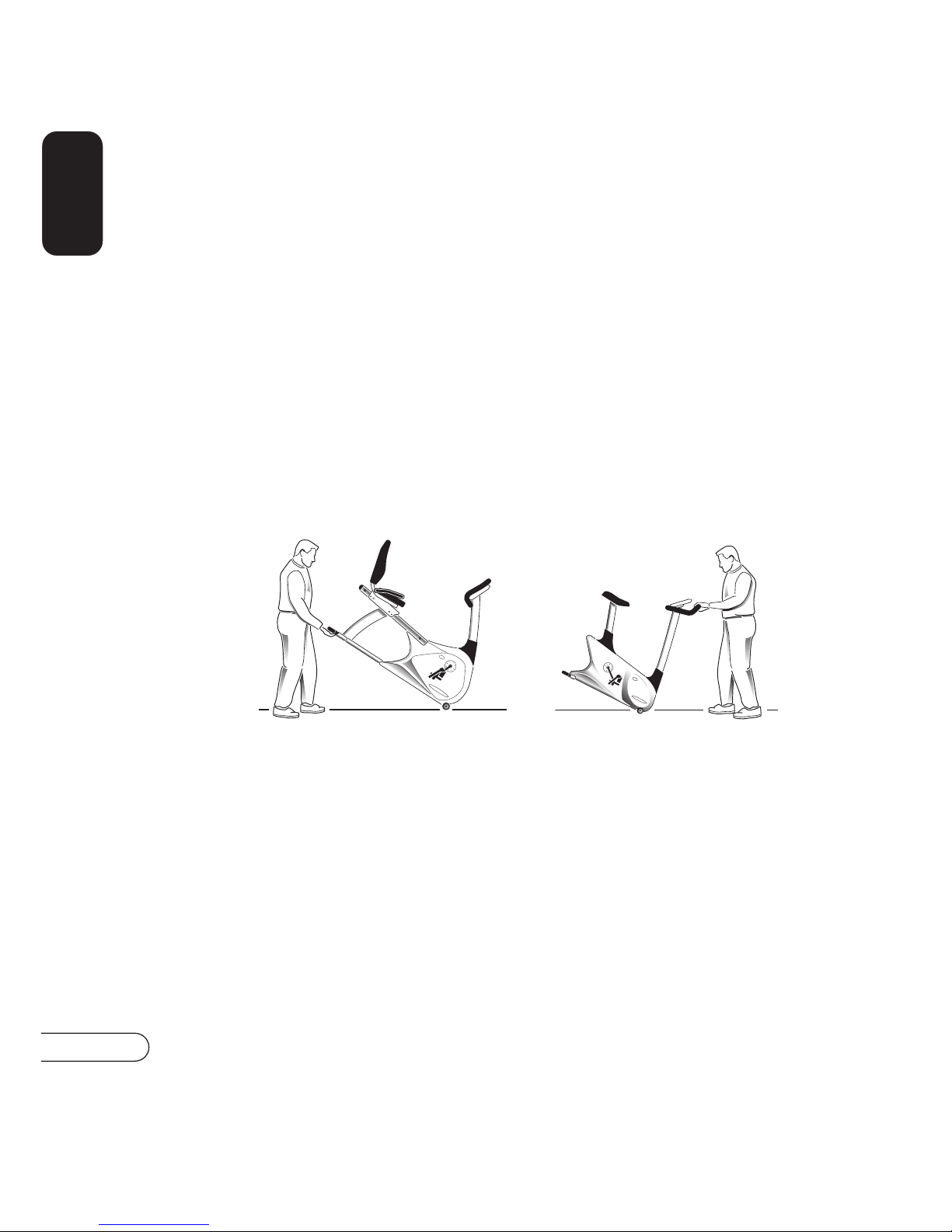

Your VISION FITNESS Bike has transport wheels included for ease of
mobility. To move your semi-recumbent Bike, firmly grasp the rear of the
seat rail or the rear of the frame assembly. Carefully lift and roll on the
transport wheels. To move your upright Bike, firmly grasp the handlebars,
carefully tip toward you, and roll on the transport wheels.
CAUTION: Our Bikes are well-built and heavy, weighing up to 140 lbs.! Use
care and additional help if necessary.

ALL MODELS
7
STABILIZING THE BIKE
After positioning the Bike in its
intended location, check its
stability by attempting to rock it
side to side. Rocking or wobbling
indicates that your Bike needs to
be leveled. Determine which
leveler is not resting completely on
the floor. Loosen the wing nut to
the base of the leveler to allow the
leveler to rotate. Now rotate the
leveler to the left or right until the
Bike is stable. Lock the adjustment
by tightening the wing nut against
the rear foot support.
PLACEMENT IN YOUR HOME
Please follow the safety instructions to place the Bike in the location where
it will best be used. It is important that you place your Bike in a
comfortable and inviting room. Avoid putting your Bike in an unfinished
basement or undesirable setting. Exercise adherence will be achieved
only if you exercise in an attractive setting.

8
E3200 R2200 E3200HRT R2200HRT
UPRIGHT SEAT ADJUSTMENT

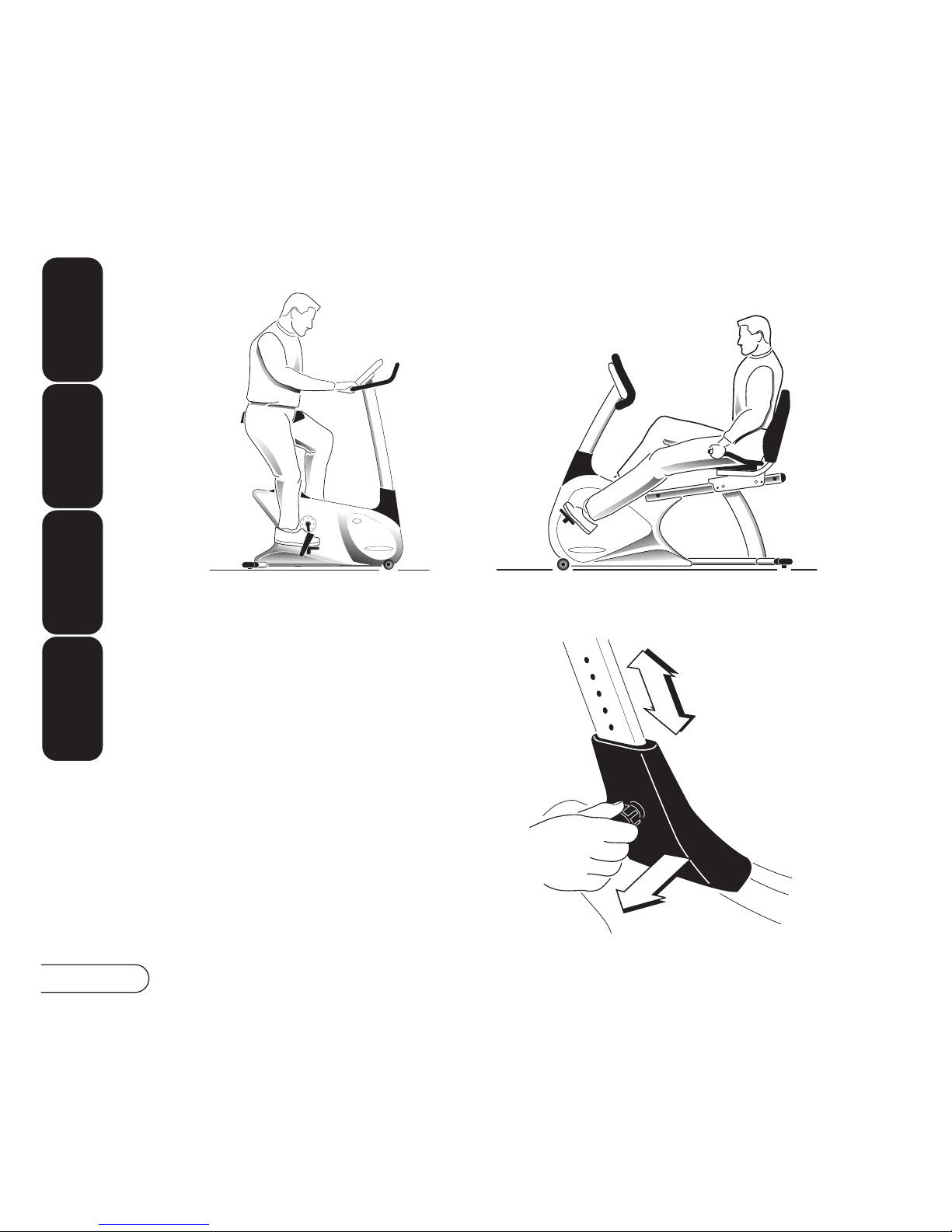

This Bike features a locking seat
adjustment pin to easily and safely
adjust the seat height. To adjust,
loosen the adjustment knob by
turning it two half turns counter-
clockwise. Pull out the knob to
unlock the post, and adjust the
post up or down to the desired
setting. Release the knob to lock in
place. Turn the knob clockwise
until tightened. Please check to be
sure seat post is locked in place
before each use.
SEAT POSITIONING
To determine proper seat position, sit on the seat and position the ball of
your foot on the center of the pedal. Your knee should bend slightly at the
furthest pedal position. You should be able to pedal without locking your
knees or shifting your weight from side to side.

9
R2200HRT R2200
SEMI-RECUMBENT SEAT ADJUSTMENT
While seated on the Bike, lift the
spring loaded seat lever on the
right side of the seat to make
adjustments. Slide the seat forward
or backward to desired location.
Release the spring loaded seat
lever and gently attempt to rock
forward and backward to assure it
is locked in place.
LUMBAR ADJUSTABLE SEAT R2200HRT
One of the principal reasons people do not exercise is because it is
uncomfortable for them. On the Semi-Recumbent Bike, the component that
has the largest impact on comfort is the seat. If your seat is comfortable,
you are more likely to finish your workouts and achieve your fitness goals.
With the Vision Fitness lumbar control system, you can adjust the lumbar
support specifically for your needs. This will allow a longer, more
comfortable workout and will help you achieve your goals sooner.
To adjust the lumbar support,
simply turn the knob located near the
bottom of the backrest on the seat:
to
increase the lumbar support,
turn the knob in a
clockwise
direction; to decrease support,
turn the knob in a
counter-
clockwise
direction.

10
ALL MODELS
PEDAL STRAP ADJUSTMENT

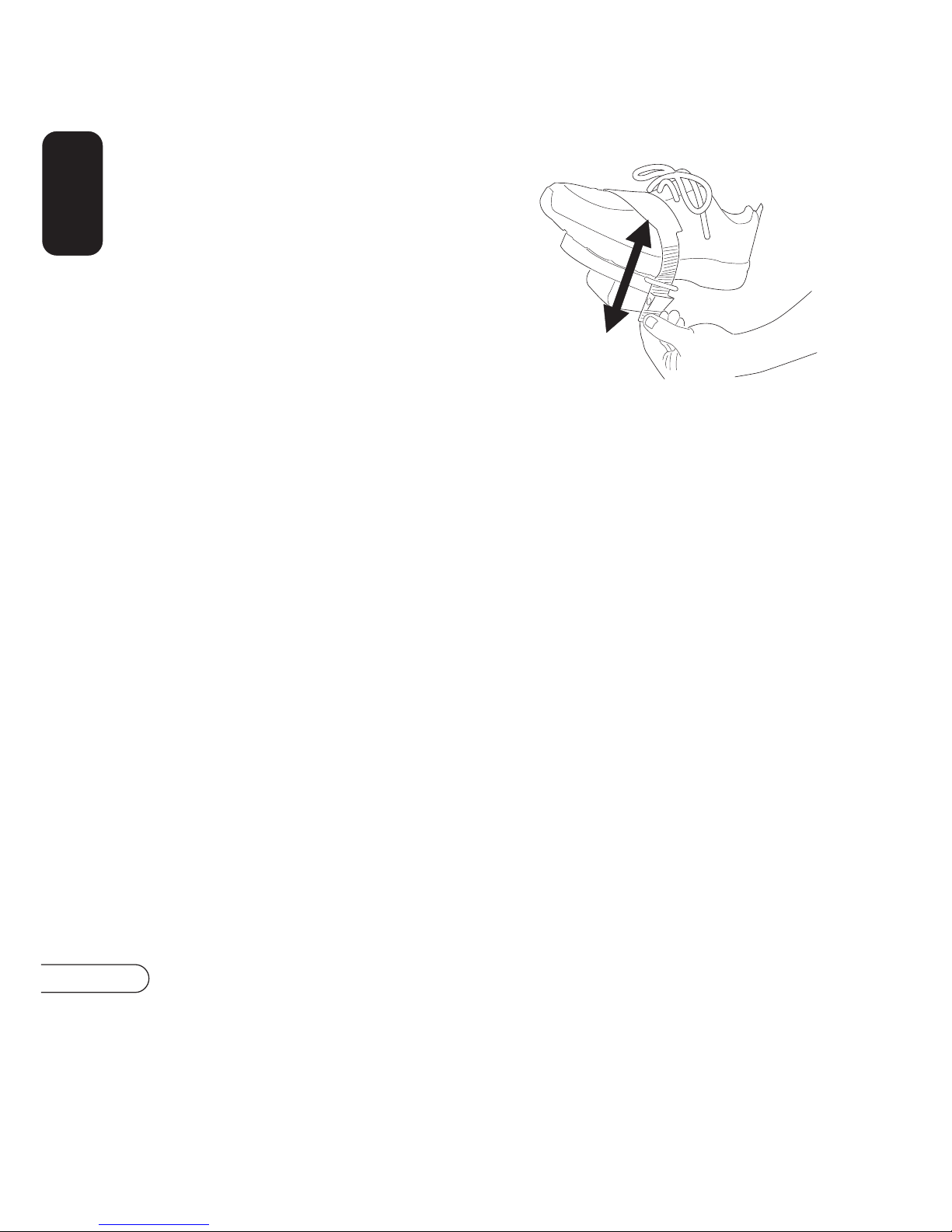

The straps are designed to fit your
individual foot size and should be
adjusted tight enough to keep your
feet from slipping. The pedals
include spring-loaded clips for
easy adjustment. To tighten the
strap, pull down the open end of
the strap. To loosen the strap, push
down on the top of the clip and
pull the strap up. Release the clip
to lock in place.
POWER SUPPLY
Your Bike uses a wall mount external power supply. Use only the power supply
provided with your Bike. If you misplace this power supply, please contact
your authorized VISION FITNESS retailer for an original replacement. Use of
the wrong power supply may cause damage to your Bike.

11
ALL MODELS
CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS

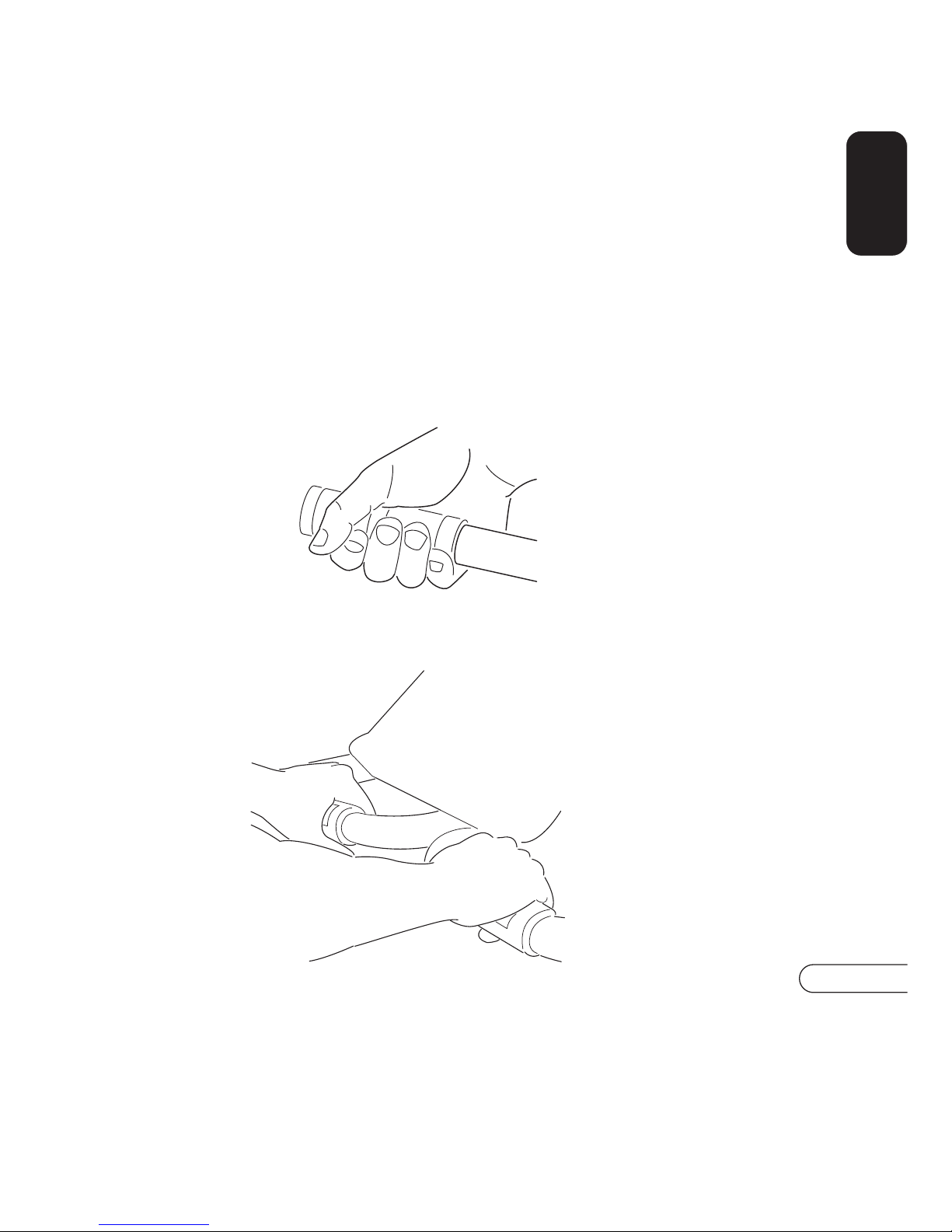

The Contact Hand Pulse Sensors are included on each product to monitor
your heart rate. To use, grasp the sensors with a comfortable grip during
your workout. The console will display your heart rate. Although your
signal will be displayed immediately, it may take the system a few seconds
to zero in on your actual heart rate.

12
E3200HRT R2200HRT
DISPLAY CONSOLE
DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to select a workout that meets
their desired fitness goals. It also allows the user to monitor the progress
and feedback of each workout so they can track improvements in overall
fitness over time.
ABC
D
EG
F

13
R2200HRT E3200HRT
DISPLAY CONSOLE DESCRIPTIONS
A. START/HOLD TO RESET
Press the START key to begin a MANUAL workout immediately without
having to set individual information. When the program begins you have
the ability to adjust resistance levels with the ARROW buttons. Feedback
information will be calculated using default settings.
PAUSE: If you need to PAUSE your program during a workout, pressing
the START button will PAUSE your program for two minutes. Pressing
START will return you to your workout.
RESET: If you need to RESET the console during your workout, you can
do so by holding down the START button for three seconds or until the
display resets.
B. ENTER/HOLD TO SCAN
This button is used after entering each piece of information in set-up
such as Age, Weight, or Level.
SCAN: When exercising in a program, pressing the ENTER button will
allow you to SCAN the feedback display views. This is true for both
the large message/feedback window and the Heart Rate feedback
window. If you hold down the ENTER button for three seconds during
your workout, the SCAN function will automatically alternate
feedback display views.
C. LEVEL ARROW BUTTONS
These buttons are used to change values in set-up mode prior to your workout.
During your workout, they are used to change workout levels. In HRT
programs, they are used to change your target heart rate.
D. PROGRAM BUTTONS
These buttons provide quick access to your favorite workouts. There is
no need to scroll through the programs to find the one you want.
Simply press the program button and begin user set-up.
CHANGE ON THE FLY: You can change your program on the fly by simply
pressing another program button.

14
E3200HRT R2200HRT
DISPLAY CONSOLE DESCRIPTIONS
E. PROFILE DISPLAY
This window provides a dot matrix profile of the workout segments
you are about to complete or have completed and the level of
resistance for each segment.
F. MESSAGE/FEEDBACK WINDOW
This window provides step-by-step instructions in the set-up mode,
instructions, feedback or motivational messages during your workout; and
congratulations and feedback information at the end of your workout.
FEEDBACK:
During your workout, this window displays exercise feedback about
your workout, including:
TIME: the time elapsed or the time remaining in your workout.
SPEED: the pedaling speed in miles or kilometers per hour.
DISTANCE: the total distance traveled in miles or kilometers since
the start of your workout.
RPM: the pedal rate or Revolutions Per Minute (RPM).
WATTS: A measurement of workload; one watt is equal to six
kilogram-meters per minute.
CALORIES: an estimate of calories burned since the beginning of
the workout.
LEVEL: the current resistance level of your workout.
METS: a measurement of oxygen consumption; one MET equals
the approximate amount of oxygen consumed per minute by a
person at rest.
G. HEART RATE/HRT FEEDBACK WINDOW
This window provides feedback on your current Heart Rate and the
percent of your predicted maximum heart rate (% Heart Rate). It also
includes your Target Heart Rate when using one of the HRT®
programs on the 200HRT products.

15
R2200HRT E3200HRT
ON/OFF SWITCH Turn your Bike off if you will not use it for an extended
period of time.

16
E3200HRT R2200HRT
WEIGHT LOSS is a program designed to target
your stored body fat. This program is generally
used at a slightly lower resistance level but
runs for longer durations than other programs.
CONSTANT WATTS is a program that lets the user
exercise at a set work level. As you increase
your pedal rate (your RPM), your resistance
will decrease; as you decrease your pedal
rate, your resistance will increase.
THE 200HRT SERIES PROGRAMS
PROGRAM OVERVIEWS
MANUAL is a user-controlled program in which
the resistance remains at a set level unless you
decide to change it.
INTERVAL is an efficient workout that
strengthens your cardiovascular system by
alternating work intervals and recovery
intervals. Be sure to challenge yourself with
intense work intervals.
SPRINT 8 is an anaerobically based interval
program. It is effective in recruiting fast twitch
muscle fibers and improving athletic
performance.
