Vision Fitness R2000 User manual

Owner’s
Guide
R2000, R2100,
E3000, AND E3100
FITNESS BIKES

ongratulations on choosing a VISION FITNESS bike. You’ve taken an
important step in developing and sustaining an exercise program! Your
bike is a tremendously effective tool for achieving your personal fitness
goals. Regular use of your bike can improve the quality of your life in so
many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help In Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new bike will help you eliminate the obstacles that prevent you from
getting in your exercise time. Snow and rain and darkness won't interfere
with your workout when you have your bike in the comfort of your home.
This Owner’s Guide provides you with basic information on starting an
exercise program. A more complete knowledge of your new bike will
assist you in realizing your goal of a healthy lifestyle.
Please contact your authorized VISION FITNESS retailer should service be
required. If a question or problem arises which cannot be handled by your
VISION FITNESS retailer, please contact us:
VISION FITNESS
P.O. Box 280
500 South CP Avenue
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

SAFETY INSTRUCTIONS . . . . . . . . . . 4
ASSEMBLY, PLACEMENT, MOVING . . . 6
SEAT ADJUSTMENT . . . . . . . . . . . . . 8
PEDAL STRAP ADJUSTMENT . . . . . . . 9
CONTACT HEART RATE . . . . . . . . . . 10
SERVICE AND TROUBLESHOOTING . . 24
HOME WARRANTY . . . . . . . . . . . . . 26
DEVELOPING FITNESS PROGRAM . . . 28
EXERCISE GUIDELINES . . . . . . . . . . 29
TARGET HEART RATE . . . . . . . . . . . . 30
RATE OF PERCEIVED EXERTION . . . . 31
BALANCED FITNESS . . . . . . . . . . . . 32
STRETCHING . . . . . . . . . . . . . . . . . 33
WEEKLY WORKOUT LOGS . . . . . . . . 36
MONTHLY WORKOUT LOGS . . . . . . 38
ALL MODELS GENERAL
Table of Contents
OVERVIEW . . . . . . . . . . . . . . . . . . 12
DISPLAY CONSOLE DESCRIPTIONS . . 13
CONSOLE
R2000
E3000
OVERVIEW . . . . . . . . . . . . . . . . . . 14
DISPLAY CONSOLE DESCRIPTIONS . . 15
THE PROGRAMS . . . . . . . . . . . . . . 18
USING THE PROGRAMS . . . . . . . . . 20
DEFAULT SETTINGS . . . . . . . . . . . . 22
CONSOLE
E3100
R2100

2
R2100 R2000

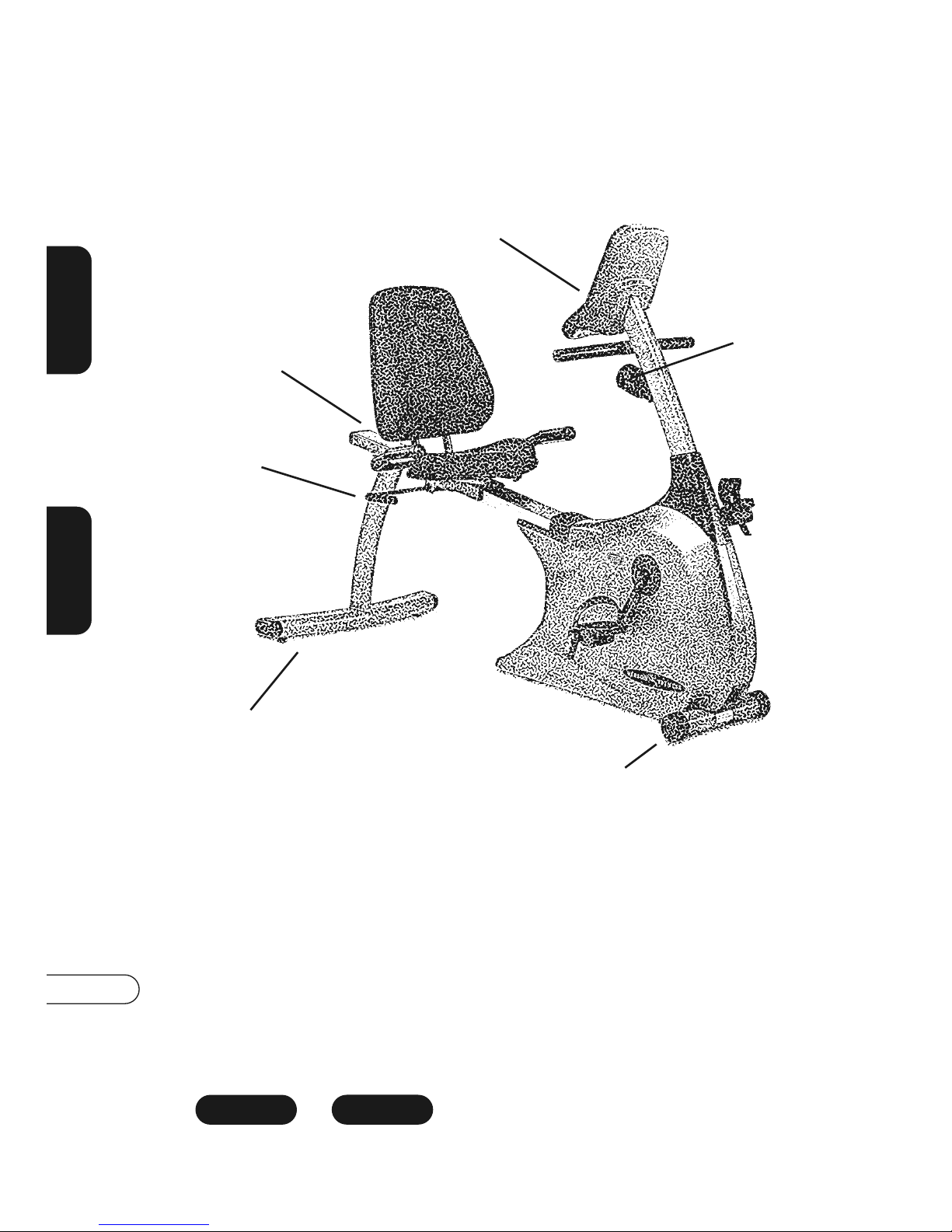

FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
SEMI-RECUMBENT FITNESS CYCLES
REAR FOOT
R2100
R2000
SEAT RAIL
TENSION KNOB

3
E3000 E3100
FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
REAR FOOT
E3100
UPRIGHT FITNESS CYCLES
E3000
TENSION KNOB

4
ALL MODELS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Do not use attachments not recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Bike sidecovers. Service should be performed only by
an authorized VISION FITNESS retailer.
R2100/E3100 ONLY
• Never operate this Bike if it has a damaged cord or plug, if it is not
working properly, if it has been damaged, or immersed in water.
Please contact your authorized VISION FITNESS retailer for service.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS Bike.
• Never place the power cord under carpeting or place any object on
top of the power cord, which may pinch and damage it.
• Unplug your Bike before moving it.
CHILDREN
• Keep children off your Bike at all times.
• When the Bike is in use, young children and pets should be kept at least
10 feet away.
WARNING!

5
ALL MODELS
OTHER SAFETY TIPS FOR YOUR VISION FITNESS BIKE
CAUTION!
If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the bike.
• Read this Owner’s Guide before operating this bike.
• Drink plenty of fluids during your workout.
CLEANING
• Clean only with soap and a slightly damp cloth; never use solvents.

6
ALL MODELS
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Bike. If you have elected to assemble this product
yourself, for your safety, please read and follow each of the steps in the
enclosed assembly instructions. If you have any questions regarding any
component or function of your Bike, contact your retailer.
MOVING
Your VISION FITNESS Bike has transport wheels included for ease of
mobility. To move your semi-recumbent Bike, firmly grasp the rear of the
seat rail or the rear of the frame assembly. Carefully lift and roll on the
transport wheels. To move your upright Bike, firmly grasp the handlebars,
carefully tip toward you, and roll on the transport wheels.
CAUTION: Our Bikes are well-built and heavy, weighing up to 140 pounds!
Use care and additional help if necessary.

7
ALL MODELS
STABILIZING THE BIKE
After positioning the Bike in its
intended location, check its
stability by attempting to rock it
side to side. Rocking or wobbling
indicates that your Bike needs to
be leveled. Determine which
leveler is not resting completely on
the floor. Loosen the wing nut to
the base of the leveler to allow the
leveler to rotate. Now rotate the
leveler to the left or right until the
Bike is stable. Lock the adjustment
by tightening the wing nut against
the rear foot support.
PLACEMENT IN YOUR HOME
Please follow the safety instructions to place the Bike in the location where
it will best be used. It is important that you place your Bike in a
comfortable and inviting room. Avoid putting your Bike in an unfinished
basement or undesirable setting. Exercise adherence will be achieved
only if you exercise in an attractive setting.
POWER SUPPLY ( MODEL R2100 OR E3100 )
Your Bike uses a wall mount external power supply. Use only the power
supply provided with your Bike. If you misplace this power supply, please
contact your authorized Vision Fitness retailer for an original replacement.
Use of the wrong power supply may cause damage to your Bike.

8
ALL MODELS
UPRIGHT SEAT ADJUSTMENT
This Bike features a locking seat
adjustment pin to easily and safely
adjust the seat height. To adjust,
loosen the adjustment knob by
turning it two half turns counter-
clockwise. Pull out the knob to
unlock the post, and adjust the
post up or down to the desired
setting. Release the knob to lock in
place. Turn the knob clockwise
until tightened. Please check to be
sure seat post is locked in place
before each use.
SEAT POSITIONING
To determine proper seat position, sit on the seat and position the ball of
your foot on the center of the pedal. Your knee should bend slightly at the
furthest pedal position. You should be able to pedal without locking your
knees or shifting your weight from side to side.

9
ALL MODELS
SEMI-RECUMBENT SEAT ADJUSTMENT
While seated on the Bike, lift the
seat lever on the right side of the
seat to make adjustments. Slide
the seat forward or backward to
desired location. Push the seat
lever down to lock in place.
PEDAL STRAP ADJUSTMENT
The straps are designed to fit your
individual foot size and should be
adjusted tight enough to keep your
feet from slipping. The pedals
include spring-loaded clips for
easy adjustment. To tighten the
strap, pull down the open end of
the strap. To loosen the strap, push
down on the top of the clip and
pull the strap up. Release the clip
to lock in place.

10
ALL MODELS
CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS

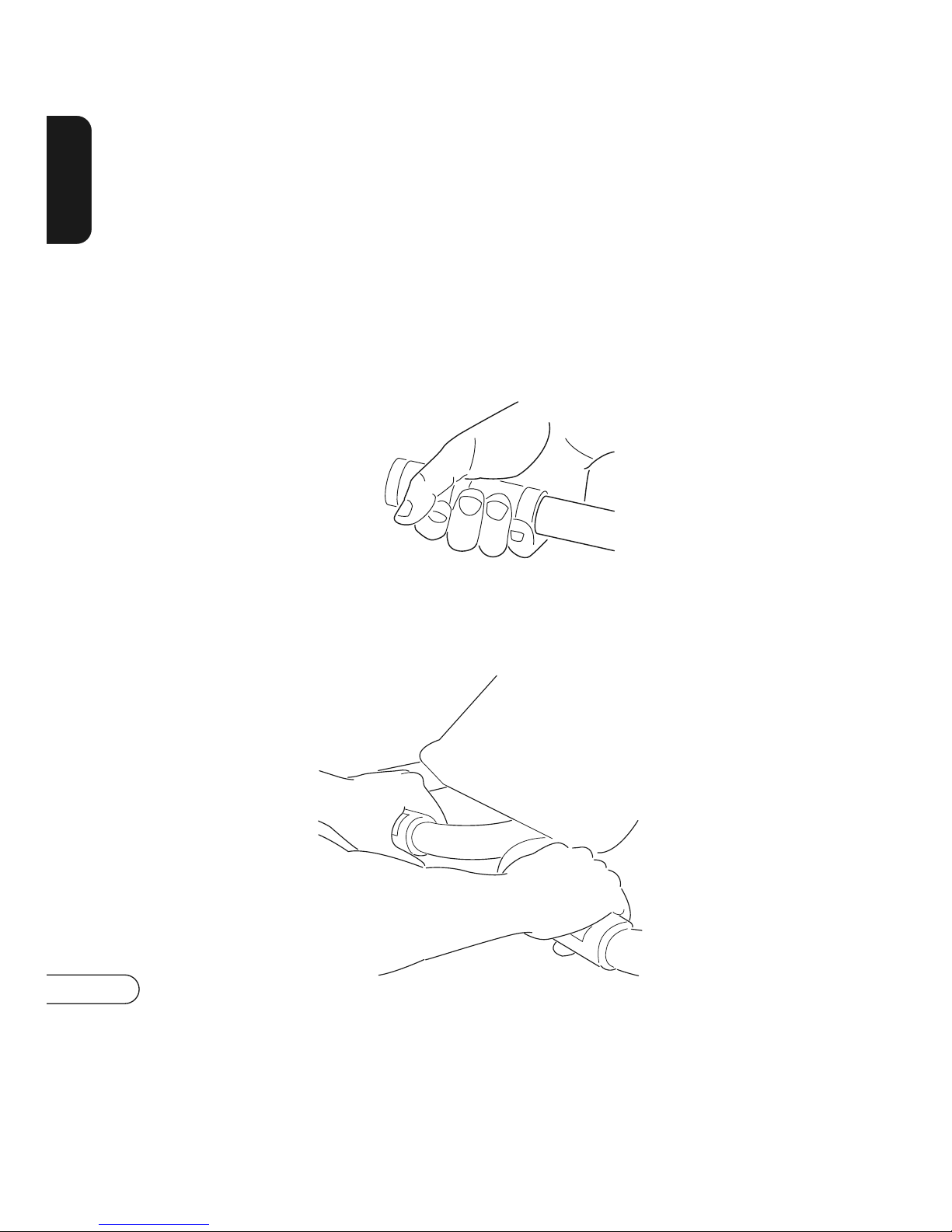

The Contact Hand Pulse Sensors are included on each product to monitor
your heart rate. To use, grasp the sensors with a comfortable grip during
your workout. The console will display your heart rate. Although your
signal will be displayed immediately, it may take the system a few seconds
to zero in on your actual heart rate.

11

12
E3000 R2000
000 SERIES CONSOLE
DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to set the workout time and
monitor exercise feedback over the duration of the workout.
A
BC
DE
F
G

13
R2000 E3000
A. BATTERY POCKET
Make sure two AA batteries are inserted prior to use. If the LCD screen
begins to fade, change the batteries.
B. BIKE OR ELLIPTICAL SWITCH
This console can be used on both products, so make sure the switch
is set to BIKE mode.
C. MILES/KILOMETER SWITCH
Changes your exercise feedback to the English or Metric system.
D. START/PAUSE/HOLD TO RESET BUTTON
Press the START button to begin exercising at the set default time.
When exercising, press the START/PAUSE button to pause your
workout. To RESET, press and hold the button for three seconds.
E. UP ▲ BUTTON
Use this button to increase exercise time.
F. DOWN ▼ BUTTON
Use this button to decrease exercise time.
G. LCD FEEDBACK DISPLAY
The LCD display provides exercise feedback during your exercise
session. Feedback is based on your pedal rate.
TIME: the time elapsed or the time remaining in your workout.
SPEED: the pedaling speed in miles or kilometers per hour.
DISTANCE: the total distance traveled in miles or kilometers since
the start of your workout.
RPM: the pedal rate or Revolutions Per Minute (RPM).
HEART RATE: displays your heart rate in beats per minute when
using the hand pulse grips.
CALORIES: an estimate of calories burned since the start of the workout.
DISPLAY CONSOLE DESCRIPTIONS

14
E3100 R2100
100 SERIES CONSOLE
DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to select a workout that meets
their desired fitness goals. It also allows the user to monitor the progress
and feedback of each workout, so they can track improvements in overall
fitness over time.
BC
A
DE
G
F
HI
J

15
R2100 E3100
DISPLAY CONSOLE DESCRIPTIONS
A. POWER SWITCH
Turn off power to your console if your bike will not be used for an
extended period of time.
B. BIKE OR ELLIPTICAL SWITCH
This console can be used on both products, so make sure the switch
is set to BIKE mode.
C. MILES/KILOMETER SWITCH
Changes your exercise feedback to the English or Metric system.
D. PROFILE DISPLAY
This window provides an 8x12 block profile of the workout segments
you are about to complete or have completed and the level of
resistance for each segment. Each column represents 1/12 of your
total workout time. Each row represents two resistance levels.
E. MESSAGE WINDOW
This window provides step-by-step instructions in the setup mode,
feedback or motivational messages during your workout, and at the
end of your workout.
F. FEEDBACK DISPLAY
During your workout, this window displays exercise feedback about
your workout, including:
TIME: the time elapsed or the time remaining in your workout.
SPEED: the pedaling speed in miles or kilometers per hour.
DISTANCE: the total distance traveled in miles or kilometers since
the start of your workout.
RPM: the pedal rate or Revolutions Per Minute (RPM).
WATTS: measurement of workload; one watt is equal to six
kilogram-meters per minute.
CALORIES: an estimate of calories burned since the start of the workout
LEVEL: the current resistance level of your workout.
HEART RATE: displays your heart rate in beats per minute when
using the hand pulse grips.

16
E3100 R2100
G. START/PAUSE/HOLD TO RESET BUTTON
Press the START button to begin exercising at the set default time. Press
START when instructed to by the scrolling LCD message center to
begin a program. When exercising, press the PAUSE button to pause
your workout. To reset press and hold the button for three seconds.
H. UP ▲ BUTTON
Use this button in setup mode to change display values. During your
workout, use this button to increase resistance.
I. DOWN ▼ BUTTON
Use this button in setup mode to change display values. During your
workout, use this button to decrease resistance.
J. ENTER BUTTON
Use this button in setup mode to select your personal settings prior to
your workout. During your workout, use this button to toggle between
Watts feedback and Level feedback.
DISPLAY CONSOLE DESCRIPTIONS (continued)
