Vitalograph copd-6 User manual

Prepare Device
1
Vitalograph® DSwitch On.
Test Result
Possible COPD
Arrows always
show best test ...
Positive:
vrefer for spirometry
vCOPD classification I to IV
Normal
Arrows always
show best test ...
Negative:
vSpirometry not required
vCOPD classification green

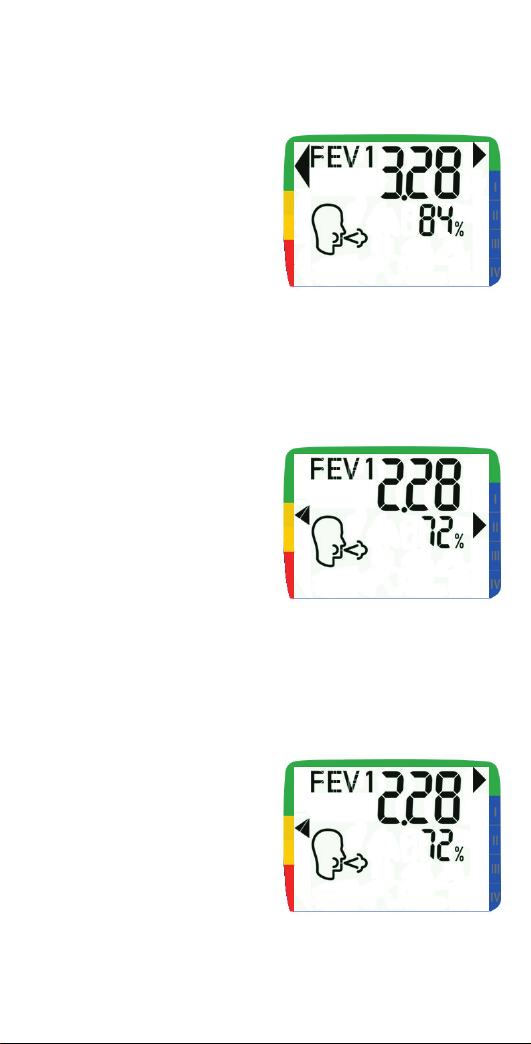

1Display shows FEV1 and % of predicted.
Displays numbers
for each blow
until
E
pressed ...
2Press Bto show FEV6, FEV1/FEV6 ratio, %
of predicted and estimated Lung Age.
Possible restriction
Arrows always
show best test ...
Obstructive
Index Low:
vrefer for spirometry
vCOPD not likely
View ParametersPerform Test
1Insert disposable SafeTway mouthpiece.
4Press Eto show best test
2Demonstrate to test subject.
vFully breathe in, hold ...
vInsert and lightly bite
the mouthpiece
vThen blow as
hard as possible
for 6 seconds
3Repeat blow 2 more times.
2Set test
subject’s age.
Press Bor C
to change age.
Press Eto set.
= Bad blow
4Set test
subject’s gender.
Press Bor C
to change gender.
Press Eto set.
3Set test
subject’s height.
Press Bor C
to change height.
Press Eto set.
Print Ref. 15005_3
Vitalograph
copd-6
COPD Screener
Quick Start Guide
www.vitalograph.co.uk
?
