Vokkero ELITE User manual

VOKKERO
VOGO
101, place Pierre Duhem,
Immeuble Les Centuries II,
34000 Montpellier, France
www.vokkero.com
VOGO NA (North America)
25 Main Street, 3rd Floor
Tuckahoe, NY 10707
www.vokkerousa.com
211426
VOKKERO ELITE FCC
User Guide Version 1.1

VOKKERO ELITE FCC | User Guide V1.1
2 / 28
• This guide describes the functionality of the system Vokkero® ELITE, options and accessories. It explains how to configure it to allow a
conference-type communication between multiple users.
• No part of this document may be reproduced or transmitted (in electronic or paper, or photocopying) without the agreement of Vokkero.
This document may be changed without notice. All trademarks mentioned in this guide are the subject of intellectual property rights Vok-
kero.
Web www.VOKKERO.com
VOGO
101, place Pierre Duhem,
Immeuble Les Centuries II,
34000 Montpellier, France
www.vokkero.com

VOKKERO ELITE FCC | User Guide V1.1
3 / 28
Table des matières
ENGLISH 4
INFORMATIONS 5
DISCLAIMER 5
TECHNICAL SUPPORT 5
INTRODUCTION 9
ENVIRONMENTAL RECOMMENDATIONS 9
WARNINGS 9
DISPOSAL OF WASTE BY USERS IN PRIVATE HOUSEHOLDS WITHIN THE EUROPEAN UNION 10
THIS SYMBOL ON THE DEVODE OR ITS PACKAGING MEANS THE USE OF A DC VOLTAGE. 10
RECOMMANDATIONS REGARDING USE FOR VO8363AAAA & VO7674AAAA 10
1. SYSTEM INSTALLATION PROCEDURE 11
2. SYSTEM DESCRIPTION 12
2.1. VOKKERO ELITE Terminal 12
2.1.1. Description of product interface 12
2.1.2. General characteristics 12

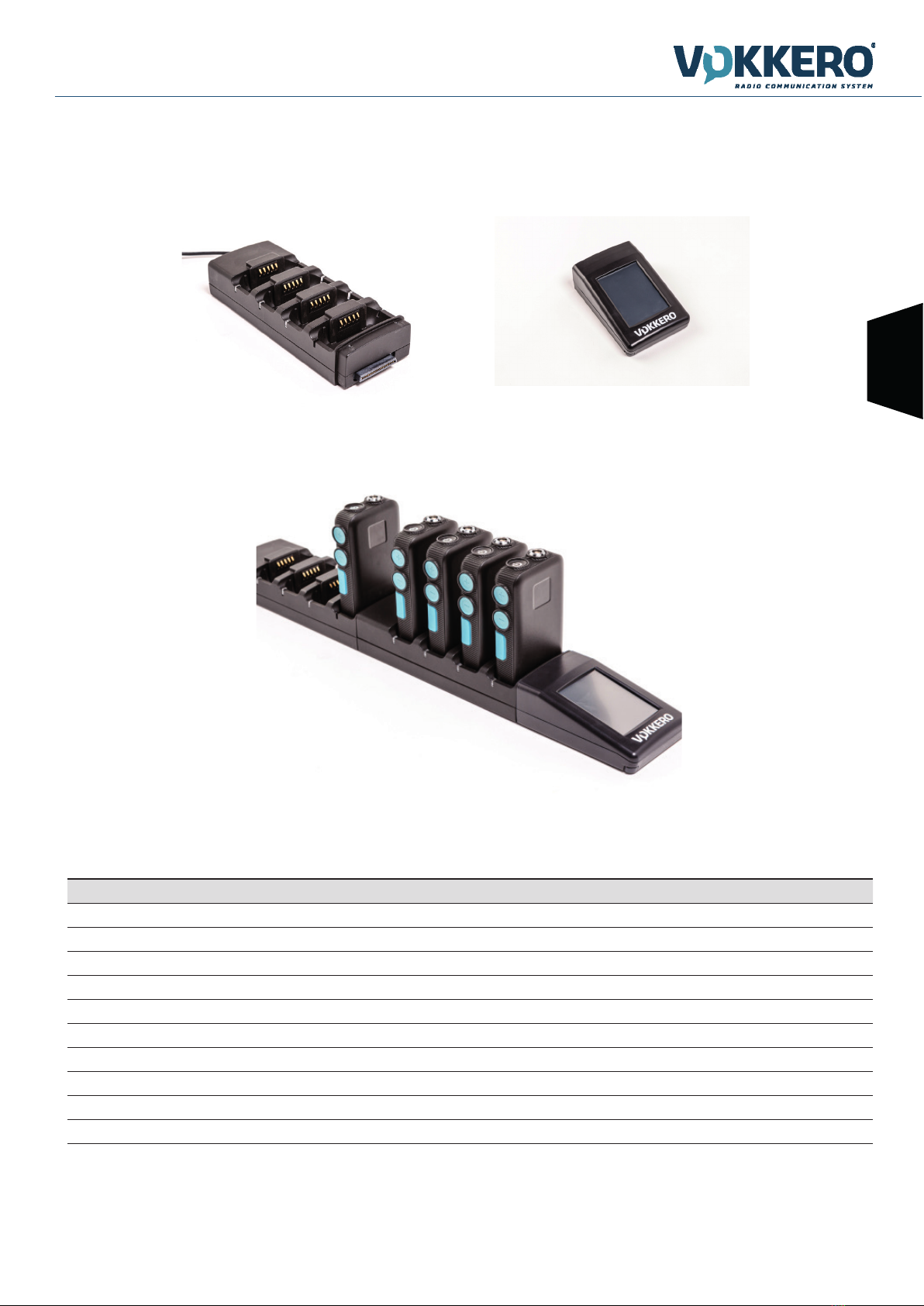

2.2. VOKKERO ELITE Charger/Configurator 13
2.2.1. Description of product interface 13
2.2.2. General Technical Specifications 13
3. QUICK START OF THE CONFERENCE 14
3.1. Setting up Audio Conference 14
3.2. Description of the terminal 14
3.3. Connecting a headset 15
3.3.1. Plugging in a headset 15
3.3.2. Removing the headset 15
3.4. Adjust Volume 15
3.5. Launch a recording 16
3.6. Locking and unlocking the terminal 16

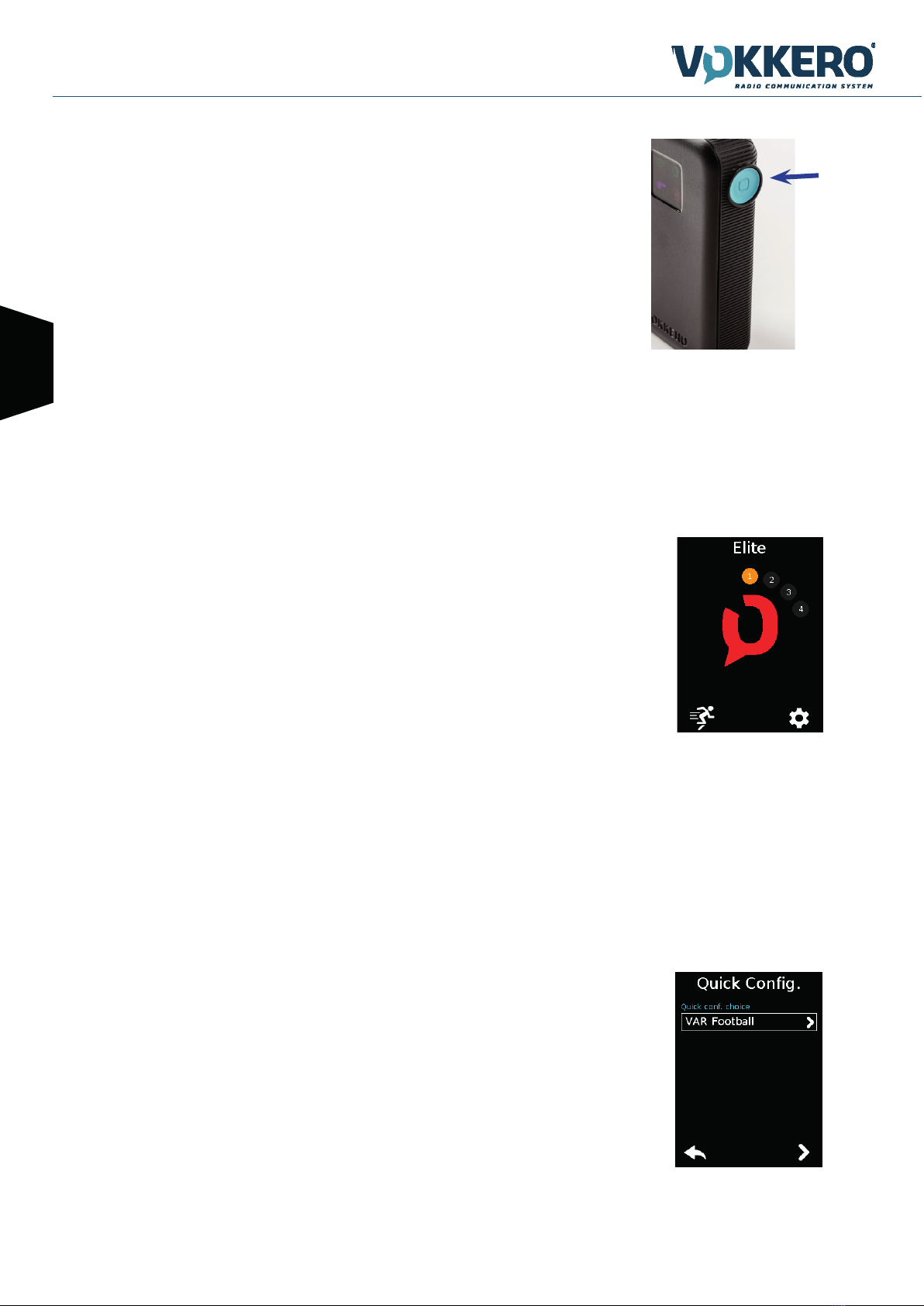

4. START AND HOME SCREEN OF THE CONFIGURATOR 16
4.1. Home Screen 16
5. QUICK CONFIG. MENU 16

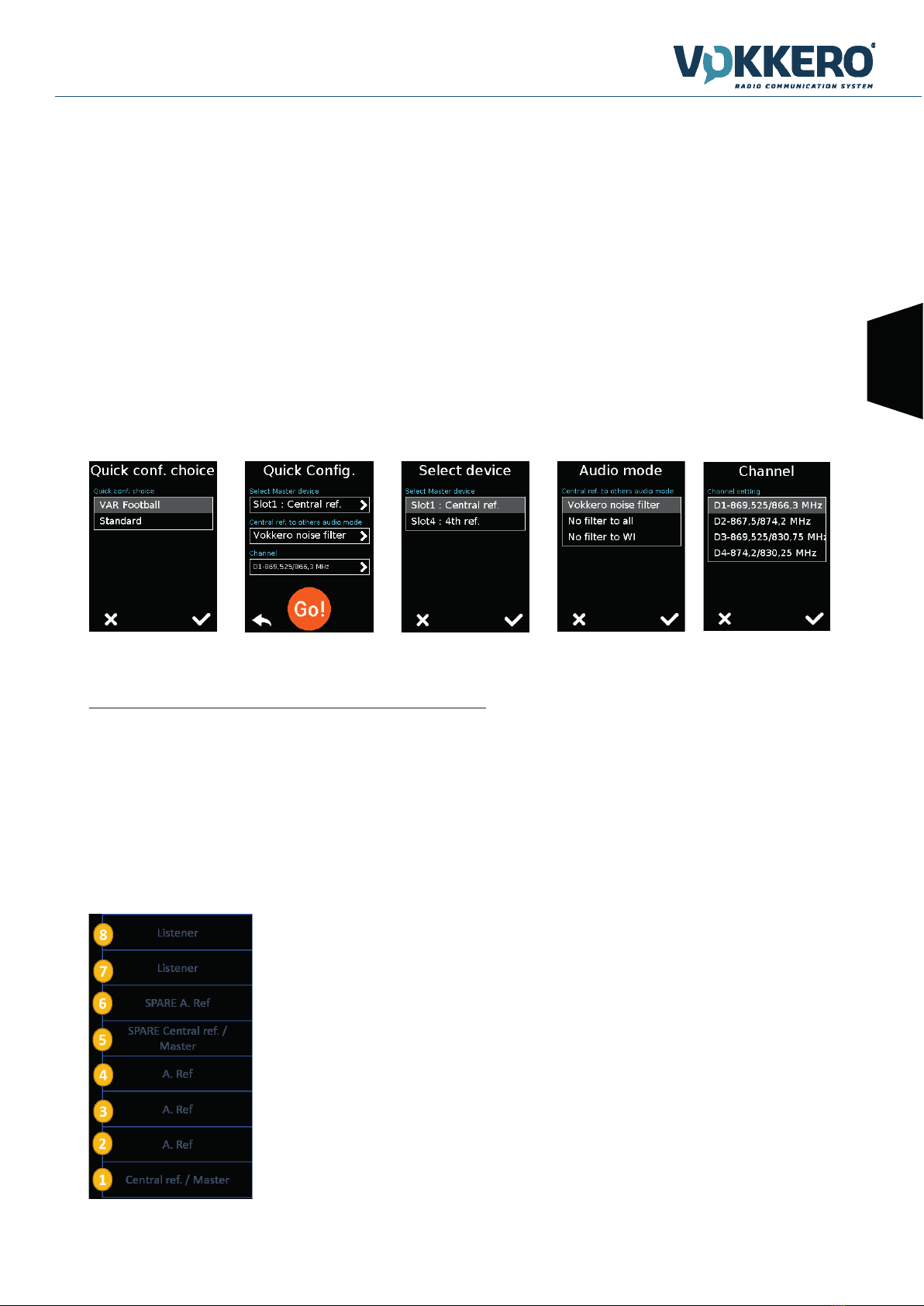

5.1. VAR Football «Quick Config.» 16
5.2. Normal “Quick Config.” 18

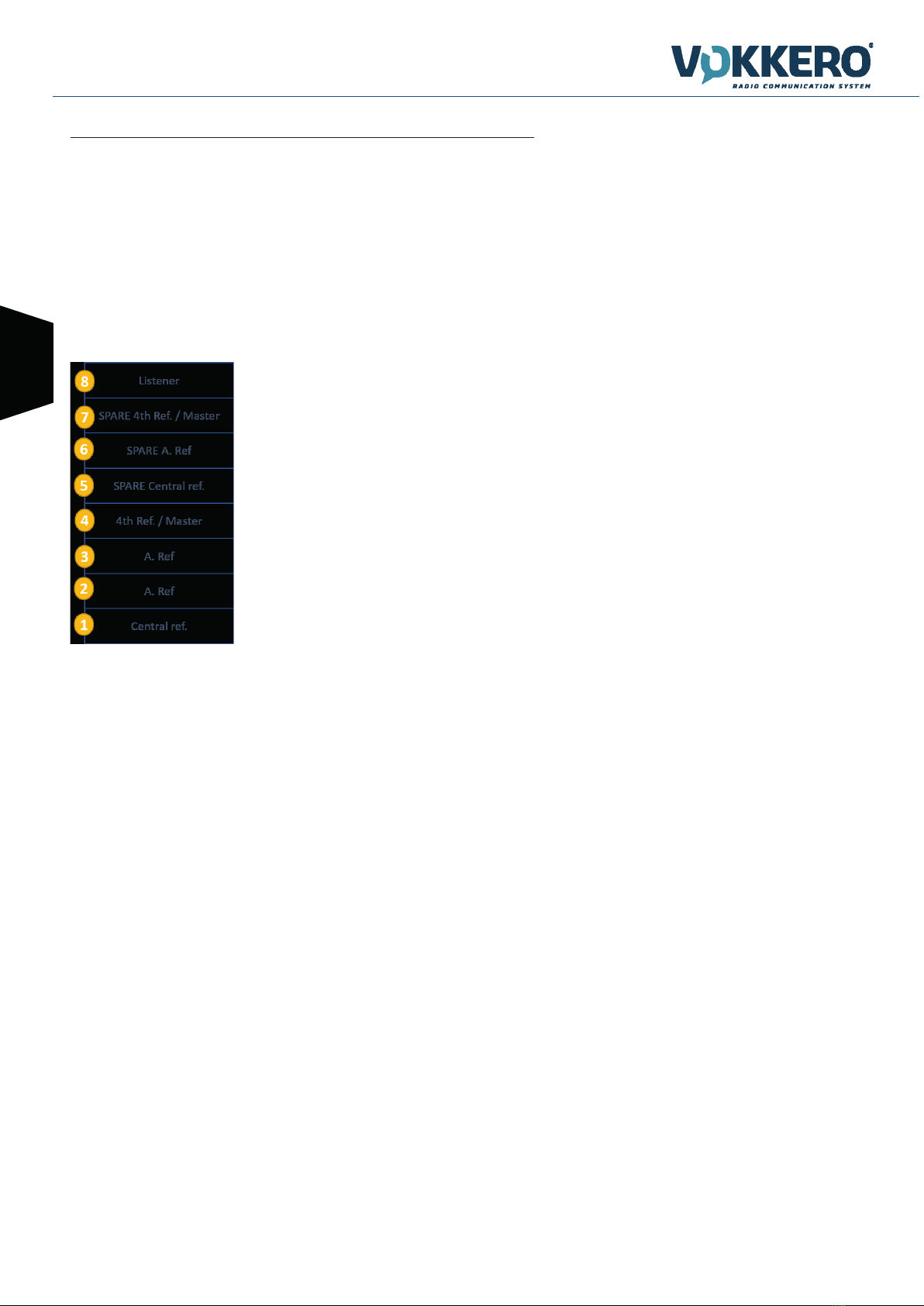

5.3. CENTRAL REF TO OTHERS AUDIO MODE 19
6. SETTINGS MENU 20

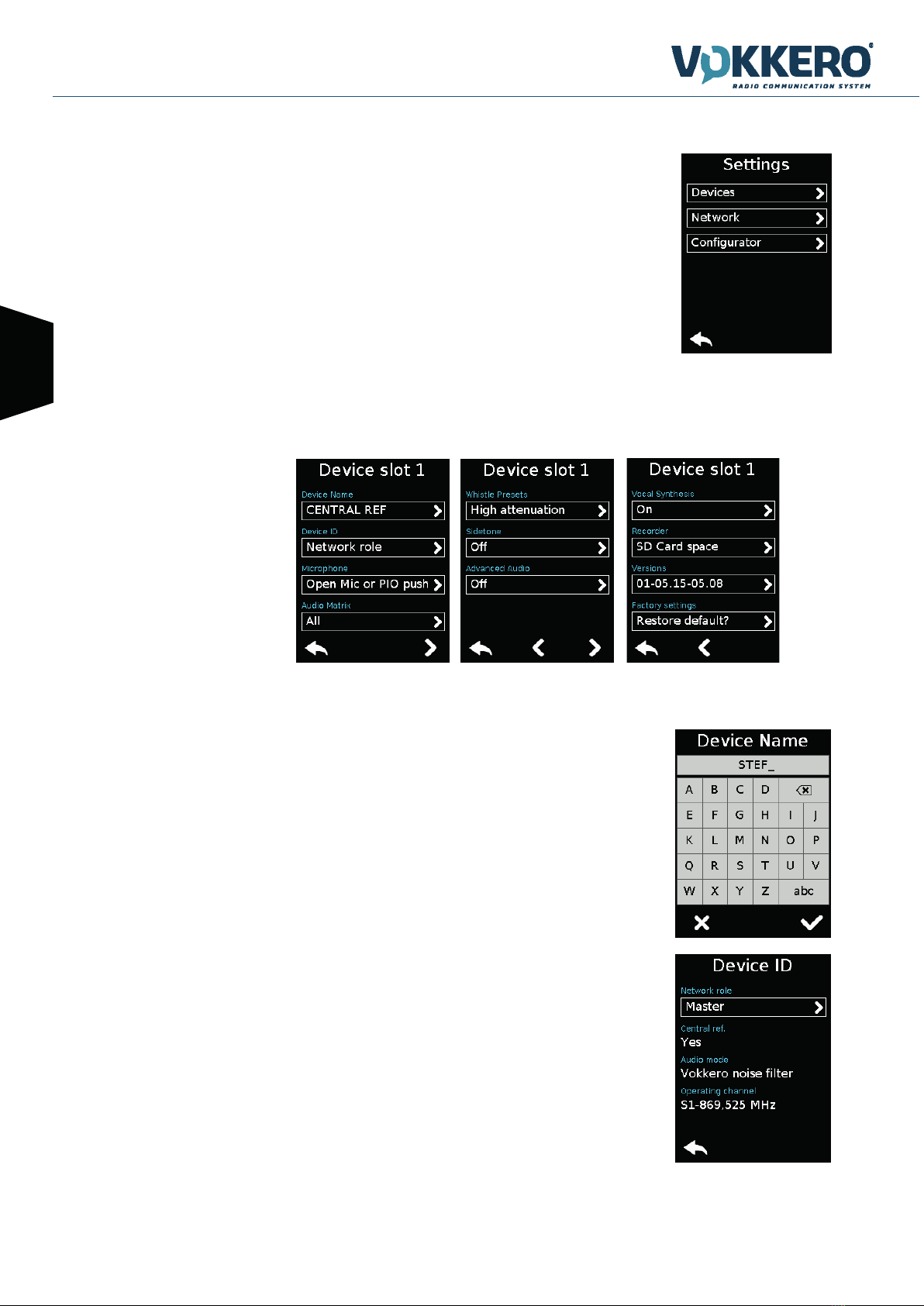

6.1. DEVICES 20
6.1.1. Terminal name 20
6.1.2. Device ID 20
6.1.3. Microphone 21
6.1.4. Audio Matrix 21
6.1.5. Whistle Presets 21
6.1.6. Sidetone 22
6.1.7. Advanced audio 22
6.1.8. Vocal Synthesis 22
6.1.9. SD Card space 23
6.1.10. Factory settings 23
6.1.11. Versions 23
6.2. SYSTEM 24
6.2.1. Channel mode 24
6.2.2. Encryption 24
6.2.3. Software 25
6.3. CONFIGURATOR 26
6.3.1. Backlight 26
6.3.2. Screen calibration 26
6.3.3. Locking 26
6.3.4. Versions / Software 26
DOCUMENT HISTORY 27

VOKKERO ELITE FCC | User Guide V1.1
4 / 28
EN
ENGLISH

5 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
INFORMATIONS
Document Information
Title VOKKERO ELITE FCC
Subtitle ELITE
Document type User Guide
Version Version 1.1
This document applies to the following products:
Name Reference
VOKKERO ELITE FCC - ELITE From : VO8364AA
VOKKERO ELITE - Configurator From : VO7674AA
VOKKERO ELITE - Charger From : VO8363AA
DISCLAIMER
This document and the use of any information contained therein, is subject to the acceptance of the VOK-
KERO terms and conditions. They can be downloaded from www.vokkero.com
VOKKERO makes no warranties based on the accuracy or completeness of the contents of this document
and reserves the right to make changes to specifications and product descriptions at any time without
notice.
VOKKERO reserves all rights to this document and the information contained herein. Reproduction, use or
disclosure to third parties without express permission is strictly prohibited. Copyright © 2016, VOKKERO.
VOKKERO is a registered trademark in the EU and other countries.
TECHNICAL SUPPORT
Website
Our website contains a lot of useful information: information on modules and wireless modems, user
guides, and configuration software and technical documents which can be accessed 24 hours a day.
If you have technical problems or cannot find the required information in the provided documents, contact
our Technical Support on our website: www.vokkero.com. This ensures that your request will be processed
as soon as possible.
Helpful Information when Contacting Technical Support
When contacting Technical Support, please have the following information ready:
• Product type
• Firmware version (for example V1.0)
• A clear description of your question or the problem
• A short description of the application

6 / 28
COMPLIANCE TO FCC US/CAN
This device complies with part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1). this device may not cause Harmful interference, and (2).
this device must accept any interference received, including interference that may cause undesired operation of
the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radiocommunication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by VOGO could void the user’sauthority to operate the equipment.
This device is limited to operating the frequencies authorized by Part 15 and cannot be configured by end users or professional
installers to operate outside the authorized bands.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lower)
gain approved for the transmitter by Industry Canada.To reduce potential radio interference to other users, the antenna type and
its gain should be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not superior than necessary for successful
communication.
Ce dispositif est conforme aux règles de la FCC part 15 and à la norme CNR-247 d’Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
Cet équipement a été testé et déclaré conforme aux limites d’un appareil numérique de classe B, conformément à la partie 15
des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans
une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est pas installé
et utilisé conformément aux instructions, peut causer des interférences nuisibles aux radiocommunications. Il est cependant
toujours possible que des interférences se produisent dans le cadre d’une installation particulière.
Si cet appareil produit des interférences nuisibles à la réception des programmes de radio et de télévision –détectables lors de
la mise hors tension ou en tension de l’appareil-l’utilisateur est encouragé à mettre en œuvre une ou plusieurs des mesures
suivantes pour remédier à ces interférences :
- Réorienter ou déplacer l’antenne de réception.
- Augmenter la distance entre l’équipement et le récepteur.
- Branchez le matériel à une sortie sur un circuit différent de celui auquel le récepteur est branché.
- Prendre conseil auprès du commerçant ou d’un technicien de radio/TV expérimenté.
Tout changement ou modification non expressément approuvé par la partie responsable des mesures de conformité peut amener
l’utilisateur à se voir interdire l’usage de l’appareil.
Cet appareil est limité à l’exploitation des fréquences autorisées Partie 15, et ne peut pas être configuré par des utilisateurs
finaux ou des installateurs professionnels à fonctionner en dehors des bandes autorisées.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type
et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouil-
lage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance
isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.

7 / 28
FOR PORTABLE DEVICE USAGE (<20cm from body/SAR needed)
Radiation Exposure Statement:
This device complies with the FCC and ISED portable RF exposure limit set forth for an uncontrolled environment and is safe for
intended operation as described in this manual.The further RF exposure reduction can be achieved if the product can be kept
as far as possible from the user body or set the device to lower output power if such function is available. This portable equipment
with its antenna complies with FCC’s and ISED RF radiation exposure limits set forth for an uncontrolled environment. To maintain
compliance follow the instructions below:
1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2.Avoid direct contact with the antenna, or keep it to a minimum while using this equipment.
The SAR limit adopted by USA and Canada is 1.6 W/kg averaged over 1 gram of tissue. The highest SAR value reported to FCC and ISED for
this device complies with this limit.
Déclaration d’exposition aux radiations:
Le produit est conforme aux limites d’exposition FCC (Etats-Unis) et ISED (CANADA) pour les appareils portables RF établies pour un
environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction supplémentaire aux
expositions RF peut être obtenue si l’appareil peut être conservé aussi loin que possible du corps de l’utilisateur ou que le dispositif est réglé
sur la puissance de sortie la plus faible si une telle fonction est disponible.
Cet équipement portable avec son antenne est conforme aux limites d’exposition aux radiations RF de la FCC définies pour un environne-
ment non contrôlé.
Pour maintenir la conformité, suivez les instructions ci-dessous :
1. Cet émetteur ne doit pas être situé ou fonctionner conjointement avec une autre antenne ou un autre émetteur.
2. Évitez ou réduisez au minimum tout contact direct avec l’antenne pendant l’utilisation de cet équipement.
La limite de DAS adoptée par les États-Unis et le Canada est de 1,6 W / kg en moyenne sur 1 gramme de tissu. La valeur SAR la plus élevée
signalée à la FCC et à ISED pour cet appareil est conforme à cette limite.
Identification :
• FCC ID: 2AU6N-VO8364AA
• IC ID: 25704-VO8364AA
Product reference: USA/CANADA: VO8364AA
Authorised representative in Canada
ZEAT SPORTS
310-5253 Blvd Décarie - H3W 3C3 MONTREAL - CANADA
Phone : [phone]

VOKKERO ELITE FCC | User Guide V1.1
8 / 28
EN
USAGE RESTRICTIONS : THE USE OF VOKKERO ELITE IN US/CAN
IMPORTANT: Before using the device, please observe the legal provisions in force in your country.

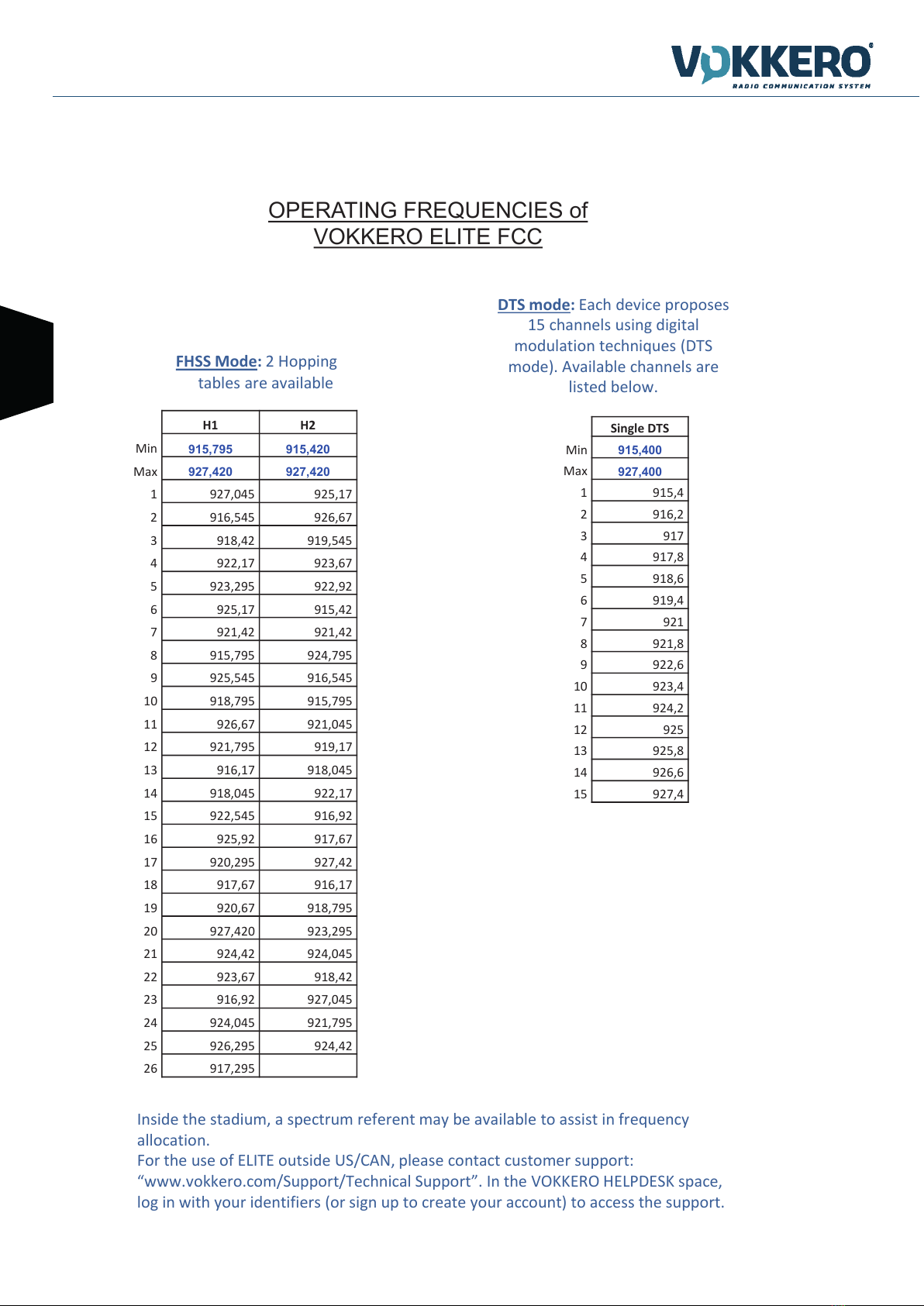

OPERATING FREQUENCIES of
VOKKERO ELITE FCC
FHSS Mode: 2 Hopping
tables are available
H1 H2
Min 915,795 915,420
Max 927,420 927,420
1927,045 925,17
2916,545 926,67
3918,42 919,545
4922,17 923,67
5923,295 922,92
6925,17 915,42
7921,42 921,42
8915,795 924,795
9925,545 916,545
10 918,795 915,795
11 926,67 921,045
12 921,795 919,17
13 916,17 918,045
14 918,045 922,17
15 922,545 916,92
16 925,92 917,67
17 920,295 927,42
18 917,67 916,17
19 920,67 918,795
20 927,420 923,295
21 924,42 924,045
22 923,67 918,42
23 916,92 927,045
24 924,045 921,795
25 926,295 924,42
26 917,295
DTS mode: Each device proposes
15 channels using digital
modulation techniques (DTS
mode). Available channels are
listed below.
Single DTS
Min 915,400
Max 927,400
1915,4
2916,2
3917
4917,8
5918,6
6919,4
7921
8921,8
9922,6
10 923,4
11 924,2
12 925
13 925,8
14 926,6
15 927,4
Inside the stadium, a spectrum referent may be available to assist in frequency
allocation.
For the use of ELITE outside US/CAN, please contact customer support:
“www.vokkero.com/Support/Technical Support”. In the VOKKERO HELPDESK space,
log in with your identifiers (or sign up to create your account) to access the support.

9 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
ENVIRONMENTAL RECOMMENDATIONS
All superfluous packaging materials have been eliminated. We have done everything possible to make it easy to separate the
packaging into three types of materials: cardboard (box), expanded polystyrene (filler material) and polyethylene (packets,
foam protective sheets). Your device is composed of materials that can be recycled and reused if it is dismantled by a specialist
company. Please observe local regulations concerning the manner in which waste packaging material, used batteries and your
obsolete equipment are disposed of.
WARNINGS
Valid for :
VOKKERO ELITE FCC - ELITE :VO8364AA
VOKKERO ELITE - Configurator : VO7674AA
VOKKERO ELITE - Charger :VO8363AA
Read the instructions in the manual.
The safety of this product is only guaranteed when it is used in accordance with its purpose.
Maintenance should only be carried out by qualified persons.
To fulfill RF exposure limit, the device VO8364AA must be worn with the armband or the belt provided by VOKKERO.
Please note: Do not install the equipment close to a heat source or in damp conditions.
Please note: When the equipment is open, do not carry out any operations other than the ones set out in this document.
Please note: Do not open the product as there is a risk of electrical shock.
Please note: For your own safety, you must ensure that the equipment is switched off before carrying out any work on it.
Please note: For your own safety, the power supply circuit must be SELV (Safety Extra Low Voltage) and must be from
limited power sources.
The product must be equipped with a switching mechanism so that the power can be cut. This must be close to the equipment.
Any electrical connection of the product must be equipped with a protection device against voltage spikes and short-circuits.
INTRODUCTION
All rights to this manual are the exclusive property of VOKKERO. All rights reserved. Copying this manual (without written permission
from the owner) via printing, copying, recording or by any other means, translating this manual (in full or partially) into any other
language, including all programming languages, using any electrical, mechanical, magnetic or optical devices, manually or any by other
methods, is prohibited.
VOKKERO reserves the right to change the technical specifications or functions of its products, or to cease manufacturing any of its
products, or to cease technical support for one of its products without notice in writing and urges its customers to make sure that the
information they have is valid.
VOKKERO configuration software and programs are available free of charge in a non-modifiable version. VOKKERO can make no
guarantees, including guarantees concerning suitability and applicability for a certain type of application. Under no circumstances can
the manufacturer, or the distributor of an VOKKERO program, be held liable for any damage caused by the use of the aforesaid program.
Program names, as well as all copyright relating to programs, are the exclusive property of VOKKERO. Any transfer, granting of licences
to a third party, leasing, hire, transport, copying, editing, translation, modification into another programming language or reverse engi-
neering are prohibited without VOKKERO’s prior written authorisation and consent. t

VOKKERO ELITE FCC | User Guide V1.1
10 / 28
EN
DISPOSAL OF WASTE BY USERS IN PRIVATE HOUSEHOLDS
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste by taking it to a collection point designated for the recycling
of electrical and electronic appliances. Separate collection and recycling of your waste at the time of disposal will contribute to
conserving natural resources and guarantee recycling that respects the environment and human health. For further information
concerning your nearest recycling centre, please contact your nearest local authority/town hall offices, your household waste
collection company or the shop where you bought the product
Warning: If the charger is used with any other batteries or products whatsoever, there is a risk of an explosion.After use,
the batteries must be disposed of at an appropriate recycling centre.They must not be thrown away to degrade in the environment.
When batteries are replaced, the device must be corectly implemented.
Warning for Switzerland : the annex 4.10 of SR 814.013 Standad must be applied for batteries.
This symbol on the devode or its packaging means the use of a DC voltage.
RECOMMANDATIONS REGARDING USE FOR VO8363AAAA & VO7674AAAA
• Before using the system, check that the power supply voltage shown in the user manual corresponds to your supply. If it
doesn’t, please consult your supplier.
• Place the device against a flat, firm and stable surface.
• The device must be installed in a location that is sufficiently ventilated so that there is no risk of internal heating and it must
not be covered with objects such as newspapers, cloths, curtains, etc.
• The device must never be exposed to heat sources such as heating equipment.
• Do not place the device close to objects with naked flames such as lit candles, blowtorches, etc.
• The device must not be exposed to harsh chemical agents or solvents likely to damage the plastic or corrode the metal
parts.

11 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
The operations described below allow you to rapidly and easily implement your VOKKERO ELITE communication system.
All the operations described are valid for all the VOKKERO ELITE terminals listed below:
VOKKER-ELITE-FCC001-ELITE FCC :VO8364AA
Note: Your product reference is given on the label on the back of the terminal housing.
The VOKKERO ELITE is a ready-to-use system with the following three main elements:
• Terminals: VOKKER-ELITE-FCC001-ELITE FCC : VO8364AA
• Configurator:VOKKERO ELITE - Configurator : VO7674AA
• Optional Charger: VOKKERO ELITE - Charger : VO8363AA
All the operating settings of the VOKKERO ELITE system are managed by the configurator which gives access to the Settings menu via a
touchscreen. The configurator must be connected to the power unit (otherwise it will not work) and up to 4 extensions can be associated
with the configurator.
1. SYSTEM INSTALLATION PROCEDURE
• Connect the power unit to the end charger (if several are connected in a row).
• Connect the power unit to the mains.
• Connect the VOKKERO ELITE terminals as shown below.
Note 1: the order and position of the terminals on the charger(s) are not of importance at that time.
Note 2: if the purpose of the operation is only to charge terminals, then the configurator is not required.
Configurator
Touchscreen for intuitive confi-
guration
Charger
Up to 4 chargers can be
chained
Power supply
connector
USB socket
for configuring ELITE WIRELESS
INTERFACE or for product updates

VOKKERO ELITE FCC | User Guide V1.1
12 / 28
EN
2. SYSTEM DESCRIPTION
2.1. VOKKERO ELITE FCC Terminal
2.1.1. Description of product interface
2.1.2. General characteristics
General Specifications Value
Supply voltage 3.7V nominal
Maximum consumption 800mA (emission)
Terminal power supply Lithium battery
Battery life More than 8 hours
Charging time 4 hours from 0 to 100% battery life
Operating temperature -20°C / +55°C
Dimensions 57 x 96 x 23 mm
Weight 130g (including battery)
On/Off button
Turns the terminal On/Off
Gives battery life
(led colour from green to orange and then to red)
Headset connector
Connect to a VOKKERO headset.
+ and – buttons
Adjust the audio volume
Function button
Set specific functionalities (recording start & stop…)
LED Screen
Gives indication on terminal
role, network reception, recorder
status…
SD card socket
Must be FAT32 format

13 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
2.2. VOKKERO ELITE FCC Charger/Configurator
2.2.1. Description of product interface
2.2.2. General Technical Specifications
Specifications Value
AC/DC Power Converter (standard) 100 to 240V 12VDC/5A - 50/60Hz
Operating temperature -5°C / +40°C
Dimensions Configurator 105x70x36
Dimensions Charger 180x70x35
Weight Configurator 100g
Weight Charger 180g
Terminal charging indicators (leds)
- Red No terminal or defective terminal
- Orange Terminal charging
- Green Terminal charged

VOKKERO ELITE FCC | User Guide V1.1
14 / 28
EN
3. QUICK START OF THE CONFERENCE
3.1. Setting up Audio Conference
The terminals are delivered pre-configured and ready-to-use. The first step consists in turning on the terminals and in particular the Master
role terminal. This role is used to synchronize the other terminals. You can recognize the Master terminal thanks to its purple network icon.
In case no terminal show the purple network icon or if several terminals shows this purple network icon, that means that you have no
Master or several Master roles in the network. In that case, the audio conference won’t work properly. Put all the terminals on the configu-
rator dock and launch a “Quick Config.”. See §5 QUICK CONFIG. MENU for more info on the different “Quick Config.”modes, options and
functionnalities.
The Master role is automatically attributed to the terminal located in the first slot of the configurator during a normal“Quick Config”.
The Master role is attributed to the terminal located either in the first slot or in the fourth slotof the configurator during a VAR
Football“Quick Config”.
With “Quick Config.”, you can rapidly reconfigure all the conference and attributes the Master role to a single terminal which is the key to
a valid VOKKERO audio conference.
With Football “Quick Config.” you can configure all terminals for VAR Football application usage. In that case, a spare Master role will be
created (and shall be of course kept shut-off if the Master is turned-on).
3.2. Description of the terminal
Press the On/Off button to turn on the terminal.
Note 1: all settings, including volume, remain unchanged when the terminal is turned off (i.e., will be identical when the terminal is turned
again).
Network icon
• Colour of the Network Icon shows the role of the terminal in the VOKKERO conference.
If icon is purple: the terminal is the MASTER of the conference (can speak and listen and gives synchronization network to others terminals).
If icon is green: the terminal is a USER of the conference (can speak and listen).
If icon is white: the terminal is a LISTENER of the conference (cannot speak, only listen).
• Status of the Network Icon shows that the terminal is connected or not to a VOKKERO conference.
If icon blink: the terminal is searching for a VOKKERO conference.
If icon is fixed: the terminal is connected to a VOKKERO conference or the terminal is the MASTER of the conference.
-------------
Central Ref icon
• If a purple whistle appears, that means that this terminal has been selected as a Central Ref product (whatever its Network role, MASTER

15 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
or USER). That only means that an extra robust radio is active (can be active only on one terminal in the conference/network).
This gives even more robustness in case of radio interferences to that terminal. We recommend to give to give that terminal to the main
referee (or the one speaking to VAR or to public announcement).
-------------
Recording Icon
If icon does not appear: No recording.
If icon is fixed: A recording of the VOKKERO conference is going-on.
If icon blinks: The SD card for the recording cannot accept recording (full memory).
3.3. Connecting a headset
3.3.1. Plugging in a headset
Plug the headset into the slot at the top of the product, beside the LCD.
Line up the 2 red marks of the product and the headset and push the connector
Do not force the headset; it should connect easily; if this is not the case, check the headset to make sure it
isn’t damaged and check that you align the red dot with the red mark.
3.3.2. Removing the headset
Pull on the ring of the headset to release the connector switch.
Then remove the headset connector.
Do not attempt to remove the headset by pulling the cable.
Do not turn the connector.
3.4. Adjust Volume
Push + to increase the audio volume
Push – to decrease audio volume
5 steps of volume are available. A vocal synthesis (heard in the headset) indicates the step (volume 1 to
volume 5). A vocal synthesis indicates that “Minimum volume” is reached, another vocal synthesis indi-
cates that “Maximum volume” is reached.
To avoid possible hearing damage, do not listen at high volume for a long time.

VOKKERO ELITE FCC | User Guide V1.1
16 / 28
EN
16 / 28
3.5. Launch a recording
Insert a SD card into the dedicated slot (FAT32 formated)
Push during 2 seconds the Function button
The recording icon should appear and stay fixed.
In case it blinks and then disappears it means that your SD card is not present, well-inserted or well-
recognized.
To stop recording, push the Function button again. The recording icon should disappear.
A vocal synthesis (heard in the headset) indicates the “Start of Recording”, another vocal synthesis
indicates the “End of recording” (in case the user stops the recording or if the SD card memory is full).
3.6. Locking and unlocking the terminal
You can lock the buttons of the terminal by pressing and holding the + and – buttons during 3 seconds.
All icons blinks one time when locking is activated. On/Off button remains functional.
Press and hold again during 3 seconds the + and - buttons to unlock.
All icons blinks one time when unlocking.
4. START AND HOME SCREEN OF THE CONFIGURATOR
The configurator does not have an On-Off switch. To turn it on, the configurator must be connected to the
power unit provided with the VOKKERO ELITE.
The configurator has a USB port for updates.
The configurator screen is a high-resistance touchscreen.
Immediately upon starting up the system, the configurator displays the VOKKERO logo, with the software
version of the configurator, followed by the Home Screen.
4.1. Home Screen
The screen indicates the number of terminals that the charger has on it (each number corresponds to one
terminal).
The configurator uses a color code to indicate the terminal battery’s charging status, using the following colour scheme.
Plain round green: battery charged
Plain round orange: battery in charge
No visible round whereas a terminal is plugged in this charger’s slot: terminal in default, try positioning again the terminal and
contact our support in case it stays in that state.
You can rapidly configure the entire system by selecting the runner icon (“Quick config.”).
You can fine-tune the system configuration by using the settings icon (Settings).
Note: You can also proceed directly to the configuration of the terminal by clicking on the desired terminal number.
5. QUICK CONFIG. MENU
The terminals are delivered pre-configured and ready-to-use.
However, with “Quick Config.”, you can rapidly reconfigure all the conference (selecting another frequen-
cies or modifying terminal role).
Start the configuration by selecting a “Quick Config.” (Football or Normal).
VAR Football is dedicated to quick configure the product for VAR Football use case.
Normal is dedicated to any other usage.
5.1. VAR Football «Quick Config.»
The VAR Football «Quick Config.» the terminals are paired in communication and there is an automatic
configuration of terminals which is crafted for games with VAR where a technician can assist referees and has to setup main and
backup VAR audio lines as well as backup spare terminals for referees.The VAR Football «Quick Config.» allows:

17 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
- naming of the terminals
- possibility to give the MASTER ROLE to the CENTRAL REF or to the 4th Assistant REF
- pairing of two WIRELESS INTERFACE (WI) for main and backup pitch-to-VOR audio lines
- creation of spare identical terminals for all different roles (allowing a technician to swap terminals during half-time if needed)
- creation of Listener terminals
1. Connect your main Wireless Interface (WI) on the USB dock of the configurator and turn on the Wireless Interface.
2. Put at least 4 ELITE terminals on the charger
3. Select which slot you want for MASTER (“Select Master device”). Can be either the CENTRAL REF (Master role given to the
device in Slot n°1) or an assistant referee such as the 4th referee (Master role given to the device in slot n°4)
4. Select the audio mode you want for Central Referee terminal (“Central referee to others audio mode”). See below §5.3 for
more explanation of these audio modes.
5. Choose a frequency.
6. Unplug MAIN WI and connect a second WI if you want to add a backup WI & validate. Unplug USB cable both sides when
completed.
7. If the configuration completes successfully, the indication “COMPLETED” displays.Alternatively, the indication “ERROR” dis-
plays if a problem is encountered.
8. To return to the Home Screen, use the left arrow.
With Football “Quick Config.”, the terminals are automatically configured this way (by order of slots on the charger):
If you have chosen the Slot 1 (the CENTRAL REF) for MASTER ROLE:
1. CENTRAL REF / MASTER ROLE (purple antenna icon / whistle icon)
2. A.REF (green antenna icon)
3. A.REF (green antenna icon)
4. A.REF (green antenna icon)
5. SPARE MASTER Role / CENTRAL REF (spare terminal with purple antenna icon / whistle icon, to be kept switched-off!)
6. SPARE A.REF (green antenna icon)
7. LISTENER (white antenna icon)
8. LISTENER (white antenna icon)
9. LISTENER (white antenna icon)
10. …

VOKKERO ELITE FCC | User Guide V1.1
18 / 28
EN
If you have chosen for instance the Slot 4 (the 4th REFEREE) for MASTER ROLE:
1. CENTRAL REF (green antenna icon / whistle icon)
2. A.REF (green antenna icon)
3. A.REF (green antenna icon)
4. 4th REF / MASTER (purple antenna icon)
5. SPARE CENTRAL REF (Central REF spare with whistle icon, to be kept switched-off!)
6. SPARE REF (green antenna icon)
7. SPARE 4th REF / MASTER (MASTER spare terminal with purple antenna icon, to be kept switched-off!)
8. LISTENER (white antenna icon)
9. LISTENER (white antenna icon)
10. LISTENER (white antenna icon)
11. …
In case you put less than 4 ELITE terminals on the charger, the Football “Quick Config.”won’t be possible.
In that case the Football “Quick Config.” will propose to configure only additional terminals with the same role for all terminals
aon the charger : LISTENER or SPARE REF
5.2. Normal “Quick Config.”
With Normal «Quick Config.» the terminals are all paired in communication and all terminals are configured the same way (all users of
the conference with green antenna icon) except the terminal located in slot n°1 which will be CENTRAL REF Role + MASTER Role.
1. Select the audio mode you want for Central Referee terminal (“Central referee to others audio mode”). See below for more explana-
tion of these audio modes
2. Choose a frequency
3. If the configuration completes successfully, the indication “COMPLETED” displays.Alternatively, the indication “ERROR” displays if a
problem is encountered.
4. To return to the Home Screen, use the left arrow.

19 / 28
VOKKERO ELITE FCC | User Guide V1.1
EN
IN ANY CASE AND NO MATTER THE “Quick Config.” CHOSEN:
Always make sure:
- To have only one MASTER ROLE terminal in the conference (only one terminal with purple antenna icon displayed)
- To have only one Central REF in the conference (only one terminal with whistle icon displayed)
5.3. CENTRAL REF TO OTHERS AUDIO MODE
During the “Quick config.” you are invited to chose which terminal you want to apply the CENTRAL REF enhanced radio capabili-
ties.
On top of that extra robustness to interferences, you may select a specific audio mode for this CENTRAL REF terminal only. This
audio mode will define the way the audio from the CENTRAL REF will be sent to the others terminals / users.
• VOKKERO filters : it is the default mode. It enables the noise filtering VOKKERO technology (only the voice is transmitted). The
CENTRAL REF terminal audio out will be noise filtered, just as the other terminals.
• NO-Filter : it allows free audio out (without noise filtering) to all others users (i.e. to all other terminals, and to the WIRELESS
INTERFACE…).This can be chosen to enable other users to hear a raw unfiltered audio from the CENTRAL REF with ambiance
sound in it. We won’t recommend that settings in crowdy stadiums/arenas.
• NO-Filter-to-WI : it allows free audio out (without noise filtering) only to the WIRELESS INTERFACE.This can be chosen to enable
VAR referees or TV to hear a raw unfiltered audio from the CENTRAL REF with ambiance sound in it.

VOKKERO ELITE FCC | User Guide V1.1
20 / 28
EN
6. SETTINGS MENU
This menu enables a more detailed configuration of the system in order to configure the terminals, the
system or the configurator.
• In “Devices”, you can access the settings of the terminals which are currently positioned on your char-
ger.
• In “System”, you can change the settings of the whole VOKKERO network
• In “Configurator”, you can set the configurator parameters.
The details for each element are given below.
6.1. DEVICES
The first screen indicates the terminals present on the configurator. The charge status as well as the name of each terminal displays.
The terminals display in their order of presence on the configurator, going from the closest (position 1) to the furthest away.
To modify a product, select the product row; this displays all the settings available for the selected terminal.
6.1.1. Terminal name
To change the name of the terminal, you can use the available keyboard.
Three screens/keyboards are available to de-fine the product name. To switch between screens/keyboards,
use the button on the bottom right-hand side.
• “abc” to switch to the lowercase words screen
• “123” to switch to the numbers and symbols screen
• “ABC” to switch to the uppercase words screen
• Use _____to delete the most recently entered character
• To validate, select on the bottom right-hand side.
6.1.2. Device ID
This menu allows a quick check of some parameters of the terminal (that may have been applied during
a «Quick Config.».
• Network role: Master, User or Listener (this Network role can be changed there in this menu).
• Central Ref role:Yes or No
• Audio mode: Vokkero noise filter which is the standard default mode or eventually one of the two No-
filter modes, see §5.3; the two latest being only possible for only possible with a Central Ref terminal.
• Operating channel frequency
