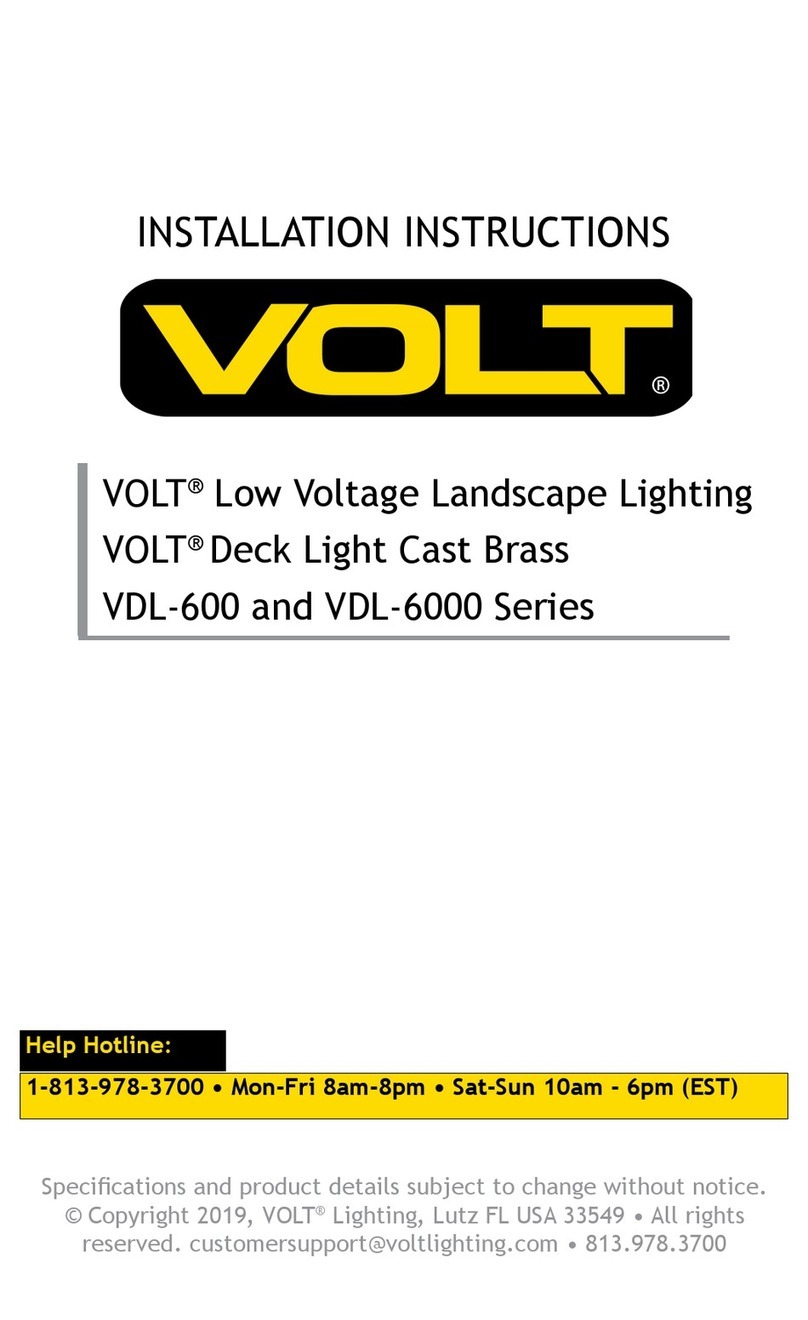

Volt VDL-6000 User manual

INSTALLATION INSTRUCTIONS
VOLT®LOW VOLTAGE LANDSCAPE LIGHTING
VOLT® Cast Brass Deck Light
ITEM: VDL-600 & VDL-6000
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT® Cast Brass Deck Light VDL-600 & VDL-6000
INSTALLATION INSTRUCTIONS
IMPORTANT: PLEASE READ BEFORE INSTALLATION
!
IMPORTANT SAFETY INSTRUCTIONS
!
813.978.3700 • [email protected] • www.voltlighting.com
2
This luminaire is intended for installation in accordance with local codes and the National
Electric Code (NEC). Failure to adhere to these codes and instructions may result in
serious injury, property damage and void the warranty.
These instructions do not intend to cover all variations in installation, operation
maintenance or mounting situations.
1. Make sure that the power is turned OFF before installing or servicing this luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more from
pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply (transformer) rated
maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with wire connectors that are suitable for outdoor
use.
5. Position the low voltage wire and wire connector so that it is located within 6 inches
(15.2 cm) from a building structure, a luminaire or tting.
6. The main low voltage cable is intended for shallow burial - less than 6 inches (152
mm).
7. If additional lengths of low voltage cable are required, please contact www.
voltlighting.com or call 1-813-978-3700.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage
lamp.
6. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS

PACKAGE CONTENTS
813.978.3700 • [email protected] • www.voltlighting.com
3
A. (1) Luminaire
B. (2) Lock Screws
Product Dimensions
2”
2 1/4”
3 3/8”
Pro Technique for Hiding Lead Wire
Determine the location for the xture. Drill a hole straight
through the desired mounting location and run the lead wire
out the backside of the location so that the wires are not visible
from the front side. Use a matching trim piece and cut a groove
in the back of trim. Cover the lead wires with the matching trim
piece.
Pro Technique for Hiding Splice Connections
All xtures come with 4’ of lead wire enabling you to hide the
splice connections out of sight. If you must make a splice
connection in view, use an inline heat shrink style connection that
is less visible than traditional twist caps.

1
2
VOLT® Cast Brass Deck Light VDL-600 & VDL-6000
INSTALLATION INSTRUCTIONS
813.978.3700 • [email protected] • www.voltlighting.com
4
Remove Lens Assembly
Rotate the lens assembly counter
clockwise until it is stops and then
lift the lens assembly straight off.
Note: The rst time it may be
difcult because the luminaire has
a tight o-ring seal and a grease
sealant for moisture protection.
Base
Lens Assembly
Luminaire
Install Base
Attach the base onto the desired
location and secure with the lock
screws.
Note: Wall anchors are required
for certain installation conditions
e.g. Brick wall, Concrete Wall, etc.).
Mark on the wall for wall anchors
from the holes on the base.
Remove the base and drill proper
holes on the wall and then insert
the wall anchors.
Wall Anchor
Lock
Screw
Base
3
Wire Connections
Strip both leads from the luminaire
pigtail. Using two wire connectors
(sold separately), connect the leads
from the luminaire to the main supply
cable leads.
Luminaire
Main Supply Cable
Pigtail
Wire Connector

4
5
813.978.3700 • [email protected] • www.voltlighting.com
5
Install Bulb
Insert the bulb with correct wattage and
type marked on the luminaire label.
CAUTION: Do not exceed maximum
wattage marked on luminaire label.
NOTE: DO NOT touch bulb with bare
hands. Use soft cloth to handle bulb.
Bulb
Socket
Install Lens Assembly
Push the lens assembly back onto the
base aligned with the gaps on the base.
Push hard (moisture proof xture requires
force to get air out). Once the lens
assembly is ush with the base, rotate the
lens assembly until it stops and locks into
place.
Gap
Inner Shield
Install/Replace Bulb
Rotate the lens assembly and then remove it to expose the bulb and replace
it with the correct wattage and type marked on the luminaire label. And then
reinstall the lens assembly.
IMPORTANT: Halogen bulbs must be protected from moisture and dust at all
times. Always reinstall lens assembly when moved.

Specications and product details subject to change without notice.
© Copyright 2023, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • www.voltlighting.com
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
