VonHaus 3500010 User manual

20V MAX
JIGSAW
3500010 - Instruction Manual

CONTENTS
Safety Instructions 1
Safety Instructions 2
Safety Instructions 3
Safety Instructions 4
Safety Symbols 5
Specification 6
Battery Capacity Indicator/Charging Lights 7

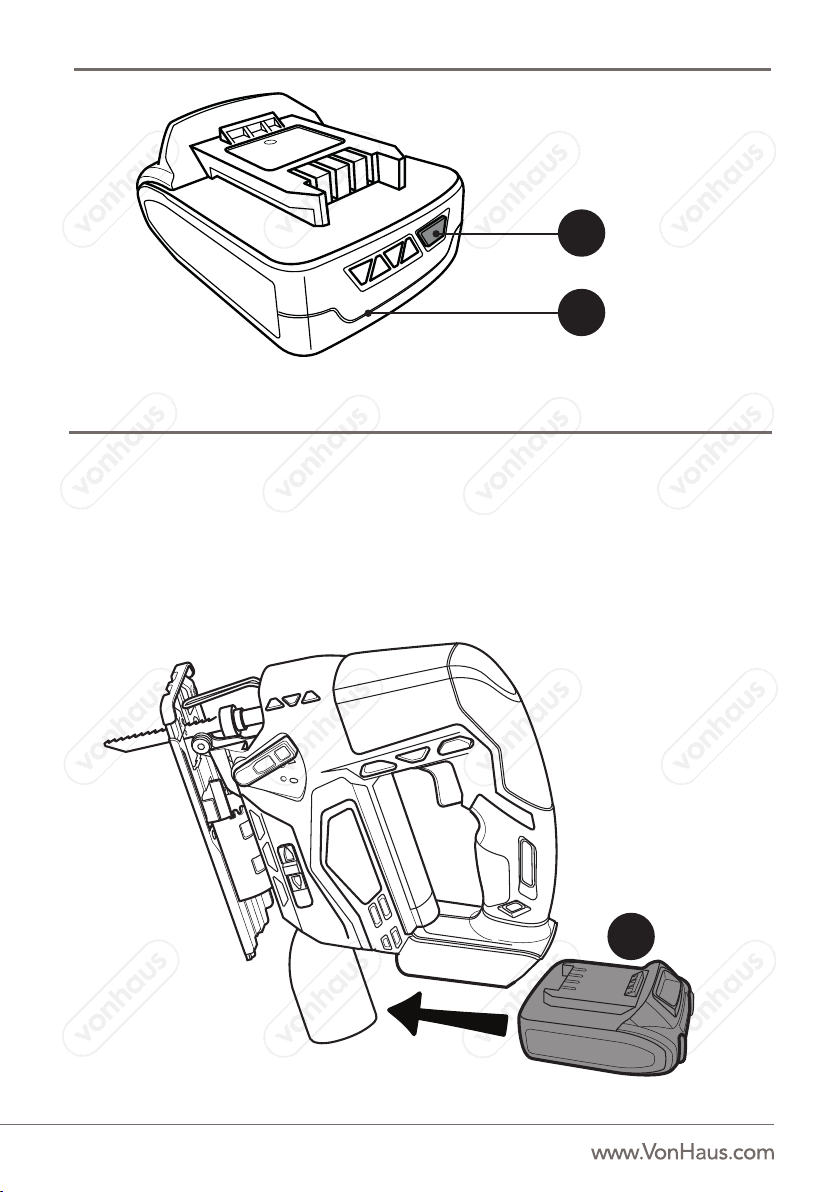

Battery Capacity Indicator/Battery Insertion/Removal 8

Fitting the Blade 9
Orbital Action 10
Angle Adjustment 11
Dust Extraction/Repelling 12
Operation 13
Maintenance/Troubleshooting 14
Disposal Information 15
Warranty 16

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
1
GENERAL SAFETY INFORMATION.
WARNING! Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
Please retain all warnings and instructions
for future reference.
The term “power tool” in the warnings
refers to your mains-operated (corded)
power tool or battery-operated (cordless)
power tool.
INTENDED USE.
The intended use of this tool is described
in this instruction manual. The use of any
accessory or attachment or performance
of any operation with this tool other than
those recommended in this instruction
manual may present a risk of personal
injury and/or damage to property.
This 20V Max Jigsaw is intended for
domestic use only. Do not use for
commercial purposes.
This tool is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
appliance by a person responsible for the
their safety.
Children should be supervised to ensure
that they do not play with the tool.
ELECTRICAL SAFETY.
Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adaptor plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce
risk of electric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if
your body is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering the power tool
will increase the risk of electric shock.
Never use the cord for carrying, pulling or
unplugging the power tool.
Keep the cord away from heat, oil, sharp
edges and moving parts. Damaged or
entangled cords increase risk of electric
shock.
When operating a power tool outdoors,
use an extension cord suitable for outdoor
use to reduce the risk of electric shock.
WORK AREA SAFETY.
Keep your work area clean and well lit.
Cluttered or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
Keep bystanders, children and animals
away while operating the power tool.
Distractions can cause you to lose control.
BEFORE USE.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce the risk of personal injury.
WARNING! Contact with, or inhalation
of, dusts arising from cutting applications
may endanger the health of the operator
and possible bystanders. Wear a dust
mask specifically designed for protection
against dust and fumes and ensure that
persons within or entering the work area
are also protected.
Always wear eye protection. Any power
tool can throw foreign objects into your
eyes and cause permanent eye damage.
Always wear safety goggles (not glasses)
that comply with ANSI safety standard
Z87.1. Every day glasses have only impact
resistant lenses. They are not safety
glasses.
WARNING! Wearing glasses or goggles
not in compliance with ANSI Z87.1 when
operating this tool could cause serious
injury.
Dress appropriately. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts to prevent them from becoming
caught in the tool.

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
Secure your workpiece. Use clamps or
a vice to hold the workpiece as this is
safer than using your hand and frees both
hands to operate the tool.
Make sure that there are no nails or
foreign objects in the path of the
workpiece to be cut or sanded.
Never use dull blades in the tool. They
will cut slower, leave rough cuts and
break easily due to added pressure and
excessive heat. They will also overload the
motor and cause premature failure of the
tool.
If devices are provided for the connection
of dust extraction and collection facilities,
ensure that these are connected and
properly used to reduce dust-related
hazards.
Remove any adjusting key or wrench
before turning the power tool on. A
wrench or key left attached to a rotating
part of the power tool may result in
personal injury.
IMPORTANT SAFETY INFORMATION
FOR USE.
WARNING! Know your 20V Max Jigsaw.
Do not plug the tool into the power
source until you have read and understand
the information in this manual. Learn the
tool’s applications and limitations, as well
as the specific potential hazards related
to this tool, in order to reduce the risk of
electric shock, fire or serious injury.
Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
WARNING! Use only accessories
recommended for this oscillating tool.
Follow the instructions that accompany
the accessories. The use of improper
accessories may result in injury to the
operator or damage the tool.
WARNING! If any part is missing or
damaged, do not plug the tool into the
power source or install any accessory until
the missing or damaged part is replaced.
Failure to follow this instruction could
result in serious personal injury.
result in serious personal injury.
Prevent unintentional starting. Ensure
the switch is in the off position before
connecting to the power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch, or energising power tools
that are switched on, invites accidents.
Do not use the power tool if the switch
does not turn it on and off. A power tool
that cannot be controlled with the switch
is dangerous and must be repaired.
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
Hold the power tool by the insulated
gripping surfaces when performing an
operation where the cutting accessory
may contact hidden wiring or its own
cord. A cutting accessory contacting a
“live” wire may make exposed metal
parts of the power tool “live” and could
give the operator an electric shock. Use
clamps or another practical way to secure
and support the workpiece to a stable
platform. Holding the work by hand or
against your body leaves it unstable and
may lead to loss of control.
Keep hands away from cutting area. Never
reach underneath the workpiece for any
reason. Do not insert your fingers or
thumb into the vicinity of the reciprocating
blade and blade clamp. Do not stabilize
the tool by gripping the shoe.
When cutting pipe or conduit, make sure
that they are free from water, electrical
wiring, etc.
Do not overreach. Keep proper footing
and balance at all times. This will enable
better control of the power tool in
unexpected situations.
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
The blade will continue to move after
releasing the switch. Always switch the
tool off and wait for the saw blade to
come to a complete standstill before

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
putting the tool down.
Do not touch the workpiece or the blade
immediately after operating the tool. They
can become very hot.
VIBRATION.
The declared vibration emission values
stated in the technical data and the
declaration of conformity have been
measured in accordance with a standard
test method provided by EN 60745 and
may be used for comparing one tool with
another. The declared vibration emission
value may also be used in a preliminary
assessment of exposure.
WARNING! The vibration emission value
during actual use of the power tool can
differ from the declared value depending
on the ways in which the tool is used. The
vibration level may increase above the
level stated. When assessing vibration
exposure to determine safety measures
required by 2002/44/EC to protect
persons regularly using power tools in
employment, an estimation of vibration
exposure should consider the actual
conditions of use and the way in which the
tool is used, including taking account of
all parts of the operating cycle such as the
times when the tool is switched off and
when it is running idle in addition to the
trigger time.
MAINTENANCE & STORAGE.
Disconnect the plug from the power
source and/or the battery back from
the power tool before making any
adjustments, changing accessories or
storing. Such preventative safety measures
reduce the risk of starting the power tool
accidentally.
Maintain the power tool. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
Keep blades sharp. Dull or damaged
blades may cause the saw to swerve
or stall under pressure. Always use the
appropriate type of saw blade for the
workpiece material and type of cut.
Store idle power tools out of reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
SERVICE.
Have your power tool serviced by a
qualified repair person using identical
replacement parts only to ensure that the
safety of the power tool is maintained.
ADDITIONAL SAFETY INSTRUCTIONS
FOR JIGSAW
Do not start the tool with the blade
touching any surface. The blade action
will bounce the tool and may cause body
injury.
Allow the tool to come to a complete stop
before putting it down. A running tool
will jerk when the blade tip contacts any
surface.
Do not cut oversized work pieces
Do not cut nails or screws unless you are
using a blade specifically designed for this
purpose. Inspect your material before
cutting
Before switching on the tool, be sure the
blade in not contacting the work piece.
Keep hands away from moving parts and
on the top surface of the work piece. Do
not place hands below work surface while
saw is operating.
Hold tool by insulated grip surface when
performing an operation where the
cutting tool may contact the hidden wiring
or its own cord. Contact the alive wire
make exposed the metal parts of the tool
alive and shock the operator.
3

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
Do not stare at the tool with the blade
touching any surface. The blade action
will bounce the tool and may cause bodily
injury.
Always wear safety glasses or goggles,
normal prescription eye or sunglasses are
not safety glasses
Check your area for proper clearance
before cutting. This will avoid cutting into
your workbench, the floor, etc.
This product is not a toy. Keep it out of
reach of children.
People with pacemakers should
consult their physician(s) before use.
Electromagnetic fields in close proximity
to heart pacemaker could cause
pacemaker interference or pacemaker
failure. In addition, people with
pacemakers should:
• Avoid operating alone.
• Do not use with power switch locked
on.
• Properly maintain and inspect to
avoid electrical shock.
ADDITIONAL SAFETY INSTRUCTIONS
FOR BATTERIES AND CHARGERS
Never attempt to open for any reason.
Do not store in locations where the
temperature may exceed 40 °C.
Charge only at ambient temperatures
between 4 °C and 40 °C.
Do not cause short circuits. If connection
is made between the positive (+) and
negative (-) terminal directly or via
accidental contact with metallic objects,
the battery is short circuited and an
intense current will flow causing heat
generation which may lead to casing
rupture or fire.
Do not heat. If batteries are heated to
above 100 °C, sealing and insulating
separators
and other polymer components may be
damaged resulting in electrolyte leakage
and/or internal short circuiting leading to
heat generation causing rupture or file.
Moreover do not dispose of the batteries
in fire, explosion and/or intense burning
may result.
Under extreme conditions, battery
leakage may occur. When you notice
liquid on the battery, proceed as follows:
Carefully wipe the liquid off using a cloth.
Avoid skin contact.
In case of skin or eye contact, follow the
instructions below:
Under extreme conditions, battery
leakage may occur. When you notice
liquid on the battery, proceed as follows:
Carefully wipe the liquid off using a cloth.
Avoid skin contact.
In case of skin or eye contact, follow the
instructions below:
• Immediately rinse with water.
Neutralize with a mild acid such as
lemon juice or vinegar.
• In case of eye contact, rinse
abundantly with clean water for at
least 10 minutes.
Consult a physician.
CHARGERS
Never attempt to charge non-
rechargeable batteries.
Have defective cords replaced
immediately.
Do not expose to water.
Do not open the charger.
Do not probe the charger.
The charger is intended for indoor use
only.
PACKAGING
Packaging materials are not toys! Children
must not play with plastic bags! Danger of
suffocation!

The following safety symbols may appear on this product. Please ensure you understand
their meanings before operating this tool in order to prevent personal injury and avoid
damage to the tool.
SAFETY SYMBOLS
USE PRECAUTION
For your safety
EYE PROTECTION
Must be worn
RISK OF INJURY
Keep hands at a safe
distance
INSTRUCTION
MANUAL
Read and understand
UNSUITABLE WEATHER
Do not use in wet
conditions
EAR PROTECTION
Must be worn
PROTECTIVE GLOVES
Must be worn when
handling tool
PACKAGING
Packaging materials are not
toys! Children must not play
with plastic bags! Danger of
suffocation!
Li-ion
Disposal of Batteries
should be at your
local recycling centre
DO NOT DISPOSE OF
BATTERIES IN FIRE
NEVER dispose of
the battery in a fire
or incinerator, as the
battery may catch fire
and explode
5

SPECIFICATION
20V MAX 800-2500
VRPM
VOLTAGE SPEED

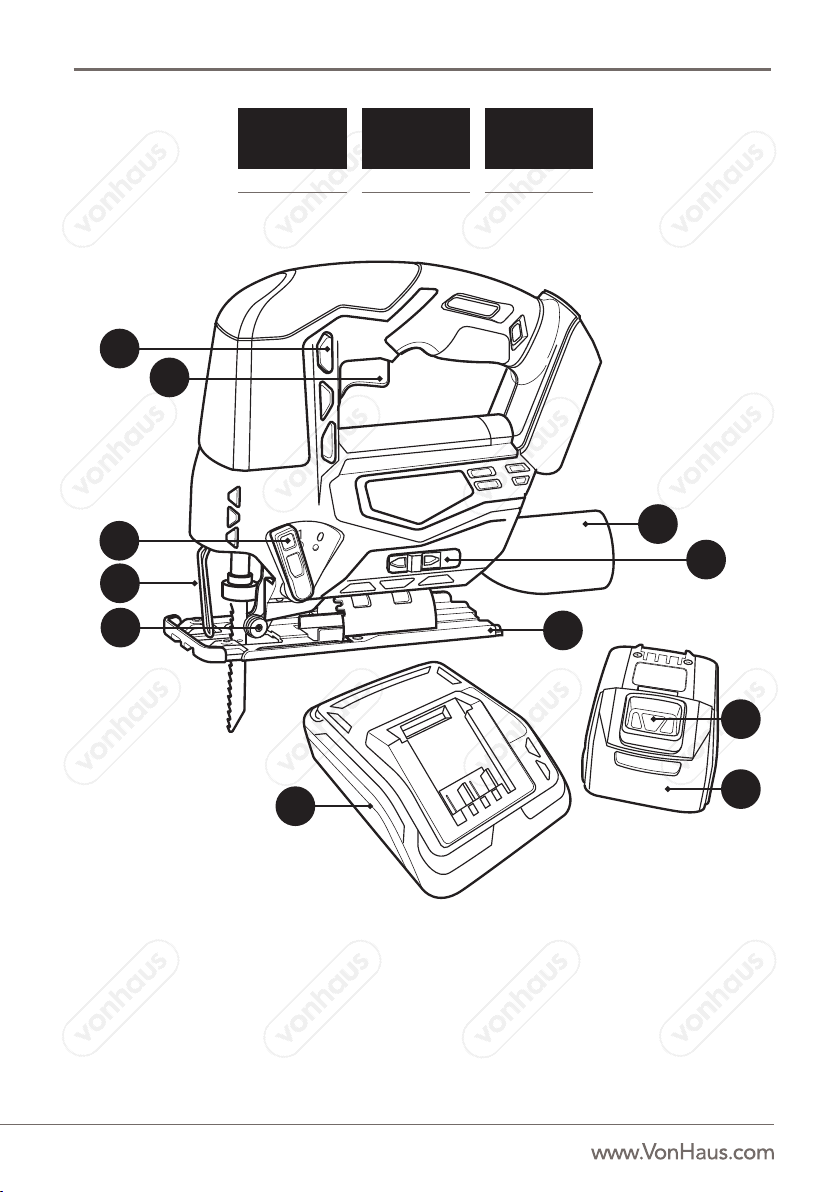

1. ON/OFF Trigger
2. Safety Switch
3. Blade Guard
4. Roller Support
5. Shoe
6. Orbital Switch
21VDC, 2.4A
ADAPTOR
OUTPUT
7. Blade Release Lever (see page 9)
8. Dust Extraction Port
9. Charger
10. Battery Pack
11. Battery Pack Release Button
12. Battery Capacity Indicator Button (see page 7)
13. Dust extract/repel switch
1
2
3
45
68
910
11
13

CHARGING LIGHTS
• Frequently monitor the CHARGER (9) and BATTERY PACK (10) while connected.
• Unplug the CHARGER (9) and disconnect it from the BATTERY PACK (10) when finished.
• Allow the BATTERY PACK (10) to cool completely before using it.
• Store the CHARGER (9) and BATTERY PACK (10) indoors, and out of reach of children.
BATTERY CAPACITY INDICATOR
0-10% Charged 10-25% Charged 25-50% Charged
50-75% Charged 100% Charged
When in use you can check the status of the 20V Max Battery by pressing the BATTERY LEVEL
INDICATION (12). Pressing this will illuminate the 20V Max Battery’s level of charge.
7
GREEN LIGHT RED LIGHT BATTERY ON THE
CHARGER CHARGING STATUS
ON OFF NO Charger connected to power
supply.
OFF FLASHING YES Battery being charged.
ON OFF YES Battery fully charged.
ON ON YES Battery defective of faulty
connection.
Contact DOMU customer
services.
ON ON YES Battery too hot or too cold to
be charged. Battery will begin
to charge once the Battery has
cooled sufficiency.
