Vulcan-Hart VEC20 User manual

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
A2780
ISO9001
Vulcan-Hart Co.
F-32299 (12-01)
SPECIFICATIONS:
20 gallon capacity, 2/3jacketed self-contained electric tilting
kettle, Vulcan-Hart Model No. VEC20. Hemispheric bottom kettle
liner formed of type 316 stainless steel. Balance of construction
is type 304 fully welded stainless steel designed to operate at a
maximum of 50 PSI (3.4 kg/cm2). Jacket contains water, rust
inhibitor and antifreeze mixed to protect to 30° below zero.
Removable electric elements are field serviceable. Stainless
steel tilt handle with insulated pull knob located on the right.
Stainless steel "water proof" control housing located on the right.
Controls include a power switch, power "on" light, solid state
temperature control, vacuum/pressure gauge, pressure relief
valve, low water light and low water shut-off. Stainless steel
adjustable legs extend 41/2" below base. Requires 208 or 240
volt, 60 Hz, 1 or 3 phase power supply.
Exterior dimensions: 303/4"w x 24"d x 431/2"h.
U L listed. NSF listed. Meets ASME code.
MODEL VEC20
ELECTRIC TILTING KETTLE
MODEL: VEC20 Electric Tilting Kettle
STANDARD FEATURES
■20 gallon capacity, 2/3jacketed self-contained electric tilting
steam kettle.
■Hemispheric bottom kettle liner formed of type 316 stainless
steel.
■Balance of construction is type 304 fully welded stainless
steel designed to operate at a maximum 50 PSI (3.4 kg/cm2).
■Jacket contains water, rust inhibitor and antifreeze mixed to
protect to 30° below zero.
■Removable electric elements are field serviceable.
■Stainless steel tilt handle with insulated pull knob located on
the right.
■Stainless steel "water proof" control housing located on the
right. Controls include a power switch, power "on" light, solid
state temperature control, vacuum/pressure gauge, pressure
relief valve, low water light and low water shut-off.
■Faucet bracket.
■Stainless steel adjustable legs extend 41/2" below base.
■Requires 208 or 240 volt, 60 Hz, 1 or 3 phase power supply.
■One year limited parts and labor warranty.
OPTIONS
■■Tilting kettle strainer.
■■480 volt, 60 Hz, 3 phase power supply.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■One piece lift-off stainless steel cover.
■■Stainless steel basket assembly.
■■Contour measuring strips.
■■(12") (18" double jointed) single pantry faucet.
■■(12") (18" double jointed) double pantry faucet.
■■Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
■■Double pantry washdown hose with backflow preventer.
■■Double pantry pot filler and backflow preventer.
Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32299 (12-01)
MODEL VEC20
ELECTRIC TILTING KETTLE
ELECTRICAL CHARACTERISTICS
208V 220V 240V 380V 415V 480V
MODEL PHASE KW AMP KW AMP KW AMP KW AMP KW AMP KW AMP
VEC20 1 12 57.6 12 54.5 12 50.0 — — — — — —
3 12 33.4 12 31.5 12 28.9 12 18.3 12 16.7 12 14.5

Other Vulcan-Hart Kettle manuals

Vulcan-Hart K6ETT User manual

Vulcan-Hart

Vulcan-Hart K6ETT User manual

Vulcan-Hart VEL100 User manual

Vulcan-Hart

Vulcan-Hart VEL100 User manual

Vulcan-Hart 1T4024D User manual

Vulcan-Hart

Vulcan-Hart 1T4024D User manual

Vulcan-Hart VEL100 Instruction Manual

Vulcan-Hart

Vulcan-Hart VEL100 Instruction Manual

Vulcan-Hart VELT20 Guide

Vulcan-Hart

Vulcan-Hart VELT20 Guide

Vulcan-Hart VEC10 User manual

Vulcan-Hart

Vulcan-Hart VEC10 User manual

Vulcan-Hart ML-103414 Instruction Manual

Vulcan-Hart

Vulcan-Hart ML-103414 Instruction Manual

Vulcan-Hart VELT100 Instruction Manual

Vulcan-Hart

Vulcan-Hart VELT100 Instruction Manual

Vulcan-Hart VEC10 Guide

Vulcan-Hart

Vulcan-Hart VEC10 Guide

Vulcan-Hart VEC10 Manual

Vulcan-Hart

Vulcan-Hart VEC10 Manual

Vulcan-Hart GL Guide

Vulcan-Hart

Vulcan-Hart GL Guide

Vulcan-Hart 1T2018D User manual

Vulcan-Hart

Vulcan-Hart 1T2018D User manual

Vulcan-Hart K12ETT ML-136068 User manual

Vulcan-Hart

Vulcan-Hart K12ETT ML-136068 User manual

Vulcan-Hart 1T4024G User manual

Vulcan-Hart

Vulcan-Hart 1T4024G User manual

Vulcan-Hart GL40E User manual

Vulcan-Hart

Vulcan-Hart GL40E User manual

Vulcan-Hart K12ETT ML-136068 User manual

Vulcan-Hart

Vulcan-Hart K12ETT ML-136068 User manual

Vulcan-Hart VDLT Series Guide

Vulcan-Hart

Vulcan-Hart VDLT Series Guide

Vulcan-Hart VGL20 User manual

Vulcan-Hart

Vulcan-Hart VGL20 User manual

Vulcan-Hart K40GL User manual

Vulcan-Hart

Vulcan-Hart K40GL User manual

Vulcan-Hart 2T2036D User manual

Vulcan-Hart

Vulcan-Hart 2T2036D User manual

Vulcan-Hart VDL100 User manual

Vulcan-Hart

Vulcan-Hart VDL100 User manual

Vulcan-Hart VELT20 User manual

Vulcan-Hart

Vulcan-Hart VELT20 User manual

Vulcan-Hart GL40 User manual

Vulcan-Hart

Vulcan-Hart GL40 User manual

Vulcan-Hart K20DL ML-136081 User manual

Vulcan-Hart

Vulcan-Hart K20DL ML-136081 User manual

Popular Kettle manuals by other brands

Proline KTL15B operating instructions

Proline

Proline KTL15B operating instructions

IRIT IR-1309 Manual instruction

IRIT

IRIT IR-1309 Manual instruction

Black & Decker KE1550 Series manual

Black & Decker

Black & Decker KE1550 Series manual

Aurora AU 3334 manual

Aurora

Aurora AU 3334 manual

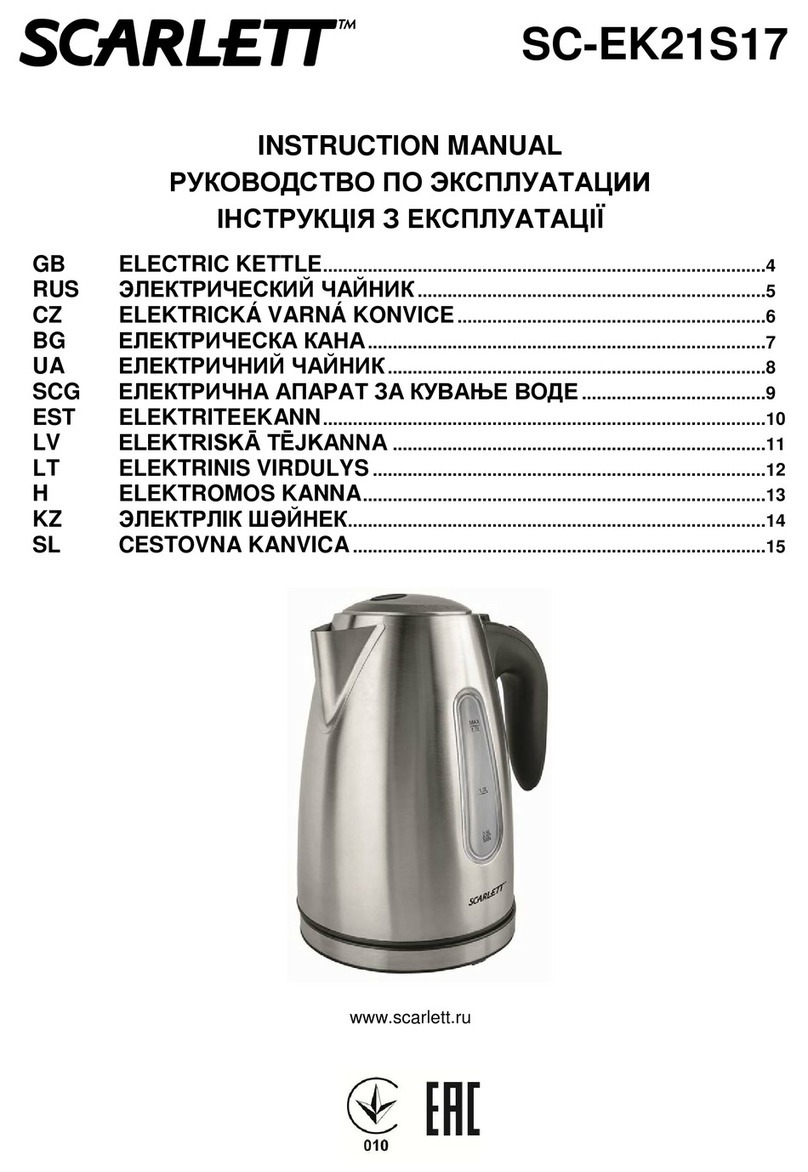

Scarlett SC-EK21S17 instruction manual

Scarlett

Scarlett SC-EK21S17 instruction manual

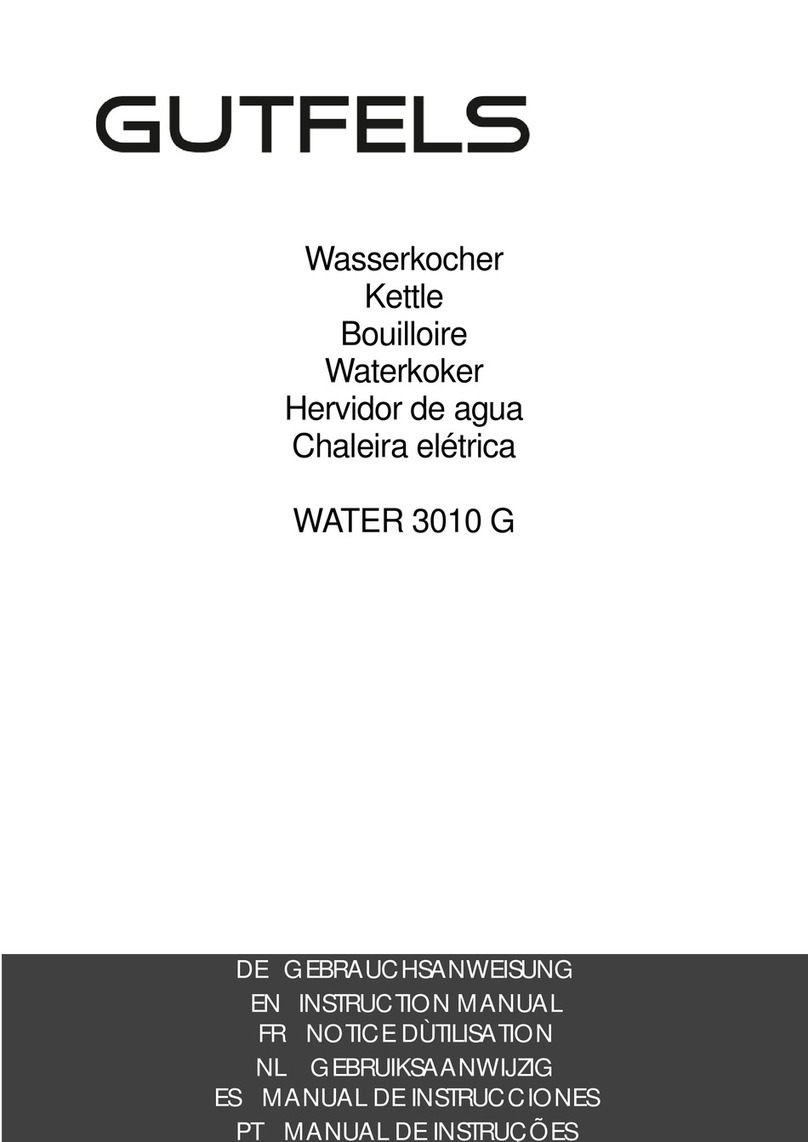

GUTFELS WATER 3010 G instruction manual

GUTFELS

GUTFELS WATER 3010 G instruction manual

Telstar TTI01700PR manual

Telstar

Telstar TTI01700PR manual

Haden 750043 instruction manual

Haden

Haden 750043 instruction manual

Cleveland HA-MKDL-100-CCT-RL product manual

Cleveland

Cleveland HA-MKDL-100-CCT-RL product manual

BRAYER BR1032 instruction manual

BRAYER

BRAYER BR1032 instruction manual

Mi Smart Kettle Pro user manual

Mi

Mi Smart Kettle Pro user manual

SEVERIN WK 3378 manual

SEVERIN

SEVERIN WK 3378 manual

Melissa Hot Beverage Maker user manual

Melissa

Melissa Hot Beverage Maker user manual

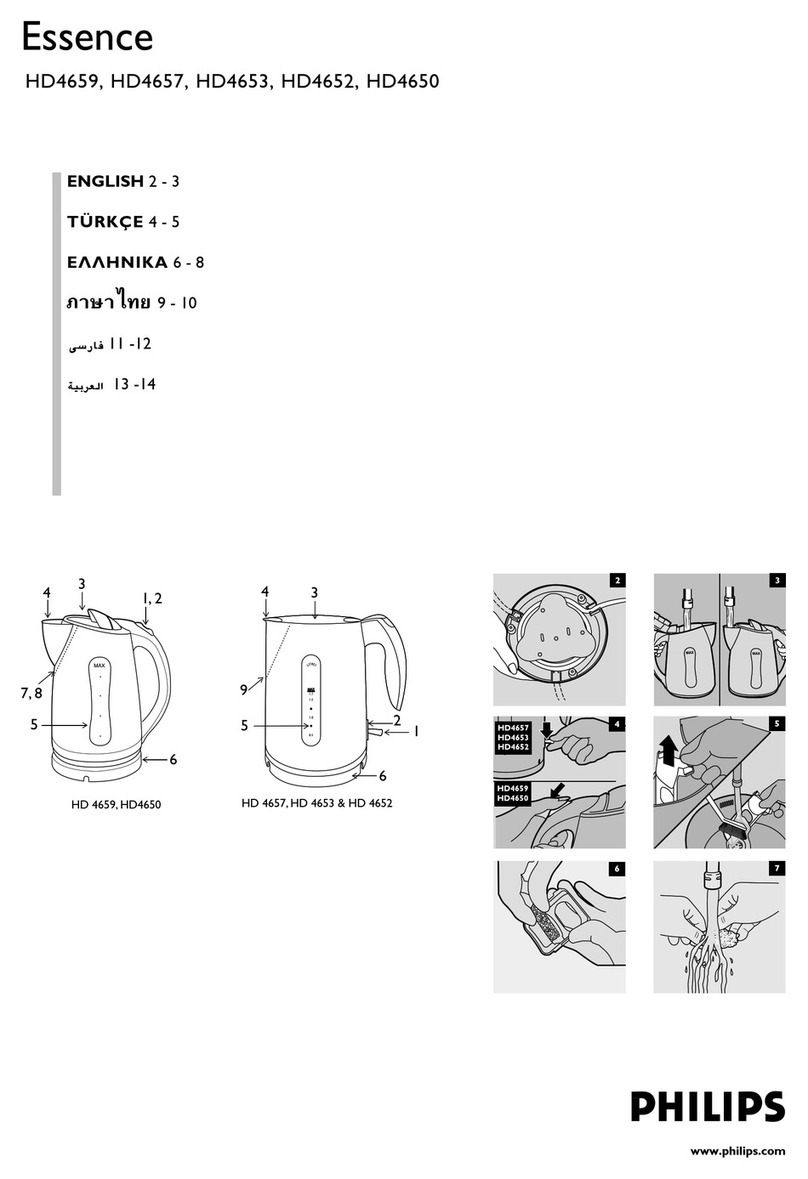

Philips essence HD4659 user manual
