SPECIFICATIONS:
Modular electric tilting braising pan, Vulcan-Hart Model No.
(VE30) (VE40). ___" wide open base. Stainless steel front,
sides and 12" legs with adjustable flanged feet. Stainless steel
finishing back. Front hinged polished stainless steel pan body
with coved interior corners and embossed gallon markings.
Stainless steel cooking surface bonded to steel plate. Full
width 4" return flange with formed pouring lip and removable
strainer. Stainless steel spring assist cover with full width
handle. Drop away food pan receiving support mounts under
pouring lip. Manually operated pan lifting mechanism with
folding swing away handle. Pan can be fully tilted to empty
completely with approximately 30 crank revolutions. Flat
firebar heating elements affixed to pan bottom for even heat
distribution. Elements shut off when pan is tilted 5°. Solid state
temperature controls. Water tight controls and enclosures.
Requires a 208 or 240 volt, 60 Hz, 1 or 3 phase power supply.
Exterior dimensions: ___"w x 351/2"d x 401/2"h on 12" legs.
U L listed. U L listed to Canadian safety standards. Classified
by U L to NSF Std. #4.
■■VE30 36" wide open base.
■■VE40 46" wide open base.
STANDARD FEATURES
■Stainless steel front, sides and 12" legs with adjustable
flanged feet.
■Stainless steel finishing back.
■Front hinged polished stainless steel pan body with coved
interior corners and embossed gallon markings. Stainless
steel cooking surface bonded to steel plate. Full width 4"
return flange with formed pouring lip and removable strainer.
■Stainless steel spring assist cover with full width handle.
■Drop away food receiving pan support mounts under pouring
lip. (Not available with optional draw-off valve on VE30 only.)
■Manually operated pan lifting mechanism with folding swing
away handle. Pan can be fully tilted to empty completely
with approximately 30 crank revolutions.
■Flat firebar heating elements affixed to pan bottom for even
heat distribution. Elements shut off when pan is tilted 5°.
■Solid state temperature controls.
■Water tight controls and enclosures.
■Requires a 208 or 240 volt, 60 Hz, 1 or 3 phase power supply.
■One year limited parts and labor warranty.
OPTIONS
■■Motor driven pan lift.
■■2" 90°draw-off valves with strainer on front left hand side.
(Pan support will be removed on VE30.)
■■2" straight draw-off valve with strainer on left hand side. (Pan
support will be removed on VE30.)
■■Closed base.
■■Standard prison package includes:
•Security screws and tackwelds.
-Includes securing crank handle, pan strainer and non-
door type panels.
•Controls protected by lockable cover.
•Perforated lid support cover.
■■480 volt, 60 Hz, 3 phase.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■Set of four casters, (two locking).
■■Faucet bracket assembly (adds 3" to width).
■■(12") (18") double jointed single pantry faucet.
■■(12") (18") double jointed double pantry faucet.
■■Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
■■Double pantry washdown hose with backflow preventer.
■■Double pantry pot filler and backflow preventer.
■■Steaming pan insert rack to hold 12" x 20" pans. (Qty. ____)
■■12" x 20" x 4" stainless steel drain waste pan with clear
plastic hose.
■■Stainless steel spreader 12".

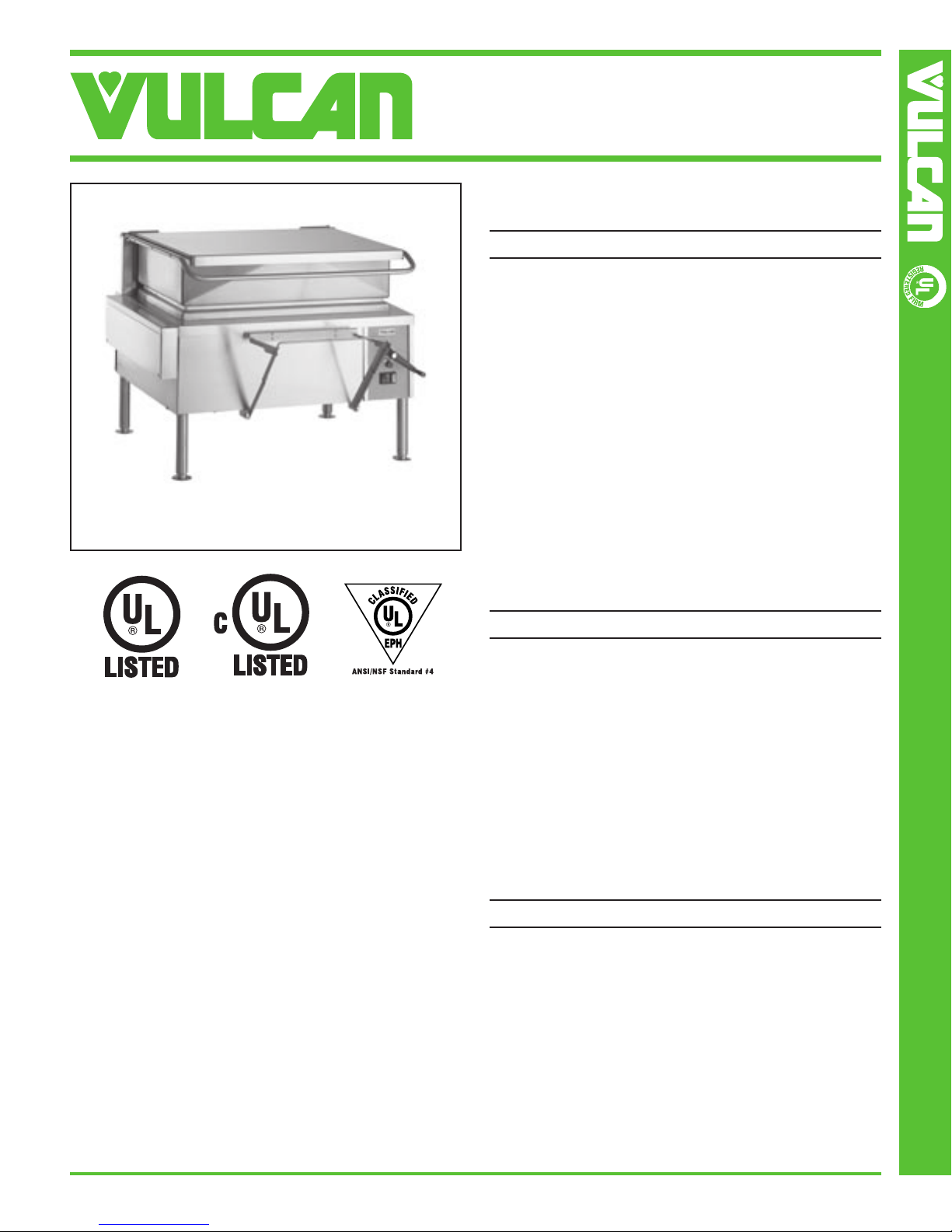

VE SERIES
MODULAR ELECTRIC TILTING BRAISING PAN
MODELS: VE SERIES Modular Electric Tilting Braising Pan
Shown with faucet bracket

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32576 (9-05)
SERVICE CONNECTIONS:
ELECTRICAL CONNECTION: Heating element, control
and motor power 13/8" dia. (1" conduit). See capacity
schedule.
VE SERIES
MODULAR ELECTRIC TILTING BRAISING PAN
Model VE30 Electrical
Three Phase One Phase
208 240 480 208 240
KW AMP KW AMP KW AMP KW AMP KW AMP
9251229121594312 50
Model VE40 Electrical
Voltage / Phase KW Amps L1 Amps L2 Amps L3
208 / 1 12 58 58 -
240 / 1 16 67 67 -
208 / 3 12 39 39 25
240 / 3 16 46 46 29
480 / 3 16 23 23 15
Cooking 4 oz.
MODEL Surface Area Capacity Portions
VE30 29" x 23" 30 gal./114 liters 960
VE40 39" x 23" 40 gal./152 liters 1280
