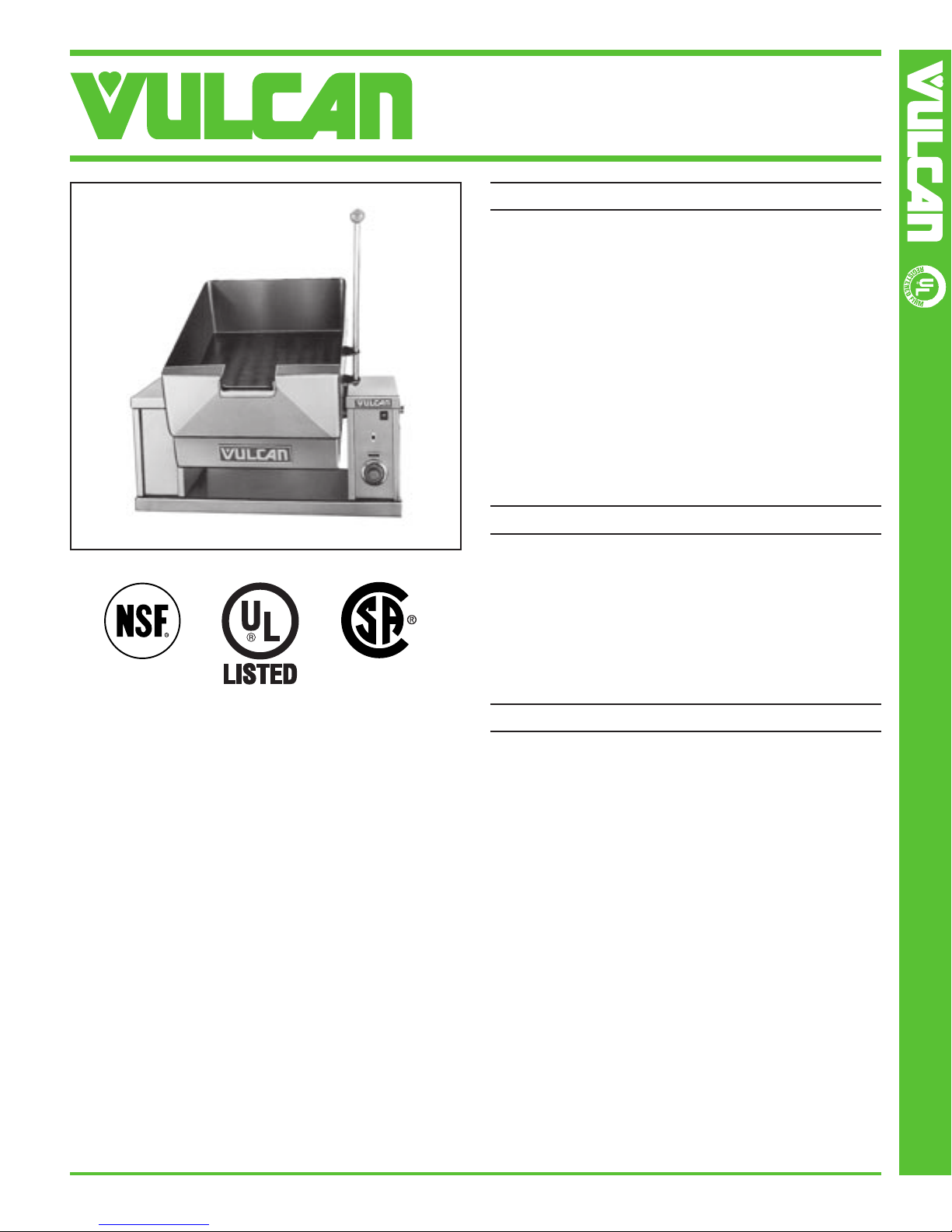

Vulcan-Hart VECTS12 User manual

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-31687 (12-01)
SPECIFICATIONS:
Electric tilting braising pan, Vulcan-Hart Model No. VECTS12.
Stainless steel front and sides. 10 gauge polished stainless
steel pan body with coved interior corners. Formed pouring lip.
The pan pivots on trunnions. Pan can be fully tilted. Solid
sheathed tubular heating elements embedded in 11/2" thick
aluminum castings affixed to pan bottom for even heat distri-
bution. Elements shut off when pan is tilted 5°. Faucet Bracket.
Controls include a snap acting thermostat adjustable from
160° to 450°F. Requires a 208 or 240 volt, 60 Hz, 1 or 3 phase
power supply.
Exterior dimensions: 29"w x 26"d x 20" overall height; with
handle 331/4"h.
NSF listed. U L listed.
MODEL VECTS12
ELECTRIC TILTING BRAISING PAN
MODEL: VECTS12 Electric Tilting Braising Pan
STANDARD FEATURES
■Stainless steel front and sides. 10 gauge polished stainless
steel pan body with coved interior corners. Formed pouring
lip.
■The pan pivots on trunnions. Pan can be fully tilted.
■Solid sheathed tubular heating elements imbedded in 11/2"
thick aluminum castings affixed to pan bottom for even heat
distribution. Elements shut off when pan is tilted 5°.
■Faucet bracket.
■Controls include a snap acting thermostat adjustable from
160° to 450°F.
■Requires a 208 or 240 volt, 60 Hz, 1 or 3 phase power
supply.
■One year limited parts and labor warranty.
OPTIONS
■■Etched gallon markings.
■■Correction facility package:
- Control cover (lock by others).
- Security type tamper resistant fasteners with tack welds.
■■480 volt, 50 Hz, 3 phase, includes stepdown transformer
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■12" swing faucet, single temperature.
■■12" swing faucet, dual temperature.
■■18" swing faucet, single temperature.
■■18" swing faucet, dual temperature.
■■Steaming pan insert rack to hold 12" x 20" food pan.
■■Lift off cover.
■■VSKT stand see spec sheet F-32474.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-31687 (12-01)
MODEL VECTS12
ELECTRIC TILTING BRAISING PAN
MOUNTING DETAIL
SERVICE CONNECTIONS:
Electrical Connection: Heating element power 13/8" dia.
(1" conduit). See capacity schedule.
208V 220V 240V 480V BRIMFUL 4 OZ.
MODEL PH KW AMP KW AMP KW AMP KW AMP CAPACITY SERVINGS
VECTS12 1 9.0 43.3 9.0 40.9 9.0 37.5 - - 12 gallons 384
3 9.0 25.0 9.0 23.6 9.0 21.7 9.0 10.8 45 liters
