1. Installing Responders
1.1
1.2
1.3
1.4
1.5
594-0649-A
6
8
9
11
12
Responder Overview
Positioning Responders
Mounting Responders
Charge Responders
Operating Responders

1.1
Series 3 and 4 Responders can be used with RadaScan and RadaScan View
systems. One or more Responders should be mounted on the target platform or
vessel.
There are three models of RadaScan Series 3 Responder:
• Rechargeable (Part No. 20-0189-2)
• Primary Cell Responder (Part No. 20-0194-2)
• ISPP Powered (Part No. 20-0195-2)
• Primary Cell Pack (Part No. 21-0375-1)
The ISPP Powered Responder is used with Series 3 and 4 ISPP Responder Power
Supply (Part No. 21-0377-2).
There are three models of RadaScan Series 4 Responder:
• Rechargeable Responder (Part No. 20-0276)
• Primary Cell Pack Responder (Part No. 20-0284)
• ISPP Responder (Part No. 20-0286)
• Primary Cell Pack (Part No. 21-0505)
The Series 3 and Series 4 Primary Cell Responders are powered by different Primary
Cell Packs (Part No. 21-0375-1 - Series 3 | Part No. 21-0505 - Series 4). This
requires battery replacement as routine maintenance. This should be undertaken by
Wärtsilä Guidance Marine, or by a suitably qualied service technician.
Installing Responders 1
694-0649-A
Responder Overview
!Do not open the Responder. It should only be serviced by Wärtsilä Guidance
Marine service technician.
If you experience any problems with the unit, please contact:
Wärtsilä Guidance Marine Ltd,
5 Tiber Way,
Meridian Business Park,
Leicester,
LE19 1QP,
United Kingdom
Tel: [phone]
Email: [email protected]
RadaScan Responder
This drawing is linked to a scheduled drawing. Please ensure that any changes made to
this drawing do not affect the scheduled drawing. Any changes must be approved by Wartsila.
Note:
Label Material - 3M Type 76759 (UL File MH18072) •
Printing Ink - Armor AXR7 •
2575 = QAN Notified Body Number •
20-0286-XXX i.e. XXX = colour variant. e.g. 20-0286-YEL (or BLU, RED, GRE)
Rev X i.e. 1 wild card. e.g. Rev A meaning Revision A
Tom Coggins
Paul Betteridge
J Morgan
REVISIONS
ZONE REV. JIRA DESCRIPTION DATE APPROVED
P00 Initial Release 28/08/2018 JM
P01 CSA modification 06/06/2019 JM
A Production release 15/10/2019 JM
ALL A01 RAD-1050 Updated information on label 17/12/2019 JM
ALL A02 RAD-1097 Further changes required 09/01/2020 JM
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
C:\GUIDANCE1\Projects\Low Power Responder\
CHECK'D
REV:
THIRD ANGLE
PROJECTION
-
A3
SHEET 1 OF 1
SCALE:2:1
DWG NO.
TITLE:
MATERIAL:
DATE NAME
ALL PARTS TO BE FREE FROM BURRS, SHARP EDGES,
FLASHING, AND CORROSION
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS
APPV'D
DRAWN
SURFACE FINISH (µm) UNLESS
OTHERWISE SPECIFIED:
3.2
UNLESS OTHERWISE SPECIFIED, LINEAR AND ANGULAR
DIMENSIONS ACCORDING TO ISO 2768-fk
Low Power Series 4 Responder ISPP Product Label
WEIGHT:
96-0249
See Drawing
A02
Information contained on this document is the property
of Wartsila and is issued solely for the purpose of the
Contract to which it refers.It must not be reproduced,
loaned, given, sold or transmitted in any other manner
to any other person or company, or used for any other
purpose whatsoever except with the express written
permission of Wartsila © 2020
Jeff Morgan 17/12/2019
-
E
REV: DWG NO.
DO NOT SCALE DRAWING IF IN DOUBT ASK
A02 96-0249
DRAWING TO BS 8888
SIGNATURE
SHEET SIZE
STATUS:
ATEX Certification
Label (for illustration
purposes only -
actual label may be
formatted differently)

1.1
Instructions for Safe Selection, Installation, Use, Maintenance, Repair and
Transport
User instructions (in compliance with ATEX 94/9/EC Directive)
Installing Responders 1
794-0649-A
Responder Overview (continued)
Use in Hazardous Environments
•Series 3 and 4 Responders and primary cell packs may be used in zones 0, 1 or 2 with
ammable gases.
•All Series 3 and 4 Responders and primary cell packs may be used in the presence of ammable
gases and vapours with gas group IIB and with temperature class T4.
•The equipment is certied for use in ambient temperatures in the applicable range shown
above and should not be used outside this range.
Installation and Maintenance
•Responders must be installed by suitably trained personnel in accordance
with the applicable code of practice (typically IEC EN 60079-14).
•Responders must be inspected regularly by suitably trained personnel in accordance
with the applicable code of practice to ensure they are maintained in a satisfactory
condition.
•Responders are not intended to be repaired by the user. They must only be repaired or
serviced by Guidance Marine, or by an approved service representative of Wärtsilä Guidance
Marine, in accordance with the applicable code of practice.
Unit Part No. Temperature Range ATEX Certification No.
Series 3
Rechargeable 20-0189-2 -40°C to +55°C SIRA 15ATEX2015X
Mains Powered 20-0195-2 -40°C to +47°C SIRA 15ATEX2047X
Primary Cell Responder 20-0194-2 -40°C to +55°C SIRA 15ATEX2048X
Primary Cell Pack 21-0375-1 -40°C to +55°C SIRA 15ATEX2048X
Series 4
Rechargeable 20-0276 -40°C to +55°C SIRA 18ATEX2160X
Intrinsically Safe Permanently
Powered 20-0286 -40°C to +55°C SIRA 18ATEX2160X
Primary Cell Responder 20-0284 -40°C to +55°C SIRA 18ATEX2160X
Series 4 Primary Cell Pack 21-0505 -40°C to +55°C SIRA 18ATEX2160X
•Responders do not require assembly or dismantling.
They do not contain any customer-replaceable parts, and no user adjustment is required.
Electrostatic Hazard
•Responders must not be installed where external conditions could cause an electrostatic
build-up on their outer casing.
•The Responder’s outer casing presents a static hazard and must only be cleaned using a
damp cloth.
Corrosive Substances
•Responders should be protected from solvents, or acidic gases or liquids that may affect the
integrity of the outer case.
Transport
•Responders must be transported in a suitable transit case.
Responder Colours
Each Responder uses one of four different modulation frequencies. These are characterised as
colours: Red, Yellow, Green and Blue. The colour of a Responder is clearly marked on the outside
of its case, and is shown next to its ID number on the Reections and Extended Information panes
of the Dashboard.
This scheme makes it easier for the RadaScan View system to separate the signal from one
Responder from the signal from a Responder of a different colour. If you use more than one
Responder at once, then for best results make sure that you use a different colour for each
Responder.
FCC RF Exposure Safety Distance
•Unauthorized antennas, modifications, or attachments could damage the transmitter and
may violate FCC regulations. To maintain compliance with the FCC’s RF exposure
guidelines, a distance of ≥ 20 cm must be maintained between this device and personnel.

1.2
The location, range and orientation of the Responders in relation to the Sensor have
a signicant effect on the tracking performance of the RadaScan View system, and
hence on the quality of the position data sent to the DP system.
The RadaScan View system is based on radar technology. Metallic structures
reect the microwave beam transmitted by the sensor, and can cause multipath
interference, where ghost images are reported by the system. However, this
unwanted phenomenon can be prevented by carefully positioning the Responders
according to the following guidelines:
Installing Responders 1
894-0649-A
Positioning Responders

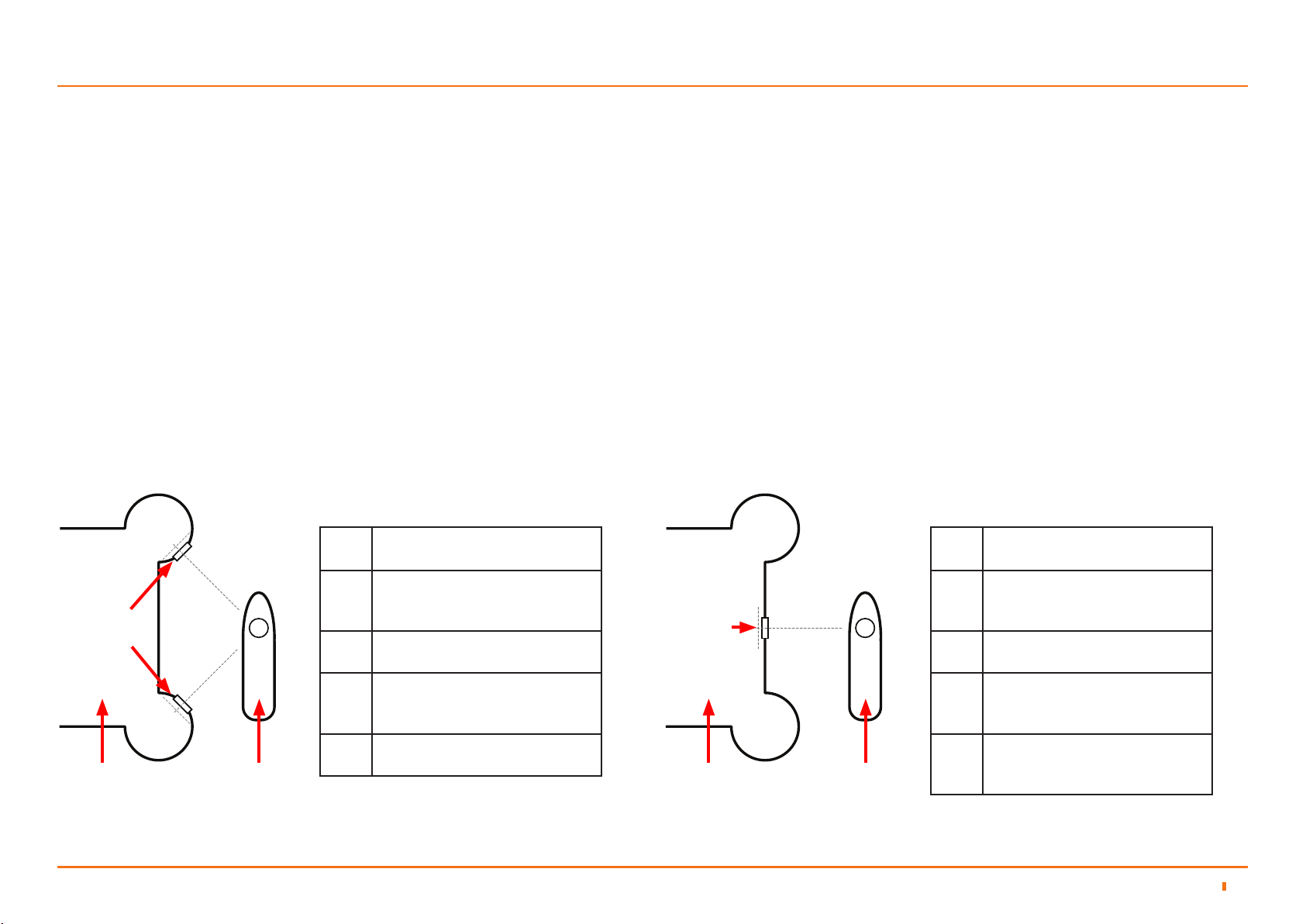

Responders Should be Mounted: Responders Should NOT be Mounted:
9With a clear, unobstructed view towards the RadaScan View-equipped
vessel.
9At a height no lower than two metres below the vessel-mounted Sensor.
9At a height no higher than ve metres above the vessel-mounted Sensor.
9On outside corners of the rig or platform to minimise the amount of
metallic structure around them.
8On inside corners.
8Below an overhang.
8On lower service decks below a main-deck overhang.
8Suspended from a lanyard or length of rope.
RR
98
Good
Responder
Location
Poor
Responder
Location
Rig/Platform Rig/PlatformVessel Vessel
Good angle of incidence
Lower angle of elevation allows
vessel to pick up Responder
on approach
Longer range aids
performance in high sea states
Usually clear of obstructions
and away from enclosed
corners
Provides adequate cover
during vessel manoeuvres
9
9
9
9
9
Good Location:
Good angle of incidence
Steep angle of elevation
prevents vessel from picking
up Responder on approach
Shorter range inhibits
performance in high sea states
Often surrounded by
obstructions and radar-
reecting metalwork
Does not provide adequate
cover during all vessel
manoeuvres
Poor Location:
8
8
8
8
8

1.3 Installing Responders 1
994-0649-A
Swivel Bracket
Mounting Responders
The Responder can be used with or without a swivel
bracket, as long as it is mounted with its longest side
vertical, and its carrying-handle at the top.
To Mount the Responder
1. Hook the foot of the Responder underneath the
knob on the bottom of the mounting plate. (See
below).
2. Rotate the Responder backwards until it is held in
place by its magnet against the mounting plate.
3. (Optional) Attach safety lanyard onto the
Responder and the swivel bracket or other xture.
The swivel bracket (Part No. 21-0328-1) should be used to point the Responder towards the
RadaScan View Vessel’s working area.
It can be mounted on either a horizontal or vertical bar:
Mounting on Horizontal Bar Mounting on Vertical Bar
Knob
Magnet
Mounting
Plate
Swivel Bracket
Swivel Bracket
Loosen the nut to swivel the bracket
in the required direction.
!Tighten the nut with a spanner to
fix the bracket’s position.

1.3 Installing Responders 1
1094-0649-A
Mounting a Primary Cell Responder with a
Primary Cell Pack:
Mounting Responders (continued)
Lanyard attachment points
Responder Swivel Bracket with 2 x U-Bolts
Primary Cell Pack Bracket (Part No. 21-0340-1)
with 2 x Thumb Screws
Primary Cell Pack
(Part No. 21-0375-1 for
Series 3 or 21-0505 for
Series 4)
Bracket rail to
provide additional
support

1.4
The rechargeable Responder should be fully charged before use.
A full charge takes approximately 24 hours.
Installing Responders 1
1194-0649-A
Charging Responders
!DO NOT charge Responders in an explosive atmosphere or other hazardous
environment.
The Responder should be switched off while charging.
To Charge the Responder:
!Note: Only use the supplied charger. Only charge at ambient temperatures of
0oC to +45oC.
1. Switch the Responder off and unscrew the charging socket cap on the rear of
the unit.
2. Remove the Responder from the hazardous location.
3. Connect the supplied mains charger (Part No. 39-0049-2).
(Input: 100–240VAC, 50–60Hz, 1.5A Output: 24VDC, 2.5A, 60W).
4. When charging is complete, disconnect the power from
the unit and replace the charging socket cap.
Charging Socket
Rechargeable Responder - Rear

1.5 Installing Responders 1
1294-0649-A
Operating Responders
The Responder must always be used with its longest side vertical, and its carrying handle at the top.
Switch the unit off when not in use to preserve the battery.
!The Responder is water resistant. However, do not submerge the unit in water.
To Switch the Responder ON:
• Press the ON/OFF button at the top of the unit.
• When rst turned on, the LED will remain illuminated for 30 seconds for both the PCP and
Rechargeable Responder
• For a rechargeable Responder, the green light in the centre of the button indicates how much
battery charge is remaining (assuming 24/7 operation):
Indicator Series 3 Series 4 - Use
Light solidly on Up to 22 days left > 90%
1 ash in 5 seconds Up to 10 days left 25% - 90%
3 ashes in 5 seconds Up to 1 day left < 25%
• For a Permanently Powered Responder, the light should ash with an interval of 5 seconds.
• For a Primary Cell Responder, the light indicates the state of the Primary Cell Pack:
1 ash in 5 seconds PCP Normal
3 ashes in 5 seconds PCP Low
Under normal conditions, the Primary Cell Responder will operate for up to one year* before the batteries need replacing.
!When a rechargeable Responder is switched on and the green light is not illuminated, recharge the battery.
!When a primary cell Responder is switched on and the green light does not flash at all, replace the primary cell. The batteries within the primary cell may be replaced, but this must only
be done in an ATEX safe environment, using batteries supplied by Wärtsilä Guidance Marine or authorised partners. Refer to ‘Series 4 Primary Cell Pack Battery Replacement Guide
(94-0647)’.
ON/OFF Button
*One year for Series 3; Two years for Series 4

2. Additional Information
2.1
2.2
2.3
1394-0649-A
14
15
16
International Standards Compliance
System Specifications
Part Numbers

2.1 Additional Information 2
1494-0649-A
RadaScan Responders
International Standards Compliance
EU ATEX Directive 2014/34/EU
RadaScan Responders are certied as intrinsically safe and can be used with
ammable gases and vapours belonging to gas group IIB.
Series 3 Responders can be used in zones 0, 1 and 2.
Series 4 Responders can be used in zones 0, 1 and 2.
(See page 7)
US

2.2 Additional Information 2
1594-0649-A
System Specications
Responder
Type Active
ATEX Compliance Series 3 and 4 Responders may be used in zones 0, 1 and 2
Azimuth Response 170o
Elevation Response +/- 35o
Power Battery or Intrinsically Safe Permanently Powered
Battery Life
Series 3
12 months - Primary Cell Pack
3 weeks - Rechargeable Cell
Series 4
Minimum 24 months - Primary Cell Pack
Minimum 1 month - Rechargeable
Dimensions 170 x 305 x 128mm (W x H x D)
Weight 3.8kg (Rechargeable); 3.2kg (Mains/Primary)
Wärtsilä Guidance Marine reserves the right to alter or amend this published
specication without notice.

2.3 Additional Information 2
1694-0649-A
Part Numbers
Component Part Number
Series 3
Responder (Rechargeable) 20-0189-2
Responder (Mains Powered) 20-0195-2
Primary Cell Responder 20-0194-2
Primary Cell Pack 21-0375-1
PCP Interface Cable 33-0392-3
Recharger 39-0049-2
Mains Power Supply 21-0377-2
Mains PSU Interface Cable 33-0393
Lanyard 24-0260-2
Component Part Number
Series 4
Rechargeable Responder 20-0276
Primary Cell Pack Responder 20-0284
Permanently Powered Responder 20-0286
Primary Cell Pack 21-0505
Component Part Number
Common
Swivel Bracket 21-0328-1
PCP Battery Pack Bracket Assembly MK 2 21-0340-1
Battery Service Kit - Primary Cell Pack 31-0058-4

1794-0649-A
Index
A
ATEX 7, 12, 14
B
Battery 6, 12
C
Charging 4, 11
Component 16
Corrosive Substances 7
D
DP System 8
E
Electrostatic Hazard 7
G
Gas Group 7, 14
H
Hazardous Environments 7
Horizontal Bar 9
I
Installation 7
International Standards Compliance 4, 13, 14
ISPP 6
L
Lanyard 10, 16
Location 8, 11
M
Maintenance 7
Mounting 4, 5, 9, 10
O
Operating 4, 5, 12
P
Part Numbers 4, 13, 16
Positioning 4, 5, 8
Primary Cell Pack 6, 7, 10, 12, 15, 16
Primary Cell Responder 6, 7, 10, 12, 16
R
RadaScan 2, 6, 7, 8, 9, 14
RadaScan View 6, 7, 8, 9
Range 7, 8
Rechargeable 6, 7, 11, 12, 15, 16
Responder 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 15, 16
S
Series 3 6, 7, 10, 12, 14, 15, 16
Series 4 6, 7, 10, 12, 14, 15, 16
Static Hazard 7
Swivel Bracket 9, 10, 16
System 4, 13, 15
System Specications 4, 13, 15
T
Temperature 7
Temperature Range 7
V
Vertical Bar 9
Vessel 6, 8

94-0649-A
