WAC Lighting Mocha XL F-064 User manual

MOCHA XL
Installation Instructions
works with the
Google Assistant

Please read and review instructions
before installation

For all questions about your ceiling fan please read all
included instructions, installation procedures, trouble-
shooting guidelines and warranty information before
starting installation
For fast service have the following information below
when you call:
For missing parts or general inquiries
call our trained technical sta at:
• Model Name and Number
• Part Number and Part Description
• Date Of Purchase and Purchase Location
Email: [email protected]
Or live chat at www.waclighting.com
Email: [e-mail]
1-800-526-2588 option 01-800-526-2588 option 3
MON-FRI 8AM-8PM EST MON-FRI 8AM-8PM EST
GENERAL INQUIRIES FAN SUPPORT
DO NOT RETURN TO STORE

1. To reduce the risk of electric shock, ensure electricity has been turned o
at the circuit breaker before beginning.
2. All wiring must be in accordance with the National Electrical Code “ANSI/
NFPA 70”and local electrical codes. Electrical installation should be per-
formed by a licensed electrician.
3. To reduce the risk of re, electric shock, personal injury or damage to the
fan or other items, the outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35 Ibs (15.9
kg). Use only UL/cUL
listed outlet boxes marked “FOR FAN SUPPORT.” Use only
the screws and washers provided with the outlet box.
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the fan blades to the oor
and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls.
5. Never place objects in the path of the fan blades.
6. To avoid personal injury or damage to the fan and
other items, please be cautious when working around
or cleaning the fan.
7. To avoid electrical shock or damage to the motor or nish, do not use wa-
ter or chemicals when cleaning the fan or fan blades. A dry cloth or lightly
dampened cloth will be suitable for most cleaning.
8. After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-ground-
ing conductor on one side of the outlet box, and the
ungrounded conductor on the other side of the outlet box.
9. All set screws must be checked and re-tightened where necessary before
installation.
SAFETY RULES
For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/

WARNING: Do not install or use your fan if any part(s) is/are damaged or
missing. This product is designed for use only with the supplied parts and/or
accessories designated for use with this product by WAC. Substitution of parts
or accessories not designated for use with this product by WAC could result
in personal injury or property damage and will void the warranty. Contact an
authorized dealer or the manufacturer if any parts are damaged or missing.
WARNING: To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from the
WAC app or Wall Control (not included).
WARNING: Do not use power tools to assemble or install your fan. Using power
tools can result in improper assembly which can lead to noise or fan dam-
age,personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the
blade arms when installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: Do not operate fan unless fan blades are in place.
Noise and fan damage can occur
WARNING: This appliance is not intended for use by young
children without supervision.
CAUTION: Before assembling your fan, refer to the “Making
the Electrical Connections“ section. If you feel you do not have
enough wiring knowledge or experience, have your fan installed
by a licensed electrican.
NOTE: Before servicing or cleaning the fan, switch power o at
the circuit breaker.
02 SAFETY RULES

This WAC Smart Fan is:
DC
MOTOR
The WAC app synchronizes seamlessly with smart home devices you already own
GET SMART
works with the
Google Assistant
WALL CONTROL
WC20-WT
Optional accessory
sold separately
6 fan speeds
Dims light to 1%
ON/OFF
APP DOWNLOAD
Available for purchase on
the Google Pay and App Store
Quiet, reliable, and up to 70%
more ecient than AC motor fans
Wi-Fi and Bluetooth enabled
for unlimited control
Wet location-listed to the strictest
UL/cUL safety regulations
Compatible with our WAC app
Coordinates with smart devices
for voice-activated control
REMOTE CONTROL
RC20-WT White
Included with
each fan
6 fan speeds
Dims light to 1%
ON/OFF

Package Contents
Mounting Options
Installing the Mounting Bracket
Attaching the Fan Blades
Hanging the Fan
Making the Electrical Connections
Installing the Optional Wall Control
Finishing the Installation
Installing the Adapter Plate
Installing the Luminaire Module
Controlling the Fan
Reset
App Instructions
Accessories
Troubleshooting
9.
10.
10.
11.
12.
14.
15.
17.
18.
19.
20.
23.
24.
26.
28.
4
7
7
8
9
10
11
12
13
14
15
16
5
5
6
TABLE OF CONTENTS

F-064/F-064L
8
Electrical tape
Phillips screwdriver Step ladder Wire cutters
NOTE: Before discarding packaging materials, be certain all parts have been removed.
NOTE: Place the parts from the hardware bag into a small container to keep them from being lost.
MAC ID
03 TOOLS & MATERIALS REQUIRED
IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
Hanging Weight: 30 lbs.

9F-064/F-064L
NOTE: ** denotes nish code of fan
1
9
10
6
3
8
5
4
14
2
7
11
12
13
10
A: Junction Box
Machine Screws (2)
Spring Washers (2)
Flat Washers (2)
B: Blade Arm Mounting Screws (17)
C: Blades
Blade Screws (33)
Flat Washers (33)
D: Safety Cable
Flat Washer (1)
Spring Washer (1)
Wood Screws(1)
E: Wire Connectors (8)
(F-064L version)
F: LED Module Screws
Mounting Plate
(included with receiver)
Canopy Ring
RPL-CAN-RND-XL-** Adapter Plate
Luminaire Cover
RPL-F064-COVER-**
(F-064 version)
Coupling
Cover
RPL-CCOV-MOCHA-**
Hardware Bag
RPL-F064-PARTS
Canopy
RPL-CAN-RND-XL-**
Motor Housing
Fan Blade
RPL-F064-066-BD-**
Remote Control
RC20-WT
PACKAGE CONTENTS 04
Downrod
Assembly
RPL-HGR-ASM-XL-**
Mounting
Bracket
RPL-HGR-ASM-XL-**
PC Shade
RPL-F064-GLA
(F-064L version)
Luminaire Module
F4IN-120V-R1-30
(F-064L version)
Receiver
F-R3-064-066

F-064/F-064L
10
2
05 MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET
Caution: Remember to disconnect
the power at the circuit breaker.
1

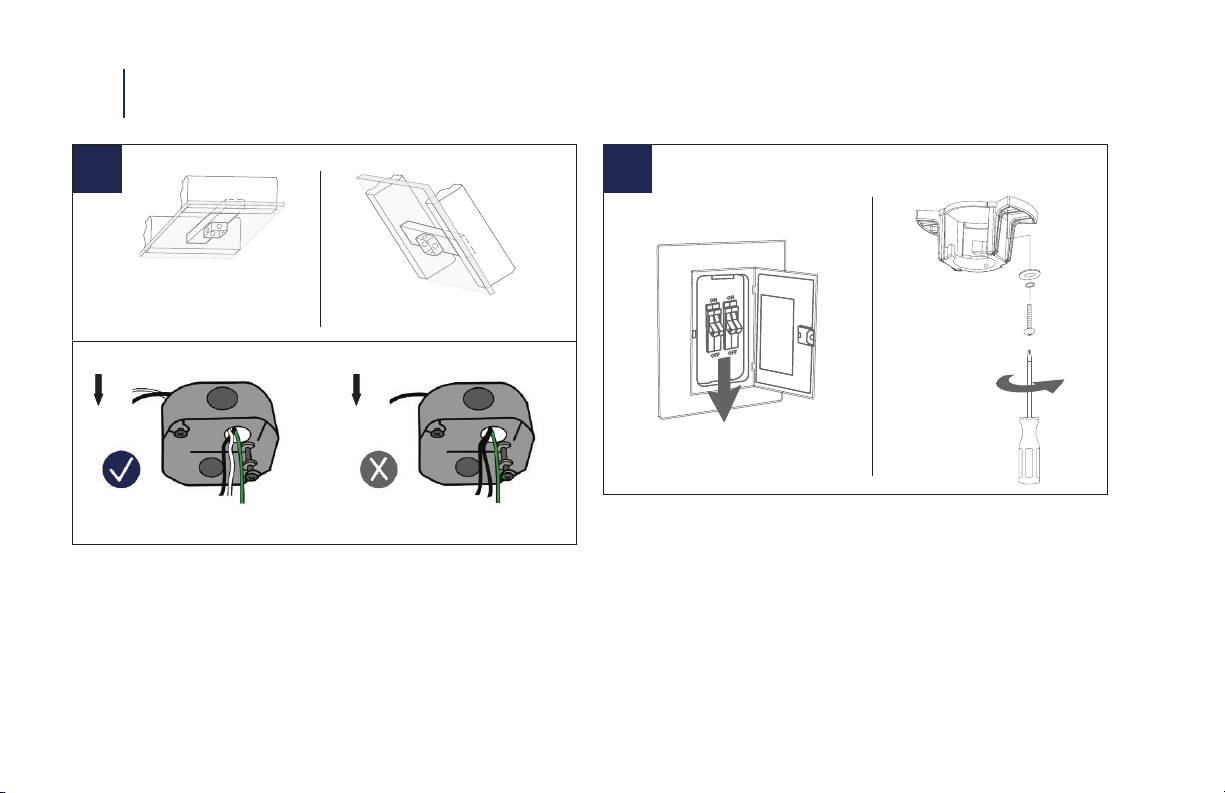

1. Disconnect power at the breaker
2. Remove 1 set screw from the mounting bracket and set aside
for use in Finishing the Installation.
3. Secure the hanger bracket to the ceiling outlet box using
screws included with your outlet box. Use Ahardware if
needed.
4. Pass supply wires through mounting bracket and secure
to outlet box.
Standard Ceiling Slope Ceiling
CAUTION: To prevent electrical shock, ensure electricity
has been turned o at the circuit breaker before beginning.
Figures 1 and 2 are examples of dierent ways to mount the
outlet box.
To Switch To Switch
(Hot) (Hot)/
Switch
(Ground) (Ground)
(No Neutral)
(Neutral) *Bare or
Green
*Bare or
Green
AA
B

11F-064/F-064L
31. Insert blade arm into motor assembly. Secure blade arms with
included blade arm mounting screws. Use B Hardware.
2. Place blade on top of blade arms and secure with included screws
and washers. Use CHardware. Make sure blade arms and blades
are tightened.
ATTACHING THE FAN BLADES 06

F-064/F-064L
12
4 4A

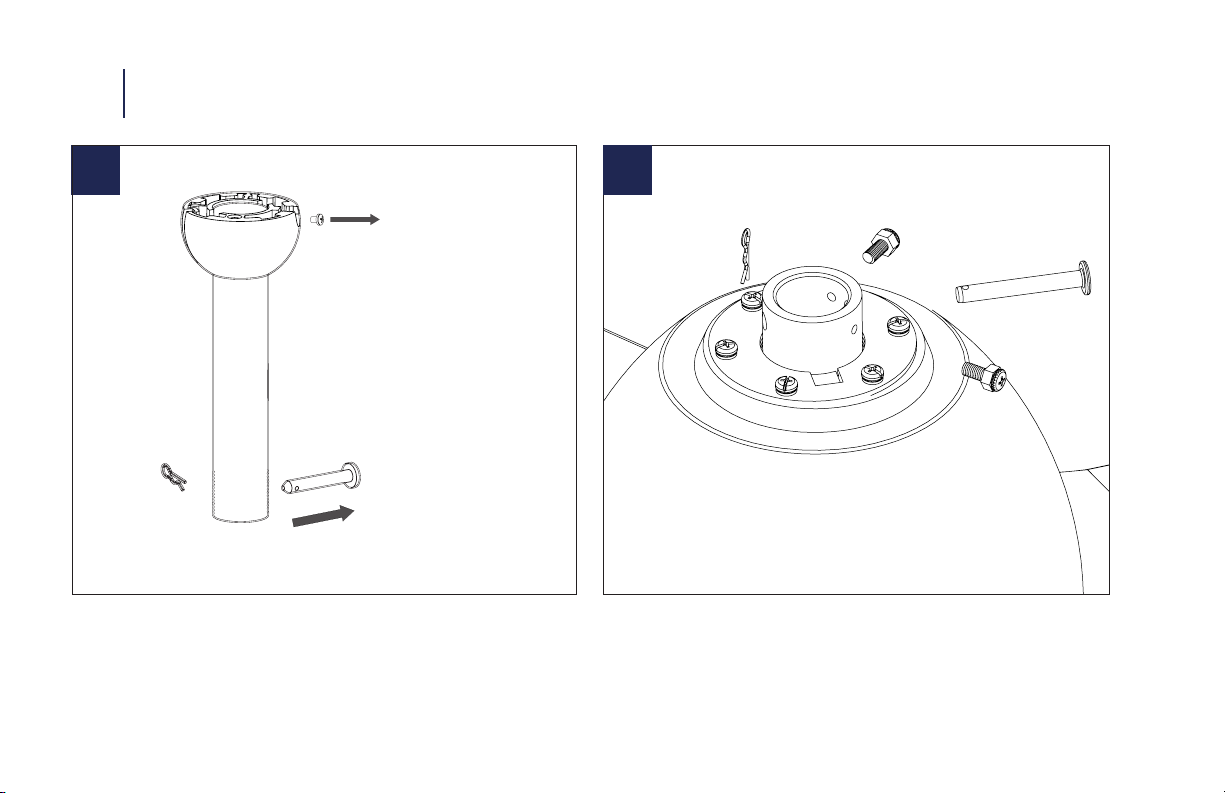

1. Remove screw from hanger ball. Remove hanger ball
and cross pin.
2. Loosen two screws from coupler, remove clevis pin,
and cotter pin
07 HANGING THE FAN

13F-064/F-064L
5
HANGING THE FAN 07

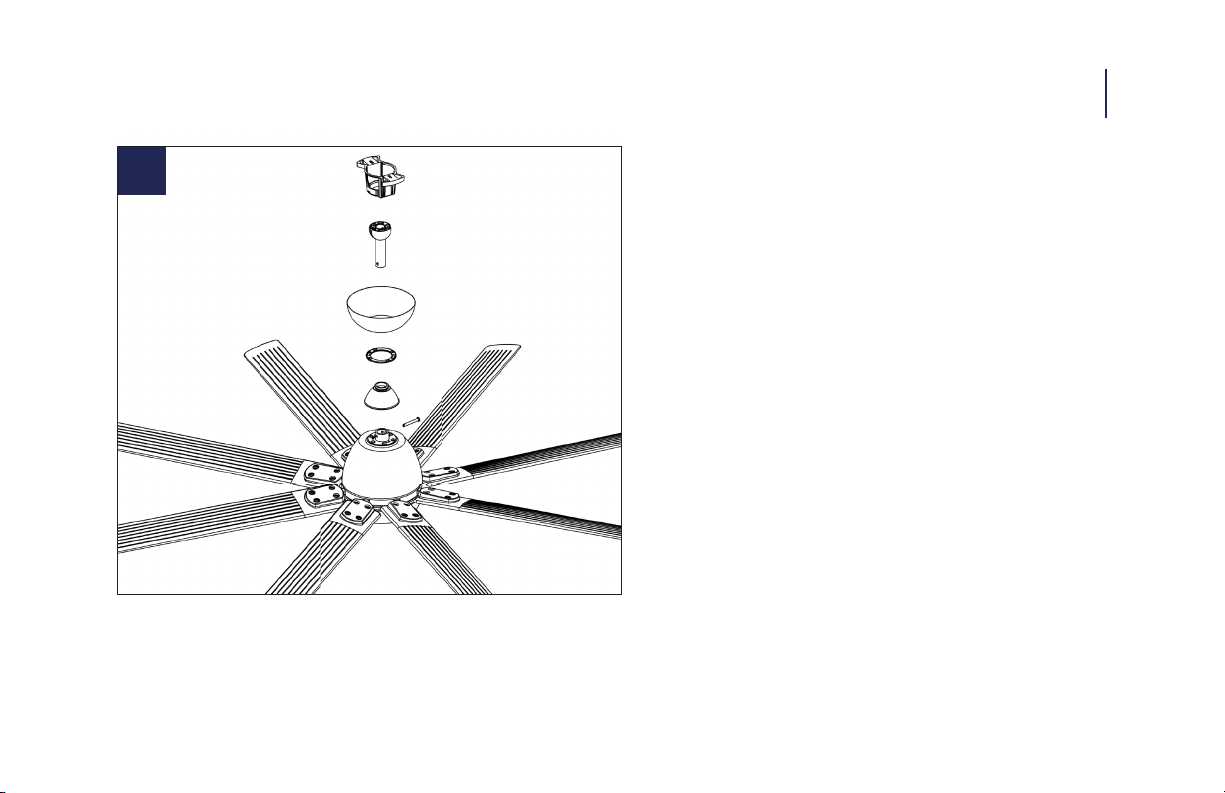

1. Align downrod and motor collar holes, re-insert
pins and screws.
2. Slip up canopy and canopy screw cover. Re-install hanger ball
with cross pin in correct place.
3. Install coupling cover, canopy screw ring, canopy and
downrod assembly into motor housing as shown.

7Outlet Box
6
07 HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS
1. Secure the safety cable into the structure beams using the
wood screw, washers, and spring washers provided.
Use Dhardware.
NOTE: Safety cable is required for all ceiling fan installations in
Canada. Safety cable is required for ceiling fan and light (combo)
installations over 35 lbs. in both ush and downrod models in the
United States.
2. Slide receiver into place with the at side facing up.

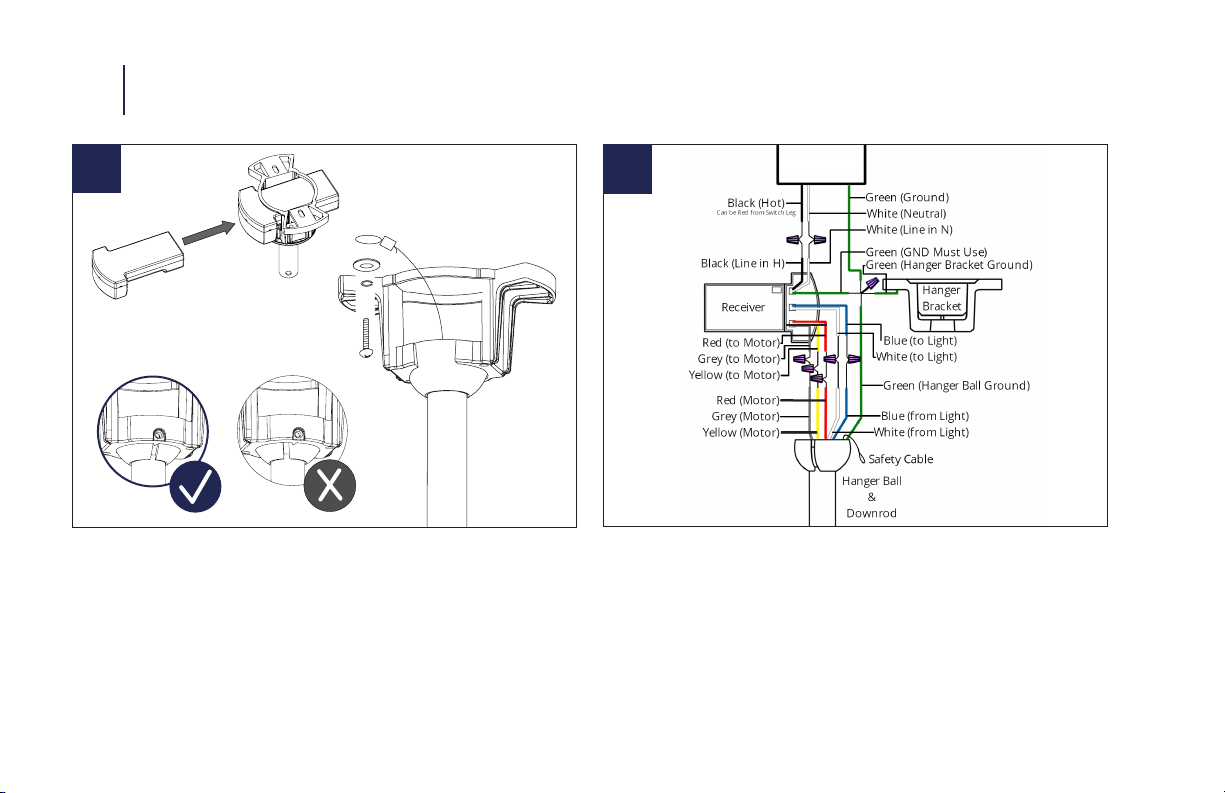

1. Connect the labled wires from fan to the corresponding wires
on the receiver.
2. Connect the labeled wires from the outlet box to the
corresponding wires on the receiver. Use Ehardware.
After making electrical connections, spliced connectors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded connector on the other side of the outlet box.
F-064/F-064L

15F-064/F-064L
8
INSTALLING THE OPTIONAL WALL CONTROL 08
NOTE:Wall control not included. A Bluetooth wall control accessory can be purchased separately.
NOTE: For multi-location wiring, skip to the next step.
1. Connect the green wire marked“GROUND”from the wall control to the copper wire from the wall outlet box that
feeds back to the circuit breaker – important for proper fan function.
2. Connect the black wire marked “LINE IN”from the wall control to the black LINE VOLTAGE wire from the wall
outlet box that feeds back to the circuit breaker.
3. Connect the red wire from the wall control to the black wire from the wall outlet box that feeds up to the fan.
4. Connect the white wire from the wall control to the white (neutral) wire from the wall outlet box.
5. Carefully tuck the wire connections inside the outlet box. Secure the wall control with the two (2) wall control screws provided.
6. Attach the wall mounting plate over the wall switch and secure with the two (2) wall mounting plate screws provided.
7. Fasten the wall plate to the wall mounting plate.

F-064
16
1. Install the wall control using the wiring diagram in below.
2. Individually pair each of the wall controls with the fan receiver using the pairing instructions in section 15.
Wall Control 1 Wall Control 2 Wall Control 3
08 INSTALLING THE OPTIONAL WALL CONTROL

17F-064
Screws
Junction box
Hanger
Bracket
Canopy
Canopy Screw Cover
FINISHING THE INSTALLATION 09
91. Secure wire connectors with supplied wire ties.
2. Install canopy to mounting bracket with the screw
removed in section 2.
3. Install canopy screw ring as shown.

F-064/F-064L
18
16
When installing the Non-Luminaire version (F-064)
10 INSTALLING THE ADAPTER PLATE
1. Remove 1 and loosen 2 screws from the outer perimeter of the
mounting plate.
2. Pull the light wires through the center hole of the adapter plate.
You do not need said wires if you purchased F-064.
3. Twist lock the adapter plate into place. Screw in the previsouly
removed screw and tighten the 2 previously loosened screws to
install the adapter plate.
4. Install the luminaire cover by twisting it into the grooves of the
adapter plate. If you purchased F-064 - you can now power on
and start controlling your fan.
10 11
1. Remove 1 and loosen 2 screws from the motor assembly.
2. Twist and lock the mounting plate into place.
3. Using the screw from the previous step, install the mounting
plate and tighten the 2 other screws.
Note: If you purchased F-064L - skip step 4.

19F-064/F-064L
INSTALLING THE LUMINAIRE MODULE 11
When installing the Luminaire version (F-064L)
1313
12
1. Install luminaire cover rmly without over-tightening.
2. If you purchased F-064L - you can now power on and
start controlling your fan.
1. Attach blue wire from motor to blue wire on LED module and
white wire from motor to white wire on LED module.
2. Locate the 3 Luminaire module screws (5/32*8mm Philips
Head Screws) and install LED module with said screws.
Use Fhardware.

F-064/F-064L
20
15
A
A
B
B
C
C
Air-Gap
Switch*
Your fan was delivered to you with the included remote already
paired to your fan. You will need to remove the pull-tab to begin
using your remote control.
A: Light On/O, Bright/Dim
B: Fan On/O, Speed Up/Down
C: Season (Summer/Winter)
Air-Gap Switch: Pull tab to power o in case of emergency.
Not necessary for normal fan operation.
Summer Mode
(Counter-Clockwise)
Winter Mode
(Clockwise)
13 14
Pairing
Press and hold buttons
for 10-15 seconds.
Optional
Wall Control
* Air-Gap Switch only
included with wall control
Remote
Control
Unpairing
To purge, press and hold
buttons for 4 seconds.
NOTE: Your fan features 6 speeds. An audible tone will indicate when
the speed is increased or decreased. When the fan has reached the
minimum/maximum speed level the fan will beep twice.
NOTE: Pairing must be completed within 3 minutes of turning the
power on to the fan receiver. If you wish to pair your remote to another
WAC Smart Fan or if you ever need to re-pair your remote to its original
fan, press and hold the light toggle and fan toggle for 4 seconds until
you hear a short beep, long beep combination from the fan.
12 CONTROLLING THE FAN
