WAC Lighting San Francisco F-081L User manual

SAN FRANCISCO
Installation Instructions
works with the
Google Assistant

Please read and save instructions
before installation

For all questions about your ceiling fan please read all
included instructions, installation procedures, trouble-
shooting guidelines and warranty information before
starting installation
For fast service have the following information below
when you call:
For missing parts or general inquiries
call our trained technical sta at:
• Model Name and Number
• Part Number and Part Description
• Date Of Purchase and Purchase Location
Email: [email protected]
Or live chat at www.waclighting.com
Email: [e-mail]
1-800-526-2588 option 01-800-526-2588 option 3
MON-FRI 8AM-8PM EST MON-FRI 8AM-8PM EST
GENERAL INQUIRIES FAN SUPPORT
DO NOT RETURN TO STORE

1. To reduce the risk of electric shock, ensure electricity has been turned o
at the circuit breaker before beginning.
2. All wiring must be in accordance with the National Electrical Code “ANSI/
NFPA 70” and local electrical codes. Electrical installation should be per-
formed by a licensed electrician.
3. To reduce the risk of re, electric shock, personal injury or damage to the
fan or other items, the outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35 Ibs (15.9
kg). Use only UL/cUL
listed outlet boxes marked “FOR FAN SUPPORT.” Use only
the screws and washers provided with the outlet box.
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the fan blades to the oor
and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls.
5. Never place objects in the path of the fan blades.
6. To avoid personal injury or damage to the fan and
other items, please be cautious when working around
or cleaning the fan.
7. To avoid electrical shock or damage to the motor or nish, do not use wa-
ter or chemicals when cleaning the fan or fan blades. A dry cloth or lightly
dampened cloth will be suitable for most cleaning.
8. After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-ground-
ing conductor on one side of the outlet box, and the
ungrounded conductor on the other side of the outlet box.
9. All set screws must be checked and re-tightened where necessary before
installation.
SAFETY RULES
For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/
Hanging Weight:
F-081L: 12.6 LBS.
F-083L: 12.1 LBS.

WARNING: Do not install or use your fan if any part(s) is/are damaged or
missing. This product is designed for use only with the supplied parts and/or
accessories designated for use with this product by WAC. Substitution of parts
or accessories not designated for use with this product by WAC could result
in personal injury or property damage and will void the warranty. Contact an
authorized dealer or the manufacturer if any parts are damaged or missing.
WARNING: To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from the
WAC app or Wall Control (not included).
WARNING: Do not use power tools to assemble or install your fan. Using power
tools can result in improper assembly which can lead to noise or fan dam-
age,personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the
blade arms when installing the brackets, balancing the blades or cleaning the
fan.
WARNING: To reduce the risk of fire , Electric shock , or personal injury, Mount
to outlet box marked "acceptable for fan support of 15.9kg (35 Ibs ) or less "
and use mounting screws with the outlet box .
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: Do not operate fan unless fan blades are in place.
Noise and fan damage can occur
WARNING: This appliance is not intended for use by young
children without supervision.
CAUTION: Before assembling your fan, refer to the “Making
the Electrical Connections“ section. If you feel you do not have
enough wiring knowledge or experience, have your fan installed
by a licensed electrican.
NOTE: Before servicing or cleaning the fan, switch power o at
the circuit breaker.
02 SAFETY RULES

This WAC Smart Fan is:
DC
MOTOR
The WAC app synchronizes seamlessly with smart home devices you already own
GET SMART
works with the
Google Assistant
WALL CONTROL
WC20-WT
Optional accessory
Sold separately
6 fan speeds
Dims light to 1%
ON/OFF
APP DOWNLOAD
Available for purchase on
the Google Pay and App Store
Quiet, reliable, and up to 70%
more ecient than AC motor fans
Wi-Fi and Bluetooth enabled
for unlimited control
Wet location-listed to the strictest UL/cUL
safety regulations
Compatible with our WAC app
Coordinates with smart devices
for voice-activated control
REMOTE CONTROL
RC20-WT White
Included with
each fan
6 fan speeds
Dims light to 1%
ON/OFF

WALL CONTROL
WC20-WT
Optional accessory
Sold separately
6 fan speeds
Dims light to 1%
ON/OFF
Package Contents
Mounting Options
Installing the Mounting Bracket
Attaching the Fan Blades
Hanging the Fan
Making the Electrical Connections
Installing the Optional Wall Control
Finishing the Installation
Installing the Adapter Plate
Installing the Luminaire Module/Glass
Controlling the Fan
Reset
App Instructions
Accessories
Troubleshooting
9.
10.
10.
11.
12.
16.
17.
19.
20.
21.
22.
25.
26.
27.
29.
4
7
7
8
9
10
11
12
13
14
15
16
5
5
6
TABLE OF CONTENTS

F-081L/ F-083L
8
Electrical tape

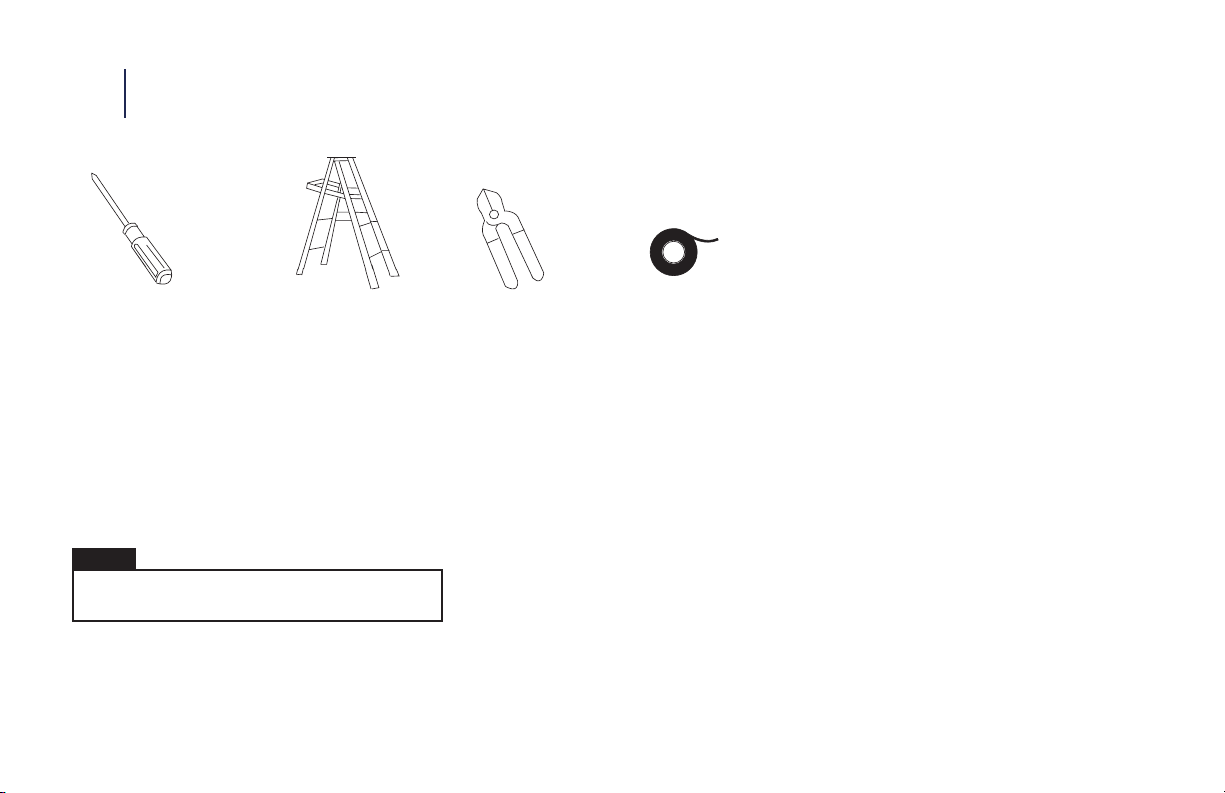

Phillips screwdriver Step ladder Wire cutters
NOTE: Before discarding packaging materials, be certain all parts have been removed.
NOTE: Place the parts from the hardware bag into a small container to keep them from being lost.
MAC ID
03 TOOLS & MATERIALS REQUIRED
IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.

9F-081L/ F-083L
NOTE: ** denotes nish code of fan / blade sweep
1
10
7
3
9
5
4
13
2
8
11
12 10
A: Outlet Box
Machine Screws (2)
Spring Washers (2)
Flat Washers (2)
B: Blade Screws
Blade Screws (10)
Nylon Washers (10)
C: Safety Cable/AllenWrench
Flat Washer (1)
Spring Washer (1)
Wood Screw (1)
D: Wire Connectors (8)
(included with receiver)

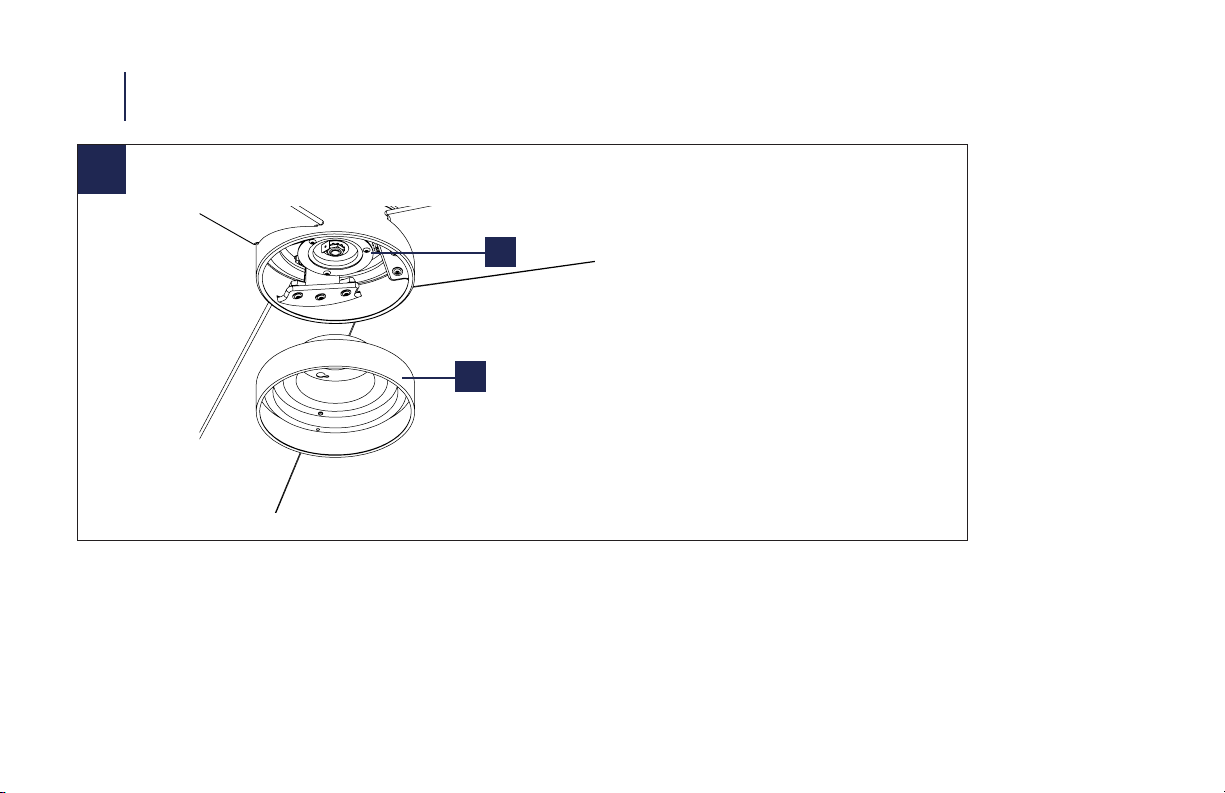

Canopy Ring
RPL-CAN-CYL-**
Adapter Plate
RPL-FSFRAN-ADP-**
Coupling Cover
RPL-COU-COV-**
Hardware Bag
RPL-FRSANFRAN-PART
Canopy
RPL-CAN-CYL-**
Motor
Housing
Fan Blade
RPL-FSFRAN-**BD-**
Remote Control
RC20-WT
PACKAGE CONTENTS 04
Downrod
Assembly
RPL-HGR-ASM-**
Mounting
Bracket
RPL-HGR-ASM-**
Glass Shade
RPL-FSANFRAN-GLASS
Luminaire Module
F4IN-120V-R1-30
Receiver
F-R3-081-052 for 52 inch
F-R3-083-044 for 44 inch

F-081L/ F-083L
10
12

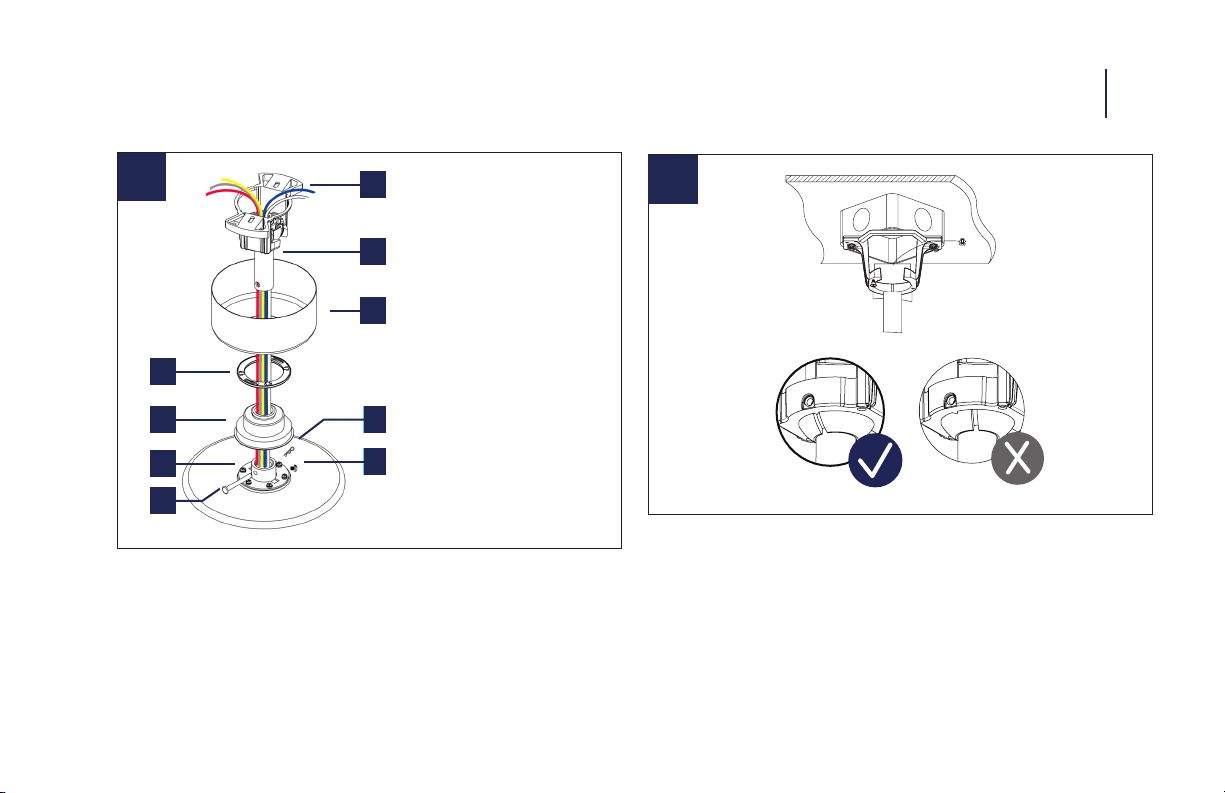

05 MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET

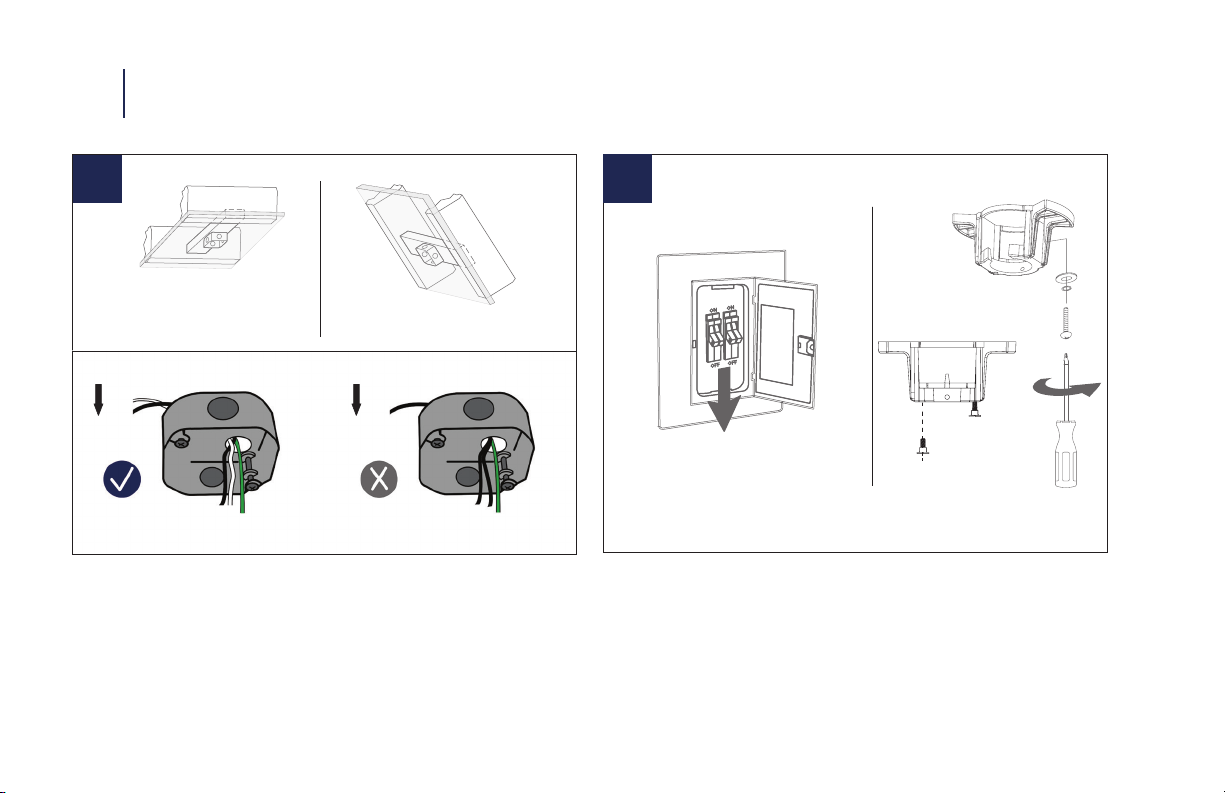

1. Remove 1 set screw from mounting bracket and set aside for use in
Finishing the Installation.
2. Secure the hanger bracket to the ceiling outlet box using screws
included with your outlet box, lock washers included with the fan. Use
the screws included with your outlet box to mount the hanger bracket.
3. Pass supply wires through mounting bracket and secure
to outlet box.
Standard Ceiling Slope Ceiling
Caution: Remember to disconnect
the power at the circuit breaker.
CAUTION: To prevent electrical shock, ensure electricity
has been turned o at the circuit breaker before beginning.
Figure 1 is an example of how to mount the outlet box.
If needed use Ahardware to mount the outlet box to the ceiling
joist.

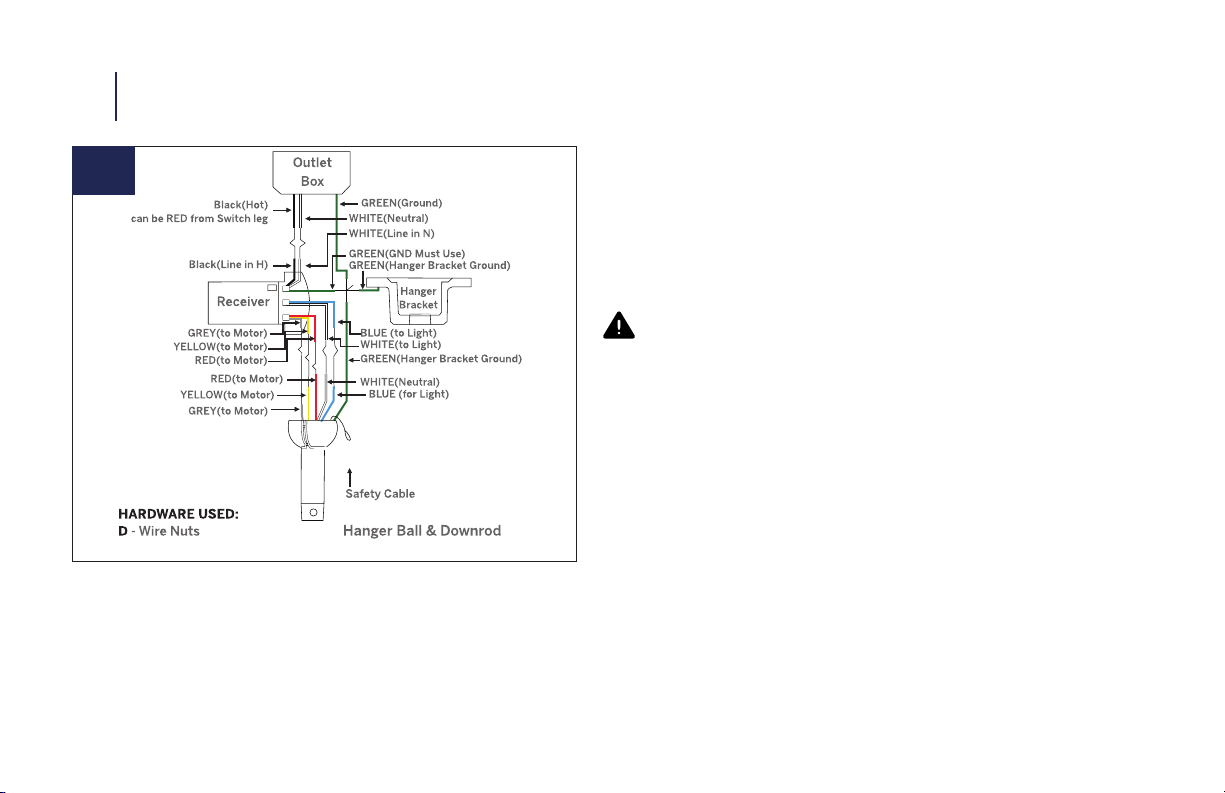

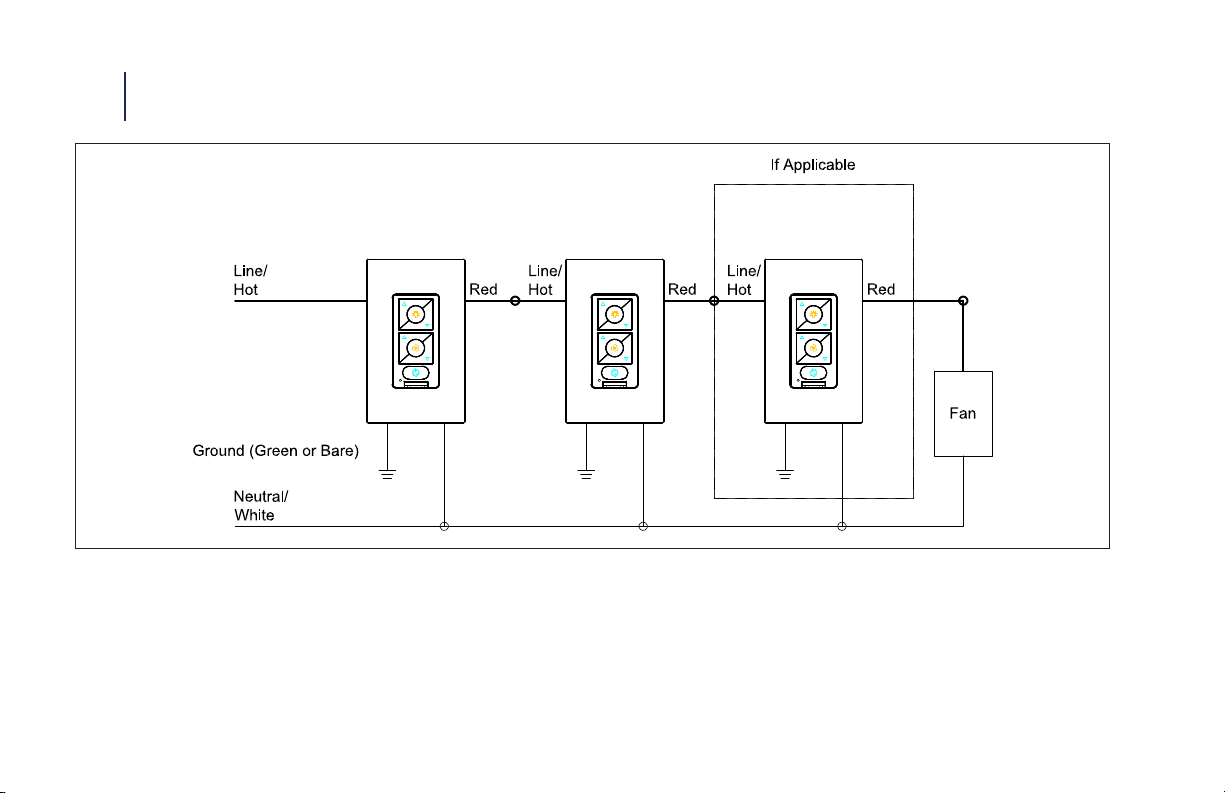

To Switch To Switch
(Hot) (Hot)/
Switch
(Ground) (Ground)
(No Neutral)
(Neutral) *Bare or
Green
*Bare or
Green
AA
B
