WAC ODYSSEY User manual

ODYSSEY
Installation Instructions
works with the
Google Assistant

Please read and review instructions
before installation

For all questions about your ceiling fan please read all
included instructions, installation procedures, trouble-
shooting guidelines and warranty information before
starting installation.
For fast service have the following information below
when you call:
For missing parts or general inquiries
call our trained technical sta at:
• Model Name and Number
• Part Number and Part Description
• Date Of Purchase and Purchase Location
Email: [email protected]
Or live chat at www.waclighting.com
Email: [e-mail]
1-800-526-2588 option 01-800-526-2588 option 3
MON-FRI 8AM-8PM EST MON-FRI 8AM-8PM EST
GENERAL INQUIRIES FAN SUPPORT
DO NOT RETURN TO STORE

SAFETY RULES
To reduce the risk of electric shock, ensure electricity has been turned o at
the circuit breaker before beginning.
All wiring must be in accordance with the National Electrical Code“ANSI/
NFPA 70” and local electrical codes. Electrical installation should be
performed by a licensed electrician.
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the fan blades to the oor
and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls.
Never place objects in the path of the fan blades.
To avoid personal injury or damage to the fan and
other items, please be cautious when working around
or cleaning the fan.
To avoid electrical shock or damage to the motor or nish, do not use water
or chemicals when cleaning the fan or fan blades. A dry cloth or lightly
dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box, and the ungrounded conductor on
the other side of the outlet box.
All set screws must be checked and re-tightened where necessary before
installation.
For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/

02 SAFETY RULES
WARNING: Do not install or use your fan if any part(s) is/are damaged or
missing. This product is designed for use only with the supplied parts and/
or accessories designated for use with this product by WAC. Substitution of
parts or accessories not designated for use with this product by WAC could
result in personal injury or property damage and will void the warranty.
Contact an authorized dealer or the manufacturer if any parts are damaged
or missing.
WARNING: To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from
the WAC app.
WARNING: Do not use power tools to assemble or install your fan. Using
power tools can result in improper assembly which can lead to noise or fan
damage,personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the
blade arms when installing the brackets, balancing the blades or cleaning
the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: Do not operate fan unless fan blades are in place.
Noise and fan damage can occur
WARNING: This appliance is not intended for use by young
children without supervision.
WARNING: To reduce the risk of re, electric shock, personal injury or damage
to the fan or other items, the outlet box and support structure must be
securely mounted and capable of reliably supporting a minimum of 35 Ibs
(15.9 kg). Use only UL/cUL listed outlet boxes marked “FOR FAN SUPPORT.” Use
only the screws and washers provided with the outlet box.
CAUTION: Before assembling your fan, refer to the “Making
the Electrical Connections“ section. If you feel you do not have
enough wiring knowledge or experience, have your fan installed
by a licensed electrican.
NOTE: Before servicing or cleaning the fan, switch power o at
the circuit breaker.

This WAC Smart Fan is:
The WAC app synchronizes seamlessly with smart home devices you already own
GET SMART
works with the
Google Assistant
WALL CONTROL
WC20-WT
Optional accessory
sold separately
6 fan speeds
Dims light to 1%
ON/OFF
APP DOWNLOAD
Available for purchase on
the Google Pay and App Store
REMOTE CONTROL
RC20-WT
Included with
each fan
6 fan speeds
Dims light to 1%
ON/OFF
DC
MOTOR
Quiet, reliable, and up to 70%
more ecient than AC motor fans
Wi-Fi and Bluetooth enabled
for unlimited control
cUL/UL listed to the strictest
safety regulations
Compatible with our WAC app
Coordinates with smart devices
for voice-activated control

Package Contents
Mounting Options
Installing the Mounting Bracket
Attaching the Fan Blades
Hanging the Fan
Making the Electrical Connections
Installing the Optional Wall Control
Finishing the Installation
Installing the Adapter Plate
Installing the Luminaire Module
Controlling the Fan
Factory Reset
Application
Accessories
9.
10.
10.
11.
12.
14.
15.
17.
18.
19.
21.
24.
25.
27.
4
7
8
9
10
11
12
13
14
15
5
5
6
7
TABLE OF CONTENTS

F-005L
8

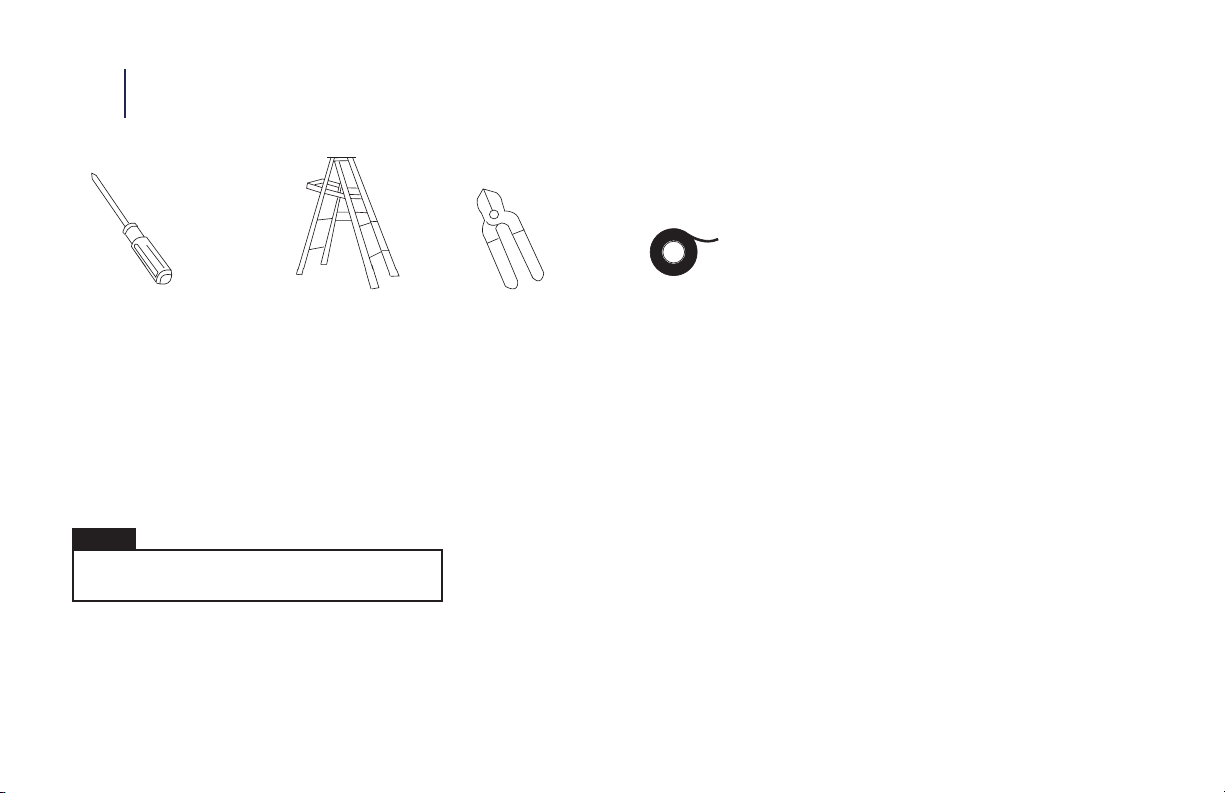

Electrical tape
Phillips screwdriver Step ladder Wire cutters
NOTE: Before discarding packaging materials, be certain all parts have been removed.
NOTE: Place the parts from the hardware bag into a small container to keep them from being lost.
Hanging Weight: 17lbs
MAC ID
03 TOOLS & MATERIALS REQUIRED
IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.

9F-005L
NOTE: ** denotes nish code of fan
1
9
5
3
8
13
5
4
12
2
7
10
11
Canopy Ring
RPL-F005-CAN-**
Adapter Plate
Coupling
Cover
Safety Cable
6.5” x 19 x 2mm
Flat washer
(1pcs)
Safety Cable
10 x 76mm
Pan head
Philips wood
screw (1pc)
Safety Cable
3/16” (5.2 x 8.4 x
1.0mm) Spring
Washer (1pc)
Hardware Bag
RPL-F005-PARTS
Blade Screws
1/4” x 13mm
Slotted pan head
screws (10pcs)
LED Plate
8 x 1” Phillips Truss Head
Screws (4pcs)
Mounting Screw Bag
#10x38mm Pan Head
Phillip Screws (2)
Ø5*14*1mm Flat
Washer (2)
3/16” Star Washer (2)
Canopy
RPL-F005-CAN-**
Motor Housing
Fan Blade
RPL-F005-52-BD-**
Remote Control
RC20-WT

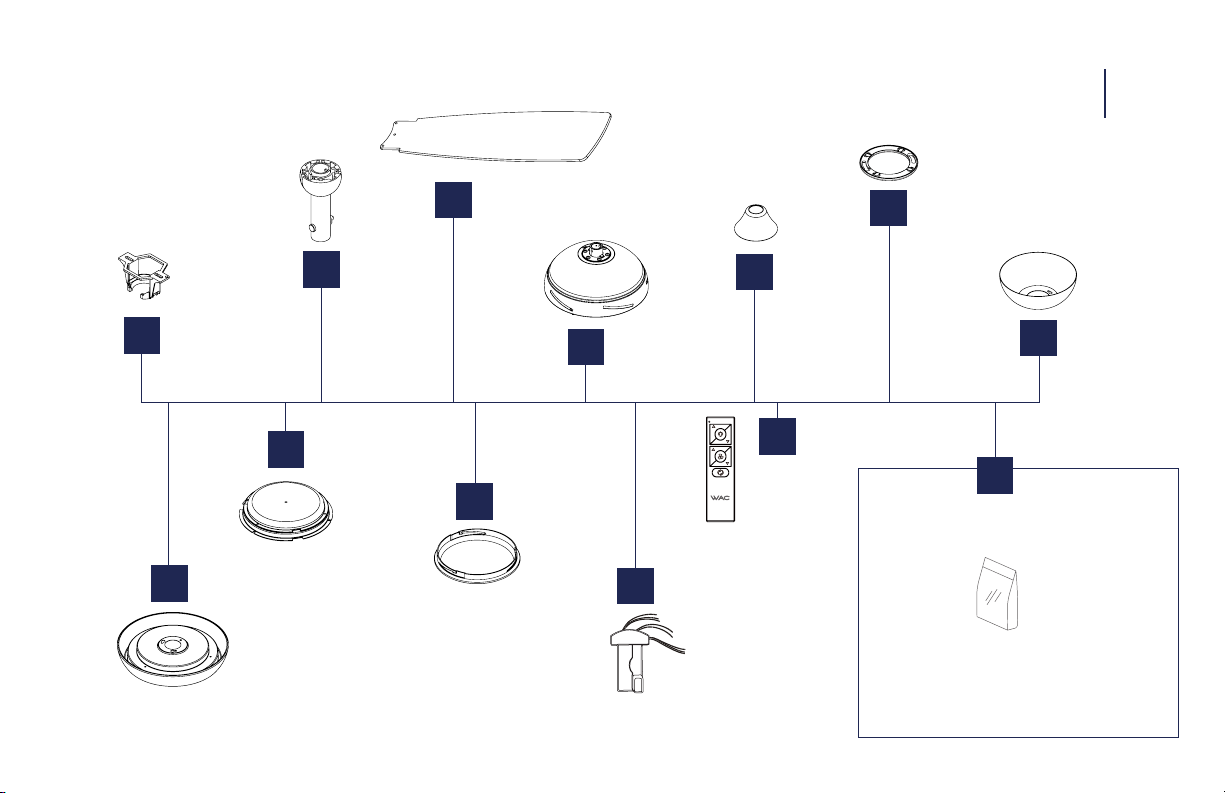

PACKAGE CONTENTS 04
Downrod
Assembly
Mounting
Bracket
RPL-F005-HGRASM-**
PC Shade
RPL-F005-GLA
Luminaire Module
F6IN-120V-R1-30
Receiver
F-R3-005-052

F-005L
10
1 2
05 MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET
1. Remove 1 set screw from mounting bracket and set
aside for use in Finishing the Installation.
2. Pass supply wires through mounting bracket and
secure to outlet box.
Standard Ceiling Slope Ceiling Caution: Remember to disconnect
the power at the circuit breaker.
CAUTION: To prevent electrical shock, ensure electricity has been
turned o at the circuit breaker before beginning.

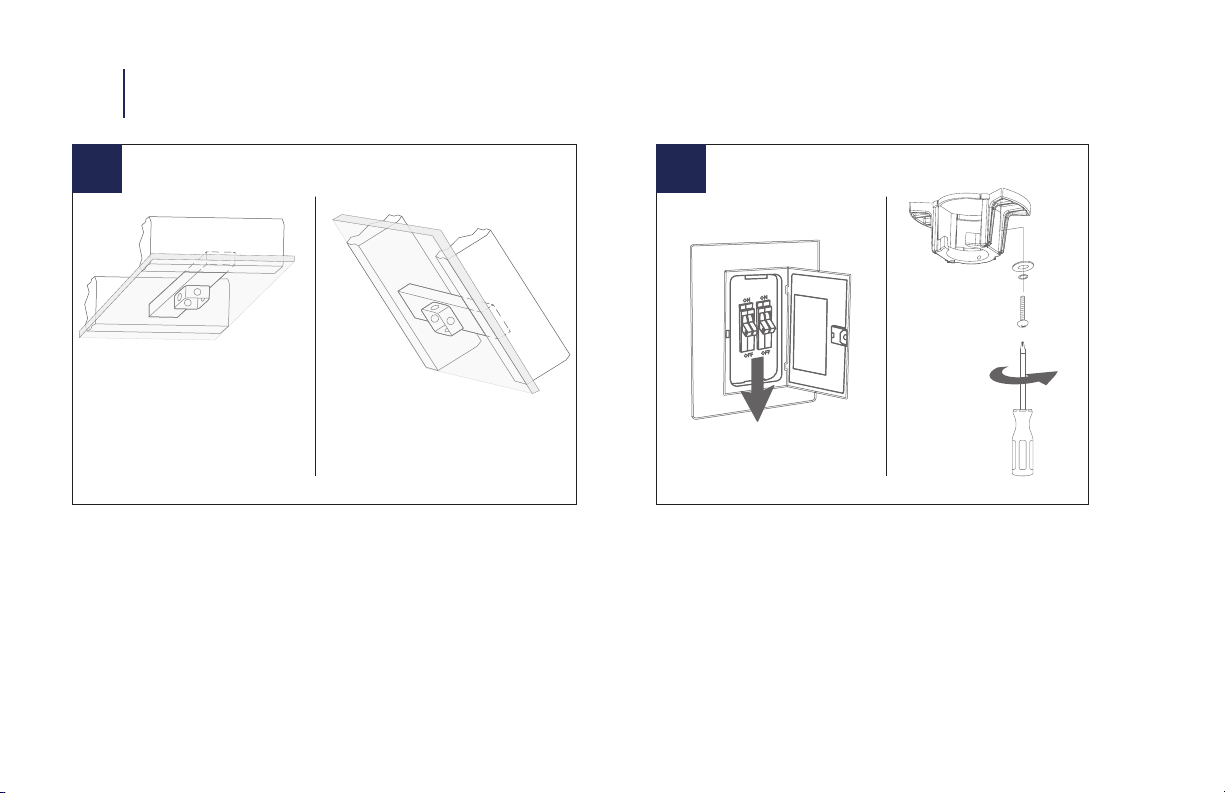

Figures 1 and 2 are examples of dierent ways to mount the
outlet box.

11F-005L

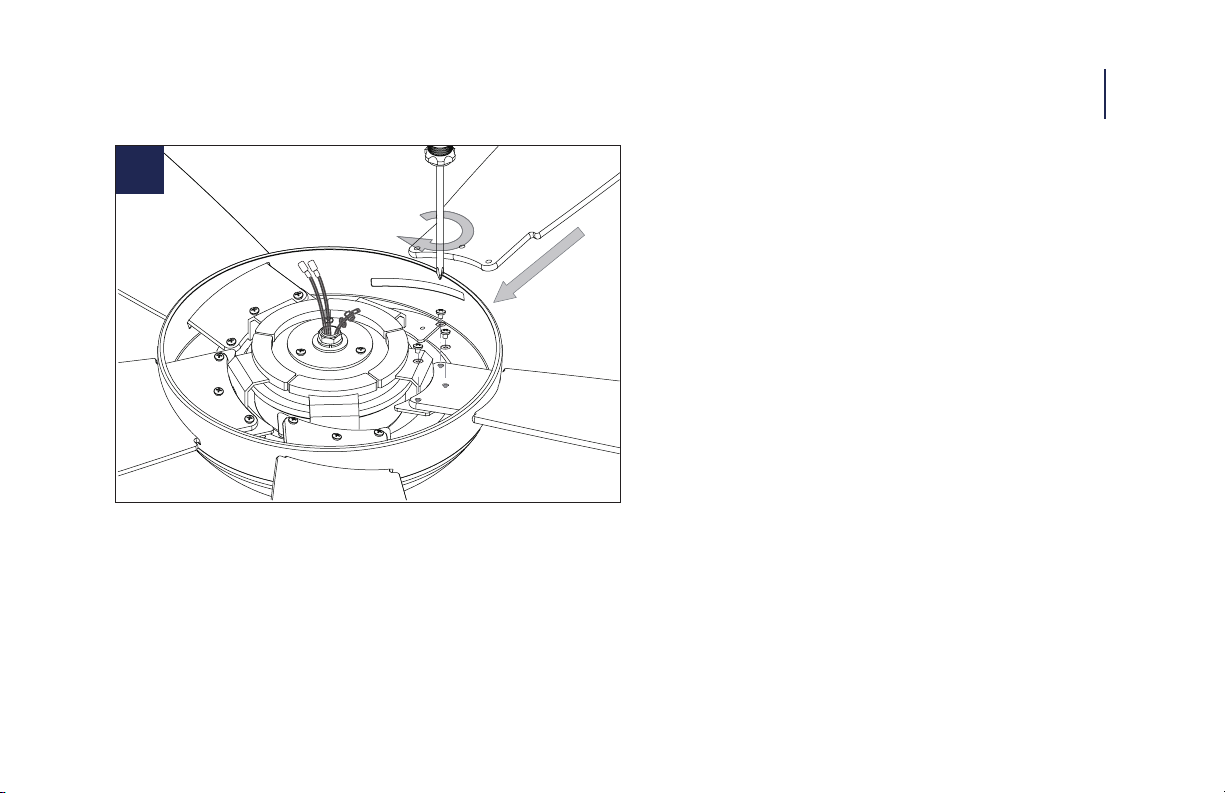

31. Remove set screws from motor housing.
2. Insert blades in slots, aligning with motor assembly holes.
3. Secure blades with blade attachment screws & washers.
ATTACHING THE FAN BLADES 06

F-005L
12
54

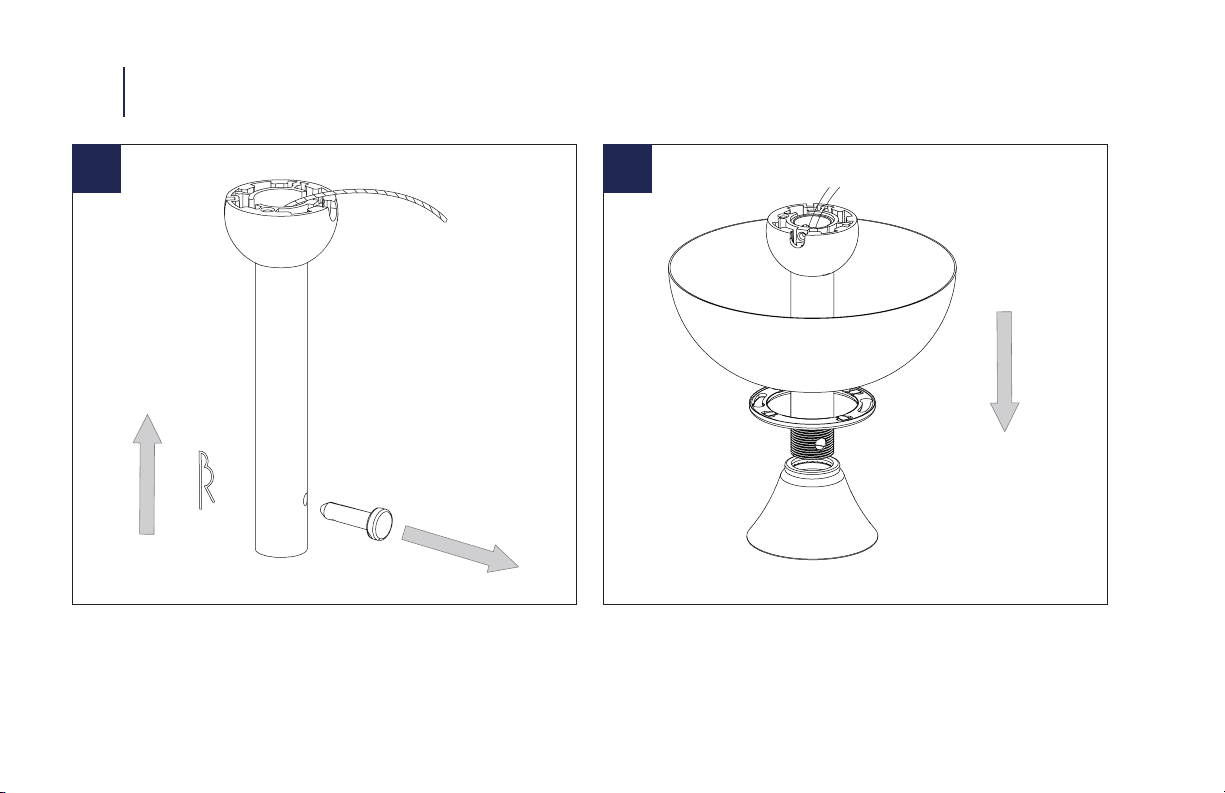

1. Remove screw from hanger ball. Remove hanger ball
and cross pin.
2. Loosen 2 screws, clevis pin and cotter pin.
1. Install coupling cover, canopy screw ring, canopy and
downrod assembly into motor housing as shown.
07 HANGING THE FAN

13F-005L
67
HANGING THE FAN 07

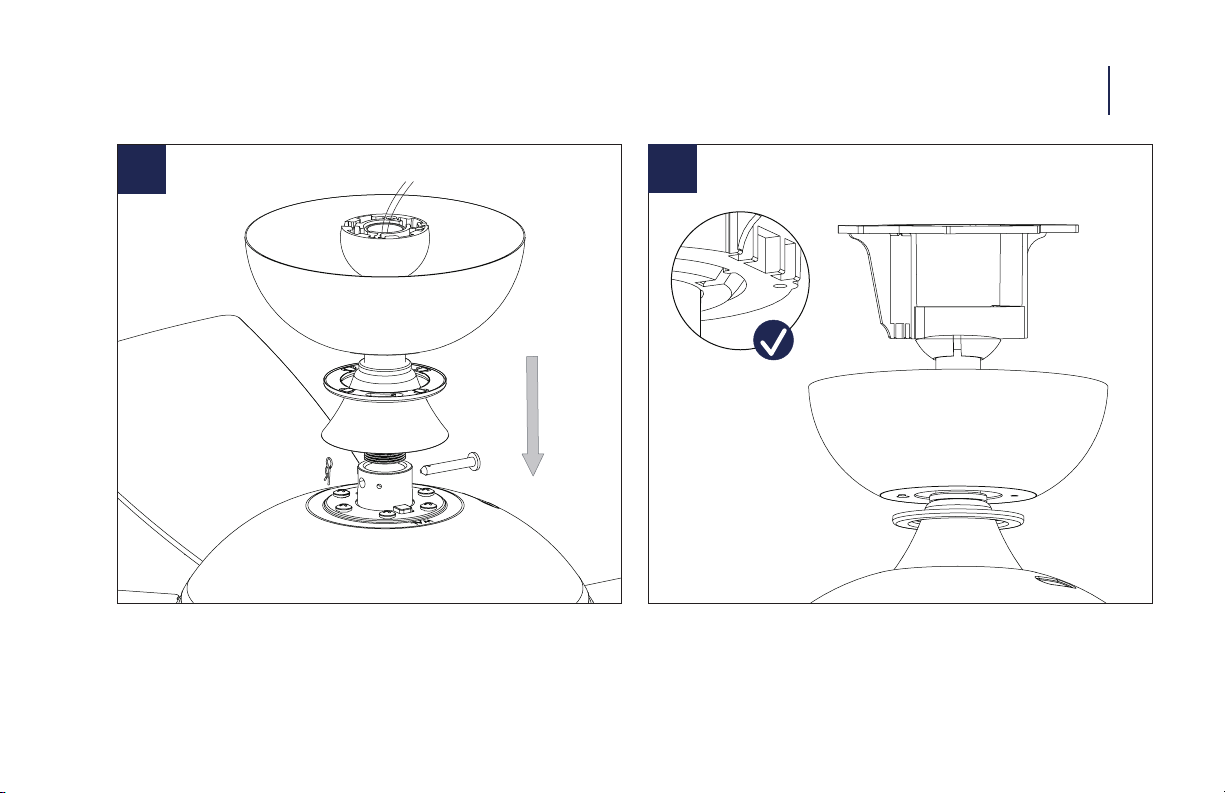

1. Align downrod and motor collar holes, re-insert pins and screws.
2. Slip up canopy and canopy screw cover. Re-install hanger ball
with cross pin in correct place.
1. Seat all into the mounting bracket. Rotate until ball drops and
locks into hanger bracket screw.

F-005L
14
9Outlet Box
8
1. Secure the safety cable into the structure beams using the
wood screw, washers, and spring washers provided.
NOTE: Safety cable is required for all ceiling fan installations in
Canada. Safety cable is required for ceiling fan and light (combo)
installations over 35 lbs. in both ush and downrod models in the
United States.
2. Slide receiver into place with the at side facing up.

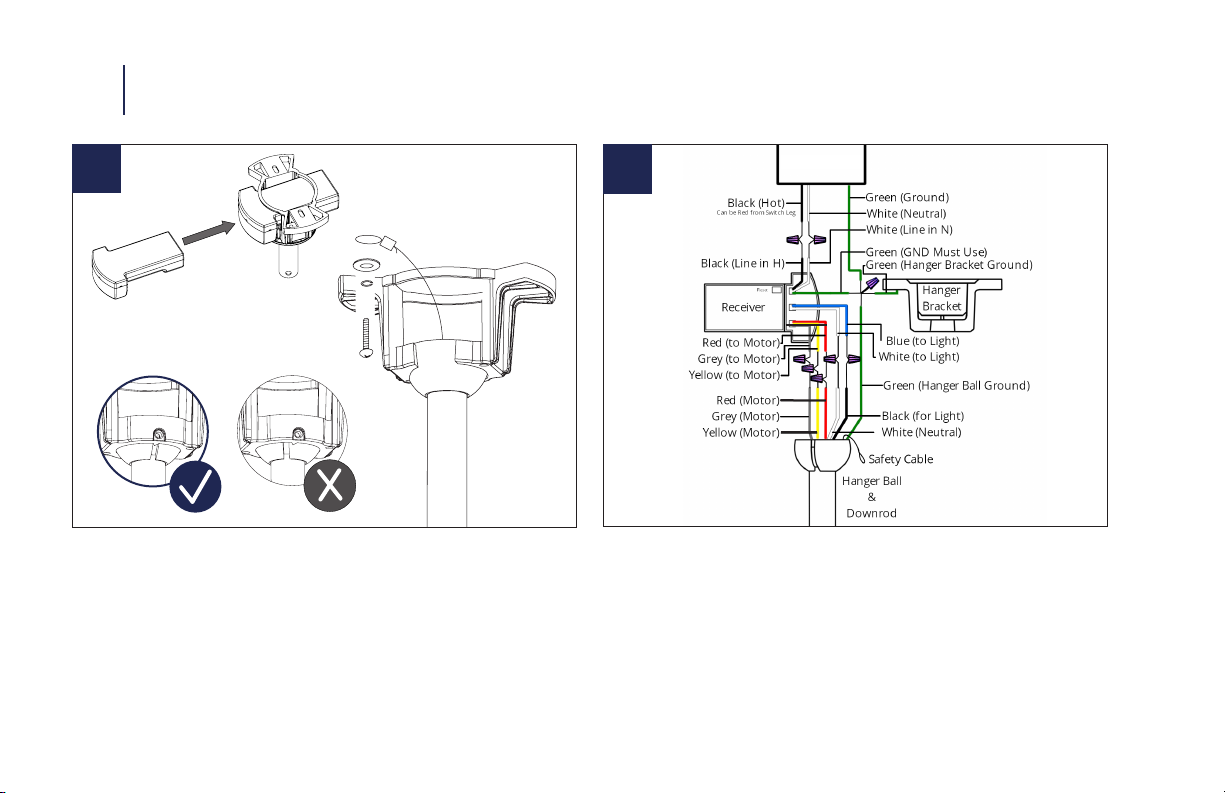

1. Connect the labled wires from fan to the corresponding wires
on the receiver.
2. Connect the labeled wires from the outlet box to the
corresponding wires on the receiver.
After making electrical connections, spliced connectors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded connector on the other side of the outlet box.
07 HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS

15F-005L
10
NOTE:Wall control not included. A Bluetooth wall control accessory can be purchased separately.
NOTE: For multi-location wiring, skip to the next step.
1. Connect the green wire marked“GROUND”from the wall control to the copper wire from the wall outlet box that
feeds back to the circuit breaker – important for proper fan function.
2. Connect the black wire marked “LINE IN” from the wall control to the black LINE VOLTAGE wire from the wall
outlet box that feeds back to the circuit breaker.
3. Connect the red wire from the wall control to the black wire from the wall outlet box that feeds up to the fan.
4. Connect the white wire from the wall control to the white (neutral) wire from the wall outlet box.
5. Carefully tuck the wire connections inside the outlet box. Secure the wall control with the two (2) wall control screws provided.
6. Attach the wall mounting plate over the wall switch and secure with the two (2) wall mounting plate screws provided.
7. Fasten the wall plate to the wall mounting plate.
INSTALLING THE WALL OPTIONAL CONTROL 08

F-005L
16

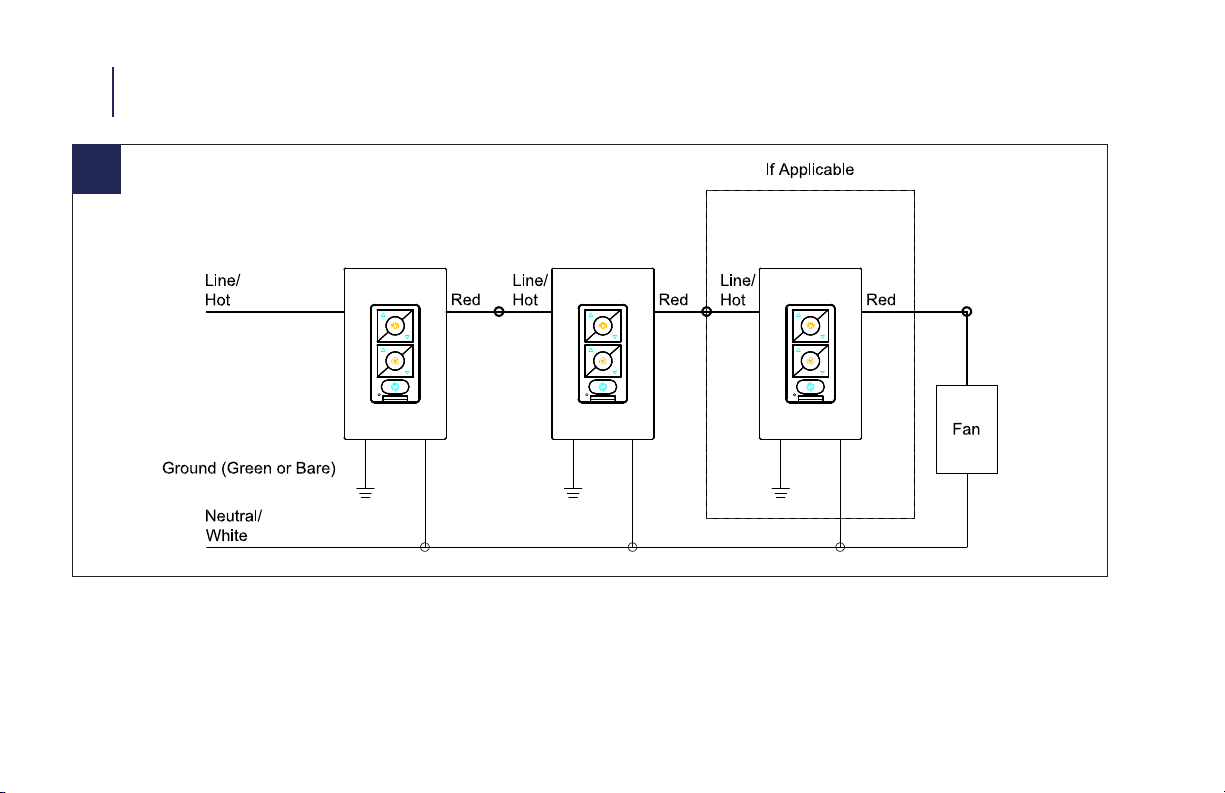

1. Install the wall control using the wiring diagram above.
2. Individually pair each of the wall controls with the fan receiver using the pairing instruction.
08 INSTALLING THE OPTIONAL WALL CONTROL
11
Wall Control 1 Wall Control 2 Wall Control 3

17F-005L
1312
1. Secure wire connectors with supplied wire ties.
2. Install canopy to mounting bracket with the screw re-
moved in section 2.
1. Install canopy screw ring as shown.
FINISHING THE INSTALLATION 09

F-005L
18
15

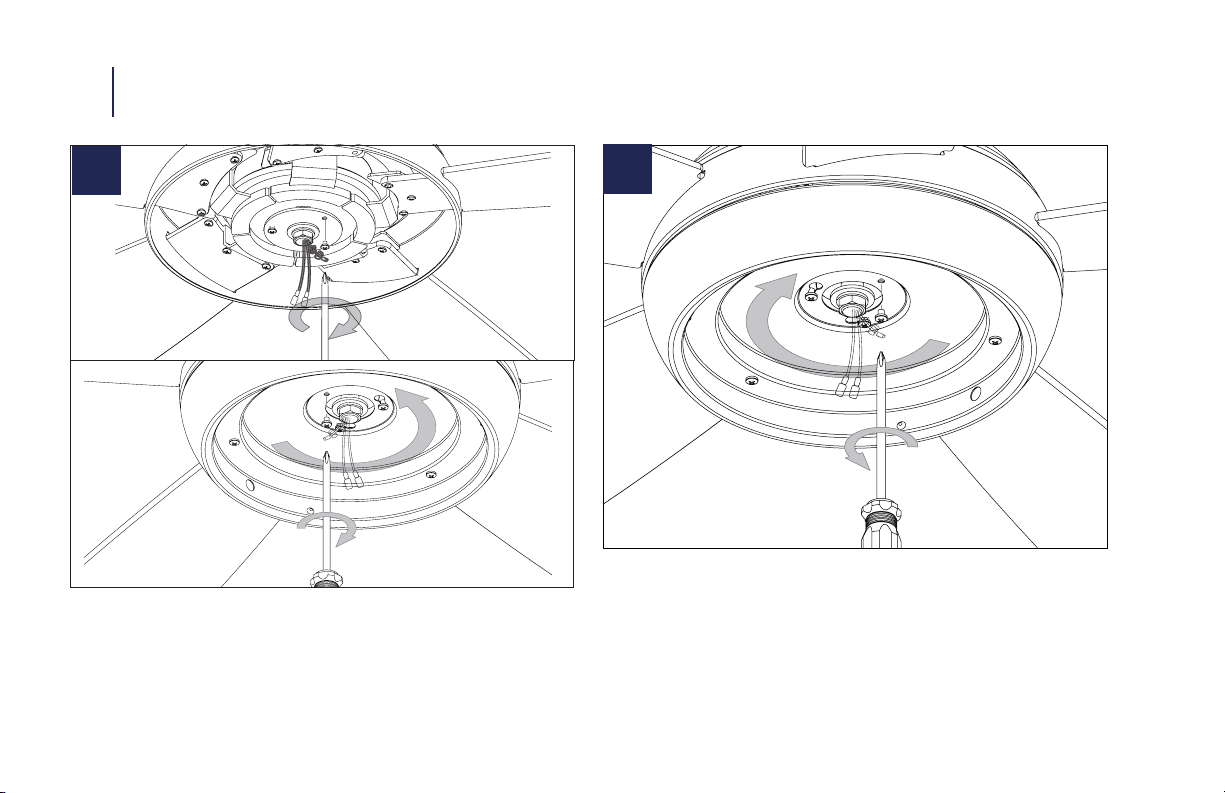

10 INSTALLING THE ADAPTER PLATE
14
1. Remove one of the three mounting plate screws from the
mounting ring and loosen the other two screws (do not remove).
2. Remove 1 of 3 screws and loosen the others (do not remove).
3. Install the adapter plate by twisting in the plate and tightening
the screws.
1. Twist and lock the adapter plate into place as shown.
2. Using the screw from the previous step, screw-in the
adapter plate.

19F-005L
17

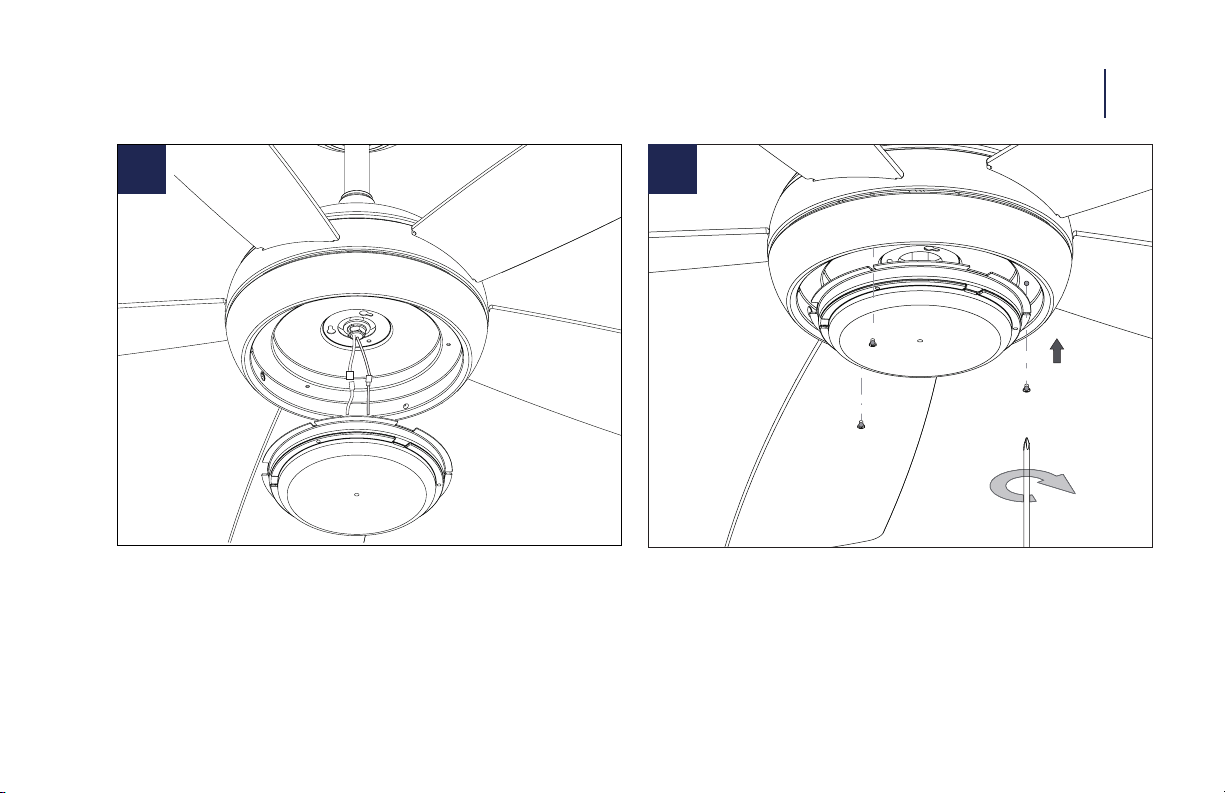

1. Remove 1 of 3 screws from the adapter plate and loosen
the others.
2. Secure the luminaire module with the 3 screws to the
adapter plate.
16
INSTALLING THE LUMINAIRE MODULE 11
1. Attach LED wires from motor assembly to luminaire module.

F-005L
20
19

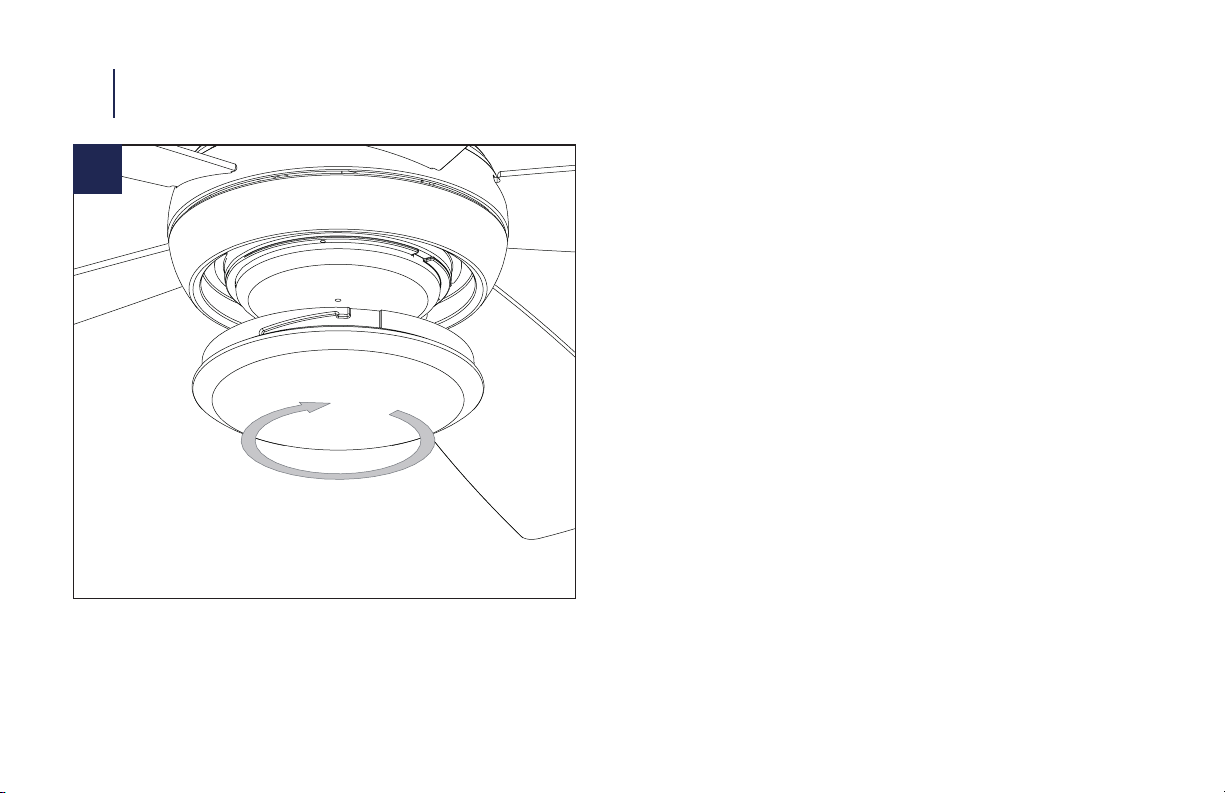

11 INSTALLING THE LUMINAIRE MODULE
1. Install PC shade without over-tightening.
