Waeco CombiPower 2012 User manual

CombiPower
2012, 2024
DE 5 Sinus-Wechselrichter mit integriertem
Automatiklader
Bedienungsanleitung
EN 35 Sine wave inverter with integrated
automatic charger
Operating manual
FR 64 Onduleur sinusoïdal avec chargeur
automatique intégré
Notice d’utilisation
ES 94 Inversor senoidal con cargador
automático integrado
Instrucciones de uso
IT 124 Inverter sinusoidale con caricatore
automatico integrato
Istruzioni per l’uso
_CombiPower_BA_DE-IT.book Seite 1 Freitag, 21. Oktober 2011 8:10 20

D
Fordern Sie weitere Informationen zur umfangreichen Produktpalette aus dem Hause
Dometic WAECO an. Bestellen Sie einfach unsere Kataloge kostenlos und unver-
bindlich unter der Internetadresse: www.dometic-waeco.de
GB
We will be happy to provide you with further information about Dometic WAECO
products. Please order our free catalogue with no obligation to buy on our homepage:
www.dometic-waeco.com
F
Demandez d’autres informations relatives à la large gamme de produits de la maison
Dometic WAECO. Commandez tout simplement notre catalogue gratuitement et sans
engagement à l’adresse internet suivante : www.dometic-waeco.com
E
Solicite más información sobre la amplia gama de productos de la empresa Dometic
WAECO. Solicite simplemente nuestros catálogos de forma gratuita y sin compromi-
so en la dirección de Internet: www.dometic-waeco.com
I
Per ottenere maggiori informazioni sull’ampia gamma di prodotti Dometic WAECO è
possibile ordinare una copia gratuita e non vincolante del nostro Catalogo all’indirizzo
Internet: www.dometic-waeco.com
NL
Maak kennis met het omvangrijke productscala van de firma Dometic WAECO. Bestel
onze catalogus gratis en vrijblijvend onder het internetadres:
www.dometic-waeco.com
DK
Bestil yderligere information om det omfattende produktudvalg fra Dometic WAECO.
Bestil vores katalog gratis og uforpligtende på internetadressen:
www.dometic-waeco.com
S
Inhämta mer information om den omfattande produktpaletten från Dometic WAECO:
Beställ våra kataloger gratis och utan förpliktelser under vår Internetadress:
www.dometic-waeco.com
N
Be om mer informasjon om det rikholdige produktutvalget fra Dometic WAECO.
Bestill vår katalog gratis uforbindtlig på Internettadressen: www.dometic-waeco.com
FIN
Pyytäkää lisää tietoja Dometic WAECOn kattavista tuotevalikoimista. Tilatkaa tuoteku-
vastomme maksutta ja sitoumuksetta internet-osoitteesta: www.dometic-waeco.com
_CombiPower_BA_DE-IT.book Seite 2 Freitag, 21. Oktober 2011 8:10 20

CombiPower
3
1 2 3 4 5 6
7
8
15
16
17
91011121314
1
2
_CombiPower_BA_DE-IT.book Seite 3 Freitag, 21. Oktober 2011 8:10 20

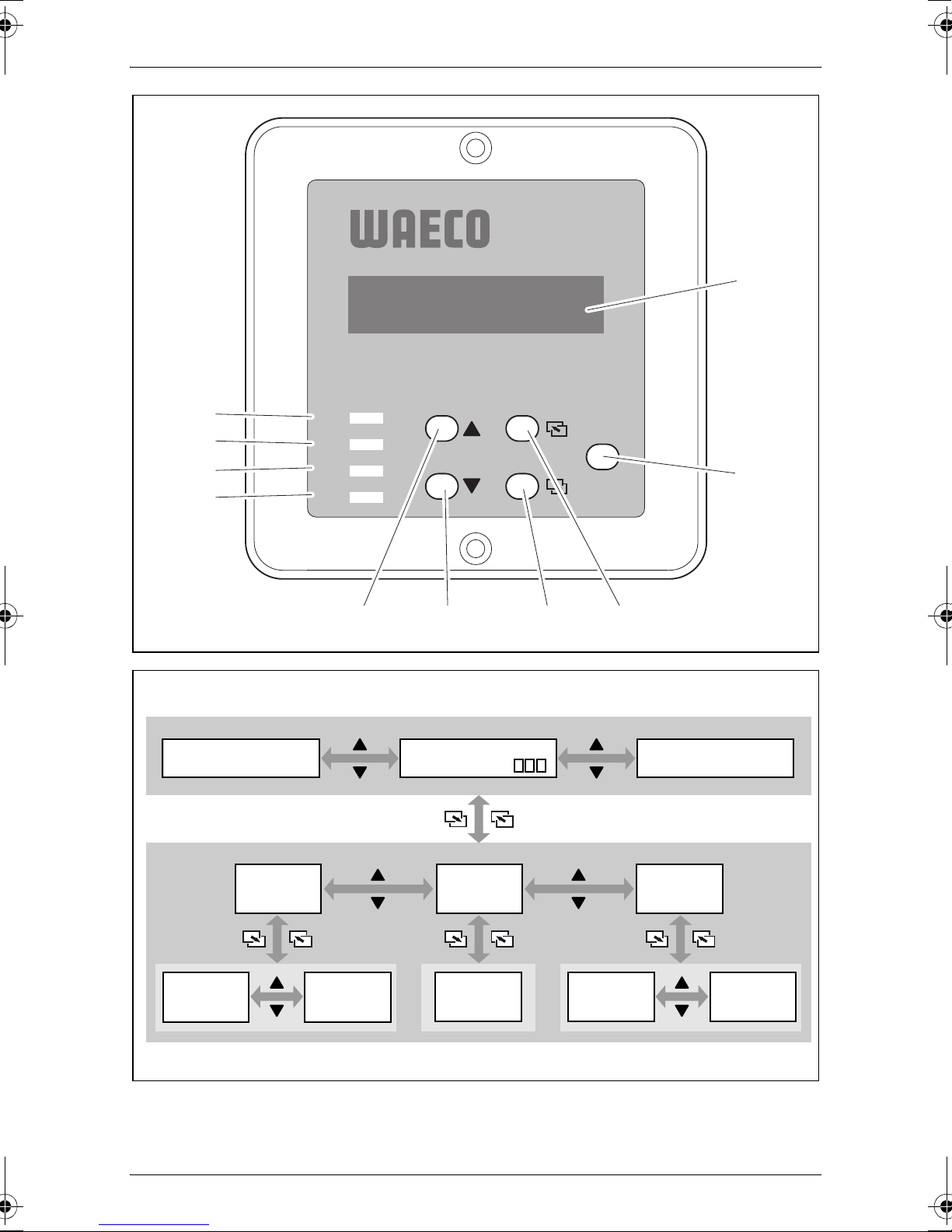

CombiPower
4
Ii:5.0
FQ:50
Vi:230
W:1150
WAECO COMBO
AC GRD
ON / OFF
INVERTER
CHARGER
ALARM
1
2
34
56
7
8
9
10
3
Ig=XX.X Vg=XXX.X
FQ=XX.X W=XXX
Ib=XXX °C = XX.X
Vb=XX.X
Ii=XX.X Vi=XXX.X
FQ=XX.X W= XX.X
Another
Param
Change
Run Mode
Input
Password
CHR
Power On
Iac
Setup
Power
Sharing
COMBI
Power On
P.S. Mode
Param
4
_CombiPower_BA_DE-IT.book Seite 4 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower
35
Please read this manual carefully before installing and using the
device, and keep it in a safe place. If you sell the device, pass on this
instruction manual to the buyer.
Table of contents
1 Notes on using the instruction manual. . . . . . . . . . . . . . . . . . . . . . . 36
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5 Switching the device on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6 Configuring the device with the remote control . . . . . . . . . . . . . . . . 49
7 Maintaining and cleaning the device . . . . . . . . . . . . . . . . . . . . . . . . 57
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
_CombiPower_BA_DE-IT.book Seite 35 Freitag, 21. Oktober 2011 8:10 20

EN
Notes on using the instruction manual CombiPower
36
1 Notes on using the instruction manual
DDANGER!
Safety instruction: Failure to observe this instruction will cause
fatal or serious injury.
!WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
!CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
ANOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
INOTE
Supplementary information for operating the product.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
Please observe the following safety instructions.
_CombiPower_BA_DE-IT.book Seite 36 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower General safety instructions
37
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from
the following:
zFaulty assembly or connection
zDamage to the product resulting from mechanical influences and excess
voltage
zAlterations to the product without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
zBefore you use the device for the first time, check that the
operating voltage matches the mains voltage (see type plate).
zIn the event of fire, use a fire extinguisher which is suitable for
electrical devices.
!WARNING!
zDo not use the device if the device itself or its connection cables
are visibly damaged.
zThis device may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
Should your device need to be repaired, please contact custom-
er services.
zPersons whose physical sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
zElectrical devices are not toys.
Always keep and use the device out of the reach of children.
zChildren must be supervised to ensure that they do not play with
the device.
zIf a battery is connected, the device is live, even if the main
switch is turned off.
_CombiPower_BA_DE-IT.book Seite 37 Freitag, 21. Oktober 2011 8:10 20

EN
General safety instructions CombiPower
38
!CAUTION!
zDisconnect the device from the mains:
– Before working on the device
– Before cleaning and maintenance
– After use
ANOTICE!
zCheck that the voltage specification on the type plate is the
same as that of the power supply.
zEnsure that other objects cannot cause a short circuit at the
contacts of the device.
zEnsure that the red and black terminals never come into
contact.
zDo not pull on the cables.
zNever pull the plug out of the socket by the cable.
2.2 Operating the device safely
!WARNING!
zBefore starting the consumer devices, make sure that the power
supply line and the plug are dry.
!CAUTION!
zEven after the fuse triggers, parts of the inverter remain live.
zDo not disconnect any cables when the device is still in use.
ANOTICE!
zNever expose the device to moisture.
zMake sure that none of the air inlets and outlets are blocked. If
necessary, clean the vents before you use the device.
zEnsure good ventilation.
zDo not connect the 230 V output of the inverter to a different
230 V source.
_CombiPower_BA_DE-IT.book Seite 38 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower General safety instructions
39
2.3 Safety precautions when handling batteries
!WARNING!
zBatteries contain aggressive and caustic acids. Avoid battery
fluid coming into contact with your body. If your skin does come
into contact with battery fluid, wash the part of your body in
question thoroughly with water.
!CAUTION!
zDo not smoke and ensure that no sparks can arise in the vicinity
of the engine or battery.
ANOTICE!
zOnly use rechargeable batteries.
zMake sure the polarity is correct when connecting the battery:
– Red terminal – positive battery terminal
– Black terminal – negative battery terminal
zPrevent any metal parts from falling on the battery. This can
cause sparks or short-circuit the battery and other electrical
parts.
zFollow the instructions of the battery manufacturer and those of
the manufacturer of the system or vehicle in which the battery is
used.
zNever attempt to charge frozen batteries.
zIf you need to remove the battery, first disconnect the earth
connection. Disconnect all connections and all consumers from
the battery before removing it.
_CombiPower_BA_DE-IT.book Seite 39 Freitag, 21. Oktober 2011 8:10 20

EN
Intended use CombiPower
40
3 Intended use
Sine wave inverters with integrated automatic chargers are designed to
convert 12 V or 24 V DC voltage to 230 V AC voltage with a frequency of
50 Hz, as well as to charge the following batteries:
zLead automotive batteries
zLead gel batteries
zMaintenance-free batteries
zAbsorbed glass mat (AGM) batteries
Never use the devices to charge other battery types (such as NiCd or NiMH).
!WARNING!
Do not use the device to power medical equipment.
!WARNING! Danger of explosions
Do not charge batteries with a cell short circuit. The oxyhydrogen
they produce can cause explosions.
Do not charge nickel cadmium and non-rechargeable batteries with
the charger. The cases of these batteries can burst explosively.
_CombiPower_BA_DE-IT.book Seite 40 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower Technical description
41
4 Technical description
4.1 General description
The sine wave inverter with integrated automatic charger is a combination of
two devices:
zBattery charger
zSine wave inverter

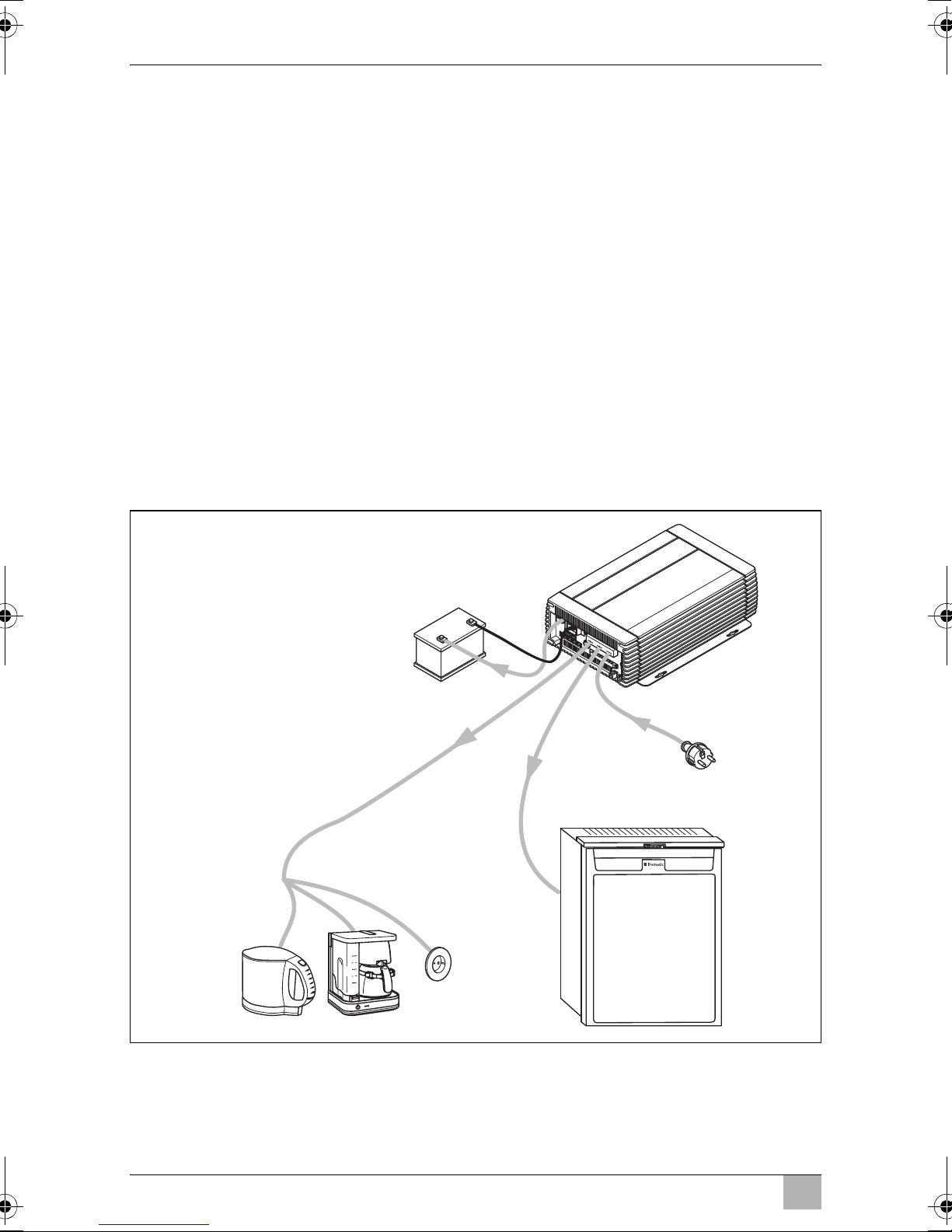

The device can be used as follows:
zAs an automatic charger (6-stage charging characteristic)
zAs a sine wave inverter: the device produces a pure 230 V output voltage
zPower sharing: the device powers a connected load with 230 V and simul-
taneously charges a battery
zGenerator function (mains voltage function): the device supports a 230 V
mains voltage by supplementing it with energy from a battery (common
power source)
zPower support (PSF): the device supports a 230 V mains voltage with
energy from a battery by powering some of the loads from the battery and
the others from the 230 V mains supply (separate power sources)
zUninterruptible power supply (UPS): the device powers connected loads
from a battery when the mains supply fails
The device has the following protective systems:
zDC low voltage shutdown
zDC overvoltage shutdown
zOverheating protection
zOverload protection
The device is operated using a remote control.
_CombiPower_BA_DE-IT.book Seite 41 Freitag, 21. Oktober 2011 8:10 20

EN
Technical description CombiPower
42
4.2 Connections and controls
No. in
fig. 1,
page 3
Designation Explanation/function
1 POS (+) Positive terminal
2 NEG (–) Negative terminal
3 5A CHARGER/
2.5A CHARGER
5 A/2.5 A charger connection
4 INV. AC OUTPUT 230 V inverter output
zL: Live conductor
zN: Neutral conductor
zFG: Earth connection
5 AC OUTPUT 230 V output
zL: Live conductor
zN: Neutral conductor
zFG: Earth connection
6 AC INPUT 230 V input
zL: Live conductor
zN: Neutral conductor
zFG: Earth connection
7 – Cover
8 CIRCUIT
BREAKER
LS: Circuit breaker
The circuit breaker is triggered when there is
excess current or a short circuit.
➤Eliminate the cause of the fault.
➤Press the switch to reset the device.
9 CHASSIS
GROUND
Earth connection
10 – Main switch:
z0: Off
zI: On
The main switch overrides the remote control set-
tings. When the main switch is in the “0” position,
you cannot switch on the device with the remote
control.
_CombiPower_BA_DE-IT.book Seite 42 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower Technical description
43
11 CAN2 CAN bus connection
12 CAN1 CAN bus connection
13 LCM Remote control connection
14 RS-232 Serial RS-232 port for connecting to a PC
15 BAT. TEMP. Battery sensor connection
16 FAILURE Connection for fault indicator relay
17 INV CHR Connection for external switch
No. in
fig. 1,
page 3
Designation Explanation/function
_CombiPower_BA_DE-IT.book Seite 43 Freitag, 21. Oktober 2011 8:10 20

EN
Technical description CombiPower
44
4.3 Remote control
No. in
fig. 3,
page 4
Symbol Explanation/function
1 – Display: Shows operating messages or settings
2 ON/OFF To switch on the device: press briefly
To switch off the device: hold down (> 3 s)
3 Scroll through menu (level up; vertical scroll)
4 Hold down (> 2 s): open setup menu
Press briefly: scroll through menu (level down;
vertical scroll) or confirm value (ENTER function)
5▼Scroll through menu (back; horizontal scroll) or
select a value
6▲Scroll through menu (forward; horizontal scroll) or
select a value
7 ALARM LED for alarm display
zRed light: 230 V over/undervoltage alarm, 12 V
over/undervoltage alarm, overload or fan mal-
function
8 CHARGER Charging status LED:
zGreen light: charging
zOff: not charging
9 INVERTER Inverter status LED:
zGreen light: inverter mode
zRed light: inverter fault
zOff: inverter mode off
10 AC GRID Mains voltage status LED:
zGreen light: AC voltage at input
zOff: no AC voltage at input
_CombiPower_BA_DE-IT.book Seite 44 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower Technical description
45
4.4 Status displays
The status displays on the remote control (fig. 31, page 4) show the current
device parameters. Use the “▼” and “▲” buttons to switch between the
displays (fig. 4, page 4).
Symbol Explanation
Ib Battery current
Ig Generator current
Ii Inverter current
Vb Battery voltage
Vg Generator voltage
Vi Inverter voltage
FQ Frequency (Hz)
W Power (watts)
°C Battery temperature
Main battery charging phase
z: battery not charging
z: I phase active
z: U0 phase active
z: U phase active
_CombiPower_BA_DE-IT.book Seite 45 Freitag, 21. Oktober 2011 8:10 20

EN
Technical description CombiPower
46
4.5 Battery charging function
The charging characteristics are referred to as modified IU0U characteristics.
1: Analysis phase
First, the battery charge is analysed with increasing charge current.
2: I phase (bulk)
At the beginning of the charging process, the flat battery is charged with a
constant current (100% charge current) until the battery voltage reaches
14.4 V or 28.8 V. The charging current decreases when the battery has
reached this charging level.
3, 4: U0 phase (absorption)
Now the two-stage absorption charging process (U0-Phase) begins, where
the charge voltage and duration depend on the size and type of the battery.
Different voltages can be set for phases 3 and 4, which remain constant until
the maximum charging current (6% of the set current) is reached.
Phase 4 ends no later than 8 hours after 13.8 V or 27.6 V is reached.
U0 U
U
I
I
1
100 %
6 %
23 54
t
U/V
I/A 6
_CombiPower_BA_DE-IT.book Seite 46 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower Technical description
47
5: U Phase (floating)
The U phase serves to maintain the battery capacity (100%).
If DC loads are connected, they are powered by the device. Only if the power
required exceeds the capacity of the device is this surplus power provided by
the battery. The battery is then discharged until the device re-enters the I
phase and charges the battery.
6: 14-day conditioning
Every 14 days, the battery charger switches back to phase 2 in order to
revive the battery. This prevents any fatigue symptoms such as sulphation.
4.6 5 A/2.5 A charger (second battery connection)
The device has a connection for a second battery (3-step charger). You can
charge a small battery (such as an automotive battery) using this connection.
The charging voltage is 14.4 V or 28.8 V. The maximum charging current is
5Aor2.5A.
4.7 Inverter function
In inverter mode, the device supplies a regulated 230 V voltage.
The maximum constant output is 2000 W. Do not connect any devices with
a higher power rating. If you connect several devices, make sure their total
power rating does not exceed 2000 W.
INOTE
Note when connecting devices with an electrical drive (such as
power drills, refrigerators and switched-mode power supply), that
they often need more power than is stated on the type plate.
An adjustable energy saving mode protects the battery. It regularly checks
whether battery power needs to be used. If not, the function is deactivated
and no idle current is used.
_CombiPower_BA_DE-IT.book Seite 47 Freitag, 21. Oktober 2011 8:10 20

EN
Switching the device on and off CombiPower
48
4.8 Connections
A battery is connected to the positive and negative terminals. A 230 V power
source can be connected to the “AC INPUT” input (fig. 16, page 3). The
power supply via “AC INPUT” takes precedence over the battery power
supply, so that the battery is not discharged unnecessarily.
Voltage is present at the outputs under the following conditions:
z“INV. AC OUTPUT” (fig. 14, page 3)
– A battery is connected
– A 230 V power source is connected
– A battery and a 230 V power source are connected
(The battery is charged when the consumer devices do not require all
the power)
z“AC OUTPUT” (fig. 15, page 3)
– A 230 V power source is connected
5 Switching the device on and off
INOTE
The main switch (fig. 110, page 3) on the device must be in the
“I” position.
➤Press the “ON/OFF” button (fig. 32, page 4) on the remote control.
✓The device is switched on and the message “System Initialisation …”
appears in the display.
✓After a few seconds, the display shows the message “System startup
please wait…”.
The system status is checked.
✓After 5 to 10 seconds, the display is ready and shows the status of the
device:
– The device is ready for use: the display shows operating parameters.
– Alarm messages are present: undervoltage, overload, fan failure,
overtemperature
– Faults have occurred: undervoltage (UVP), overvoltage (OVP), over-
temperature (OTP), overload (OLP)
_CombiPower_BA_DE-IT.book Seite 48 Freitag, 21. Oktober 2011 8:10 20

EN
CombiPower Configuring the device with the remote control
49
6 Configuring the device with the
remote control
6.1 Overview of parameters
INOTE
zFor the menu and parameter structure, see fig. 4, page 4.
zAccess to the “Another Param” menu is password-protected.
This menu can only be accessed by technicians.
“Change Run Mode” menu (operating mode)
“P.S. Mode Param” menu (power sharing mode)
Parameter Explanation
COMBI Power On The device acts as a charger and, if necessary, as an
inverter if there is not sufficient current at the AC input.
CHR Power On The device only acts as a charger. The inverter function is
deactivated.
Parameter Explanation Value range Default
Iac setup Power sharing level: limits the cur-
rent at the 230 V input (overload
protection).
3 A – 25 A 3 A
Power
Sharing
Determines the power sharing mode:
Disable = deactivated
GEN. = generator function
SUPP. = support function
SHAR. = power sharing
“SHAR.” enables the power sharing
function.
“SHAR. GEN.” enables the power
sharing and generator functions.
“SHAR. SUPP.” enables the power
sharing and support functions.
“SHAR. SUPP. GEN.” enables the
power sharing, support and genera-
tor functions.
Disable
SHAR.
SHAR. GEN.
SHAR. SUPP.
SHAR. SUPP. GEN.
Disable
_CombiPower_BA_DE-IT.book Seite 49 Freitag, 21. Oktober 2011 8:10 20

EN
Configuring the device with the remote control CombiPower
50
6.2 Enabling functions
The device supports the functions described below.
Power sharing function
If the load from the connected consumer devices and the battery charging
current is higher than the connected 230 V power source, the fuse of the
power source would normally blow. In power sharing mode, the device
reduces the battery charging current and thus increases the power available
for connected consumers.
The power sharing level (current at the 230 V input) can be configured using
the remote control. If must be adapted to the fuse of the power source. For
example, if it has a 10 A fuse, the power sharing level must also be 10 A (see
chapter “Limiting the input current at the 230 V input (power sharing level)”
on page 56).
Example:
INVERTOR
OFF
CHARGER
INV
ENB
ENB
ENB
ENB
GND
N.O
COM
W:C
CHRFAILURE
POS[+]NEG[-]
INV.AC
OUTPUT
LFG N
50AMAX
ACOUTPUT
50AMAX
ACINTPUT
LFGL
FGN
BAT.
TEMP
.
RS-232LCMCAN1CAN2CHASSIS
GROUND
+-
12/24 V
230 V
AC INPUT
230 V
2
4
MAX
INV. AC
OUTPUT
AC OUTPUT
_CombiPower_BA_DE-IT.book Seite 50 Freitag, 21. Oktober 2011 8:10 20
